Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#22718) — 175 parça

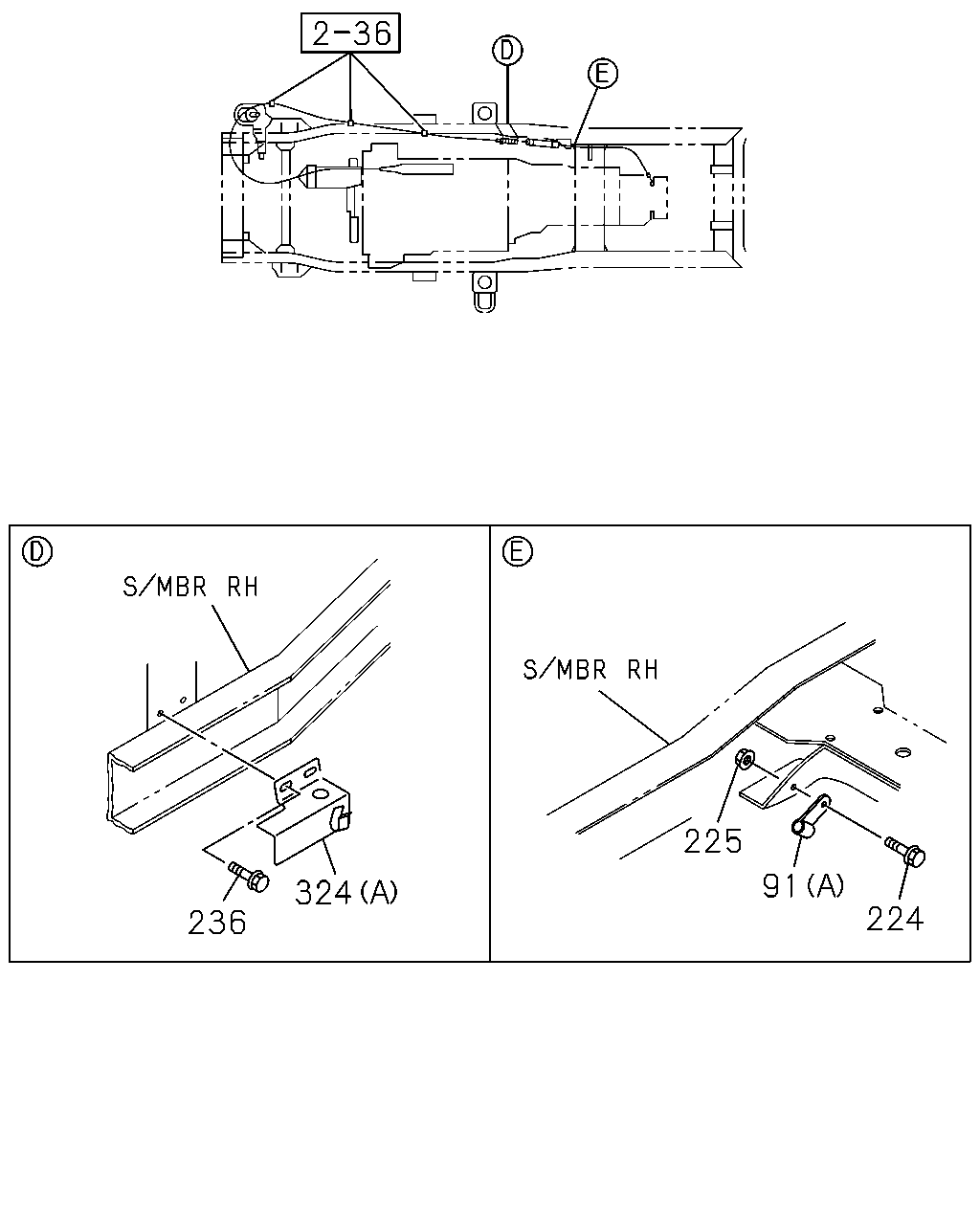

225 91 324 224 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=50	9-09525-286-0	01	1	0607-0607	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=50	0-95235-286-0	01	1	0607-	●
91	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0302-0506	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JH1-TC ENG(RDM) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0507-0606	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0607-		●	●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
224	04.785 BOLT; CABLE CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-		●	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0302-0506	●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM) 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0507-0512	●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-0606	●	●	●
224	04.785 BOLT; CABLE CLIP 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0607-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
225	04.785 NUT; CABLE CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1 ENG(RJX) M10 FLANGE	0-91150-110-0	01	1	0302-0506	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0606	●	●	●
225	04.785 NUT; CABLE CLIP 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-		●	●
236	04.785 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●
236	04.785 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
236	04.785 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●
236	04.785 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
324	04.785 BRACKET (B)	8-97380-242-1	01	1	0607-	●
324	04.785 BRACKET (C)	8-97383-571-0	01	1	0607-	●
324	04.785 BRACKET (D)	8-98000-600-1	01	1	0607-	●
324	04.785 BRACKET 04.047 (E)	8-97047-898-0	01	1	0607-	●	●	●
324	04.785 BRACKET 4JH1 ENG(RJX) (A)	8-97289-364-0	01	1	0302-0506	●	●	●
324	04.785 BRACKET 4JH1-TC ENG(RDM) (A)	8-97289-364-0	01	1	0507-0606	●	●	●
324	04.785 BRACKET 4JJ1 ENG(LFB) (I)	8-98019-522-1	01	1	0607-	●	●	●
324	04.785 BRACKET (G)	8-98001-270-0	01	1	0607-		●	●
324	04.785 BRACKET (H)	8-98001-271-1	01	1	0607-		●	●
324	04.785 BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97369-697-0	01	1	0607-		●	●

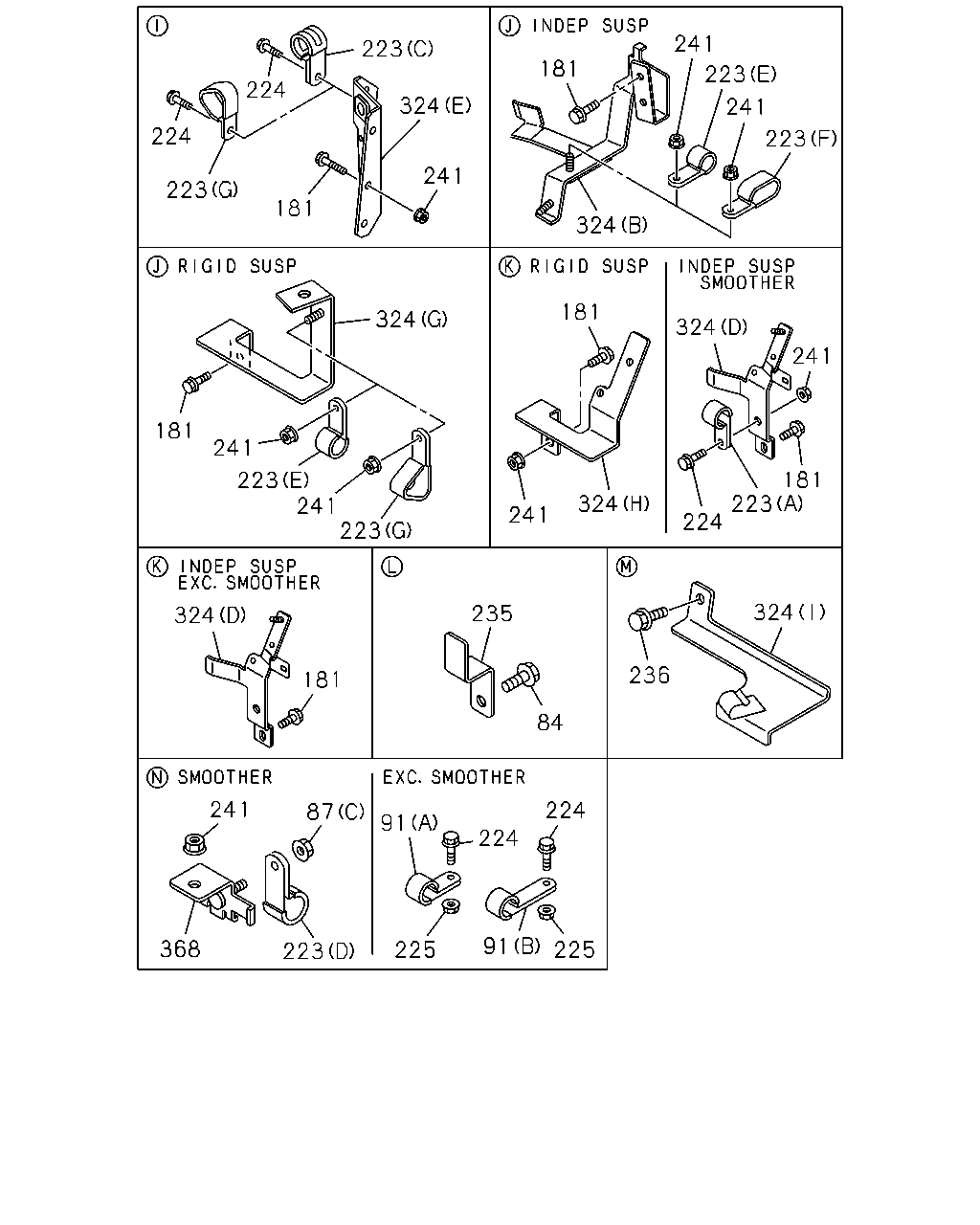

241 223 181 223 224 324 241 224 223 241 223 181 324 181 324 324 241 181 241 181 223 224 223 241 223 324 241 324 235 324 236 181 84 241 224 87 91 224 91 368 225 225 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
84	04.790 BOLT; CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
87	04.785 NUT (B) M6	8-97088-730-1	01	1	0302-0310	●	●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0611	●	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-	●	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0607-	●	●	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=50	9-09525-286-0	01	1	0607-0607	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=50	0-95235-286-0	01	1	0607-	●
91	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0302-0506	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JH1-TC ENG(RDM) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0507-0606	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0607-		●	●
181	04.785 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0607-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
181	04.785 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0607-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F)	8-97137-589-0	01	1	0607-	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 08.846 (A) ID=24 L=32	1-09700-766-1	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=14.5 L=20	1-09701-012-0	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (D) ID=13 L=20	1-09701-138-1	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (E) ID=16 L=28	9-09525-556-0	01	1	0607-0607	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (E) ID=16 L=28	0-95235-556-0	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G)	8-97036-333-1	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G)	8-97036-333-1	01	1	0607-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97147-985-0	01	1	0607-	●	●	●
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
224	04.785 BOLT; CABLE CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-		●	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX) 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0302-0506	●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM) 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0507-0512	●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1-TC ENG(RDM) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0601-0606	●	●	●
224	04.785 BOLT; CABLE CLIP 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0607-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
225	04.785 NUT; CABLE CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1 ENG(RJX) M10 FLANGE	0-91150-110-0	01	1	0302-0506	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0606	●	●	●
225	04.785 NUT; CABLE CLIP 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-		●	●
235	04.785 BRACKET; CONT CABLE TO FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98037-097-0	01	1	0607-	●	●	●
236	04.785 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●
236	04.785 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
236	04.785 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●
236	04.785 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
241	04.785 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-		●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
324	04.785 BRACKET (B)	8-97380-242-1	01	1	0607-	●
324	04.785 BRACKET (C)	8-97383-571-0	01	1	0607-	●
324	04.785 BRACKET (D)	8-98000-600-1	01	1	0607-	●
324	04.785 BRACKET 04.047 (E)	8-97047-898-0	01	1	0607-	●	●	●
324	04.785 BRACKET 4JH1 ENG(RJX) (A)	8-97289-364-0	01	1	0302-0506	●	●	●
324	04.785 BRACKET 4JH1-TC ENG(RDM) (A)	8-97289-364-0	01	1	0507-0606	●	●	●
324	04.785 BRACKET 4JJ1 ENG(LFB) (I)	8-98019-522-1	01	1	0607-	●	●	●
324	04.785 BRACKET (G)	8-98001-270-0	01	1	0607-		●	●
324	04.785 BRACKET (H)	8-98001-271-1	01	1	0607-		●	●
324	04.785 BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97369-697-0	01	1	0607-		●	●
368	04.785 BRACKET; T/M SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97372-863-1	01	1	0607-	●	●	●

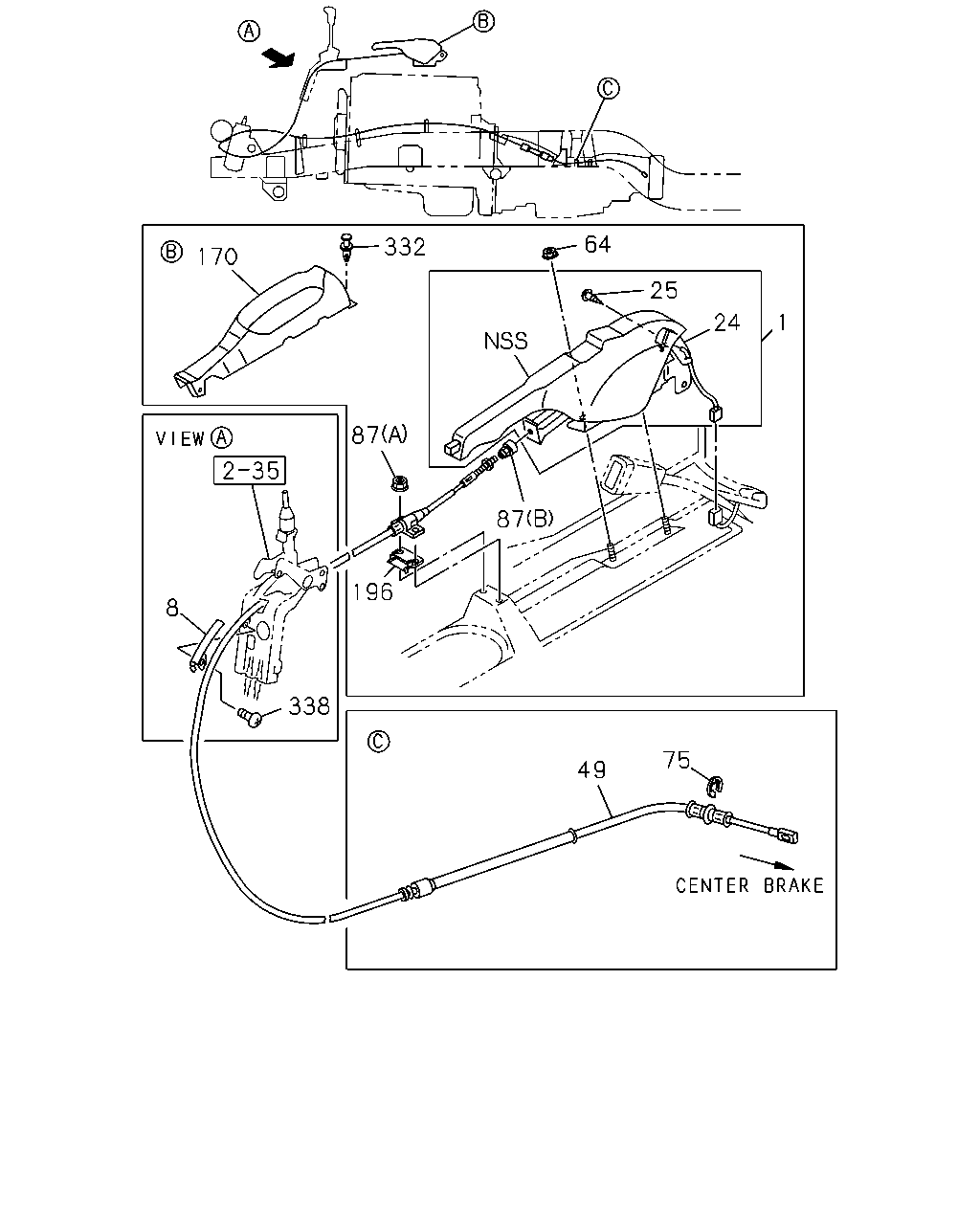

64 332 170 25 24 1 87 196 8 338 75 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-2	01	1	0302-0506	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97582-333-2	01	1	0507-0610	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0611-	●	●	●
8	04.592 GUIDE; PARKING BRK	8-97190-672-0	01	1	0302-	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0302-	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0302-	●	●	●
49	04.779 CABLE; PARKING BRK 4JH1 ENG(RJX)	8-97350-539-0	01	1	0302-0506	●	●	●
49	04.779 CABLE; PARKING BRK 4JH1-TC ENG(RDM)	8-97350-539-0	01	1	0507-0606	●	●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-028-1	01	1	0607-	●	●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-027-2	01	1	0607-	●	●	●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0302-0610	●	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0611-	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE 04.681 ID=12	9-09185-412-0	01	1	0302-0604	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0605-	●	●	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
87	04.785 NUT (B) M6	8-97088-730-1	01	1	0302-0310	●	●	●
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0311-0611	●	●	●
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-	●	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0607-	●	●	●
170	04.595 COVER; PARKING BRK LEVER DARK GRAY	8-97155-172-0	01	1	0302-0506	●	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97396-940-1	01	1	0507-0702	●	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97409-480-0	01	1	0703-	●	●	●
196	04.784 SPACER; CABLE TO LEVER	8-97066-277-2	01	1	0302-0611	●	●	●
196	04.784 SPACER; CABLE TO LEVER	8-98034-201-0	01	1	0612-	●	●	●
332	04.785 CLIP; COVER 03.602 D6X12.5	8-94146-425-0	01	1	0302-	●	●	●
338	04.785 SCREW; GUIDE 16.270 M6X10	9-03497-610-0	01	1	0302-0604	●	●	●
338	04.785 SCREW; GUIDE M6X10	0-34218-610-0	01	1	0605-	●	●	●

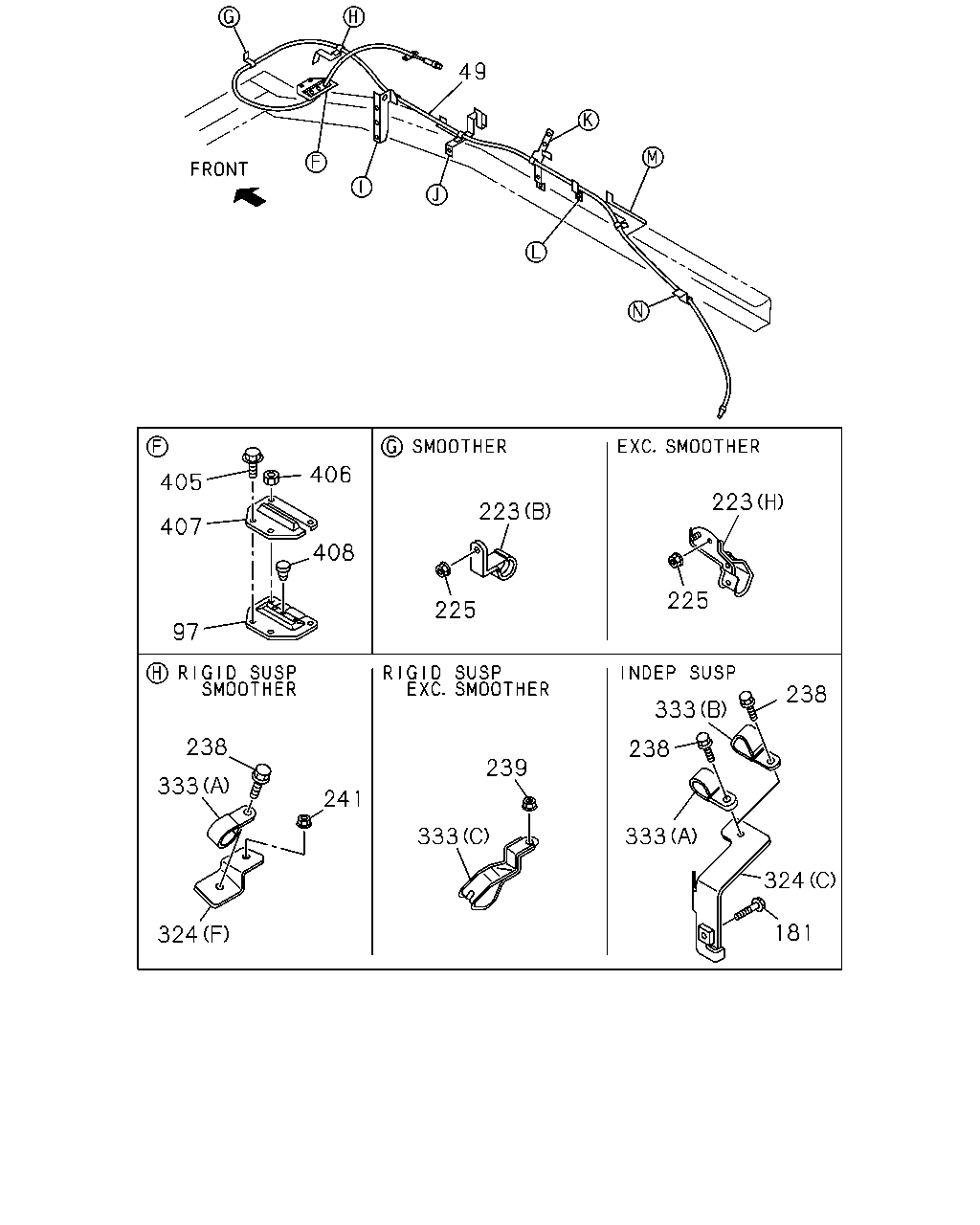

49 406 405 223 223 407 408 225 225 97 238 333 238 238 239 333 241 333 333 324 181 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	04.779 CABLE; PARKING BRK 4JH1 ENG(RJX)	8-97350-539-0	01	1	0302-0506	●	●	●
49	04.779 CABLE; PARKING BRK 4JH1-TC ENG(RDM)	8-97350-539-0	01	1	0507-0606	●	●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-028-1	01	1	0607-	●	●	●
49	04.779 CABLE; PARKING BRK 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98001-027-2	01	1	0607-	●	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97061-403-2	01	1	0607-	●	●	●
181	04.785 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0607-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
181	04.785 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0607-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F)	8-97137-589-0	01	1	0607-	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 08.846 (A) ID=24 L=32	1-09700-766-1	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=14.5 L=20	1-09701-012-0	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (D) ID=13 L=20	1-09701-138-1	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (E) ID=16 L=28	9-09525-556-0	01	1	0607-0607	●	●	●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (E) ID=16 L=28	0-95235-556-0	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G)	8-97036-333-1	01	1	0607-	●	●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (G)	8-97036-333-1	01	1	0607-		●	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (H)	8-97147-985-0	01	1	0607-	●	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
225	04.785 NUT; CABLE CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1 ENG(RJX) M10 FLANGE	0-91150-110-0	01	1	0302-0506	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM) M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●	●
225	04.785 NUT; CABLE CLIP 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0606	●	●	●
225	04.785 NUT; CABLE CLIP 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-		●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
238	04.785 BOLT; CLIP TO BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-		●	●
239	04.785 NUT; CLIP TO BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
241	04.785 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-		●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
324	04.785 BRACKET (B)	8-97380-242-1	01	1	0607-	●
324	04.785 BRACKET (C)	8-97383-571-0	01	1	0607-	●
324	04.785 BRACKET (D)	8-98000-600-1	01	1	0607-	●
324	04.785 BRACKET 04.047 (E)	8-97047-898-0	01	1	0607-	●	●	●
324	04.785 BRACKET 4JH1 ENG(RJX) (A)	8-97289-364-0	01	1	0302-0506	●	●	●
324	04.785 BRACKET 4JH1-TC ENG(RDM) (A)	8-97289-364-0	01	1	0507-0606	●	●	●
324	04.785 BRACKET 4JJ1 ENG(LFB) (I)	8-98019-522-1	01	1	0607-	●	●	●
324	04.785 BRACKET (G)	8-98001-270-0	01	1	0607-		●	●
324	04.785 BRACKET (H)	8-98001-271-1	01	1	0607-		●	●
324	04.785 BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97369-697-0	01	1	0607-		●	●
333	04.785 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B)	8-97036-333-1	01	1	0607-	●
333	04.785 CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) ID=16 L=28	9-09525-556-0	01	1	0607-0607	●	●	●
333	04.785 CLIP; CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (A) ID=16 L=28	0-95235-556-0	01	1	0607-	●	●	●
333	04.785 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (C)	8-97036-334-2	01	1	0607-		●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	0607-	●	●	●
406	04.785 NUT; GROMMET 01.540 M6 FLANGE	0-91180-206-0	02	1	0607-0711	●	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●	●	●
407	04.785 RETAINER; GROMMET 04.047	8-97048-319-1	01	1	0607-	●	●	●
408	04.785 CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010	8-97371-108-0	02	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
