3-08 — PARKING BRAKE (#22716) — 72 parça

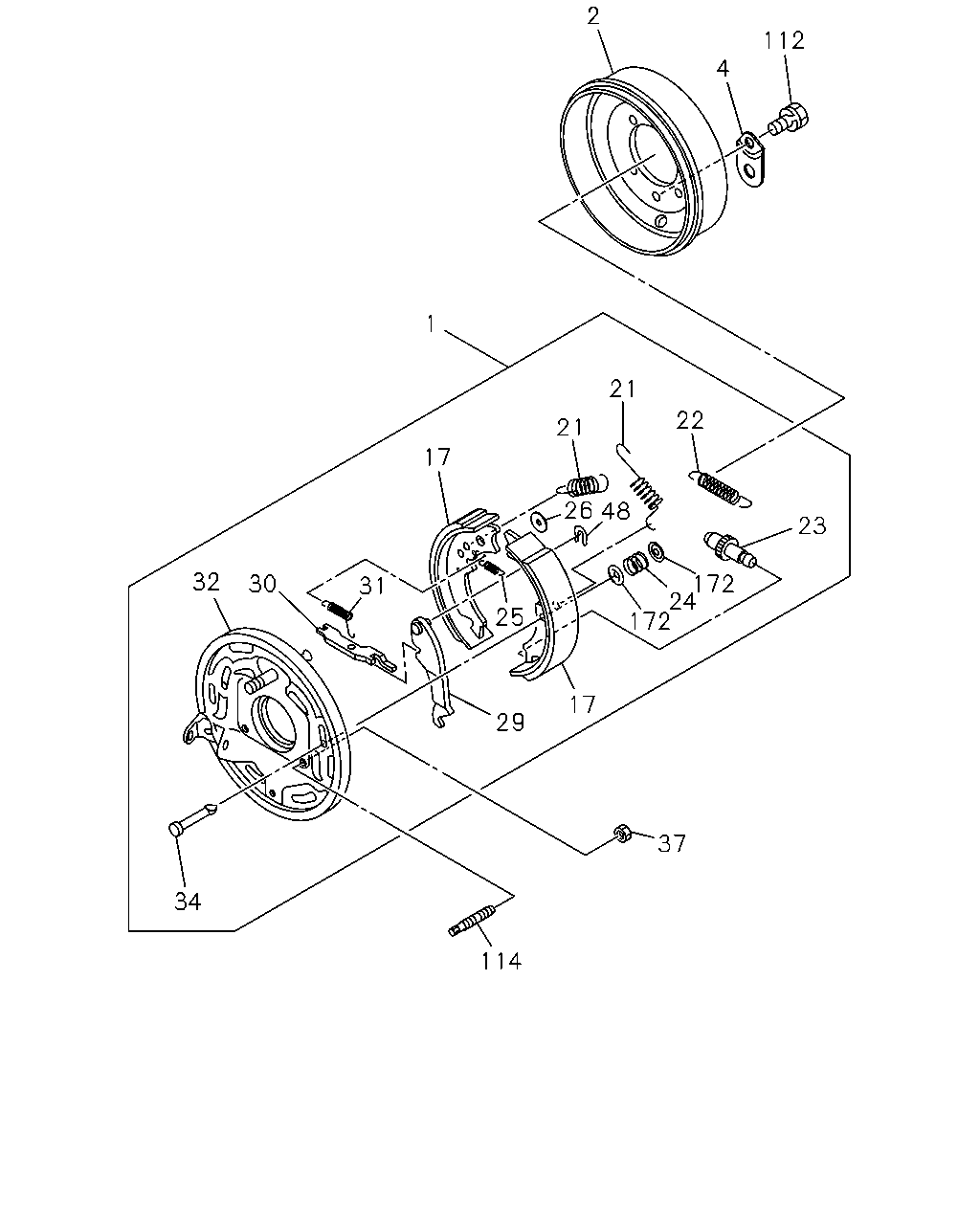

çizim 55242
2 112 4 1 21 22 21 17 23 32 31 30 172 24 172 25 17 29 37 34 114 26 48
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.610 BRAKE ASM; CENTER,PARKING
4JH1 ENG(RJX) 		8-97308-175-0 01 1 0302-0506 ● ● ●
1 05.610 BRAKE ASM; CENTER,PARKING
4JH1-TC ENG(RDM) 		8-97308-175-0 01 1 0507-0606 ● ● ●
1 05.610 BRAKE ASM; CENTER,PARKING
4JJ1 ENG(LFB) 		8-97308-175-0 01 1 0607-0611 ● ● ●
1 05.610 BRAKE ASM; CENTER,PARKING
4JJ1 ENG(LFB) 		8-98029-922-0 01 1 0612- ● ● ●
2 05.605 DRUM; PARKING BRK
4JH1 ENG(RJX) 		8-97033-989-1 01 1 0302-0506 ● ● ●
2 05.605 DRUM; PARKING BRK
4JH1-TC ENG(RDM) 		8-97033-989-1 01 1 0507-0606 ● ● ●
2 05.605 DRUM; PARKING BRK
4JJ1 ENG(LFB) 		8-97033-989-1 01 1 0607- ● ● ●
4 05.606 COVER; ADJ HOLE
4JH1 ENG(RJX) 		5-46219-001-0 01 1 0302-0506 ● ● ●
4 05.606 COVER; ADJ HOLE
4JH1-TC ENG(RDM) 		5-46219-001-0 01 1 0507-0604 ● ● ●
4 05.606 COVER; ADJ HOLE
4JH1-TC ENG(RDM) 		8-98029-820-0 01 1 0605-0606 ● ● ●
4 05.606 COVER; ADJ HOLE
4JJ1 ENG(LFB) 		8-98029-820-0 01 1 0607- ● ● ●
17 05.606 SHOE; PARKING BRK
4JH1 ENG(RJX) 		8-97020-250-2 02 1 0302-0506 ● ● ●
17 05.606 SHOE; PARKING BRK
4JH1-TC ENG(RDM) 		8-97020-250-2 02 1 0507-0606 ● ● ●
17 05.606 SHOE; PARKING BRK
4JJ1 ENG(LFB) 		8-97020-250-2 02 1 0607- ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
4JH1 ENG(RJX) 05.605 		8-94132-157-0 02 1 0302-0506 ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
4JH1-TC ENG(RDM) 05.605 		8-94132-157-0 02 1 0507-0606 ● ● ●
21 05.606 SPRING; RETURN,PARKING BRK SHOE
4JJ1 ENG(LFB) 05.605 		8-94132-157-0 02 1 0607- ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
4JH1 ENG(RJX) 05.605 		8-94107-618-0 01 1 0302-0506 ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
4JH1-TC ENG(RDM) 05.605 		8-94107-618-0 01 1 0507-0606 ● ● ●
22 05.606 SPRING; ADJ SCREW,PARKING BRK
4JJ1 ENG(LFB) 05.605 		8-94107-618-0 01 1 0607- ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
4JH1 ENG(RJX) 		5-47165-025-0 01 1 0302-0506 ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
4JH1-TC ENG(RDM) 		5-47165-025-0 01 1 0507-0606 ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
4JJ1 ENG(LFB) 		5-47165-025-0 01 1 0607-0611 ● ● ●
23 05.615 SCREW; ADJ,PARKING BRK SHOE
4JJ1 ENG(LFB) 		8-98043-954-0 01 1 0612- ● ● ●
24 05.605 SPRING; BRK SHOE
4JH1 ENG(RJX) 		8-94132-155-0 02 1 0302-0506 ● ● ●
24 05.605 SPRING; BRK SHOE
4JH1-TC ENG(RDM) 		8-94132-155-0 02 1 0507-0606 ● ● ●
24 05.605 SPRING; BRK SHOE
4JJ1 ENG(LFB) 		8-94132-155-1 02 1 0607- ● ● ●
25 05.605 SPRING; SHOE ALIGNMENT
4JH1 ENG(RJX) 		8-94132-156-0 01 1 0302-0506 ● ● ●
25 05.605 SPRING; SHOE ALIGNMENT
4JH1-TC ENG(RDM) 		8-94132-156-0 01 1 0507-0606 ● ● ●
25 05.605 SPRING; SHOE ALIGNMENT
4JJ1 ENG(LFB) 		8-94132-156-0 01 1 0607- ● ● ●
26 05.605 PLATE; SHOE GUIDE
4JH1 ENG(RJX) 		9-09851-986-0 01 1 0302-0506 ● ● ●
26 05.605 PLATE; SHOE GUIDE
4JH1-TC ENG(RDM) 		9-09851-986-0 01 1 0507-0606 ● ● ●
26 05.605 PLATE; SHOE GUIDE
4JJ1 ENG(LFB) 		9-09851-986-0 01 1 0607-0611 ● ● ●
26 05.605 PLATE; SHOE GUIDE
4JJ1 ENG(LFB) 		8-98043-959-0 01 1 0612- ● ● ●
29 04.591 LEVER; PARKING BRK
4JH1 ENG(RJX) 05.605 		8-97027-125-0 01 1 0302-0506 ● ● ●
29 04.591 LEVER; PARKING BRK
4JH1-TC ENG(RDM) 05.605 		8-97027-125-0 01 1 0507-0606 ● ● ●
29 04.591 LEVER; PARKING BRK
4JJ1 ENG(LFB) 05.605 		8-97027-125-0 01 1 0607-0611 ● ● ●
29 04.591 LEVER; PARKING BRK
4JJ1 ENG(LFB) 		8-98043-949-0 01 1 0612- ● ● ●
30 05.605 STRUT; PARKING BRK
4JH1 ENG(RJX) 		8-94311-779-0 01 1 0302-0506 ● ● ●
30 05.605 STRUT; PARKING BRK
4JH1-TC ENG(RDM) 		8-94311-779-0 01 1 0507-0606 ● ● ●
30 05.605 STRUT; PARKING BRK
4JJ1 ENG(LFB) 		8-94311-779-0 01 1 0607-0611 ● ● ●
30 05.605 STRUT; PARKING BRK
4JJ1 ENG(LFB) 		8-98043-953-0 01 1 0612- ● ● ●
31 05.605 SPRING; SHOE TO STRUT
4JH1 ENG(RJX) 		8-94132-158-0 01 1 0302-0506 ● ● ●
31 05.605 SPRING; SHOE TO STRUT
4JH1-TC ENG(RDM) 		8-94132-158-0 01 1 0507-0606 ● ● ●
31 05.605 SPRING; SHOE TO STRUT
4JJ1 ENG(LFB) 		8-94132-158-0 01 1 0607- ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
4JH1 ENG(RJX) 		8-97308-176-0 01 1 0302-0506 ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
4JH1-TC ENG(RDM) 		8-97308-176-0 01 1 0507-0606 ● ● ●
32 05.610 PLATE; SUPPORT,PARKING BRK
4JJ1 ENG(LFB) 		8-97308-176-0 01 1 0607- ● ● ●
34 05.605 PIN; BRK SHOE
4JH1 ENG(RJX) 		8-94132-159-0 02 1 0302-0506 ● ● ●
34 05.605 PIN; BRK SHOE
4JH1-TC ENG(RDM) 		8-94132-159-0 02 1 0507-0606 ● ● ●
34 05.605 PIN; BRK SHOE
4JJ1 ENG(LFB) 		8-94132-159-0 02 1 0607-0611 ● ● ●
34 05.605 PIN; BRK SHOE
4JJ1 ENG(LFB) 		8-98043-955-0 02 1 0612- ● ● ●
37 05.610 NUT; SUPPORT PLATE
4JH1 ENG(RJX) M12 LOCK NUT 		8-97248-173-0 04 1 0302-0506 ● ● ●
37 05.610 NUT; SUPPORT PLATE
4JH1-TC ENG(RDM) M12 LOCK NUT 		8-97248-173-0 04 1 0507-0604 ● ● ●
37 05.610 NUT; SUPPORT PLATE
4JH1-TC ENG(RDM) M12 LOCK NUT 		8-98029-927-0 04 1 0605-0606 ● ● ●
37 05.610 NUT; SUPPORT PLATE
4JJ1 ENG(LFB) M12 LOCK NUT 		8-98029-927-0 04 1 0607- ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK
4JH1 ENG(RJX) 05.158 		9-46349-005-1 01 1 0302-0506 ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK
4JH1-TC ENG(RDM) 05.158 		9-46349-005-1 01 1 0507-0606 ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK
4JJ1 ENG(LFB) 05.158 		9-46349-005-1 01 1 0607-0611 ● ● ●
48 05.605 RETAINER; PIN,PARKING BRK
4JJ1 ENG(LFB) 		8-98043-958-0 01 1 0612- ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
4JH1 ENG(RJX) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 0302-0506 ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
4JH1-TC ENG(RDM) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 01 1 0507-0512 ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
4JH1-TC ENG(RDM) 00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0601-0606 ● ● ●
112 05.606 BOLT; COVER TO BRK DRUM
4JJ1 ENG(LFB) 00.662 M6X16 W/LK WASHER 		0-50540-616-0 01 1 0607- ● ● ●
114 05.605 STUD; SUPPORT PLATE
4JH1 ENG(RJX) 		8-97289-280-0 04 1 0302-0506 ● ● ●
114 05.605 STUD; SUPPORT PLATE
4JH1-TC ENG(RDM) 		8-97289-280-0 04 1 0507-0604 ● ● ●
114 05.605 STUD; SUPPORT PLATE
4JH1-TC ENG(RDM) 		8-98029-929-0 04 1 0605-0606 ● ● ●
114 05.605 STUD; SUPPORT PLATE
4JJ1 ENG(LFB) 		8-98029-929-0 04 1 0607- ● ● ●
172 05.605 CUP; SHOE HOLD
4JH1 ENG(RJX) 05.043 		9-47162-033-0 04 1 0302-0506 ● ● ●
172 05.605 CUP; SHOE HOLD
4JH1-TC ENG(RDM) 05.043 		9-47162-033-0 04 1 0507-0606 ● ● ●
172 05.605 CUP; SHOE HOLD
4JJ1 ENG(LFB) 05.043 		9-47162-033-0 04 1 0607-0611 ● ● ●
172 05.605 CUP; SHOE HOLD
4JJ1 ENG(LFB) 		8-98043-956-0 04 1 0612- ● ● ●
