Sayfa 3-02 - Isuzu EPC

3-02 — FRONT DISC BRAKE CALIPER (#22714) — 268 parça

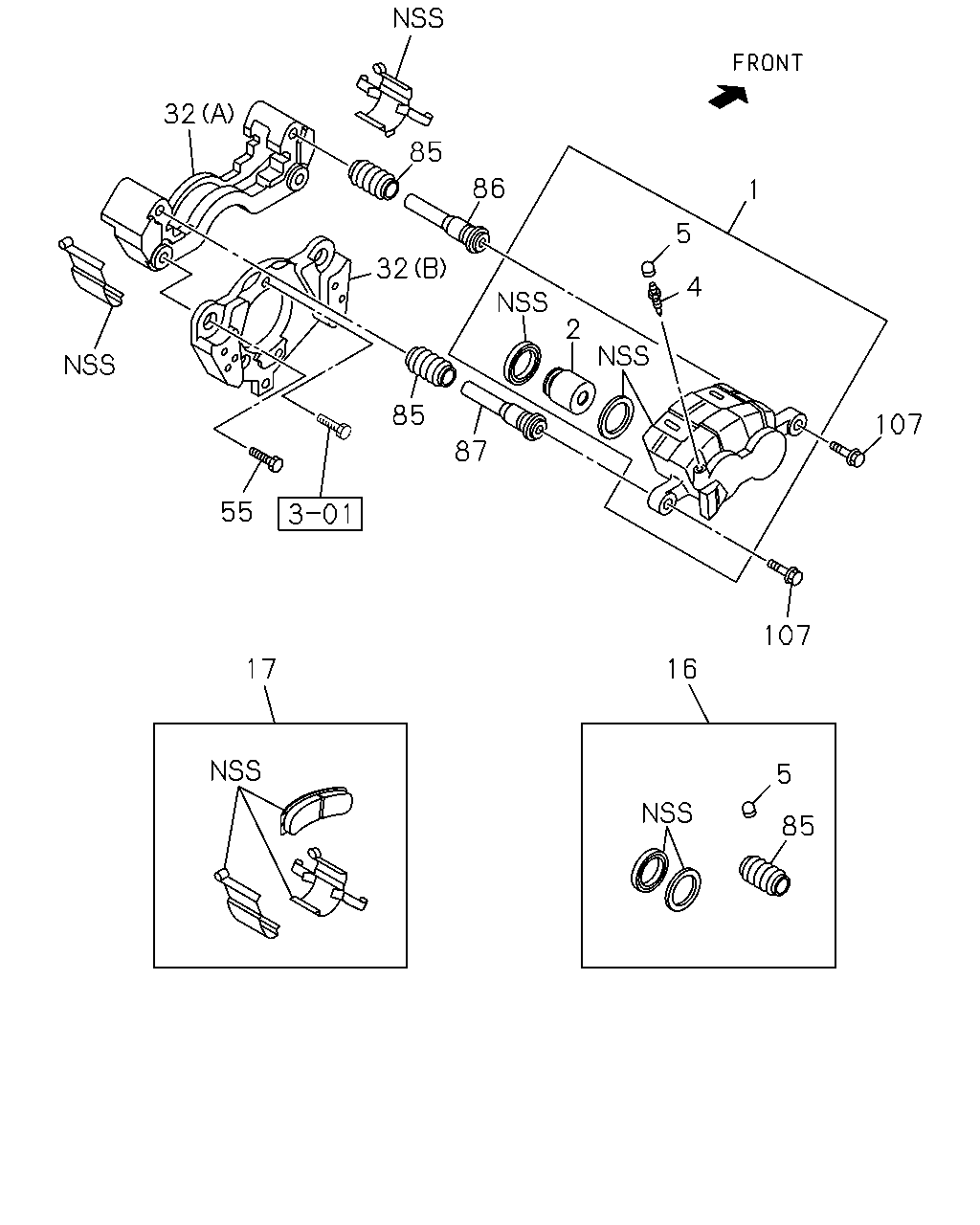

32 85 86 1 5 32 4 2 85 107 87 55 107 17 16 5 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-399-1	01	1	0302-0606	●
1	04.665 CALIPER; FRT DISC BRK	8-97367-534-0	01	1	0607-	●
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-398-1	01	1	0302-0606	●
1	04.665 CALIPER; FRT DISC BRK	8-97367-533-0	01	1	0607-	●
1	04.665 CALIPER; FRT DISC BRK	8-97228-623-1	01	1	0302-0506		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97365-908-0	01	1	0507-		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97228-622-1	01	1	0302-0506		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97365-907-0	01	1	0507-		●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-402-0	04	1	0302-0606	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-256-0	04	1	0607-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-94468-350-0	04	1	0302-0506		●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-269-0	04	1	0507-		●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	9-47615-027-0	02	1	0302-0606	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	1-47615-027-0	02	1	0302-0606		●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	1-47615-027-0	02	1	0607-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	1-47615-027-0	02	1	0607-		●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	1-47619-009-0	02	1	0302-0606	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	1-47619-009-0	02	1	0302-0606		●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	1-47619-009-0	02	1	0607-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	1-47619-009-0	02	1	0607-		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98120-383-0	01	1	0607-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98120-357-0	01	1	0607-		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-410-2	01	1	0302-0606	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97168-635-0	01	1	0302-0506		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97365-913-0	01	1	0507-0606		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97318-894-0	01	1	0302-0304	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97368-980-0	01	1	0305-0606	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97378-351-0	01	1	0607-0709	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98091-271-0	01	1	0710-1212	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-921-0	01	1	1301-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97329-266-0	01	1	0302-1212		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-922-0	01	1	1301-		●	●
32	04.665 SUPPORT; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97078-404-1	02	1	0302-0606	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97365-258-0	02	1	0607-	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97228-630-1	02	1	0302-0506		●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97365-271-0	02	1	0507-		●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97168-584-2	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97168-583-2	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97179-592-1	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97179-591-1	01	1	0302-		●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97042-716-1	02	1	0302-0606	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-97354-696-0	02	1	0607-0610	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X48 FLANGE	8-98033-656-0	02	1	0611-	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-97168-639-0	04	1	0302-0611		●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X31 FLANGE	8-97359-816-0	04	1	0612-		●	●
85	04.665 BOOT; PIN FRT INDEPENDENT SUSPENSION(6PP)	8-97029-977-0	04	1	0302-0606	●
85	04.665 BOOT; PIN	8-97168-612-0	04	1	0302-0506		●	●
85	04.665 BOOT; PIN	8-97365-265-0	04	1	0507-0606		●	●
85	04.665 BOOT; PIN	8-97365-265-0	04	1	0607-0901	●
85	04.665 BOOT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-97365-265-0	04	1	0607-0901		●	●
85	04.665 BOOT; PIN	8-98120-354-0	04	1	0902-	●
85	04.665 BOOT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-98120-354-0	04	1	0902-		●	●
86	04.665 PIN; GUIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97029-999-0	02	1	0302-0606	●
86	04.665 PIN; GUIDE	8-97365-262-0	02	1	0607-0610	●
86	04.665 PIN; GUIDE	8-98047-530-0	02	1	0611-	●
86	04.665 PIN; GUIDE	8-97168-609-1	02	1	0302-0506		●	●
86	04.665 PIN; GUIDE	8-97365-275-0	02	1	0507-0610		●	●
86	04.665 PIN; GUIDE	8-98047-529-0	02	1	0611-		●	●
87	04.665 PIN; LOCK FRT INDEPENDENT SUSPENSION(6PP)	8-97029-998-0	02	1	0302-0606	●
87	04.665 PIN; LOCK	8-97365-263-0	02	1	0607-0610	●
87	04.665 PIN; LOCK	8-98047-532-0	02	1	0611-	●
87	04.665 PIN; LOCK	8-97168-611-1	02	1	0302-0506		●	●
87	04.665 PIN; LOCK	8-97365-276-0	02	1	0507-0610		●	●
87	04.665 PIN; LOCK	8-98047-531-0	02	1	0611-		●	●
107	04.665 BOLT; PIN	8-97365-264-0	04	1	0507-0606		●	●
107	04.665 BOLT; PIN	8-97365-264-0	04	1	0607-	●
107	04.665 BOLT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-97365-264-0	04	1	0607-		●	●

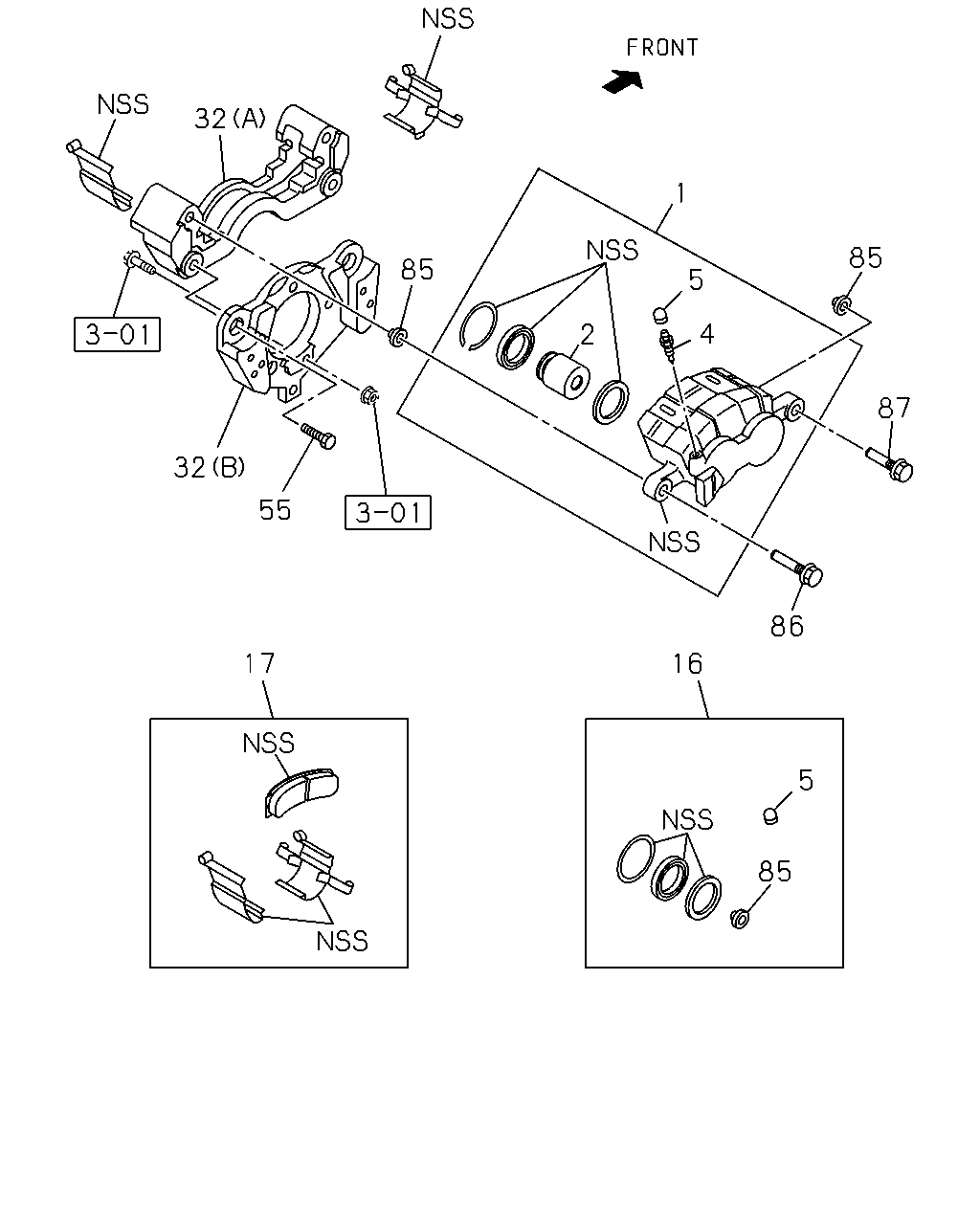

32 85 86 1 5 4 2 107 85 87 107 17 16 5 85 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-399-1	01	1	0302-0606	●
1	04.665 CALIPER; FRT DISC BRK	8-97367-534-0	01	1	0607-	●
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-398-1	01	1	0302-0606	●
1	04.665 CALIPER; FRT DISC BRK	8-97367-533-0	01	1	0607-	●
1	04.665 CALIPER; FRT DISC BRK	8-97228-623-1	01	1	0302-0506		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97365-908-0	01	1	0507-		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97228-622-1	01	1	0302-0506		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97365-907-0	01	1	0507-		●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-402-0	04	1	0302-0606	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-256-0	04	1	0607-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-94468-350-0	04	1	0302-0506		●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-269-0	04	1	0507-		●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	9-47615-027-0	02	1	0302-0606	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	1-47615-027-0	02	1	0302-0606		●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	1-47615-027-0	02	1	0607-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	1-47615-027-0	02	1	0607-		●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	1-47619-009-0	02	1	0302-0606	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	1-47619-009-0	02	1	0302-0606		●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	1-47619-009-0	02	1	0607-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	1-47619-009-0	02	1	0607-		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98120-383-0	01	1	0607-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98120-357-0	01	1	0607-		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-410-2	01	1	0302-0606	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97168-635-0	01	1	0302-0506		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97365-913-0	01	1	0507-0606		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97318-894-0	01	1	0302-0304	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97368-980-0	01	1	0305-0606	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97378-351-0	01	1	0607-0709	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98091-271-0	01	1	0710-1212	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-921-0	01	1	1301-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97329-266-0	01	1	0302-1212		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-922-0	01	1	1301-		●	●
32	04.665 SUPPORT; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97078-404-1	02	1	0302-0606	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97365-258-0	02	1	0607-	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97228-630-1	02	1	0302-0506		●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97365-271-0	02	1	0507-		●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97168-584-2	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97168-583-2	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97179-592-1	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97179-591-1	01	1	0302-		●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97042-716-1	02	1	0302-0606	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-97354-696-0	02	1	0607-0610	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X48 FLANGE	8-98033-656-0	02	1	0611-	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-97168-639-0	04	1	0302-0611		●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X31 FLANGE	8-97359-816-0	04	1	0612-		●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-97042-716-1	02	1	0302-0606	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-97354-696-0	02	1	0607-0610	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681 M16X48 FLANGE	8-98033-656-0	02	1	0611-	●
85	04.665 BOOT; PIN FRT INDEPENDENT SUSPENSION(6PP)	8-97029-977-0	04	1	0302-0606	●
85	04.665 BOOT; PIN	8-97168-612-0	04	1	0302-0506		●	●
85	04.665 BOOT; PIN	8-97365-265-0	04	1	0507-0606		●	●
85	04.665 BOOT; PIN	8-97365-265-0	04	1	0607-0901	●
85	04.665 BOOT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-97365-265-0	04	1	0607-0901		●	●
85	04.665 BOOT; PIN	8-98120-354-0	04	1	0902-	●
85	04.665 BOOT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-98120-354-0	04	1	0902-		●	●
86	04.665 PIN; GUIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97029-999-0	02	1	0302-0606	●
86	04.665 PIN; GUIDE	8-97365-262-0	02	1	0607-0610	●
86	04.665 PIN; GUIDE	8-98047-530-0	02	1	0611-	●
86	04.665 PIN; GUIDE	8-97168-609-1	02	1	0302-0506		●	●
86	04.665 PIN; GUIDE	8-97365-275-0	02	1	0507-0610		●	●
86	04.665 PIN; GUIDE	8-98047-529-0	02	1	0611-		●	●
87	04.665 PIN; LOCK FRT INDEPENDENT SUSPENSION(6PP)	8-97029-998-0	02	1	0302-0606	●
87	04.665 PIN; LOCK	8-97365-263-0	02	1	0607-0610	●
87	04.665 PIN; LOCK	8-98047-532-0	02	1	0611-	●
87	04.665 PIN; LOCK	8-97168-611-1	02	1	0302-0506		●	●
87	04.665 PIN; LOCK	8-97365-276-0	02	1	0507-0610		●	●
87	04.665 PIN; LOCK	8-98047-531-0	02	1	0611-		●	●
107	04.665 BOLT; PIN	8-97365-264-0	04	1	0507-0606		●	●
107	04.665 BOLT; PIN	8-97365-264-0	04	1	0607-	●
107	04.665 BOLT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-97365-264-0	04	1	0607-		●	●

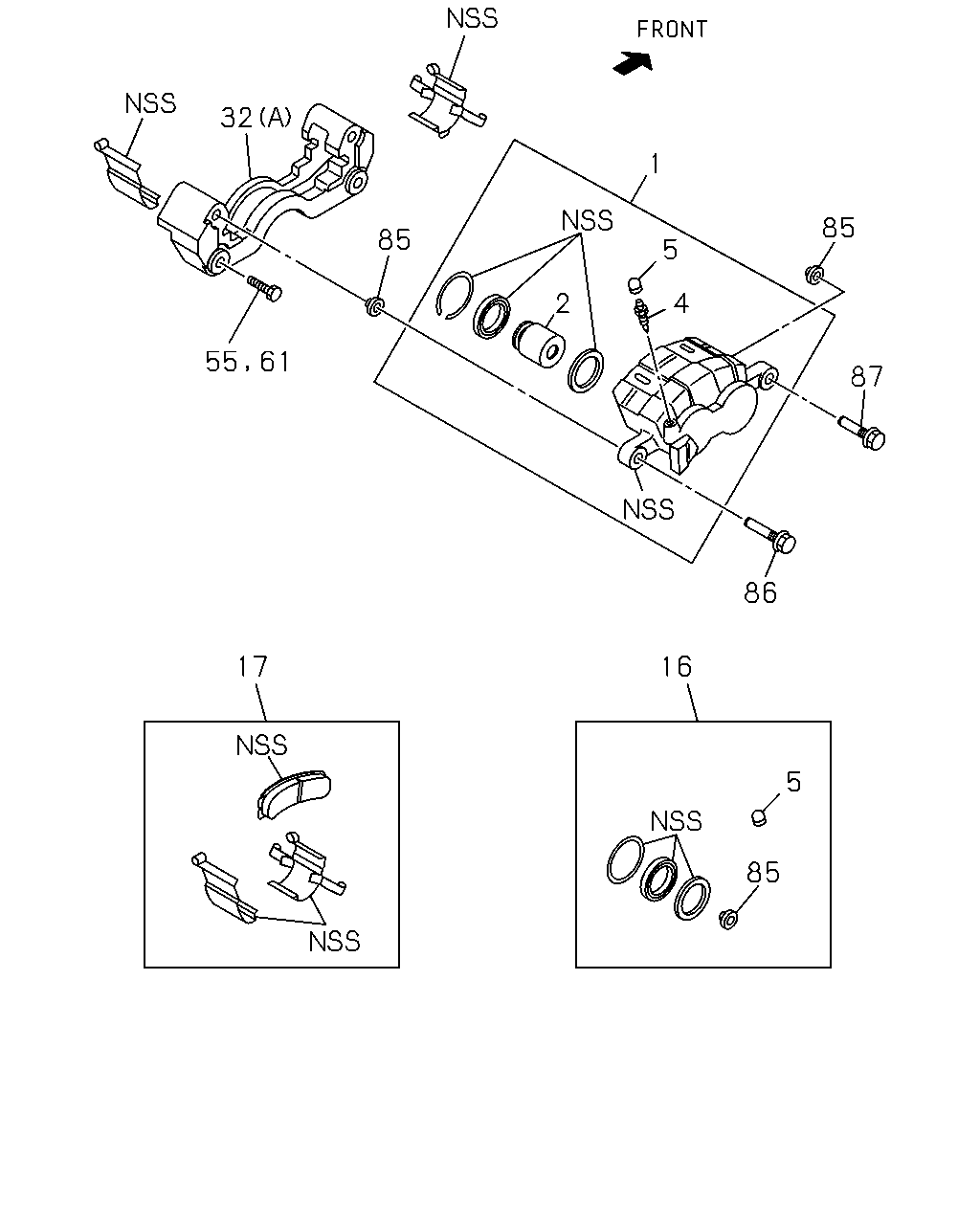

32 1 85 85 5 4 2 87 86 17 16 5 85 55 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-399-1	01	1	0302-0606	●
1	04.665 CALIPER; FRT DISC BRK	8-97367-534-0	01	1	0607-	●
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-398-1	01	1	0302-0606	●
1	04.665 CALIPER; FRT DISC BRK	8-97367-533-0	01	1	0607-	●
1	04.665 CALIPER; FRT DISC BRK	8-97228-623-1	01	1	0302-0506		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97365-908-0	01	1	0507-		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97228-622-1	01	1	0302-0506		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97365-907-0	01	1	0507-		●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-402-0	04	1	0302-0606	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-256-0	04	1	0607-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-94468-350-0	04	1	0302-0506		●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-269-0	04	1	0507-		●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	9-47615-027-0	02	1	0302-0606	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	1-47615-027-0	02	1	0302-0606		●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	1-47615-027-0	02	1	0607-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	1-47615-027-0	02	1	0607-		●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	1-47619-009-0	02	1	0302-0606	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	1-47619-009-0	02	1	0302-0606		●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	1-47619-009-0	02	1	0607-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	1-47619-009-0	02	1	0607-		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98120-383-0	01	1	0607-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98120-357-0	01	1	0607-		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-410-2	01	1	0302-0606	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97168-635-0	01	1	0302-0506		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97365-913-0	01	1	0507-0606		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97318-894-0	01	1	0302-0304	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97368-980-0	01	1	0305-0606	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97378-351-0	01	1	0607-0709	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98091-271-0	01	1	0710-1212	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-921-0	01	1	1301-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97329-266-0	01	1	0302-1212		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-922-0	01	1	1301-		●	●
32	04.665 SUPPORT; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97078-404-1	02	1	0302-0606	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97365-258-0	02	1	0607-	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97228-630-1	02	1	0302-0506		●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97365-271-0	02	1	0507-		●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97168-584-2	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97168-583-2	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97179-592-1	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97179-591-1	01	1	0302-		●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97042-716-1	02	1	0302-0606	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-97354-696-0	02	1	0607-0610	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X48 FLANGE	8-98033-656-0	02	1	0611-	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-97168-639-0	04	1	0302-0611		●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X31 FLANGE	8-97359-816-0	04	1	0612-		●	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-97042-716-1	02	1	0302-0606	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681	8-97354-696-0	02	1	0607-0610	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE 04.681 M16X48 FLANGE	8-98033-656-0	02	1	0611-	●
85	04.665 BOOT; PIN FRT INDEPENDENT SUSPENSION(6PP)	8-97029-977-0	04	1	0302-0606	●
85	04.665 BOOT; PIN	8-97168-612-0	04	1	0302-0506		●	●
85	04.665 BOOT; PIN	8-97365-265-0	04	1	0507-0606		●	●
85	04.665 BOOT; PIN	8-97365-265-0	04	1	0607-0901	●
85	04.665 BOOT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-97365-265-0	04	1	0607-0901		●	●
85	04.665 BOOT; PIN	8-98120-354-0	04	1	0902-	●
85	04.665 BOOT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-98120-354-0	04	1	0902-		●	●
86	04.665 PIN; GUIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97029-999-0	02	1	0302-0606	●
86	04.665 PIN; GUIDE	8-97365-262-0	02	1	0607-0610	●
86	04.665 PIN; GUIDE	8-98047-530-0	02	1	0611-	●
86	04.665 PIN; GUIDE	8-97168-609-1	02	1	0302-0506		●	●
86	04.665 PIN; GUIDE	8-97365-275-0	02	1	0507-0610		●	●
86	04.665 PIN; GUIDE	8-98047-529-0	02	1	0611-		●	●
87	04.665 PIN; LOCK FRT INDEPENDENT SUSPENSION(6PP)	8-97029-998-0	02	1	0302-0606	●
87	04.665 PIN; LOCK	8-97365-263-0	02	1	0607-0610	●
87	04.665 PIN; LOCK	8-98047-532-0	02	1	0611-	●
87	04.665 PIN; LOCK	8-97168-611-1	02	1	0302-0506		●	●
87	04.665 PIN; LOCK	8-97365-276-0	02	1	0507-0610		●	●
87	04.665 PIN; LOCK	8-98047-531-0	02	1	0611-		●	●

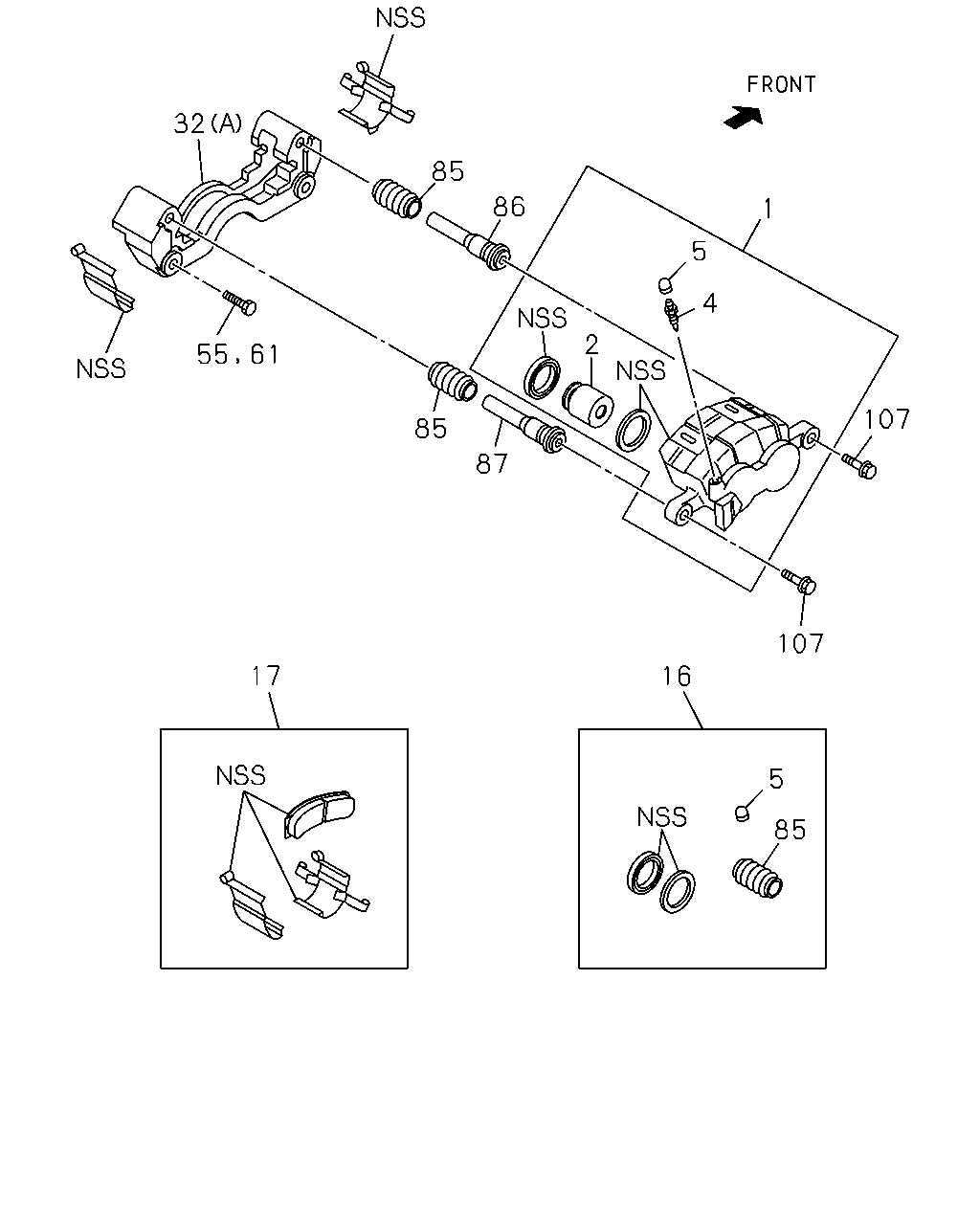

32 1 85 85 5 2 4 87 32 55 86 17 16 5 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-399-1	01	1	0302-0606	●
1	04.665 CALIPER; FRT DISC BRK	8-97367-534-0	01	1	0607-	●
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-398-1	01	1	0302-0606	●
1	04.665 CALIPER; FRT DISC BRK	8-97367-533-0	01	1	0607-	●
1	04.665 CALIPER; FRT DISC BRK	8-97228-623-1	01	1	0302-0506		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97365-908-0	01	1	0507-		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97228-622-1	01	1	0302-0506		●	●
1	04.665 CALIPER; FRT DISC BRK	8-97365-907-0	01	1	0507-		●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-402-0	04	1	0302-0606	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-256-0	04	1	0607-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-94468-350-0	04	1	0302-0506		●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-269-0	04	1	0507-		●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	9-47615-027-0	02	1	0302-0606	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	1-47615-027-0	02	1	0302-0606		●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	1-47615-027-0	02	1	0607-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	1-47615-027-0	02	1	0607-		●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	1-47619-009-0	02	1	0302-0606	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	1-47619-009-0	02	1	0302-0606		●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	1-47619-009-0	02	1	0607-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	1-47619-009-0	02	1	0607-		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98120-383-0	01	1	0607-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98120-357-0	01	1	0607-		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-410-2	01	1	0302-0606	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97168-635-0	01	1	0302-0506		●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-97365-913-0	01	1	0507-0606		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97318-894-0	01	1	0302-0304	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97368-980-0	01	1	0305-0606	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97378-351-0	01	1	0607-0709	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98091-271-0	01	1	0710-1212	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-921-0	01	1	1301-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-97329-266-0	01	1	0302-1212		●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-922-0	01	1	1301-		●	●
32	04.665 SUPPORT; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97078-404-1	02	1	0302-0606	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97365-258-0	02	1	0607-	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97228-630-1	02	1	0302-0506		●	●
32	04.665 SUPPORT; FRT DISC BRK (A)	8-97365-271-0	02	1	0507-		●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97168-584-2	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97168-583-2	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97179-592-1	01	1	0302-		●	●
32	04.665 SUPPORT; FRT DISC BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97179-591-1	01	1	0302-		●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97042-716-1	02	1	0302-0606	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-97354-696-0	02	1	0607-0610	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X48 FLANGE	8-98033-656-0	02	1	0611-	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK	8-97168-639-0	04	1	0302-0611		●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X31 FLANGE	8-97359-816-0	04	1	0612-		●	●
85	04.665 BOOT; PIN FRT INDEPENDENT SUSPENSION(6PP)	8-97029-977-0	04	1	0302-0606	●
85	04.665 BOOT; PIN	8-97168-612-0	04	1	0302-0506		●	●
85	04.665 BOOT; PIN	8-97365-265-0	04	1	0507-0606		●	●
85	04.665 BOOT; PIN	8-97365-265-0	04	1	0607-0901	●
85	04.665 BOOT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-97365-265-0	04	1	0607-0901		●	●
85	04.665 BOOT; PIN	8-98120-354-0	04	1	0902-	●
85	04.665 BOOT; PIN FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY)	8-98120-354-0	04	1	0902-		●	●
86	04.665 PIN; GUIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97029-999-0	02	1	0302-0606	●
86	04.665 PIN; GUIDE	8-97365-262-0	02	1	0607-0610	●
86	04.665 PIN; GUIDE	8-98047-530-0	02	1	0611-	●
86	04.665 PIN; GUIDE	8-97168-609-1	02	1	0302-0506		●	●
86	04.665 PIN; GUIDE	8-97365-275-0	02	1	0507-0610		●	●
86	04.665 PIN; GUIDE	8-98047-529-0	02	1	0611-		●	●
87	04.665 PIN; LOCK FRT INDEPENDENT SUSPENSION(6PP)	8-97029-998-0	02	1	0302-0606	●
87	04.665 PIN; LOCK	8-97365-263-0	02	1	0607-0610	●
87	04.665 PIN; LOCK	8-98047-532-0	02	1	0611-	●
87	04.665 PIN; LOCK	8-97168-611-1	02	1	0302-0506		●	●
87	04.665 PIN; LOCK	8-97365-276-0	02	1	0507-0610		●	●
87	04.665 PIN; LOCK	8-98047-531-0	02	1	0611-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
