◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#2271) — 84 parça
çizim 94262
102 103 115 99 189 193 208 141 229 237 257 230
BalonParca AdiParca NoAdetTipApplied Date A B
99 WRENCH; CYL HD BOLT
6BD1 STD ENG(L21) 		1-85111-003-0 01 1 9101- ● ●
102 ADAPTER; COMP GAGE
6BD1 STD ENG(L21) 		5-85317-001-0 01 1 9101- ● ●
103 SPANNER; BOX,OIL PRESSURE
6BD1 STD ENG(L21) 		9-85163-102-0 01 1 9101- ● ●
115 PLIER 5-85171-001-0 01 1 9101-0212 ● ●
115 PLIER 5-85171-002-0 01 1 0301- ● ●
141 HANDLE; WRENCH 9-09593-919-0 01 1 9101-0203 ● ●
141 HANDLE; WRENCH
POWER STEERING<N40> 		9-09593-919-0 01 1 0204- ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9101- ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9101-0504 ● ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 0505- ● ●
208 HANDLE; JACK 1-85515-004-0 01 1 9101-9405 ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9406-0105 ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106- ● ●
229 FUNNEL; RAD 9-85531-110-0 01 1 9101- ● ●
230 PUMP; GREASE 1-85556-007-3 01 1 9101- ● ●
237 BAG; TOOL 8-94367-102-0 01 1 9101-9509 ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9510- ● ●
257 CANDLE ASM; SMOKE,W/BRKT 5-82250-004-1 01 1 9101-0203 ● ●
çizim 94289
17 9 13 12 1 22 23 21 30 29 20 19 42 31 32 33 34 35 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 9101- ● ●
9 WRENCH; WHEEL PIN
L=445 41X21 		1-85113-015-1 01 1 9101- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9101- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9606-9805 ● ●
13 WRENCH; MONKEY 1-85117-003-1 01 1 9101-9304 ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9305- ● ●
17 HAMMER 9-85121-406-0 01 1 9101- ● ●
19 WRENCH; 7X8 9-09592-107-0 01 1 9101- ● ●
20 WRENCH; 10X12 9-09592-110-0 01 1 9101- ● ●
21 WRENCH; 14X17 9-09592-114-0 01 1 9101- ● ●
22 WRENCH; 19X22 9-99592-119-0 01 1 9101- ● ●
23 WRENCH; 24X27 9-09592-124-0 01 1 9101- ● ●
29 DRIVER; SCREW
<+> L=190 		9-09595-522-0 01 1 9101-9101 ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9102- ● ●
29 DRIVER; SCREW
<+> L=270 		9-09595-523-0 01 1 9101- ● ●
29 DRIVER; SCREW
<-> L=190 		9-09595-726-0 01 1 9101-9101 ● ●
29 DRIVER; SCREW
<-> L=320 		9-09595-729-0 01 1 9102- ● ●
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 9101- ● ●
31 WRENCH; 12 9-09590-012-0 01 1 9101- ● ●
32 WRENCH; 14 9-09590-014-0 01 1 9101- ● ●
33 WRENCH; 17 9-09590-017-0 01 1 9101- ● ●
34 WRENCH; 19 9-09590-019-0 01 1 9101- ● ●
35 WRENCH; 22 9-09590-022-0 01 1 9101- ● ●
42 HANDLE; SLIDING 9-09590-512-0 01 1 9101- ● ●
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 9101- ● ●

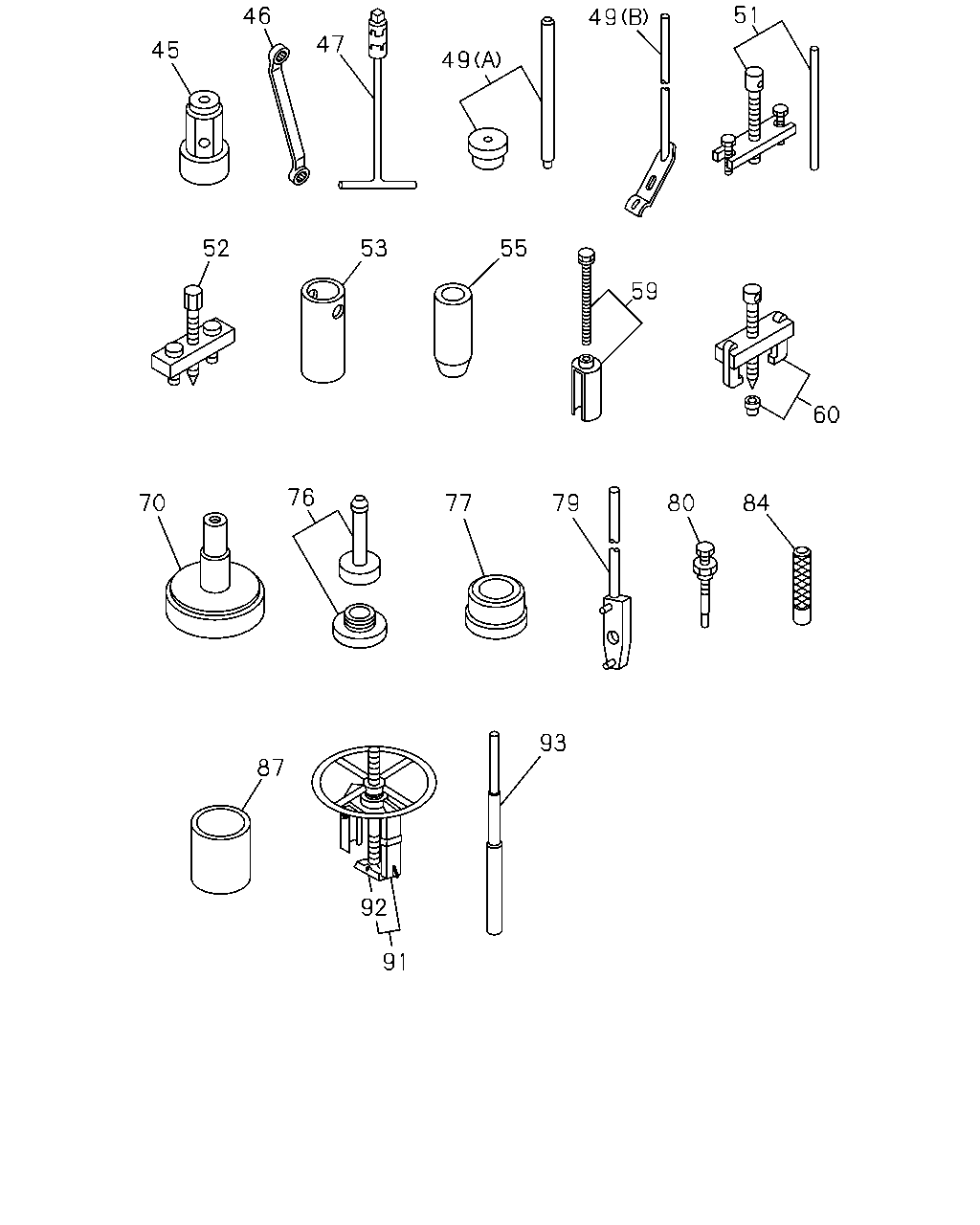

çizim 95216
51 46 49 47 45 49 52 53 55 59 60 76 70 77 79 80 84 93 87 92 91
BalonParca AdiParca NoAdetTipApplied Date A B
45 WRENCH; FRT NUT 1-85111-001-0 01 1 9101-0203 ● ●
45 WRENCH; FRT NUT
POWER STEERING<N40> 		1-85111-001-0 01 1 0204- ● ●
46 WRENCH; OFFSET,INJ PUMP
6BD1 STD ENG(L21) 		1-85112-001-0 01 1 9101- ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-702-0 01 1 9101-0203 ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP
POWER STEERING<N40> 		9-85113-702-0 01 1 0204- ● ●
49 REPLACER ASM; VALVE
(A) 		9-85231-818-0 01 1 9101-0203 ● ●
49 REPLACER ASM; VALVE
POWER STEERING<N40> (A) 		9-85231-818-0 01 1 0204- ● ●
49 REPLACER ASM; VALVE
6BD1 STD ENG(L21) (B) 		1-85235-006-0 01 1 9101- ● ●
51 PULLER ASM; WATER PUMP 9-85210-120-0 01 1 9101-0203 ● ●
51 PULLER ASM; WATER PUMP
POWER STEERING<N40> 		9-85210-120-0 01 1 0204- ● ●
52 REMOVER; WATER PUMP 9-85210-097-0 01 1 9101-0203 ● ●
52 REMOVER; WATER PUMP
POWER STEERING<N40> 		9-85210-097-0 01 1 0204- ● ●
53 PULLER; TAPER BUSHING 9-85210-122-0 01 1 9101-0203 ● ●
53 PULLER; TAPER BUSHING
POWER STEERING<N40> 		9-85210-122-0 01 1 0204- ● ●
55 SETTING TOOL; TIMING GEAR 9-85220-033-0 01 1 9101-0203 ● ●
55 SETTING TOOL; TIMING GEAR
POWER STEERING<N40> 		9-85220-033-0 01 1 0204- ● ●
59 PULLER ASM; TIMING GEAR 9-85210-141-0 01 1 9101-0203 ● ●
59 PULLER ASM; TIMING GEAR
POWER STEERING<N40> 		9-85210-141-0 01 1 0204- ● ●
60 PULLER; TIMING GEAR 9-85210-505-0 01 1 9101-0203 ● ●
60 PULLER; TIMING GEAR
POWER STEERING<N40> 		9-85210-505-0 01 1 0204- ● ●
70 TOOL; SETTING,OIL SEAL 5-85220-044-0 01 1 9101-0203 ● ●
70 TOOL; SETTING,OIL SEAL
POWER STEERING<N40> 		5-85220-044-0 01 1 0204- ● ●
76 TOOL; SETTING,SEAL 9-85220-034-0 01 1 9101-0203 ● ●
76 TOOL; SETTING,SEAL
POWER STEERING<N40> 		9-85220-034-0 01 1 0204- ● ●
77 TOOL; SETTING,CYL LINER
6BD1 STD ENG(L21) 		9-85232-554-0 01 1 9101- ● ●
77 TOOL; SETTING,CYL LINER
6BG1 STD ENG(16L) 		5-85221-018-0 01 1 9101- ● ●
79 RETAINER; AUTO TIMER 9-85111-930-0 01 1 9101-0203 ● ●
79 RETAINER; AUTO TIMER
POWER STEERING<N40> 		9-85111-930-0 01 1 0204- ● ●
80 PULLER ASM; AUTO TIMER 9-85210-154-0 01 1 9101-0203 ● ●
80 PULLER ASM; AUTO TIMER
POWER STEERING<N40> 		9-85210-154-0 01 1 0204- ● ●
84 REPLACER; VALVE SEAL 1-85221-005-0 01 1 9101-0203 ● ●
84 REPLACER; VALVE SEAL
POWER STEERING<N40> 		1-85221-005-0 01 1 0204- ● ●
87 TOOL; PISTON
6BD1 STD ENG(L21) 		9-85221-172-0 01 1 9101- ● ●
87 TOOL; PISTON
6BG1 STD ENG(16L) 		9-85221-173-0 01 1 9101- ● ●
91 REPLACER ASM; CYL LINER
6BD1 STD ENG(L21) OR 		1-85231-002-0 01 1 9101- ● ●
91 REPLACER ASM; CYL LINER
6BD1 STD ENG(L21) OR 		1-85231-003-0 01 1 9101- ● ●
91 REPLACER ASM; CYL LINER
6BD1 STD ENG(L21) 		9-85232-555-0 01 1 9101- ● ●
91 REPLACER ASM; CYL LINER
6BG1 STD ENG(16L) 		5-85231-005-0 01 1 9101- ● ●
92 ANKLE; REPLACER,CYL LINER
6BD1 STD ENG(L21) OD=104.5 		9-85232-557-0 03 1 9101- ● ●
92 ANKLE; REPLACER,CYL LINER
6BG1 STD ENG(16L) OD=106.7 		5-85231-004-0 01 1 9101- ● ●
93 SETTING KIT; VALVE GUIDE
6BD1 STD ENG(L21) 		1-85220-001-0 01 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
