1 |

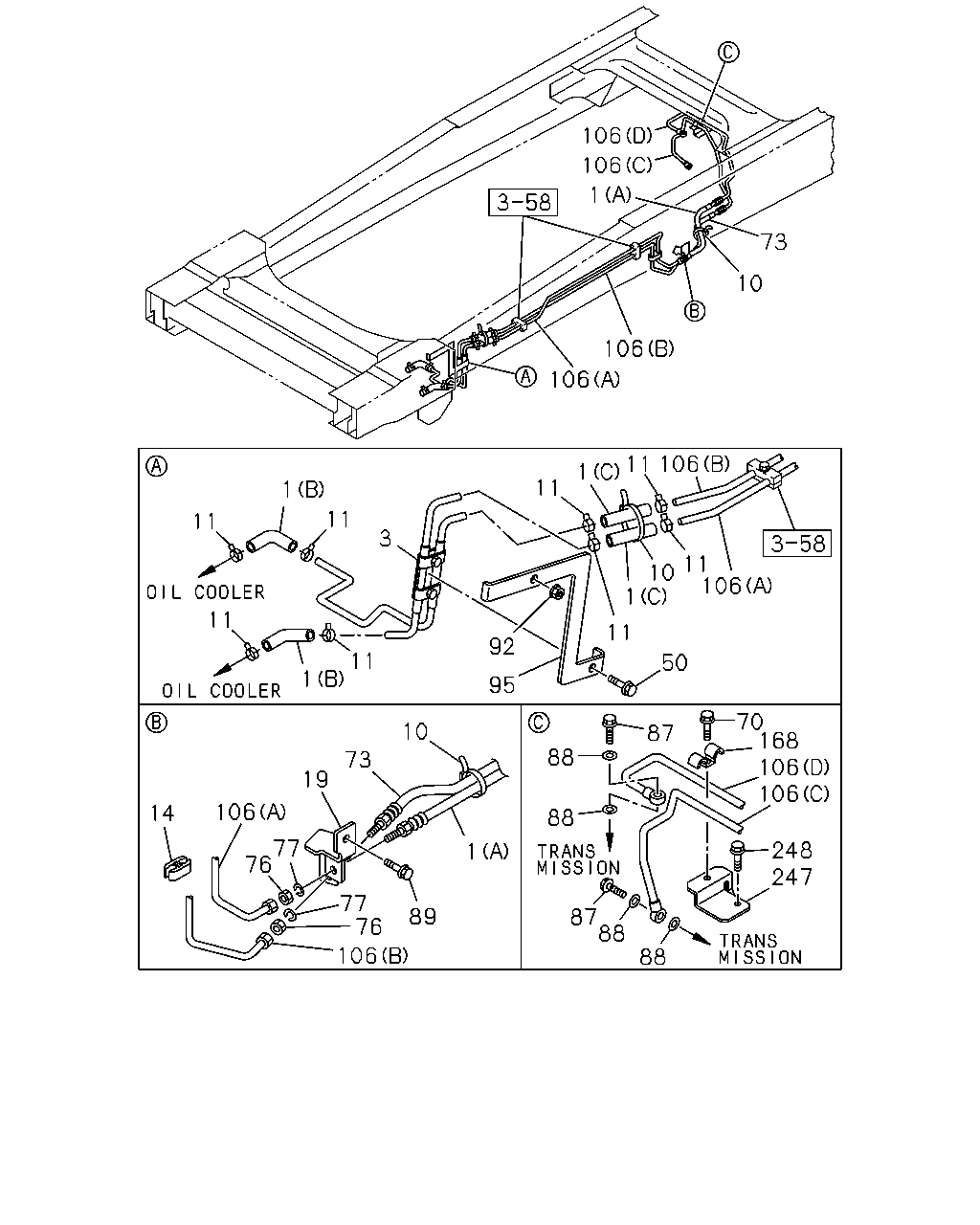

04.128 HOSE; ATF
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-97384-032-0 |
01 |
1 |
0607- |
| |
1 |
04.128 HOSE; ATF
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98000-604-2 |
02 |
1 |
0607-0705 |
| |
1 |
04.128 HOSE; ATF
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98086-380-0 |
02 |
1 |
0706- |
| |
1 |
04.128 HOSE; ATF
SGL TIRE(NKB***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98000-605-1 |
02 |
1 |
0607-0705 |
| |
1 |
04.128 HOSE; ATF
SGL TIRE(NKB***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98087-324-0 |
02 |
1 |
0706- |
| |
1 |
04.128 HOSE; ATF
DUAL RR TIRE(NKC***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98001-039-1 |
02 |
1 |
0607-0705 |
| |
1 |
04.128 HOSE; ATF
DUAL RR TIRE(NKC***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98087-325-0 |
02 |
1 |
0706- |
| |
3 |
04.128 PIPE; OIL,A/T TO OIL COOLER
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98000-222-1 |
01 |
1 |
0607- |
| |
10 |
04.128 CLIP; A/T COOLER HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF)
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
0607- |
| |
11 |
04.128 CLIP; PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
01.240
ID=16
|
8-94392-924-0 |
08 |
1 |
0607-0706 |
| |
11 |
04.128 CLIP; PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
01.097
ID=16
|
8-97329-628-0 |
08 |
1 |
0707- |
| |
14 |
04.128 CLIP; PIPE TO ENG SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF)
06.672
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
0607- |
| |
14 |
04.128 CLIP; PIPE TO ENG SIDE
SGL TIRE(NKB***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
06.672
ID=10X2 H=22
|
8-94252-455-2 |
01 |
1 |
0607- |
| |
19 |
04.128 BRACKET; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97373-079-0 |
01 |
1 |
0607- |
| |
50 |
04.128 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0607- |
| |
70 |
04.128 BOLT; CLIP,A/T SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0607- |
| |
73 |
04.128 HOSE; FLEX,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97384-033-0 |
01 |
1 |
0607- |
| |
76 |
04.128 NUT; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF)
06.897
M16
|
8-94370-339-0 |
02 |
1 |
0607- |
| |
77 |
04.128 WASHER; LK
TRANSMISSION CONTROL-SMOOTHER(8GF)
06.672
ID=16.5 TOOTH LK INT
|
0-91541-216-0 |
02 |
1 |
0607- |
| |
87 |
04.128 BOLT; EYE
TRANSMISSION CONTROL-SMOOTHER(8GF)
01.855
M14X30 EYE-BOLT
|
1-09675-146-0 |
02 |
1 |
0607-0805 |
| |
87 |
04.128 BOLT; EYE
TRANSMISSION CONTROL-SMOOTHER(8GF)
M14X30 EYE-BOLT
|
8-98037-827-0 |
02 |
1 |
0806- |
| |
88 |
04.128 GASKET; EYE BOLT
TRANSMISSION CONTROL-SMOOTHER(8GF)
08.955
ID=14.2 OD=20.0
|
9-09571-414-0 |
04 |
1 |
0607- |
| |
89 |
04.128 BOLT; BRKT,FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER(8GF)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0607- |
| |
92 |
04.128 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF)
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0607- |
| |
95 |
04.128 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-98000-332-0 |
01 |
1 |
0607- |
| |
106 |
04.128 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION CONTROL-SMOOTHER(8GF)
(C)
|
8-98018-779-0 |
01 |
1 |
0607- |
| |
106 |
04.128 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION CONTROL-SMOOTHER(8GF)
(D)
|
8-98038-464-0 |
01 |
1 |
0607- |
| |
106 |
04.128 PIPE ASM; OIL,COOLER TO UNION
SGL TIRE(NKB***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98000-228-1 |
01 |
1 |
0607- |
| |
106 |
04.128 PIPE ASM; OIL,COOLER TO UNION
SGL TIRE(NKB***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98000-229-1 |
01 |
1 |
0607- |
| |
106 |
04.128 PIPE ASM; OIL,COOLER TO UNION
DUAL RR TIRE(NKC***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
|
8-98000-472-1 |
01 |
1 |
0607- |
| |
106 |
04.128 PIPE ASM; OIL,COOLER TO UNION
DUAL RR TIRE(NKC***)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
|
8-98000-473-1 |
01 |
1 |
0607- |
| |
168 |
04.128 CLIP; A/T SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF)
00.854
ID=11 & 11 L=17.5 & 17.5
|
1-09700-739-0 |
02 |
1 |
0607- |
| |
247 |
04.128 RETAINER; PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97349-876-0 |
01 |
1 |
0607- |
| |
248 |
04.128 BOLT; RETAINER
TRANSMISSION CONTROL-SMOOTHER(8GF)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0607- |
