Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#22706) — 166 parça

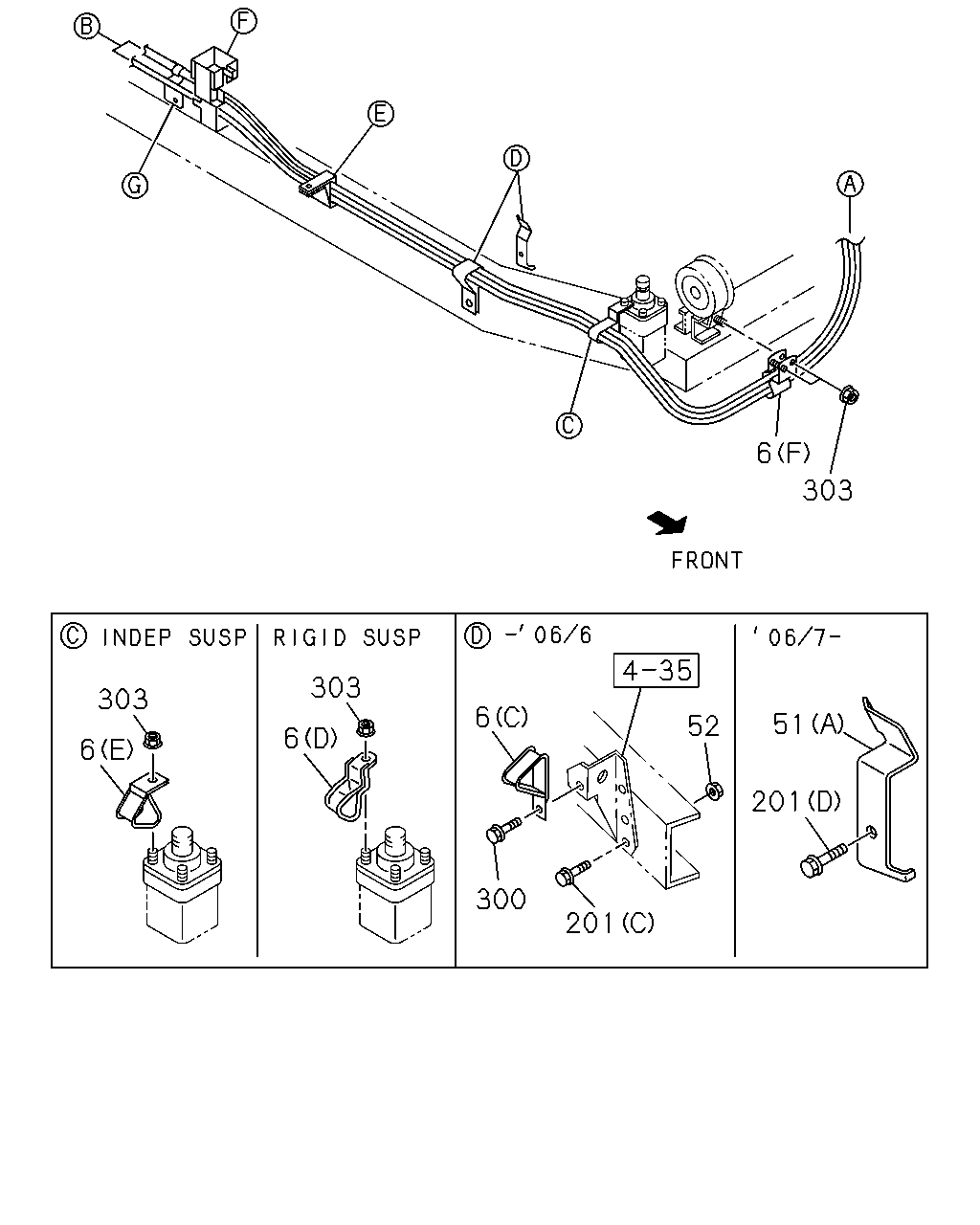

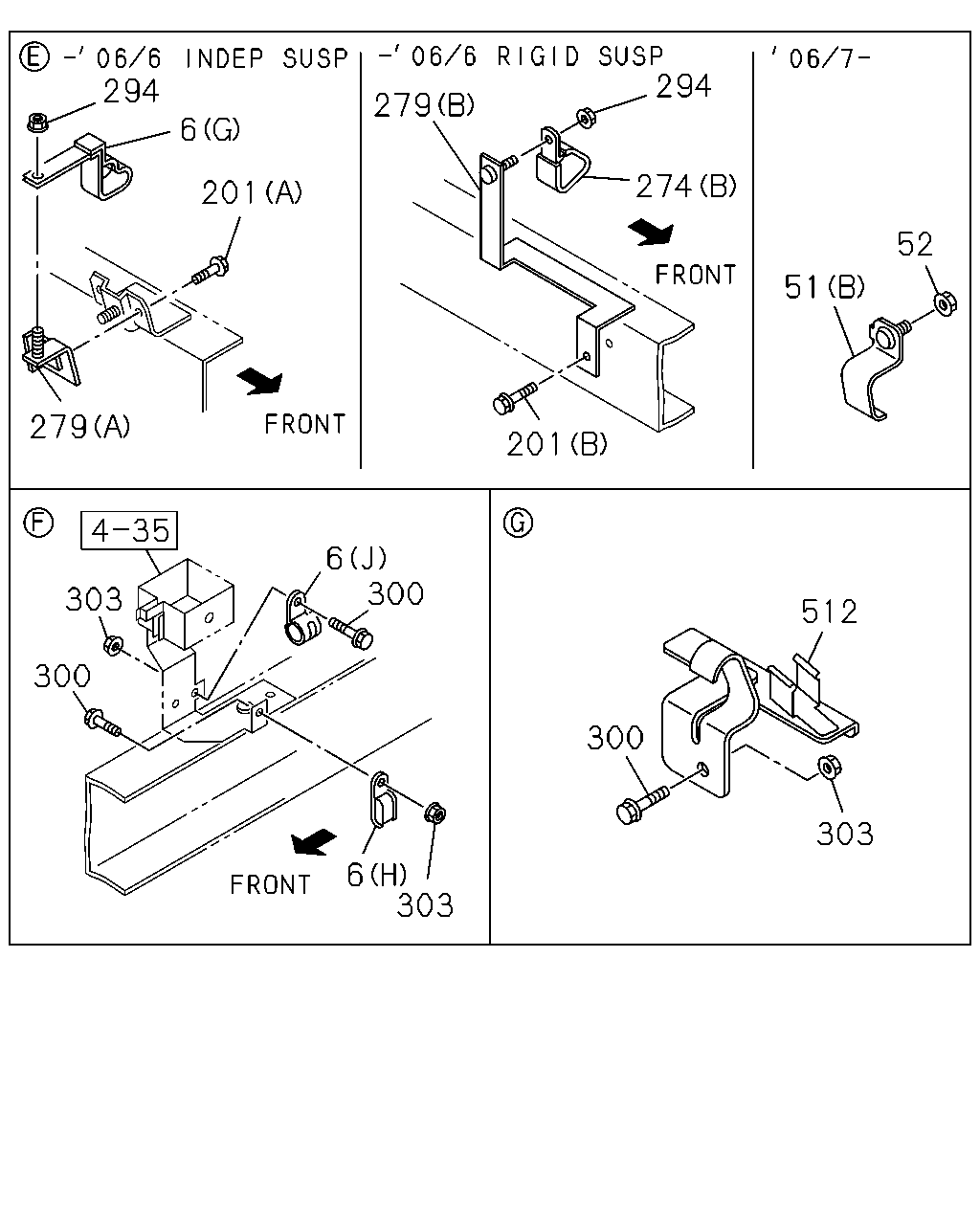

294 294 279 6 274 201 52 51 279 201 6 300 303 512 300 300 303 6 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	04.047 CLIP; CABLE 00.854 (I) ID=22.2	1-09701-209-1	01	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (I) ID=22.2	1-09701-209-1	01	1	0607-
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97011-448-0	02	1	0607-
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0302-0606
6	04.047 CLIP; CABLE (F)	8-97147-985-0	01	1	0302-0606
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=19.2	8-97211-011-0	01	1	0607-
6	04.047 CLIP; CABLE FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97039-296-1	01	1	0302-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0507-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) 04.785 (H)	8-94458-385-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) 04.785 (H)	8-94458-385-1	01	1	0507-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97036-330-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97036-330-1	01	1	0507-0606
6	04.047 CLIP; CABLE DUAL RR TIRE(NKC***) (D)	8-97036-334-2	01	1	0302-0606
51	04.010 BRACKET; GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98032-072-0	01	1	0607-
51	04.010 BRACKET; GEAR CONT SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98030-604-0	01	1	0607-
52	04.047 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-
52	04.047 NUT; BRKT DUAL RR TIRE(NKC***) 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0302-0512
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606
201	04.032 BOLT; BRKT 4JH1 ENG(RJX) 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506
201	04.032 BOLT; BRKT DUAL RR TIRE(NKC***) 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0506
201	04.032 BOLT; BRKT DUAL RR TIRE(NKC***) 4JH1-TC ENG(RDM) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
201	04.032 BOLT; BRKT DUAL RR TIRE(NKC***) 4JH1-TC ENG(RDM) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606
201	04.032 BOLT; BRKT SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (D) M8X20 FLANGE	0-28650-820-0	01	1	0607-
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ> (A)	8-97093-491-1	01	1	0302-0606
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97093-491-1	01	1	0607-
274	04.008 CLIP; CONT CABLE DUAL RR TIRE(NKC***) 4JH1 ENG(RJX) 04.047 (B)	8-97036-333-1	01	1	0302-0506
274	04.008 CLIP; CONT CABLE DUAL RR TIRE(NKC***) 4JH1-TC ENG(RDM) 04.047 (B)	8-97036-333-1	01	1	0507-0606
279	04.047 BRACKET; CABLE TO FRAME FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97066-629-5	01	1	0302-0606
279	04.047 BRACKET; CABLE TO FRAME DUAL RR TIRE(NKC***) 4JH1 ENG(RJX) (B)	8-97351-828-0	01	1	0302-0506
279	04.047 BRACKET; CABLE TO FRAME DUAL RR TIRE(NKC***) 4JH1-TC ENG(RDM) (B)	8-97351-828-0	01	1	0507-0606
294	00.854 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602
294	00.854 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0302-0506
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0507-0512
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606
300	00.854 BOLT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606
303	00.855 NUT; CLIP 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506
303	00.855 NUT; CLIP 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
303	00.855 NUT; CLIP 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606
303	00.855 NUT; CLIP DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-
512	04.012 GUIDE; CABLE,GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98023-054-2	01	1	0607-

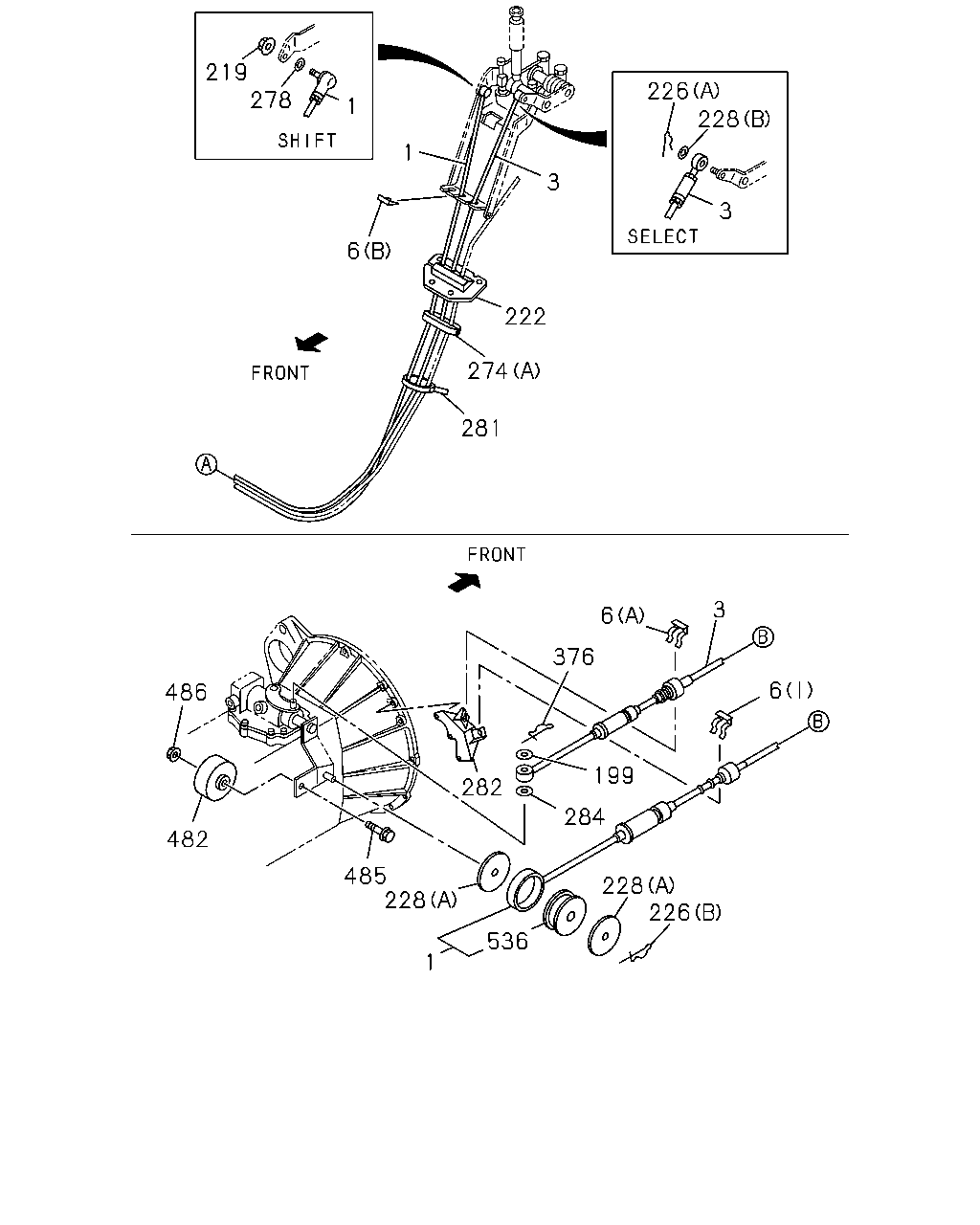

219 278 226 228 1 1 3 3 6 222 274 281 3 6 376 6 486 199 282 284 482 485 228 228 226 536 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.854 CABLE; SHIFT,TRANS CONT L=2805	8-97351-820-1	01	1	0302-0606
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2820	8-97388-716-1	01	1	0607-0911
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2820	8-98147-946-0	01	1	0912-
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2890	8-97351-822-0	01	1	0302-0506
3	00.852 CABLE; SELECT,TRANS CONT 4JH1-TC ENG(RDM) L=2890	8-97351-822-0	01	1	0507-0606
3	00.852 CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97388-725-1	01	1	0607-
6	04.047 CLIP; CABLE 00.854 (I) ID=22.2	1-09701-209-1	01	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (I) ID=22.2	1-09701-209-1	01	1	0607-
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97011-448-0	02	1	0607-
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0302-0606
6	04.047 CLIP; CABLE (F)	8-97147-985-0	01	1	0302-0606
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=19.2	8-97211-011-0	01	1	0607-
6	04.047 CLIP; CABLE FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97039-296-1	01	1	0302-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0507-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) 04.785 (H)	8-94458-385-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) 04.785 (H)	8-94458-385-1	01	1	0507-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97036-330-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97036-330-1	01	1	0507-0606
6	04.047 CLIP; CABLE DUAL RR TIRE(NKC***) (D)	8-97036-334-2	01	1	0302-0606
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0302-0605
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-0606
199	04.012 WASHER; PL,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0607-
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0302-0606
219	04.047 NUT; FLANGE,SHAFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0	8-94363-045-0	01	1	0607-
222	04.010 GROMMET; CABLE	8-97061-403-2	01	1	0302-0606
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0302-0606
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7	8-94111-137-0	01	1	0607-
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0302-0606
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23	8-94170-378-0	01	1	0607-
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0302-0606
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0607-
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0302-0605
228	04.047 WASHER; PL,SHIFT CABLE 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0606
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0607-
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ> (A)	8-97093-491-1	01	1	0302-0606
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97093-491-1	01	1	0607-
274	04.008 CLIP; CONT CABLE DUAL RR TIRE(NKC***) 4JH1 ENG(RJX) 04.047 (B)	8-97036-333-1	01	1	0302-0506
274	04.008 CLIP; CONT CABLE DUAL RR TIRE(NKC***) 4JH1-TC ENG(RDM) 04.047 (B)	8-97036-333-1	01	1	0507-0606
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0302-0604
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-0606
278	00.854 WASHER; LK,SHIFT WIRE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0607-
281	04.042 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	0302-0606
281	04.042 CLIP; BAND EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140	5-09707-031-1	01	1	0607-
282	04.010 BRACKET; TRANS SIDE 4JH1 ENG(RJX)	8-97350-449-0	01	1	0302-0506
282	04.010 BRACKET; TRANS SIDE 4JH1-TC ENG(RDM)	8-97350-449-0	01	1	0507-0606
282	04.010 BRACKET; TRANS SIDE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97350-449-0	01	1	0607-
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0302-0606
284	00.854 WASHER; WAVE,SELECT CABLE,CAB EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 OD=14	5-09550-002-0	01	1	0607-
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0302-0606
376	04.047 PIN; SNAP,SELECT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=23	8-94170-378-0	01	1	0607-
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0302-0305
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0302-0305
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0302-0305
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	0302-0606
536	00.854 DAMPER; CABLE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98097-681-0	01	1	0607-

6 303 303 303 6 51 52 6 6 201 300 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	04.047 CLIP; CABLE 00.854 (I) ID=22.2	1-09701-209-1	01	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (I) ID=22.2	1-09701-209-1	01	1	0607-
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97011-448-0	02	1	0607-
6	04.047 CLIP; CABLE (C)	8-97036-333-1	01	1	0302-0606
6	04.047 CLIP; CABLE (F)	8-97147-985-0	01	1	0302-0606
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	01	1	0302-0606
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=19.2	8-97211-011-0	01	1	0607-
6	04.047 CLIP; CABLE FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97039-296-1	01	1	0302-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) 04.686 (J) ID=21 L=24	8-94176-807-1	01	1	0507-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) 04.785 (H)	8-94458-385-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) 04.785 (H)	8-94458-385-1	01	1	0507-0606
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97036-330-1	01	1	0302-0506
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97036-330-1	01	1	0507-0606
6	04.047 CLIP; CABLE DUAL RR TIRE(NKC***) (D)	8-97036-334-2	01	1	0302-0606
51	04.010 BRACKET; GEAR CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98032-072-0	01	1	0607-
51	04.010 BRACKET; GEAR CONT SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98030-604-0	01	1	0607-
52	04.047 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-
52	04.047 NUT; BRKT DUAL RR TIRE(NKC***) 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	0302-0512
201	04.032 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0601-0606
201	04.032 BOLT; BRKT 4JH1 ENG(RJX) 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506
201	04.032 BOLT; BRKT DUAL RR TIRE(NKC***) 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0506
201	04.032 BOLT; BRKT DUAL RR TIRE(NKC***) 4JH1-TC ENG(RDM) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
201	04.032 BOLT; BRKT DUAL RR TIRE(NKC***) 4JH1-TC ENG(RDM) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606
201	04.032 BOLT; BRKT SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (D) M8X20 FLANGE	0-28650-820-0	01	1	0607-
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0302-0506
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0507-0512
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606
300	00.854 BOLT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606
303	00.855 NUT; CLIP 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506
303	00.855 NUT; CLIP 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
303	00.855 NUT; CLIP 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606
303	00.855 NUT; CLIP DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
