Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#22704) — 333 parça

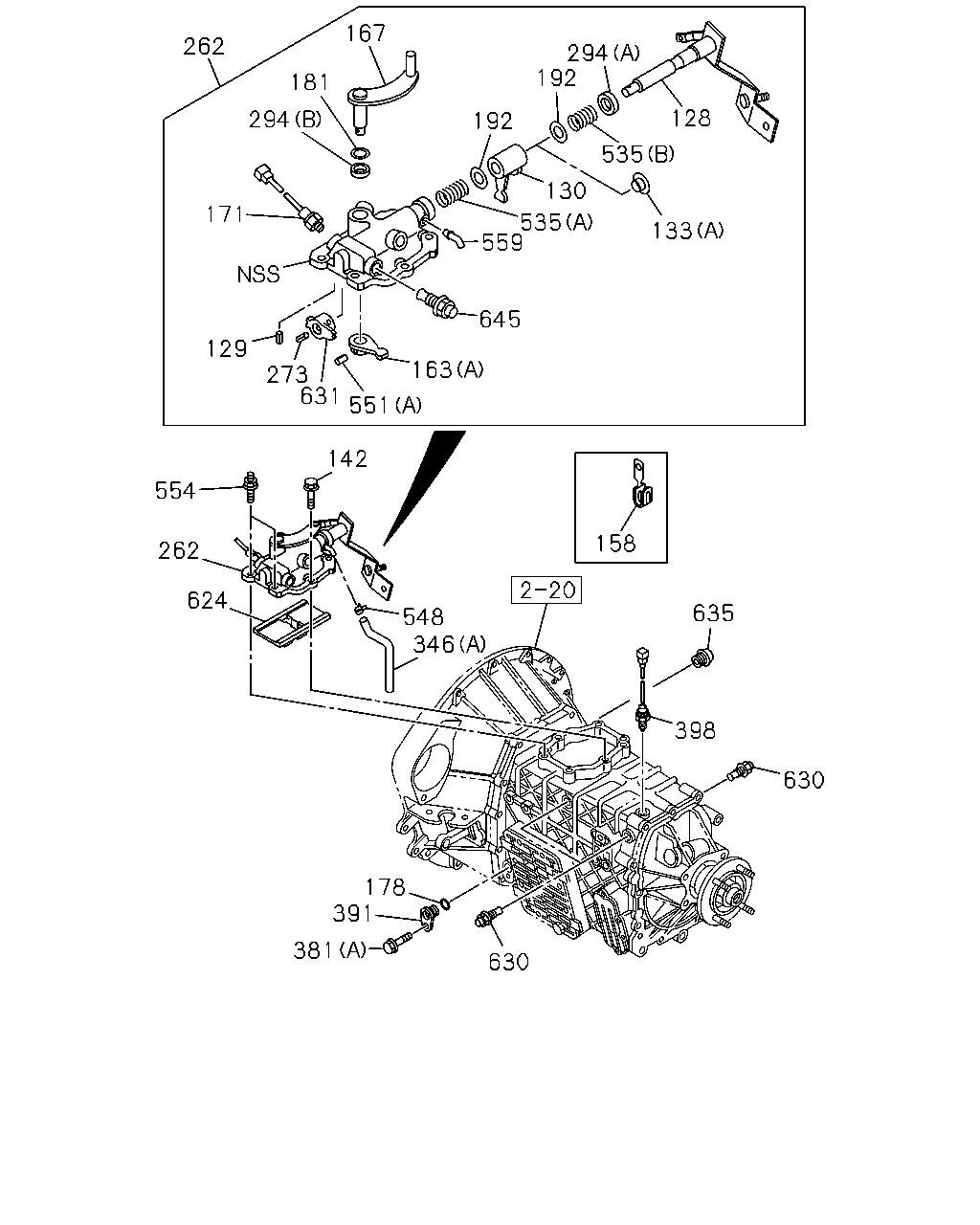

167 262 294 192 181 128 294 192 535 130 171 535 559 133 645 129 163 273 631 551 142 554 158 262 624 635 548 346 398 630 178 391 381 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
128	04.030 LEVER; SHIFT,EXTERNAL 4JH1 ENG(RJX)	8-97305-725-0	01	1	0302-0506
128	04.030 LEVER; SHIFT,EXTERNAL 4JH1-TC ENG(RDM)	8-97305-725-0	01	1	0507-0606
128	04.030 LEVER; SHIFT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-725-0	01	1	0607-
129	04.027 PIN; SPR,SHIFT 4JH1 ENG(RJX) L=30 OD=4	1-09748-031-0	01	1	0302-0506
129	04.027 PIN; SPR,SHIFT 4JH1-TC ENG(RDM) L=30 OD=4	1-09748-031-0	01	1	0507-0606
129	04.027 PIN; SPR,SHIFT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=30 OD=4	1-09748-031-0	01	1	0607-
130	04.302 LEVER; SHIFT,INTERNAL 4JH1 ENG(RJX)	8-97306-647-0	01	1	0302-0506
130	04.302 LEVER; SHIFT,INTERNAL 4JH1-TC ENG(RDM)	8-97306-647-0	01	1	0507-0606
130	04.302 LEVER; SHIFT,INTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97306-647-0	01	1	0607-
133	04.027 SEAT; SPR 4JH1 ENG(RJX) (A)	8-97305-667-0	01	1	0302-0506
133	04.027 SEAT; SPR 4JH1-TC ENG(RDM) (A)	8-97305-667-0	01	1	0507-0606
133	04.027 SEAT; SPR 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-667-0	01	1	0607-
133	04.027 SEAT; SPR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0607-
133	04.027 SEAT; SPR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0607-
142	04.012 BOLT; QUAD BOX 4JH1 ENG(RJX) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0506
142	04.012 BOLT; QUAD BOX 4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0507-0604
142	04.012 BOLT; QUAD BOX 4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0606
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0607-
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-97364-971-0	03	1	0607-0610
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-98020-384-0	03	1	0611-
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-97364-972-0	03	1	0607-0610
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-98020-385-0	03	1	0611-
158	04.105 CLIP; HARNESS 4JH1 ENG(RJX)	8-97300-317-0	01	1	0302-0302
163	04.302 LEVER; SELECT,INTERNAL 4JH1 ENG(RJX) (A)	8-97305-663-0	01	1	0302-0506
163	04.302 LEVER; SELECT,INTERNAL 4JH1-TC ENG(RDM) (A)	8-97305-663-0	01	1	0507-0606
163	04.302 LEVER; SELECT,INTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-663-0	01	1	0607-
163	04.302 LEVER; SELECT,INTERNAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0607-
163	04.302 LEVER; SELECT,INTERNAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0607-
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97333-847-0	01	1	0302-0506
167	04.302 LEVER; SELECT,EXTERNAL 4JH1-TC ENG(RDM)	8-97333-847-0	01	1	0507-0606
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-847-0	01	1	0607-0611
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-436-0	01	1	0612-
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0607-
171	04.054 SWITCH; NEUTRAL 4JH1 ENG(RJX)	8-97316-688-1	01	1	0302-0506
171	04.054 SWITCH; NEUTRAL 4JH1-TC ENG(RDM)	8-97316-688-1	01	1	0507-0606
171	04.054 SWITCH; NEUTRAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-688-1	01	1	0607-0611
171	04.054 SWITCH; NEUTRAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698	8-98023-050-0	01	1	0607-0611
171	04.054 SWITCH; NEUTRAL 4JJ1 ENG(LFB) 02.698	8-98023-050-0	01	1	0612-
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX)	9-09567-113-0	01	1	0302-0506
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM)	9-09567-113-0	01	1	0507-0606
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	0607-
181	04.302 WASHER; PL,SELECT LEVER 4JH1 ENG(RJX)	1-09503-280-0	01	1	0302-0303
181	04.302 WASHER; PL,SELECT LEVER 4JH1 ENG(RJX)	8-97367-327-0	01	1	0304-0506
181	04.302 WASHER; PL,SELECT LEVER 4JH1-TC ENG(RDM)	8-97367-327-0	01	1	0507-0606
181	04.302 WASHER; PL,SELECT LEVER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-327-0	01	1	0607-
192	04.309 WASHER; PL 4JH1 ENG(RJX)	8-97305-661-0	02	1	0302-0303
192	04.309 WASHER; PL 4JH1 ENG(RJX)	8-97305-661-0	01	1	0304-0506
192	04.309 WASHER; PL 4JH1-TC ENG(RDM)	8-97305-661-0	01	1	0507-0606
192	04.309 WASHER; PL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	01	1	0607-
192	04.309 WASHER; PL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0607-
262	04.105 BOX ASM; SHIFT CONT 4JH1 ENG(RJX)	8-97310-609-2	01	1	0302-0404
262	04.105 BOX ASM; SHIFT CONT 4JH1 ENG(RJX)	8-97362-753-0	01	1	0405-0506
262	04.105 BOX ASM; SHIFT CONT 4JH1-TC ENG(RDM)	8-97362-753-1	01	1	0507-0606
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-753-2	01	1	0607-
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-804-0	01	1	0607-0610
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-399-6	01	1	0611-
273	04.309 PIN; SPR,STOPPER 4JH1 ENG(RJX) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0302-0506
273	04.309 PIN; SPR,STOPPER 4JH1-TC ENG(RDM) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0507-0606
273	04.309 PIN; SPR,STOPPER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0607-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (A)	1-09625-599-0	01	1	0302-0303
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (A)	8-97363-225-0	01	1	0304-0506
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) (A)	8-97363-225-0	01	1	0507-0606
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0607-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (B)	8-97305-662-0	01	1	0302-0506
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) (B)	8-97305-662-0	01	1	0507-0606
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-662-0	01	1	0607-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0607-
346	04.545 HOSE; AIR 4JH1 ENG(RJX) (A)	8-97309-855-0	01	1	0302-0506
346	04.545 HOSE; AIR 4JH1-TC ENG(RDM) (A)	8-97309-855-0	01	1	0507-0606
346	04.545 HOSE; AIR 4JJ1 ENG(LFB) (A)	8-97309-855-0	01	1	0607-
346	04.545 HOSE; AIR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0607-
381	04.105 BOLT 4JH1 ENG(RJX) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0302-0506
381	04.105 BOLT 4JH1-TC ENG(RDM) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0507-0512
381	04.105 BOLT 4JH1-TC ENG(RDM) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0601-0606
381	04.105 BOLT 4JJ1 ENG(LFB) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0607-
381	04.105 BOLT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0607-0906
381	04.105 BOLT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-
391	04.104 PLUG; SW HOLE 4JH1 ENG(RJX)	8-97300-273-1	01	1	0302-0506
391	04.104 PLUG; SW HOLE 4JH1-TC ENG(RDM)	8-97300-273-1	01	1	0507-0606
391	04.104 PLUG; SW HOLE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-273-1	01	1	0607-
398	02.698 SWITCH; REV LAMP 4JH1 ENG(RJX) 04.054	8-97316-688-1	01	1	0302-0506
398	02.698 SWITCH; REV LAMP 4JH1-TC ENG(RDM) 04.054	8-97316-688-1	01	1	0507-0604
398	02.698 SWITCH; REV LAMP 4JH1-TC ENG(RDM)	8-98023-050-0	01	1	0605-0606
398	02.698 SWITCH; REV LAMP 4JJ1 ENG(LFB)	8-98023-050-0	01	1	0607-
535	04.302 SPRING; LEVER 4JH1 ENG(RJX) (A)	8-97323-771-0	01	1	0302-0506
535	04.302 SPRING; LEVER 4JH1-TC ENG(RDM) (A)	8-97323-771-0	01	1	0507-0606
535	04.302 SPRING; LEVER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97323-771-0	01	1	0607-
535	04.302 SPRING; LEVER 4JH1 ENG(RJX) (B)	8-97323-772-0	01	1	0302-0506
535	04.302 SPRING; LEVER 4JH1-TC ENG(RDM) (B)	8-97323-772-0	01	1	0507-0606
535	04.302 SPRING; LEVER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97323-772-0	01	1	0607-
548	04.457 CLIP; HOSE 4JH1 ENG(RJX) 03.278	8-97031-674-0	01	1	0302-0506
548	04.457 CLIP; HOSE 4JH1-TC ENG(RDM) 03.278	8-97031-674-0	01	1	0507-0606
548	04.457 CLIP; HOSE 4JJ1 ENG(LFB) 03.278	8-97031-674-0	01	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) (A) L=25 OD=5	1-09748-032-0	01	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) (A) L=25 OD=5	1-09748-032-0	01	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) 04.302 (B) L=32	8-97011-596-2	04	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) 04.302 (B) L=32	8-97011-596-2	04	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) 04.302 (B) L=32	8-97011-596-2	04	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) (C) L=20	8-97241-340-0	01	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) (C) L=20	8-97241-340-0	01	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) (C) L=20	8-97241-340-0	01	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) (A) L=25 OD=5	1-09748-032-0	01	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0607-
554	04.302 STUD; CONT BOX 4JH1 ENG(RJX) M8X15,M8X25 L=49	8-97352-677-0	02	1	0302-0506
554	04.302 STUD; CONT BOX 4JH1-TC ENG(RDM) M8X15,M8X25 L=49	8-97352-677-0	02	1	0507-0604
554	04.302 STUD; CONT BOX 4JH1-TC ENG(RDM) M8X15,M8X25 L=49	8-97365-378-0	02	1	0605-0606
554	04.302 STUD; CONT BOX 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X15,M8X25 L=49	8-97365-378-0	02	1	0607-
559	04.302 PIPE; BREATHER 4JH1 ENG(RJX)	8-97305-517-0	01	1	0302-0506
559	04.302 PIPE; BREATHER 4JH1-TC ENG(RDM)	8-97305-517-0	01	1	0507-0604
559	04.302 PIPE; BREATHER 4JH1-TC ENG(RDM) 04.510	8-97358-318-0	01	1	0605-0606
559	04.302 PIPE; BREATHER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0607-
559	04.302 PIPE; BREATHER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-999-0	01	1	0607-0610
559	04.302 PIPE; BREATHER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0611-
624	04.105 PLATE; INTER LOCK 4JH1 ENG(RJX)	8-97241-317-2	01	1	0302-0506
624	04.105 PLATE; INTER LOCK 4JH1-TC ENG(RDM)	8-97241-317-2	01	1	0507-0606
624	04.105 PLATE; INTER LOCK 4JJ1 ENG(LFB)	8-97241-317-3	01	1	0607-
630	04.307 DETENT ASM 4JH1 ENG(RJX)	8-97241-341-0	03	1	0302-0506
630	04.307 DETENT ASM 4JH1-TC ENG(RDM)	8-97241-341-0	03	1	0507-0604
630	04.307 DETENT ASM 4JH1-TC ENG(RDM)	8-98019-536-0	03	1	0605-0606
630	04.307 DETENT ASM 4JJ1 ENG(LFB)	8-98019-536-0	03	1	0607-
631	04.105 STOPPER; SPRING 4JH1 ENG(RJX)	8-97305-666-0	01	1	0302-0506
631	04.105 STOPPER; SPRING 4JH1-TC ENG(RDM)	8-97305-666-0	01	1	0507-0606
631	04.105 STOPPER; SPRING 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-666-0	01	1	0607-
631	04.105 STOPPER; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0607-
635	04.309 PLUG; DETENT 4JH1 ENG(RJX) 00.206	8-97229-313-2	01	1	0302-0506
635	04.309 PLUG; DETENT 4JH1-TC ENG(RDM) 00.206	8-97229-313-2	01	1	0507-0606
635	04.309 PLUG; DETENT 4JJ1 ENG(LFB) 00.206	8-97229-313-2	01	1	0607-0611
635	04.309 PLUG; DETENT 4JJ1 ENG(LFB) 00.206	8-97380-892-0	01	1	0612-
645	04.311 DETENT ASM 4JH1 ENG(RJX) 04.307	8-97241-341-0	01	1	0405-0506
645	04.311 DETENT ASM 4JH1-TC ENG(RDM) 04.307	8-97241-341-0	01	1	0507-0604
645	04.311 DETENT ASM 4JH1-TC ENG(RDM) 04.307	8-98019-536-0	01	1	0605-0606
645	04.311 DETENT ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	8-98019-536-0	01	1	0607-

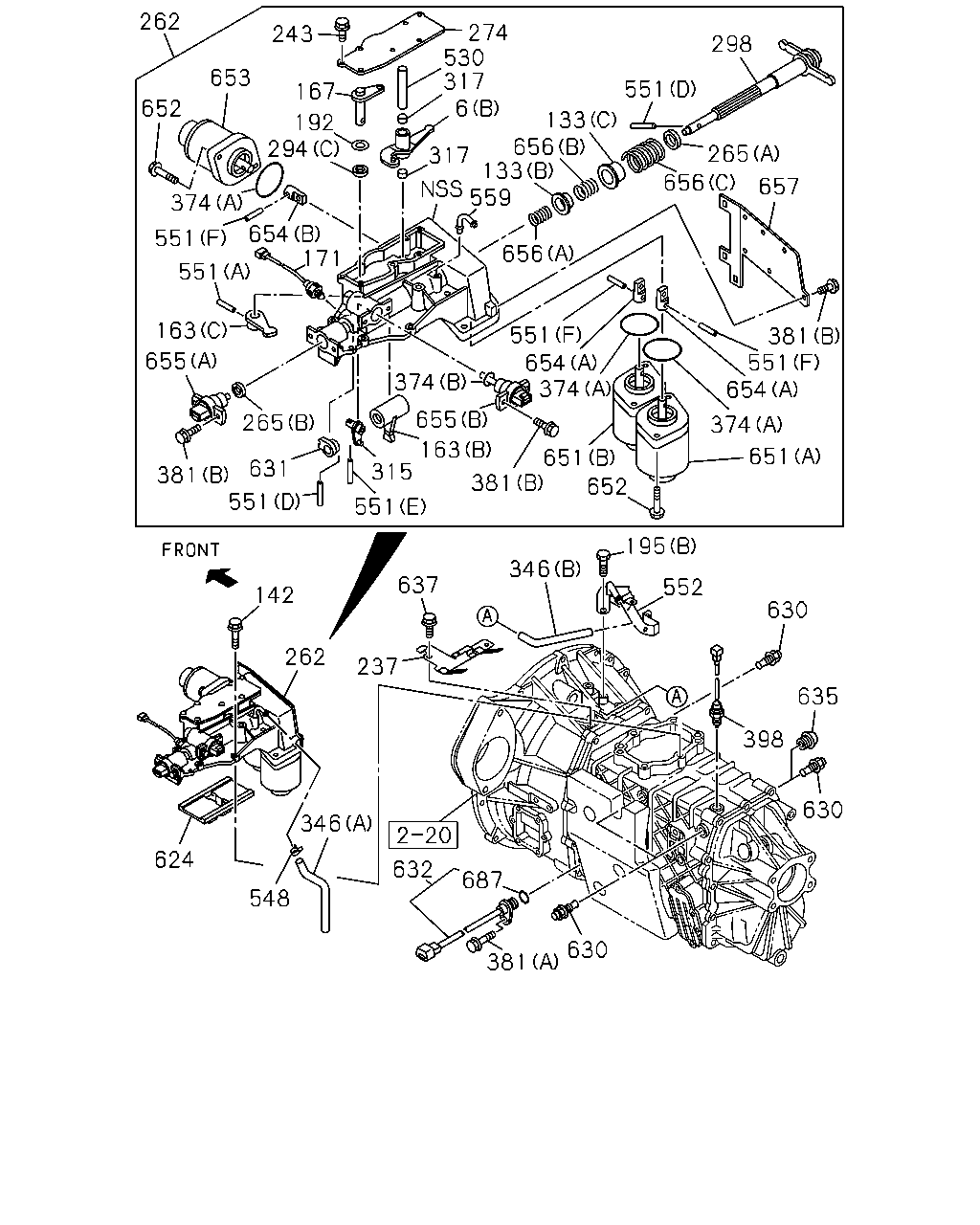

262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 294 265 317 656 657 374 654 171 551 656 551 163 381 551 654 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 195 346 637 552 142 630 262 237 635 398 630 346 624 632 687 548 630 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	04.302 LEVER; RELAY 4JH1 ENG(RJX) (A)	8-97241-344-0	01	1	0302-0506
6	04.302 LEVER; RELAY 4JH1-TC ENG(RDM) (A)	8-97241-344-0	01	1	0507-0606
6	04.302 LEVER; RELAY 4JJ1 ENG(LFB) (A)	8-97241-344-0	01	1	0607-
6	04.302 LEVER; RELAY 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0607-
133	04.027 SEAT; SPR 4JH1 ENG(RJX) (A)	8-97305-667-0	01	1	0302-0506
133	04.027 SEAT; SPR 4JH1-TC ENG(RDM) (A)	8-97305-667-0	01	1	0507-0606
133	04.027 SEAT; SPR 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-667-0	01	1	0607-
133	04.027 SEAT; SPR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-988-0	01	1	0607-
133	04.027 SEAT; SPR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-989-0	01	1	0607-
142	04.012 BOLT; QUAD BOX 4JH1 ENG(RJX) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0506
142	04.012 BOLT; QUAD BOX 4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0507-0604
142	04.012 BOLT; QUAD BOX 4JH1-TC ENG(RDM) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0606
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0607-
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-97364-971-0	03	1	0607-0610
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	8-98020-384-0	03	1	0611-
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-97364-972-0	03	1	0607-0610
142	04.012 BOLT; QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X75 FLANGE	8-98020-385-0	03	1	0611-
163	04.302 LEVER; SELECT,INTERNAL 4JH1 ENG(RJX) (A)	8-97305-663-0	01	1	0302-0506
163	04.302 LEVER; SELECT,INTERNAL 4JH1-TC ENG(RDM) (A)	8-97305-663-0	01	1	0507-0606
163	04.302 LEVER; SELECT,INTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97305-663-0	01	1	0607-
163	04.302 LEVER; SELECT,INTERNAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-979-0	01	1	0607-
163	04.302 LEVER; SELECT,INTERNAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-990-0	01	1	0607-
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97333-847-0	01	1	0302-0506
167	04.302 LEVER; SELECT,EXTERNAL 4JH1-TC ENG(RDM)	8-97333-847-0	01	1	0507-0606
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97333-847-0	01	1	0607-0611
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-436-0	01	1	0612-
167	04.302 LEVER; SELECT,EXTERNAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	0607-
171	04.054 SWITCH; NEUTRAL 4JH1 ENG(RJX)	8-97316-688-1	01	1	0302-0506
171	04.054 SWITCH; NEUTRAL 4JH1-TC ENG(RDM)	8-97316-688-1	01	1	0507-0606
171	04.054 SWITCH; NEUTRAL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-688-1	01	1	0607-0611
171	04.054 SWITCH; NEUTRAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.698	8-98023-050-0	01	1	0607-0611
171	04.054 SWITCH; NEUTRAL 4JJ1 ENG(LFB) 02.698	8-98023-050-0	01	1	0612-
192	04.309 WASHER; PL 4JH1 ENG(RJX)	8-97305-661-0	02	1	0302-0303
192	04.309 WASHER; PL 4JH1 ENG(RJX)	8-97305-661-0	01	1	0304-0506
192	04.309 WASHER; PL 4JH1-TC ENG(RDM)	8-97305-661-0	01	1	0507-0606
192	04.309 WASHER; PL 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-661-0	01	1	0607-
192	04.309 WASHER; PL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302	1-09503-280-0	01	1	0607-
195	04.105 BOLT 4JH1 ENG(RJX) 04.012 (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0506
195	04.105 BOLT 4JH1-TC ENG(RDM) 04.012 (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0507-0604
195	04.105 BOLT 4JH1-TC ENG(RDM) (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-0606
195	04.105 BOLT 4JJ1 ENG(LFB) (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0607-
195	04.105 BOLT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0607-
237	04.057 BRACKET; CABLE,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97369-186-1	01	1	0607-0611
237	04.057 BRACKET; CABLE,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-905-1	01	1	0612-
243	04.105 BOLT; COVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X12 FLANGE	0-28050-612-0	11	1	0607-0906
243	04.105 BOLT; COVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 M6X12 FLANGE	1-33739-842-0	11	1	0907-
262	04.105 BOX ASM; SHIFT CONT 4JH1 ENG(RJX)	8-97310-609-2	01	1	0302-0404
262	04.105 BOX ASM; SHIFT CONT 4JH1 ENG(RJX)	8-97362-753-0	01	1	0405-0506
262	04.105 BOX ASM; SHIFT CONT 4JH1-TC ENG(RDM)	8-97362-753-1	01	1	0507-0606
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-753-2	01	1	0607-
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-804-0	01	1	0607-0610
262	04.105 BOX ASM; SHIFT CONT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-399-6	01	1	0611-
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0607-
265	04.107 SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	0607-
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97380-000-0	01	1	0607-0610
274	04.105 COVER; SHAFT,QUAD BOX 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	0611-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (A)	1-09625-599-0	01	1	0302-0303
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (A)	8-97363-225-0	01	1	0304-0506
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) (A)	8-97363-225-0	01	1	0507-0606
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	0607-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) (B)	8-97305-662-0	01	1	0302-0506
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) (B)	8-97305-662-0	01	1	0507-0606
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97305-662-0	01	1	0607-
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	0607-
298	04.309 SHAFT; SHIFT LEVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	0607-
315	04.302 LEVER; SELECT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	0607-
317	04.302 BUSHING; LEVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	0607-
346	04.545 HOSE; AIR 4JH1 ENG(RJX) (A)	8-97309-855-0	01	1	0302-0506
346	04.545 HOSE; AIR 4JH1-TC ENG(RDM) (A)	8-97309-855-0	01	1	0507-0606
346	04.545 HOSE; AIR 4JJ1 ENG(LFB) (A)	8-97309-855-0	01	1	0607-
346	04.545 HOSE; AIR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	0607-
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	0607-
374	04.107 GASKET ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	0607-
381	04.105 BOLT 4JH1 ENG(RJX) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0302-0506
381	04.105 BOLT 4JH1-TC ENG(RDM) 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0507-0512
381	04.105 BOLT 4JH1-TC ENG(RDM) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0601-0606
381	04.105 BOLT 4JJ1 ENG(LFB) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0607-
381	04.105 BOLT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0607-0906
381	04.105 BOLT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 (B) M6X12 FLANGE	1-33739-842-0	04	1	0907-
398	02.698 SWITCH; REV LAMP 4JH1 ENG(RJX) 04.054	8-97316-688-1	01	1	0302-0506
398	02.698 SWITCH; REV LAMP 4JH1-TC ENG(RDM) 04.054	8-97316-688-1	01	1	0507-0604
398	02.698 SWITCH; REV LAMP 4JH1-TC ENG(RDM)	8-98023-050-0	01	1	0605-0606
398	02.698 SWITCH; REV LAMP 4JJ1 ENG(LFB)	8-98023-050-0	01	1	0607-
530	04.302 SHAFT; SELECT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	0607-
548	04.457 CLIP; HOSE 4JH1 ENG(RJX) 03.278	8-97031-674-0	01	1	0302-0506
548	04.457 CLIP; HOSE 4JH1-TC ENG(RDM) 03.278	8-97031-674-0	01	1	0507-0606
548	04.457 CLIP; HOSE 4JJ1 ENG(LFB) 03.278	8-97031-674-0	01	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) (A) L=25 OD=5	1-09748-032-0	01	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) (A) L=25 OD=5	1-09748-032-0	01	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) 04.302 (B) L=32	8-97011-596-2	04	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) 04.302 (B) L=32	8-97011-596-2	04	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) 04.302 (B) L=32	8-97011-596-2	04	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) (C) L=20	8-97241-340-0	01	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) (C) L=20	8-97241-340-0	01	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) (C) L=20	8-97241-340-0	01	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) (A) L=25 OD=5	1-09748-032-0	01	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0607-
552	04.105 BRACKET 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-914-1	01	1	0607-
559	04.302 PIPE; BREATHER 4JH1 ENG(RJX)	8-97305-517-0	01	1	0302-0506
559	04.302 PIPE; BREATHER 4JH1-TC ENG(RDM)	8-97305-517-0	01	1	0507-0604
559	04.302 PIPE; BREATHER 4JH1-TC ENG(RDM) 04.510	8-97358-318-0	01	1	0605-0606
559	04.302 PIPE; BREATHER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0607-
559	04.302 PIPE; BREATHER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-999-0	01	1	0607-0610
559	04.302 PIPE; BREATHER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	0611-
624	04.105 PLATE; INTER LOCK 4JH1 ENG(RJX)	8-97241-317-2	01	1	0302-0506
624	04.105 PLATE; INTER LOCK 4JH1-TC ENG(RDM)	8-97241-317-2	01	1	0507-0606
624	04.105 PLATE; INTER LOCK 4JJ1 ENG(LFB)	8-97241-317-3	01	1	0607-
630	04.307 DETENT ASM 4JH1 ENG(RJX)	8-97241-341-0	03	1	0302-0506
630	04.307 DETENT ASM 4JH1-TC ENG(RDM)	8-97241-341-0	03	1	0507-0604
630	04.307 DETENT ASM 4JH1-TC ENG(RDM)	8-98019-536-0	03	1	0605-0606
630	04.307 DETENT ASM 4JJ1 ENG(LFB)	8-98019-536-0	03	1	0607-
631	04.105 STOPPER; SPRING 4JH1 ENG(RJX)	8-97305-666-0	01	1	0302-0506
631	04.105 STOPPER; SPRING 4JH1-TC ENG(RDM)	8-97305-666-0	01	1	0507-0606
631	04.105 STOPPER; SPRING 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97305-666-0	01	1	0607-
631	04.105 STOPPER; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	0607-
632	04.054 SENSOR; TRANS,REV 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	0607-
635	04.309 PLUG; DETENT 4JH1 ENG(RJX) 00.206	8-97229-313-2	01	1	0302-0506
635	04.309 PLUG; DETENT 4JH1-TC ENG(RDM) 00.206	8-97229-313-2	01	1	0507-0606
635	04.309 PLUG; DETENT 4JJ1 ENG(LFB) 00.206	8-97229-313-2	01	1	0607-0611
635	04.309 PLUG; DETENT 4JJ1 ENG(LFB) 00.206	8-97380-892-0	01	1	0612-
637	04.105 BOLT; BRACKET 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-
651	04.309 SOLENOID ASM; SHIFT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-828-2	01	1	0607-0610
651	04.309 SOLENOID ASM; SHIFT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98002-759-0	01	1	0611-
651	04.309 SOLENOID ASM; SHIFT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97365-922-1	01	1	0607-0610
651	04.309 SOLENOID ASM; SHIFT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98002-760-0	01	1	0611-
652	04.309 BOLT; SORENOID 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X25 FLANGE	0-28151-025-0	06	1	0607-
653	04.309 SOLENOID ASM; SELECT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97324-830-1	01	1	0607-0610
653	04.309 SOLENOID ASM; SELECT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	0611-
654	04.309 JOINT; SOLENOID,CASE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	0607-
654	04.309 JOINT; SOLENOID,CASE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	0607-
655	04.309 SENSOR; STROKE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-826-0	01	1	0607-
655	04.309 SENSOR; STROKE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97324-827-0	01	1	0607-
656	04.307 SPRING; SHAFT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	0607-
656	04.307 SPRING; SHAFT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	0607-
656	04.307 SPRING; SHAFT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	0607-
657	04.105 PLATE; SIDE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97380-001-0	01	1	0607-0610
657	04.105 PLATE; SIDE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	0611-
687	04.075 GASKET; SENSOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.307	9-09567-113-0	01	1	0607-

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.302 ARM; SHIFT,1ST & REV 4JH1 ENG(RJX)	8-97241-320-2	01	1	0302-0506
1	04.302 ARM; SHIFT,1ST & REV 4JH1-TC ENG(RDM)	8-97241-320-2	01	1	0507-0606
1	04.302 ARM; SHIFT,1ST & REV 4JJ1 ENG(LFB)	8-97241-320-2	01	1	0607-
6	04.302 LEVER; RELAY 4JH1 ENG(RJX) (A)	8-97241-344-0	01	1	0302-0506
6	04.302 LEVER; RELAY 4JH1-TC ENG(RDM) (A)	8-97241-344-0	01	1	0507-0606
6	04.302 LEVER; RELAY 4JJ1 ENG(LFB) (A)	8-97241-344-0	01	1	0607-
6	04.302 LEVER; RELAY 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	0607-
25	04.302 ARM; SHIFT,2ND & 3RD 4JH1 ENG(RJX)	8-97355-690-0	01	1	0302-0404
25	04.302 ARM; SHIFT,2ND & 3RD 4JH1 ENG(RJX)	8-97362-731-1	01	1	0405-0506
25	04.302 ARM; SHIFT,2ND & 3RD 4JH1-TC ENG(RDM)	8-97362-731-1	01	1	0507-0606
25	04.302 ARM; SHIFT,2ND & 3RD 4JJ1 ENG(LFB)	8-97362-731-2	01	1	0607-
36	04.303 BLOCK; SHIFT,4TH & 5TH 4JH1 ENG(RJX) (A)	8-97241-329-1	01	1	0302-0506
36	04.303 BLOCK; SHIFT,4TH & 5TH 4JH1-TC ENG(RDM) (A)	8-97241-329-1	01	1	0507-0606
36	04.303 BLOCK; SHIFT,4TH & 5TH 4JJ1 ENG(LFB) (A)	8-97241-329-1	01	1	0607-
36	04.303 BLOCK; SHIFT,4TH & 5TH 4JH1 ENG(RJX) (B)	8-97241-330-0	01	1	0302-0506
36	04.303 BLOCK; SHIFT,4TH & 5TH 4JH1-TC ENG(RDM) (B)	8-97241-330-0	01	1	0507-0606
36	04.303 BLOCK; SHIFT,4TH & 5TH 4JJ1 ENG(LFB) (B)	8-97241-330-0	01	1	0607-
49	04.302 ARM; SHIFT,4TH & 5TH 4JH1 ENG(RJX)	8-97258-716-0	01	1	0302-0506
49	04.302 ARM; SHIFT,4TH & 5TH 4JH1-TC ENG(RDM)	8-97258-716-0	01	1	0507-0606
49	04.302 ARM; SHIFT,4TH & 5TH 4JJ1 ENG(LFB)	8-97258-716-0	01	1	0607-
195	04.105 BOLT 4JH1 ENG(RJX) 04.012 (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0506
195	04.105 BOLT 4JH1-TC ENG(RDM) 04.012 (A) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0507-0604
195	04.105 BOLT 4JH1-TC ENG(RDM) (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-0606
195	04.105 BOLT 4JJ1 ENG(LFB) (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0607-
195	04.105 BOLT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0607-
234	04.311 RING; SNAP 4JH1 ENG(RJX) 04.307 ID=12	8-94460-357-0	01	1	0302-0506
234	04.311 RING; SNAP 4JH1-TC ENG(RDM) 04.307 ID=12	8-94460-357-0	01	1	0507-0606
234	04.311 RING; SNAP 4JJ1 ENG(LFB) 04.307 ID=12	8-94460-357-0	01	1	0607-
483	04.419 BUSHING; SHIFT ARM 4JH1 ENG(RJX) 00.683	8-97241-326-2	04	1	0302-0506
483	04.419 BUSHING; SHIFT ARM 4JH1-TC ENG(RDM) 00.683	8-97241-326-2	04	1	0507-0606
483	04.419 BUSHING; SHIFT ARM 4JJ1 ENG(LFB) 00.683	8-97241-326-2	04	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) (A) L=25 OD=5	1-09748-032-0	01	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) (A) L=25 OD=5	1-09748-032-0	01	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.027 (D) L=30 OD=4	1-09748-031-0	02	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) 04.302 (B) L=32	8-97011-596-2	04	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) 04.302 (B) L=32	8-97011-596-2	04	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) 04.302 (B) L=32	8-97011-596-2	04	1	0607-
551	04.303 PIN; SPRING 4JH1 ENG(RJX) (C) L=20	8-97241-340-0	01	1	0302-0506
551	04.303 PIN; SPRING 4JH1-TC ENG(RDM) (C) L=20	8-97241-340-0	01	1	0507-0606
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) (C) L=20	8-97241-340-0	01	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) (A) L=25 OD=5	1-09748-032-0	01	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.302 (F) OD=5	8-97184-905-0	03	1	0607-
551	04.303 PIN; SPRING 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-97379-991-0	01	1	0607-
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4JH1 ENG(RJX)	8-97241-333-3	01	1	0302-0404
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4JH1 ENG(RJX)	8-97362-741-0	01	1	0405-0506
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4JH1-TC ENG(RDM)	8-97362-741-0	01	1	0507-0606
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4JJ1 ENG(LFB)	8-97362-741-0	01	1	0607-
629	04.555 BRIDGE; LEVER 4JH1 ENG(RJX)	8-97237-107-1	01	1	0302-0506
629	04.555 BRIDGE; LEVER 4JH1-TC ENG(RDM)	8-97237-107-1	01	1	0507-0606
629	04.555 BRIDGE; LEVER 4JJ1 ENG(LFB)	8-97237-107-1	01	1	0607-
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98206-518-0	01	1	1202-
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4JH1 ENG(RJX)	8-97358-832-0	01	1	0302-0404
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4JH1 ENG(RJX)	8-97362-743-0	01	1	0405-0506
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4JH1-TC ENG(RDM)	8-97362-743-0	01	1	0507-0606
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4JJ1 ENG(LFB)	8-97362-743-0	01	1	0607-1201
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97362-743-0	01	1	1202-
634	04.303 BLOCK; SHIFT,LOW,REV 4JH1 ENG(RJX)	8-97241-327-1	01	1	0302-0506
634	04.303 BLOCK; SHIFT,LOW,REV 4JH1-TC ENG(RDM)	8-97241-327-1	01	1	0507-0606
634	04.303 BLOCK; SHIFT,LOW,REV 4JJ1 ENG(LFB)	8-97241-327-1	01	1	0607-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
