Sayfa 2-20 - Isuzu EPC

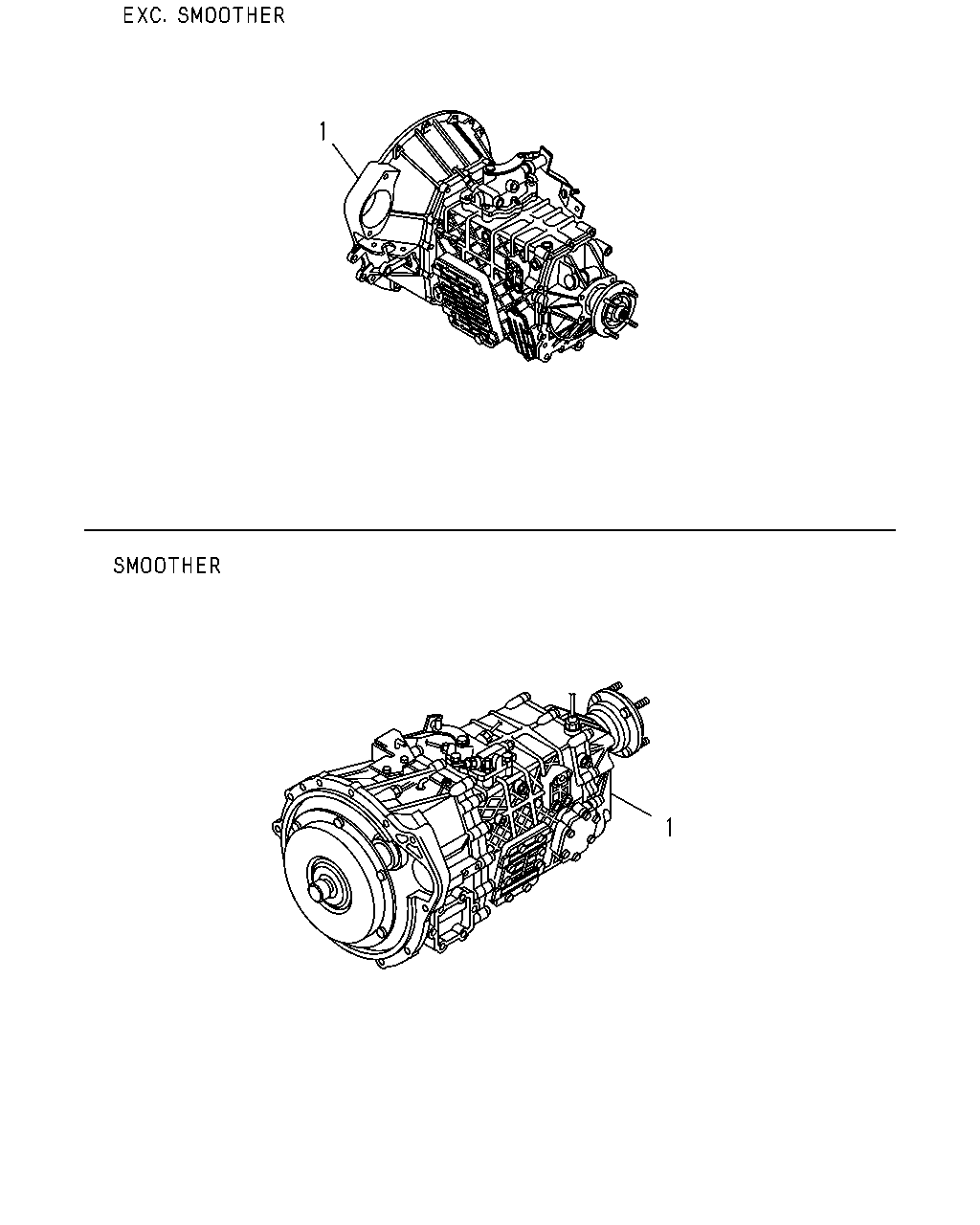

2-20 — MANUAL TRANSMISSION ASM AND CASE (#22701) — 197 parça

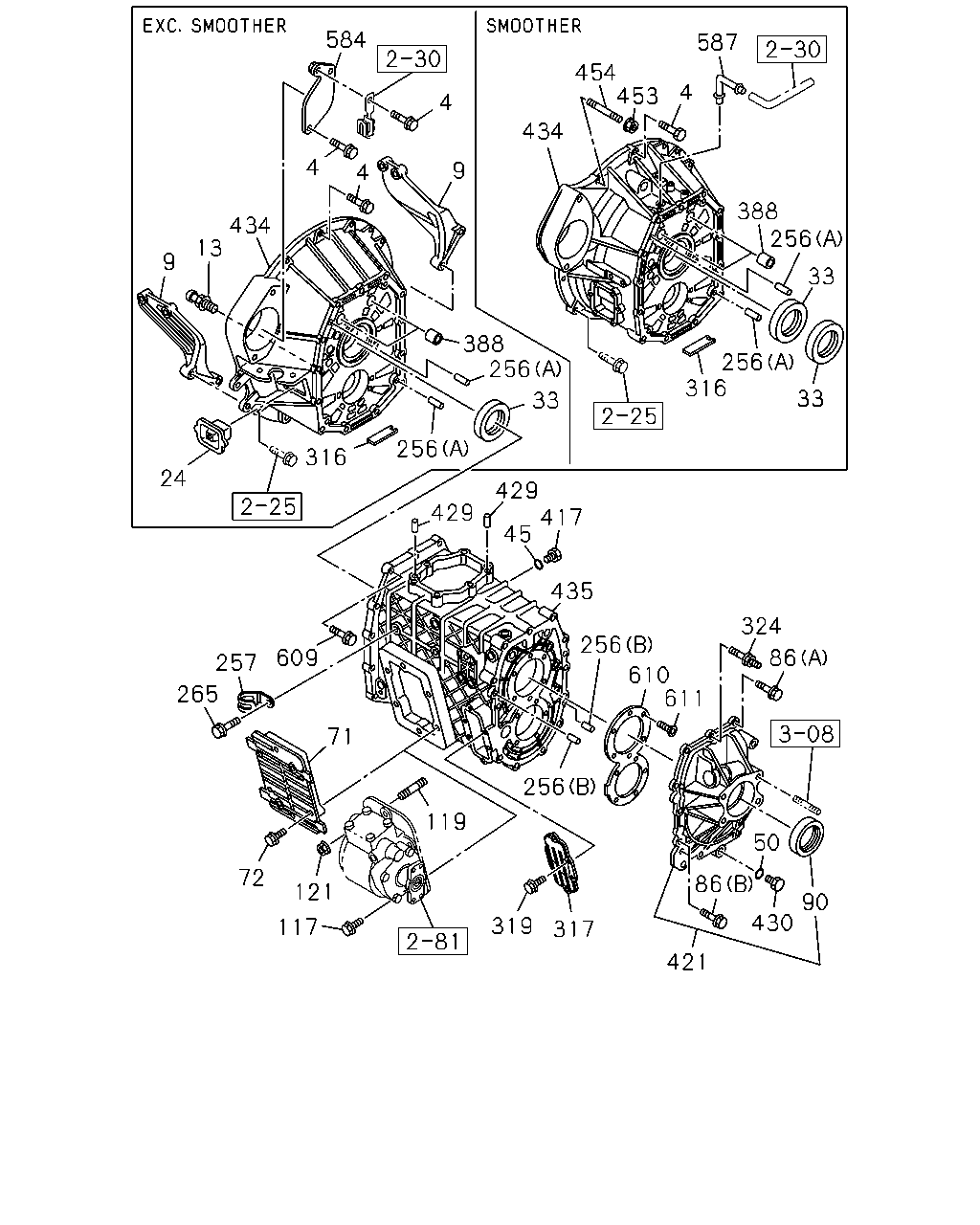

584 587 454 453 4 4 434 4 9 4 388 256 434 13 9 33 388 256 256 316 33 33 256 316 24 429 417 45 429 435 324 256 609 86 257 610 611 265 256 71 119 50 86 72 121 90 430 319 117 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 02.559 M10X16 FLANGE	0-28081-016-0	01	1	0302-0302
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0506
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0507-0512
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-0606
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0302-0506
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0507-0512
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-0606
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M10X140 FLANGE	0-28186-014-0	02	1	0302-0506
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X140 FLANGE	0-28186-014-0	02	1	0507-0512
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M10X140 FLANGE	0-28156-014-0	02	1	0601-0606
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) M14X60 FLANGE	0-28981-460-0	02	1	0302-0506
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M14X60 FLANGE	0-28981-460-0	02	1	0507-0512
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) M14X60 FLANGE	0-28951-460-0	02	1	0601-0606
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	05	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) M10X130 FLANGE	0-28186-013-0	02	1	0302-0506
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) M10X130 FLANGE	0-28186-013-0	02	1	0507-0512
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) M10X130 FLANGE	0-28156-013-0	02	1	0601-0606
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X130 FLANGE	0-28156-013-0	01	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JH1 ENG(RJX) EXC. PTO TRANSMISSION SIDE(V66) 02.277 M10X120 FLANGE	0-28186-012-0	02	1	0302-0506
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) EXC. PTO TRANSMISSION SIDE(V66) 02.277 M10X120 FLANGE	0-28186-012-0	02	1	0507-0512
4	00.683 BOLT; FLYWHEEL HSG 4JH1-TC ENG(RDM) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X120 FLANGE	0-28156-012-0	02	1	0601-0606
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.670 M10X35 FLANGE	0-28151-035-0	01	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF) 09.171 M10X30 FLANGE	0-28151-030-0	01	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 02.042 M10X50 FLANGE	0-28151-050-0	04	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X140 FLANGE	0-28156-014-0	02	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X150 FLANGE	0-28156-015-0	01	1	0607-
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X55 FLANGE	8-94399-863-1	01	1	0607-0611
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) M10X55 FLANGE	8-97365-449-0	01	1	0612-
4	00.683 BOLT; FLYWHEEL HSG 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10X140 FLANGE	0-28156-014-0	01	1	0607-
4	00.683 BOLT; FLYWHEEL HSG DUAL RR TIRE(NKC***) 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X140 FLANGE	0-28156-014-0	01	1	0607-
9	04.083 STIFFENER; C/BL 4JH1 ENG(RJX)	8-97240-036-0	01	1	0302-0506
9	04.083 STIFFENER; C/BL 4JH1-TC ENG(RDM)	8-97240-036-0	01	1	0507-0606
9	04.083 STIFFENER; C/BL 4JH1 ENG(RJX)	8-97240-035-0	01	1	0302-0506
9	04.083 STIFFENER; C/BL 4JH1-TC ENG(RDM)	8-97240-035-0	01	1	0507-0606
13	04.302 SUPPORT; SHIFT FORK 4JH1 ENG(RJX)	8-97255-384-1	01	1	0302-0506
13	04.302 SUPPORT; SHIFT FORK 4JH1-TC ENG(RDM)	8-97255-384-1	01	1	0507-0606
13	04.302 SUPPORT; SHIFT FORK 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-384-1	01	1	0607-
24	00.797 COVER; CHECK HOLE,DUST 4JH1 ENG(RJX)	8-97255-201-0	01	1	0302-0506
24	00.797 COVER; CHECK HOLE,DUST 4JH1-TC ENG(RDM)	8-97255-201-0	01	1	0507-0606
24	00.797 COVER; CHECK HOLE,DUST 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-201-0	01	1	0607-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX)	8-97253-550-0	01	1	0302-0506
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM)	8-97253-550-0	01	1	0507-0606
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97253-550-0	01	1	0607-
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0607-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) ID=17	8-97115-712-0	01	1	0302-0506
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) ID=17	8-97115-712-0	01	1	0507-0606
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) ID=17	8-97115-712-0	01	1	0607-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) ID=17	8-97115-712-0	01	1	0302-0506
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) ID=17	8-97115-712-0	01	1	0507-0606
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) ID=17	8-97115-712-0	01	1	0607-
71	04.439 COVER; SIDE,TRANS CASE 4JH1 ENG(RJX) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0302-0506
71	04.439 COVER; SIDE,TRANS CASE 4JH1-TC ENG(RDM) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0507-0606
71	04.439 COVER; SIDE,TRANS CASE 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0607-
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-97254-833-0	06	1	0302-0604
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0605-
86	04.317 BOLT; RR COVER 4JH1 ENG(RJX) 04.510 (A) M10X40 FLANGE	0-28181-040-0	10	1	0302-0506
86	04.317 BOLT; RR COVER 4JH1-TC ENG(RDM) 04.510 (A) M10X40 FLANGE	0-28181-040-0	10	1	0507-0512
86	04.317 BOLT; RR COVER 4JH1-TC ENG(RDM) 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0601-0606
86	04.317 BOLT; RR COVER 4JJ1 ENG(LFB) 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0607-
86	04.317 BOLT; RR COVER 4JH1 ENG(RJX) (B) M10X40 FLANGE	8-97305-392-0	02	1	0302-0506
86	04.317 BOLT; RR COVER 4JH1-TC ENG(RDM) (B) M10X40 FLANGE	8-97305-392-0	02	1	0507-0604
86	04.317 BOLT; RR COVER 4JH1-TC ENG(RDM) 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-0606
86	04.317 BOLT; RR COVER 4JJ1 ENG(LFB) 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0607-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) NOK	8-97253-552-1	01	1	0302-0506
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) NOK	8-97253-552-1	01	1	0507-0606
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) NOK	8-97253-552-1	01	1	0607-
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	0302-0506
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	0302-0506
117	04.439 BOLT; PTO FIX 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 08.900 M10X30 FLANGE	0-28781-030-0	03	1	0302-0506
117	04.439 BOLT; PTO FIX 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 08.900 M10X30 FLANGE	0-28781-030-0	03	1	0507-0512
117	04.439 BOLT; PTO FIX 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0601-0606
117	04.439 BOLT; PTO FIX 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0607-
119	04.439 STUD; PTO FIX 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 03.275 M10X25 L=40	9-04411-025-0	03	1	0302-0506
119	04.439 STUD; PTO FIX 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604
119	04.439 STUD; PTO FIX 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0605-0606
119	04.439 STUD; PTO FIX 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0607-
121	04.439 NUT; PTO FIX 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	03	1	0302-0506
121	04.439 NUT; PTO FIX 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 08.917 M10 FLANGE	0-91150-210-0	03	1	0507-0602
121	04.439 NUT; PTO FIX 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0603-0606
121	04.439 NUT; PTO FIX 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0607-
256	04.317 PIN; KNOCK 4JH1 ENG(RJX) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0302-0506
256	04.317 PIN; KNOCK 4JH1-TC ENG(RDM) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0507-0606
256	04.317 PIN; KNOCK 4JJ1 ENG(LFB) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0607-
256	04.317 PIN; KNOCK 4JH1 ENG(RJX) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0302-0506
256	04.317 PIN; KNOCK 4JH1-TC ENG(RDM) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0507-0606
256	04.317 PIN; KNOCK 4JJ1 ENG(LFB) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0607-
257	02.559 CLIP; HARNESS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0607-0801
257	02.559 CLIP; HARNESS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12	8-97367-984-1	01	1	0802-
265	00.785 BOLT; CLIP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-
316	04.105 MAGNET; TRANS CASE 4JH1 ENG(RJX)	8-94249-524-2	01	1	0302-0506
316	04.105 MAGNET; TRANS CASE 4JH1-TC ENG(RDM)	8-94249-524-2	01	1	0507-0606
316	04.105 MAGNET; TRANS CASE 4JJ1 ENG(LFB)	8-94249-524-2	01	1	0607-
317	04.109 COVER; CASE 4JH1 ENG(RJX)	8-97252-626-0	01	1	0302-0506
317	04.109 COVER; CASE 4JH1-TC ENG(RDM)	8-97252-626-0	01	1	0507-0606
317	04.109 COVER; CASE 4JJ1 ENG(LFB)	8-97252-626-0	01	1	0607-
319	04.109 BOLT; COVER 4JH1 ENG(RJX) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0302-0506
319	04.109 BOLT; COVER 4JH1-TC ENG(RDM) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0507-0512
319	04.109 BOLT; COVER 4JH1-TC ENG(RDM) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-0606
319	04.109 BOLT; COVER 4JJ1 ENG(LFB) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0607-
324	04.319 STUD; RR COVER 4JH1 ENG(RJX) M10X15,M10X40 L=65	8-97309-013-0	01	1	0302-0506
324	04.319 STUD; RR COVER 4JH1-TC ENG(RDM) M10X15,M10X40 L=65	8-97309-013-0	01	1	0507-0604
324	04.319 STUD; RR COVER 4JH1-TC ENG(RDM) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-0606
324	04.319 STUD; RR COVER 4JJ1 ENG(LFB) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0607-
388	00.683 BUSHING; CLU HSG 4JH1 ENG(RJX)	8-97241-326-2	02	1	0302-0506
388	00.683 BUSHING; CLU HSG 4JH1-TC ENG(RDM)	8-97241-326-2	02	1	0507-0606
388	00.683 BUSHING; CLU HSG 4JJ1 ENG(LFB)	8-97241-326-2	02	1	0607-
417	04.105 PLUG; OIL FILLER,TRANS 4JH1 ENG(RJX) 08.971	8-94310-917-0	01	1	0302-0506
417	04.105 PLUG; OIL FILLER,TRANS 4JH1-TC ENG(RDM) 08.971	8-94310-917-0	01	1	0507-0604
417	04.105 PLUG; OIL FILLER,TRANS 4JH1-TC ENG(RDM)	8-97365-373-0	01	1	0605-0606
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1 ENG(LFB)	8-97365-373-0	01	1	0607-
421	04.317 COVER; RR,TRANS 4JH1 ENG(RJX)	8-97252-621-0	01	1	0302-0506
421	04.317 COVER; RR,TRANS 4JH1-TC ENG(RDM)	8-97252-621-0	01	1	0507-0507
421	04.317 COVER; RR,TRANS 4JH1-TC ENG(RDM)	8-98020-029-0	01	1	0508-0606
421	04.317 COVER; RR,TRANS 4JJ1 ENG(LFB)	8-98020-029-0	01	1	0607-
429	04.105 PIN; STRAIGHT 4JH1 ENG(RJX) 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0506
429	04.105 PIN; STRAIGHT 4JH1-TC ENG(RDM) 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0606
429	04.105 PIN; STRAIGHT 4JJ1 ENG(LFB) 04.510 OD=10 L=20	8-97135-423-0	02	1	0607-
430	04.105 PLUG; OIL DRAIN 4JH1 ENG(RJX)	9-09662-004-0	01	1	0302-0506
430	04.105 PLUG; OIL DRAIN 4JH1-TC ENG(RDM)	9-09662-004-0	01	1	0507-0604
430	04.105 PLUG; OIL DRAIN 4JH1-TC ENG(RDM)	8-97365-374-0	01	1	0605-0606
430	04.105 PLUG; OIL DRAIN 4JJ1 ENG(LFB)	8-97365-374-0	01	1	0607-
434	00.683 HOUSING; CLU 4JH1 ENG(RJX)	8-97237-099-5	01	1	0302-0506
434	00.683 HOUSING; CLU 4JH1-TC ENG(RDM)	8-97237-099-5	01	1	0507-0606
434	00.683 HOUSING; CLU 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97237-099-5	01	1	0607-
434	00.683 HOUSING; CLU 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-146-0	01	1	0607-0906
434	00.683 HOUSING; CLU 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	0907-
435	04.103 CASE; TRANS 4JH1 ENG(RJX)	8-97252-623-7	01	1	0302-0403
435	04.103 CASE; TRANS 4JH1 ENG(RJX)	8-97379-375-0	01	1	0404-0506
435	04.103 CASE; TRANS 4JH1-TC ENG(RDM)	8-97379-375-0	01	1	0507-0606
435	04.103 CASE; TRANS 4JJ1 ENG(LFB)	8-97379-375-0	01	1	0607-
453	00.683 NUT; CLU HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-
454	00.683 STUD; CLU HSG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99	0-49241-050-0	02	1	0607-
584	04.317 COVER; STARTER HOLE 4JH1 ENG(RJX)	8-97260-364-1	01	1	0302-0506
584	04.317 COVER; STARTER HOLE 4JH1-TC ENG(RDM)	8-97260-364-2	01	1	0507-0606
587	04.020 PIPE; BREATHER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	0607-
609	04.104 BOLT; HSG TO CASE 4JH1 ENG(RJX) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0302-0506
609	04.104 BOLT; HSG TO CASE 4JH1-TC ENG(RDM) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0507-0512
609	04.104 BOLT; HSG TO CASE 4JH1-TC ENG(RDM) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-0606
609	04.104 BOLT; HSG TO CASE 4JJ1 ENG(LFB) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0607-
610	04.412 RETAINER; BRG 4JH1 ENG(RJX)	8-97241-315-1	01	1	0302-0506
610	04.412 RETAINER; BRG 4JH1-TC ENG(RDM)	8-97241-315-1	01	1	0507-0606
610	04.412 RETAINER; BRG 4JJ1 ENG(LFB)	8-97241-315-1	01	1	0607-
611	04.104 SCREW 4JH1 ENG(RJX) M10X27	8-97254-834-2	11	1	0302-0506
611	04.104 SCREW 4JH1-TC ENG(RDM) M10X27	8-97254-834-2	11	1	0507-0604
611	04.104 SCREW 4JH1-TC ENG(RDM) M10X27 TORQUES	8-97365-354-0	11	1	0605-0606
611	04.104 SCREW 4JJ1 ENG(LFB) M10X27 TORQUES	8-97365-354-0	11	1	0607-

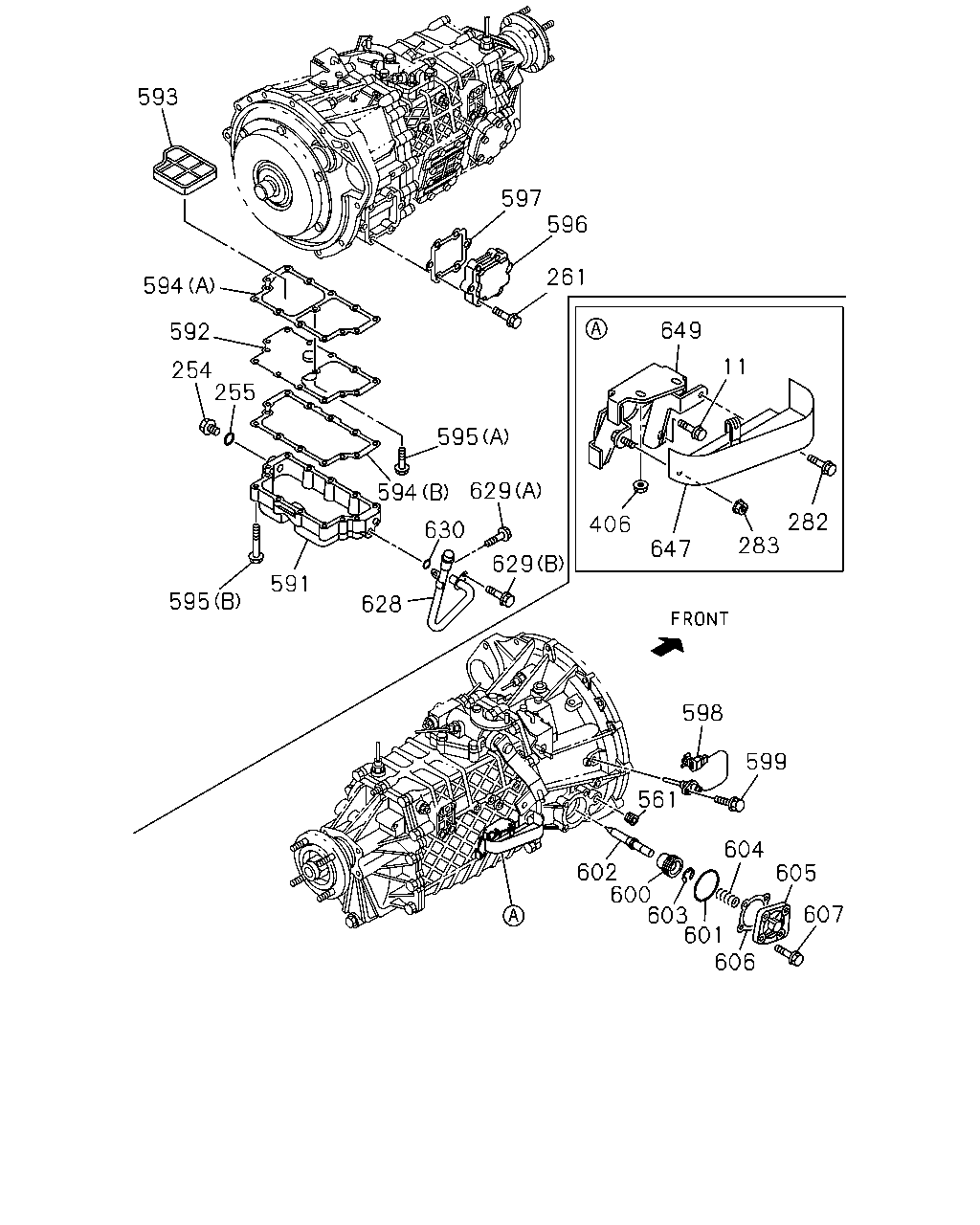

593 597 596 261 594 649 592 11 254 255 595 594 629 282 283 406 630 647 629 591 595 628 598 599 561 604 602 600 603 601 606 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	04.085 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	0607-
254	04.104 PLUG; DRAIN,OIL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97372-997-0	01	1	0607-0610
254	04.104 PLUG; DRAIN,OIL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-377-0	01	1	0611-
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0607-
261	04.109 BOLT; COVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	0607-
282	00.785 BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-
283	04.083 NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-
406	04.510 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-
561	04.104 PLUG 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0607-
591	04.195 PAN; OIL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0607-
592	04.338 COVER; STRAINER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0607-
593	04.338 FILTER; STRAINER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0607-
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0607-
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0607-
595	04.510 BOLT; OIL PAN 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0607-
595	04.510 BOLT; OIL PAN 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	0607-
596	04.317 COVER; OIL PAN 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0607-
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0607-
598	04.329 SENSOR; TURBINE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0607-
599	04.329 BOLT; SENSOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0607-
600	04.105 PISTON; BRAKE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0607-
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0607-
602	04.166 PLUNGER; BRAKE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-653-0	01	1	0607-
603	04.317 RING; SNAP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.838 ID=8	9-09185-008-0	01	1	0607-
604	04.384 SPRING; PISTON 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-752-0	01	1	0607-
605	04.356 COVER; CYLINDER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0607-
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0607-
607	04.109 BOLT; COVER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	0607-
628	04.439 TUBE; OIL FILLER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98018-773-0	01	1	0607-
629	04.317 BOLT; OIL FILLER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	0607-
629	04.317 BOLT; OIL FILLER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0607-
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	0607-
647	00.782 PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0607-
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-175-1	01	1	0607-0610
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-237-0	01	1	0611-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-97350-621-0	01	1	0302-0404
1	04.003 TRANSMISSION ASM; MANUAL 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-97373-919-0	01	1	0405-0506
1	04.003 TRANSMISSION ASM; MANUAL 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	8-97373-919-0	01	1	0507-0606
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97373-919-0	01	1	0607-
1	04.003 TRANSMISSION ASM; MANUAL 4JH1 ENG(RJX) EXC. PTO TRANSMISSION SIDE(V66)	8-97350-621-0	01	1	0302-0404
1	04.003 TRANSMISSION ASM; MANUAL 4JH1 ENG(RJX) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-919-0	01	1	0405-0506
1	04.003 TRANSMISSION ASM; MANUAL 4JH1-TC ENG(RDM) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-919-0	01	1	0507-0606
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97373-919-0	01	1	0607-
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98019-520-0	01	1	0607-
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98019-520-0	01	1	0607-
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98019-520-0	01	1	0607-
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98019-520-0	01	1	0607-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
