◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#22696) — 64 parça

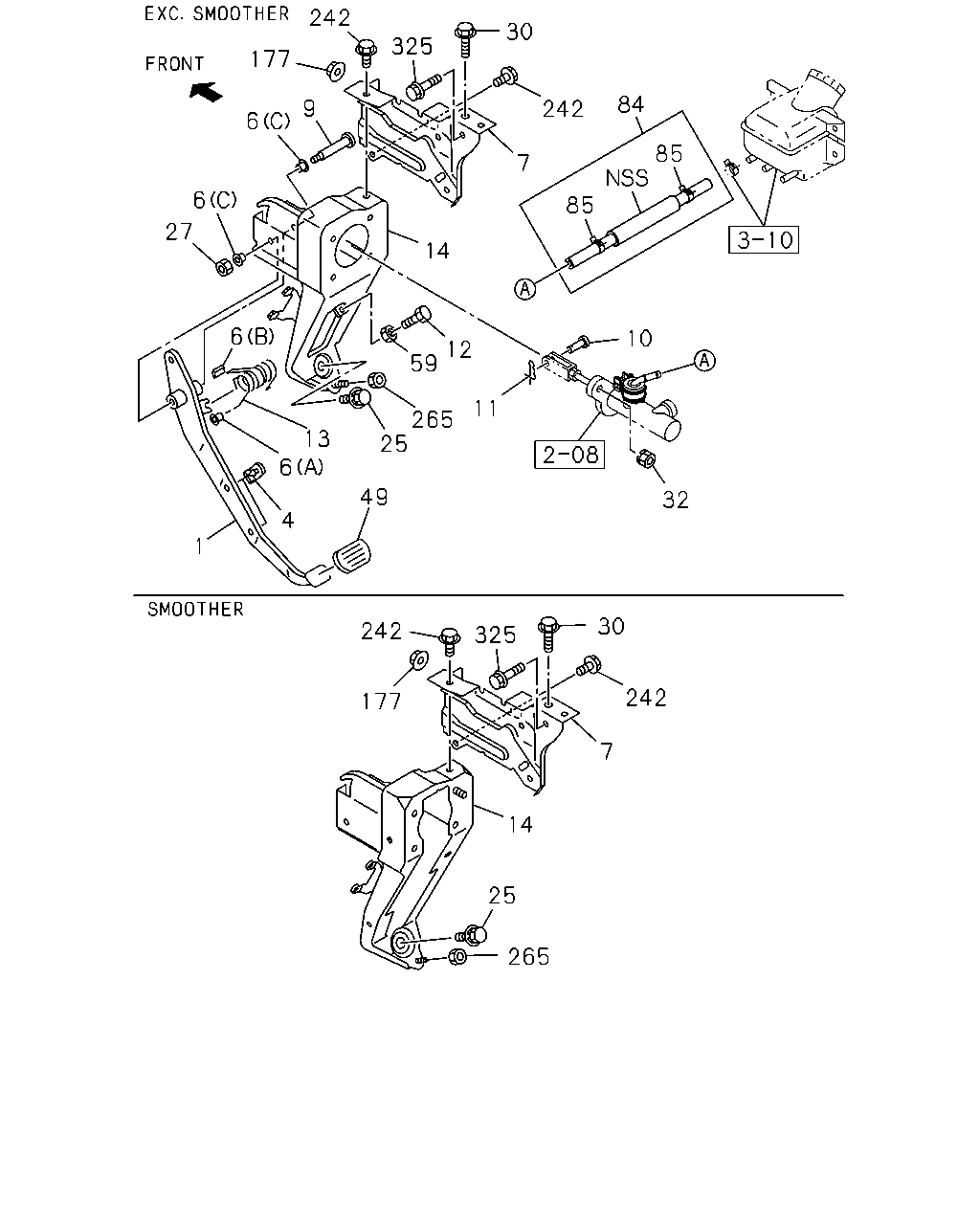

çizim 11778
242 30 325 177 84 9 242 6 85 7 6 85 27 14 6 10 12 59 11 265 25 13 6 49 32 4 1 30 242 325 242 177 7 14 25 265
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.830 PEDAL; CLU
4JH1 ENG(RJX) 		8-97853-219-2 01 1 0302-0506 ● ● ●
1 00.830 PEDAL; CLU
4JH1-TC ENG(RDM) 		8-97853-219-2 01 1 0507-0606 ● ● ●
1 00.830 PEDAL; CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-219-2 01 1 0607- ● ● ●
4 00.829 STOPPER; CLU PEDAL
4JH1 ENG(RJX) 		8-97853-534-1 02 1 0302-0506 ● ● ●
4 00.829 STOPPER; CLU PEDAL
4JH1-TC ENG(RDM) 		8-97853-534-1 02 1 0507-0606 ● ● ●
4 00.829 STOPPER; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-534-1 02 1 0607- ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JH1 ENG(RJX) 04.792 (C) 		8-94238-596-0 02 1 0302-0506 ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JH1-TC ENG(RDM) 04.792 (C) 		8-94238-596-0 02 1 0507-0606 ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.792 (C) 		8-94238-596-0 02 1 0607- ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JH1 ENG(RJX) (A) 		8-97853-619-0 02 1 0302-0506 ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JH1-TC ENG(RDM) (A) 		8-97853-619-0 02 1 0507-0606 ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97853-619-0 02 1 0607- ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JH1 ENG(RJX) (B) 		8-97853-620-0 01 1 0302-0506 ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JH1-TC ENG(RDM) (B) 		8-97853-620-0 01 1 0507-0606 ● ● ●
6 00.831 BUSHING; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97853-620-0 01 1 0607- ● ● ●
7 00.829 BRACKET; CLU PEDAL
4JH1 ENG(RJX) 		8-97853-522-5 01 1 0302-0506 ● ● ●
7 00.829 BRACKET; CLU PEDAL
4JH1-TC ENG(RDM) 		8-97853-522-5 01 1 0507-0606 ● ● ●
7 00.829 BRACKET; CLU PEDAL
4JJ1 ENG(LFB) 		8-97853-522-5 01 1 0607- ● ● ●
9 00.833 PIN; CLU PEDAL
4JH1 ENG(RJX) 04.634 		8-97866-667-0 01 1 0302-0506 ● ● ●
9 00.833 PIN; CLU PEDAL
4JH1-TC ENG(RDM) 04.634 		8-97866-667-0 01 1 0507-0606 ● ● ●
9 00.833 PIN; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-97866-667-0 01 1 0607- ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 0302-0606 ● ● ●
10 00.833 PIN; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94410-276-0 01 1 0607-0705 ● ● ●
10 00.833 PIN; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-97387-230-0 01 1 0706-0707 ● ● ●
10 00.833 PIN; CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94410-276-0 01 1 0708- ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 0302-0606 ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94279-912-0 01 1 0607-0705 ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98007-161-0 01 1 0706-0707 ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 		8-94279-912-0 01 1 0708- ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 0302-0512 ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10X35 		0-20851-035-0 01 1 0601-0606 ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4JH1 ENG(RJX) 		8-97853-221-1 01 1 0302-0506 ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4JH1-TC ENG(RDM) 		8-97853-221-1 01 1 0507-0606 ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-221-1 01 1 0607- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4JH1 ENG(RJX) 		8-97892-848-3 01 1 0302-0506 ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4JH1-TC ENG(RDM) 		8-97892-848-3 01 1 0507-0606 ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97892-848-3 01 1 0607- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97898-055-1 01 1 0607- ● ● ●
25 00.833 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 01 1 0302- ● ● ●
27 00.833 NUT; FULCRUM PIN
4JH1 ENG(RJX) M10 FLANGE 		1-09440-022-0 01 1 0302-0506 ● ● ●
27 00.833 NUT; FULCRUM PIN
4JH1-TC ENG(RDM) M10 FLANGE 		1-09440-022-0 01 1 0507-0606 ● ● ●
27 00.833 NUT; FULCRUM PIN
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE 		1-09440-022-0 01 1 0607- ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 01 1 0302-0512 ● ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 M10X25 FLANGE 		0-28661-025-0 01 1 0601- ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0302-0606 ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/LK WASHER 		8-94279-050-0 02 1 0607- ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
4JH1 ENG(RJX) 		8-97853-413-2 01 1 0302-0506 ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
4JH1-TC ENG(RDM) 		8-97853-413-2 01 1 0507-0606 ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-413-2 01 1 0607- ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 0302-0512 ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10 		0-91110-510-0 01 1 0601-0606 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-024-0 01 1 0302-0606 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97135-024-0 01 1 0607- ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 0302-0606 ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97130-480-0 02 1 0607- ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0302- ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JH1 ENG(RJX) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0302-0506 ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JH1-TC ENG(RDM) 08.155 M8X16 FLANGE 		0-28480-816-0 02 1 0507-0512 ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JH1-TC ENG(RDM) 03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0601-0606 ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
4JJ1 ENG(LFB) 03.604 M8X16 FLANGE 		0-28450-816-0 02 1 0607- ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 0302-0610 ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
01.840 M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512 ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
