2-01 — CLUTCH (#22695) — 46 parça

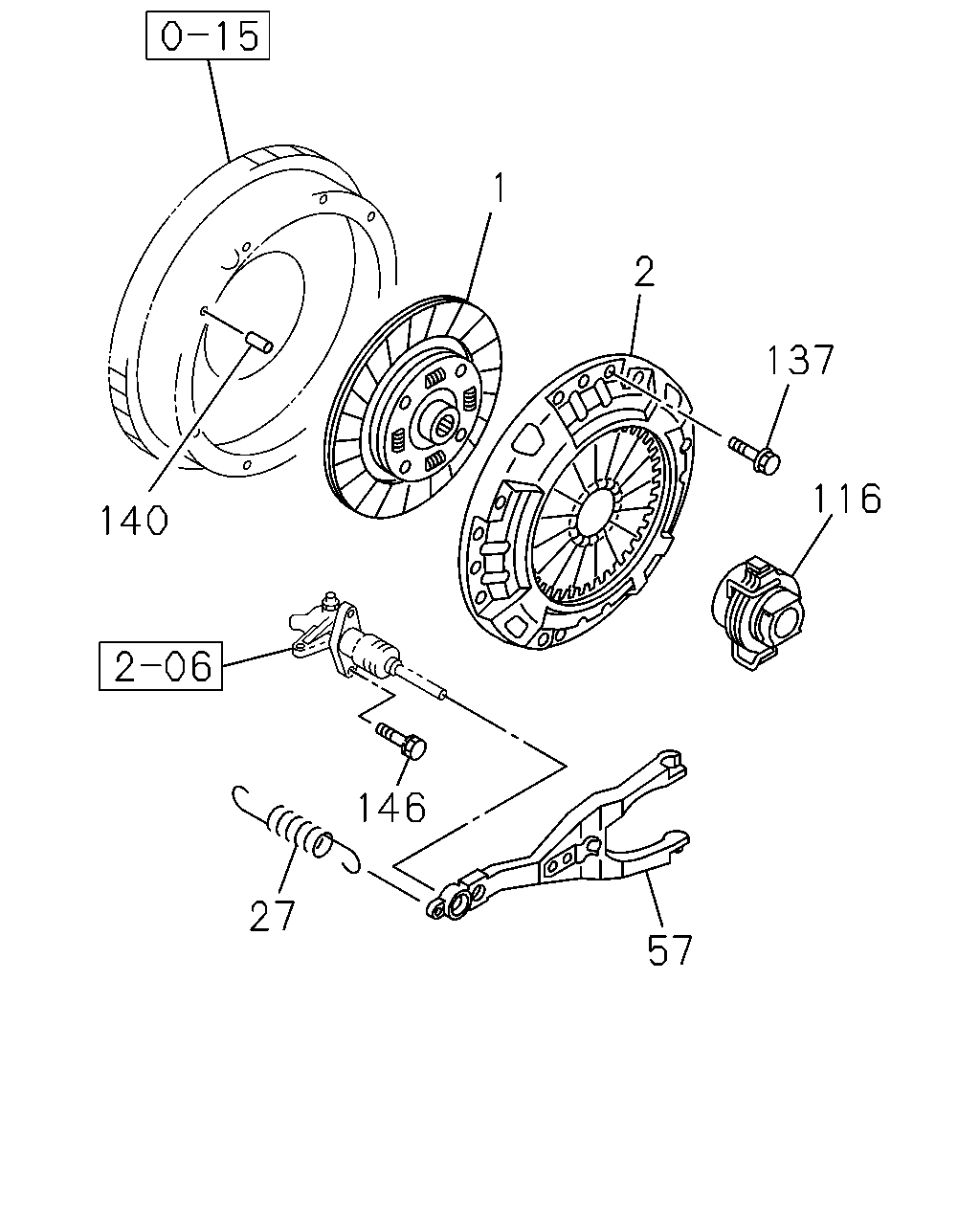

1 2 137 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	00.886 DISC; CLUTCH 4JH1 ENG(RJX)	8-97320-355-0	01	1	0302-0412
1	00.886 DISC; CLUTCH 4JH1 ENG(RJX)	8-97377-149-0	01	1	0501-0506
1	00.886 DISC; CLUTCH 4JH1-TC ENG(RDM)	8-97377-149-0	01	1	0507-0606
1	00.886 DISC; CLUTCH 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98037-004-2	01	1	0607-
2	00.859 PLATE ASM; PRESSURE,CLU 4JH1 ENG(RJX)	8-97259-693-0	01	1	0302-0506
2	00.859 PLATE ASM; PRESSURE,CLU 4JH1-TC ENG(RDM)	8-97259-693-0	01	1	0507-0606
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98040-093-0	01	1	0607-
27	00.837 SPRING; RETURN,SHIFT FORK 4JH1 ENG(RJX) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97184-359-0	01	1	0302-0506
27	00.837 SPRING; RETURN,SHIFT FORK 4JH1-TC ENG(RDM) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>	8-97184-359-0	01	1	0507-0606
27	00.837 SPRING; RETURN,SHIFT FORK 4JJ1 ENG(LFB) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97184-359-0	01	1	0607-0705
27	00.837 SPRING; RETURN,SHIFT FORK 4JJ1 ENG(LFB) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98025-313-0	01	1	0706-
57	00.795 FORK; SHIFT,CLU 4JH1 ENG(RJX)	8-97255-303-0	01	1	0302-0506
57	00.795 FORK; SHIFT,CLU 4JH1-TC ENG(RDM)	8-97255-303-0	01	1	0507-0606
57	00.795 FORK; SHIFT,CLU 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-303-0	01	1	0607-
116	00.799 BLOCK; SHIFT,CLU 4JH1 ENG(RJX)	8-97255-313-0	01	1	0302-0506
116	00.799 BLOCK; SHIFT,CLU 4JH1-TC ENG(RDM)	8-97255-313-0	01	1	0507-0606
116	00.799 BLOCK; SHIFT,CLU 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-313-0	01	1	0607-
137	00.862 BOLT; CLU COVER 4JH1 ENG(RJX) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0302-0506
137	00.862 BOLT; CLU COVER 4JH1-TC ENG(RDM) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0507-0512
137	00.862 BOLT; CLU COVER 4JH1-TC ENG(RDM) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0601-0606
137	00.862 BOLT; CLU COVER 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0607-
140	00.862 PIN; STRAIGHT 4JH1 ENG(RJX) L=25	8-94410-361-0	02	1	0302-0506
140	00.862 PIN; STRAIGHT 4JH1-TC ENG(RDM) L=25	8-94410-361-0	02	1	0507-0606
140	00.862 PIN; STRAIGHT 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25	8-94410-361-0	02	1	0607-
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0302-0512
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-0606
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0607-

296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 305 301 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	00.885 CLUTCH ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-525-0	01	1	0607-0904
209	00.885 CLUTCH ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98116-930-1	01	1	0905-
291	00.863 COUPLING; FLUID 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-634-0	01	1	0607-0707
291	00.863 COUPLING; FLUID 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-659-1	01	1	0708-
292	00.862 RING; SEAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-329-0	01	1	0607-
293	00.799 BAND; BRAKE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-651-0	01	1	0607-
294	00.846 PIN; ANCHOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-703-0	01	1	0607-
295	00.864 BOLT; ANCHOR PIN 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-
296	00.862 BEARING; THRUST 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97255-688-0	01	1	0607-
296	00.862 BEARING; THRUST 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97255-689-0	01	1	0607-
297	00.862 WASHER; THRUST 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-070-0	01	1	0607-
298	04.020 PUMP ASM; OIL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-361-3	01	1	0607-
299	04.105 RING; SEAL 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-330-0	02	1	0607-
300	04.226 BOLT; OIL PUMP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.685 M8X40 FLANGE	0-28650-840-0	11	1	0607-
301	04.166 SEAL; OIL PUMP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-811-0	01	1	0607-
302	04.226 RING; OIL PUMP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-188-0	01	1	0607-
303	02.480 HARNESS ASM; OIL PUMP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-621-1	01	1	0607-
306	00.785 CLIP; BAND 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97138-392-0	01	1	0607-0905
306	00.785 CLIP; BAND 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100	8-94279-939-0	01	1	0906-
