1-56 — EXHAUST BRAKE SYSTEM (#22694) — 107 parça

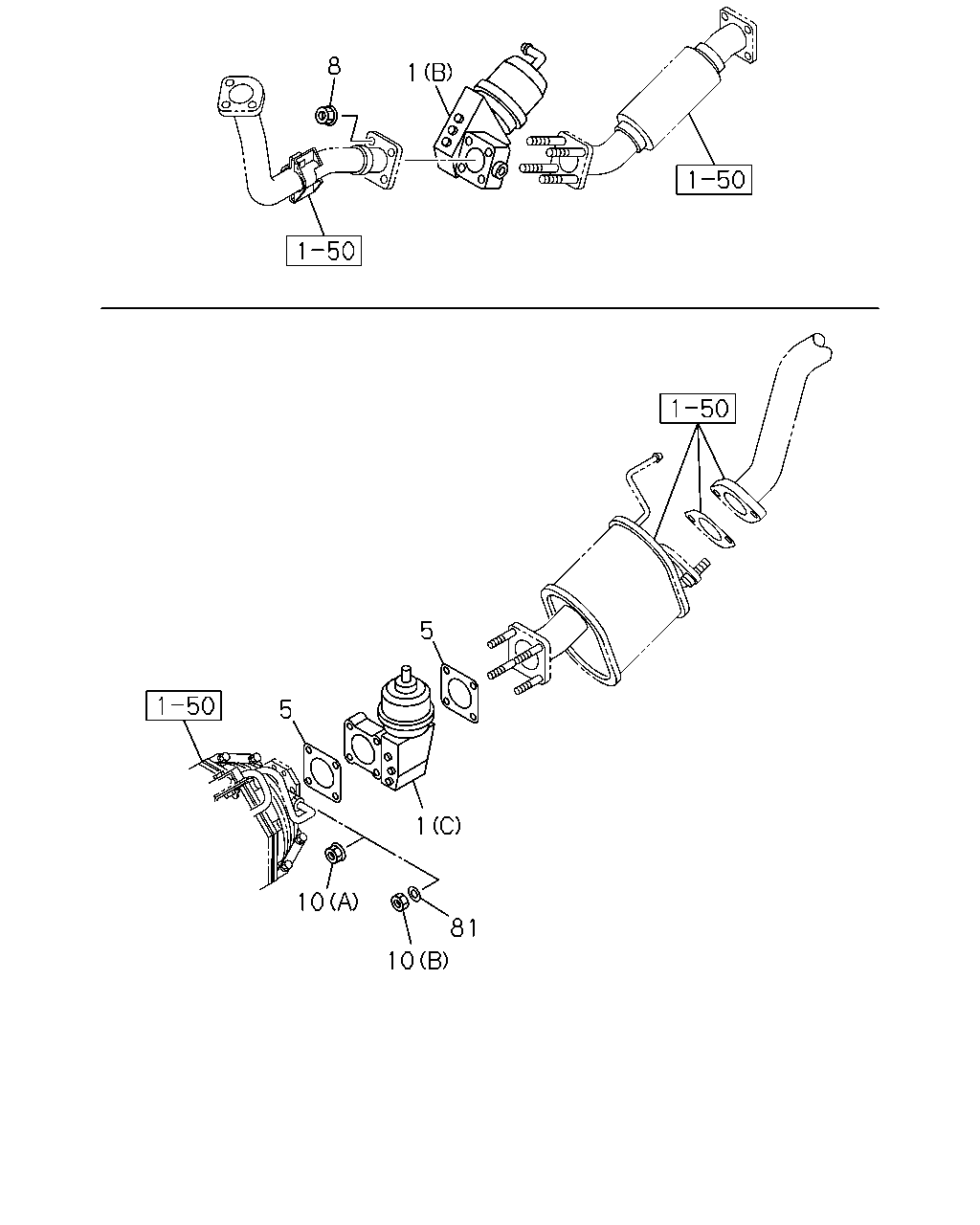

8 1 5 5 1 10 81 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97102-372-3	01	1	0302-0506	●	●
1	03.632 BRAKE UNIT; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97102-372-3	01	1	0507-0606	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-97384-097-1	01	1	0607-0610	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98062-604-0	01	1	0611-0611	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98068-178-1	01	1	0612-1212	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98227-170-0	01	1	1301-	●	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97351-465-0	01	1	0302-0506			●
1	03.632 BRAKE UNIT; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97351-465-0	01	1	0507-0606			●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (C)	8-97384-098-2	01	1	0607-1012	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (C)	8-98167-677-1	01	1	1101-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0302-0506	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0507-0606	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1 ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	0607-	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	0302-0506	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	0507-0512	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.334 M8	0-91110-508-0	04	1	0601-0606	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8	1-09400-118-1	04	1	1204-	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	0806-1203	●	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1 ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1204-	●	●	●
81	08.931 WASHER; LK 4JJ1 ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-	●	●	●

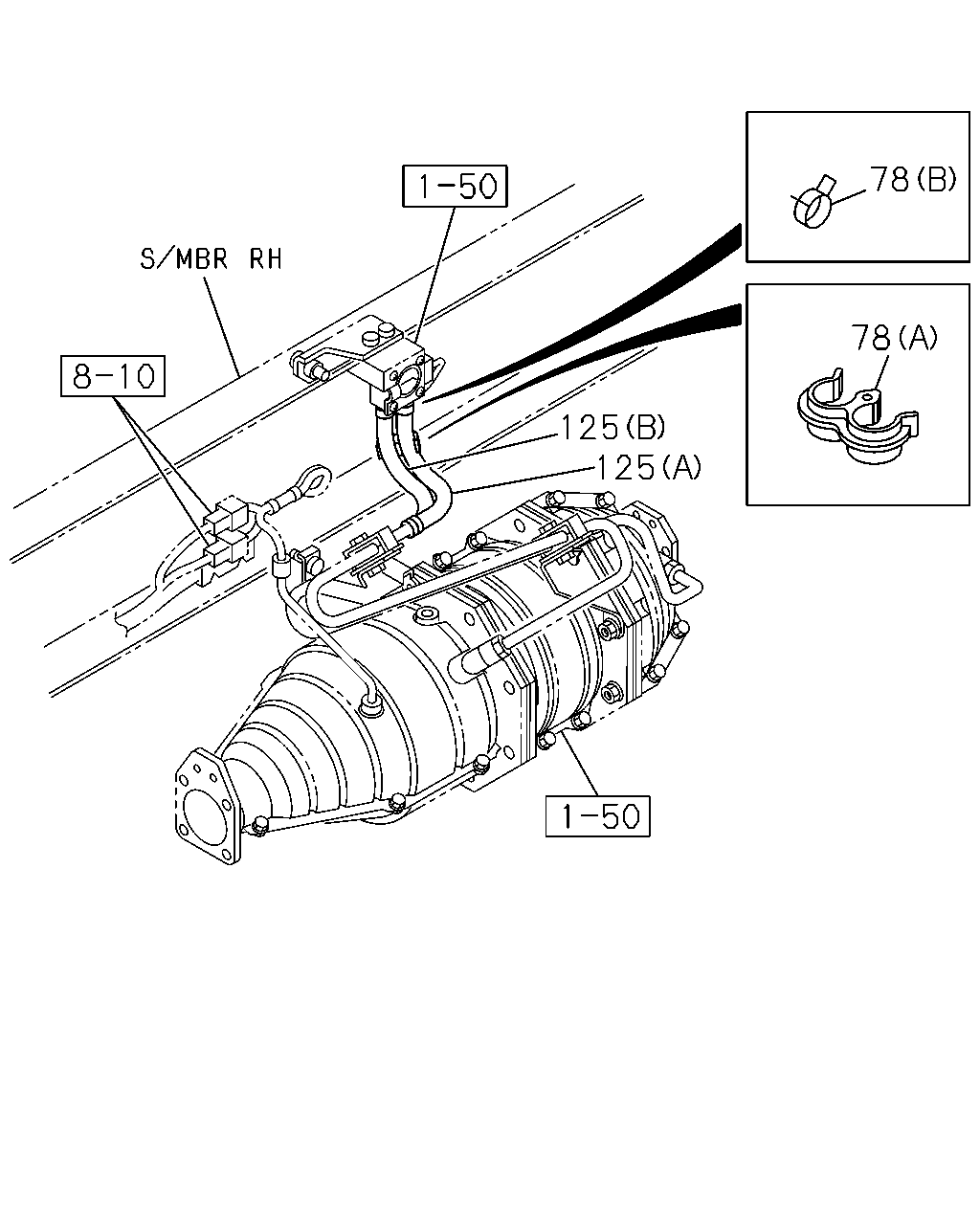

78 78 125 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
78	03.636 CLIP; HOSE 4JJ1 ENG(LFB) 03.162 (A)	8-97173-119-0	01	1	0607-	●	●	●
78	03.636 CLIP; HOSE 4JJ1 ENG(LFB) 03.162 (B) ID=13	8-97329-627-0	04	1	0607-	●	●	●
125	03.630 HOSE; DPD 4JJ1 ENG(LFB) (A)	8-98008-528-0	01	1	0607-	●	●	●
125	03.630 HOSE; DPD 4JJ1 ENG(LFB) (B)	8-98008-529-0	01	1	0607-	●	●	●

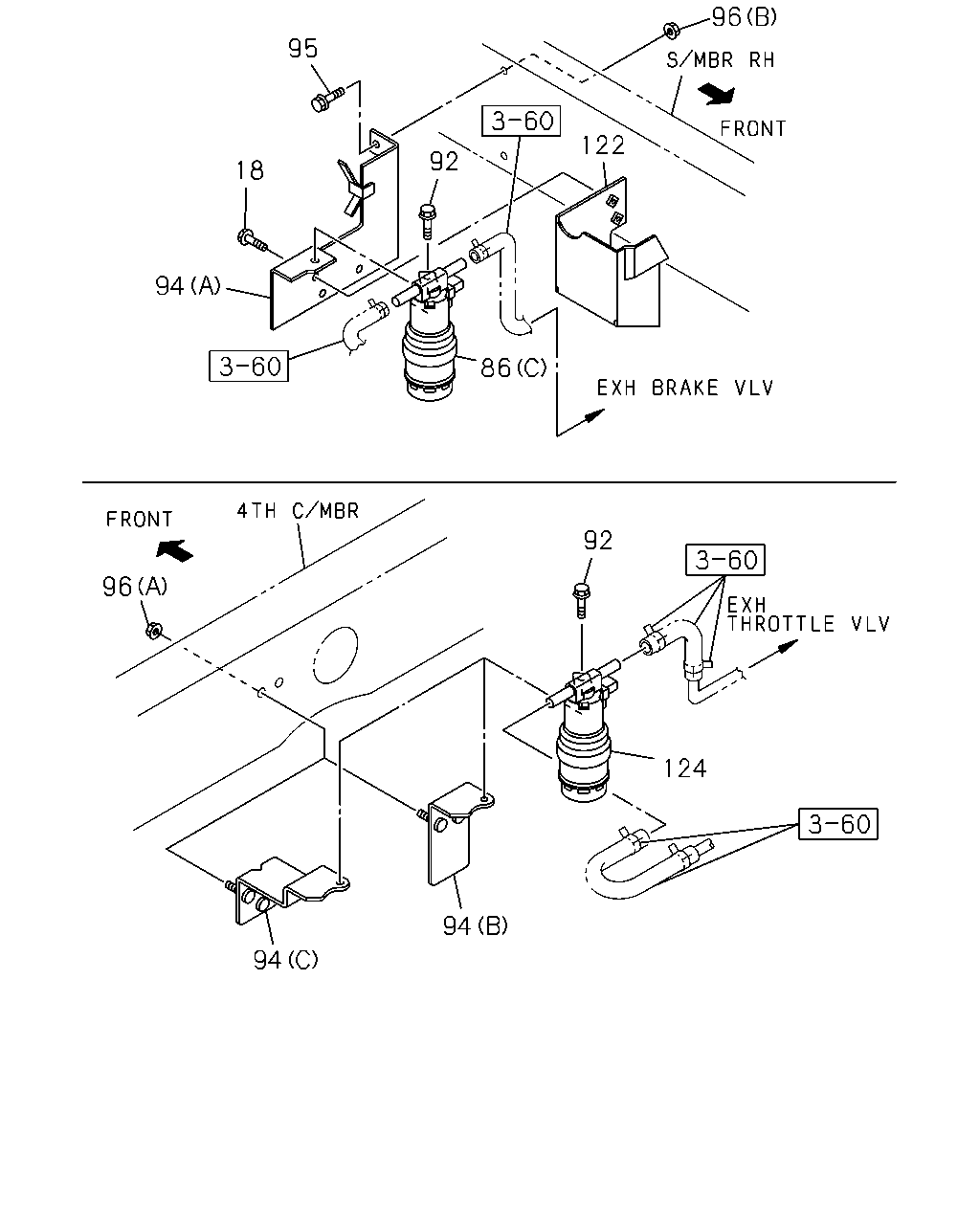

96 95 122 92 18 94 86 92 96 124 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	03.636 BOLT; PROTECTOR 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●	●
18	03.636 BOLT; PROTECTOR 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
18	03.636 BOLT; PROTECTOR 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●	●
18	03.636 BOLT; PROTECTOR 4JJ1 ENG(LFB) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97219-362-0	01	1	0302-0405	●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97374-160-0	01	1	0406-0506	●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97374-160-0	01	1	0507-0606	●	●
86	03.636 VALVE; MAG,EXH BRK (C)	8-97328-576-0	01	1	0607-0609	●	●	●
86	03.636 VALVE; MAG,EXH BRK (C)	8-98043-344-0	01	1	0610-	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (B)	8-97161-801-1	01	1	0302-0506			●
86	03.636 VALVE; MAG,EXH BRK 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (B)	8-97161-801-1	01	1	0507-0606			●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) (B)	8-97375-043-1	01	1	0607-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE (A)	8-98019-527-4	01	1	0607-	●	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) (C)	8-98036-835-0	01	1	0607-			●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-	●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-		●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0607-0610		●	●
122	03.640 PROTECTOR; MAG VLV 4JJ1 ENG(LFB)	8-98022-052-0	01	1	0607-	●	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-97328-576-0	01	1	0607-0609	●	●	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	0610-	●	●	●

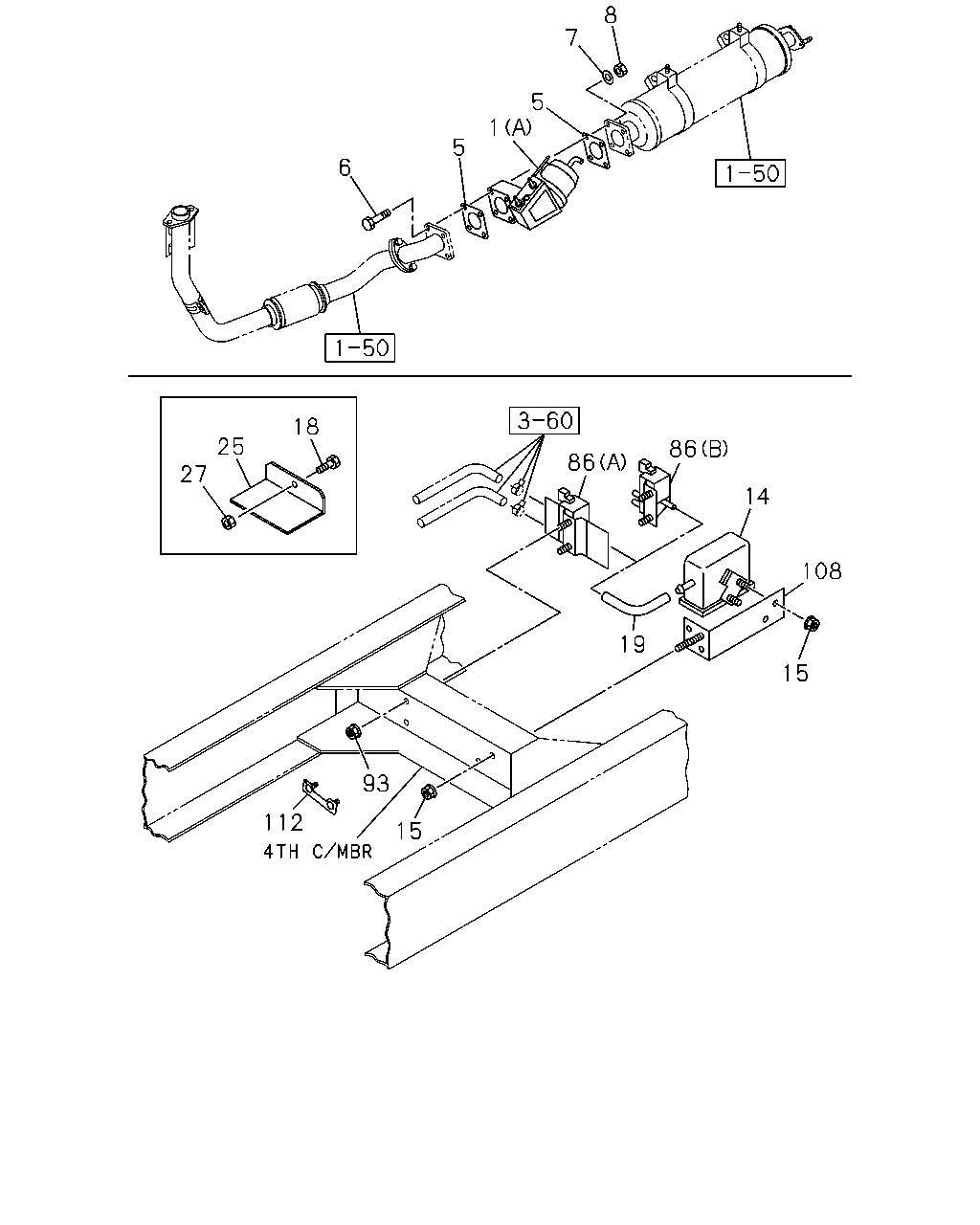

8 7 5 1 5 6 25 27 86 86 14 108 19 15 93 112 15 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97102-372-3	01	1	0302-0506	●	●
1	03.632 BRAKE UNIT; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97102-372-3	01	1	0507-0606	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-97384-097-1	01	1	0607-0610	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98062-604-0	01	1	0611-0611	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98068-178-1	01	1	0612-1212	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (B)	8-98227-170-0	01	1	1301-	●	●	●
1	03.632 BRAKE UNIT; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97351-465-0	01	1	0302-0506			●
1	03.632 BRAKE UNIT; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97351-465-0	01	1	0507-0606			●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (C)	8-97384-098-2	01	1	0607-1012	●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1 ENG(LFB) (C)	8-98167-677-1	01	1	1101-	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0302-0506	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	0507-0606	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1 ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	0607-	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	0302-0506	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.708 M8X70	0-10805-870-0	04	1	0507-0512	●	●	●
6	03.632 BOLT; EXH BRAKE UNIT FIX 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> M8X70	0-10855-870-0	04	1	0601-0606	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	0302-0506	●	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	0507-0606	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	0302-0506	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.559 M8	9-09110-408-0	04	1	0507-0512	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.334 M8	0-91110-508-0	04	1	0601-0606	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB) 07.833 M8 W/LK WASHER	8-94327-073-0	04	1	0607-0805	●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1 ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	0806-	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	0302-0506	●	●	●
14	03.634 FILTER; AIR,EXH BRAKE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	0507-0606	●	●	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
15	03.634 NUT; AIR FILTER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●
15	03.634 NUT; AIR FILTER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
15	03.634 NUT; AIR FILTER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
15	03.634 NUT; AIR FILTER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
15	03.634 NUT; AIR FILTER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●
18	03.636 BOLT; PROTECTOR 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●	●
18	03.636 BOLT; PROTECTOR 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
18	03.636 BOLT; PROTECTOR 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●	●
18	03.636 BOLT; PROTECTOR 4JJ1 ENG(LFB) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-	●	●	●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506	●	●
19	03.630 HOSE; AIR FILTER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> L=220 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606	●	●
19	03.630 HOSE; AIR FILTER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506			●
19	03.630 HOSE; AIR FILTER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> L=180 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606			●
25	03.640 PROTECTOR; HEAT,VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97255-215-0	01	1	0302-0506	●	●
25	03.640 PROTECTOR; HEAT,VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97255-215-0	01	1	0507-0606	●	●
27	03.632 NUT; HEAT PROTECTOR 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●
27	03.632 NUT; HEAT PROTECTOR 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
27	03.632 NUT; HEAT PROTECTOR 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97219-362-0	01	1	0302-0405	●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97374-160-0	01	1	0406-0506	●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97374-160-0	01	1	0507-0606	●	●
86	03.636 VALVE; MAG,EXH BRK (C)	8-97328-576-0	01	1	0607-0609	●	●	●
86	03.636 VALVE; MAG,EXH BRK (C)	8-98043-344-0	01	1	0610-	●	●	●
86	03.636 VALVE; MAG,EXH BRK 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (B)	8-97161-801-1	01	1	0302-0506			●
86	03.636 VALVE; MAG,EXH BRK 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (B)	8-97161-801-1	01	1	0507-0606			●
93	08.917 NUT; MAG VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
93	08.917 NUT; MAG VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
93	08.917 NUT; MAG VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
108	03.634 BRACKET; AIR FILTER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97106-474-2	01	1	0302-0506	●	●
108	03.634 BRACKET; AIR FILTER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97106-474-2	01	1	0507-0606	●	●
112	03.640 PLATE; BRKT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97091-766-0	01	1	0507-0606		●
