Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#22689) — 165 parça

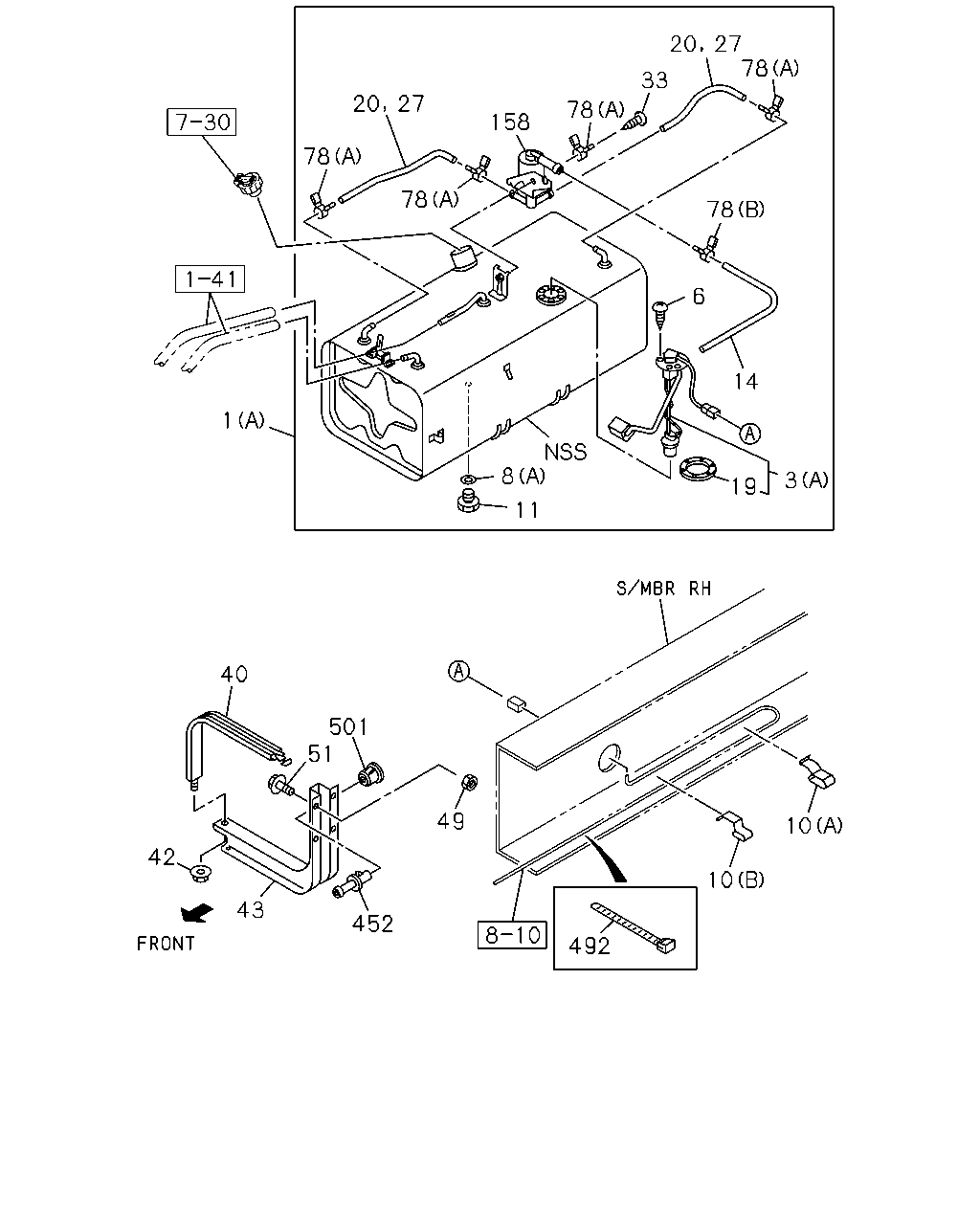

20 27 78 33 20 27 78 158 78 78 78 6 14 1 8 3 19 11 40 501 51 49 10 42 10 43 452 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 753X340X327 75L	8-97350-990-1	01	1	0302-0506	●	●
1	03.001 TANK; FUEL (B) 756X375X375 75L	8-97383-581-2	01	1	0507-0606	●	●
1	03.001 TANK; FUEL (B) 756X375X375 75L	8-98018-811-4	01	1	0607-	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 1000X340X327 100L	8-97350-993-1	01	1	0302-0506			●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-97376-817-4	01	1	0507-0606			●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-98000-647-8	01	1	0607-			●
3	03.107 UNIT; FUEL TANK,SUB (C)	8-98050-491-0	01	1	0612-			●
3	03.107 UNIT; FUEL TANK,SUB 4JH1 ENG(RJX) 03.001 (A)	8-94316-190-0	01	1	0302-0506	●	●	●
3	03.107 UNIT; FUEL TANK,SUB (B)	8-97363-006-0	01	1	0507-0606	●	●	●
3	03.107 UNIT; FUEL TANK,SUB (C)	8-98005-215-0	01	1	0607-0611	●	●	●
3	03.107 UNIT; FUEL TANK,SUB (C)	8-98005-215-0	01	1	0612-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1 ENG(RJX) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0506	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1 ENG(RJX) 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0506	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1 ENG(RJX) 01.550 (A)	1-21729-043-0	01	1	0302-0506			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 (B) ID=8.2 OD=17	9-09572-008-0	01	1	0507-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	0302-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	0302-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	0302-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 (A) T=5.5	5-09709-047-0	AR	1	0302-	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1 ENG(RJX) 01.453 M14X14	9-09862-156-0	01	1	0302-0506	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0302-0506			●
11	03.890 PLUG; DRAIN,FUEL TANK 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	0607-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	0607-			●
14	03.163 HOSE; BREATHER,OUTLET 4JH1 ENG(RJX) 00.034 L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0302-0506	●	●
14	03.163 HOSE; BREATHER,OUTLET 4JH1 ENG(RJX) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0302-0506			●
19	03.112 GASKET; FUEL TANK UNIT 4JH1 ENG(RJX)	5-83148-001-0	01	1	0302-0506	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-97363-616-0	01	1	0507-0606	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-97222-756-0	01	1	0607-	●	●	●
20	03.163 HOSE; BREATHER 4JH1 ENG(RJX) L=380 SERVICED BY L=3000	8-94128-826-0	02	1	0302-0506	●	●
27	03.163 HOSE; BREATHER 4JH1 ENG(RJX) L=470 SERVICED BY L=3000	8-94128-826-0	02	1	0302-0506			●
33	03.162 SCREW; JOINT TO FUEL TANK 4JH1 ENG(RJX) 02.334 M6X20 W/LK&PL WASHER	9-03920-620-0	01	1	0302-0506	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0302-0506	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0302-0506	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0507-	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0302-	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0302-0506	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0302-0506	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	0507-0606	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97308-623-1	01	1	0607-	●	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	0507-	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0302-0602	●	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0603-	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X30 FLANGE	0-28691-030-0	06	1	0302-0506	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28691-030-0	06	1	0507-0512	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 07.068 M10X30 FLANGE	0-28661-030-0	06	1	0601-0606	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0302-0512			●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-0606			●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0607-	●	●	●
78	03.003 CLIP; BREATHER HOSE 4JH1 ENG(RJX) 03.162 (A) ID=8.5	8-94166-071-0	04	1	0302-0506	●	●	●
78	03.003 CLIP; BREATHER HOSE 4JH1 ENG(RJX) 01.166 (B) ID=14	8-94238-572-0	01	1	0302-0506	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1 ENG(RJX)	8-94437-368-0	01	1	0302-0506	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0507-	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0302-0506	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0507-	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	02	1	0302-0506	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	02	1	0507-0606	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 03.162 L=140	5-09707-031-1	02	1	0607-	●	●	●
501	03.028 GROMMET; BRKT	8-97096-990-0	01	1	0302-0506	●	●	●

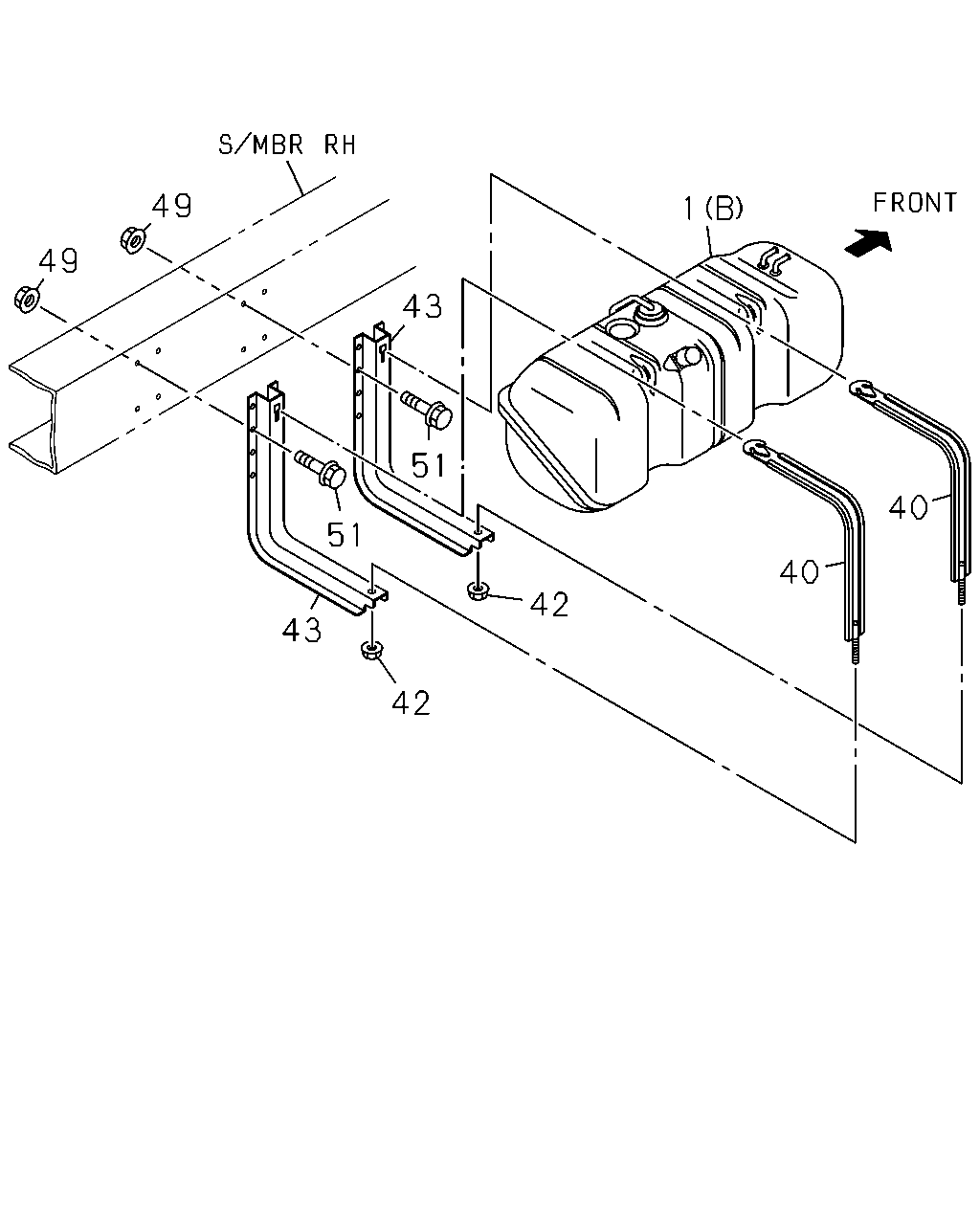

49 1 49 43 51 40 51 40 42 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 753X340X327 75L	8-97350-990-1	01	1	0302-0506	●	●
1	03.001 TANK; FUEL (B) 756X375X375 75L	8-97383-581-2	01	1	0507-0606	●	●
1	03.001 TANK; FUEL (B) 756X375X375 75L	8-98018-811-4	01	1	0607-	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 1000X340X327 100L	8-97350-993-1	01	1	0302-0506			●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-97376-817-4	01	1	0507-0606			●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-98000-647-8	01	1	0607-			●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0302-0506	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0302-0506	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0507-	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0302-	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0302-0506	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0302-0506	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	0507-0606	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97308-623-1	01	1	0607-	●	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	0507-	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0302-0602	●	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0603-	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X30 FLANGE	0-28691-030-0	06	1	0302-0506	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28691-030-0	06	1	0507-0512	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 07.068 M10X30 FLANGE	0-28661-030-0	06	1	0601-0606	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0302-0512			●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-0606			●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0607-	●	●	●

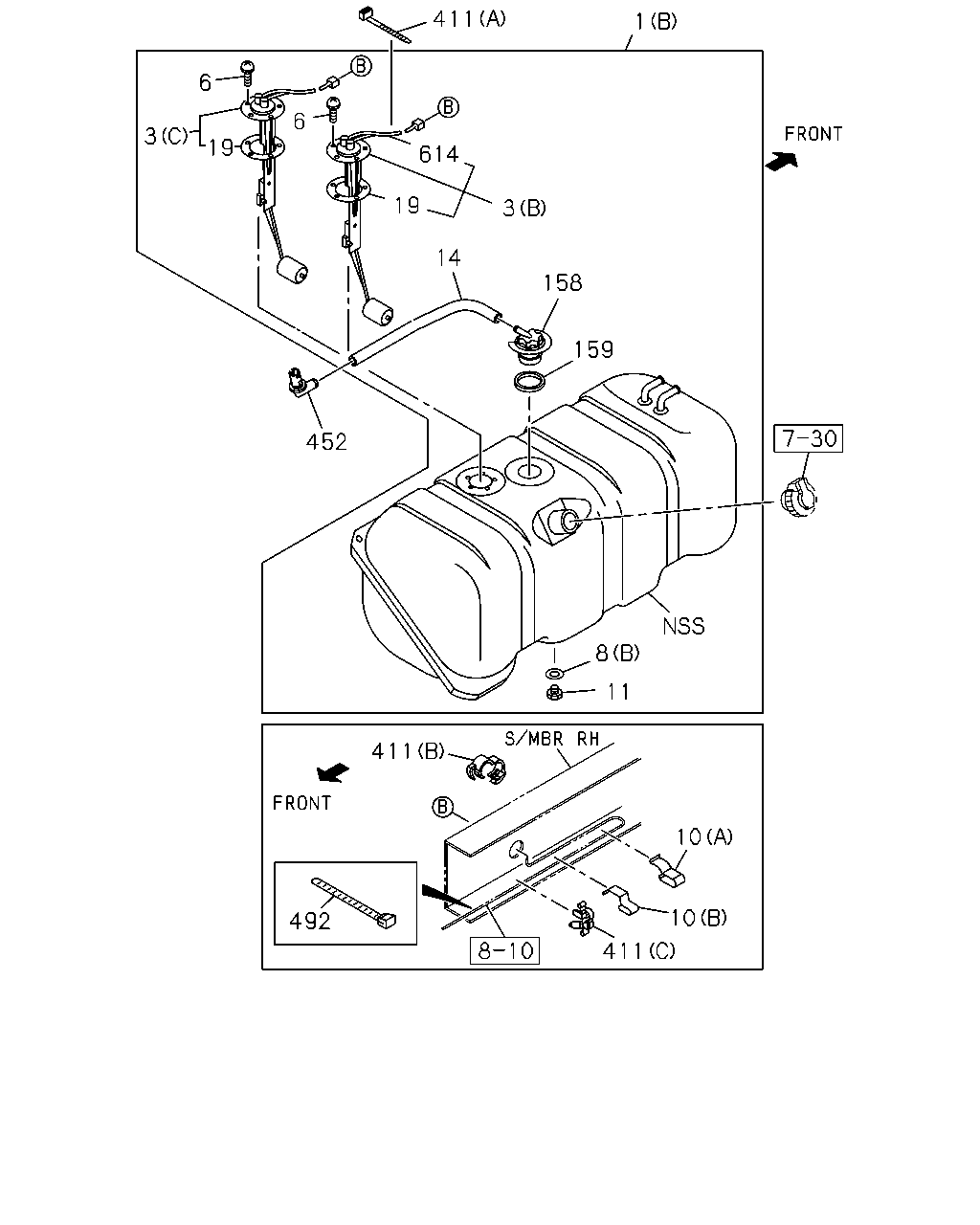

411 1 6 6 3 19 614 19 3 14 158 159 452 8 11 411 10 10 492 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 753X340X327 75L	8-97350-990-1	01	1	0302-0506	●	●
1	03.001 TANK; FUEL (B) 756X375X375 75L	8-97383-581-2	01	1	0507-0606	●	●
1	03.001 TANK; FUEL (B) 756X375X375 75L	8-98018-811-4	01	1	0607-	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 1000X340X327 100L	8-97350-993-1	01	1	0302-0506			●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-97376-817-4	01	1	0507-0606			●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-98000-647-8	01	1	0607-			●
3	03.107 UNIT; FUEL TANK,SUB (C)	8-98050-491-0	01	1	0612-			●
3	03.107 UNIT; FUEL TANK,SUB 4JH1 ENG(RJX) 03.001 (A)	8-94316-190-0	01	1	0302-0506	●	●	●
3	03.107 UNIT; FUEL TANK,SUB (B)	8-97363-006-0	01	1	0507-0606	●	●	●
3	03.107 UNIT; FUEL TANK,SUB (C)	8-98005-215-0	01	1	0607-0611	●	●	●
3	03.107 UNIT; FUEL TANK,SUB (C)	8-98005-215-0	01	1	0612-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 4JH1 ENG(RJX) 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0302-0506	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 03.485 M5X10 W/LK WASHER	9-03910-510-0	05	1	0507-0603	●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0604-	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1 ENG(RJX) 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0302-0506	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 4JH1 ENG(RJX) 01.550 (A)	1-21729-043-0	01	1	0302-0506			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 (B) ID=8.2 OD=17	9-09572-008-0	01	1	0507-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.559 (A) T=9.2	5-09709-013-0	AR	1	0302-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=4.5 & 9	5-09709-023-0	AR	1	0302-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 02.525 (B) T=9.2 & 9	5-09709-025-0	AR	1	0302-	●	●	●
10	03.115 CLIP; SPRING,FUEL TANK UNIT CABL 01.240 (A) T=5.5	5-09709-047-0	AR	1	0302-	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1 ENG(RJX) 01.453 M14X14	9-09862-156-0	01	1	0302-0506	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 4JH1 ENG(RJX) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0302-0506			●
11	03.890 PLUG; DRAIN,FUEL TANK 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	0607-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	0607-			●
14	03.163 HOSE; BREATHER,OUTLET 4JH1 ENG(RJX) 00.034 L=350 SERVICED BY L=10000	9-09914-701-0	01	1	0302-0506	●	●
14	03.163 HOSE; BREATHER,OUTLET 4JH1 ENG(RJX) 00.034 L=430 SERVICED BY L=10000	9-09914-701-0	01	1	0302-0506			●
19	03.112 GASKET; FUEL TANK UNIT 4JH1 ENG(RJX)	5-83148-001-0	01	1	0302-0506	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-97363-616-0	01	1	0507-0606	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-97222-756-0	01	1	0607-	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 4JH1 ENG(RJX)	8-94437-368-0	01	1	0302-0506	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0507-	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0507-	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1 ENG(LFB) EXC. REAR WIDE TREAD(V4T) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	0611-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0507-0606	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	0607-	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) ID=20	8-94241-972-0	01	1	0607-	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97062-954-1	01	1	0302-0506	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0507-	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	02	1	0302-0506	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	02	1	0507-0606	●	●	●
492	03.028 CLIP; HARNESS TO VAC HOSE 03.162 L=140	5-09707-031-1	02	1	0607-	●	●	●
614	03.028 HARNESS; FUEL	8-97363-614-0	01	1	0507-0606	●	●	●

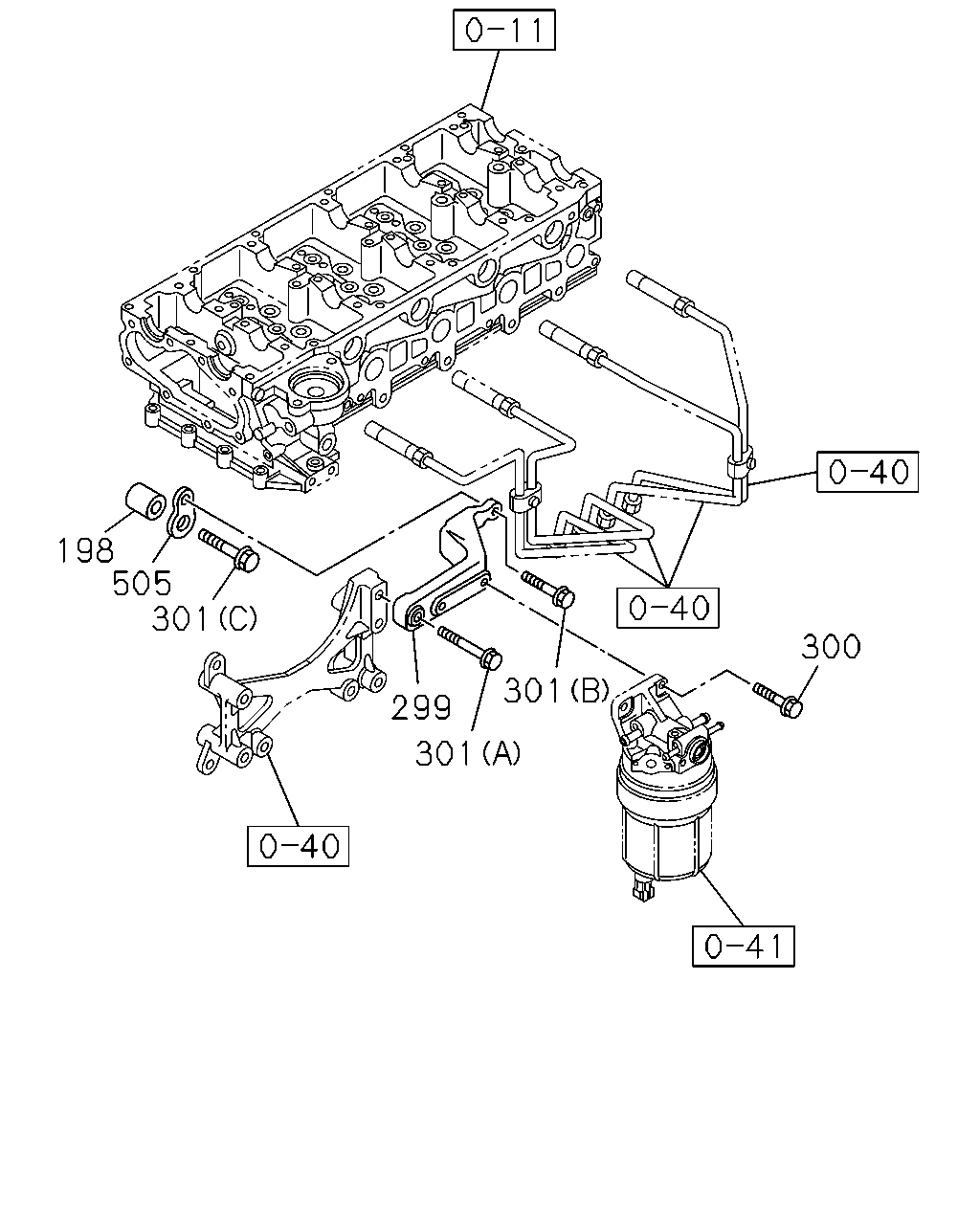

198 505 301 300 299 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
198	03.107 SPACER 4JJ1 ENG(LFB)	8-98081-509-0	01	1	0704-1001	●	●	●
299	03.162 BRACKET; FUEL FILTER 4JJ1 ENG(LFB)	8-98009-087-4	01	1	0607-1001	●	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) (C) M14X58 FLANGE	8-98081-508-0	01	1	0704-1001	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) 02.277 (B) M8X40 FLANGE	0-28050-840-0	01	1	0607-0703	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) (B) M8X40 FLANGE	0-28060-840-0	01	1	0704-1001	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	0607-0703	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1 ENG(LFB) (A) M8X66 FLANGE	8-98081-507-0	01	1	0704-1001	●	●	●
505	03.163 BRACKET 4JJ1 ENG(LFB)	8-98081-486-0	01	1	0704-1001	●	●	●

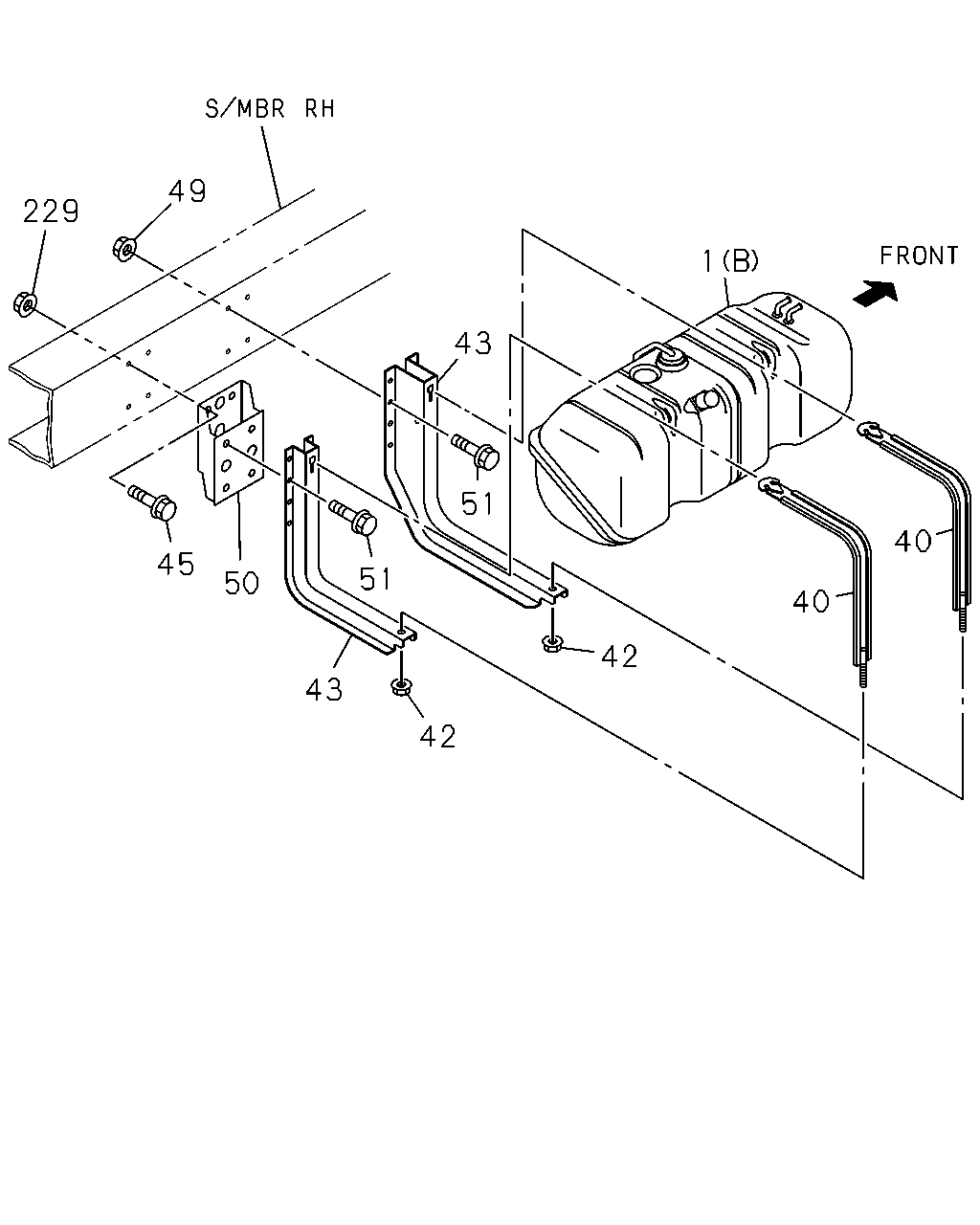

49 229 1 43 51 40 45 51 50 40 42 43 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 753X340X327 75L	8-97350-990-1	01	1	0302-0506	●	●
1	03.001 TANK; FUEL (B) 756X375X375 75L	8-97383-581-2	01	1	0507-0606	●	●
1	03.001 TANK; FUEL (B) 756X375X375 75L	8-98018-811-4	01	1	0607-	●	●
1	03.001 TANK; FUEL 4JH1 ENG(RJX) (A) 1000X340X327 100L	8-97350-993-1	01	1	0302-0506			●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-97376-817-4	01	1	0507-0606			●
1	03.001 TANK; FUEL (B) 1003X375X380 100L	8-98000-647-8	01	1	0607-			●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0302-0506	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-94438-385-4	02	1	0302-0506	●	●	●
40	03.022 BELT; SUPPORT,FUEL TANK	8-97169-231-1	02	1	0507-	●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0302-	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0302-0506	●	●	●
43	03.015 BRACKET; FUEL TANK	8-97035-517-0	02	1	0302-0506	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97035-517-0	01	1	0507-0606	●	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97308-623-1	01	1	0607-	●	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97181-220-0	01	1	0507-	●	●	●
45	03.023 BOLT; BRKT,FUEL TANK 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0607-	●	●	●
49	03.023 NUT; BRKT 08.917 M10 FLANGE	0-91150-210-0	08	1	0302-0602	●	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0603-	●	●	●
50	03.015 BRACKET; SUPPORT,FUEL BRKT	8-97361-274-2	01	1	0607-	●	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) M10X30 FLANGE	0-28691-030-0	06	1	0302-0506	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) M10X30 FLANGE	0-28691-030-0	06	1	0507-0512	●	●
51	03.023 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 07.068 M10X30 FLANGE	0-28661-030-0	06	1	0601-0606	●	●
51	03.023 BOLT; BRKT TO FRAME M10X30 FLANGE	0-28691-030-0	08	1	0302-0512			●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0601-0606			●
51	03.023 BOLT; BRKT TO FRAME 07.068 M10X30 FLANGE	0-28661-030-0	08	1	0607-	●	●	●
229	03.023 NUT; BRKT,FUEL TANK 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
