1-11 — RADIATOR HOSE AND SUB TANK (#22685) — 92 parça

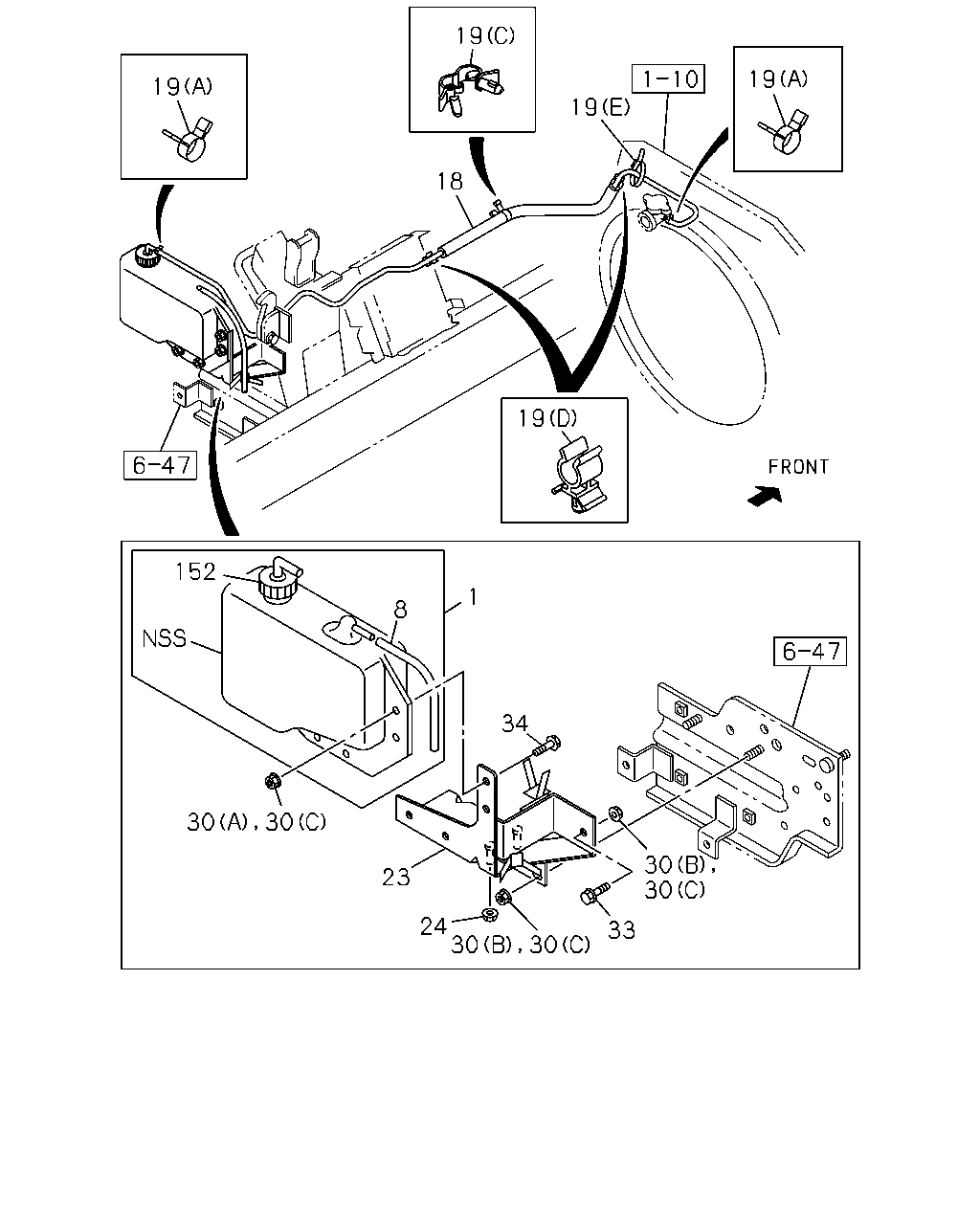

19 19 19 19 18 19 152 1 8 34 30 30 30 30 23 24 33 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX)	8-97205-136-0	01	1	0302-0506	●	●	●
1	01.219 TANK; SURGE,RAD 4JH1-TC ENG(RDM)	8-97205-136-1	01	1	0507-0606	●	●	●
1	01.219 TANK; SURGE,RAD 4JJ1 ENG(LFB)	8-97205-136-1	01	1	0607-	●	●	●
8	01.166 HOSE; VINYL 4JH1 ENG(RJX) 01.240 L=500	1-09366-179-0	01	1	0302-0506	●	●	●
8	01.166 HOSE; VINYL 4JH1-TC ENG(RDM) 01.240 L=500	1-09366-179-0	01	1	0507-0606	●	●	●
8	01.166 HOSE; VINYL 4JJ1 ENG(LFB) 01.240 L=500	1-09366-179-0	01	1	0607-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) L=1580	8-97356-350-0	01	1	0302-0506	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1-TC ENG(RDM) L=1580	8-97356-350-0	01	1	0507-0606	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1 ENG(LFB)	8-98018-434-3	01	1	0607-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	0302-0911	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) (B) ID=14 L=47	5-09700-319-0	02	1	0302-0506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1-TC ENG(RDM) (B) ID=14 L=47	5-09700-319-0	02	1	0507-0606	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) 02.559 (E) L=250	5-09707-030-1	02	1	0607-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) 03.162 (C) ID=13-18 L=14.5	1-09709-290-0	02	1	0607-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (D) ID=12	8-98029-256-0	02	1	0607-	●	●	●
23	01.219 BRACKET; RESERVE TANK 4JH1 ENG(RJX)	8-97225-271-1	01	1	0302-0506	●	●	●
23	01.219 BRACKET; RESERVE TANK 4JH1-TC ENG(RDM)	8-97225-271-1	01	1	0507-0606	●	●	●
23	01.219 BRACKET; RESERVE TANK 4JJ1 ENG(LFB)	8-98044-159-0	01	1	0607-	●	●	●
24	01.219 NUT 4JJ1 ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	0607-	●	●	●
30	01.203 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0302-0506	●	●	●
30	01.203 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602	●	●	●
30	01.203 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606	●	●	●
30	01.203 NUT 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-0609	●	●	●
30	01.203 NUT 4JJ1 ENG(LFB) 01.062 (C) M8 FLANGE	0-91180-108-0	07	1	0610-	●	●	●
30	01.203 NUT 4JH1 ENG(RJX) 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0302-0506	●	●	●
30	01.203 NUT 4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0507-0602	●	●	●
30	01.203 NUT 4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0603-0606	●	●	●
30	01.203 NUT 4JJ1 ENG(LFB) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0607-0609	●	●	●
33	01.277 BOLT; BRKT 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●	●
33	01.277 BOLT; BRKT 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
33	01.277 BOLT; BRKT 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
33	01.277 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0302-0506	●	●	●
34	01.203 BOLT; RESERVE TANK 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512	●	●	●
34	01.203 BOLT; RESERVE TANK 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0606	●	●	●
34	01.203 BOLT; RESERVE TANK 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0607-	●	●	●
152	01.203 CAP ASM; SURGE TANK 4JH1 ENG(RJX)	8-97217-799-0	01	1	0302-0506	●	●	●
152	01.203 CAP ASM; SURGE TANK 4JH1-TC ENG(RDM)	8-97217-799-0	01	1	0507-0606	●	●	●
152	01.203 CAP ASM; SURGE TANK 4JJ1 ENG(LFB)	8-97217-799-0	01	1	0607-	●	●	●

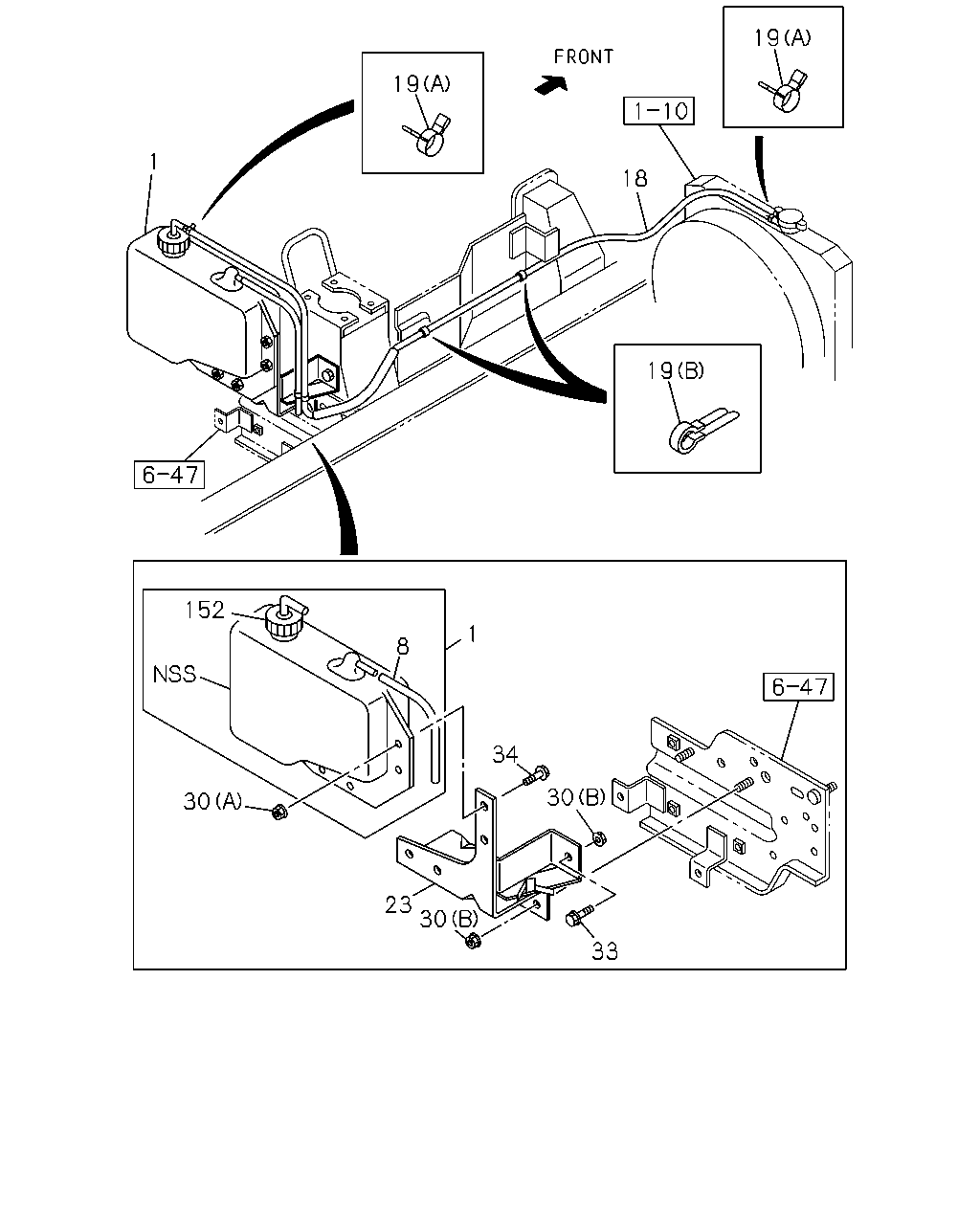

19 19 1 18 19 152 1 8 34 30 30 23 30 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX)	8-97205-136-0	01	1	0302-0506	●	●	●
1	01.219 TANK; SURGE,RAD 4JH1-TC ENG(RDM)	8-97205-136-1	01	1	0507-0606	●	●	●
1	01.219 TANK; SURGE,RAD 4JJ1 ENG(LFB)	8-97205-136-1	01	1	0607-	●	●	●
8	01.166 HOSE; VINYL 4JH1 ENG(RJX) 01.240 L=500	1-09366-179-0	01	1	0302-0506	●	●	●
8	01.166 HOSE; VINYL 4JH1-TC ENG(RDM) 01.240 L=500	1-09366-179-0	01	1	0507-0606	●	●	●
8	01.166 HOSE; VINYL 4JJ1 ENG(LFB) 01.240 L=500	1-09366-179-0	01	1	0607-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) L=1580	8-97356-350-0	01	1	0302-0506	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1-TC ENG(RDM) L=1580	8-97356-350-0	01	1	0507-0606	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JJ1 ENG(LFB)	8-98018-434-3	01	1	0607-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (A) ID=12	8-94238-610-0	02	1	0302-0911	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=12	8-98150-358-0	02	1	0912-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX) (B) ID=14 L=47	5-09700-319-0	02	1	0302-0506	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1-TC ENG(RDM) (B) ID=14 L=47	5-09700-319-0	02	1	0507-0606	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) 02.559 (E) L=250	5-09707-030-1	02	1	0607-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) 03.162 (C) ID=13-18 L=14.5	1-09709-290-0	02	1	0607-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JJ1 ENG(LFB) (D) ID=12	8-98029-256-0	02	1	0607-	●	●	●
23	01.219 BRACKET; RESERVE TANK 4JH1 ENG(RJX)	8-97225-271-1	01	1	0302-0506	●	●	●
23	01.219 BRACKET; RESERVE TANK 4JH1-TC ENG(RDM)	8-97225-271-1	01	1	0507-0606	●	●	●
23	01.219 BRACKET; RESERVE TANK 4JJ1 ENG(LFB)	8-98044-159-0	01	1	0607-	●	●	●
30	01.203 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0302-0506	●	●	●
30	01.203 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602	●	●	●
30	01.203 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606	●	●	●
30	01.203 NUT 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-0609	●	●	●
30	01.203 NUT 4JJ1 ENG(LFB) 01.062 (C) M8 FLANGE	0-91180-108-0	07	1	0610-	●	●	●
30	01.203 NUT 4JH1 ENG(RJX) 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0302-0506	●	●	●
30	01.203 NUT 4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0507-0602	●	●	●
30	01.203 NUT 4JH1-TC ENG(RDM) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0603-0606	●	●	●
30	01.203 NUT 4JJ1 ENG(LFB) 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0607-0609	●	●	●
33	01.277 BOLT; BRKT 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●	●
33	01.277 BOLT; BRKT 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
33	01.277 BOLT; BRKT 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
33	01.277 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0302-0506	●	●	●
34	01.203 BOLT; RESERVE TANK 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512	●	●	●
34	01.203 BOLT; RESERVE TANK 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-0606	●	●	●
34	01.203 BOLT; RESERVE TANK 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0607-	●	●	●
152	01.203 CAP ASM; SURGE TANK 4JH1 ENG(RJX)	8-97217-799-0	01	1	0302-0506	●	●	●
152	01.203 CAP ASM; SURGE TANK 4JH1-TC ENG(RDM)	8-97217-799-0	01	1	0507-0606	●	●	●
152	01.203 CAP ASM; SURGE TANK 4JJ1 ENG(LFB)	8-97217-799-0	01	1	0607-	●	●	●

56 128 56 56 55 55 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	01.173 HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97260-186-1	01	1	0302-0506	●
55	01.173 HOSE; WATER,RAD OUTLET 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97260-186-2	01	1	0507-0606	●
55	01.173 HOSE; WATER,RAD OUTLET 4JJ1 ENG(LFB)	8-97383-814-1	01	1	0607-	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX)	8-97260-187-1	01	1	0302-0506		●	●
55	01.173 HOSE; WATER,RAD OUTLET 4JH1-TC ENG(RDM)	8-97260-187-2	01	1	0507-0606		●	●
56	01.166 CLIP; WATER HOSE,RAD 4JH1 ENG(RJX) ID=48	5-09704-049-0	03	1	0302-0506	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JH1-TC ENG(RDM) ID=48	5-09704-049-0	03	1	0507-0606	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1 ENG(LFB) ID=48	5-09704-049-0	02	1	0607-0610	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1 ENG(LFB) ID=48	8-98036-282-0	02	1	0611-0901	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4JJ1 ENG(LFB) ID=48	8-98133-956-0	02	1	0902-	●	●	●
128	01.159 HOSE; WATER,RAD INL 4JH1 ENG(RJX)	8-97289-369-0	01	1	0302-0506	●	●	●
128	01.159 HOSE; WATER,RAD INL 4JH1-TC ENG(RDM)	8-97289-369-1	01	1	0507-0606	●	●	●
128	01.159 HOSE; WATER,RAD INL 4JJ1 ENG(LFB)	8-97383-812-1	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
