Sayfa 1-01 - Isuzu EPC

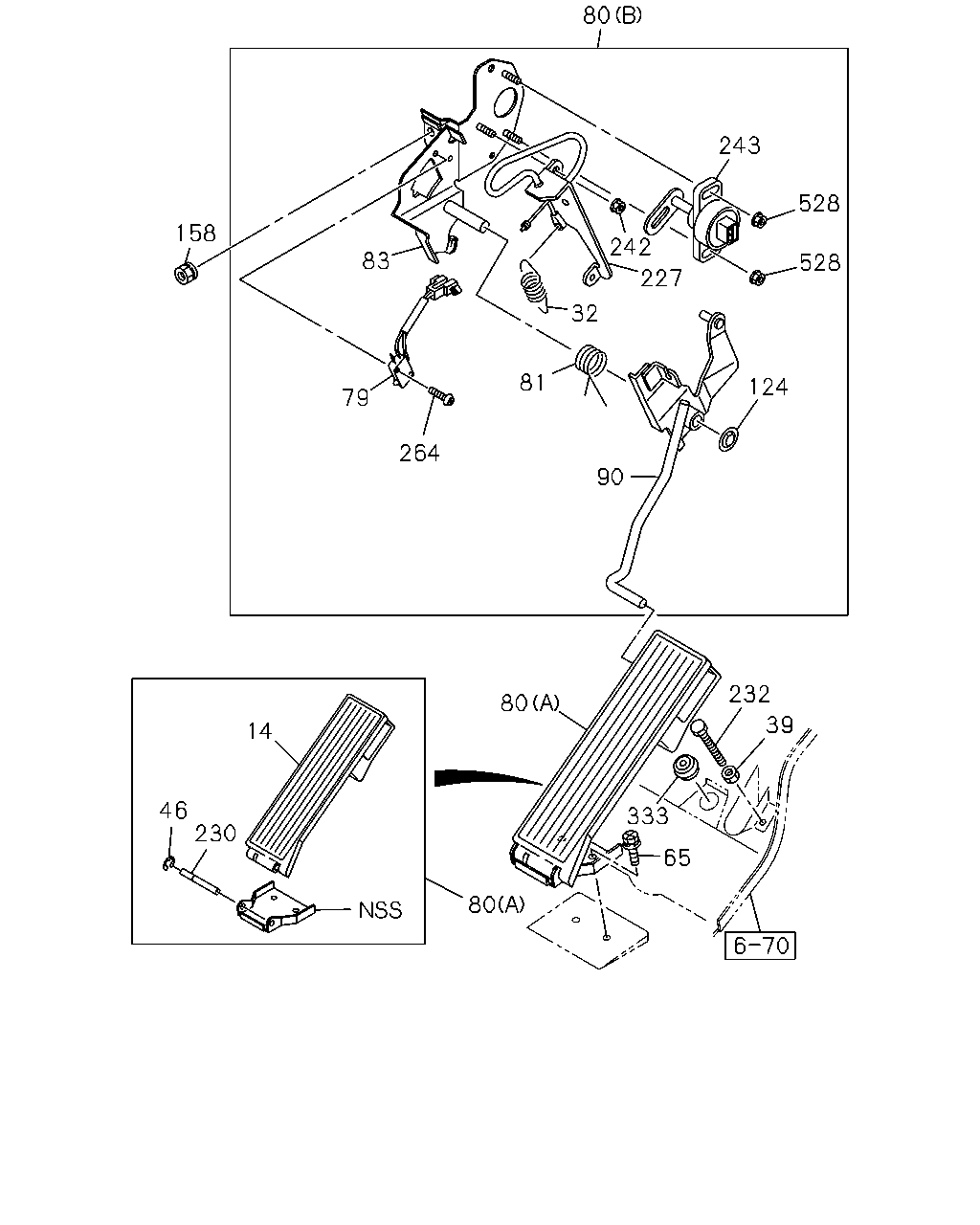

1-01 — ACCELERATOR PEDAL AND CONTROL (#22683) — 77 parça

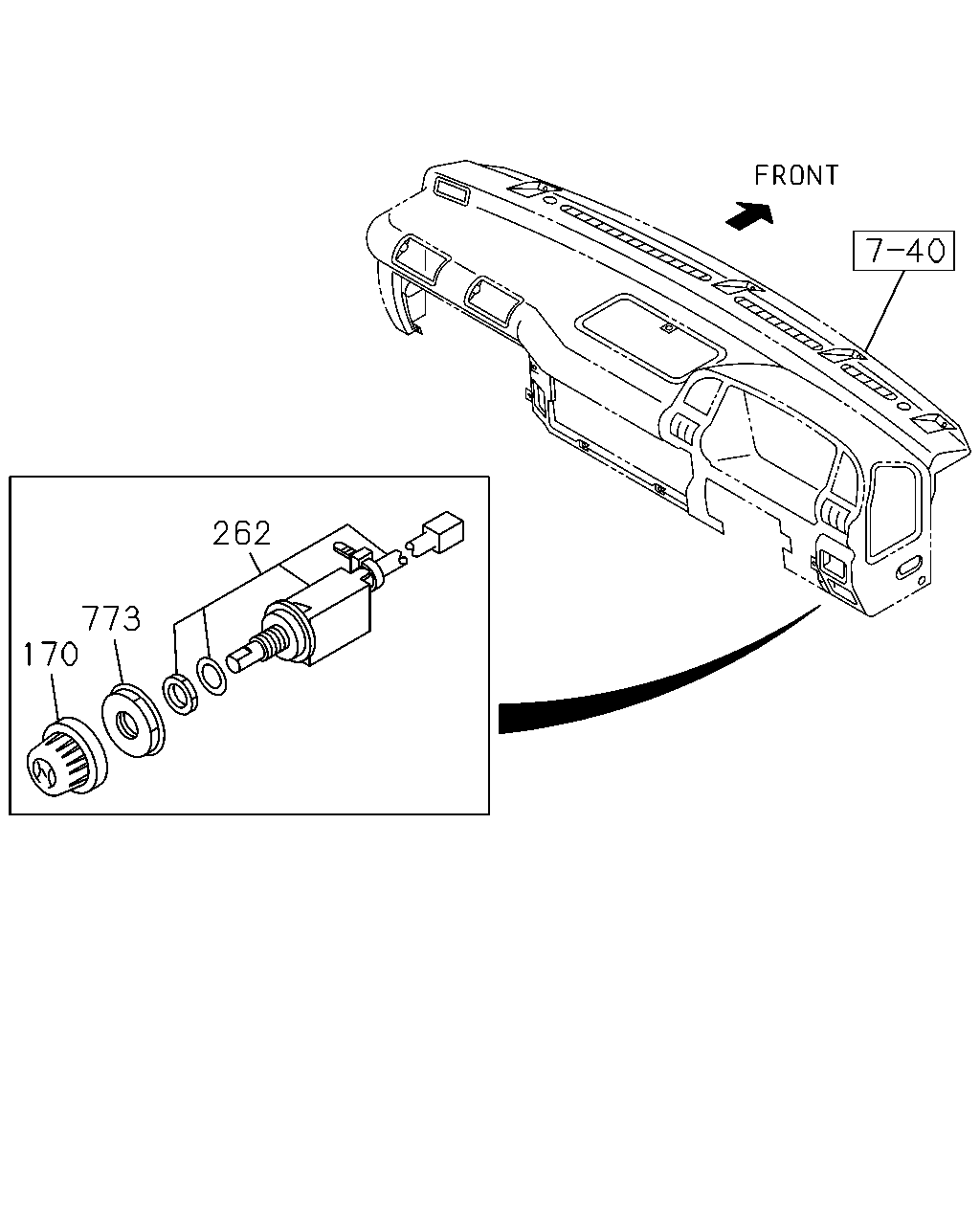

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
170	03.480 KNOB 4JJ1 ENG(LFB)	8-97310-165-0	01	1	0607-	●	●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1 ENG(LFB)	8-97215-119-1	01	1	0607-	●	●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1 ENG(LFB)	8-97352-127-0	01	1	0607-	●	●	●

80 243 528 158 242 83 528 227 32 81 124 79 264 90 232 80 39 14 46 230 333 65 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0302-	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0302-0506	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97997-917-0	01	1	0507-0606	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0302-0512	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0302-0604	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0302-	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0302-0506	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97224-056-0	01	1	0507-0606	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-061-2	01	1	0302-	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (B)	8-97892-195-8	01	1	0302-0506	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (B)	8-97892-195-9	01	1	0507-0606	●	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1 ENG(LFB) (C)	8-97997-556-6	01	1	0607-	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX)	8-97853-205-1	01	1	0302-0506	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM)	8-97853-205-1	01	1	0507-0606	●	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-3	01	1	0302-0506	●	●	●
83	03.452 BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97892-196-4	01	1	0507-0606	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-3	01	1	0302-0506	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97892-197-4	01	1	0507-0606	●	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0302-0506	●	●	●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0507-0606	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0302-	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0302-0506	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97892-203-5	01	1	0507-0606	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0302-	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0302-0404	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0302-0506	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0507-0606	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB)	8-98131-263-0	01	1	1206-	●	●	●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97200-308-0	01	1	0302-0506	●	●	●
243	03.425 SENSOR; ACCEL 4JH1-TC ENG(RDM)	8-97200-308-0	01	1	0507-0606	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB)	8-97602-416-0	01	1	0607-	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0302-0506	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0507-0603	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) M3X16 TAPPING	0-71340-316-0	02	1	0604-0606	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0302-0506	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JJ1 ENG(LFB) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0302-0506	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0507-0606	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1 ENG(LFB) 12.183 M5	8-94169-022-0	02	1	0607-	●	●	●

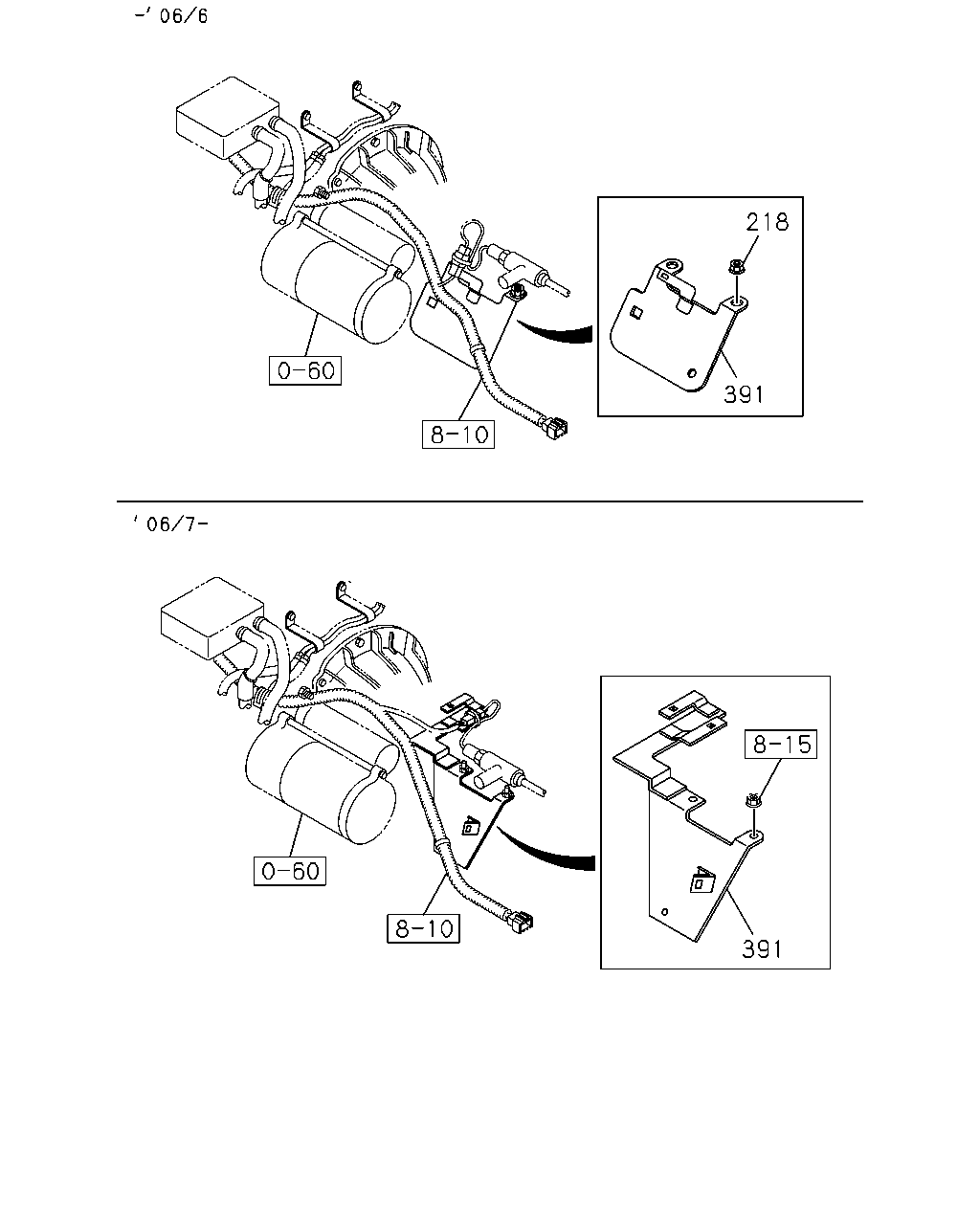

218 391 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
391	03.452 BRACKET; ENG CONT 4JH1 ENG(RJX)	8-97352-772-0	01	1	0302-0506	●	●	●
391	03.452 BRACKET; ENG CONT 4JH1-TC ENG(RDM)	8-97352-772-0	01	1	0507-0606	●	●	●
391	03.452 BRACKET; ENG CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-141-0	01	1	0607-	●	●	●

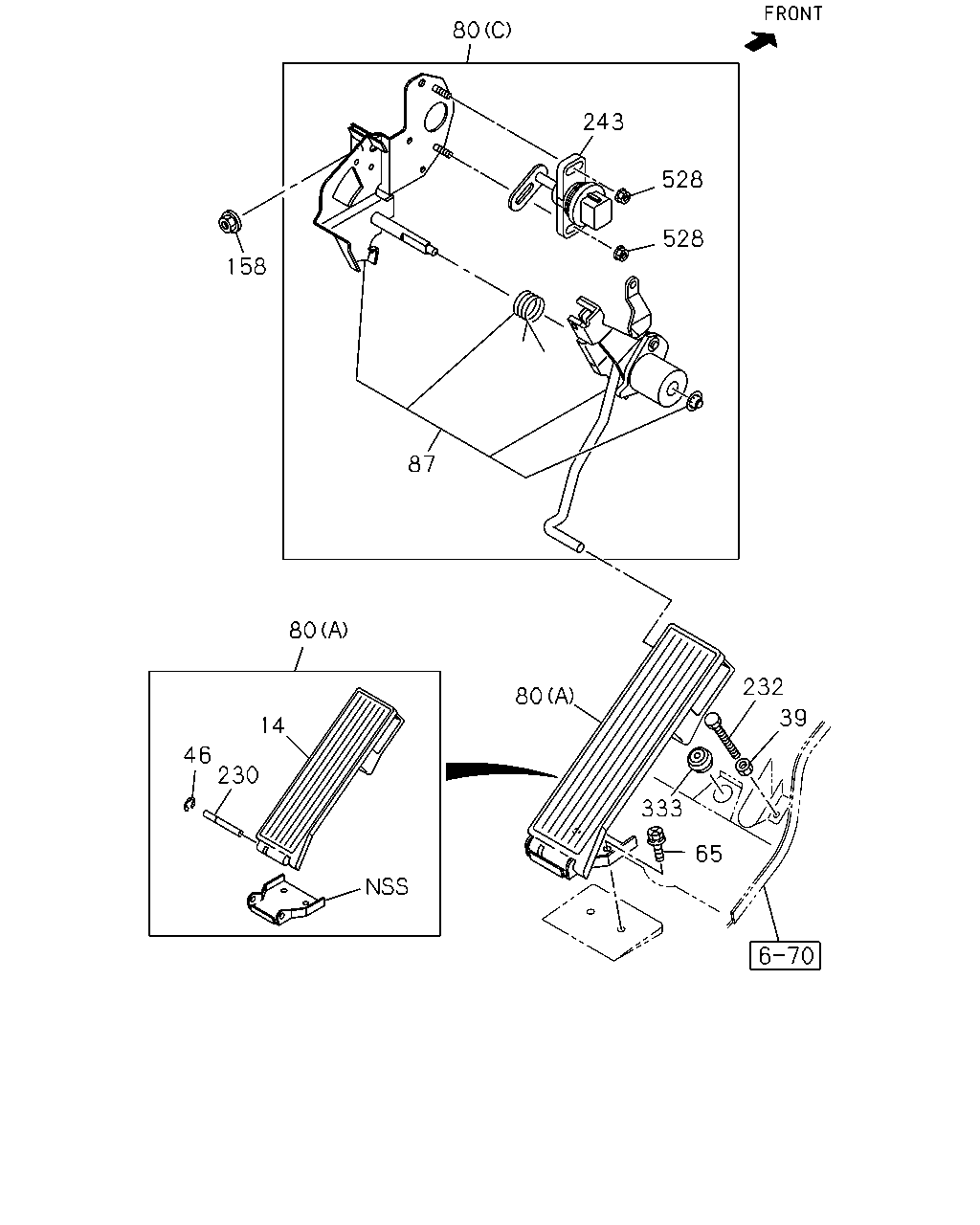

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0302-	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	0302-0512	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0302-0604	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0302-	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-061-2	01	1	0302-	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (B)	8-97892-195-8	01	1	0302-0506	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (B)	8-97892-195-9	01	1	0507-0606	●	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1 ENG(LFB) (C)	8-97997-556-6	01	1	0607-	●	●	●
87	03.454 LINK; ENG CONT 4JJ1 ENG(LFB)	8-97581-415-5	01	1	0607-	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0302-	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0302-	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	0302-0404	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB)	8-98131-263-0	01	1	1206-	●	●	●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97200-308-0	01	1	0302-0506	●	●	●
243	03.425 SENSOR; ACCEL 4JH1-TC ENG(RDM)	8-97200-308-0	01	1	0507-0606	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB)	8-97602-416-0	01	1	0607-	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0302-0506	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JJ1 ENG(LFB) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0302-0506	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0507-0606	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1 ENG(LFB) 12.183 M5	8-94169-022-0	02	1	0607-	●	●	●
