◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#22676) — 130 parça

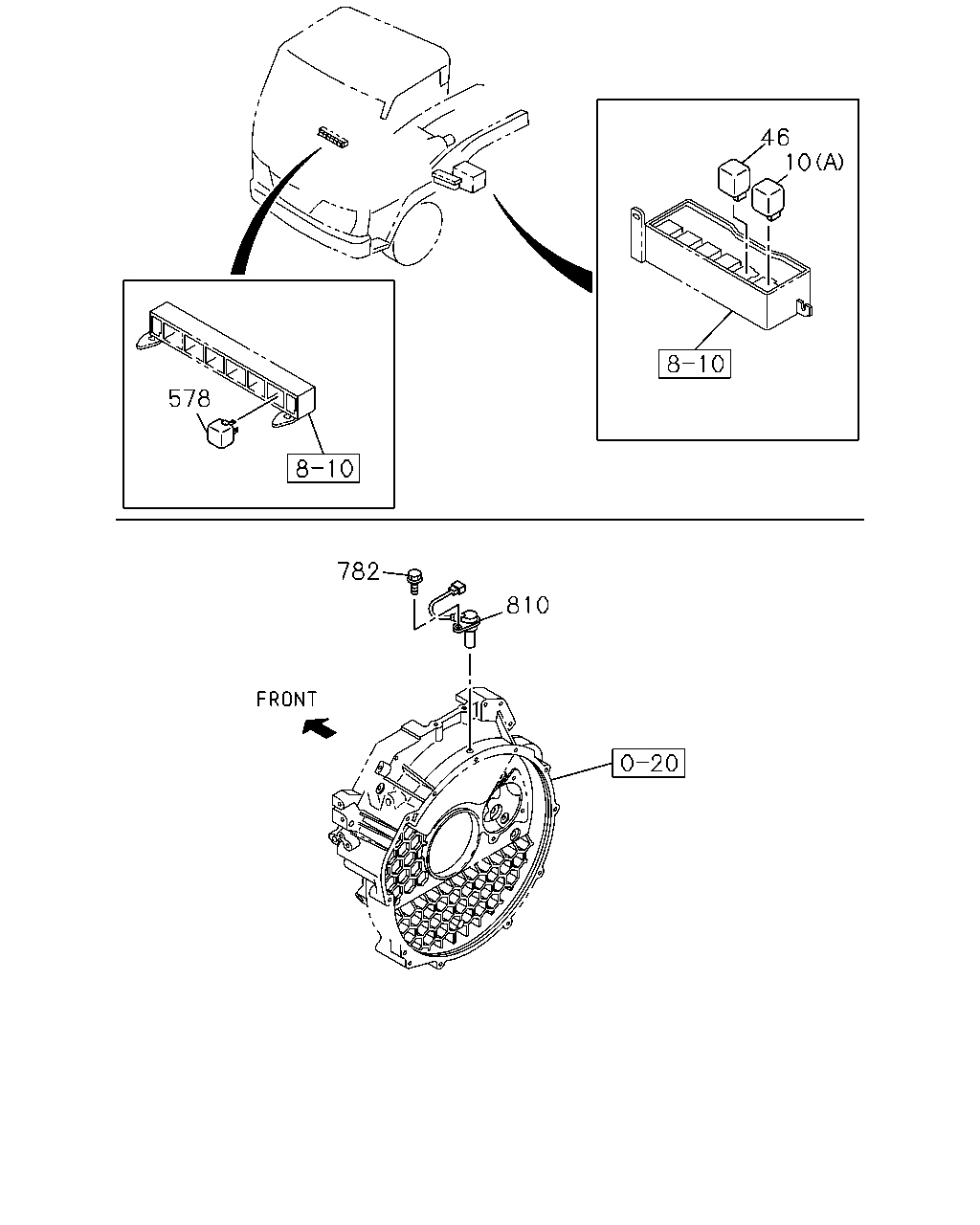

çizim 9965
46 10 578 782 810
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
02.510 (A) 12V 80A 		8-97173-951-0 01 1 0302-0506 ●
10 02.100 RELAY; STARTER
02.510 (A) 12V 80A 		8-97173-951-0 01 1 0507-0606 ●
10 02.100 RELAY; STARTER
(C) 24V 50A 		8-97264-947-0 01 1 0607- ●
10 02.100 RELAY; STARTER
08.852 (B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0302-0506 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0507-0606 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0607- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0302-0506 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0507-0606 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0302-0506 ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ●
782 02.510 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601-0606 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0607- ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-1 01 1 0302-0506 ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-1 01 1 0507-0606 ●

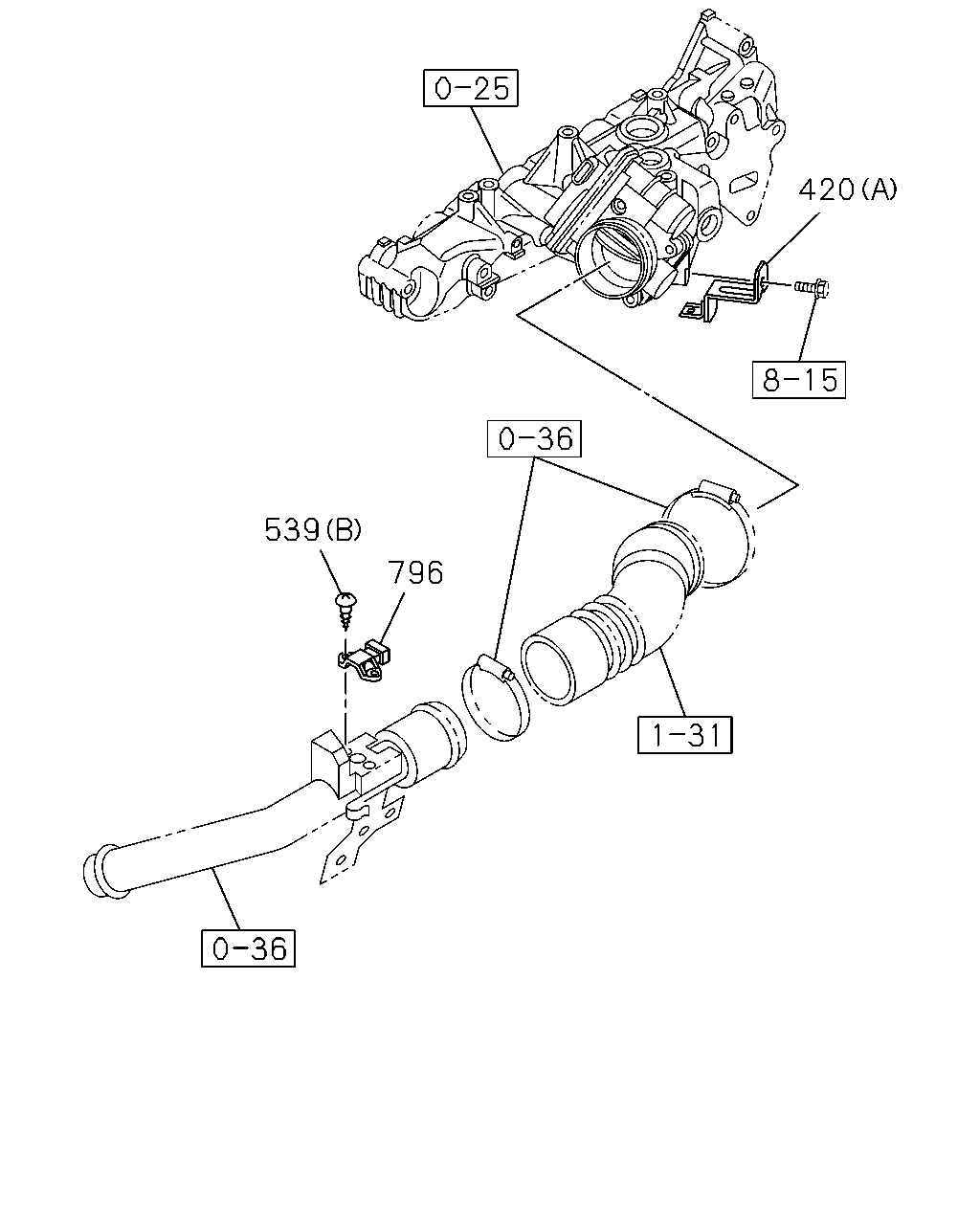

çizim 50583
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS
(A) 		8-98024-050-0 01 1 0607- ●
420 02.183 BRACKET; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98030-725-1 01 1 0607- ●
539 02.510 SCREW; SENSOR
02.559 (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0607- ●
539 02.510 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0607- ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0607- ●

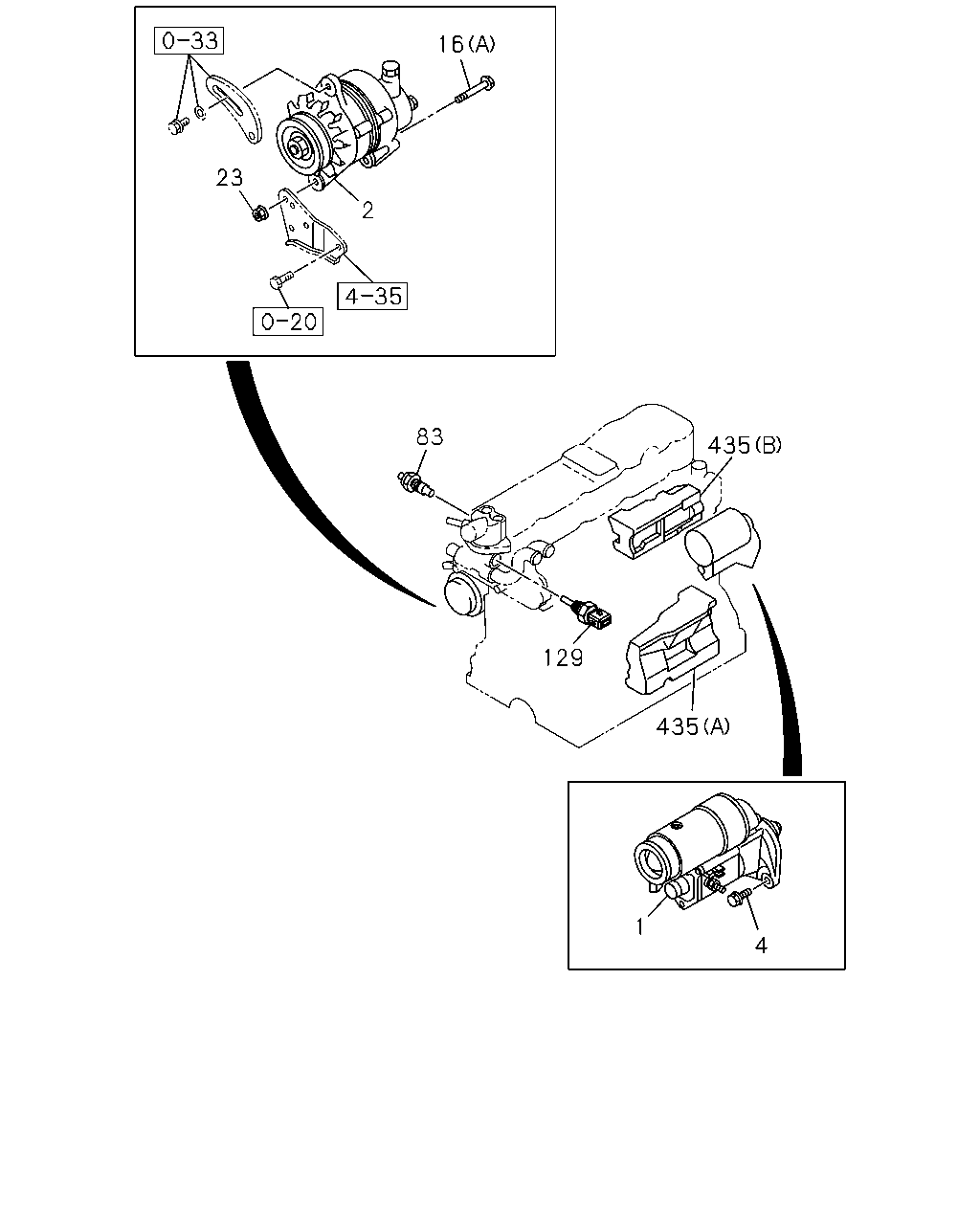

çizim 51295
16 23 2 83 435 129 435 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0507-0606 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98018-208-1 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-887-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0607- ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0507-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601-0606 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0607- ●
16 02.277 BOLT; GEN
(C) M8X50 FLANGE 		8-98050-130-0 01 1 0607- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0507-0512 ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0601-0606 ●
16 02.277 BOLT; GEN
(B) M10X120 FLANGE 		0-28056-012-0 01 1 0607- ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0302-0506 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0507-0602 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603-0606 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0302-0506 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0507-0606 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0302-0506 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0607- ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0302-0506 ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0507-0606 ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0302-0506 ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0507-0606 ●

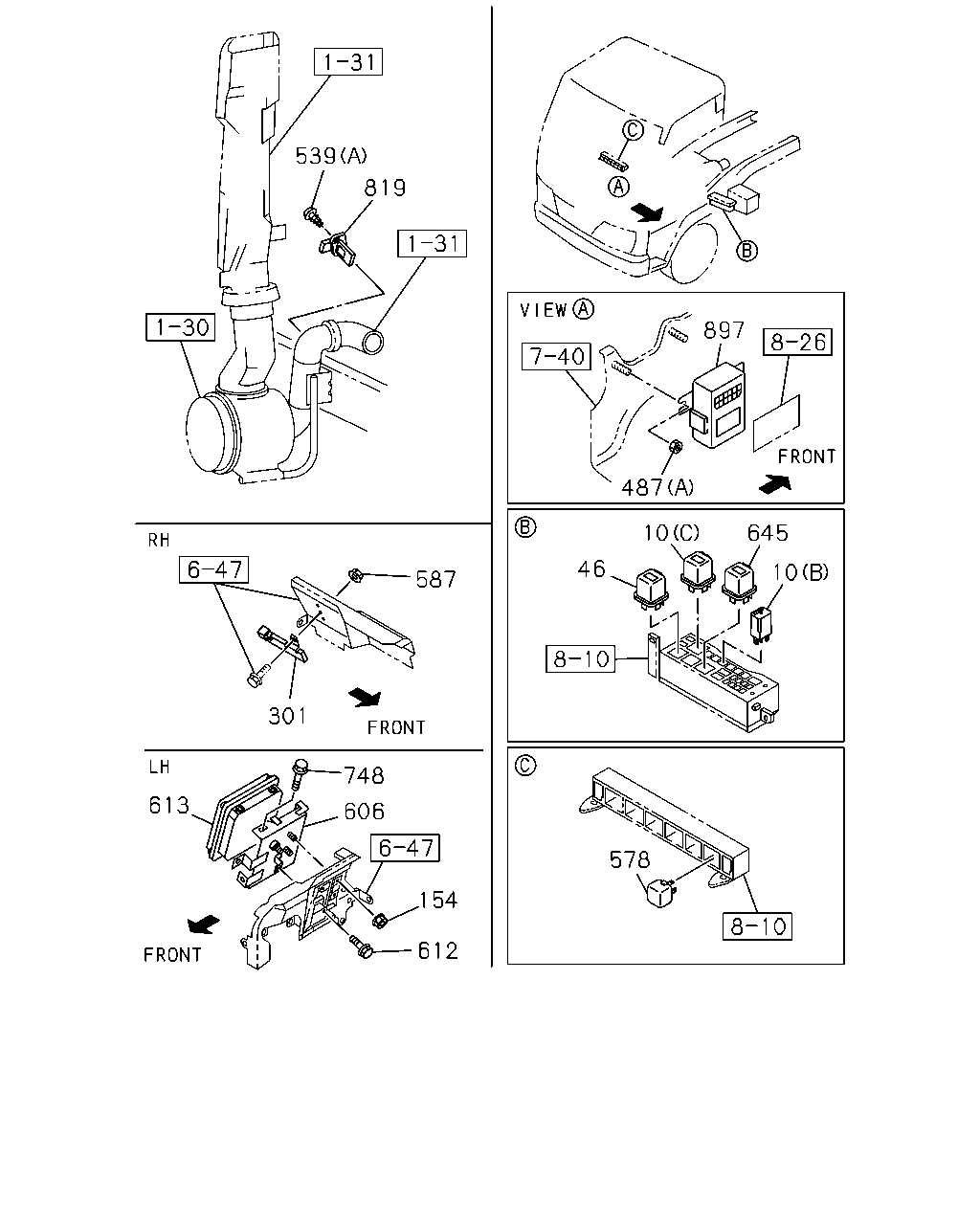

çizim 53647
539 819 897 487 10 645 46 10 587 301 748 613 606 578 154 612
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
02.510 (A) 12V 80A 		8-97173-951-0 01 1 0302-0506 ●
10 02.100 RELAY; STARTER
02.510 (A) 12V 80A 		8-97173-951-0 01 1 0507-0606 ●
10 02.100 RELAY; STARTER
(C) 24V 50A 		8-97264-947-0 01 1 0607- ●
10 02.100 RELAY; STARTER
08.852 (B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0302-0506 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0507-0606 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0607- ●
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 03 1 0607-0611 ●
154 02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER 		8-98029-921-0 03 1 0612- ●
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0607- ●
487 02.343 NUT
01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0607- ●
487 02.343 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
539 02.510 SCREW; SENSOR
02.559 (A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0607- ●
539 02.510 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0607- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0302-0506 ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0507-0606 ●
578 02.510 RELAY; CHARGE WARNING
08.852 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0607- ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607-0607 ●
606 03.680 BRACKET; CONT UNIT 8-98018-868-2 01 1 0607- ●
612 02.510 BOLT; BRKT
09.171 M10X25 FLANGE 		0-28051-025-0 01 1 0607-0609 ●
612 02.510 BOLT; BRKT
03.470 M6X22 W/LK&PL WASHER 		8-97892-370-0 01 1 0610- ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-507-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-571-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-498-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-562-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98037-508-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98202-572-0 01 1 1201- ●
613 03.670 CONTROL UNIT; ENG
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-497-9 01 1 0607-1112 ●
613 03.670 CONTROL UNIT; ENG
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98202-561-0 01 1 1201- ●
645 02.510 RELAY; ENG CONT
24V 30A JIDECO 		8-97238-540-0 01 1 0607- ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0607- ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
03.682 		8-97601-967-0 01 1 0607- ●
897 02.510 DRM 8-98013-144-7 01 1 0607- ●

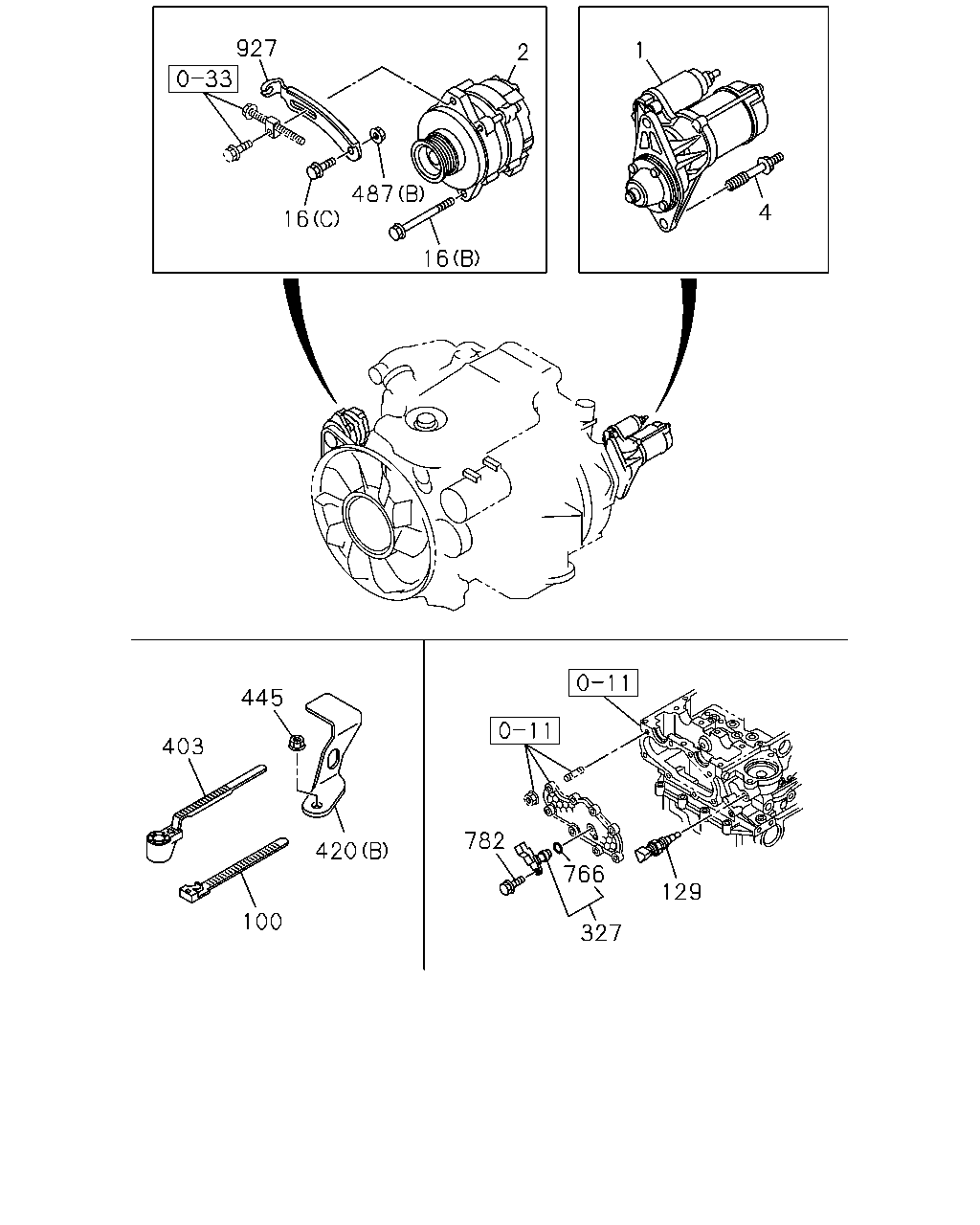

çizim 54035
927 1 2 487 4 16 16 445 403 782 420 766 129 100 327
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0302-0506 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0507-0606 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98018-208-1 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0607-1207 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-0 01 1 1208- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-97172-211-2 01 1 0607-0607 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V80A(7YN) 24V 50A 		8-98029-887-2 01 1 0607- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0302-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 0607- ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0302-0506 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0507-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601-0606 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0607- ●
16 02.277 BOLT; GEN
(C) M8X50 FLANGE 		8-98050-130-0 01 1 0607- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0302-0506 ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28086-013-0 01 1 0507-0512 ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0601-0606 ●
16 02.277 BOLT; GEN
(B) M10X120 FLANGE 		0-28056-012-0 01 1 0607- ●
100 02.559 CLIP; HARNESS
03.162 L=140 		5-09707-031-1 01 1 0607- ●
100 02.559 CLIP; HARNESS
04.594 L=100 		5-09707-036-1 01 1 0607- ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0302-0506 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0607- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0607- ●
403 02.343 CLIP; CABLE
L=119.5 		1-09707-197-0 01 1 0607- ●
420 02.183 BRACKET; HARNESS
(A) 		8-98024-050-0 01 1 0607- ●
420 02.183 BRACKET; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98030-725-1 01 1 0607- ●
445 02.483 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
487 02.343 NUT
01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0607- ●
487 02.343 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0607- ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0302-0506 ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0507-0512 ●
782 02.510 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601-0606 ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0607- ●
927 02.274 PLATE 8-98039-816-1 01 1 0607- ●
