◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#22673) — 41 parça
çizim 11693
1 29 29 49 139 140
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-97308-115-2 01 1 0302-0407 ●
1 01.652 PUMP ASM; OIL 8-97385-988-0 01 1 0408-0506 ●
1 01.652 PUMP ASM; OIL 8-97385-988-0 01 1 0507-0606 ●
1 01.652 PUMP ASM; OIL 8-97381-553-3 01 1 0607-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908- ●
29 01.652 BOLT; OIL PUMP
01.531 (A) M8X25 FLANGE 		0-28080-825-0 02 1 0302-0506 ●
29 01.652 BOLT; OIL PUMP
01.531 (A) M8X25 FLANGE 		0-28080-825-0 02 1 0507-0512 ●
29 01.652 BOLT; OIL PUMP
03.275 (A) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0606 ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0607- ●
29 01.652 BOLT; OIL PUMP
09.173 (C) M8X45 FLANGE 		0-28050-845-0 02 1 0607- ●
49 01.531 BOLT; STRAINER,OIL PUMP
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0607- ●
139 01.639 PIPE; OIL STRAINER 8-98016-890-0 01 1 0607-1010 ●
139 01.639 PIPE; OIL STRAINER 8-98149-035-0 01 1 1011- ●
140 01.639 GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97356-150-0 01 1 0607- ●

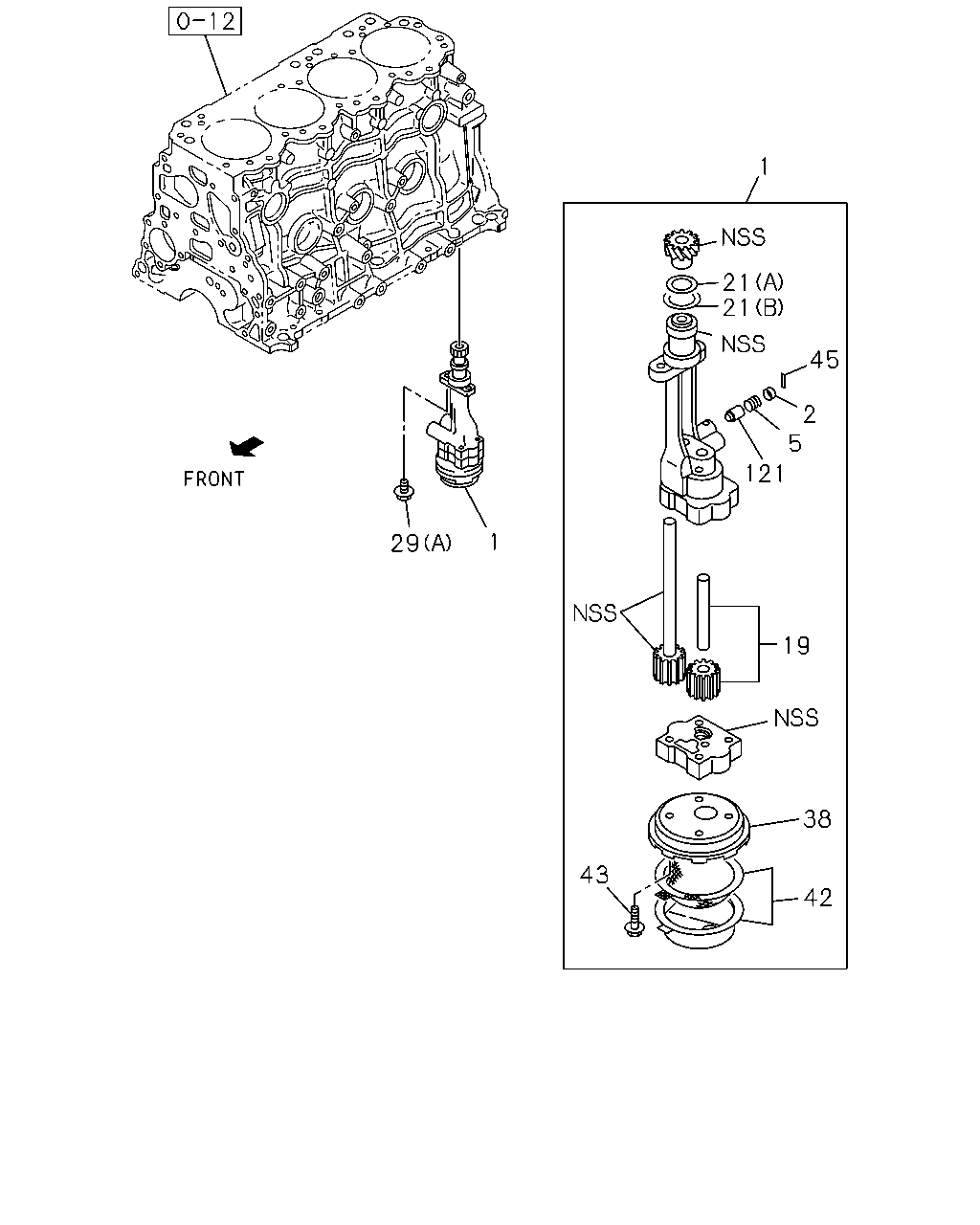

çizim 52441
1 21 21 45 2 5 121 1 29 19 38 43 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.652 PUMP ASM; OIL 8-97308-115-2 01 1 0302-0407 ●
1 01.652 PUMP ASM; OIL 8-97385-988-0 01 1 0408-0506 ●
1 01.652 PUMP ASM; OIL 8-97385-988-0 01 1 0507-0606 ●
1 01.652 PUMP ASM; OIL 8-97381-553-3 01 1 0607-0907 ●
1 01.652 PUMP ASM; OIL 8-98128-134-0 01 1 0908- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0302-0506 ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0507-0606 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0302-0506 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0507-0606 ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0302-0506 ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0507-0606 ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 0302-0506 ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 0507-0606 ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 0302-0506 ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 0507-0606 ●
29 01.652 BOLT; OIL PUMP
01.531 (A) M8X25 FLANGE 		0-28080-825-0 02 1 0302-0506 ●
29 01.652 BOLT; OIL PUMP
01.531 (A) M8X25 FLANGE 		0-28080-825-0 02 1 0507-0512 ●
29 01.652 BOLT; OIL PUMP
03.275 (A) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0606 ●
29 01.652 BOLT; OIL PUMP
00.206 (B) M8X30 FLANGE 		0-28050-830-0 04 1 0607- ●
29 01.652 BOLT; OIL PUMP
09.173 (C) M8X45 FLANGE 		0-28050-845-0 02 1 0607- ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 0302-0606 ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 0302-0606 ●
43 01.656 BOLT; CASE
04.866 M8X30 FLANGE 		0-28010-830-0 04 1 0302-0606 ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0302-0506 ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0507-0606 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0302-0506 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0507-0606 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
