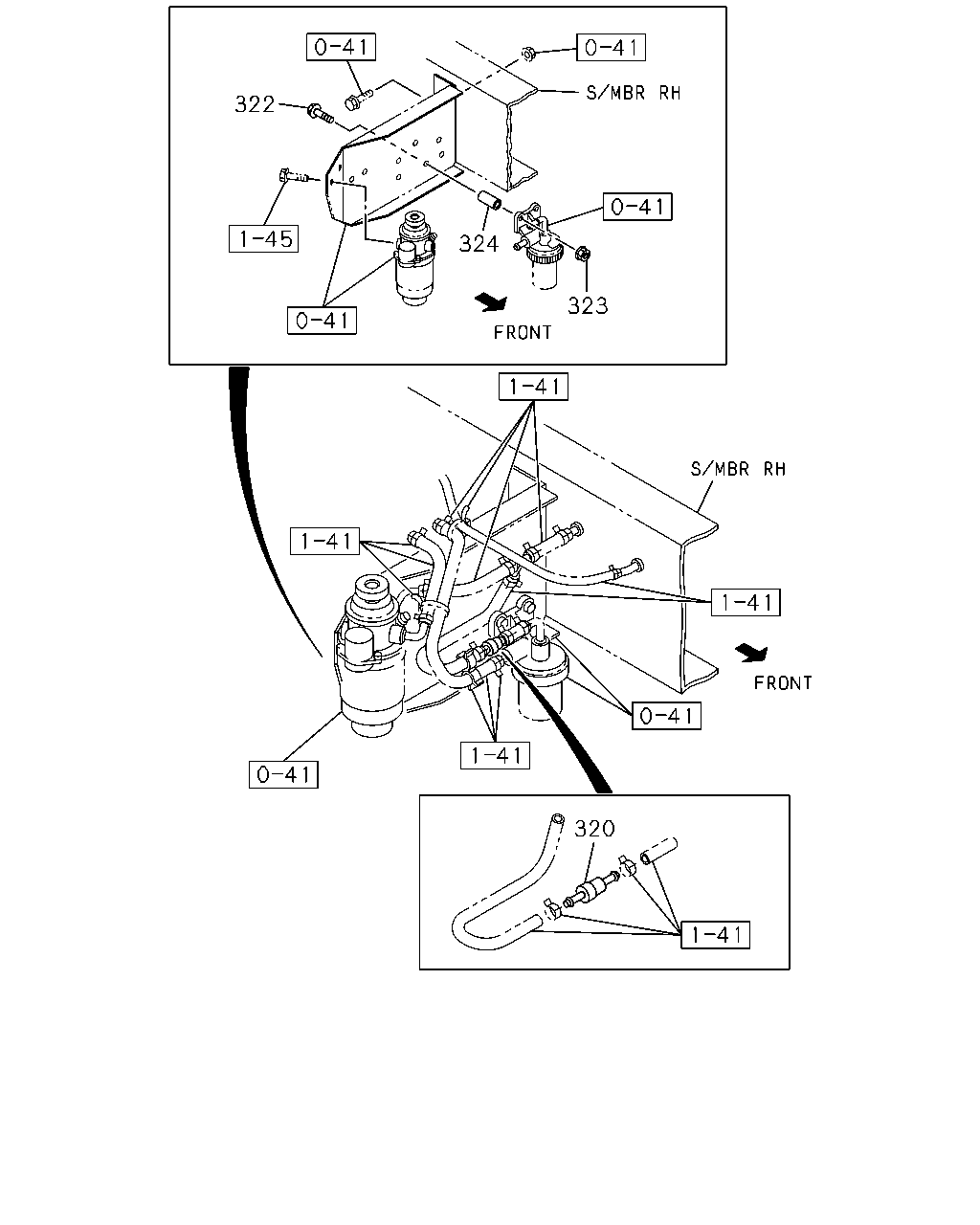

0-42 — FUEL PUMP AND PIPE (#22671) — 6 parça

322 324 323 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
320	03.890 VALVE; CHECK FRIGID ZONE VAR.2(W54)	8-97367-794-0	01	1	0308-0606
322	03.890 BOLT; FUEL FILTER FRIGID ZONE VAR.2(W54) 01.251 M8X60 FLANGE	0-28080-860-0	02	1	0308-0512
322	03.890 BOLT; FUEL FILTER FRIGID ZONE VAR.2(W54) 04.686 M8X60 FLANGE	0-28050-860-0	02	1	0601-0606
323	03.890 NUT; FUEL FILTER FRIGID ZONE VAR.2(W54) 01.540 M8 FLANGE	0-91150-208-0	02	1	0308-0602
323	03.890 NUT; FUEL FILTER FRIGID ZONE VAR.2(W54) 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606
324	03.890 SPACER; DISTANCE,FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13666-052-0	02	1	0308-0606
