0-41 — FUEL FILTER AND BRACKET (#22670) — 77 parça

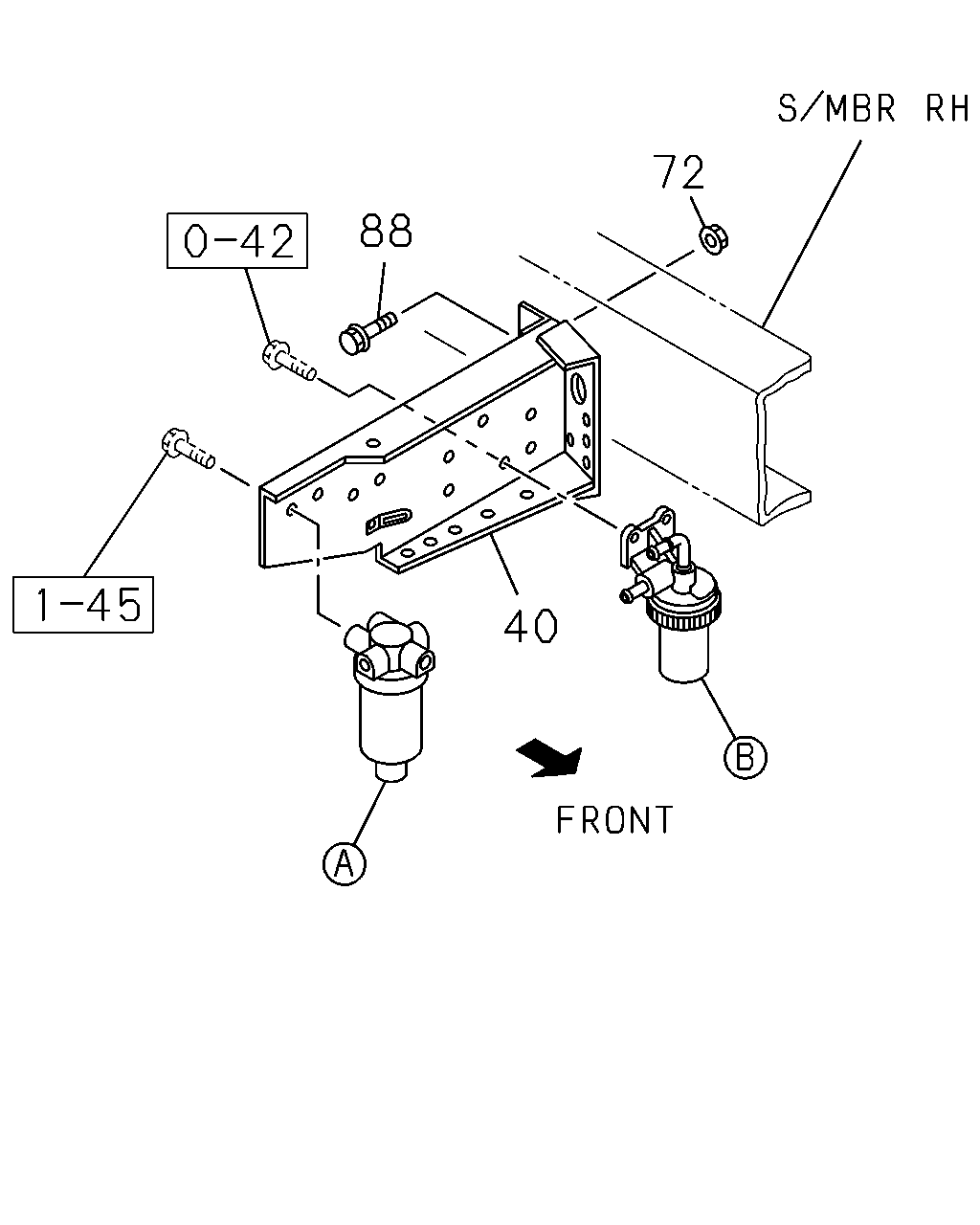

72 88 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	03.890 BRACKET; FUEL FILTER FRT INDEPENDENT SUSPENSION(6PP)	8-97240-698-2	01	1	0302-0306	●
40	03.890 BRACKET; FUEL FILTER FRT INDEPENDENT SUSPENSION(6PP)	8-97370-091-0	01	1	0307-0506	●
40	03.890 BRACKET; FUEL FILTER FRT INDEPENDENT SUSPENSION(6PP)	8-97370-091-0	01	1	0507-0606		●
40	03.890 BRACKET; FUEL FILTER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97306-600-1	01	1	0302-0306	●
40	03.890 BRACKET; FUEL FILTER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97370-090-0	01	1	0307-0506	●
40	03.890 BRACKET; FUEL FILTER EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97370-090-0	01	1	0507-0606		●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 M10 FLANGE	0-91150-110-0	03	1	0302-0302	●
72	03.890 NUT; BRKT,FUEL FILTER SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-			●
72	03.890 NUT; BRKT,FUEL FILTER DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-			●
88	03.895 BOLT; BRKT,FUEL FILTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0506	●
88	03.895 BOLT; BRKT,FUEL FILTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0507-0512		●
88	03.895 BOLT; BRKT,FUEL FILTER 03.890 M10X30 FLANGE	0-28051-030-0	02	1	0601-0606		●
88	03.895 BOLT; BRKT,FUEL FILTER 03.890 M10X30 FLANGE	0-28051-030-0	02	1	0607-			●

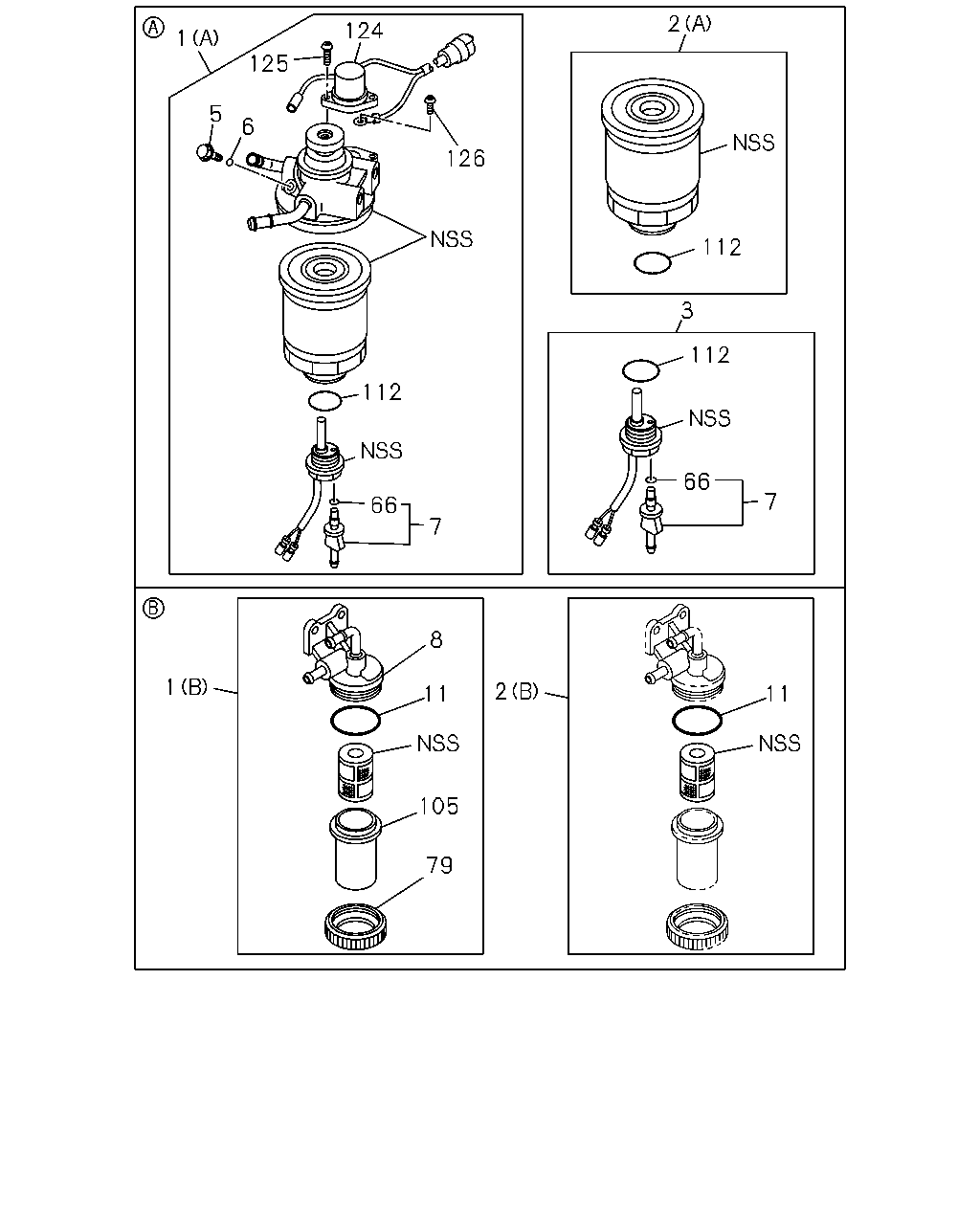

2 124 1 125 5 6 126 112 3 112 112 66 7 66 7 8 1 2 11 11 105 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (B)	1-13200-793-1	01	1	0308-0506	●
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (B)	1-13200-793-1	01	1	0507-0606		●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97240-124-1	01	1	0302-0506	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97240-124-1	01	1	0507-0606		●
1	03.890 FILTER ASM; FUEL (C)	8-97384-049-2	01	1	0607-0609			●
1	03.890 FILTER ASM; FUEL (C)	8-98060-050-1	01	1	0610-1002			●
1	03.890 FILTER ASM; FUEL (C)	8-98162-903-2	01	1	1003-			●
2	03.890 ELEMENT KIT; FUEL FILTER FRIGID ZONE VAR.2(W54) (B)	1-13240-141-0	01	1	0308-0606	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94369-299-3	01	1	0302-0506	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94369-299-3	01	1	0507-0606		●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98037-011-0	01	1	0607-1002			●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98162-897-0	01	1	1003-1112			●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98203-599-0	01	1	1201-			●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0302-0506	●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97079-821-0	01	1	0507-0606		●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0302-0506	●
5	03.890 BOLT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-674-0	01	1	0507-0606		●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0302-0506	●
6	03.890 GASKET; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0507-0606		●
7	03.890 PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0302-0506	●
7	03.890 PLUG; SENSOR,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97123-549-0	01	1	0507-0606		●
8	03.890 COVER; FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13212-149-1	01	1	0308-0606	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FRIGID ZONE VAR.2(W54)	1-09623-497-0	01	1	0308-0606	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0607-1112			●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-			●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0302-0506	●
66	03.890 GASKET; PLUG,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0507-0606		●
79	03.890 RING; BODY TO CASE FRIGID ZONE VAR.2(W54)	1-13219-239-0	01	1	0308-0606	●
105	03.890 CASE; FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13211-183-0	01	1	0308-0606	●
112	06.605 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0302-0506	●
112	06.605 GASKET; SENSOR TO CASE FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0507-0606		●
124	03.890 SWITCH; PRESSURE,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97378-844-0	01	1	0302-0506	●
124	03.890 SWITCH; PRESSURE,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97378-844-0	01	1	0507-0606		●
125	03.890 BOLT; SWITCH,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97352-938-0	02	1	0302-0506	●
125	03.890 BOLT; SWITCH,FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU>	8-97352-938-0	02	1	0507-0606		●
126	03.890 BOLT; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> 01.540	1-13219-156-0	01	1	0302-0506	●
126	03.890 BOLT; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> 01.540	1-13219-156-0	01	1	0507-0606		●

1 93 92 11 2 114 11 119 88 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (B)	1-13200-793-1	01	1	0308-0506	●
1	03.890 FILTER ASM; FUEL FRIGID ZONE VAR.2(W54) (B)	1-13200-793-1	01	1	0507-0606		●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97240-124-1	01	1	0302-0506	●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-97240-124-1	01	1	0507-0606		●
1	03.890 FILTER ASM; FUEL (C)	8-97384-049-2	01	1	0607-0609			●
1	03.890 FILTER ASM; FUEL (C)	8-98060-050-1	01	1	0610-1002			●
1	03.890 FILTER ASM; FUEL (C)	8-98162-903-2	01	1	1003-			●
2	03.890 ELEMENT KIT; FUEL FILTER FRIGID ZONE VAR.2(W54) (B)	1-13240-141-0	01	1	0308-0606	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94369-299-3	01	1	0302-0506	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER WITH HEATER<6HU> (A)	8-94369-299-3	01	1	0507-0606		●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98037-011-0	01	1	0607-1002			●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98162-897-0	01	1	1003-1112			●
2	03.890 ELEMENT KIT; FUEL FILTER (C)	8-98203-599-0	01	1	1201-			●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER FRIGID ZONE VAR.2(W54)	1-09623-497-0	01	1	0308-0606	●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98037-015-0	01	1	0607-1112			●
11	03.890 GASKET; CASE TO BODY,FUEL FILTER	8-98203-600-0	01	1	1201-			●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 M10 FLANGE	0-91150-110-0	03	1	0302-0302	●
72	03.890 NUT; BRKT,FUEL FILTER SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-			●
72	03.890 NUT; BRKT,FUEL FILTER DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-			●
88	03.895 BOLT; BRKT,FUEL FILTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0506	●
88	03.895 BOLT; BRKT,FUEL FILTER 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0507-0512		●
88	03.895 BOLT; BRKT,FUEL FILTER 03.890 M10X30 FLANGE	0-28051-030-0	02	1	0601-0606		●
88	03.895 BOLT; BRKT,FUEL FILTER 03.890 M10X30 FLANGE	0-28051-030-0	02	1	0607-			●
92	03.417 CAP; FUEL FILTER	8-98034-314-0	01	1	0607-			●
93	03.890 CONNECTOR; FUEL FILTER M8X10	8-98034-312-0	01	1	0607-			●
114	03.890 CASE ASM; FUEL FILTER	8-98039-987-1	01	1	0607-			●
119	03.890 PLUG; DRAIN,FUEL FILTER	8-98037-095-0	01	1	0607-			●
