0-28 — VENTILATION SYSTEM
(#22661) — 23 parça
Tümü
A - 4JH1 ENG
B - 4JH1-TC ENG
C - 4JJ1 ENG
◀

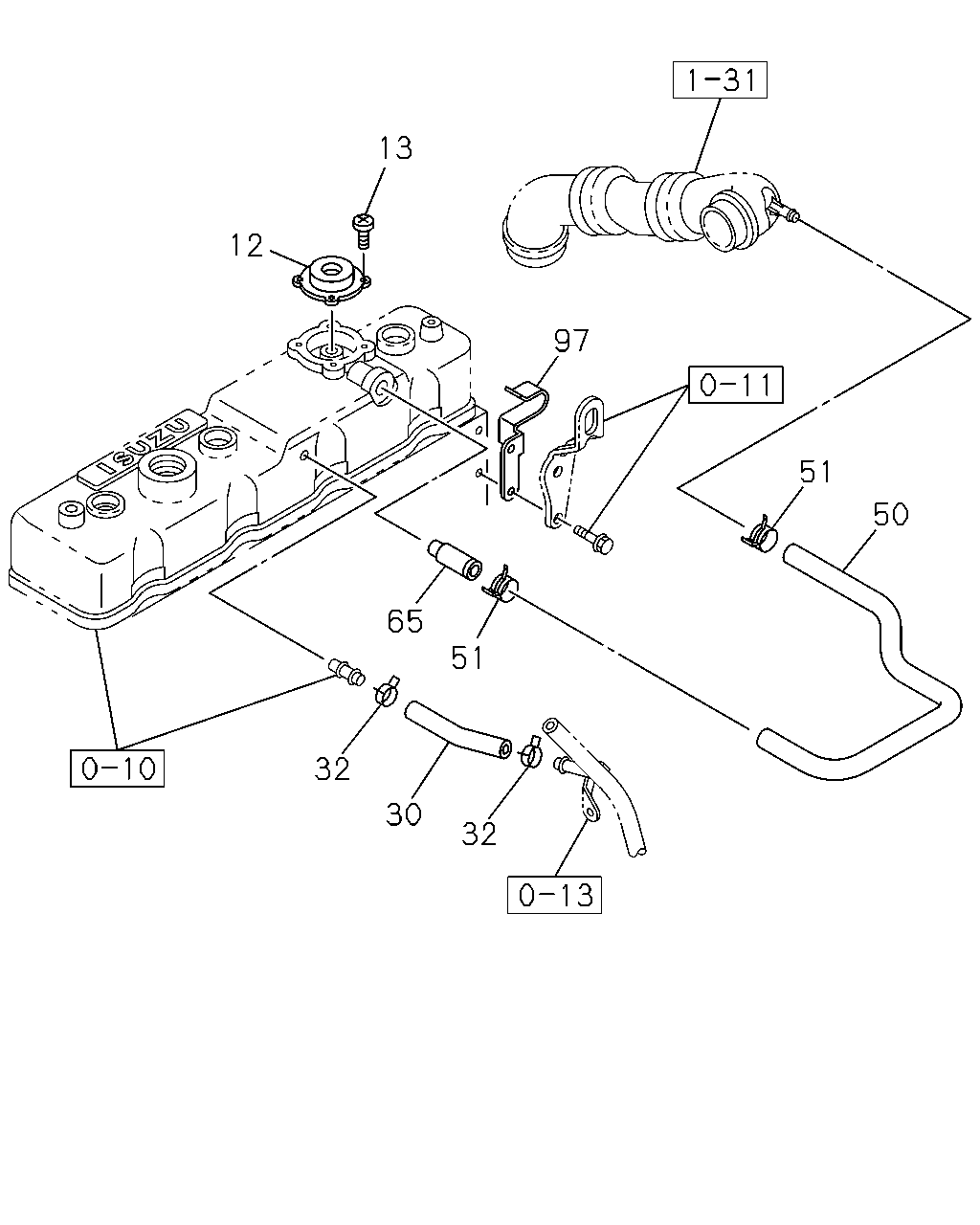

[028A] 4JH1 (17 parça)

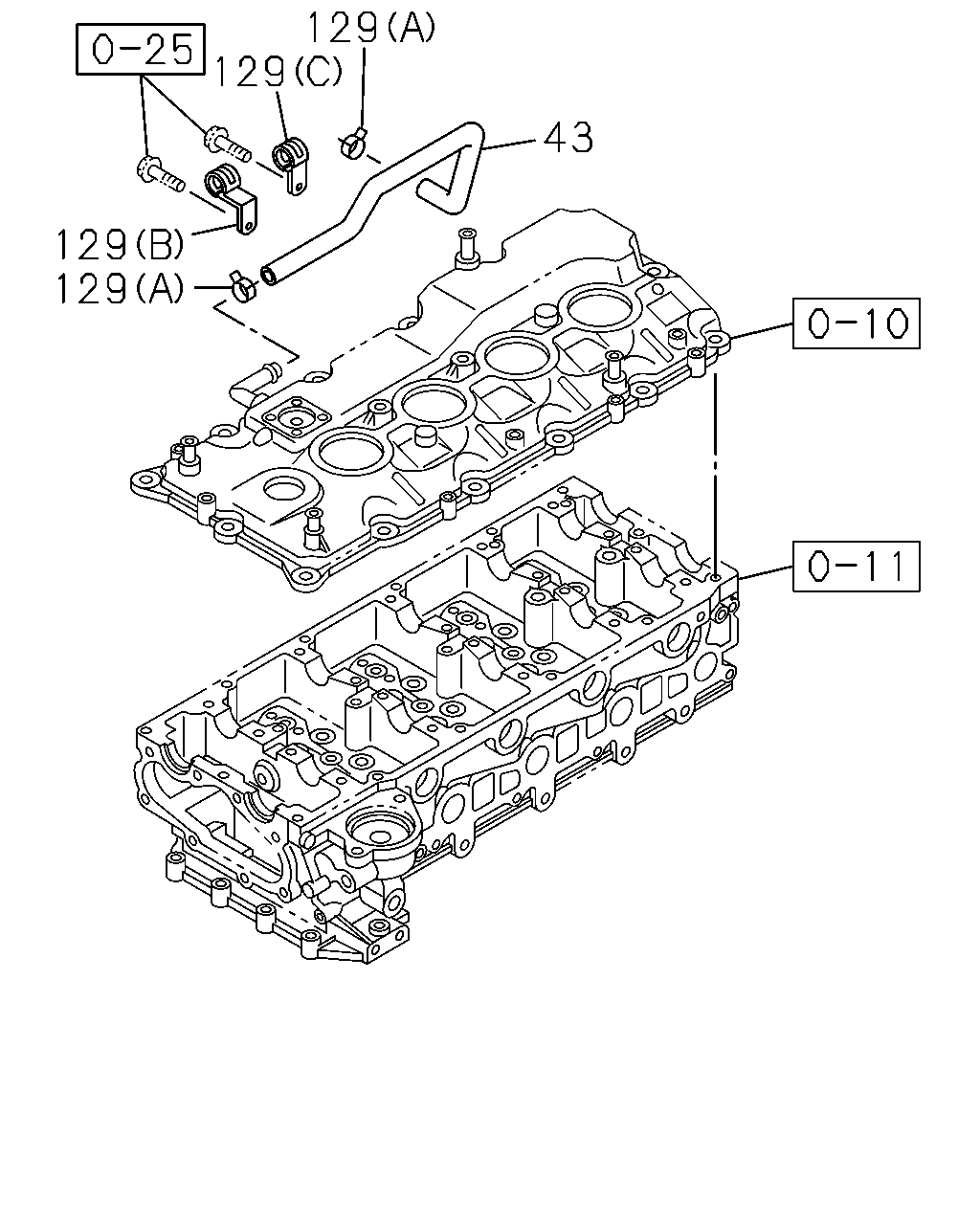

[028A] 4JJ1 (6 parça)
▶
13
12
97
51
50
65
51
32
30
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0302-0506
●
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0507-0606
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0302-0506
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0507-0604
●
13
00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER
0-36220-408-0
04
1
0605-0606
●
30
03.417 HOSE; VENTILATOR,CYL HD COVER
8-97240-031-0
01
1
0302-0506
●
30
03.417 HOSE; VENTILATOR,CYL HD COVER
8-97240-031-0
01
1
0507-0606
●
32
03.417 CLIP; VENT HOSE
01.097 ID=14.8
8-94448-727-0
02
1
0302-0506
●
32
03.417 CLIP; VENT HOSE
01.097 ID=14.8
8-94448-727-0
02
1
0507-0606
●
50
03.265 HOSE; PCV
8-97248-984-1
01
1
0302-0506
●
50
03.265 HOSE; PCV
8-97248-984-1
01
1
0507-0606
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
0302-0506
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
0507-0606
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0302-0506
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0507-0606
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
0302-0506
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
0507-0606
●
129
129
43
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
43
03.278 HOSE; PCV
8-98045-343-0
01
1
0607-
●
129
03.278 CLIP; PCV
04.866 (B) ID=24.5 H=23 L=25
1-09700-862-0
01
1
0607-1001
●
129
03.278 CLIP; PCV
(C) ID=22 L=22
8-98120-916-0
01
1
1002-
●
129
03.278 CLIP; PCV
09.242 (C) ID=22 L=22
5-83574-045-0
01
1
0607-1001
●
129
03.278 CLIP; PCV
(B) ID=24.5 H=23 L=25
8-98149-024-0
01
1
1002-
●
129
03.278 CLIP; PCV
08.846 (A) ID=21.7
8-97203-074-0
02
1
0607-
●
