8-60 — HEATER UNIT; FRONT (#2266) — 271 parça

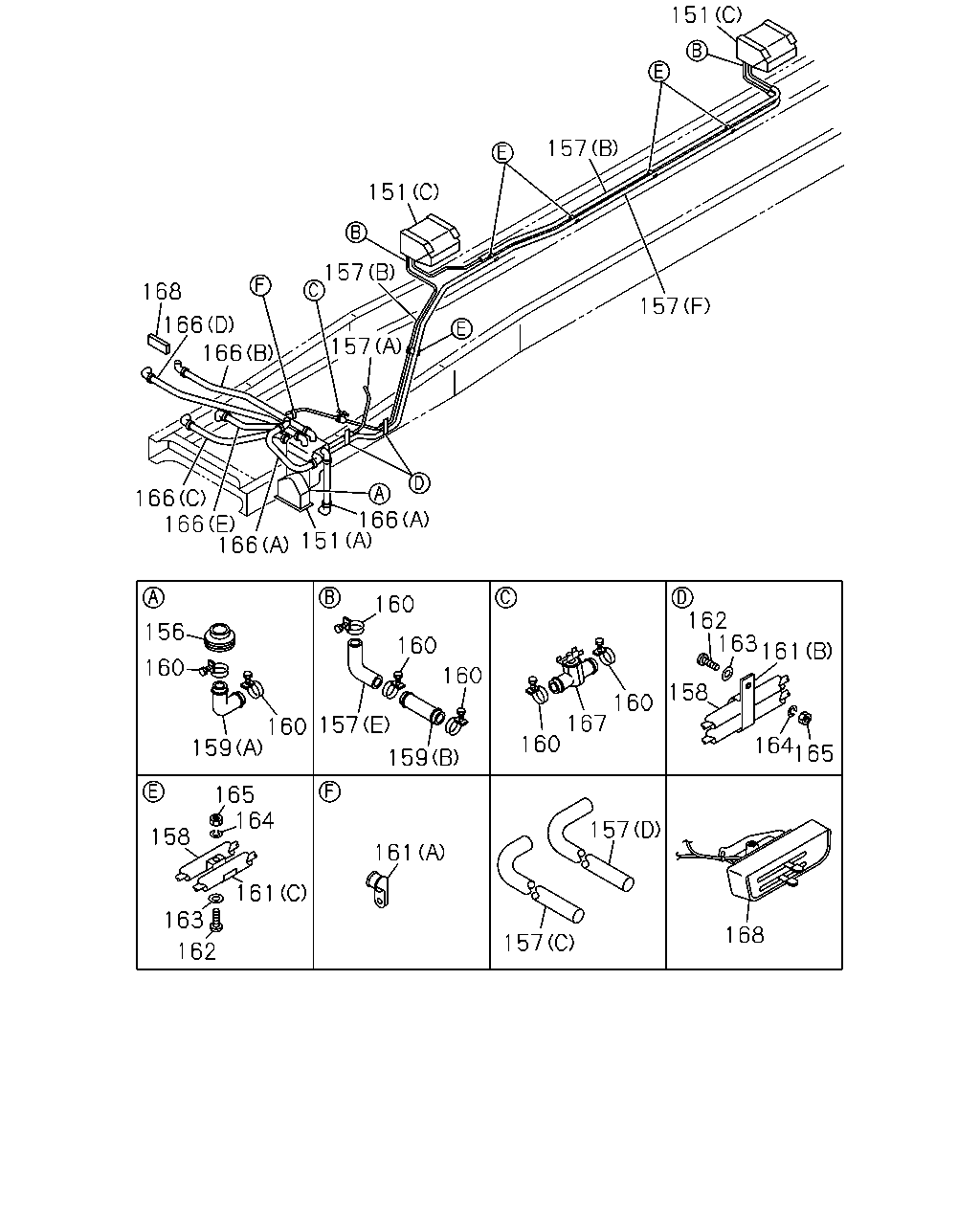

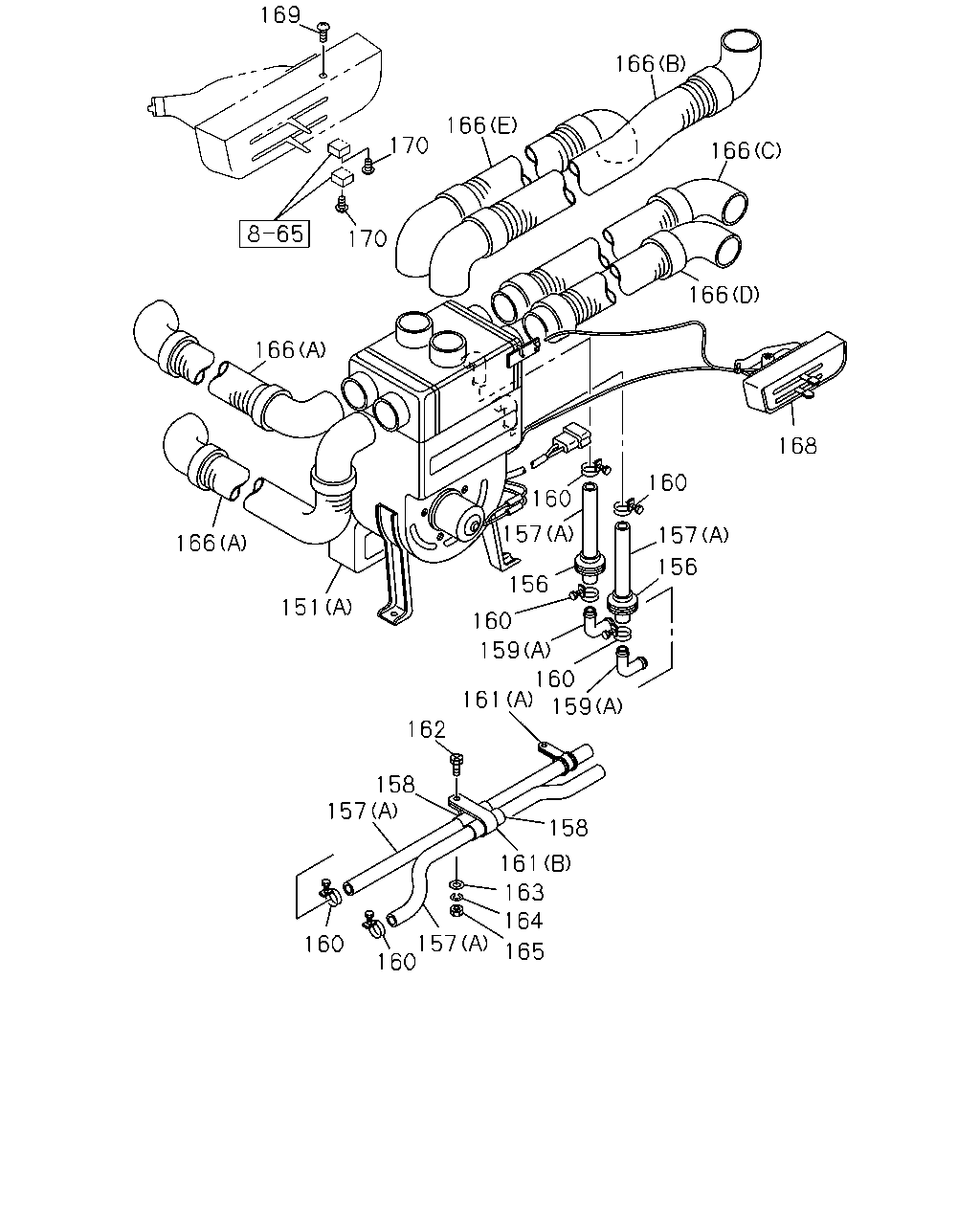

169 166 166 170 166 170 166 166 168 160 160 157 157 166 156 156 151 160 159 160 159 161 162 158 157 158 161 163 164 157 160 160 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-83511-111-0	01	1	9101-0203	●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (C)	1-83511-118-0	02	1	9101-0203	●	●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (C)	1-83511-118-0	02	1	0204-		●
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (B)	1-83511-071-0	01	1	9101-0203		●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (B)	1-83511-071-0	01	1	0204-		●
156	GROMMET; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	9-09956-292-0	02	1	9101-0203	●	●
156	GROMMET; HTR KIT HEATER&DEFROSTER(C41)	9-09956-292-0	02	1	0204-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (A) L=2000	1-83565-083-0	02	1	9101-0203	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (A) L=2000	1-83565-083-0	01	1	9101-0203		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (F) L=7000	1-83565-101-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (F) L=7000	1-83565-101-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (E) LTYPE L=60+60	1-83565-102-0	04	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (E) LTYPE L=60+60	1-83565-102-0	04	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (C)	1-83565-103-0	03	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (C)	1-83565-103-0	03	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (D) LTYPE L=400+120	1-83565-104-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (D) LTYPE L=400+120	1-83565-104-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (B) L=3000	5-09360-036-0	02	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (B) L=3000	5-09360-036-0	02	1	0204-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (B) L=3000	5-09360-036-0	01	1	9101-0203		●
158	INSULATOR; HTR KIT AUXILIARY HEATER<C36>	9-83651-991-0	01	1	9101-0203	●
158	INSULATOR; HTR KIT HEATER&DEFROSTER(C41)	9-83651-991-0	06	1	0204-		●
158	INSULATOR; HTR KIT HEATER&DEFROSTER(C41)	9-83651-991-0	06	1	9101-0203	●	●
158	INSULATOR; HTR KIT AUXILIARY HEATER<C36>	9-83651-991-0	03	1	9101-0203		●
159	CONNECTOR; HOSE,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-83575-019-0	02	1	9101-0203	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (A)	1-83575-019-0	02	1	0204-		●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (B)	9-09903-482-0	04	1	9101-0203	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (B)	9-09903-482-0	04	1	0204-		●
160	CLAMP; HOSE,HTR KIT AUXILIARY HEATER<C36> ID=25	9-09915-642-0	06	1	9101-0203	●
160	CLAMP; HOSE,HTR KIT HEATER&DEFROSTER(C41) ID=25	9-09915-642-2	28	1	0204-		●
160	CLAMP; HOSE,HTR KIT HEATER&DEFROSTER(C41) ID=25	9-09915-642-2	28	1	9101-0203	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36> (B)	9-83651-990-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (B)	9-83651-990-0	02	1	0204-		●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-09700-092-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (A)	1-09700-092-0	01	1	0204-		●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (C)	9-83651-989-0	05	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (C)	9-83651-989-0	05	1	0204-		●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (B)	9-83651-990-0	02	1	9101-0203	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER<C36> M6X25	9-03490-625-0	01	1	9101-0203	●	●
162	SCREW; CLIP FIX HEATER&DEFROSTER(C41) M6X25	9-03490-625-0	07	1	0204-		●
162	SCREW; CLIP FIX HEATER&DEFROSTER(C41) M6X25	9-03490-625-0	07	1	9101-0203	●	●
163	WASHER; CLIP FIX AUXILIARY HEATER<C36> ID=6.4	9-09160-506-0	01	1	9101-0203	●	●
163	WASHER; CLIP FIX HEATER&DEFROSTER(C41) ID=6.4	9-09160-506-0	07	1	0204-		●
163	WASHER; CLIP FIX HEATER&DEFROSTER(C41) ID=6.4	9-09160-506-0	07	1	9101-0203	●	●
164	WASHER; LK,CLIP FIX AUXILIARY HEATER<C36> ID=6.1	9-09150-506-0	01	1	9101-0203	●	●
164	WASHER; LK,CLIP FIX HEATER&DEFROSTER(C41) ID=6.1	9-09150-506-0	07	1	0204-		●
164	WASHER; LK,CLIP FIX HEATER&DEFROSTER(C41) ID=6.1	9-09150-506-0	07	1	9101-0203	●	●
165	NUT; CLIP FIX AUXILIARY HEATER<C36> M6	9-09110-406-0	01	1	9101-0203	●	●
165	NUT; CLIP FIX HEATER&DEFROSTER(C41)	1-15729-006-0	07	1	9101-0203	●	●
165	NUT; CLIP FIX HEATER&DEFROSTER(C41)	1-15729-006-0	07	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	0204-		●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	1-83543-014-1	01	1	9101-0203	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	1-83513-093-0	01	1	9101-0203		●
168	LEVER ASM; CONT,HTR KIT HEATER&DEFROSTER(C41)	1-83513-093-0	01	1	0204-		●
169	SCREW; PANEL,HTR CONT LVR AUXILIARY HEATER<C36>	9-93490-410-0	03	1	9101-0203	●
170	SCREW; LVR KNOB,HTR CONT LVR AUXILIARY HEATER<C36>	9-93090-306-0	02	1	9101-0203	●

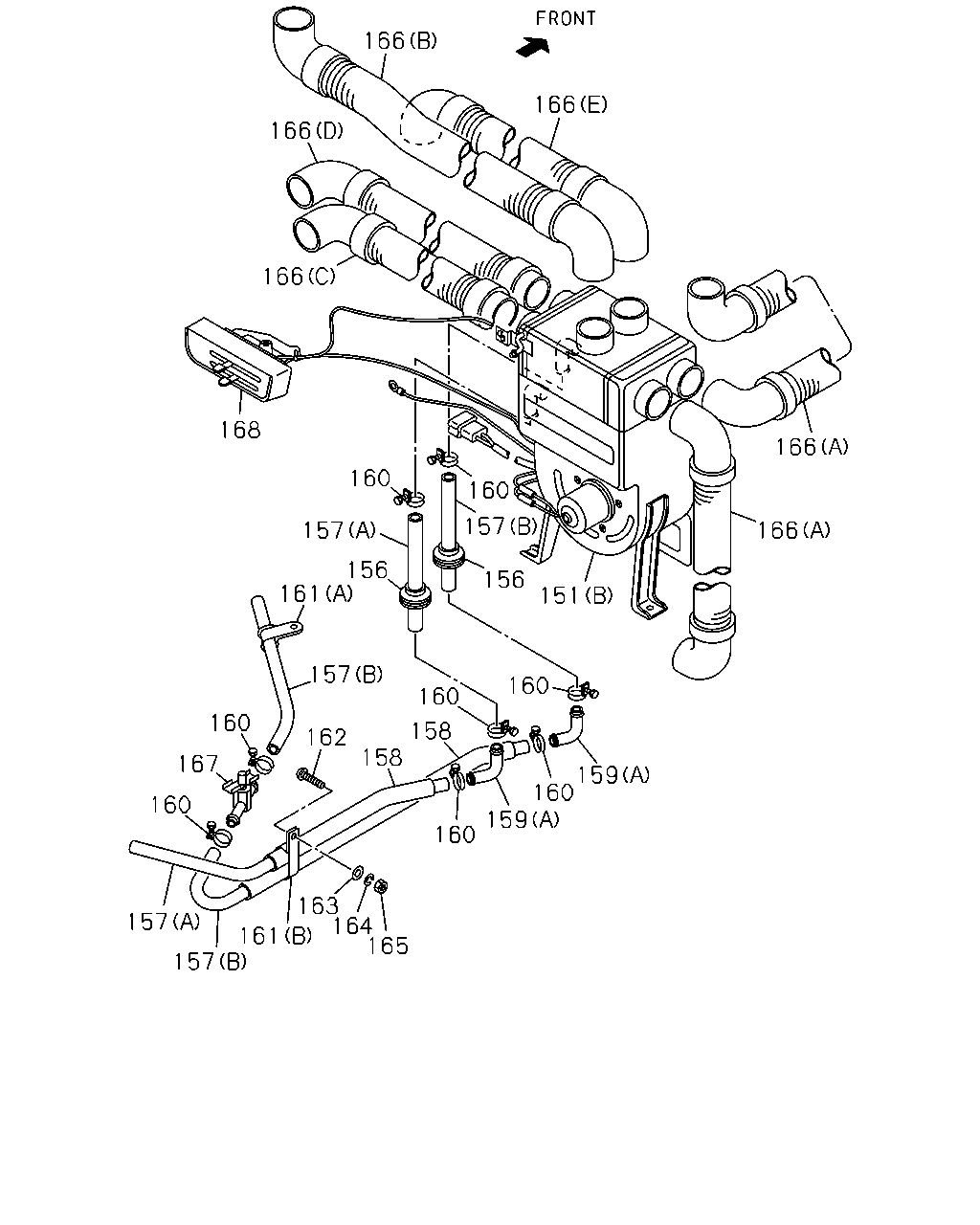

166 166 166 166 168 166 160 160 157 166 157 156 156 161 151 157 160 160 160 158 158 162 167 159 160 159 160 160 163 164 165 157 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-83511-111-0	01	1	9101-0203	●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (C)	1-83511-118-0	02	1	9101-0203	●	●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (C)	1-83511-118-0	02	1	0204-		●
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (B)	1-83511-071-0	01	1	9101-0203		●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (B)	1-83511-071-0	01	1	0204-		●
156	GROMMET; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	9-09956-292-0	02	1	9101-0203	●	●
156	GROMMET; HTR KIT HEATER&DEFROSTER(C41)	9-09956-292-0	02	1	0204-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (A) L=2000	1-83565-083-0	02	1	9101-0203	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (A) L=2000	1-83565-083-0	01	1	9101-0203		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (F) L=7000	1-83565-101-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (F) L=7000	1-83565-101-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (E) LTYPE L=60+60	1-83565-102-0	04	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (E) LTYPE L=60+60	1-83565-102-0	04	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (C)	1-83565-103-0	03	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (C)	1-83565-103-0	03	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (D) LTYPE L=400+120	1-83565-104-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (D) LTYPE L=400+120	1-83565-104-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (B) L=3000	5-09360-036-0	02	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (B) L=3000	5-09360-036-0	02	1	0204-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (B) L=3000	5-09360-036-0	01	1	9101-0203		●
158	INSULATOR; HTR KIT AUXILIARY HEATER<C36>	9-83651-991-0	01	1	9101-0203	●
158	INSULATOR; HTR KIT HEATER&DEFROSTER(C41)	9-83651-991-0	06	1	0204-		●
158	INSULATOR; HTR KIT HEATER&DEFROSTER(C41)	9-83651-991-0	06	1	9101-0203	●	●
158	INSULATOR; HTR KIT AUXILIARY HEATER<C36>	9-83651-991-0	03	1	9101-0203		●
159	CONNECTOR; HOSE,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-83575-019-0	02	1	9101-0203	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (A)	1-83575-019-0	02	1	0204-		●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (B)	9-09903-482-0	04	1	9101-0203	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (B)	9-09903-482-0	04	1	0204-		●
160	CLAMP; HOSE,HTR KIT AUXILIARY HEATER<C36> ID=25	9-09915-642-0	06	1	9101-0203	●
160	CLAMP; HOSE,HTR KIT HEATER&DEFROSTER(C41) ID=25	9-09915-642-2	28	1	0204-		●
160	CLAMP; HOSE,HTR KIT HEATER&DEFROSTER(C41) ID=25	9-09915-642-2	28	1	9101-0203	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36> (B)	9-83651-990-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (B)	9-83651-990-0	02	1	0204-		●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-09700-092-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (A)	1-09700-092-0	01	1	0204-		●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (C)	9-83651-989-0	05	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (C)	9-83651-989-0	05	1	0204-		●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (B)	9-83651-990-0	02	1	9101-0203	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER<C36> M6X25	9-03490-625-0	01	1	9101-0203	●	●
162	SCREW; CLIP FIX HEATER&DEFROSTER(C41) M6X25	9-03490-625-0	07	1	0204-		●
162	SCREW; CLIP FIX HEATER&DEFROSTER(C41) M6X25	9-03490-625-0	07	1	9101-0203	●	●
163	WASHER; CLIP FIX AUXILIARY HEATER<C36> ID=6.4	9-09160-506-0	01	1	9101-0203	●	●
163	WASHER; CLIP FIX HEATER&DEFROSTER(C41) ID=6.4	9-09160-506-0	07	1	0204-		●
163	WASHER; CLIP FIX HEATER&DEFROSTER(C41) ID=6.4	9-09160-506-0	07	1	9101-0203	●	●
164	WASHER; LK,CLIP FIX AUXILIARY HEATER<C36> ID=6.1	9-09150-506-0	01	1	9101-0203	●	●
164	WASHER; LK,CLIP FIX HEATER&DEFROSTER(C41) ID=6.1	9-09150-506-0	07	1	0204-		●
164	WASHER; LK,CLIP FIX HEATER&DEFROSTER(C41) ID=6.1	9-09150-506-0	07	1	9101-0203	●	●
165	NUT; CLIP FIX AUXILIARY HEATER<C36> M6	9-09110-406-0	01	1	9101-0203	●	●
165	NUT; CLIP FIX HEATER&DEFROSTER(C41)	1-15729-006-0	07	1	9101-0203	●	●
165	NUT; CLIP FIX HEATER&DEFROSTER(C41)	1-15729-006-0	07	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	0204-		●
167	COCK ASM; DRAIN,HTR KIT HEATER&DEFROSTER(C41)	1-83519-003-0	01	1	9101-0203	●	●
167	COCK ASM; DRAIN,HTR KIT AUXILIARY HEATER<C36>	1-83519-003-0	01	1	9101-0203		●
167	COCK ASM; DRAIN,HTR KIT HEATER&DEFROSTER(C41)	1-83519-003-0	01	1	0204-		●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	1-83543-014-1	01	1	9101-0203	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	1-83513-093-0	01	1	9101-0203		●
168	LEVER ASM; CONT,HTR KIT HEATER&DEFROSTER(C41)	1-83513-093-0	01	1	0204-		●

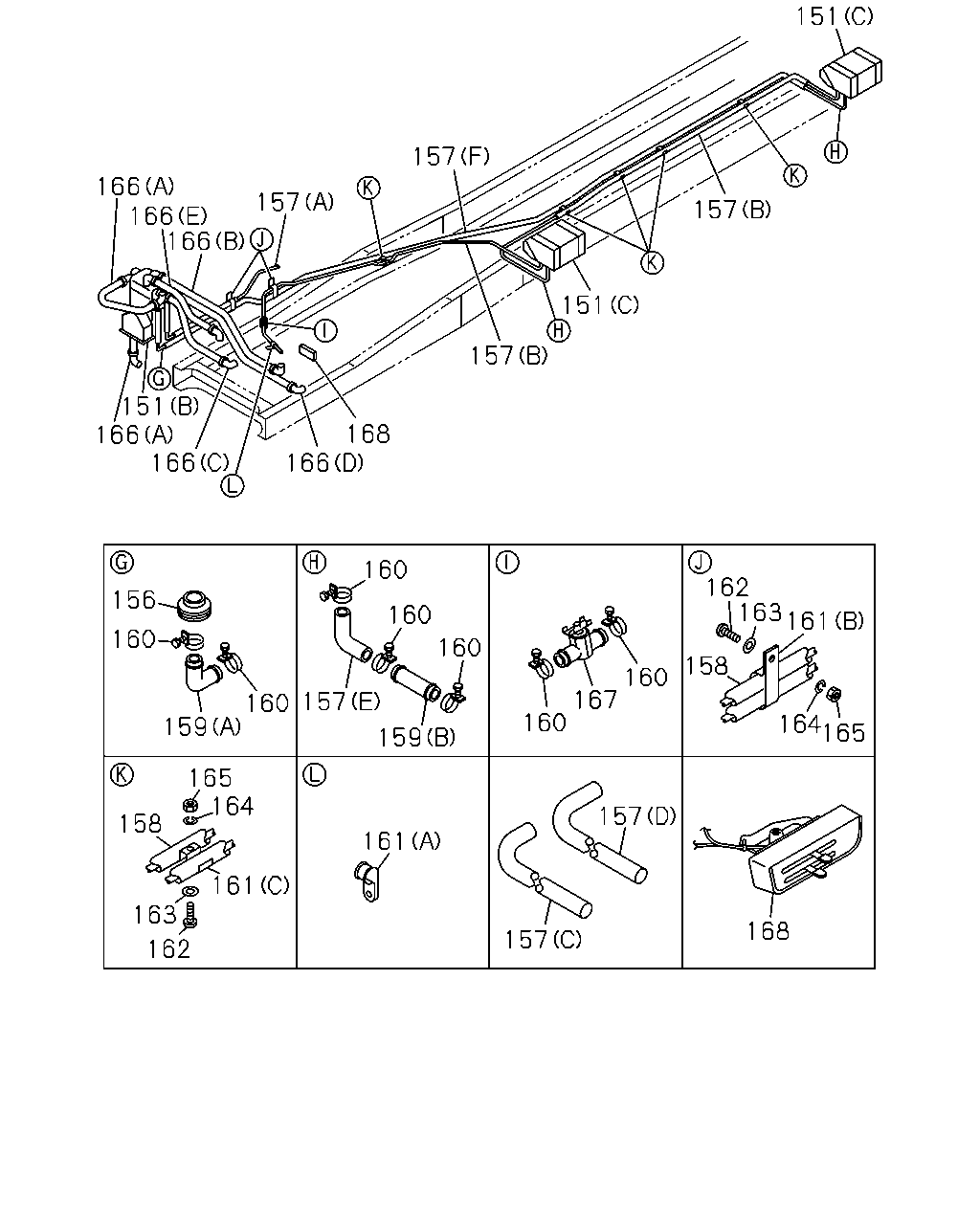

151 157 166 166 166 157 157 151 157 151 166 166 168 166 162 163 161 160 156 160 160 160 158 160 167 160 157 160 164 165 159 159 165 164 157 158 161 161 163 168 157 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-83511-111-0	01	1	9101-0203	●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (C)	1-83511-118-0	02	1	9101-0203	●	●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (C)	1-83511-118-0	02	1	0204-		●
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (B)	1-83511-071-0	01	1	9101-0203		●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (B)	1-83511-071-0	01	1	0204-		●
156	GROMMET; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	9-09956-292-0	02	1	9101-0203	●	●
156	GROMMET; HTR KIT HEATER&DEFROSTER(C41)	9-09956-292-0	02	1	0204-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (A) L=2000	1-83565-083-0	02	1	9101-0203	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (A) L=2000	1-83565-083-0	01	1	9101-0203		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (F) L=7000	1-83565-101-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (F) L=7000	1-83565-101-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (E) LTYPE L=60+60	1-83565-102-0	04	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (E) LTYPE L=60+60	1-83565-102-0	04	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (C)	1-83565-103-0	03	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (C)	1-83565-103-0	03	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (D) LTYPE L=400+120	1-83565-104-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (D) LTYPE L=400+120	1-83565-104-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (B) L=3000	5-09360-036-0	02	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (B) L=3000	5-09360-036-0	02	1	0204-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (B) L=3000	5-09360-036-0	01	1	9101-0203		●
158	INSULATOR; HTR KIT AUXILIARY HEATER<C36>	9-83651-991-0	01	1	9101-0203	●
158	INSULATOR; HTR KIT HEATER&DEFROSTER(C41)	9-83651-991-0	06	1	0204-		●
158	INSULATOR; HTR KIT HEATER&DEFROSTER(C41)	9-83651-991-0	06	1	9101-0203	●	●
158	INSULATOR; HTR KIT AUXILIARY HEATER<C36>	9-83651-991-0	03	1	9101-0203		●
159	CONNECTOR; HOSE,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-83575-019-0	02	1	9101-0203	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (A)	1-83575-019-0	02	1	0204-		●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (B)	9-09903-482-0	04	1	9101-0203	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (B)	9-09903-482-0	04	1	0204-		●
160	CLAMP; HOSE,HTR KIT AUXILIARY HEATER<C36> ID=25	9-09915-642-0	06	1	9101-0203	●
160	CLAMP; HOSE,HTR KIT HEATER&DEFROSTER(C41) ID=25	9-09915-642-2	28	1	0204-		●
160	CLAMP; HOSE,HTR KIT HEATER&DEFROSTER(C41) ID=25	9-09915-642-2	28	1	9101-0203	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36> (B)	9-83651-990-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (B)	9-83651-990-0	02	1	0204-		●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-09700-092-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (A)	1-09700-092-0	01	1	0204-		●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (C)	9-83651-989-0	05	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (C)	9-83651-989-0	05	1	0204-		●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (B)	9-83651-990-0	02	1	9101-0203	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER<C36> M6X25	9-03490-625-0	01	1	9101-0203	●	●
162	SCREW; CLIP FIX HEATER&DEFROSTER(C41) M6X25	9-03490-625-0	07	1	0204-		●
162	SCREW; CLIP FIX HEATER&DEFROSTER(C41) M6X25	9-03490-625-0	07	1	9101-0203	●	●
163	WASHER; CLIP FIX AUXILIARY HEATER<C36> ID=6.4	9-09160-506-0	01	1	9101-0203	●	●
163	WASHER; CLIP FIX HEATER&DEFROSTER(C41) ID=6.4	9-09160-506-0	07	1	0204-		●
163	WASHER; CLIP FIX HEATER&DEFROSTER(C41) ID=6.4	9-09160-506-0	07	1	9101-0203	●	●
164	WASHER; LK,CLIP FIX AUXILIARY HEATER<C36> ID=6.1	9-09150-506-0	01	1	9101-0203	●	●
164	WASHER; LK,CLIP FIX HEATER&DEFROSTER(C41) ID=6.1	9-09150-506-0	07	1	0204-		●
164	WASHER; LK,CLIP FIX HEATER&DEFROSTER(C41) ID=6.1	9-09150-506-0	07	1	9101-0203	●	●
165	NUT; CLIP FIX AUXILIARY HEATER<C36> M6	9-09110-406-0	01	1	9101-0203	●	●
165	NUT; CLIP FIX HEATER&DEFROSTER(C41)	1-15729-006-0	07	1	9101-0203	●	●
165	NUT; CLIP FIX HEATER&DEFROSTER(C41)	1-15729-006-0	07	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	0204-		●
167	COCK ASM; DRAIN,HTR KIT HEATER&DEFROSTER(C41)	1-83519-003-0	01	1	9101-0203	●	●
167	COCK ASM; DRAIN,HTR KIT AUXILIARY HEATER<C36>	1-83519-003-0	01	1	9101-0203		●
167	COCK ASM; DRAIN,HTR KIT HEATER&DEFROSTER(C41)	1-83519-003-0	01	1	0204-		●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	1-83543-014-1	01	1	9101-0203	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	1-83513-093-0	01	1	9101-0203		●
168	LEVER ASM; CONT,HTR KIT HEATER&DEFROSTER(C41)	1-83513-093-0	01	1	0204-		●

151 157 151 157 168 157 166 166 157 166 166 166 166 151 162 163 161 160 156 160 160 160 158 160 167 160 157 160 164 165 159 159 165 164 157 158 161 161 163 168 157 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-83511-111-0	01	1	9101-0203	●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (C)	1-83511-118-0	02	1	9101-0203	●	●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (C)	1-83511-118-0	02	1	0204-		●
151	HEATER UNIT; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (B)	1-83511-071-0	01	1	9101-0203		●
151	HEATER UNIT; HTR KIT HEATER&DEFROSTER(C41) (B)	1-83511-071-0	01	1	0204-		●
156	GROMMET; HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	9-09956-292-0	02	1	9101-0203	●	●
156	GROMMET; HTR KIT HEATER&DEFROSTER(C41)	9-09956-292-0	02	1	0204-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (A) L=2000	1-83565-083-0	02	1	9101-0203	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (A) L=2000	1-83565-083-0	01	1	9101-0203		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (F) L=7000	1-83565-101-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (F) L=7000	1-83565-101-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (E) LTYPE L=60+60	1-83565-102-0	04	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (E) LTYPE L=60+60	1-83565-102-0	04	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (C)	1-83565-103-0	03	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (C)	1-83565-103-0	03	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (D) LTYPE L=400+120	1-83565-104-0	01	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (D) LTYPE L=400+120	1-83565-104-0	01	1	0204-		●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (B) L=3000	5-09360-036-0	02	1	9101-0203	●	●
157	HOSE; WATER,HTR KIT HEATER&DEFROSTER(C41) (B) L=3000	5-09360-036-0	02	1	0204-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER<C36> (B) L=3000	5-09360-036-0	01	1	9101-0203		●
158	INSULATOR; HTR KIT AUXILIARY HEATER<C36>	9-83651-991-0	01	1	9101-0203	●
158	INSULATOR; HTR KIT HEATER&DEFROSTER(C41)	9-83651-991-0	06	1	0204-		●
158	INSULATOR; HTR KIT HEATER&DEFROSTER(C41)	9-83651-991-0	06	1	9101-0203	●	●
158	INSULATOR; HTR KIT AUXILIARY HEATER<C36>	9-83651-991-0	03	1	9101-0203		●
159	CONNECTOR; HOSE,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-83575-019-0	02	1	9101-0203	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (A)	1-83575-019-0	02	1	0204-		●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (B)	9-09903-482-0	04	1	9101-0203	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER&DEFROSTER(C41) (B)	9-09903-482-0	04	1	0204-		●
160	CLAMP; HOSE,HTR KIT AUXILIARY HEATER<C36> ID=25	9-09915-642-0	06	1	9101-0203	●
160	CLAMP; HOSE,HTR KIT HEATER&DEFROSTER(C41) ID=25	9-09915-642-2	28	1	0204-		●
160	CLAMP; HOSE,HTR KIT HEATER&DEFROSTER(C41) ID=25	9-09915-642-2	28	1	9101-0203	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36> (B)	9-83651-990-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (B)	9-83651-990-0	02	1	0204-		●
161	CLIP; HOSE FIX AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A)	1-09700-092-0	01	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (A)	1-09700-092-0	01	1	0204-		●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (C)	9-83651-989-0	05	1	9101-0203	●	●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (C)	9-83651-989-0	05	1	0204-		●
161	CLIP; HOSE FIX HEATER&DEFROSTER(C41) (B)	9-83651-990-0	02	1	9101-0203	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER<C36> M6X25	9-03490-625-0	01	1	9101-0203	●	●
162	SCREW; CLIP FIX HEATER&DEFROSTER(C41) M6X25	9-03490-625-0	07	1	0204-		●
162	SCREW; CLIP FIX HEATER&DEFROSTER(C41) M6X25	9-03490-625-0	07	1	9101-0203	●	●
163	WASHER; CLIP FIX AUXILIARY HEATER<C36> ID=6.4	9-09160-506-0	01	1	9101-0203	●	●
163	WASHER; CLIP FIX HEATER&DEFROSTER(C41) ID=6.4	9-09160-506-0	07	1	0204-		●
163	WASHER; CLIP FIX HEATER&DEFROSTER(C41) ID=6.4	9-09160-506-0	07	1	9101-0203	●	●
164	WASHER; LK,CLIP FIX AUXILIARY HEATER<C36> ID=6.1	9-09150-506-0	01	1	9101-0203	●	●
164	WASHER; LK,CLIP FIX HEATER&DEFROSTER(C41) ID=6.1	9-09150-506-0	07	1	0204-		●
164	WASHER; LK,CLIP FIX HEATER&DEFROSTER(C41) ID=6.1	9-09150-506-0	07	1	9101-0203	●	●
165	NUT; CLIP FIX AUXILIARY HEATER<C36> M6	9-09110-406-0	01	1	9101-0203	●	●
165	NUT; CLIP FIX HEATER&DEFROSTER(C41)	1-15729-006-0	07	1	9101-0203	●	●
165	NUT; CLIP FIX HEATER&DEFROSTER(C41)	1-15729-006-0	07	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	0204-		●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	9101-0203	●	●
166	HOSE; AIR,HTR KIT HEATER&DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	0204-		●
167	COCK ASM; DRAIN,HTR KIT HEATER&DEFROSTER(C41)	1-83519-003-0	01	1	9101-0203	●	●
167	COCK ASM; DRAIN,HTR KIT AUXILIARY HEATER<C36>	1-83519-003-0	01	1	9101-0203		●
167	COCK ASM; DRAIN,HTR KIT HEATER&DEFROSTER(C41)	1-83519-003-0	01	1	0204-		●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	1-83543-014-1	01	1	9101-0203	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER<C36>,HEATER&DEFROSTER(C41)	1-83513-093-0	01	1	9101-0203		●
168	LEVER ASM; CONT,HTR KIT HEATER&DEFROSTER(C41)	1-83513-093-0	01	1	0204-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
