0-25 — INLET MANIFOLD (#22659) — 68 parça

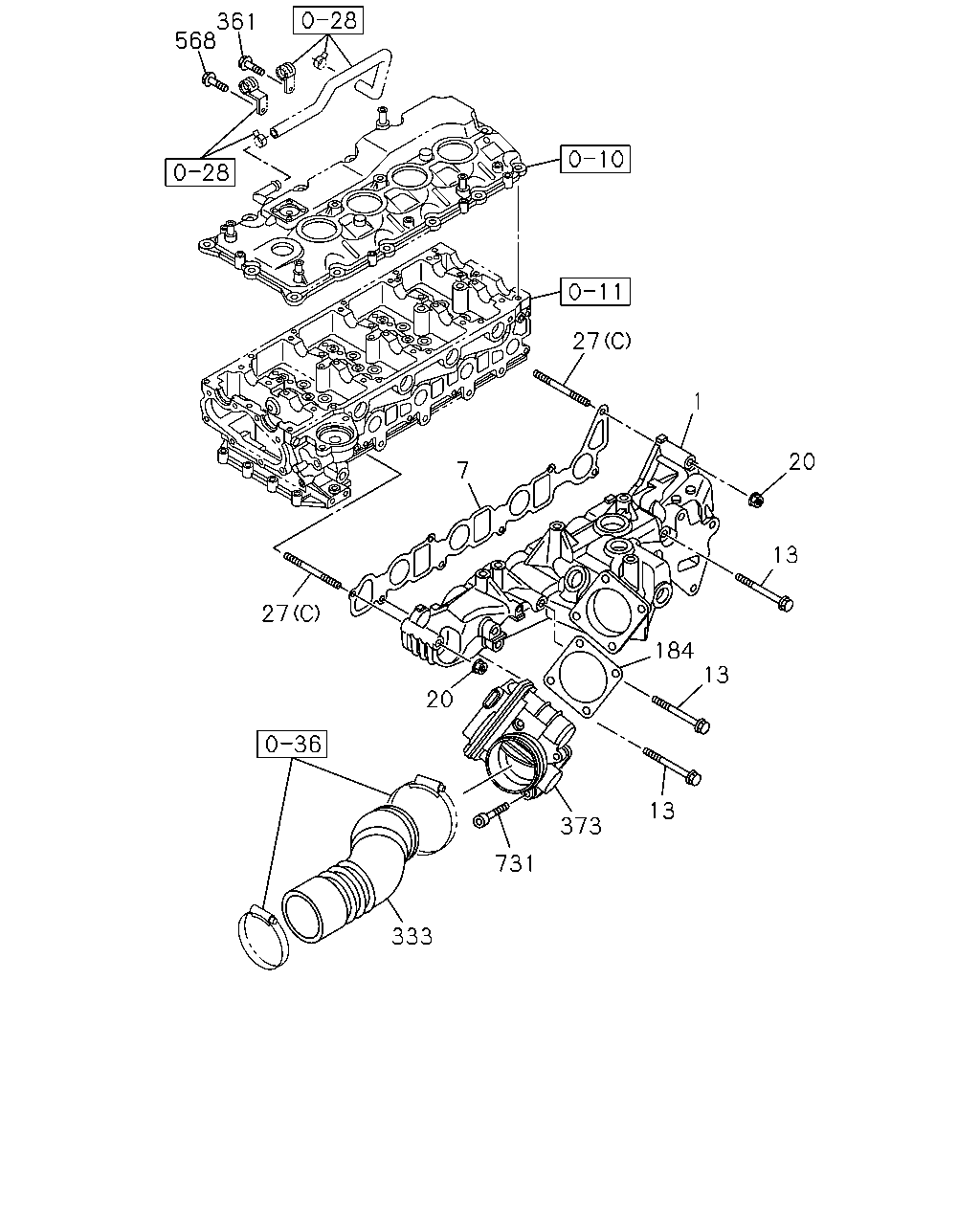

361 568 27 1 20 7 13 27 184 13 20 13 373 731 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0302-0506	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0507-0606		●
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	0607-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0302-0506	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0507-0606		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0607-0902			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98063-396-0	01	1	0903-1211			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1212-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0302-0506	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0507-0512		●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0606		●
13	03.275 BOLT; INL MANIF M8X110 FLANGE	0-28055-811-0	02	1	0607-			●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0302-0506	●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0507-0512		●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0606		●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD	8-97101-065-0	04	1	0607-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0302-0506	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0507-0606		●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0302-0506	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0507-0604		●
27	03.275 STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-0606		●
27	03.275 STUD; INL MANIF (C) M8X71 L=83	8-98017-063-0	02	1	0607-			●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0302-0506	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0507-0606		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0302-0506	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0507-0606		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0607-0902			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	0903-			●
333	03.278 HOSE; RUBBER,INL PIPE	8-98018-533-1	01	1	0607-0608			●
333	03.278 HOSE; RUBBER,INL PIPE	8-98056-469-0	01	1	0609-			●
361	03.278 BOLT; CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0607-			●
373	03.265 THROTTLE ASM; INT 03.440	8-97312-210-2	01	1	0607-0608			●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	0609-			●
568	03.330 BOLT; PIPE	0-58330-812-0	01	1	0607-			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	0607-			●

27 1 7 20 184 53 27 13 20 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0302-0506	●
1	03.265 MANIFOLD; INL	8-97192-327-1	01	1	0507-0606		●
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	0607-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-0	01	1	0302-0506	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97301-838-1	01	1	0507-0606		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97312-067-1	01	1	0607-0902			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98063-396-0	01	1	0903-1211			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98212-999-0	01	1	1212-			●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0302-0506	●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	0507-0512		●
13	03.275 BOLT; INL MANIF 09.008 M8X25 W/LK WASHER	0-50540-825-0	04	1	0601-0606		●
13	03.275 BOLT; INL MANIF M8X110 FLANGE	0-28055-811-0	02	1	0607-			●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0302-0506	●
13	03.275 BOLT; INL MANIF 00.780 M8X30 W/LK WASHER	0-50040-830-0	02	1	0507-0512		●
13	03.275 BOLT; INL MANIF 09.171 M8X30 W/LK WASHER	0-50540-830-0	02	1	0601-0606		●
13	03.275 BOLT; INL MANIF M8X70 12-POINT HEAD	8-97101-065-0	04	1	0607-			●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0302-0506	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0507-0606		●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0302-0506	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0507-0604		●
27	03.275 STUD; INL MANIF (A) M8X25 L=37	0-41010-825-0	01	1	0605-0606		●
27	03.275 STUD; INL MANIF (C) M8X71 L=83	8-98017-063-0	02	1	0607-			●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0302-0506	●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0507-0606		●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0302-0506	●
53	03.602 BOLT; INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0507-0512		●
53	03.602 BOLT; INL PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	0601-0606		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0302-0506	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.406	8-97035-883-1	01	1	0507-0606		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97366-784-1	01	1	0607-0902			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98096-968-0	01	1	0903-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
