Sayfa 0-20 - Isuzu EPC

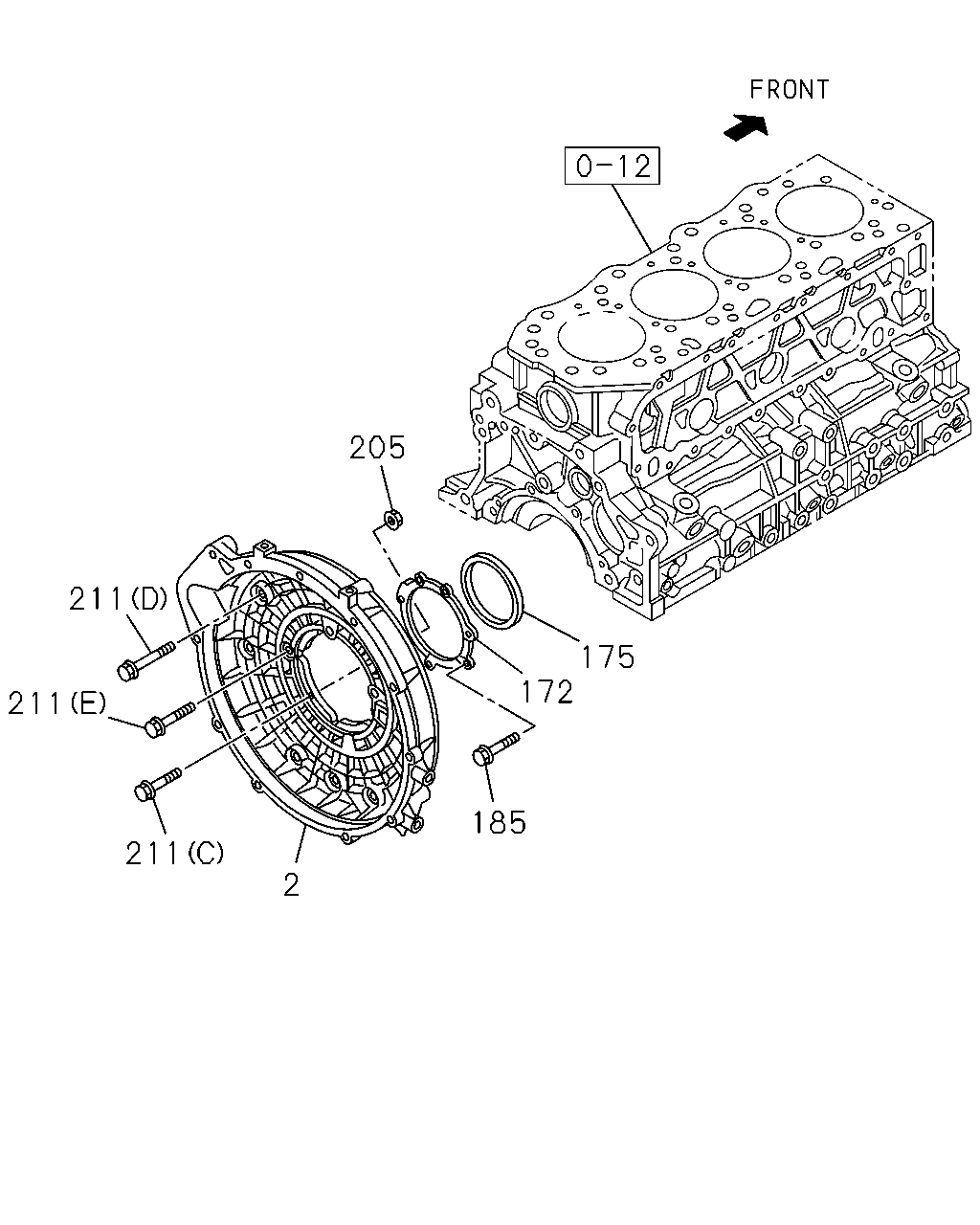

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#22657) — 201 parça

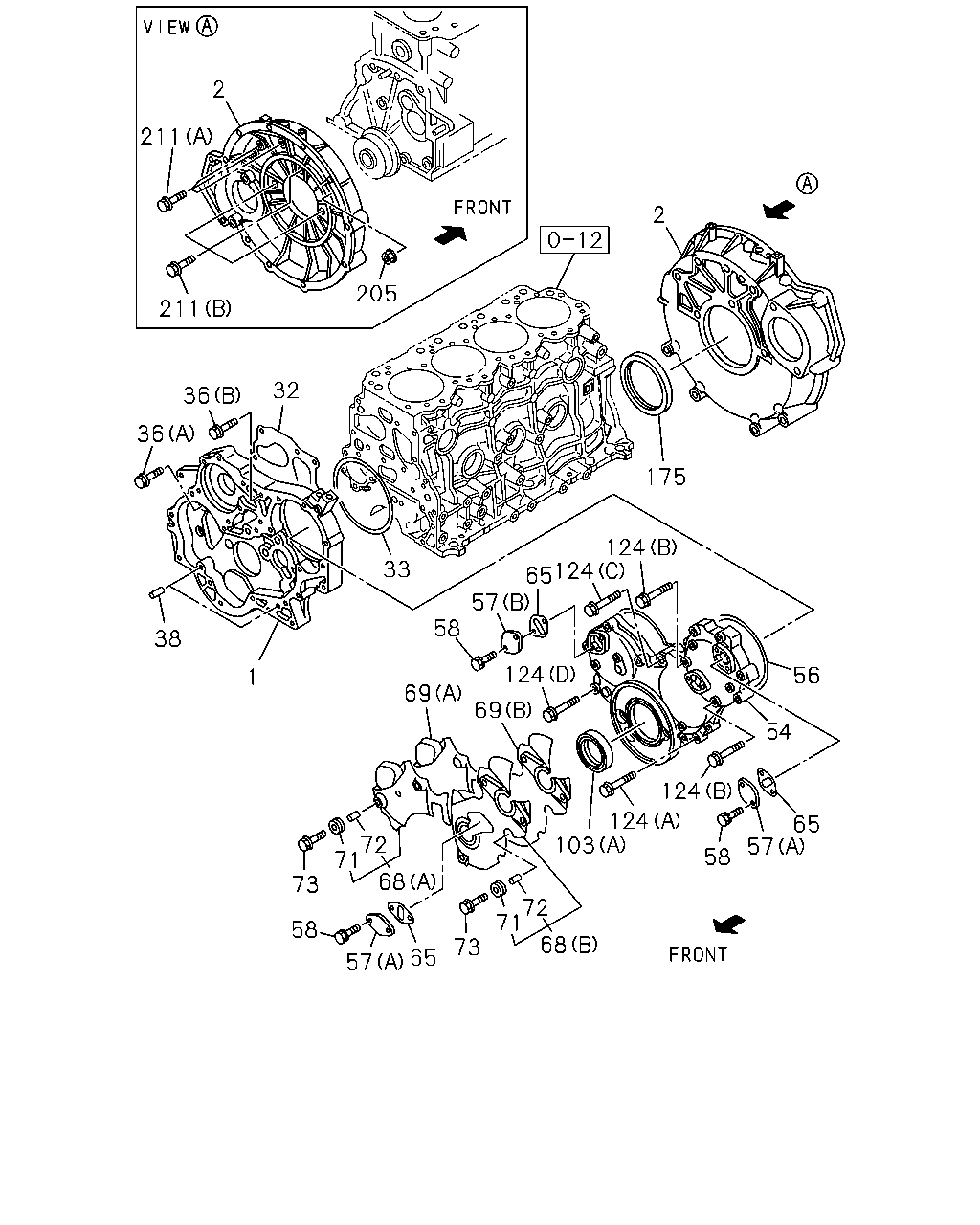

2 211 2 205 211 32 36 36 175 124 124 65 57 33 58 38 124 56 1 69 69 54 124 124 103 65 57 72 71 58 68 73 72 71 58 68 73 65 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0302-0506	●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0507-0606		●
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0607-			●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0302-0506	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0507-0606		●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0607-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0302-0506	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0507-0606		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0607-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0302-0506	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0302-0506	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 04.338 (H) M8X20 FLANGE	0-28050-820-0	12	1	0607-			●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0503	●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0506	●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 02.343 (H) M8X16 FLANGE	0-28050-816-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0607-			●
36	00.206 BOLT; GEAR CASE 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0607-			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0506	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0606		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0607-			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0302-0506	●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0507-0606		●
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0607-1007			●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-			●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0302-0506	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0507-0606		●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0302-0506	●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0507-0606		●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0302-0506	●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0507-0606		●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0302-0403	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0506	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0507-0512		●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-0606		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0302-0311	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0312-0506	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0507-0606		●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0302-0506	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0507-0606		●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-98009-466-3	01	1	0607-			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0302-0506	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0507-0606		●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0302-0302	●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0303-0506	●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0507-0606		●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97358-025-0	01	1	0302-0302	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-011-0	01	1	0303-0506	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-011-0	01	1	0507-0606		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0302-0506	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0507-0606		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0302-0506	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0507-0606		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0302-0403	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0506	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0507-0512		●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0606		●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-1006			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0302-0506	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0507-0606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0607-1007			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98158-110-0	01	1	1008-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0607-1007			●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0606		●
124	00.206 BOLT; TIMING COVER 09.242 (E) M6X16 FLANGE	0-28050-616-0	03	1	0607-			●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0606		●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0302-0506	●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0606		●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0507-0606		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0302-0506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0507-0606		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0607-			●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0302-0506	●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0507-0602		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0606		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0607-			●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0302-0506	●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0507-0512		●
211	00.669 BOLT; HSG 03.890 (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-0606		●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	06	1	0607-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0302-0506	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0507-0606		●
211	00.669 BOLT; HSG 00.683 (E) M12X25	5-09000-227-0	03	1	0607-			●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0607-			●

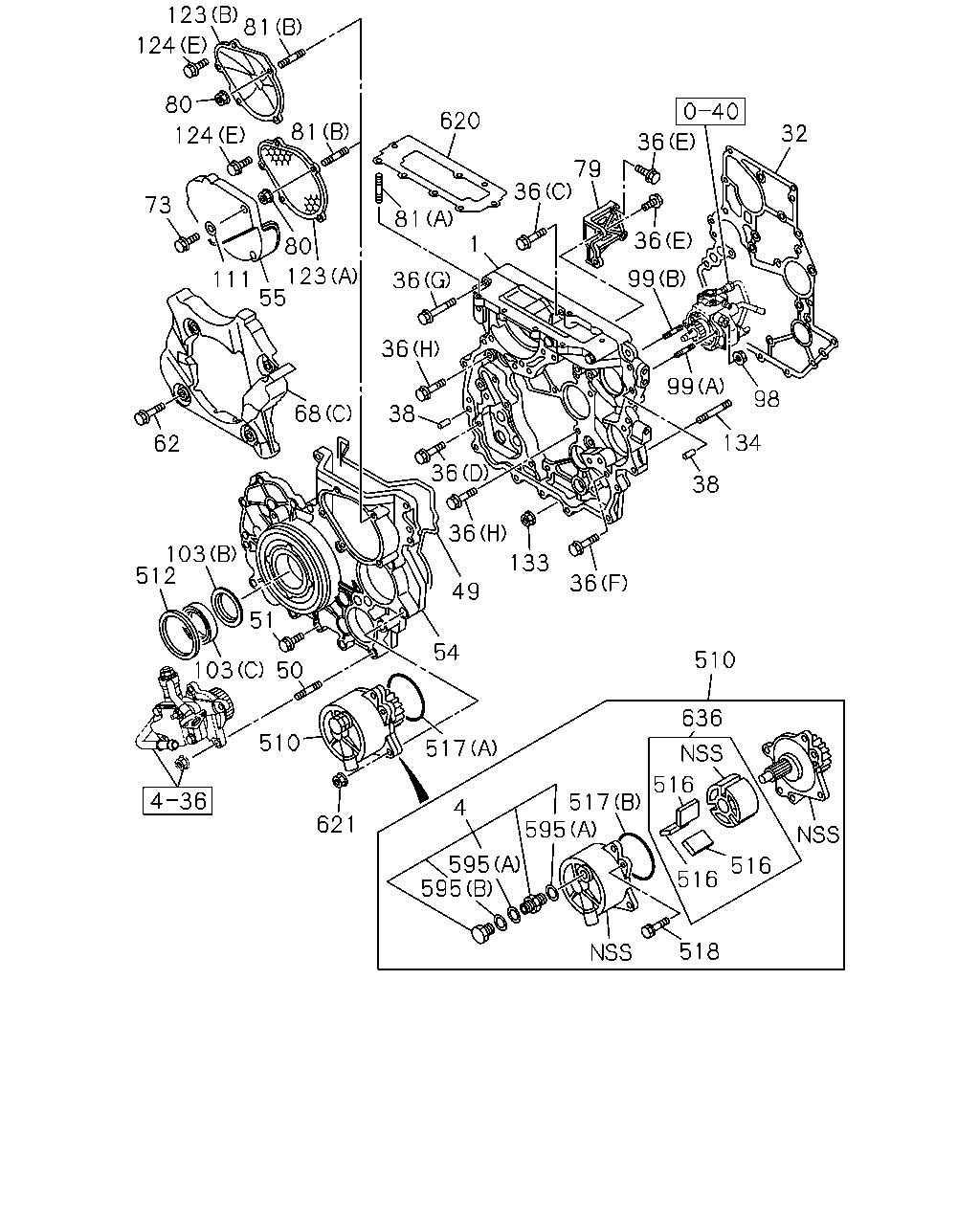

123 81 124 80 620 81 32 124 36 79 36 73 81 36 1 80 111 123 55 99 36 36 99 98 68 38 134 62 36 38 36 103 512 133 36 49 51 54 510 103 50 636 510 517 516 517 595 4 621 595 595 516 516 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0302-0506	●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0507-0606		●
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0607-			●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0607-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0302-0506	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0507-0606		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0302-0506	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 04.338 (H) M8X20 FLANGE	0-28050-820-0	12	1	0607-			●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0503	●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0506	●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 02.343 (H) M8X16 FLANGE	0-28050-816-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0607-			●
36	00.206 BOLT; GEAR CASE 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0607-			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0506	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0606		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0607-			●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0607-			●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0607-			●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0607-			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0302-0506	●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0507-0606		●
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0607-1007			●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-			●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	0607-1006			●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	0607-			●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0302-0506	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0507-0606		●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-98009-466-3	01	1	0607-			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0302-0506	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0507-0606		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0302-0403	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0506	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0507-0512		●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0606		●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-1006			●
79	00.219 BRACKET; GEAR CASE COVER	8-97370-390-2	01	1	0607-			●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0607-			●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0607-			●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0607-			●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	0607-			●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0607-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0302-0506	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0507-0606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0607-1007			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98158-110-0	01	1	1008-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0607-1007			●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0607-1006			●
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0607-1006			●
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1007-			●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0606		●
124	00.206 BOLT; TIMING COVER 09.242 (E) M6X16 FLANGE	0-28050-616-0	03	1	0607-			●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0606		●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0302-0506	●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0606		●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0507-0606		●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	0607-			●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0607-1005			●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-			●
512	04.895 RUBBER; SPACE	8-97322-675-0	01	1	0607-1007			●
512	04.895 RUBBER; SPACE	8-98165-120-0	01	1	1008-1011			●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0607-			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0607-			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	0607-			●
518	04.895 BOLT; VAC PUMP	8-98049-523-0	03	1	0607-			●
595	00.213 GASKET; VLV (A)	8-98018-519-0	02	1	0607-			●
595	00.213 GASKET; VLV (B)	8-98018-518-0	01	1	0607-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0607-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0607-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0607-			●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0607-			●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0607-			●

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0302-0506	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0507-0606		●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0607-			●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	0607-1012			●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0302-0506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0507-0606		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0607-			●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0607-			●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0302-0506	●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0507-0602		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0606		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0607-			●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0302-0506	●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0507-0512		●
211	00.669 BOLT; HSG 03.890 (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-0606		●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	06	1	0607-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0302-0506	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0507-0606		●
211	00.669 BOLT; HSG 00.683 (E) M12X25	5-09000-227-0	03	1	0607-			●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0607-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
