◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#22651) — 75 parça

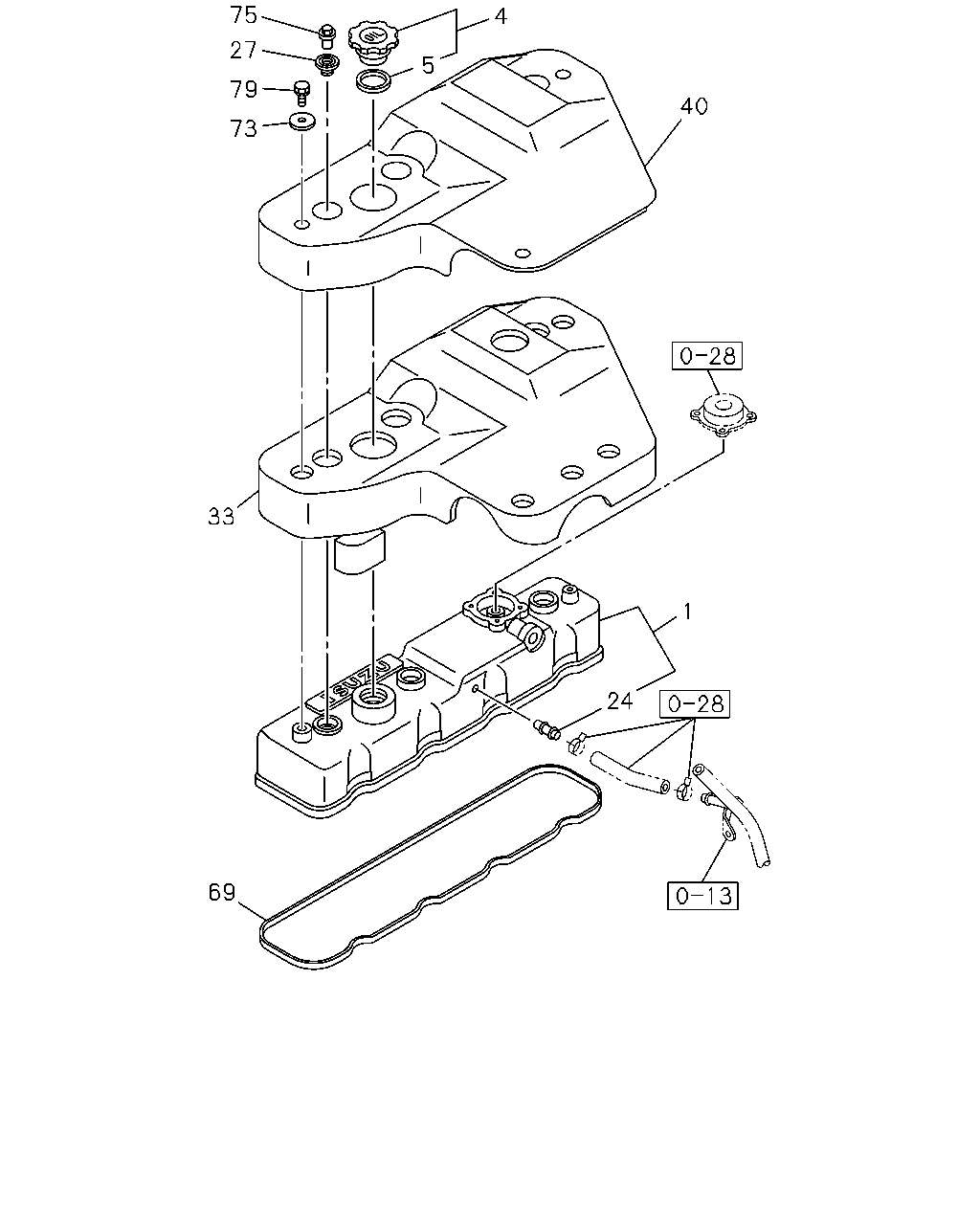

çizim 51344
75 4 27 5 79 40 73 33 1 24 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-97287-782-1 01 1 0302-0506 ●
1 00.386 COVER; CYL HD 8-97287-782-1 01 1 0507-0606 ●
1 00.386 COVER; CYL HD 8-98035-663-0 01 1 0607-0609 ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 0610-1204 ●
1 00.386 COVER; CYL HD 8-98209-078-0 01 1 1205-1205 ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 1205-1302 ●
1 00.386 COVER; CYL HD 8-98226-103-0 01 1 1303- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0302-0506 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0507-0606 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0607- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0302-0506 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0507-0606 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0607- ●
24 00.413 PIPE; BREATHER,OIL FILLER
01.430 		8-94455-311-1 01 1 0302-0506 ●
24 00.413 PIPE; BREATHER,OIL FILLER
01.430 		8-94455-311-1 01 1 0507-0606 ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 0302-0506 ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5 		8-97263-801-1 03 1 0507-0606 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97240-038-0 01 1 0302-0506 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97240-038-0 01 1 0507-0606 ●
40 00.386 COVER 8-97240-037-0 01 1 0302-0506 ●
40 00.386 COVER 8-97240-037-0 01 1 0507-0606 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97161-131-0 01 1 0302-0302 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-0 01 1 0302-0506 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-0 01 1 0507-0606 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0607- ●
73 00.413 WASHER; PL,HD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0302-0506 ●
73 00.413 WASHER; PL,HD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0507-0606 ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0302-0506 ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0507-0606 ●
79 00.293 BOLT; COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0302-0506 ●
79 00.293 BOLT; COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ●
79 00.293 BOLT; COVER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ●
79 00.293 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 05 1 0607- ●
79 00.293 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0302-0506 ●
79 00.293 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0507-0606 ●
çizim 55252
79 79 137 113 124 178 1 119 65 168 167 166 26 29 4 5 2 39 69
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.386 COVER; CYL HD 8-97287-782-1 01 1 0302-0506 ●
1 00.386 COVER; CYL HD 8-97287-782-1 01 1 0507-0606 ●
1 00.386 COVER; CYL HD 8-98035-663-0 01 1 0607-0609 ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 0610-1204 ●
1 00.386 COVER; CYL HD 8-98209-078-0 01 1 1205-1205 ●
1 00.386 COVER; CYL HD 8-98051-197-1 01 1 1205-1302 ●
1 00.386 COVER; CYL HD 8-98226-103-0 01 1 1303- ●
2 00.413 NUT; COVER,HD
01.540 M6 FLANGE 		0-91180-206-0 01 1 0607- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0302-0506 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0507-0606 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0607- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0302-0506 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0507-0606 ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0607- ●
26 08.900 BOLT; CYL HD COVER
03.680 M6X30 FLANGE 		0-28650-630-0 13 1 0607- ●
29 00.413 RUBBER; MTG,HD COVER 8-97381-524-0 14 1 0607- ●
39 00.413 STUD; COVER,HD
M6X30 L=38 		8-97372-795-0 01 1 0607- ●
65 00.413 SCREW; ADAPTER
M5X10 W/LK WASHER 		8-97366-592-0 04 1 0607- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97161-131-0 01 1 0302-0302 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-0 01 1 0302-0506 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97349-416-0 01 1 0507-0606 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97945-338-0 01 1 0607- ●
79 00.293 BOLT; COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0302-0506 ●
79 00.293 BOLT; COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ●
79 00.293 BOLT; COVER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ●
79 00.293 BOLT; COVER
04.338 M8X20 FLANGE 		0-28050-820-0 05 1 0607- ●
79 00.293 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0302-0506 ●
79 00.293 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0507-0606 ●
113 00.386 COVER; CYL HEAD COVER 8-98039-090-4 01 1 0607-1104 ●
113 00.386 COVER; CYL HEAD COVER 8-98158-904-1 01 1 1105- ●
119 00.386 COVER; SEAL,NOZZLE 8-98037-543-0 04 1 0607- ●
124 00.413 RUBBER; MTG,COVER 8-98036-119-0 05 1 0607- ●
137 00.413 BUSHING; MTG RUBBER,COVER 8-98036-120-0 05 1 0607- ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 0607-1204 ●
166 00.283 SPRING; VENTILATOR 8-98209-384-0 01 1 1205-1205 ●
166 00.283 SPRING; VENTILATOR
00.423 		8-97365-998-0 01 1 1205- ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98003-164-0 01 1 0607-1302 ●
167 00.283 DIAPHRAGM; VENTILATOR 8-98226-101-0 01 1 1303- ●
168 00.283 COVER; VENTILATOR
00.269 		8-97365-992-0 01 1 0607- ●
178 01.758 CAP; COVER 8-98036-117-0 01 1 0607-0907 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
