◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#22650) — 126 parça

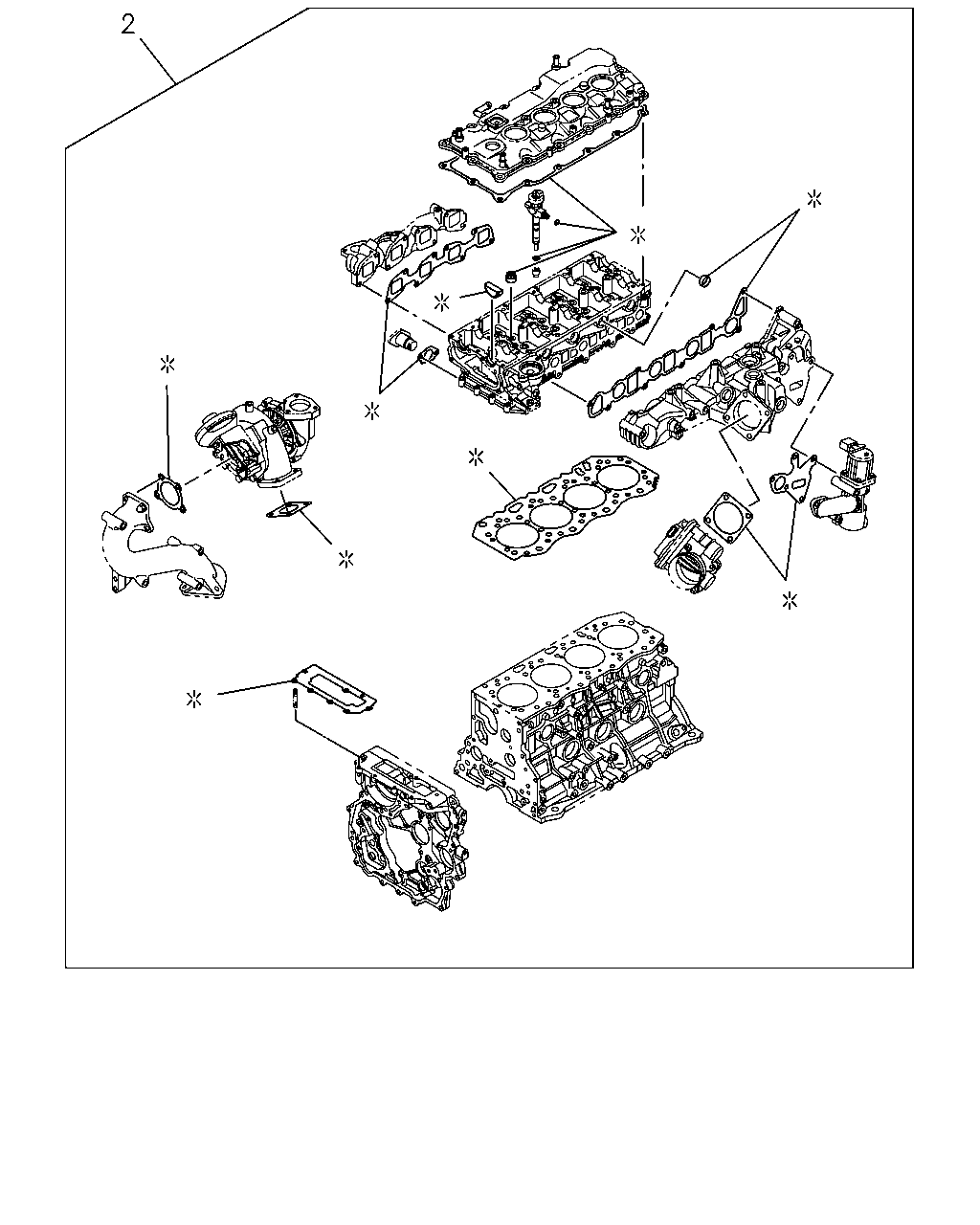

çizim 11487
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-120-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-340-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-507-0 01 1 1212- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-121-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-341-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-508-0 01 1 1212- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-122-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-342-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-509-0 01 1 1212- ●

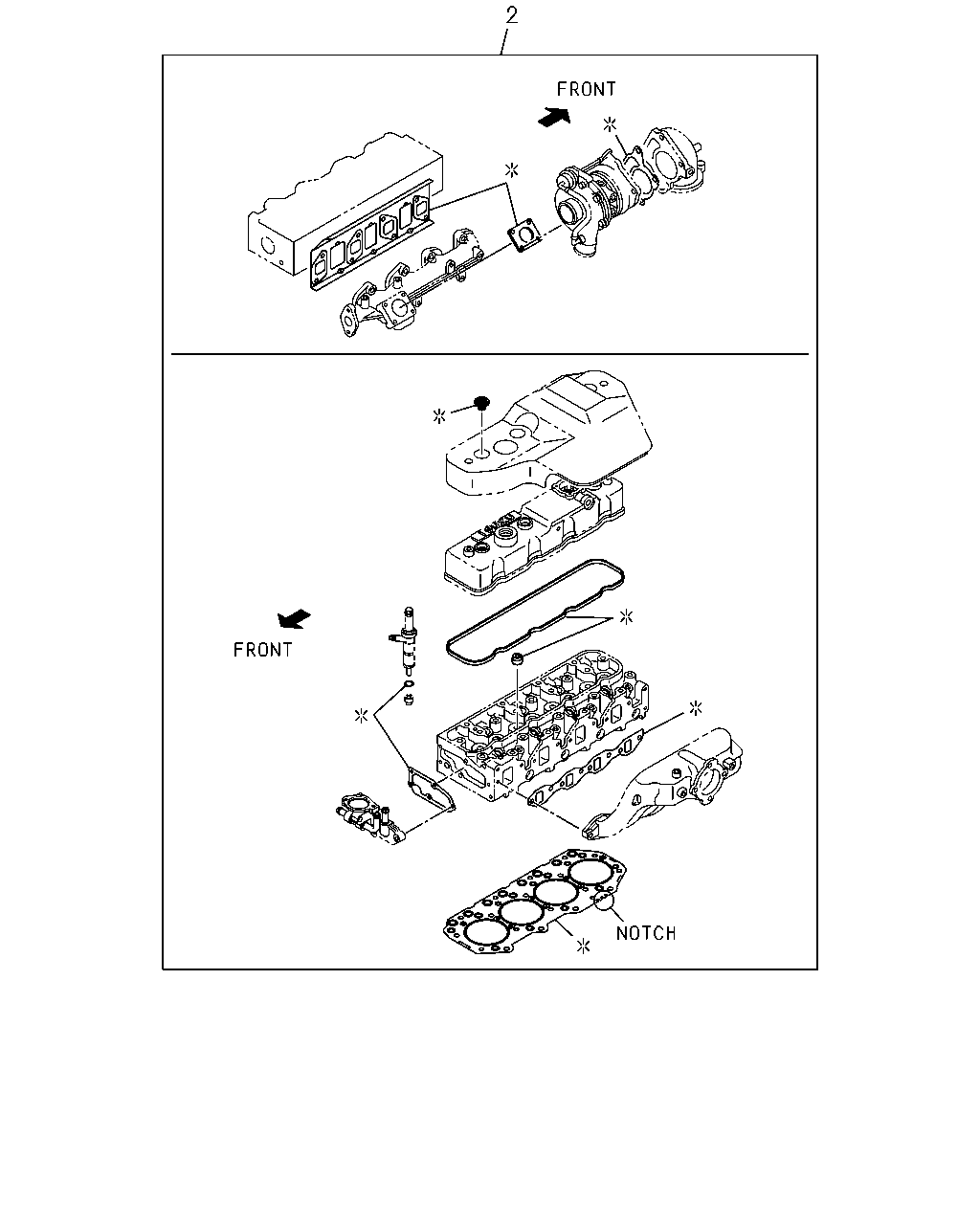

çizim 11760
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-120-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-340-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-507-0 01 1 1212- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-121-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-341-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-508-0 01 1 1212- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-122-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-342-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-509-0 01 1 1212- ●

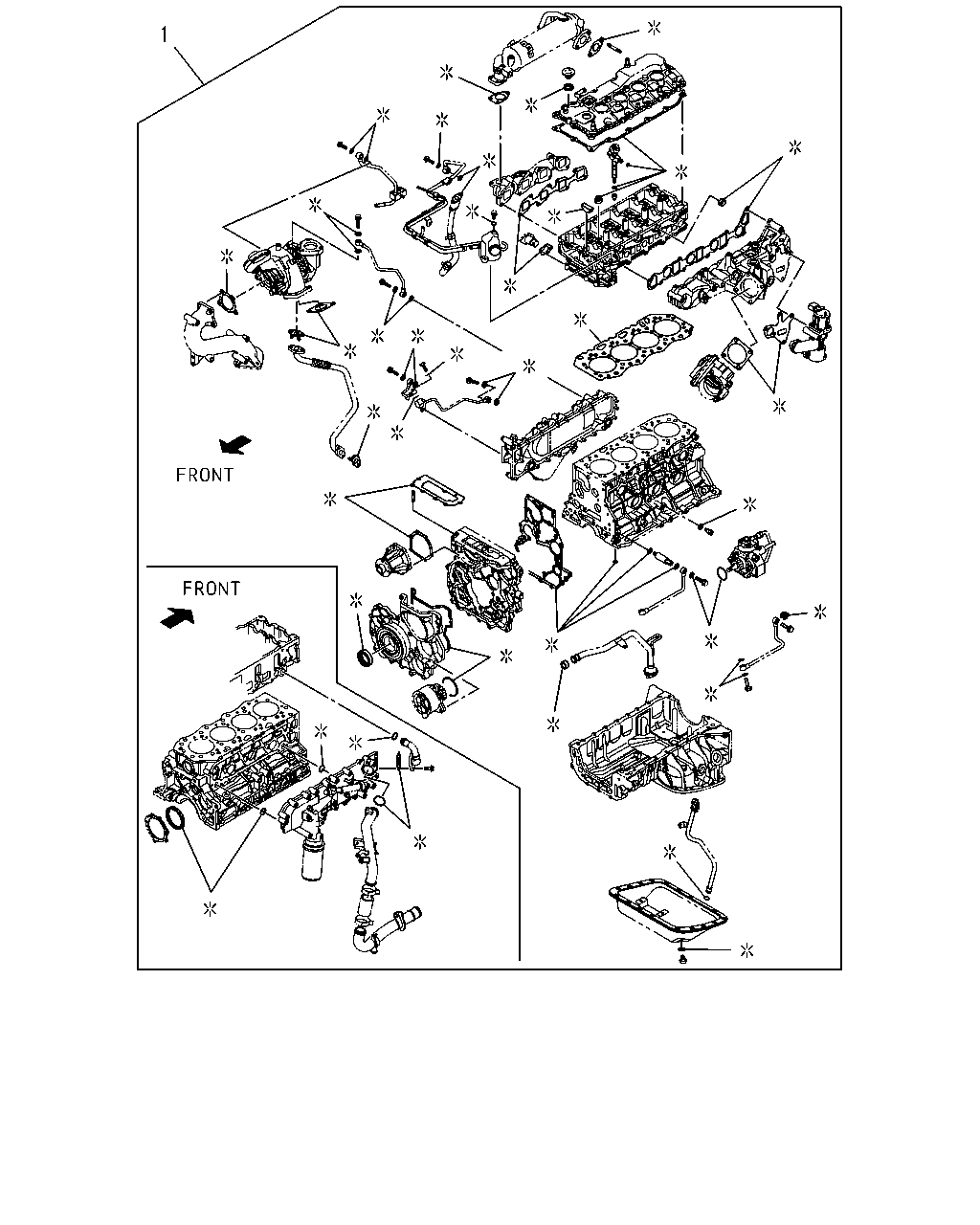

çizim 52137
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-358-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-755-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-903-0 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-173-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-400-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-608-0 01 1 1301- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-359-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-756-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-904-0 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-174-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-401-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-609-0 01 1 1301- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-360-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-757-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-905-0 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-175-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-402-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-610-0 01 1 1301- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0507-0606 ●

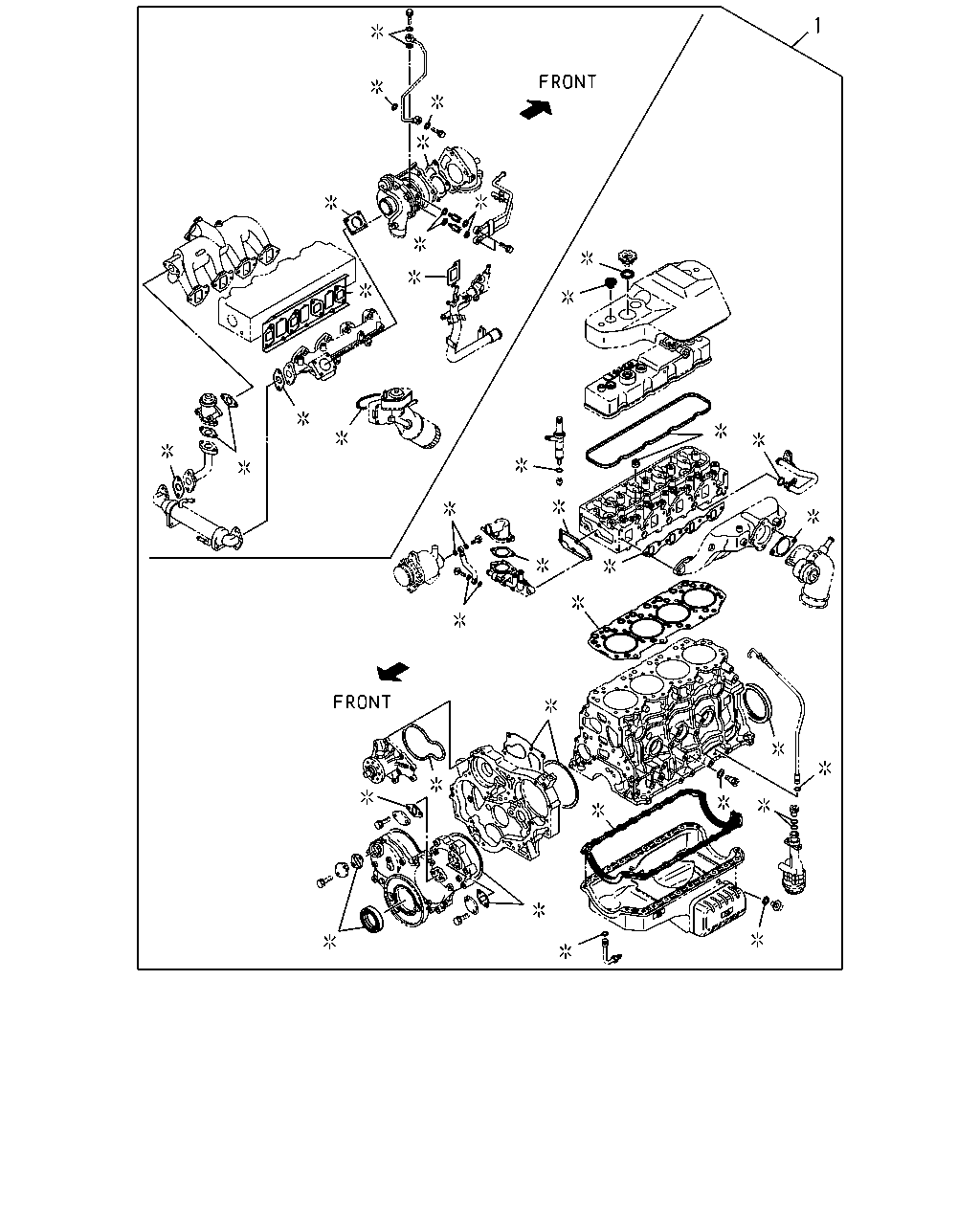

çizim 53975
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-358-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-755-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-903-0 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-173-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-400-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-608-0 01 1 1301- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-359-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-756-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-904-0 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-174-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-401-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-609-0 01 1 1301- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-360-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-757-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-905-0 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-175-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-402-0 01 1 1205-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-610-0 01 1 1301- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0507-0606 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
