Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#22639) — 148 parça

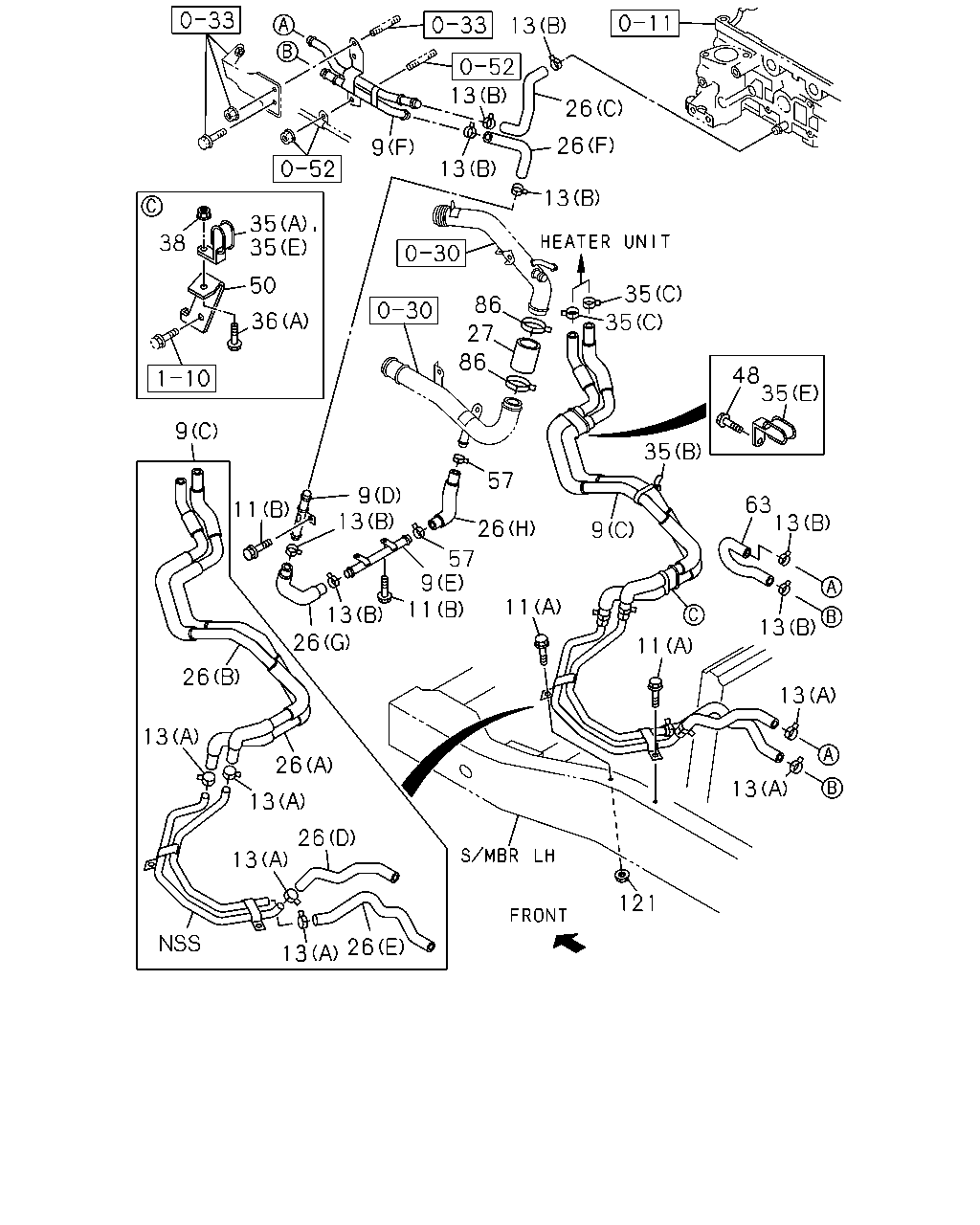

13 13 26 26 9 13 13 35 35 38 50 35 86 36 35 27 86 48 35 9 35 57 9 13 63 13 11 26 9 57 9 11 11 13 26 13 11 26 13 13 26 13 13 26 13 121 26 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (A)	8-97261-456-3	01	1	0302-0506	●	●	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-456-3	01	1	0507-0606	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97261-456-3	01	1	0507-0606		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (D)	8-97381-481-3	01	1	0607-	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97260-268-3	01	1	0302-0506	●	●	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97260-268-4	01	1	0507-0606	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (C)	8-97386-898-3	01	1	0607-	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-97383-035-1	01	1	0607-	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (F)	8-98028-829-1	01	1	0607-	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0607-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	0302-0506	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0507-0606	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 03.278 (A) ID=22	8-97359-141-0	02	1	0611-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0607-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (F)	0-03516-240-0	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (G)	8-98000-099-1	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (H)	8-98000-101-2	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (D)	8-98050-289-0	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-290-0	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0302-0506	●	●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97239-084-0	01	1	0507-0606	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (C)	8-97383-048-1	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0302-0506	●	●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97239-085-0	01	1	0507-0606	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (B)	8-97239-085-0	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A)	8-97239-084-0	01	1	0607-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1 ENG(LFB)	8-98009-701-0	01	1	0607-	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0302-0606	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0607-	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0607-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22	8-94382-401-0	04	1	0302-0606	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0302-0506	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0507-0606	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0607-	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A)	5-83574-006-0	01	1	0302-0506	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (A)	5-83574-006-0	01	1	0507-0606	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (A)	5-83574-006-0	01	1	0607-0610	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (A)	8-98029-677-0	01	1	0611-	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0507-0606	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0507-0606	●	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0302-0307	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0302-0307		●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0308-0506	●	●	●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●	●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0302-0602	●	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606	●	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0607-	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0302-0512	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0302-0606	●
50	08.846 BRACKET HEATER & DEFROSTER(C41)	8-97230-028-0	01	1	0607-	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0302-0606		●	●
57	08.846 CLIP; HOSE 4JJ1 ENG(LFB) 01.166 ID=20.8	8-94125-862-1	02	1	0607-	●	●	●
63	08.846 HOSE; WATER 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41)	8-98015-119-3	01	1	0607-	●	●	●
86	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 ID=40.5	8-97313-472-0	02	1	0607-	●	●	●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0302-0506		●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0507-0602		●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606		●	●
121	08.845 NUT; PIPE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0607-		●	●

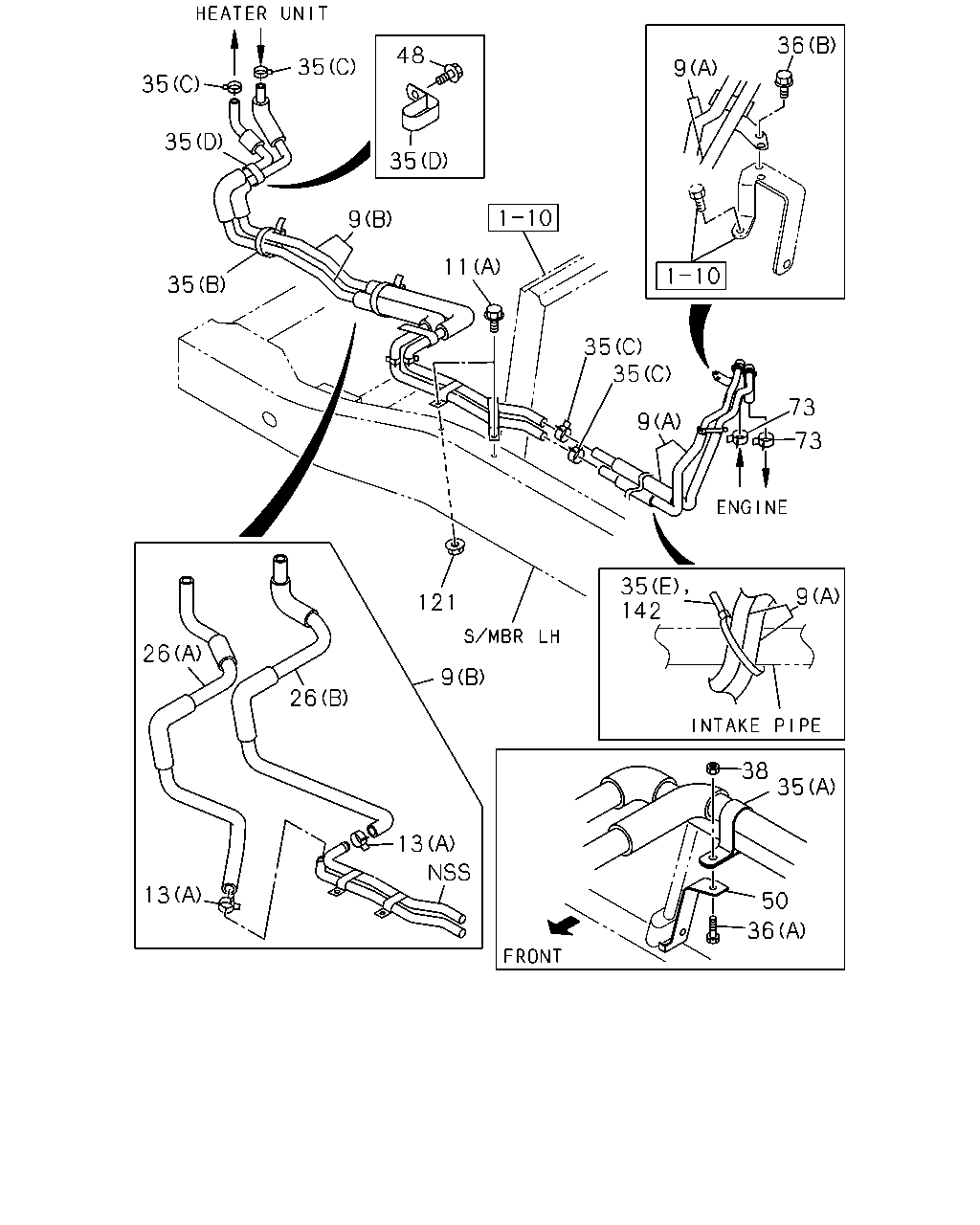

36 48 35 9 35 35 35 9 11 35 35 35 73 9 73 35 142 9 121 26 9 26 38 35 13 13 50 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JH1 ENG(RJX) (A)	8-97261-456-3	01	1	0302-0506	●	●	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-456-3	01	1	0507-0606	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97261-456-3	01	1	0507-0606		●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (D)	8-97381-481-3	01	1	0607-	●	●	●
9	08.846 PIPE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97260-268-3	01	1	0302-0506	●	●	●
9	08.846 PIPE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97260-268-4	01	1	0507-0606	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (C)	8-97386-898-3	01	1	0607-	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (E)	8-97383-035-1	01	1	0607-	●	●	●
9	08.846 PIPE; HTR 4JJ1 ENG(LFB) (F)	8-98028-829-1	01	1	0607-	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
11	08.845 BOLT; HTR PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
11	08.845 BOLT; HTR PIPE 4JJ1 ENG(LFB) 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0607-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	04	1	0607-	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	0302-0506	●	●	●
13	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0507-0606	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 03.278 (A) ID=22	8-97359-141-0	02	1	0611-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) 01.166 (B) ID=20.8	8-94125-862-1	06	1	0607-	●	●	●
13	08.846 CLIP; HTR HOSE 4JJ1 ENG(LFB) EXC. HEATER & DEFROSTER(C41) 01.166 (B) ID=20.8	8-94125-862-1	02	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (F)	0-03516-240-0	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (G)	8-98000-099-1	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (H)	8-98000-101-2	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (D)	8-98050-289-0	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98050-290-0	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97239-084-0	01	1	0302-0506	●	●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97239-084-0	01	1	0507-0606	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) (C)	8-97383-048-1	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97239-085-0	01	1	0302-0506	●	●	●
26	08.846 HOSE; HTR 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97239-085-0	01	1	0507-0606	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (B)	8-97239-085-0	01	1	0607-	●	●	●
26	08.846 HOSE; HTR 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (A)	8-97239-084-0	01	1	0607-	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D)	8-94124-169-1	01	1	0302-0606	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0607-	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) (E)	8-98032-129-0	01	1	0607-		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (C) ID=22	8-94382-401-0	04	1	0302-0606	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) L=250	5-09707-030-1	01	1	0302-0506	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0507-0606	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	01	1	0607-	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (A)	5-83574-006-0	01	1	0302-0506	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.846 (A)	5-83574-006-0	01	1	0507-0606	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (A)	5-83574-006-0	01	1	0607-0610	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (A)	8-98029-677-0	01	1	0611-	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (E) L=450	1-09707-142-1	01	1	0507-0606	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 08.846 (C) ID=22	8-94382-401-0	02	1	0607-0610	●	●	●
35	08.852 CLIP; WATER HOSE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 03.278 (C) ID=22	8-97359-141-0	02	1	0611-	●	●	●
35	08.852 CLIP; WATER HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (E) L=350	8-94152-256-1	01	1	0507-0606	●	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0302-0307	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0302-0307		●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
36	08.846 BOLT; BRKT HEATER & DEFROSTER(C41) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
36	08.846 BOLT; BRKT 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0308-0506	●	●	●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●	●
36	08.846 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0302-0602	●	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606	●	●	●
38	08.846 NUT; BRKT HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0607-	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0302-0512	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0606	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0607-	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(6PP)	8-97230-028-0	01	1	0302-0606	●
50	08.846 BRACKET HEATER & DEFROSTER(C41)	8-97230-028-0	01	1	0607-	●	●	●
50	08.846 BRACKET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.417	8-97072-530-0	01	1	0302-0606		●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) 01.166 ID=25	9-09915-642-2	02	1	0302-0310	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1 ENG(RJX) ID=22	8-94382-401-0	02	1	0311-0506	●	●	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) ID=22	8-94382-401-0	02	1	0507-0606	●
73	08.846 CLIP; HTR HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	0507-0606		●	●
121	08.845 NUT; PIPE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	0302-0506		●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0507-0602		●	●
121	08.845 NUT; PIPE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606		●	●
121	08.845 NUT; PIPE 4JJ1 ENG(LFB) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0607-		●	●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.483 L=450	1-09707-142-1	01	1	0302-0506	●	●	●
142	08.846 CLIP; BAND 4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350	8-94152-256-1	01	1	0302-0506	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
