8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#22636) — 40 parça

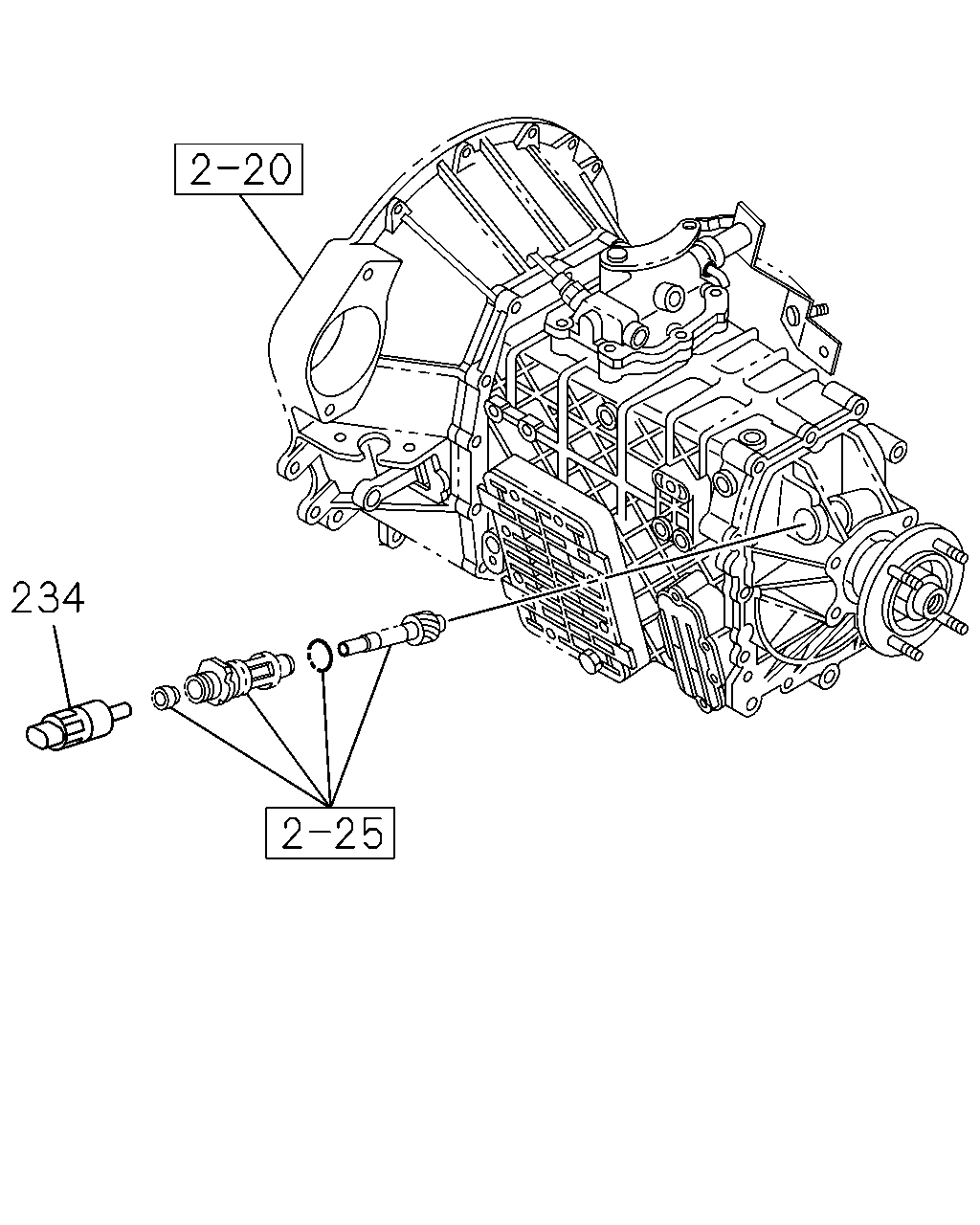

çizim 12757
234
BalonParca AdiParca NoAdetTipApplied Date A B C
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0302-0606 ● ● ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0607- ● ● ●
çizim 51218
204 21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.709 LIGHTER; CIGAR 8-97320-322-0 01 1 0302-0606 ● ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0607- ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0302-0706 ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
14V 1.4W 		8-97173-160-0 01 1 0302-0606 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0607- ● ● ●
21 09.744 COVER; HOLE
02.485 (B) 		8-94310-890-0 01 1 0302- ●
21 09.744 COVER; HOLE
EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0302- ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 02 1 0302-0506 ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0507-0606 ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 0607- ●
21 09.744 COVER; HOLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97136-694-0 01 1 0607- ● ●
21 09.744 COVER; HOLE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97136-694-0 01 1 0607- ● ●
204 02.195 BUZZER; KEY REMIND
4JH1 ENG(RJX) 09.765 		8-97036-649-0 01 1 0302-0506 ● ● ●
204 02.195 BUZZER; KEY REMIND
4JH1-TC ENG(RDM) 09.765 		8-97036-649-0 01 1 0507-0606 ● ● ●
204 02.195 BUZZER; KEY REMIND
09.765 		8-97036-649-0 01 1 0607- ● ● ●

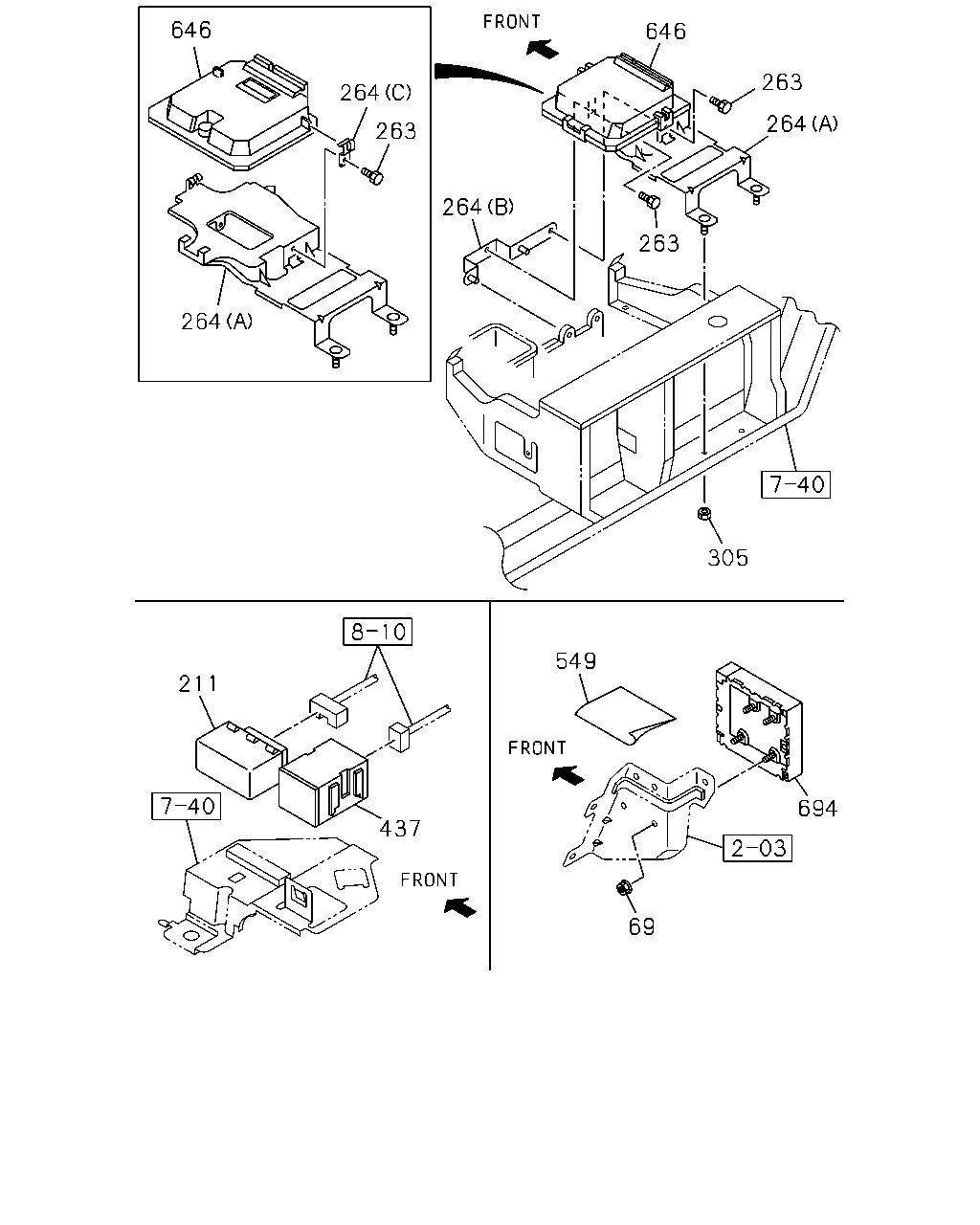

çizim 52493
646 646 263 264 264 263 264 263 264 305 549 211 694 437 69
BalonParca AdiParca NoAdetTipApplied Date A B C
69 02.458 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0607- ● ● ●
211 02.487 RESISTOR; SW
ADJUST HEADLAMP<6RC> 		8-97359-130-1 01 1 0507- ● ● ●
263 04.115 BOLT; CONT UNIT
4JH1 ENG(RJX) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0302-0506 ● ● ●
263 04.115 BOLT; CONT UNIT
4JH1-TC ENG(RDM) 04.930 M6X20 FLANGE 		0-28680-620-0 03 1 0507-0512 ● ● ●
263 04.115 BOLT; CONT UNIT
4JH1-TC ENG(RDM) 03.162 M6X20 FLANGE 		0-28650-620-0 03 1 0601-0606 ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (C) 		8-97240-154-1 01 1 0302-0506 ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (C) 		8-97240-154-1 01 1 0507-0606 ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (A) 		8-97309-165-4 01 1 0302-0506 ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (A) 		8-97309-165-4 01 1 0507-0606 ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1 ENG(RJX) (B) 		8-97312-796-2 01 1 0302-0506 ● ● ●
264 02.500 BRACKET; CONT UNIT
4JH1-TC ENG(RDM) (B) 		8-97312-796-2 01 1 0507-0606 ● ● ●
305 08.915 NUT; CONT UNIT
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0302-0506 ● ● ●
305 08.915 NUT; CONT UNIT
4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ● ●
305 08.915 NUT; CONT UNIT
4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ● ●
437 10.485 CONVERTER; DC
ADJUST HEADLAMP<6RC> KOITO 		8-97359-129-0 01 1 0607- ● ● ●
549 02.510 SHEET
4JJ1 ENG(LFB) 		8-97262-355-1 01 1 0607- ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) 		8-97260-385-5 01 1 0302-0407 ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) 		8-97260-385-5 01 1 0408-0506 ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) EXC. SPEED LIMITER 90KM<NMJ> 		8-97260-385-5 01 1 0408-0506 ●
646 02.510 CONTROL UNIT; ENG
4JH1-TC ENG(RDM) 		8-97260-385-6 01 1 0507-0606 ● ● ●
646 02.510 CONTROL UNIT; ENG
4JH1 ENG(RJX) SPEED LIMITER 90KM<NMJ> 		8-97376-336-0 01 1 0408-0506 ●
694 02.510 CONTROL UNIT; SMOOTHER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98018-856-3 01 1 0607- ● ● ●
