Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#22633) — 326 parça

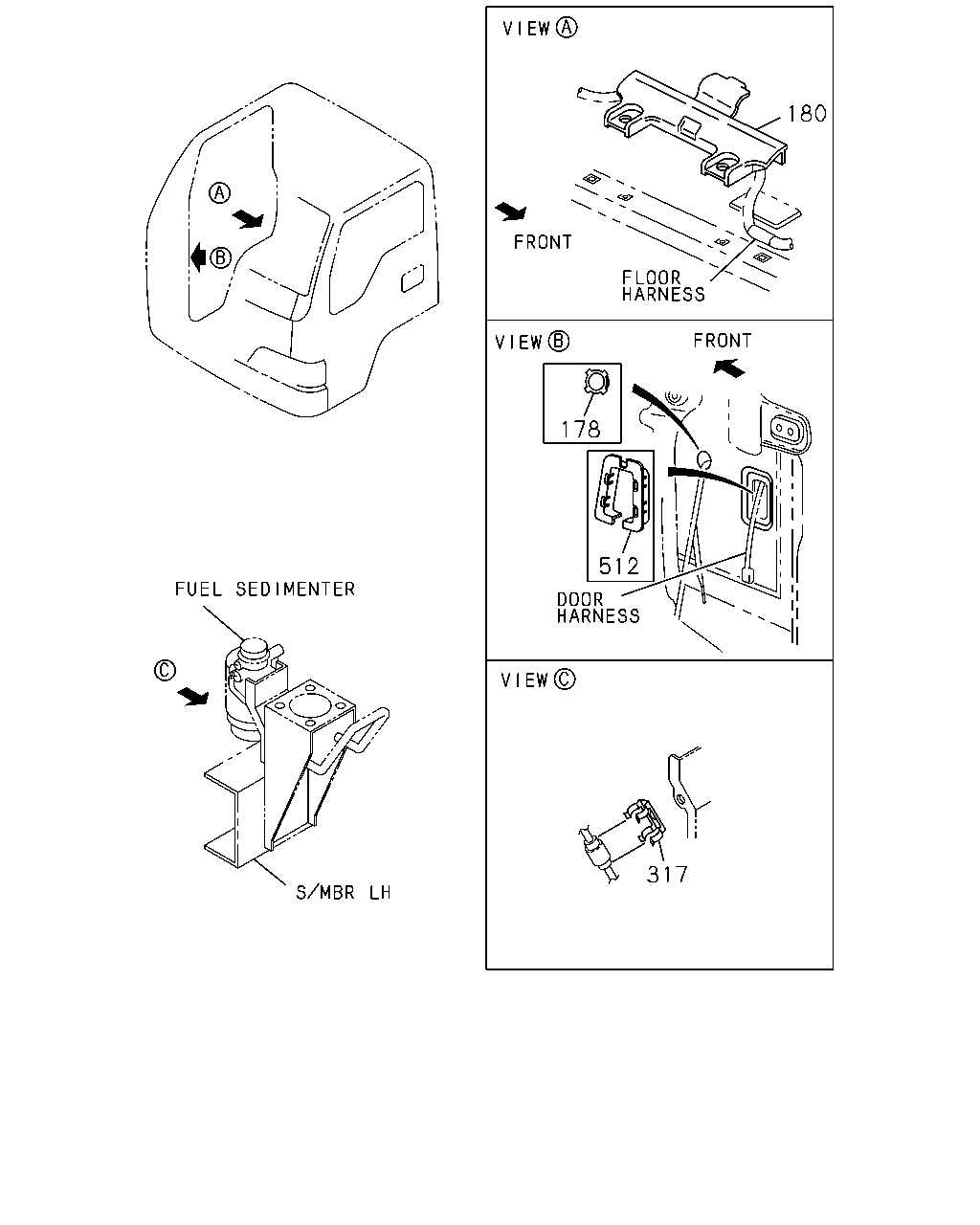

180 178 512 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0302-	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0302-	●	●	●
317	02.559 CLAMP; CONNECTOR 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU>	8-94441-365-0	01	1	0302-0506	●	●	●
317	02.559 CLAMP; CONNECTOR 4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU>	8-94441-365-0	01	1	0507-0606	●	●	●
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	0302-	●	●	●

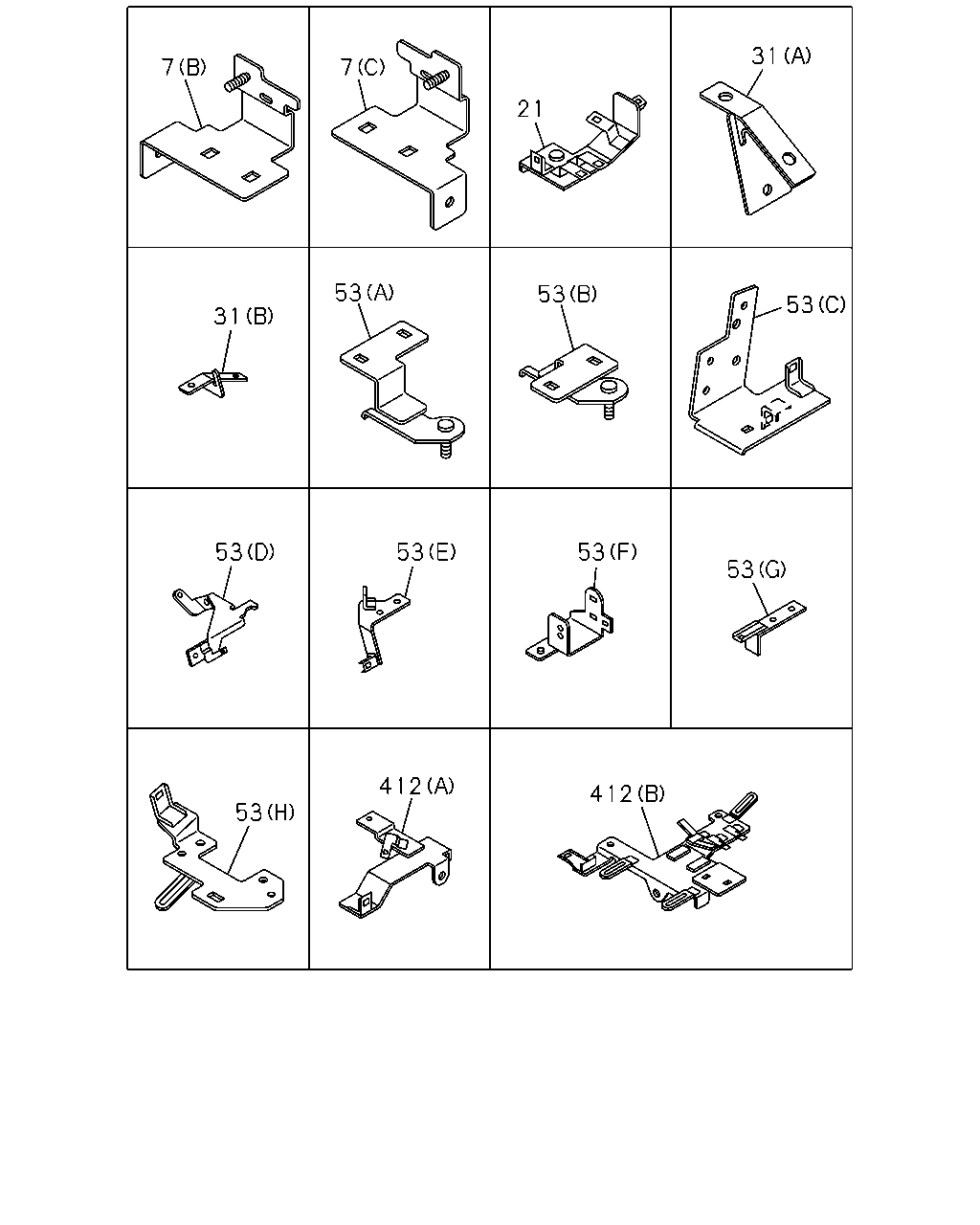

31 7 7 21 53 53 53 31 53 53 53 53 412 412 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR (A)	8-97102-247-2	01	1	0302-	●	●	●
7	02.559 BRACKET; CONNECTOR 4JJ1 ENG(LFB) (B)	8-98019-630-0	01	1	0607-	●	●	●
7	02.559 BRACKET; CONNECTOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98019-631-0	01	1	0607-	●	●	●
21	02.483 BRACKET; ENG HARNESS	8-98019-634-0	01	1	0607-	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX) (A)	8-97362-859-0	03	1	0302-0506	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1-TC ENG(RDM) (A)	8-97362-859-0	03	1	0507-0606	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	02	1	0607-		●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-98019-633-0	01	1	0607-		●	●
53	02.483 BRACKET; HARNESS (A)	8-98003-047-0	01	1	0507-0606	●
53	02.483 BRACKET; HARNESS (G)	8-98019-632-0	01	1	0607-	●
53	02.483 BRACKET; HARNESS (E)	8-98026-091-0	01	1	0607-	●	●	●
53	02.483 BRACKET; HARNESS (F)	8-98028-248-0	01	1	0607-	●	●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98030-988-2	01	1	0607-	●	●	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (C)	8-97357-140-0	01	1	0302-0506	●	●	●
53	02.483 BRACKET; HARNESS 4JH1-TC ENG(RDM) (C)	8-97357-140-0	01	1	0507-0606	●	●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-97373-532-2	01	1	0607-0611	●	●	●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-98018-899-1	01	1	0612-	●	●	●
53	02.483 BRACKET; HARNESS (B)	8-98003-046-0	01	1	0507-0606		●	●
53	02.483 BRACKET; HARNESS (C)	8-97357-140-0	01	1	0607-		●	●
412	02.559 BRACKET; HARNESS,TRANS (A)	8-97324-451-1	01	1	0302-0606	●	●	●
412	02.559 BRACKET; HARNESS,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-451-1	01	1	0607-	●	●	●
412	02.559 BRACKET; HARNESS,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97369-191-3	01	1	0607-	●	●	●

38 150 8 139 460 38 139 38 150 516 139 139 466 38 139 377 481 8 38 150 460 386 159 139 511 511 10 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	03	1	0302-0512	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0302-	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-0604	●	●	●
10	02.559 SCREW; BRKT TO BODY 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 06.008 (F) M8X12,M8X30 L=50	8-97032-290-0	01	1	0607-	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	0302-0305	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	0302-0305		●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	0306-0506		●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	0507-0512		●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	0601-0606		●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0607-		●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	0302-0506	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> 04.329 (A) M5X16 W/LK WASHER	9-03910-516-0	01	1	0507-0604	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> (A) M5X16 W/LK WASHER	0-36220-516-0	01	1	0605-0606	●	●	●
38	02.559 BOLT; CLIP,HARNESS 01.531 (E) M8X20 FLANGE	0-28650-820-0	01	1	0607-	●
38	02.559 BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0302-0512		●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	0302-0506		●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (B) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512		●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606		●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1 ENG(LFB) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0607-	●	●	●
139	02.559 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0302-0512	●
139	02.559 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●
139	02.559 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0607-	●
139	02.559 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (E) M8X35 FLANGE	0-28650-835-0	02	1	0607-	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (D) M8X10 W/LK WASHER	8-97025-916-0	02	1	0302-0610	●	●	●
139	02.559 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (D) M8X10 W/LK WASHER	8-98029-928-0	02	1	0611-	●	●	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0302-0506	●	●	●
139	02.559 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0507-0512	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-0606	●	●	●
139	02.559 BOLT; BRKT 03.162 (F) M6X20 FLANGE	0-28650-620-0	01	1	0607-	●	●	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX) (C)	8-97028-451-3	01	1	0302-0506	●	●	●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM) (C)	8-97028-451-3	01	1	0507-0606	●	●	●
139	02.559 BOLT; BRKT (C)	8-97028-451-3	01	1	0607-		●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0607-		●	●
150	02.343 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (C) M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●
150	02.343 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●	●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0507-0512	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0507-0512		●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	0601-0606	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	0601-0606		●	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●	●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0507-0512	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0606	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0302-	●	●	●
377	02.559 BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0302-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0302-0506	●	●	●
386	02.559 BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0507-	●	●	●
460	02.559 BOLT; HARNESS PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 04.930 (A) M6X20 FLANGE	0-28680-620-0	02	1	0302-0512	●
460	02.559 BOLT; HARNESS PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	0601-0606	●
460	02.559 BOLT; HARNESS PROTECTOR 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	04	1	0607-	●
466	02.483 BOLT; HEAT PROTECTOR 02.183 M8X35 FLANGE	0-28680-835-0	02	1	0302-0512	●
466	02.483 BOLT; HEAT PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0601-0606	●
466	02.483 BOLT; HEAT PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0607-	●	●	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1 ENG(RJX) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0302-0506		●	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0507-0512		●	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-0606		●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0302-0512	●	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0302-0604	●	●	●
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702	●	●	●
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-	●	●	●
516	02.559 BOLT; HARNESS 4JJ1 ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-	●	●	●

16 16 264 48 16 264 483 16 49 48 464 22 22 22 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS (C) ID=24 H=40 L=24	1-09701-243-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (G) 1 SET=5 PIECE	1-09987-214-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.589 (E) ID=27	5-09700-323-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (B) ID=12	5-09700-331-0	AR	1	0302-0302	●	●	●
16	02.559 CLIP; HARNESS 01.150 (B) ID=12	8-97367-983-0	AR	1	0303-0606	●	●	●
16	02.559 CLIP; HARNESS 03.162 (F) L=140	5-09707-031-1	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (H) ID=10 & 16	8-94413-325-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (I) ID=22 & 22	8-94464-837-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (J) ID=6 & 10-13	8-97069-515-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (L) L=100	8-94327-067-1	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (M) L=135	1-09987-143-1	AR	1	0607-	●	●	●
16	02.559 CLIP; HARNESS (N) ID=20	8-94241-972-0	AR	1	0607-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0607-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.425 (B) ID=6 & 8.3	8-94167-742-0	01	1	0607-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.162 (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0607-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=33 L=63	1-09700-807-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=31 L=30	1-09700-969-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31.5 H=23 L=25	1-09701-017-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=32 L=35	1-09701-244-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (F) ID=27	5-09700-323-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (K) T=4.5 & 9	5-09709-023-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (D) T=9.2 & 9	5-09709-025-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (L) T=5.5	5-09709-047-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) T=4.5 & 13	5-09709-096-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (G) L=330	5-09709-118-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=20	8-94169-650-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) ID=9	8-97063-874-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=35 L=35	1-09700-895-0	AR	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=40 L=90	1-09701-290-0	AR	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=20	5-09700-321-0	AR	1	0607-	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1 ENG(RJX) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0302-0506	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0507-0606	●
49	02.559 CLIP; GEN HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0507-0606		●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0302-0506	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0302-	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 ID=6.5	8-94257-639-0	01	1	0302-0307	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) 02.559 ID=6.5	8-94257-639-0	01	1	0308-0506	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1-TC ENG(RDM) EXC. FRIGID ZONE VAR.2(W54) 02.559 ID=6.5	8-94257-639-0	01	1	0507-0606	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) 04.342 (A) L=197	1-83574-032-0	01	1	0302-0506	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.342 (A) L=197	1-83574-032-0	01	1	0507-0606	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0507-0606		●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0302-0506	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0507-0606	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0507-0606		●	●

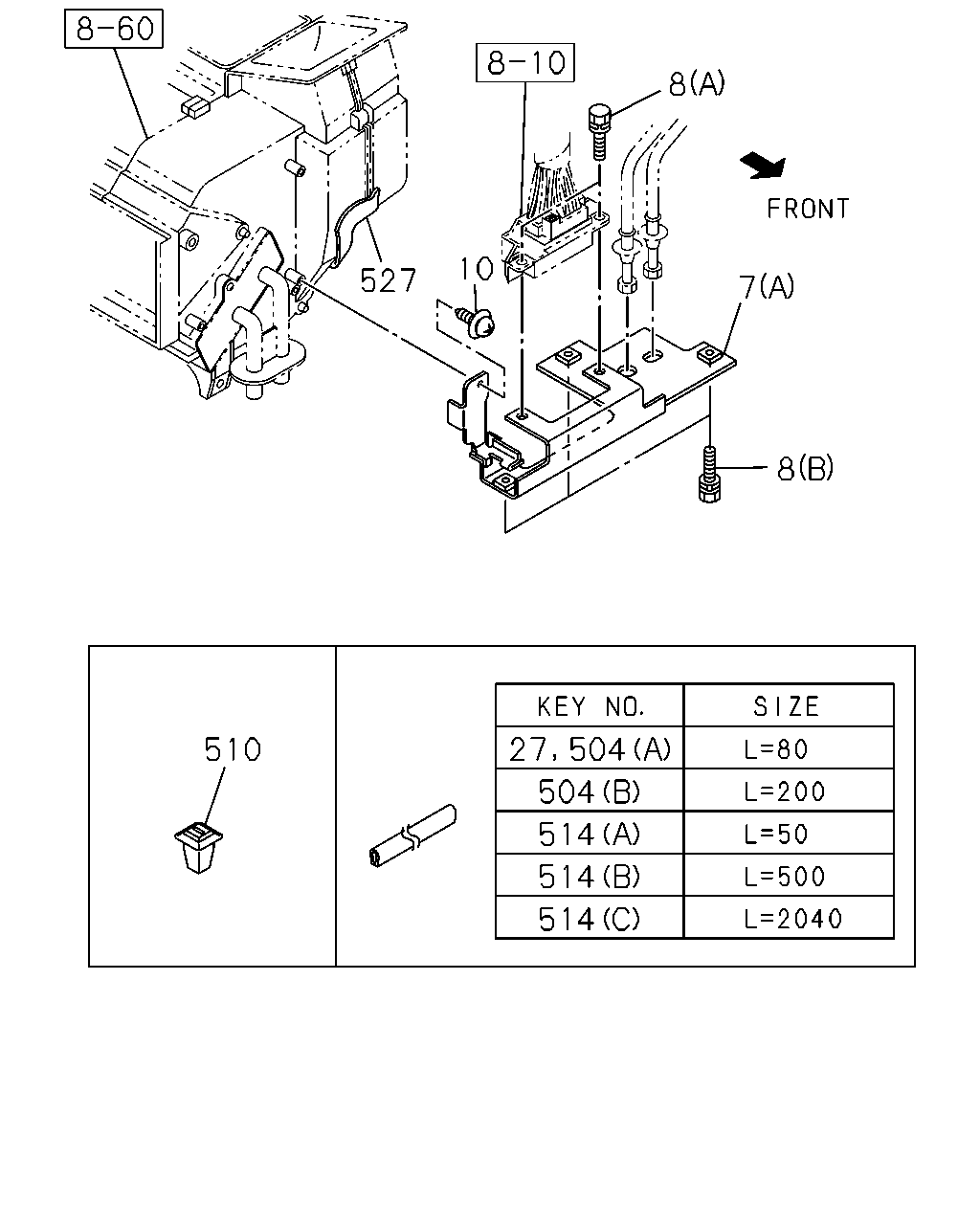

8 10 527 7 8 510 504 514 514 514 27 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR (A)	8-97102-247-2	01	1	0302-	●	●	●
7	02.559 BRACKET; CONNECTOR 4JJ1 ENG(LFB) (B)	8-98019-630-0	01	1	0607-	●	●	●
7	02.559 BRACKET; CONNECTOR 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98019-631-0	01	1	0607-	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR (B) M8X25 FLANGE	0-28680-825-0	03	1	0302-0512	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0302-	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-0604	●	●	●
10	02.559 SCREW; BRKT TO BODY 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0612	●	●	●
10	02.559 SCREW; BRKT TO BODY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0701-	●	●	●
27	02.559 PROTECTOR; EDGE 4JH1 ENG(RJX) 03.008 L=80	5-22439-006-0	01	1	0302-0506		●	●
504	02.559 PROTECTOR; HARNESS EXC. DOOR MIRROR WIDE ANGLE<7QF> 03.008 (A) L=80	5-22439-006-0	01	1	0607-0607	●
504	02.559 PROTECTOR; HARNESS 03.008 (A) L=80	5-22439-006-0	01	1	0607-	●
504	02.559 PROTECTOR; HARNESS EXC. DOOR MIRROR WIDE ANGLE<7QF> 03.008 (A) L=80	5-22439-006-0	01	1	0607-	●
504	02.559 PROTECTOR; HARNESS 04.785 (B) L=200	8-97096-423-0	01	1	0302-		●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0302-	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (C) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0302-0606	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (C) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0607-	●	●	●
514	02.559 FINISHER; HARNESS (B) L=290 SERVICED BY L=500	1-79937-746-0	02	1	0607-	●	●	●
514	02.559 FINISHER; HARNESS ADJUST HEADLAMP<6RC> 03.885 (A) L=50	8-94270-377-1	01	1	0507-0508	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) 16.550 (C) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0302-0506	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (C) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0302-0506	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (C) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0302-0506	●	●	●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM) 16.550 (C) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0507-0606	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (C) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0507-0606	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (C) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0507-0606	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (C) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0607-	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0302-0503	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0504-0506	●	●	●
514	02.559 FINISHER; HARNESS (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0504-0506	●	●	●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM) (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-0606	●	●	●
514	02.559 FINISHER; HARNESS (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-0606	●	●	●
514	02.559 FINISHER; HARNESS (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0607-	●	●	●
527	02.559 TAPE; SOFT,CONNECTOR 100X100	8-94232-622-0	01	1	0302-	●	●	●

16 16 48 16 48 52 48 16 48 48 48 48 48 48 48 16 48 48 551 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS (C) ID=24 H=40 L=24	1-09701-243-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (G) 1 SET=5 PIECE	1-09987-214-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.589 (E) ID=27	5-09700-323-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (B) ID=12	5-09700-331-0	AR	1	0302-0302	●	●	●
16	02.559 CLIP; HARNESS 01.150 (B) ID=12	8-97367-983-0	AR	1	0303-0606	●	●	●
16	02.559 CLIP; HARNESS 03.162 (F) L=140	5-09707-031-1	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (H) ID=10 & 16	8-94413-325-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (I) ID=22 & 22	8-94464-837-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (J) ID=6 & 10-13	8-97069-515-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (L) L=100	8-94327-067-1	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (M) L=135	1-09987-143-1	AR	1	0607-	●	●	●
16	02.559 CLIP; HARNESS (N) ID=20	8-94241-972-0	AR	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=33 L=63	1-09700-807-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=31 L=30	1-09700-969-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31.5 H=23 L=25	1-09701-017-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=32 L=35	1-09701-244-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (F) ID=27	5-09700-323-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (K) T=4.5 & 9	5-09709-023-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (D) T=9.2 & 9	5-09709-025-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (L) T=5.5	5-09709-047-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) T=4.5 & 13	5-09709-096-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (G) L=330	5-09709-118-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=20	8-94169-650-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) ID=9	8-97063-874-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=35 L=35	1-09700-895-0	AR	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=40 L=90	1-09701-290-0	AR	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=20	5-09700-321-0	AR	1	0607-	●	●	●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0302-		●	●
551	02.559 CLIP; HARNESS,SIDE TURN 02.525 T=4.5 & 9	5-09709-023-0	02	1	0302-0606			●

219 219 515 219 294 469 524 294 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0302-0305	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0302-0305	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0302-0305		●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0506	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0506		●	●
219	02.559 NUT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0507-0602	●
219	02.559 NUT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-0606	●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
219	02.559 NUT 4JH1 ENG(RJX) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0302-0506	●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM) FUEL SEDIMENTER WITH HEATER<6HU> 09.744 (A) M5 FLANGE	5-09440-003-0	01	1	0507-0606	●	●	●
219	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
219	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0302-0602		●	●
219	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0302-0506		●	●
219	02.559 NUT 4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0507-0602		●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0507-0602		●	●
219	02.559 NUT 4JH1-TC ENG(RDM) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-0606		●	●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-0606		●	●
219	02.559 NUT (D)	8-97108-658-0	01	1	0302-0606		●	●
294	02.559 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0302-0602	●	●
294	02.559 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0302-0602	●	●	●
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-0606	●	●	●
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0607-	●	●	●
294	02.559 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0607-	●	●	●
294	02.559 NUT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602	●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
469	02.559 NUT; PROTECTOR 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506		●	●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
515	02.559 NUT; BRKT 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602	●	●	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606	●	●	●
515	02.559 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
515	02.559 NUT; BRKT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
515	02.559 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
515	02.559 NUT; BRKT 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	02	1	0302-0506	●	●	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	02	1	0507-0602	●	●	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0606	●	●	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	0607-		●	●
524	02.559 NUT; HARNESS 4JH1 ENG(RJX) 01.540 M8 FLANGE	0-91150-208-0	01	1	0302-0506	●	●	●
524	02.559 NUT; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	01	1	0507-0602	●
524	02.559 NUT; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0507-0602		●	●
524	02.559 NUT; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606	●
524	02.559 NUT; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0606		●	●

48 488 48 14 16 22 48 162 220 16 205 48 142 488 16 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	02.559 CLIP; BAND,HARNESS ADJUST HEADLAMP<6RC> 03.162 L=140	5-09707-031-1	01	1	0302-0506	●	●	●
14	02.559 CLIP; BAND,HARNESS 4JH1-TC ENG(RDM) 03.162 L=140	5-09707-031-1	01	1	0507-0606	●	●	●
14	02.559 CLIP; BAND,HARNESS ADJUST HEADLAMP<6RC> 03.162 L=140	5-09707-031-1	01	1	0507-0606	●	●	●
14	02.559 CLIP; BAND,HARNESS ADJUST HEADLAMP<6RC> 03.162 L=140	5-09707-031-1	01	1	0607-	●	●	●
16	02.559 CLIP; HARNESS (C) ID=24 H=40 L=24	1-09701-243-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (G) 1 SET=5 PIECE	1-09987-214-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.589 (E) ID=27	5-09700-323-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (B) ID=12	5-09700-331-0	AR	1	0302-0302	●	●	●
16	02.559 CLIP; HARNESS 01.150 (B) ID=12	8-97367-983-0	AR	1	0303-0606	●	●	●
16	02.559 CLIP; HARNESS 03.162 (F) L=140	5-09707-031-1	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (H) ID=10 & 16	8-94413-325-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (I) ID=22 & 22	8-94464-837-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (J) ID=6 & 10-13	8-97069-515-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (K) ID=15-32	8-97174-404-0	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (L) L=100	8-94327-067-1	AR	1	0302-	●	●	●
16	02.559 CLIP; HARNESS (M) L=135	1-09987-143-1	AR	1	0607-	●	●	●
16	02.559 CLIP; HARNESS (N) ID=20	8-94241-972-0	AR	1	0607-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0607-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.425 (B) ID=6 & 8.3	8-94167-742-0	01	1	0607-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 03.162 (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0607-	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1 ENG(LFB) 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=33 L=63	1-09700-807-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=31 L=30	1-09700-969-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31.5 H=23 L=25	1-09701-017-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (P) ID=32 L=35	1-09701-244-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (E) L=170.3	1-09987-182-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (F) ID=27	5-09700-323-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (K) T=4.5 & 9	5-09709-023-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (D) T=9.2 & 9	5-09709-025-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (L) T=5.5	5-09709-047-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (I) T=4.5 & 13	5-09709-096-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS 03.008 (G) L=330	5-09709-118-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=20	8-94169-650-0	AR	1	0302-0606	●	●	●
48	02.559 CLIP; FRAME HARNESS (Q) ID=9	8-97063-874-0	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	0302-	●	●	●
48	02.559 CLIP; FRAME HARNESS (R) ID=35 L=35	1-09700-895-0	AR	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (T) ID=40 L=90	1-09701-290-0	AR	1	0607-	●	●	●
48	02.559 CLIP; FRAME HARNESS (S) ID=20	5-09700-321-0	AR	1	0607-	●	●	●
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0302-0506	●	●	●
142	02.559 CLIP; HARNESS,ENG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=170.3	1-09987-182-0	01	1	0607-	●	●	●
162	02.559 CLIP; SW HARNESS 03.162 L=140	5-09707-031-1	01	1	0607-	●	●	●
162	02.559 CLIP; SW HARNESS 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0302-0506	●	●	●
162	02.559 CLIP; SW HARNESS 4JH1-TC ENG(RDM) 03.162 L=140	5-09707-031-1	01	1	0507-0507	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0302-	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	02	1	0302-0506	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1-TC ENG(RDM) 03.162 L=140	5-09707-031-1	02	1	0507-0606	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) 04.342 (A) L=197	1-83574-032-0	01	1	0302-0506	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 04.342 (A) L=197	1-83574-032-0	01	1	0507-0606	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0507-0606		●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0302-0506	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0507-0606	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0507-0606		●	●
488	02.559 CLIP; CABLE,TRAILER (B) L=170.3	1-09987-182-0	02	1	0302-	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0302-	●	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0302-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
