◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#22632) — 283 parça

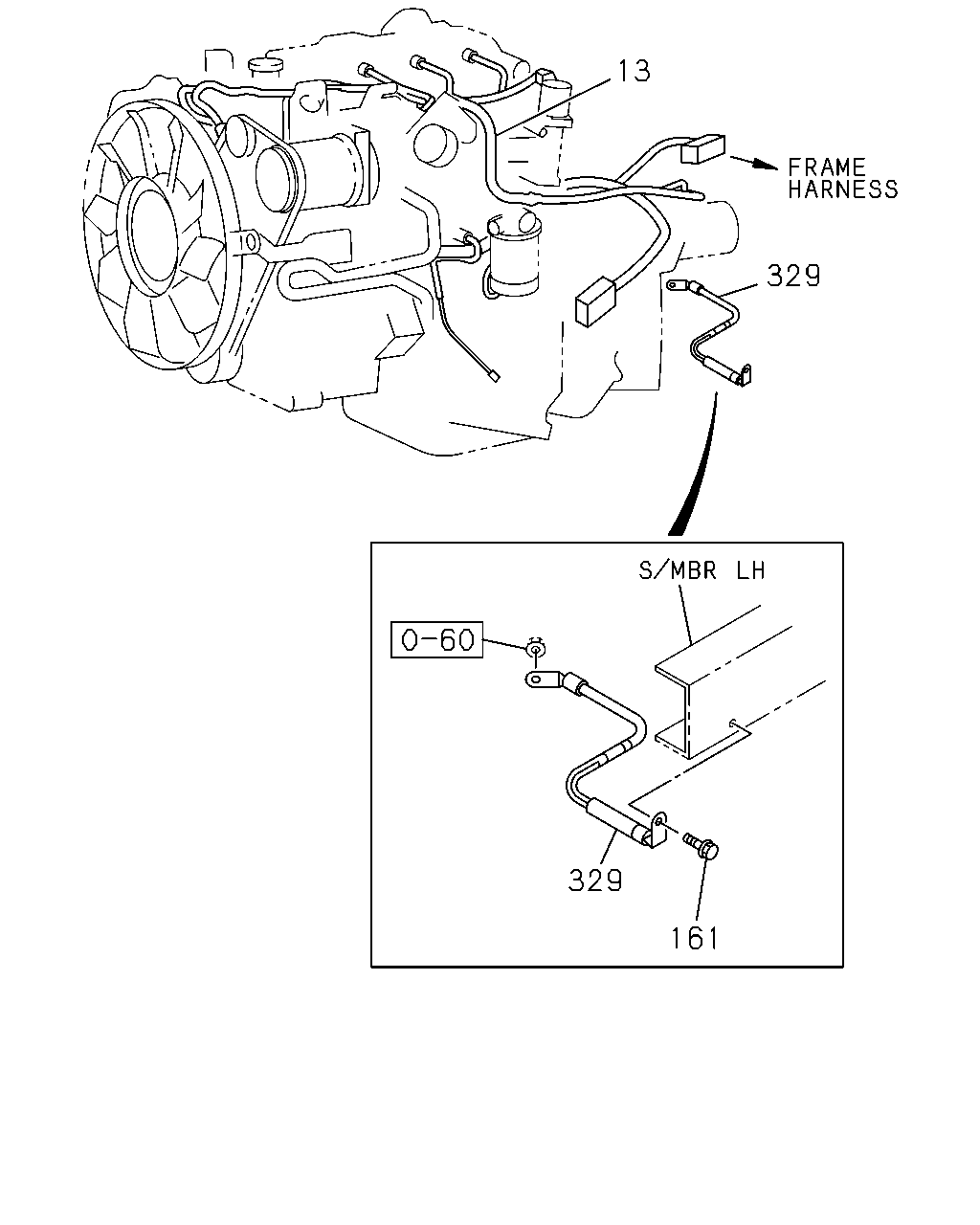

çizim 10794
13 329 329 161
BalonParca AdiParca NoAdetTipApplied Date A B C
13 02.525 HARNESS; ENG
GENERATOR 12V80A(K97) 		8-97261-132-5 01 1 0302-0606 ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) 		8-97388-800-7 01 1 0607-0703 ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) 		8-98083-034-3 01 1 0704- ● ● ●
13 02.525 HARNESS; ENG
EXC. GENERATOR 12V80A(K97) 		8-97240-032-6 01 1 0302-0606 ● ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1 ENG(LFB) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0607- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97305-771-0 01 1 0302-0506 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) 		8-97305-771-0 01 1 0507-0606 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1 ENG(LFB) 		8-98043-362-0 01 1 0607- ● ● ●

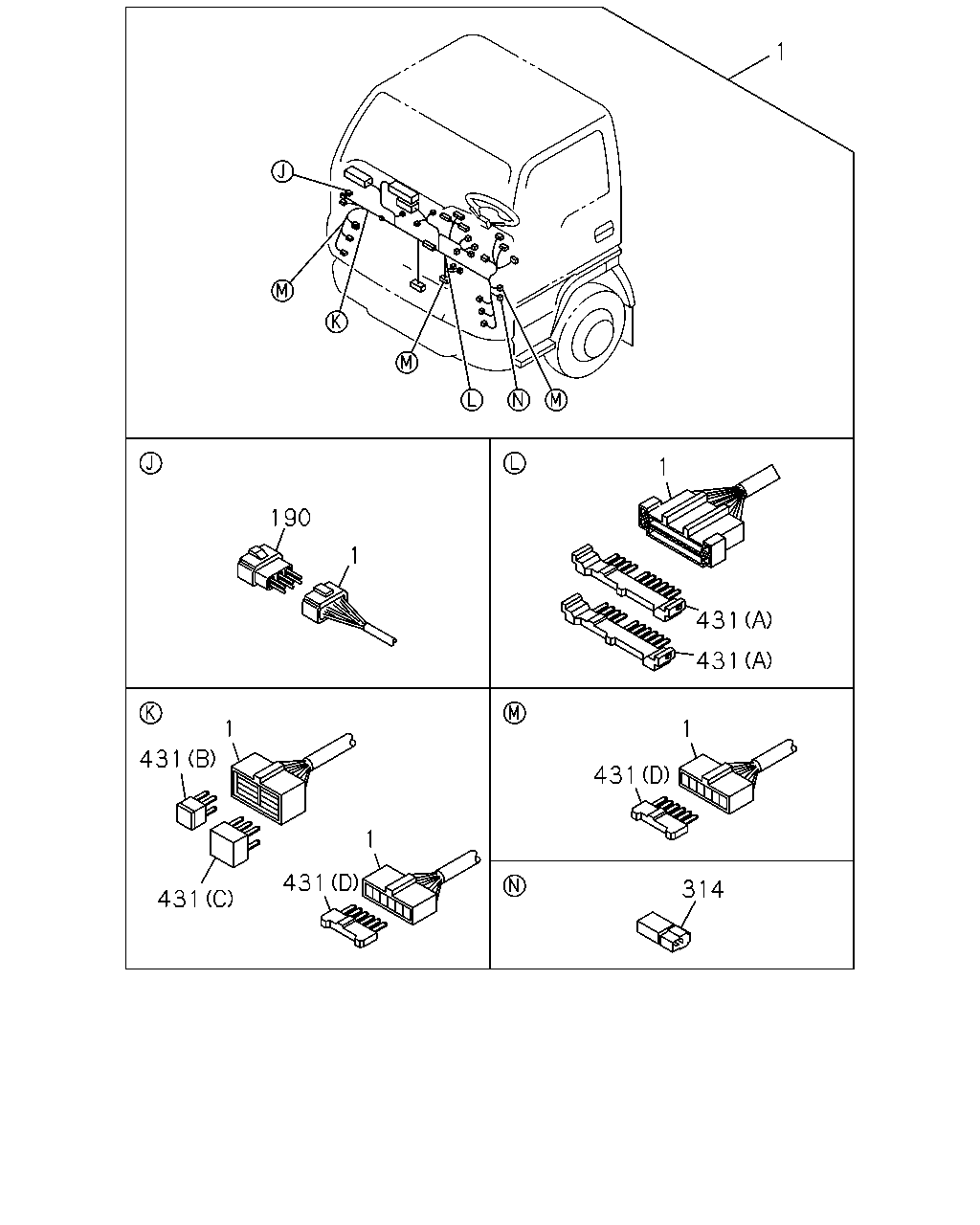

çizim 12587
1 1 190 1 431 431 1 1 431 431 1 431 314 431
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-674-1 01 1 0302-0506 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-616-2 01 1 0507-0512 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) L=2192 		8-98035-286-0 01 1 0601-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-331-3 01 1 0607-0610 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-111-0 01 1 0611- ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-330-3 01 1 0607-0610 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-110-0 01 1 0611- ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JH1-TC ENG(RDM) 		5-82690-411-0 01 1 0507-0606 ● ● ●
314 02.510 RESISTOR; HARNESS
4JJ1 ENG(LFB) BLUE 		1-82691-204-0 02 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 10P GREEN 		1-82699-599-0 02 1 0507-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (A) 10P GREEN 		1-82699-599-0 02 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 4P 		8-97077-939-0 02 1 0507-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (B) 4P 		8-97077-939-0 01 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 6P 		8-97077-941-0 02 1 0507-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (C) 6P 		8-97077-941-0 01 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (D) 3P & 3P 		1-82698-170-0 03 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (E) 6P 		8-97381-428-0 02 1 0607- ● ● ●

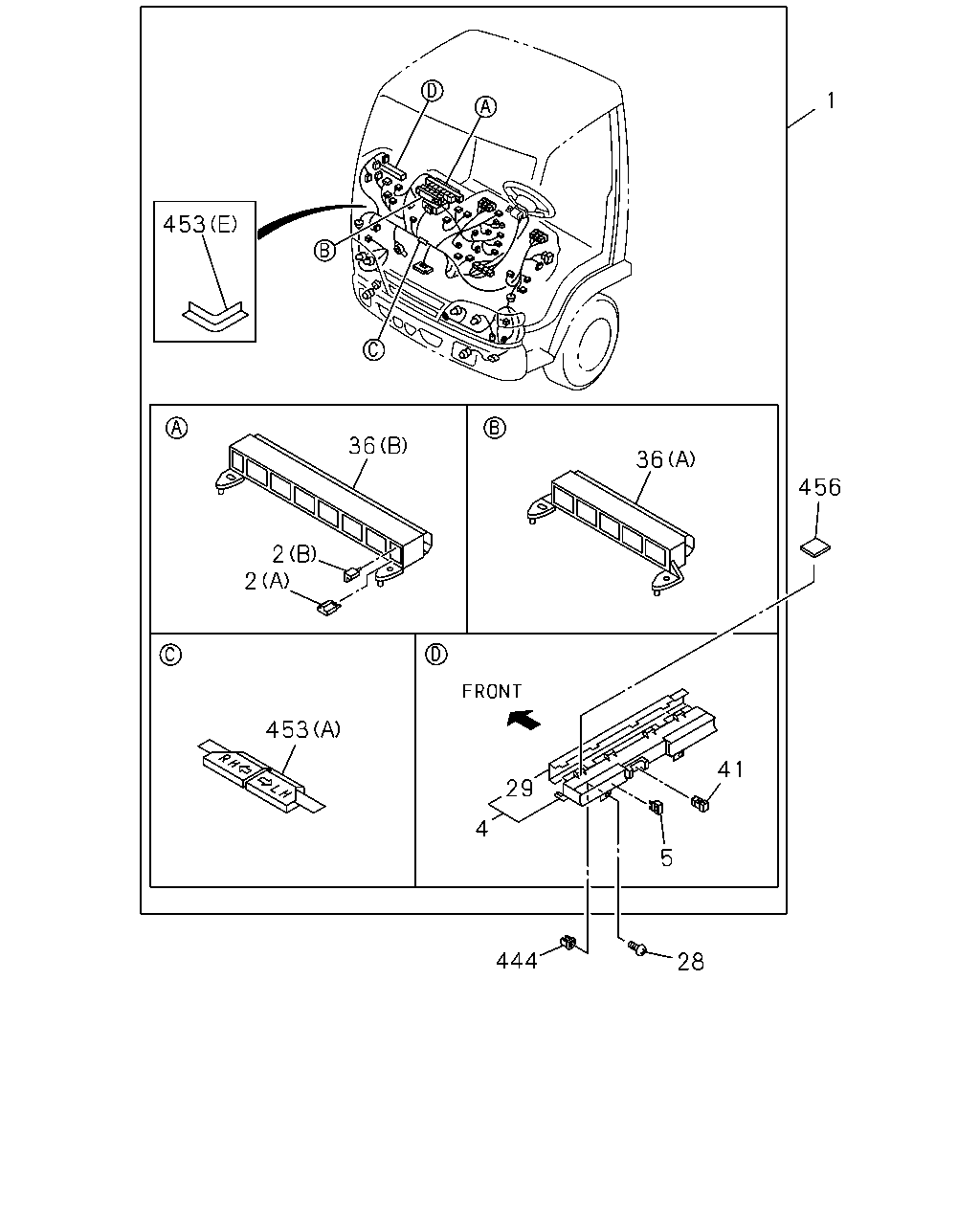

çizim 50290
1 453 36 36 456 2 2 453 41 29 4 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-674-1 01 1 0302-0506 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-616-2 01 1 0507-0512 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) L=2192 		8-98035-286-0 01 1 0601-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-331-3 01 1 0607-0610 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-111-0 01 1 0611- ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-330-3 01 1 0607-0610 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-110-0 01 1 0611- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1 ENG(RJX) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0302-0506 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0507-0606 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JJ1 ENG(LFB) (B) BLACK 2P-1.5A 		8-94422-639-1 04 1 0607- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0507-0606 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JJ1 ENG(LFB) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0607-0610 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JJ1 ENG(LFB) (A) BLACK 3P-1.5A 		8-94422-640-1 02 1 0611- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) 		8-97214-415-0 01 1 0302-0506 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1-TC ENG(RDM) 		8-97187-921-1 01 1 0507-0606 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1 ENG(LFB) 		8-97187-921-1 01 1 0607- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0302-0506 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0302-0506 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0302-0506 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0507- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0507- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0507-0606 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0607- ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0604 ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701- ● ● ●
29 02.483 COVER; FUSE BOX
4JH1-TC ENG(RDM) 		8-97074-955-0 01 1 0507-0606 ● ● ●
29 02.483 COVER; FUSE BOX
4JJ1 ENG(LFB) 		8-97074-955-0 01 1 0607- ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (B) 		8-97087-639-1 01 1 0302-0506 ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (B) 		8-97187-918-1 01 1 0507-0606 ● ● ●
36 02.530 BOX; RELAY
4JJ1 ENG(LFB) (B) 		8-97187-918-1 01 1 0607- ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (A) 		8-97087-640-1 01 1 0302-0506 ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (A) 		8-97087-640-2 01 1 0507-0606 ● ● ●
36 02.530 BOX; RELAY
4JJ1 ENG(LFB) (A) 		8-97087-640-2 01 1 0607- ● ● ●
41 08.821 PULLER; FUSE
4JH1 ENG(RJX) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0302-0506 ● ● ●
41 08.821 PULLER; FUSE
4JH1-TC ENG(RDM) 		8-97103-388-0 01 1 0507-0606 ● ● ●
41 08.821 PULLER; FUSE
4JJ1 ENG(LFB) 		8-97103-388-0 01 1 0607- ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0302- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-1 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (I) 		8-97258-061-0 02 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-94417-716-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-94417-716-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (H) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94482-169-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-94482-169-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (G) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94452-553-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94452-553-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) 		8-94452-553-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97074-957-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97074-957-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (A) 		8-97074-957-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-97093-668-1 01 1 0302-0506 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-97093-668-1 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0302-0506 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) 		8-97120-589-0 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (J) 		8-97062-169-0 01 1 0607- ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0302- ● ● ●

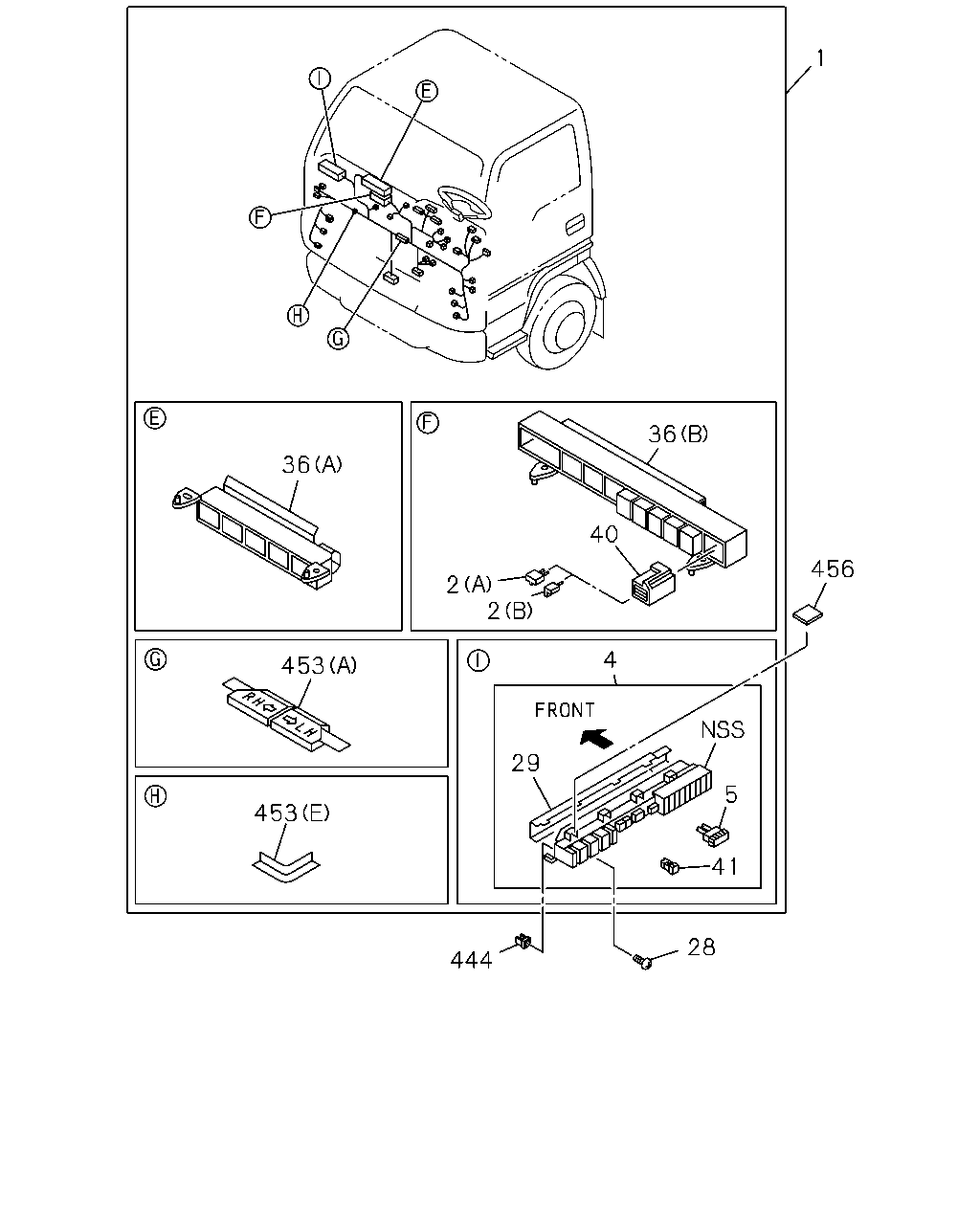

çizim 50367
1 36 36 40 456 2 2 4 453 29 5 453 41 28 444
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97331-674-1 01 1 0302-0506 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-616-2 01 1 0507-0512 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) L=2192 		8-98035-286-0 01 1 0601-0606 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-331-3 01 1 0607-0610 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-111-0 01 1 0611- ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-330-3 01 1 0607-0610 ● ● ●
1 02.480 HARNESS; CAB
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-110-0 01 1 0611- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1 ENG(RJX) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0302-0506 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0507-0606 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JJ1 ENG(LFB) (B) BLACK 2P-1.5A 		8-94422-639-1 04 1 0607- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0507-0606 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JJ1 ENG(LFB) (A) BLACK 3P-1.5A 		8-94422-640-1 01 1 0607-0610 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JJ1 ENG(LFB) (A) BLACK 3P-1.5A 		8-94422-640-1 02 1 0611- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) 		8-97214-415-0 01 1 0302-0506 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1-TC ENG(RDM) 		8-97187-921-1 01 1 0507-0606 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1 ENG(LFB) 		8-97187-921-1 01 1 0607- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0302-0506 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0302-0506 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A CLEAR 		5-82516-005-0 AR 1 0302-0506 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0507- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0507- ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 0507-0606 ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0607- ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0604 ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701- ● ● ●
29 02.483 COVER; FUSE BOX
4JH1-TC ENG(RDM) 		8-97074-955-0 01 1 0507-0606 ● ● ●
29 02.483 COVER; FUSE BOX
4JJ1 ENG(LFB) 		8-97074-955-0 01 1 0607- ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (B) 		8-97087-639-1 01 1 0302-0506 ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (B) 		8-97187-918-1 01 1 0507-0606 ● ● ●
36 02.530 BOX; RELAY
4JJ1 ENG(LFB) (B) 		8-97187-918-1 01 1 0607- ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (A) 		8-97087-640-1 01 1 0302-0506 ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (A) 		8-97087-640-2 01 1 0507-0606 ● ● ●
36 02.530 BOX; RELAY
4JJ1 ENG(LFB) (A) 		8-97087-640-2 01 1 0607- ● ● ●
40 02.483 BOX; DIODE
4JJ1 ENG(LFB) BLACK 8P 		8-97078-064-1 01 1 0607- ● ● ●
41 08.821 PULLER; FUSE
4JH1 ENG(RJX) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0302-0506 ● ● ●
41 08.821 PULLER; FUSE
4JH1-TC ENG(RDM) 		8-97103-388-0 01 1 0507-0606 ● ● ●
41 08.821 PULLER; FUSE
4JJ1 ENG(LFB) 		8-97103-388-0 01 1 0607- ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0302- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-1 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (I) 		8-97258-061-0 02 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-94417-716-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-94417-716-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (H) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94482-169-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-94482-169-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (G) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94452-553-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94452-553-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) 		8-94452-553-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97074-957-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97074-957-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (A) 		8-97074-957-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-97093-668-1 01 1 0302-0506 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-97093-668-1 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0302-0506 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) 		8-97120-589-0 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (J) 		8-97062-169-0 01 1 0607- ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0302- ● ● ●

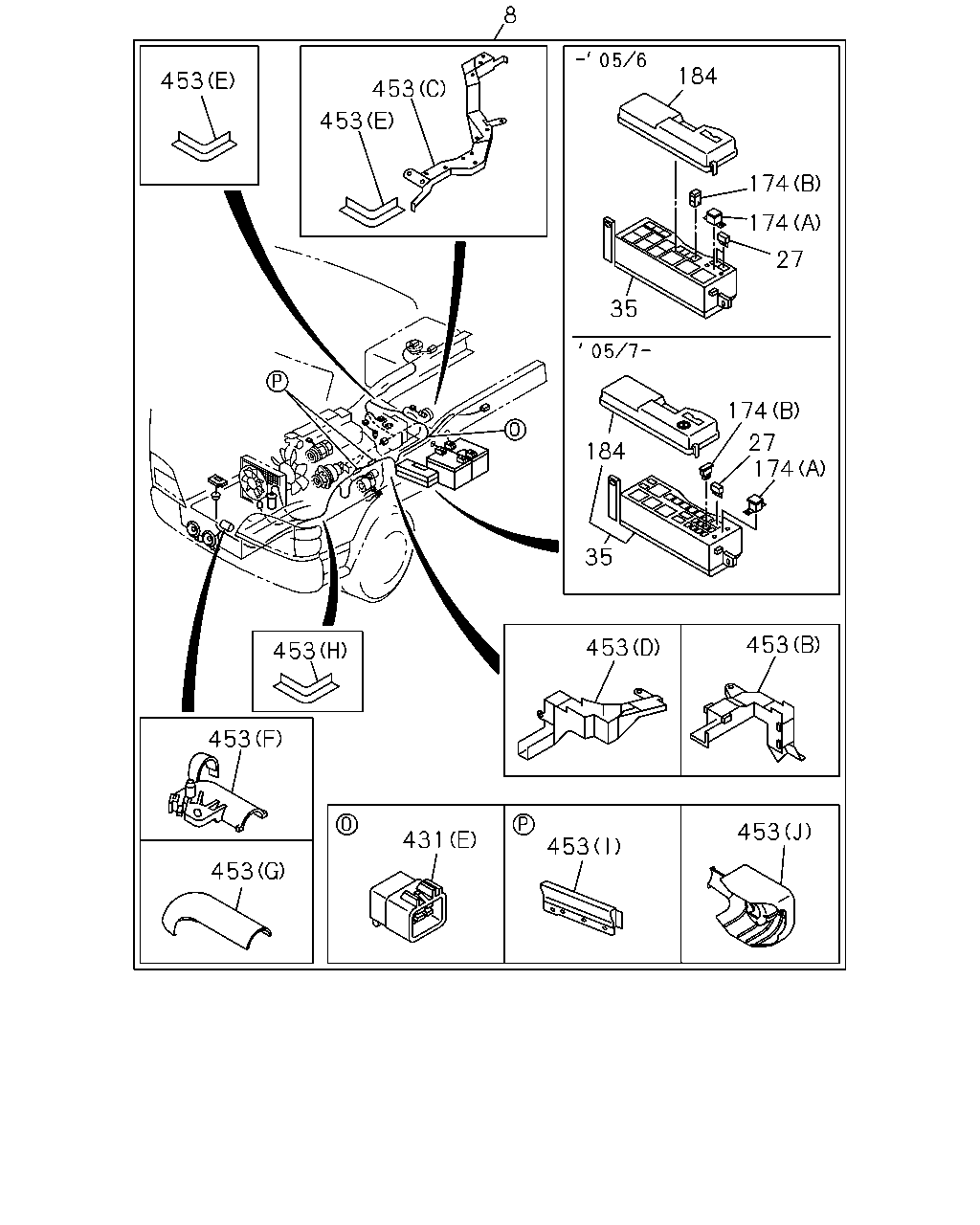

çizim 50727
8 184 453 453 453 174 174 27 35 174 27 174 184 35 453 453 453 453 453 431 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-605-2 01 1 0302-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-589-1 01 1 0507-0606 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-353-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-606-2 01 1 0302-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97383-590-1 01 1 0507-0606 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-354-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-702-1 01 1 0302-0303 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-768-1 01 1 0304-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-592-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-350-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-608-1 01 1 0302-0303 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-761-1 01 1 0304-0506 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-591-2 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-349-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-355-6 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-356-6 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-352-6 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-351-6 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-610-1 01 1 0302-0303 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-763-1 01 1 0304-0506 ●
27 08.965 FUSE UNIT
15A BLUE 		5-82516-003-0 01 1 0302-0506 ● ● ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) 10A MINI RED 		8-97062-022-0 01 1 0507-0606 ● ● ●
27 08.965 FUSE UNIT
4JJ1 ENG(LFB) 10A MINI RED 		8-97062-022-0 01 1 0607- ● ● ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) 15A MINI BLUE 		8-97062-023-0 01 1 0507-0606 ● ● ●
27 08.965 FUSE UNIT
4JJ1 ENG(LFB) 15A MINI BLUE 		8-97062-023-0 02 1 0607- ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97063-150-1 01 1 0302-0506 ● ● ●
35 02.530 BOX; RELAY & FUSE
4JH1-TC ENG(RDM) 		8-97377-739-0 01 1 0507-0606 ● ● ●
35 02.530 BOX; RELAY & FUSE
4JJ1 ENG(LFB) 		8-97377-739-0 01 1 0607- ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 80A BLACK 		8-94388-305-1 AR 1 0302-0506 ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0302-0506 ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0302-0506 ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-0 AR 1 0507- ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0507- ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 0507-0606 ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0507- ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 10A MINI RED 		8-97062-022-0 AR 1 0607- ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 15A MINI BLUE 		8-97062-023-0 AR 1 0607- ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0607- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1 ENG(LFB) 		8-97377-741-0 01 1 0607- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-97063-152-1 01 1 0302-0506 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JH1-TC ENG(RDM) 		8-97377-741-0 01 1 0507-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 10P GREEN 		1-82699-599-0 02 1 0507-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (A) 10P GREEN 		1-82699-599-0 02 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 4P 		8-97077-939-0 02 1 0507-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (B) 4P 		8-97077-939-0 01 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 6P 		8-97077-941-0 02 1 0507-0606 ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (C) 6P 		8-97077-941-0 01 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (D) 3P & 3P 		1-82698-170-0 03 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JJ1 ENG(LFB) (E) 6P 		8-97381-428-0 02 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-94452-553-0 02 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97075-705-2 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-0 01 1 0302-0506 ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97120-590-1 01 1 0507-0606 ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (I) 		8-97258-061-0 02 1 0607- ●
453 02.483 PROTECTOR; HARNESS
(H) 		8-94417-716-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (H) 		8-94417-716-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (H) 		8-94417-716-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
(G) 		8-94482-169-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-94482-169-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (G) 		8-94482-169-0 01 1 0607- ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94452-553-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94452-553-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (E) 		8-94452-553-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97074-957-0 01 1 0302-0506 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97074-957-0 01 1 0507-0606 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (A) 		8-97074-957-0 01 1 0607- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-97093-668-1 01 1 0302-0506 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-97093-668-1 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0302-0506 ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) 		8-97120-589-0 01 1 0507-0606 ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1 ENG(LFB) (J) 		8-97062-169-0 01 1 0607- ● ● ●

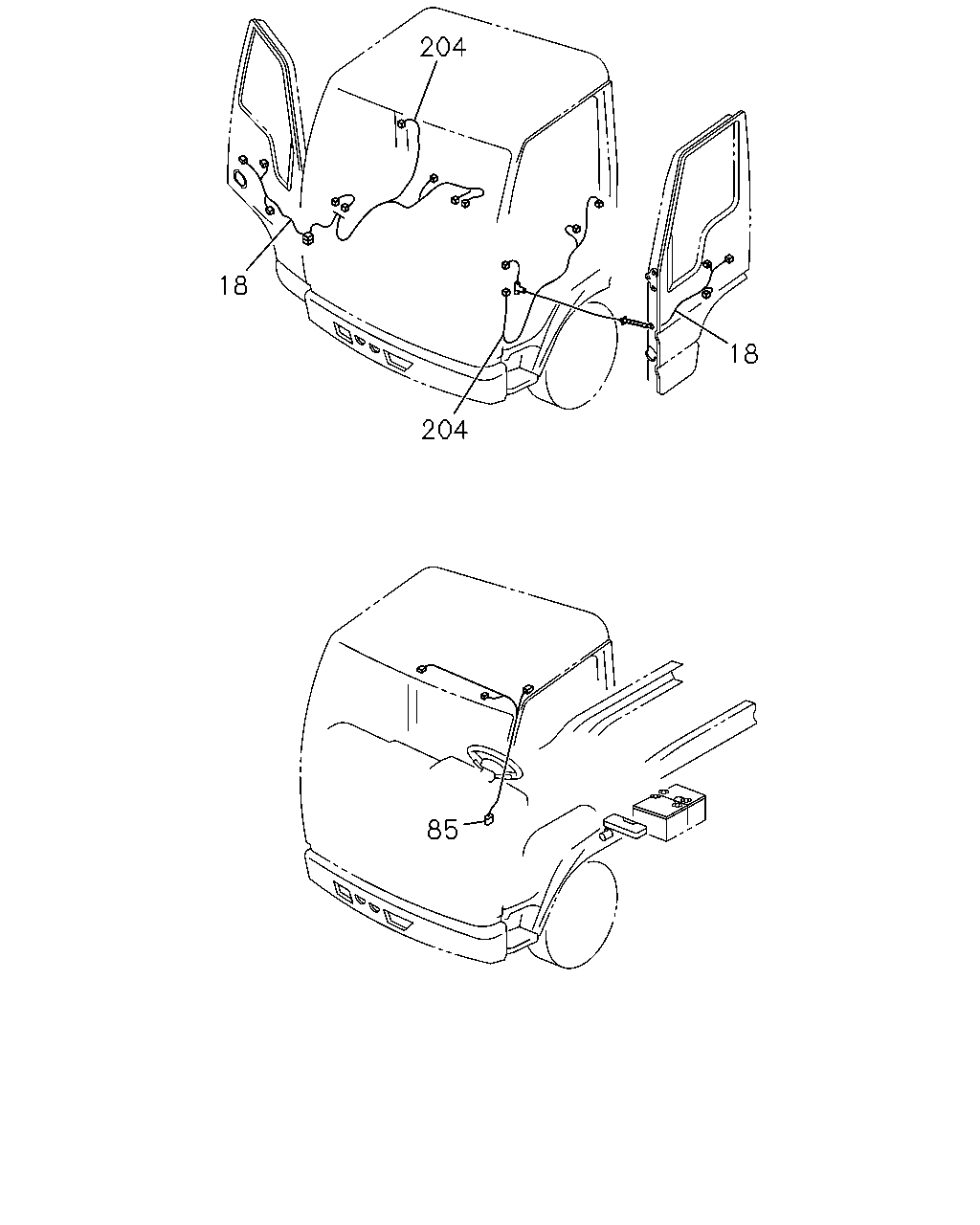

çizim 50845
204 18 18 204 85
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97185-142-1 01 1 0302- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97226-669-0 01 1 0302- ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97105-571-1 01 1 0302- ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97226-671-1 01 1 0302- ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0302-0302 ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0302-0302 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303-0606 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0607- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0607- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-145-0 01 1 0607- ● ● ●

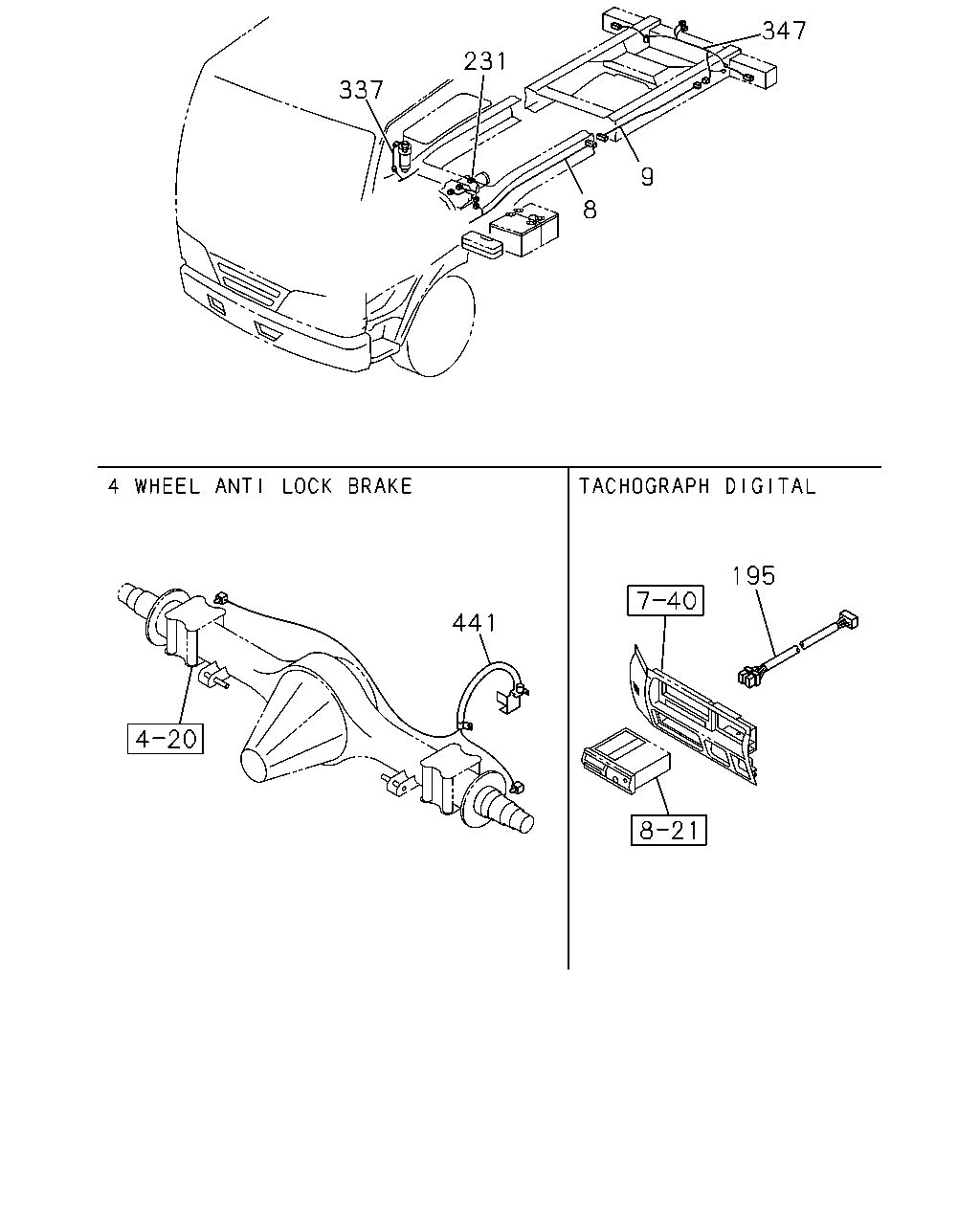

çizim 51396
347 231 337 9 8 195 441
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-605-2 01 1 0302-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-589-1 01 1 0507-0606 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-353-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-606-2 01 1 0302-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97383-590-1 01 1 0507-0606 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-354-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-702-1 01 1 0302-0303 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-768-1 01 1 0304-0506 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-592-3 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-350-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-608-1 01 1 0302-0303 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-761-1 01 1 0304-0506 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97383-591-2 01 1 0507-0606 ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-349-6 01 1 0607- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-355-6 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-356-6 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-352-6 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-351-6 01 1 0607- ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-610-1 01 1 0302-0303 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97364-763-1 01 1 0304-0506 ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-165-1 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-409-1 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. REAR WIDE TREAD(V4T) 		8-98019-409-1 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-162-1 01 1 0507- ● ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-054-2 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) 		8-98019-411-1 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-166-1 01 1 0507-0606 ●
9 02.480 HARNESS; FRAME,RR
4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98019-410-0 01 1 0607- ●
9 02.480 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97381-164-1 01 1 0507- ●
195 01.150 HARNESS; EXT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98034-981-0 01 1 0607- ● ● ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-511-2 01 1 0607- ● ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 0302-0606 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-657-0 01 1 0302-0302 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-153-0 01 1 0303- ● ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97351-462-0 01 1 0302-0606 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-212-3 01 1 0607- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97308-220-4 01 1 0302- ● ●
çizim 53827
13 575 329
BalonParca AdiParca NoAdetTipApplied Date A B C
13 02.525 HARNESS; ENG
GENERATOR 12V80A(K97) 		8-97261-132-5 01 1 0302-0606 ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) 		8-97388-800-7 01 1 0607-0703 ● ● ●
13 02.525 HARNESS; ENG
4JJ1 ENG(LFB) 		8-98083-034-3 01 1 0704- ● ● ●
13 02.525 HARNESS; ENG
EXC. GENERATOR 12V80A(K97) 		8-97240-032-6 01 1 0302-0606 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97305-771-0 01 1 0302-0506 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) 		8-97305-771-0 01 1 0507-0606 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1 ENG(LFB) 		8-98043-362-0 01 1 0607- ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1 ENG(RJX) 		8-97212-328-0 01 1 0302-0506 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 		8-97212-328-0 01 1 0507-0606 ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 		8-97212-328-0 01 1 0507-0606 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
