8-03 — LAMP; REAR AND REAR SIDE (#22631) — 69 parça

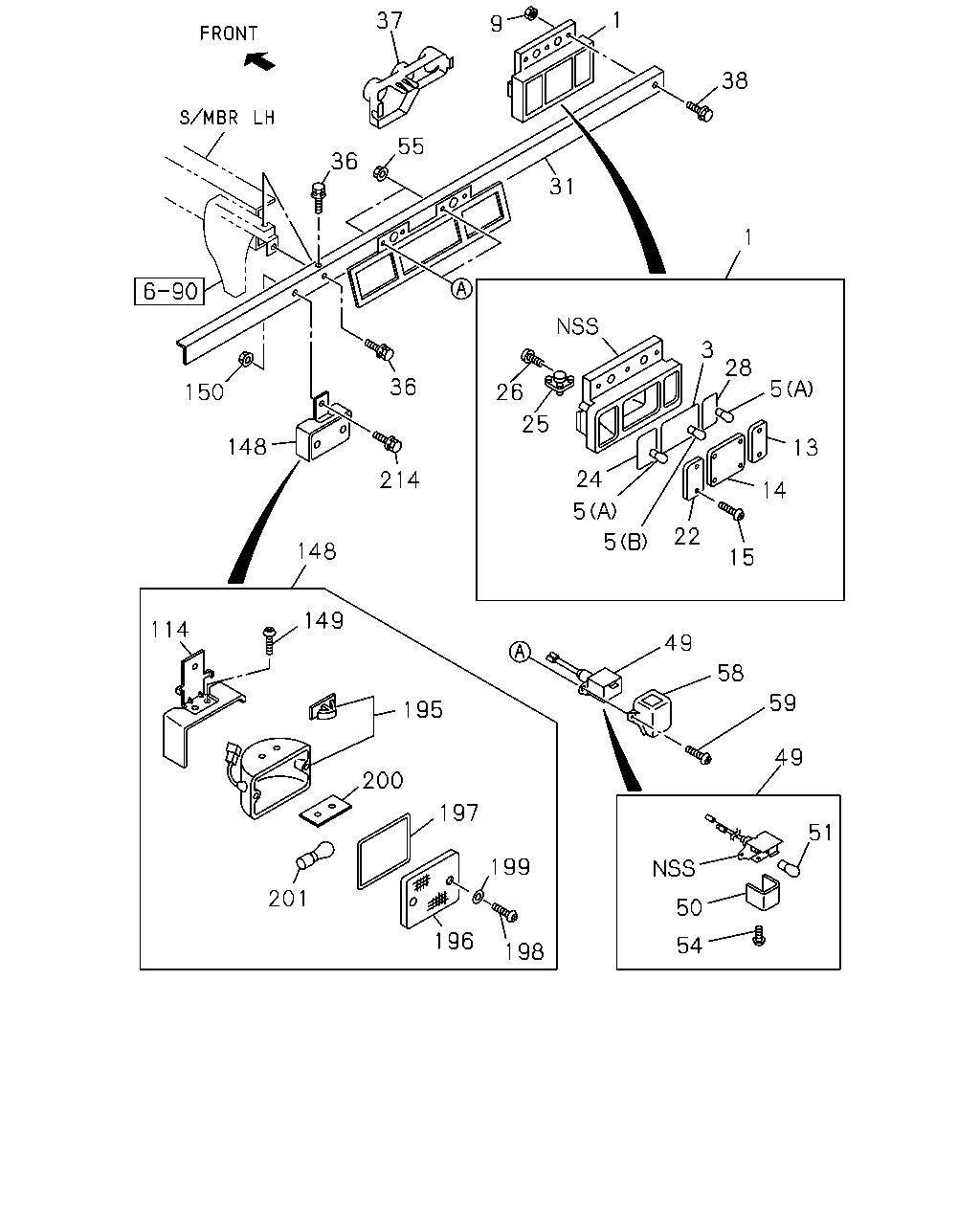

çizim 13318
1 37 9 38 55 36 31 1 3 28 36 5 150 26 25 148 13 24 214 14 5 22 5 148 15 149 114 49 58 59 195 49 200 197 51 199 201 50 196 54 198
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.679 LAMP ASM; RR COMB 8-97213-352-0 01 1 0302-0606 ● ● ●
1 02.679 LAMP ASM; RR COMB 8-97213-369-0 01 1 0607- ● ● ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-97213-353-0 01 1 0302-0606 ● ● ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-97213-370-0 01 1 0607- ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-351-0 01 1 0302-0606 ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-368-0 01 1 0607- ● ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 02 1 0302-0606 ● ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0607- ● ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0607- ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 0302-0606 ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0302-0606 ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0607- ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0607- ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0607- ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0607- ● ● ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 06 1 0302- ● ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-639-0 01 1 0302- ● ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-638-0 01 1 0302- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0302- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0302- ● ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 0302-0606 ● ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0607- ● ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0607- ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 02 1 0302-0606 ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0607- ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0607- ● ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 02 1 0302-0606 ● ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 01 1 0607- ● ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 01 1 0607- ● ● ●
25 02.810 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 0302- ● ● ●
26 02.812 SCREW; BACK HORN
09.655 M4X14 TAPPING 		9-07076-414-0 01 1 0302- ● ● ●
26 02.812 SCREW; BACK HORN
BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 02 1 0302- ● ● ●
26 02.812 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 01 1 0302- ● ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 02 1 0302-0606 ● ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 01 1 0607- ● ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 01 1 0607- ● ● ●
31 02.664 BRACKET; RR COMB LAMP
DOOR MIRROR WIDE ANGLE<7QF> 		8-97206-019-0 01 1 0302- ●
31 02.664 BRACKET; RR COMB LAMP 8-97206-019-0 01 1 0302- ● ●
31 02.664 BRACKET; RR COMB LAMP
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-97206-018-0 01 1 0302-0606 ●
31 02.664 BRACKET; RR COMB LAMP
EXC. DOOR MIRROR WIDE ANGLE<7QF> 		8-98030-832-0 01 1 0607- ●
36 02.664 BOLT; BRKT,RR COMB
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0302-0512 ● ● ●
36 02.664 BOLT; BRKT,RR COMB
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
37 02.680 COVER; RR COMB LAMP 8-94129-274-4 01 1 0302- ● ● ●
37 02.680 COVER; RR COMB LAMP 8-94128-858-4 01 1 0302- ● ● ●
38 02.689 BOLT; LAMP,RR COMB
02.664 M6X20 		8-94402-623-0 06 1 0302- ● ● ●
49 02.700 LAMP; LICENSE PLATE
12V 5W 		8-97105-382-0 02 1 0302-0606 ● ● ●
49 02.700 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 0607- ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 0302- ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-075-0 02 1 0302-0606 ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 0607- ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 02 1 0302- ● ● ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 04 1 0302- ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 0302- ● ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 04 1 0302- ● ● ●
114 02.679 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 0302- ● ● ●
148 02.679 LAMP ASM; RR FOG 8-97094-600-1 01 1 0302-0606 ● ● ●
148 02.679 LAMP ASM; RR FOG 8-97181-002-0 01 1 0607- ● ● ●
149 02.689 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 0302- ● ● ●
150 02.664 NUT; RR FOG LAMP
07.829 M6 FLANGE 		5-09440-004-0 01 1 0302- ● ● ●
195 02.679 LAMP UNIT; RR FOG 8-94336-322-0 01 1 0302- ● ● ●
196 02.679 LENS; RR FOG LAMP 8-94336-325-0 01 1 0302- ● ● ●
197 02.679 GASKET; RR FOG LAMP 8-94336-324-0 01 1 0302- ● ● ●
198 02.688 SCREW; LENS TO BODY 0-71190-416-0 02 1 0302- ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 0302- ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 0302- ● ● ●
201 08.991 BULB; RR FOG LAMP
12V 21W 		8-94124-074-0 01 1 0302-0606 ● ● ●
201 08.991 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 0607- ● ● ●
214 02.679 BOLT; RR FOG LAMP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0302-0512 ● ● ●
214 02.679 BOLT; RR FOG LAMP
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601- ● ● ●
