◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#22629) — 36 parça
çizim 13316
177 161 166 165 166
BalonParca AdiParca NoAdetTipApplied Date A B C
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR 8-97850-442-2 01 1 0302- ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-416-0 01 1 0302- ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0302-0512 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 0302- ● ● ●

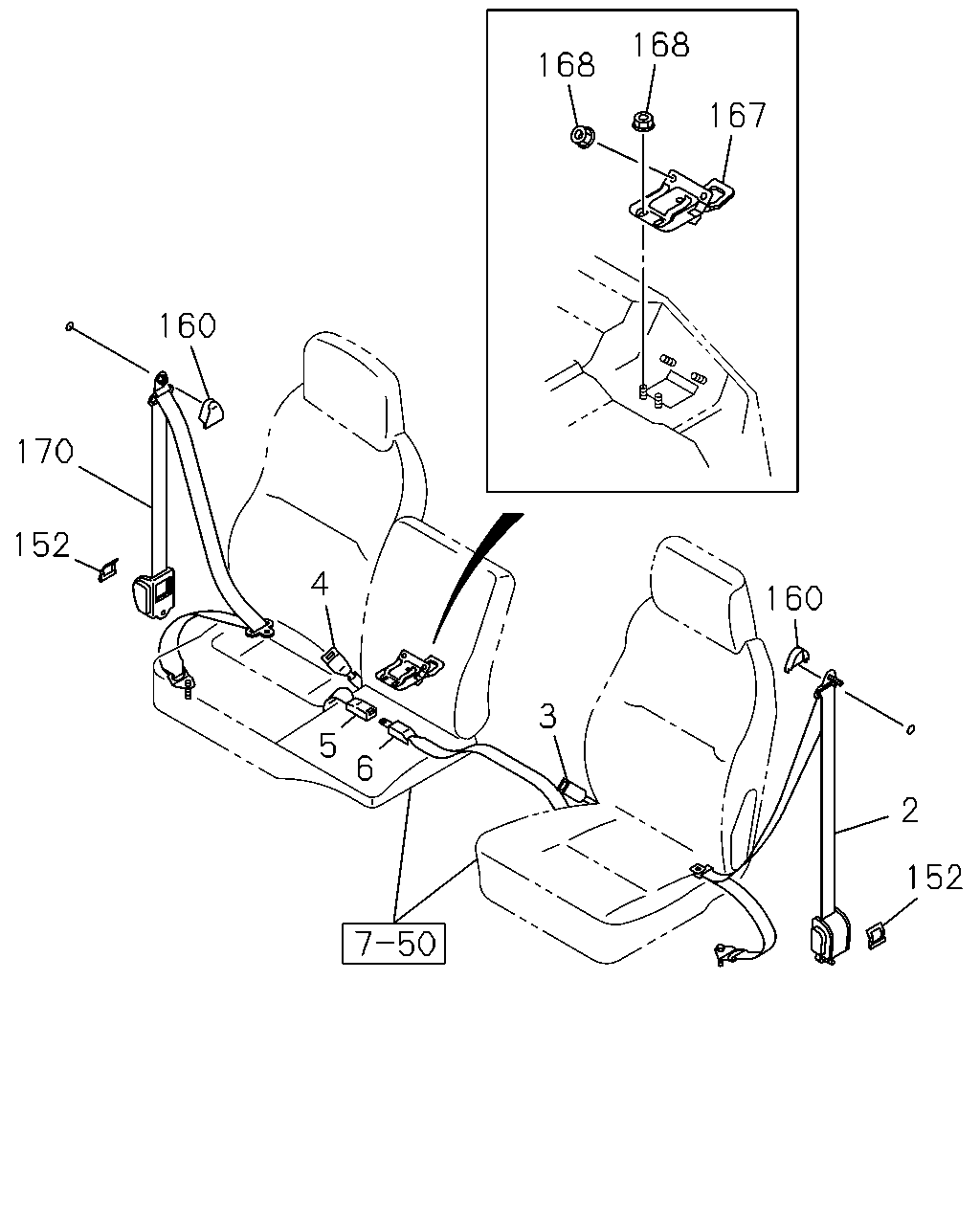

çizim 52278
168 168 167 160 170 152 4 160 3 5 6 2 152
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97394-520-1 01 1 0302-0406 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97400-779-0 01 1 0407-0503 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97400-889-0 01 1 0504-0506 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97400-886-1 01 1 0507- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97868-893-1 01 1 0302-0406 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-774-0 01 1 0407-0503 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-883-0 01 1 0504-0506 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-895-0 01 1 0507- ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-517-0 01 1 0302-0406 ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-780-0 01 1 0407-0503 ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97400-890-0 01 1 0504-0506 ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97400-891-0 01 1 0507- ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97326-221-0 01 1 0302-0409 ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97401-281-0 01 1 0410-0503 ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97401-501-0 01 1 0504-0506 ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97401-516-0 01 1 0507-0512 ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-304-0 01 1 0601- ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97394-525-1 01 1 0302-0406 ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97400-781-0 01 1 0407-0503 ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97400-892-0 01 1 0504-0506 ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97400-893-0 01 1 0507- ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0302- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0302-0506 ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0507- ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0302- ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0302-0712 ● ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97394-520-1 01 1 0302-0406 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97400-779-0 01 1 0407-0503 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97400-889-0 01 1 0504-0506 ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97400-886-1 01 1 0507- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
