◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#22628) — 45 parça
çizim 52245
1 17 99 18 2 19 12 24 228 13 72 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-768-2 01 1 0302-0506 ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-490-3 01 1 0507- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-769-1 01 1 0302-0506 ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-491-2 01 1 0507- ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-618-1 01 1 0302-0506 ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-100-1 01 1 0507- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97394-619-1 01 1 0302-0506 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-101-1 01 1 0507- ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> M8X20 		8-97255-906-0 02 1 0302- ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-018-0 01 1 0302-0506 ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-095-0 01 1 0507- ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0302-0604 ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97859-019-0 01 1 0302-0506 ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-096-0 01 1 0507- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> 		8-97854-947-3 01 1 0302- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0302-0611 ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.679 M8X20 W/PL WASHER 		8-98031-841-0 01 1 0612-0612 ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0701- ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0302- ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> 01.540 M8X35 W/LK WASHER 		0-50040-835-0 02 1 0302-0512 ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> 00.724 M8X35 W/LK WASHER 		0-50540-835-0 02 1 0601- ● ● ●
72 16.682 SPACER; SEAT ADJ
MANUAL TILT CAB<RWZ> 		8-97854-671-0 02 1 0302- ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> 		8-97854-087-0 01 1 0302- ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> 11.377 M4X6 		8-97042-273-0 01 1 0302- ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0302- ● ● ●

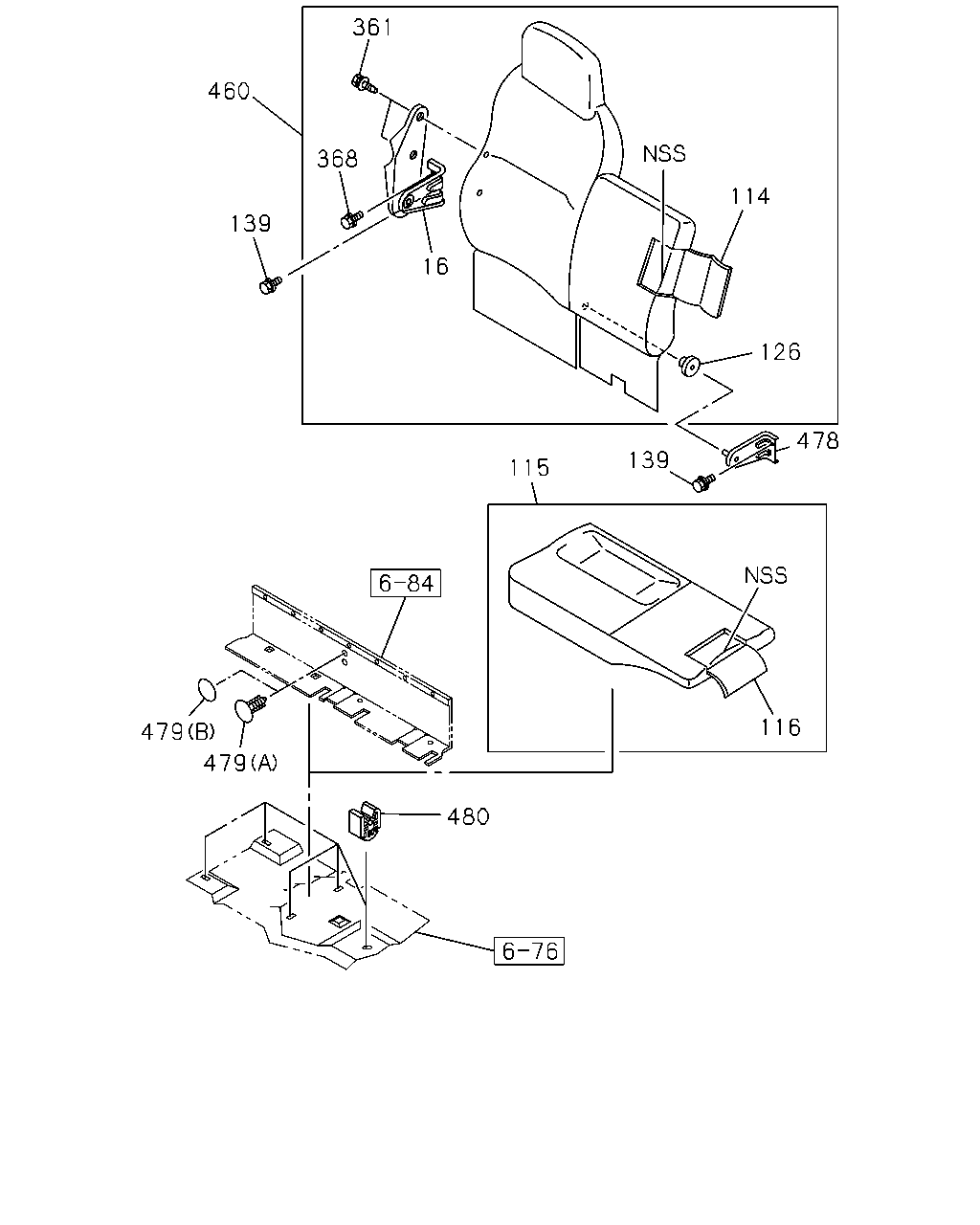

çizim 52249
361 460 368 114 139 16 126 478 139 115 116 479 479 480
BalonParca AdiParca NoAdetTipApplied Date A B C
16 16.682 ADJUSTER ASM; RECLINING
BLACK 		8-97859-274-3 01 1 0302- ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97394-774-1 01 1 0302-0506 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97400-498-2 01 1 0507- ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97394-724-2 01 1 0302-0506 ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97400-469-2 01 1 0507- ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97394-779-2 01 1 0302-0506 ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97400-503-1 01 1 0507- ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0302- ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0302-0611 ● ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 0612-0612 ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 03 1 0701- ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0302- ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0302- ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
DARK GRAY 		8-97394-719-2 01 1 0302-0506 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
DARK GRAY 		8-97400-466-2 01 1 0507- ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-187-0 01 1 0302- ● ● ●
479 16.716 PLUG; HINGE
04.931 (A) OD=15 L=14.5 		1-76378-157-0 02 1 0302-0506 ● ● ●
479 16.716 PLUG; HINGE
16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0507- ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0302- ● ● ●
