◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#22625) — 11 parça

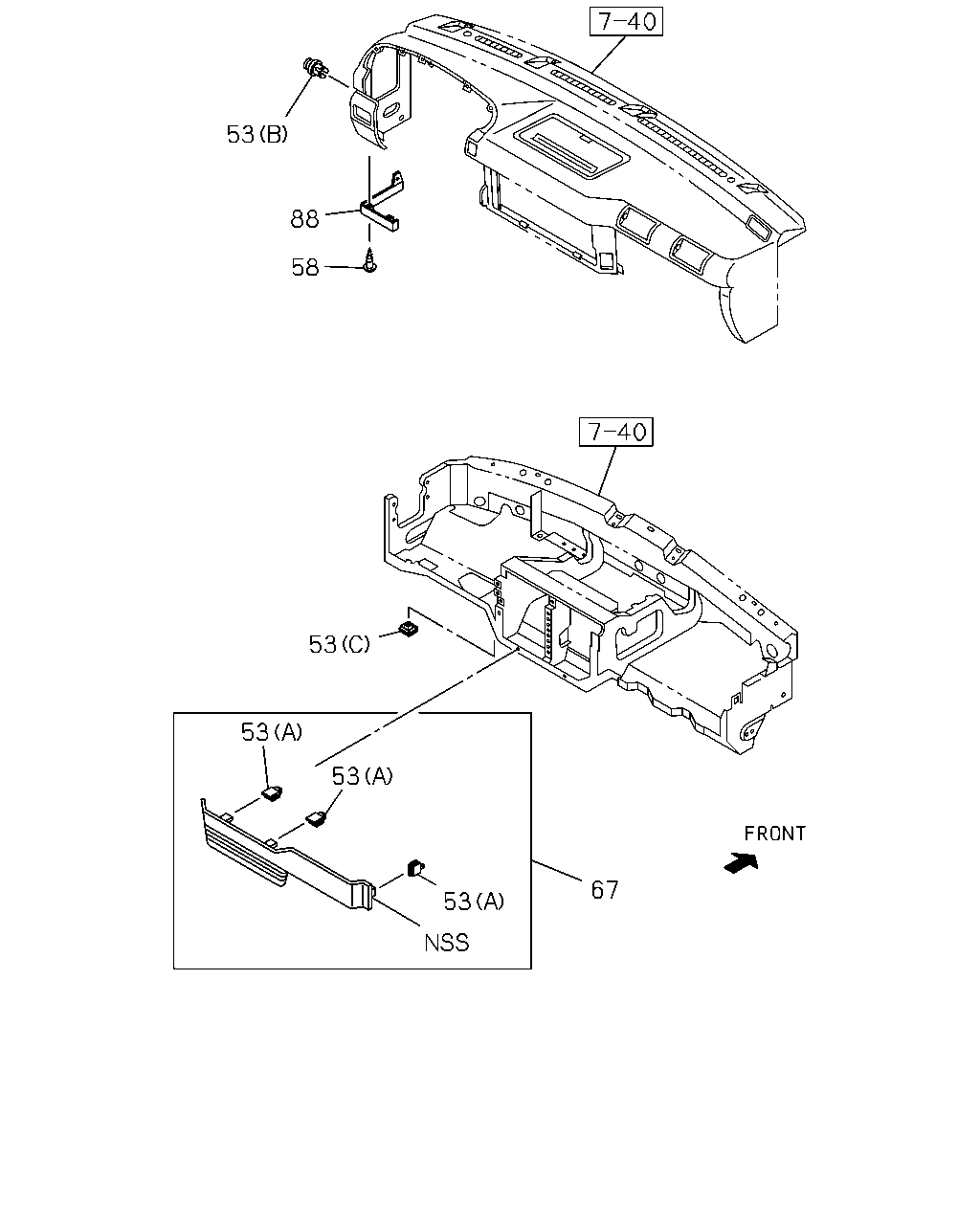

çizim 13315
53 88 58 53 53 53 67 53
BalonParca AdiParca NoAdetTipApplied Date A B C
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 06 1 0302- ● ● ●
53 16.085 CLIP; UNDER COVER
(C) 		8-97853-249-5 03 1 0302- ● ● ●
53 16.085 CLIP; UNDER COVER
06.521 (B) DARK GRAY 		8-97857-542-0 01 1 0302-0506 ● ● ●
53 16.085 CLIP; UNDER COVER
06.521 (B) DARK GRAY 		8-97582-246-0 01 1 0507- ● ● ●
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0302-0612 ● ● ●
58 09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701- ● ● ●
67 16.081 COVER; UNDER,INST PNL 8-97857-187-1 01 1 0302- ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97857-539-1 01 1 0302-0506 ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97585-432-1 01 1 0507-0606 ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97585-432-1 01 1 0607- ● ● ●
88 16.081 COVER; UNDER,INST PNL SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97401-318-0 01 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
