8-65 — CONTROL LEVER; HEATER AND AIR CON (#22622) — 141 parça

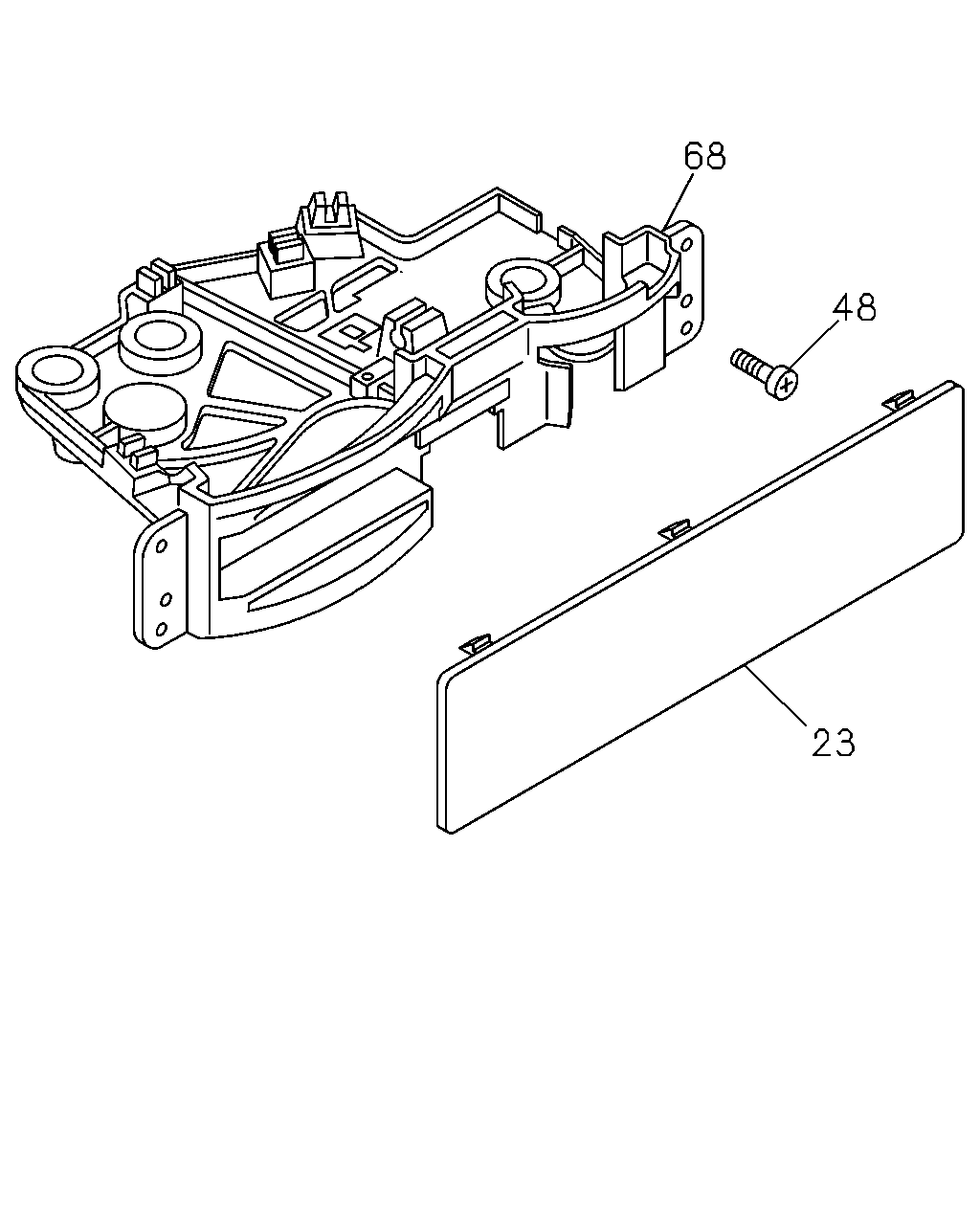

çizim 11427
68 48 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
23 BEZEL; CONT LEVER
EXC. COOLER WO/HEATER<YL1> 		8-97112-443-0 01 1 0009- ● ● ● ● ●
48 SCREW; BRKT
EXC. COOLER WO/HEATER<YL1> M5X20 		9-09829-324-1 04 1 0009- ● ● ● ● ● ● ● ●
68 BRACKET; BEZEL
EXC. COOLER WO/HEATER<YL1> 		8-97165-592-0 01 1 0009- ● ● ● ● ● ● ● ●

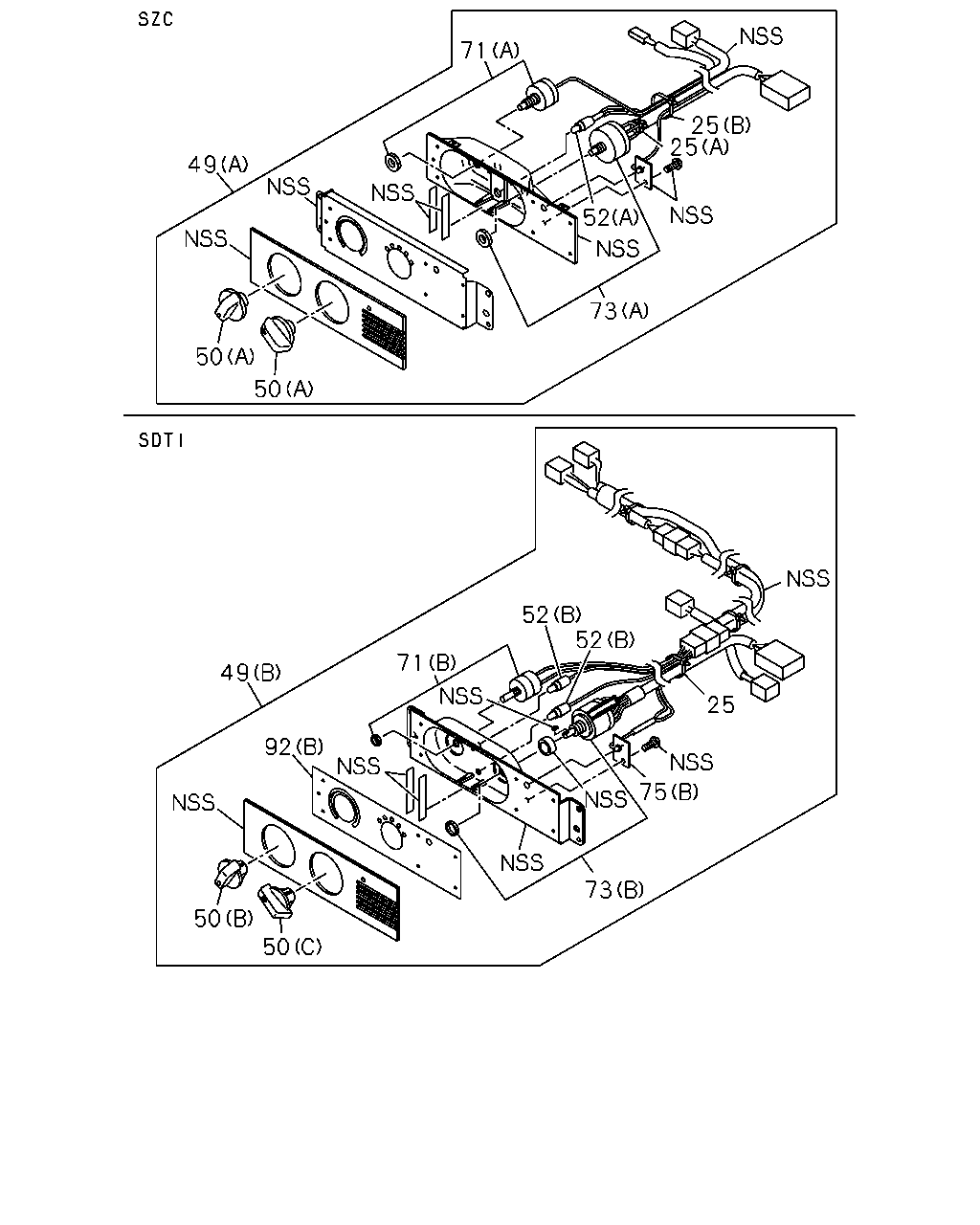

çizim 50255
71 25 25 52 49 50 50 73 52 52 71 49 25 92 75 50 50 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
25 CLIP; CABLE,CONT LEVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA 		8-97912-791-0 04 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA 		8-97912-791-0 04 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-285-0 01 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-285-0 01 1 0009- ●
25 CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<YL1> SCAL THA 		8-97920-285-0 01 1 0009- ●
25 CLIP; CABLE,CONT LEVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-179-0 02 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-179-0 02 1 0009- ●
25 CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-179-0 02 1 0009- ● ● ●
25 CLIP; CABLE,CONT LEVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA 		8-97911-180-0 01 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA 		8-97911-180-0 01 1 0009- ●
25 CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<YL1> (B) SZC THA 		8-97911-180-0 01 1 0009- ● ● ●
49 PANEL; CONT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97919-689-1 01 1 0009- ● ●
49 PANEL; CONT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97919-689-1 01 1 0009- ● ●
49 PANEL; CONT
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-248-3 01 1 0009- ● ●
49 PANEL; CONT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-248-3 01 1 0009- ●
49 PANEL; CONT
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-248-3 01 1 0009- ●
49 PANEL; CONT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-789-0 01 1 0009- ● ●
49 PANEL; CONT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-789-0 01 1 0009- ●
49 PANEL; CONT
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-789-0 01 1 0009- ● ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SDTI THA 		8-97911-155-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SDTI THA 		8-97911-155-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-156-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-156-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL THA 		8-97920-279-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL THA 		8-97920-279-0 01 1 0009- ●
50 KNOB; CONT PANEL
COOLER WO/HEATER<YL1> (D) SCAL THA 		8-97920-279-0 01 1 0009- ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SCAL THA 		8-97920-280-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SCAL THA 		8-97920-280-0 01 1 0009- ●
50 KNOB; CONT PANEL
COOLER WO/HEATER<YL1> (E) SCAL THA 		8-97920-280-0 01 1 0009- ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-177-0 02 1 0009- ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-177-0 02 1 0009- ●
50 KNOB; CONT PANEL
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-177-0 02 1 0009- ● ● ●
52 BULB; PANEL ILLUMINATION
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-160-0 02 1 0009- ● ●
52 BULB; PANEL ILLUMINATION
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-160-0 02 1 0009- ● ●
52 BULB; PANEL ILLUMINATION
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-287-0 02 1 0009- ● ●
52 BULB; PANEL ILLUMINATION
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-287-0 02 1 0009- ●
52 BULB; PANEL ILLUMINATION
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-287-0 02 1 0009- ●
52 BULB; PANEL ILLUMINATION
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-178-0 01 1 0009- ● ●
52 BULB; PANEL ILLUMINATION
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-178-0 01 1 0009- ●
52 BULB; PANEL ILLUMINATION
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-178-0 01 1 0009- ● ● ●
71 RESISTOR; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-157-1 01 1 0009- ● ●
71 RESISTOR; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-157-1 01 1 0009- ● ●
71 RESISTOR; CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-281-0 01 1 0009- ● ●
71 RESISTOR; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-281-0 01 1 0009- ●
71 RESISTOR; CONT PANEL
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-281-0 01 1 0009- ●
71 RESISTOR; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-175-1 01 1 0009- ● ●
71 RESISTOR; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-175-1 01 1 0009- ●
71 RESISTOR; CONT PANEL
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-175-1 01 1 0009- ● ● ●
73 SWITCH; FAN,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97919-707-0 01 1 0009- ● ●
73 SWITCH; FAN,CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97919-707-0 01 1 0009- ● ●
73 SWITCH; FAN,CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-282-0 01 1 0009- ● ●
73 SWITCH; FAN,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-282-0 01 1 0009- ●
73 SWITCH; FAN,CONT PANEL
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-282-0 01 1 0009- ●
73 SWITCH; FAN,CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97919-706-0 01 1 0009- ● ●
73 SWITCH; FAN,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97919-706-0 01 1 0009- ●
73 SWITCH; FAN,CONT PANEL
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97919-706-0 01 1 0009- ● ● ●
75 LAMP; COOLER,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-159-0 01 1 0009- ● ●
75 LAMP; COOLER,CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-159-0 01 1 0009- ● ●
75 LAMP; COOLER,CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-284-0 01 1 0009- ● ●
75 LAMP; COOLER,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-284-0 01 1 0009- ●
75 LAMP; COOLER,CONT PANEL
COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-284-0 01 1 0009- ●
92 CASE; CONT UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-866-0 01 1 0009- ● ●
92 CASE; CONT UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-866-0 01 1 0009- ● ●
92 CASE; CONT UNIT
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-278-0 01 1 0009- ● ●
92 CASE; CONT UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-278-0 01 1 0009- ●
92 CASE; CONT UNIT
COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-278-0 01 1 0009- ●

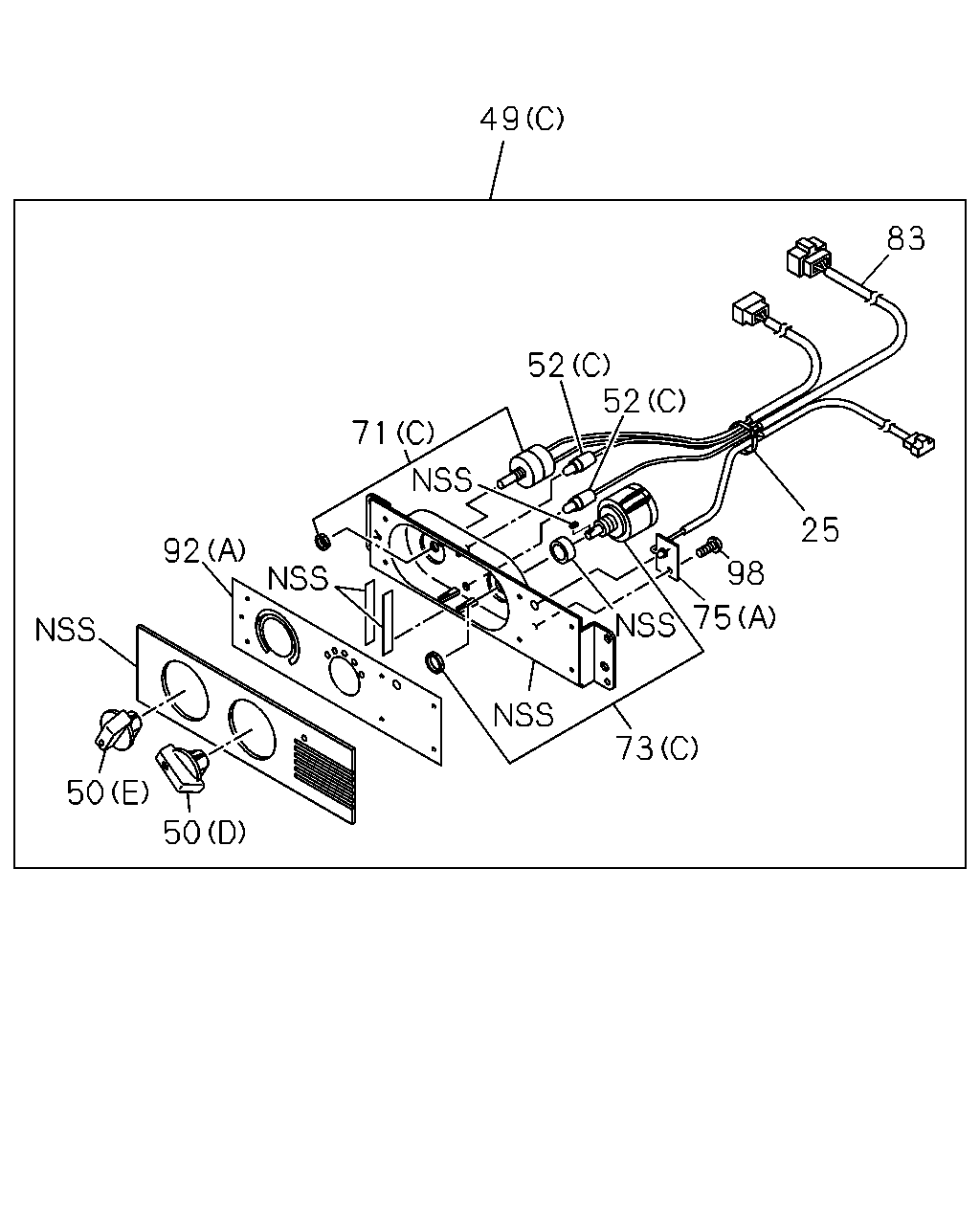

çizim 51379
49 83 52 52 71 25 92 98 75 50 50 73
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
25 CLIP; CABLE,CONT LEVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA 		8-97912-791-0 04 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA 		8-97912-791-0 04 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-285-0 01 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-285-0 01 1 0009- ●
25 CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<YL1> SCAL THA 		8-97920-285-0 01 1 0009- ●
25 CLIP; CABLE,CONT LEVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-179-0 02 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-179-0 02 1 0009- ●
25 CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-179-0 02 1 0009- ● ● ●
25 CLIP; CABLE,CONT LEVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA 		8-97911-180-0 01 1 0009- ● ●
25 CLIP; CABLE,CONT LEVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA 		8-97911-180-0 01 1 0009- ●
25 CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<YL1> (B) SZC THA 		8-97911-180-0 01 1 0009- ● ● ●
49 PANEL; CONT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97919-689-1 01 1 0009- ● ●
49 PANEL; CONT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97919-689-1 01 1 0009- ● ●
49 PANEL; CONT
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-248-3 01 1 0009- ● ●
49 PANEL; CONT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-248-3 01 1 0009- ●
49 PANEL; CONT
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-248-3 01 1 0009- ●
49 PANEL; CONT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-789-0 01 1 0009- ● ●
49 PANEL; CONT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-789-0 01 1 0009- ●
49 PANEL; CONT
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-789-0 01 1 0009- ● ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SDTI THA 		8-97911-155-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SDTI THA 		8-97911-155-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-156-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-156-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL THA 		8-97920-279-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL THA 		8-97920-279-0 01 1 0009- ●
50 KNOB; CONT PANEL
COOLER WO/HEATER<YL1> (D) SCAL THA 		8-97920-279-0 01 1 0009- ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SCAL THA 		8-97920-280-0 01 1 0009- ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SCAL THA 		8-97920-280-0 01 1 0009- ●
50 KNOB; CONT PANEL
COOLER WO/HEATER<YL1> (E) SCAL THA 		8-97920-280-0 01 1 0009- ●
50 KNOB; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-177-0 02 1 0009- ● ●
50 KNOB; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-177-0 02 1 0009- ●
50 KNOB; CONT PANEL
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-177-0 02 1 0009- ● ● ●
52 BULB; PANEL ILLUMINATION
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-160-0 02 1 0009- ● ●
52 BULB; PANEL ILLUMINATION
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-160-0 02 1 0009- ● ●
52 BULB; PANEL ILLUMINATION
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-287-0 02 1 0009- ● ●
52 BULB; PANEL ILLUMINATION
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-287-0 02 1 0009- ●
52 BULB; PANEL ILLUMINATION
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-287-0 02 1 0009- ●
52 BULB; PANEL ILLUMINATION
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-178-0 01 1 0009- ● ●
52 BULB; PANEL ILLUMINATION
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-178-0 01 1 0009- ●
52 BULB; PANEL ILLUMINATION
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-178-0 01 1 0009- ● ● ●
71 RESISTOR; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-157-1 01 1 0009- ● ●
71 RESISTOR; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-157-1 01 1 0009- ● ●
71 RESISTOR; CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-281-0 01 1 0009- ● ●
71 RESISTOR; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-281-0 01 1 0009- ●
71 RESISTOR; CONT PANEL
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-281-0 01 1 0009- ●
71 RESISTOR; CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-175-1 01 1 0009- ● ●
71 RESISTOR; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-175-1 01 1 0009- ●
71 RESISTOR; CONT PANEL
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-175-1 01 1 0009- ● ● ●
73 SWITCH; FAN,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97919-707-0 01 1 0009- ● ●
73 SWITCH; FAN,CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97919-707-0 01 1 0009- ● ●
73 SWITCH; FAN,CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-282-0 01 1 0009- ● ●
73 SWITCH; FAN,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-282-0 01 1 0009- ●
73 SWITCH; FAN,CONT PANEL
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-282-0 01 1 0009- ●
73 SWITCH; FAN,CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97919-706-0 01 1 0009- ● ●
73 SWITCH; FAN,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97919-706-0 01 1 0009- ●
73 SWITCH; FAN,CONT PANEL
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97919-706-0 01 1 0009- ● ● ●
75 LAMP; COOLER,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-159-0 01 1 0009- ● ●
75 LAMP; COOLER,CONT PANEL
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-159-0 01 1 0009- ● ●
75 LAMP; COOLER,CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-284-0 01 1 0009- ● ●
75 LAMP; COOLER,CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-284-0 01 1 0009- ●
75 LAMP; COOLER,CONT PANEL
COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-284-0 01 1 0009- ●
83 HARNESS; CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-283-0 01 1 0009- ● ●
83 HARNESS; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-283-0 01 1 0009- ●
83 HARNESS; CONT PANEL
COOLER WO/HEATER<YL1> SCAL THA 		8-97920-283-0 01 1 0009- ●
92 CASE; CONT UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-866-0 01 1 0009- ● ●
92 CASE; CONT UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97911-866-0 01 1 0009- ● ●
92 CASE; CONT UNIT
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-278-0 01 1 0009- ● ●
92 CASE; CONT UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-278-0 01 1 0009- ●
92 CASE; CONT UNIT
COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-278-0 01 1 0009- ●
98 SCREW; CONT PANEL
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-286-0 01 1 0009- ● ●
98 SCREW; CONT PANEL
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-286-0 01 1 0009- ●
98 SCREW; CONT PANEL
COOLER WO/HEATER<YL1> SCAL THA 		8-97920-286-0 01 1 0009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
