Sayfa 8-52 - Isuzu EPC

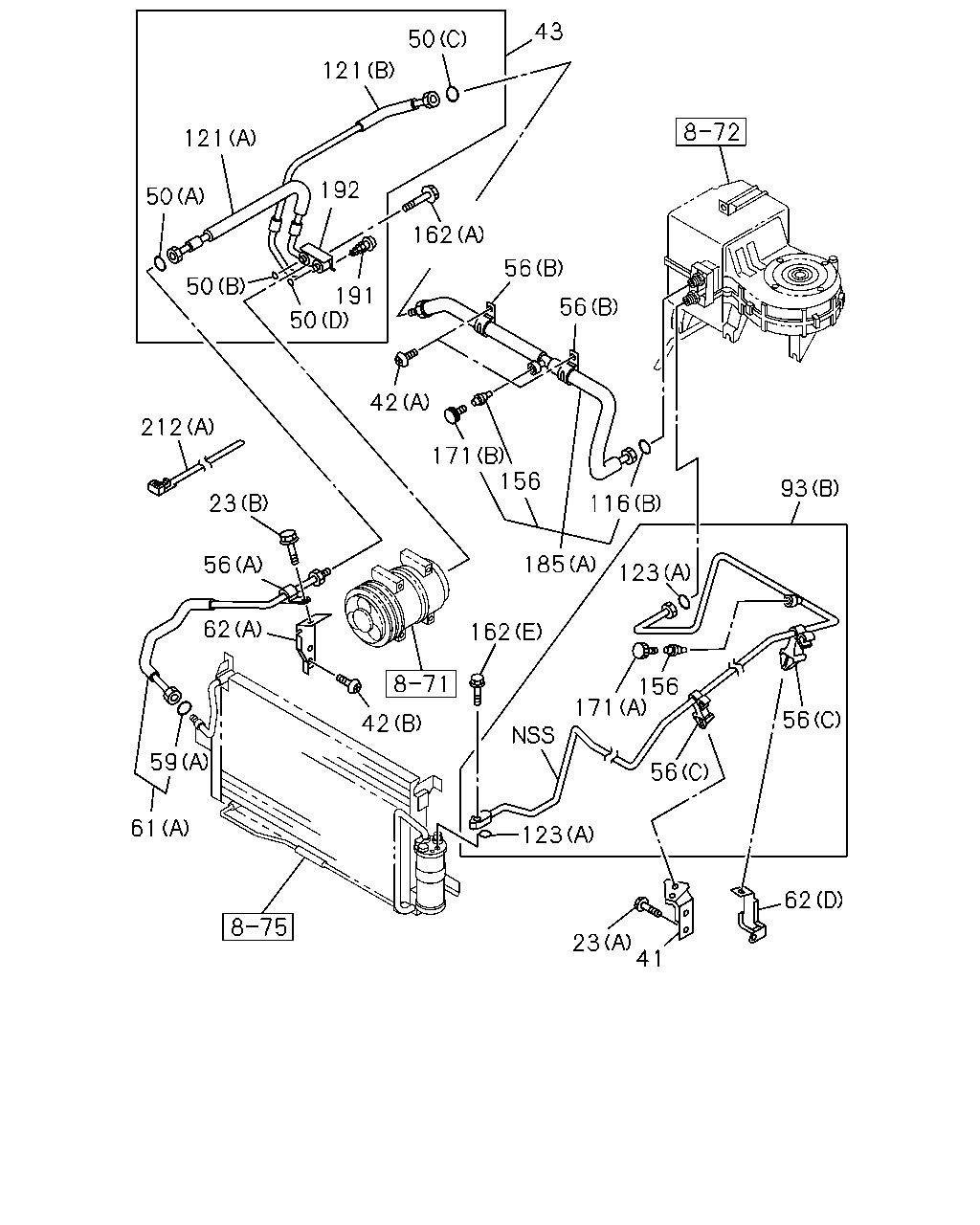

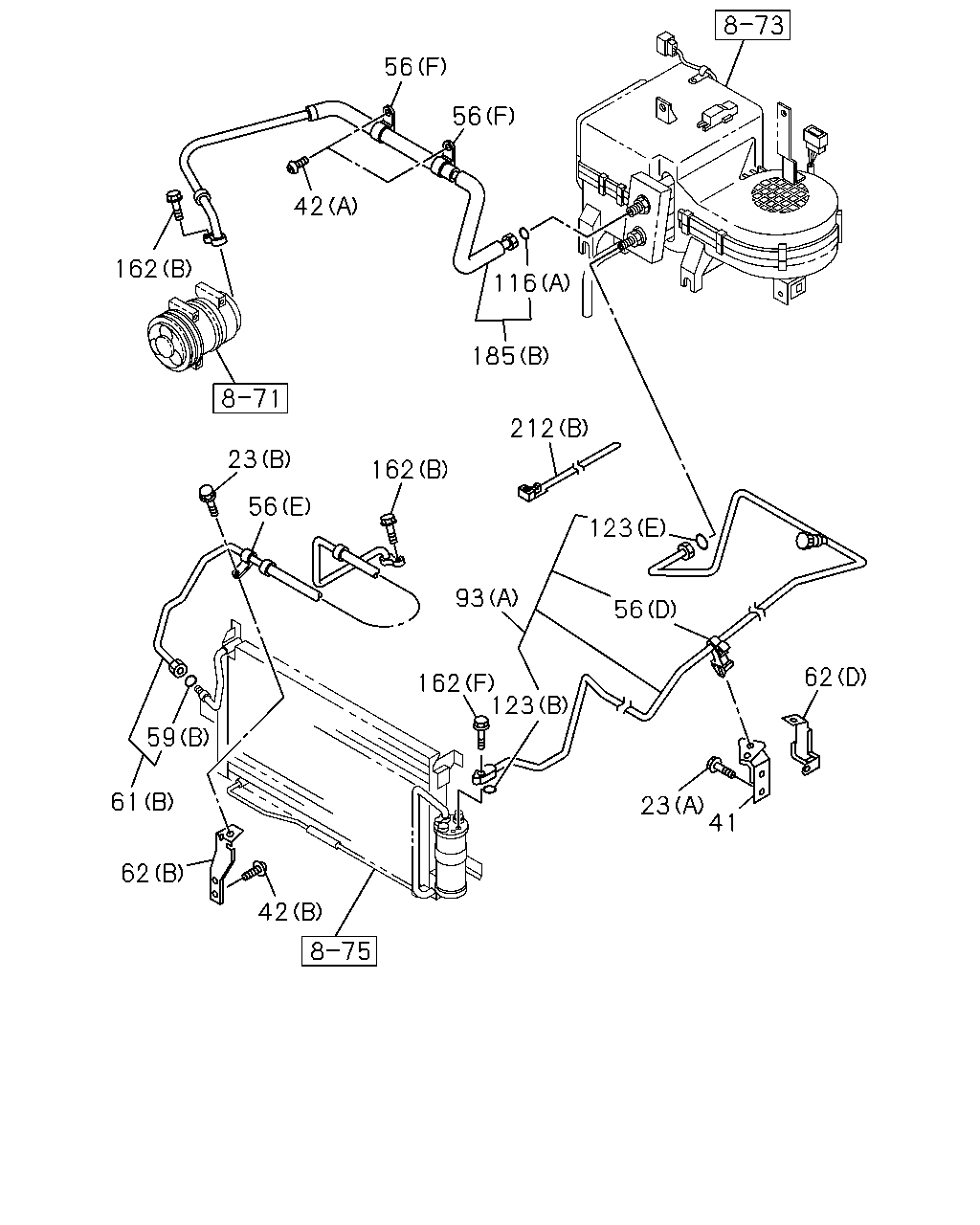

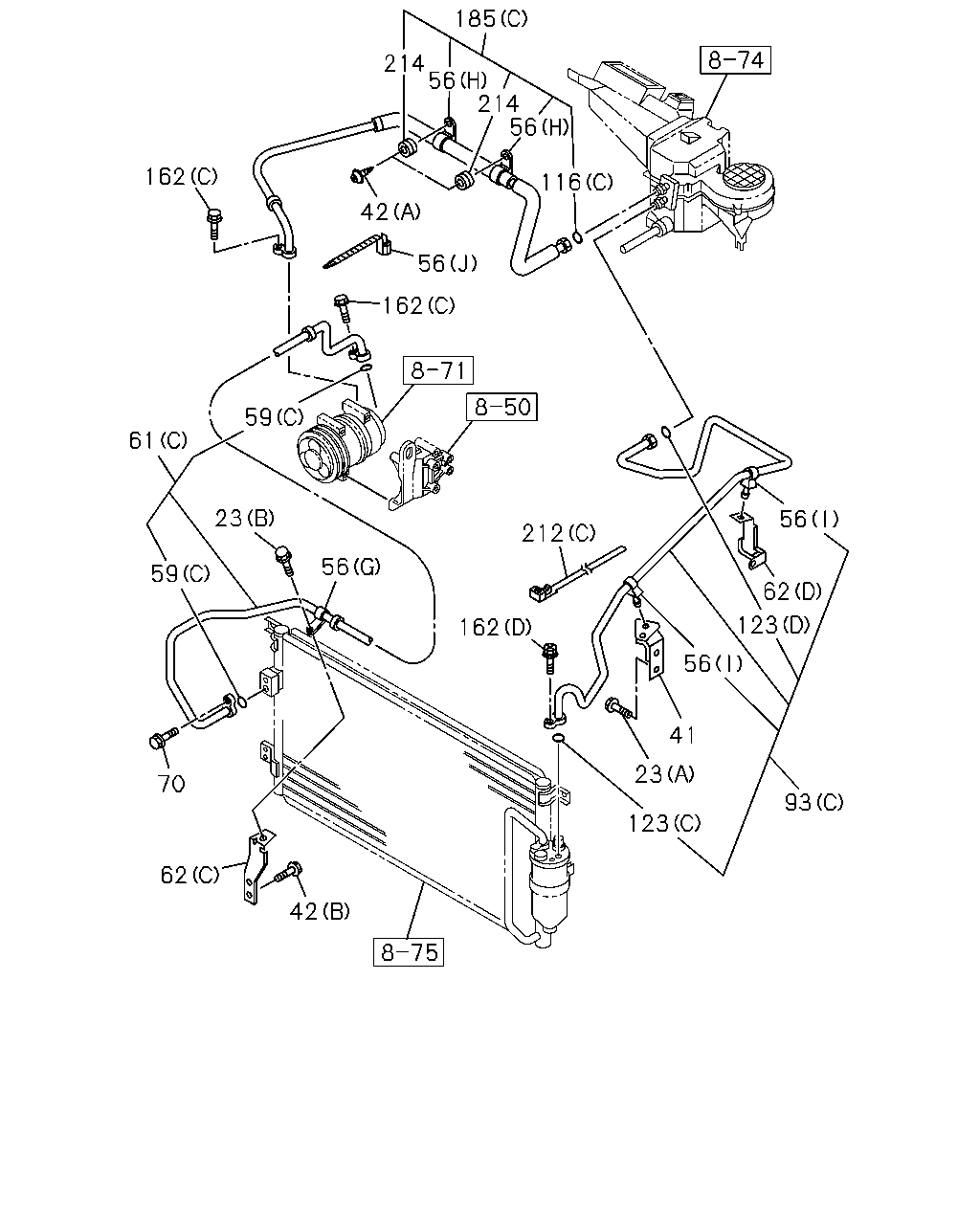

8-52 — PIPING; AIR CONDITIONING (#22621) — 454 parça

43 50 121 121 192 50 162 50 56 191 50 56 42 212 171 156 93 23 116 185 56 123 62 162 156 171 56 42 59 56 61 123 62 23 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
22	CLIP; BAND,A/C PIPE COOLER WO/HEATER<YL1> SCAL THA	8-97919-299-0	01	1	0105-	●	●	●	●
23	BOLT; BRKT COOLER WO/HEATER<YL1> (B) ATC THA	8-97912-442-0	01	1	0009-	●	●	●	●	●	●	●	●
23	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M6X16 FLANGE	0-28480-616-0	02	1	0009-					●	●	●
41	BRACKET; PIPE CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97920-207-0	01	1	0009-					●	●	●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M6X16 TAPPING	9-07067-616-0	02	1	0009-					●	●	●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI M6X16 THA	8-97920-698-0	02	1	0009-					●		●
42	SCREW; CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI M6X16 THA	8-97920-698-0	02	1	0009-					●			●
42	SCREW; CLIP 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-					●			●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-					●
42	SCREW; CLIP COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-							●
42	SCREW; CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-					●			●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-					●
42	SCREW; CLIP COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-		●		●			●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA	8-97920-702-1	01	1	0009-					●			●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA	8-97920-702-1	01	1	0009-					●
43	HOSE; FLEX,A/C,EVAP TO CMPR COOLER WO/HEATER<YL1> SZC THA	8-97920-702-1	01	1	0009-		●		●			●
50	GASKET; FLEX HOSE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-					●			●
50	GASKET; FLEX HOSE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-					●
50	GASKET; FLEX HOSE,A/C COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-		●		●			●
50	GASKET; FLEX HOSE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-201-0	01	1	0009-					●			●
50	GASKET; FLEX HOSE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-201-0	01	1	0009-					●
50	GASKET; FLEX HOSE,A/C COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-201-0	01	1	0009-		●		●			●
50	GASKET; FLEX HOSE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-202-0	01	1	0009-					●			●
50	GASKET; FLEX HOSE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-202-0	01	1	0009-					●
50	GASKET; FLEX HOSE,A/C COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-202-0	01	1	0009-		●		●			●
50	GASKET; FLEX HOSE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SZC THA	8-97911-203-0	01	1	0009-					●			●
50	GASKET; FLEX HOSE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SZC THA	8-97911-203-0	01	1	0009-					●
50	GASKET; FLEX HOSE,A/C COOLER WO/HEATER<YL1> (D) SZC THA	8-97911-203-0	01	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97910-864-1	01	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97910-864-1	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97910-910-0	02	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97910-910-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SDTI THA	8-97911-173-0	02	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SDTI THA	8-97911-173-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012							●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97920-537-0	02	1	0101-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> SCAL THA	8-97920-537-0	02	1	0101-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-		●		●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-151-0	01	1	0009-					●		●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-151-0	01	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-					●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-							●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-					●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-		●		●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-786-0	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-786-0	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-809-1	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-809-1	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-301-0	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-301-0	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-810-1	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-302-0	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-788-1	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-788-1	01	1	0009-		●		●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-838-0	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-838-0	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-863-0	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-863-0	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-256-2	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-256-2	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (D) THA	8-97918-421-0	01	1	0009-		●		●	●		●	●
62	BRACKET; PIPE HIGH PRESSURE (D) THA	8-97918-421-0	01	1	0009-	●		●			●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97921-303-0	01	1	0009-					●		●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97921-303-0	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-					●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-							●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-					●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-		●		●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97911-154-0	01	1	0009-					●		●
116	GASKET; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97911-154-0	01	1	0009-					●			●
116	GASKET; PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011							●
116	GASKET; PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-							●
116	GASKET; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-		●		●			●
121	HOSE; COOLER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97921-756-0	01	1	0012-0012					●			●
121	HOSE; COOLER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97921-756-0	01	1	0012-0012					●
121	HOSE; COOLER COOLER WO/HEATER<YL1> SCAL THA	8-97921-756-0	01	1	0012-0012							●
121	HOSE; COOLER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97921-756-0	01	1	0101-					●
121	HOSE; COOLER COOLER WO/HEATER<YL1> SCAL THA	8-97921-756-0	01	1	0101-							●
121	HOSE; COOLER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-199-5	01	1	0009-					●			●
121	HOSE; COOLER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-199-5	01	1	0009-					●
121	HOSE; COOLER COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-199-5	01	1	0009-		●		●			●
121	HOSE; COOLER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-732-0	01	1	0009-					●			●
121	HOSE; COOLER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-732-0	01	1	0009-					●
121	HOSE; COOLER COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-732-0	01	1	0009-		●		●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97911-136-0	01	1	0009-					●		●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97911-136-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-400-0	01	1	0009-					●		●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-400-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-							●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-							●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-		●		●			●
156	VALVE; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA	8-97911-192-0	02	1	0009-					●			●
156	VALVE; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA	8-97911-192-0	02	1	0009-					●
156	VALVE; PIPE COOLER WO/HEATER<YL1> SZC THA	8-97911-192-0	02	1	0009-		●		●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97912-903-0	02	1	0009-					●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97912-903-0	02	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97921-397-0	01	1	0009-					●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97921-397-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-							●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-							●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-		●		●			●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-		●		●			●
171	CAP; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-193-0	01	1	0009-					●			●
171	CAP; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-193-0	01	1	0009-					●
171	CAP; PIPE COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-193-0	01	1	0009-		●		●			●
171	CAP; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-642-0	01	1	0009-					●			●
171	CAP; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-642-0	01	1	0009-					●
171	CAP; PIPE COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-642-0	01	1	0009-		●		●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97921-755-0	01	1	0101-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-380-0	01	1	0009-					●		●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-380-0	01	1	0009-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012							●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97921-537-1	01	1	0101-					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> SCAL THA	8-97921-537-1	01	1	0101-							●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-		●		●			●
191	SCREW; CONNECTOR,COOLER HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA	8-97911-205-0	02	1	0009-					●			●
191	SCREW; CONNECTOR,COOLER HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA	8-97911-205-0	02	1	0009-					●
191	SCREW; CONNECTOR,COOLER HOSE COOLER WO/HEATER<YL1> SZC THA	8-97911-205-0	02	1	0009-		●		●			●
192	PLATE; COOLER HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA	8-97921-332-0	01	1	0009-					●			●
192	PLATE; COOLER HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA	8-97921-332-0	01	1	0009-					●
192	PLATE; COOLER HOSE COOLER WO/HEATER<YL1> SZC THA	8-97921-332-0	01	1	0009-		●		●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97920-493-0	01	1	0009-					●		●
212	CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97920-493-0	01	1	0009-					●			●
212	CLIP 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-					●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-					●
212	CLIP COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-							●
212	CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-					●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-					●
212	CLIP COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-		●		●			●

56 56 42 116 162 185 212 23 162 56 123 93 56 62 162 123 59 61 23 41 62 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
22	CLIP; BAND,A/C PIPE COOLER WO/HEATER<YL1> SCAL THA	8-97919-299-0	01	1	0105-	●	●	●	●
23	BOLT; BRKT COOLER WO/HEATER<YL1> (B) ATC THA	8-97912-442-0	01	1	0009-	●	●	●	●	●	●	●	●
23	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M6X16 FLANGE	0-28480-616-0	02	1	0009-					●	●	●
41	BRACKET; PIPE CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97920-207-0	01	1	0009-					●	●	●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M6X16 TAPPING	9-07067-616-0	02	1	0009-					●	●	●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI M6X16 THA	8-97920-698-0	02	1	0009-					●		●
42	SCREW; CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI M6X16 THA	8-97920-698-0	02	1	0009-					●			●
42	SCREW; CLIP 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-					●			●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-					●
42	SCREW; CLIP COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-							●
42	SCREW; CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-					●			●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-					●
42	SCREW; CLIP COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97910-864-1	01	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97910-864-1	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97910-910-0	02	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97910-910-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SDTI THA	8-97911-173-0	02	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SDTI THA	8-97911-173-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012							●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97920-537-0	02	1	0101-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> SCAL THA	8-97920-537-0	02	1	0101-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-		●		●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-151-0	01	1	0009-					●		●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-151-0	01	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-					●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-							●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-					●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-		●		●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-786-0	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-786-0	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-809-1	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-809-1	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-301-0	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-301-0	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-810-1	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-302-0	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-788-1	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-788-1	01	1	0009-		●		●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-838-0	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-838-0	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-863-0	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-863-0	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-256-2	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-256-2	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (D) THA	8-97918-421-0	01	1	0009-		●		●	●		●	●
62	BRACKET; PIPE HIGH PRESSURE (D) THA	8-97918-421-0	01	1	0009-	●		●			●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97921-303-0	01	1	0009-					●		●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97921-303-0	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-					●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-							●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-					●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-		●		●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97911-154-0	01	1	0009-					●		●
116	GASKET; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97911-154-0	01	1	0009-					●			●
116	GASKET; PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011							●
116	GASKET; PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-							●
116	GASKET; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-		●		●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97911-136-0	01	1	0009-					●		●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97911-136-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-400-0	01	1	0009-					●		●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-400-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-							●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-							●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-		●		●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97912-903-0	02	1	0009-					●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97912-903-0	02	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97921-397-0	01	1	0009-					●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97921-397-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-							●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-							●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-		●		●			●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-		●		●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97921-755-0	01	1	0101-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-380-0	01	1	0009-					●		●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-380-0	01	1	0009-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012							●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97921-537-1	01	1	0101-					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> SCAL THA	8-97921-537-1	01	1	0101-							●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-		●		●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97920-493-0	01	1	0009-					●		●
212	CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97920-493-0	01	1	0009-					●			●
212	CLIP 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-					●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-					●
212	CLIP COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-							●
212	CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-					●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-					●
212	CLIP COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-		●		●			●

185 214 56 214 56 162 116 42 56 162 59 61 23 56 212 56 62 123 59 162 56 41 23 70 93 123 62 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
22	CLIP; BAND,A/C PIPE COOLER WO/HEATER<YL1> SCAL THA	8-97919-299-0	01	1	0105-	●	●	●	●
23	BOLT; BRKT COOLER WO/HEATER<YL1> (B) ATC THA	8-97912-442-0	01	1	0009-	●	●	●	●	●	●	●	●
23	BOLT; BRKT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M6X16 FLANGE	0-28480-616-0	02	1	0009-					●	●	●
41	BRACKET; PIPE CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97920-207-0	01	1	0009-					●	●	●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) M6X16 TAPPING	9-07067-616-0	02	1	0009-					●	●	●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI M6X16 THA	8-97920-698-0	02	1	0009-					●		●
42	SCREW; CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI M6X16 THA	8-97920-698-0	02	1	0009-					●			●
42	SCREW; CLIP 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-					●			●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-					●
42	SCREW; CLIP COOLER WO/HEATER<YL1> (A) SCAL THA	8-97920-586-0	02	1	0009-							●
42	SCREW; CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-					●			●
42	SCREW; CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-					●
42	SCREW; CLIP COOLER WO/HEATER<YL1> (A) M14X16 THA	8-97920-700-0	02	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97910-864-1	01	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97910-864-1	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97910-910-0	02	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97910-910-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SDTI THA	8-97911-173-0	02	1	0009-					●		●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SDTI THA	8-97911-173-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (G) SCAL THA	8-97919-257-1	01	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (I) SCAL THA	8-97919-281-0	02	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (H) SCAL THA	8-97920-537-0	02	1	0009-0012							●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97920-537-0	02	1	0101-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> SCAL THA	8-97920-537-0	02	1	0101-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (J) SCAL THA	8-97921-564-0	01	1	0009-							●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-836-0	01	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (C) SZC THA	8-97911-191-0	02	1	0009-		●		●			●
56	CLIP; PIPE,A/C 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-					●			●
56	CLIP; PIPE,A/C 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-					●
56	CLIP; PIPE,A/C COOLER WO/HEATER<YL1> (B) SZC THA	8-97914-976-0	02	1	0009-		●		●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-151-0	01	1	0009-					●		●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-151-0	01	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-					●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-266-0	02	1	0009-							●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-					●			●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-					●
59	GASKET; PIPE,FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-200-0	01	1	0009-		●		●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-786-0	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-786-0	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-809-1	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-809-1	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-301-0	01	1	0009-					●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-301-0	01	1	0009-							●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-810-1	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> A/T AISIN<RMD>,M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-302-0	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-788-1	01	1	0009-					●			●
61	PIPE; FLEX HOSE TO CONDENSER COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-788-1	01	1	0009-		●		●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-838-0	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-838-0	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-863-0	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (B) SDTI THA	8-97910-863-0	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-256-2	01	1	0009-					●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-256-2	01	1	0009-							●
62	BRACKET; PIPE HIGH PRESSURE COOLER WO/HEATER<YL1> (D) THA	8-97918-421-0	01	1	0009-		●		●	●		●	●
62	BRACKET; PIPE HIGH PRESSURE (D) THA	8-97918-421-0	01	1	0009-	●		●			●
70	BOLT; PIPE TO BODY 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-261-0	01	1	0009-					●			●
70	BOLT; PIPE TO BODY 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-261-0	01	1	0009-					●
70	BOLT; PIPE TO BODY COOLER WO/HEATER<YL1> SCAL THA	8-97919-261-0	01	1	0009-							●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97921-303-0	01	1	0009-					●		●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97921-303-0	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-					●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97920-811-1	01	1	0009-							●
93	PIPE; RECEIVER TANK TO PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-					●			●
93	PIPE; RECEIVER TANK TO PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-					●
93	PIPE; RECEIVER TANK TO PIPE COOLER WO/HEATER<YL1> (B) SZC THA	8-97920-787-2	01	1	0009-		●		●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97911-154-0	01	1	0009-					●		●
116	GASKET; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97911-154-0	01	1	0009-					●			●
116	GASKET; PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-265-0	01	1	0009-0011							●
116	GASKET; PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> SCAL THA	8-97919-265-0	02	1	0012-							●
116	GASKET; PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-					●			●
116	GASKET; PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-					●
116	GASKET; PIPE COOLER WO/HEATER<YL1> (B) SZC THA	8-97911-202-0	01	1	0009-		●		●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97911-136-0	01	1	0009-					●		●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) SDTI THA	8-97911-136-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-400-0	01	1	0009-					●		●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-400-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-270-0	01	1	0009-							●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-280-0	01	1	0009-							●
123	GASKET; RECEIVER PIPE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-					●			●
123	GASKET; RECEIVER PIPE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-					●
123	GASKET; RECEIVER PIPE COOLER WO/HEATER<YL1> (A) SZC THA	8-97911-189-0	02	1	0009-		●		●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97912-903-0	02	1	0009-					●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97912-903-0	02	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97921-397-0	01	1	0009-					●		●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (F) SDTI THA	8-97921-397-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-261-0	02	1	0009-							●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (D) SCAL THA	8-97919-264-0	01	1	0009-							●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (A) M10X45 THA	8-97910-837-0	01	1	0009-		●		●			●
162	BOLT; FLEX HOSE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-					●			●
162	BOLT; FLEX HOSE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-					●
162	BOLT; FLEX HOSE COOLER WO/HEATER<YL1> (E) M10X25 THA	8-97920-322-0	01	1	0009-		●		●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97921-755-0	01	1	0101-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-380-0	01	1	0009-					●		●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97921-380-0	01	1	0009-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> (C) SCAL THA	8-97921-537-1	01	1	0009-0012							●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97921-537-1	01	1	0101-					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> SCAL THA	8-97921-537-1	01	1	0101-							●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-					●			●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-					●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO COOLER WO/HEATER<YL1> (A) SZC THA	8-97910-833-1	01	1	0009-		●		●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97920-493-0	01	1	0009-					●		●
212	CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97920-493-0	01	1	0009-					●			●
212	CLIP 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-					●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-					●
212	CLIP COOLER WO/HEATER<YL1> (C) SCAL THA	8-97919-299-0	01	1	0009-							●
212	CLIP 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-					●			●
212	CLIP 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-					●
212	CLIP COOLER WO/HEATER<YL1> (A) SZC THA	8-97920-492-0	01	1	0009-		●		●			●
214	RUBBER; CUSHION 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97920-566-0	02	1	0009-0012					●			●
214	RUBBER; CUSHION 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97920-566-0	02	1	0009-0012					●
214	RUBBER; CUSHION COOLER WO/HEATER<YL1> SCAL THA	8-97920-566-0	02	1	0009-0012							●
214	RUBBER; CUSHION 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97920-566-0	02	1	0101-					●
214	RUBBER; CUSHION COOLER WO/HEATER<YL1> SCAL THA	8-97920-566-0	02	1	0101-							●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
