◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#2262) — 25 parça

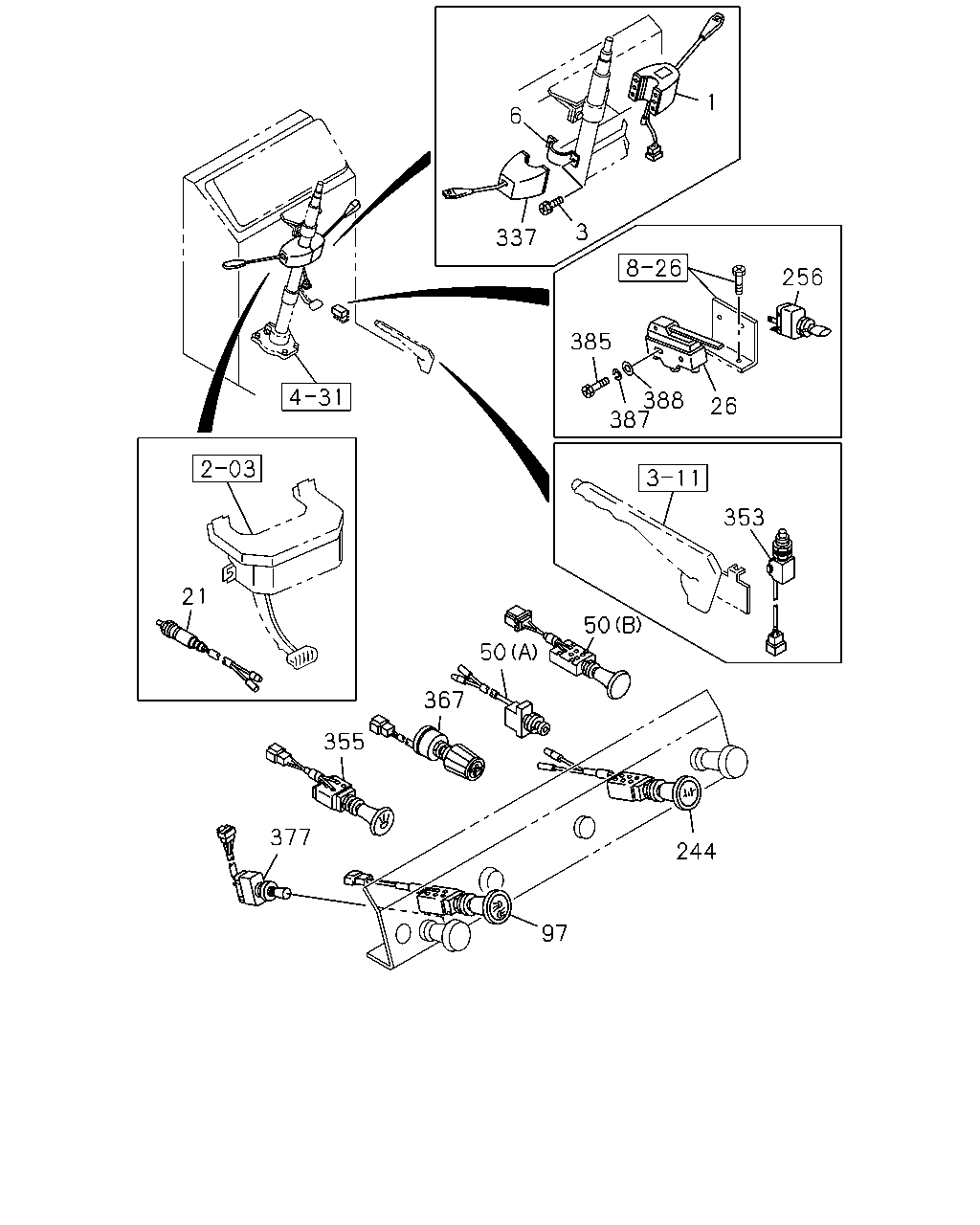

çizim 94264
1 6 3 337 256 385 388 387 26 353 21 50 50 367 355 377 244 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-154-1 01 1 9101- ● ●
3 SCREW; COMB SW
EXC. EXHAUST BRAKE(NF8) 		9-03910-514-0 02 1 9101- ● ●
6 BAND; COMB SW
EXC. EXHAUST BRAKE(NF8) 		1-82365-002-0 01 1 9101- ● ●
21 SWITCH; CLU
EXHAUST BRAKE(NF8) 		1-82380-009-3 01 1 9101- ● ●
26 SWITCH; ACCEL
EXHAUST BRAKE(NF8) 		9-82770-013-0 01 1 9101- ● ●
50 SWITCH; FRT WIPER
WINDSHIELD WASHER<C11> EXC. USER DAEWOO MOTORS<D4S> (A) 		1-82380-003-1 01 1 9101-0203 ● ●
50 SWITCH; FRT WIPER
WINDSHIELD WASHER<C11> (A) 		1-82380-003-1 01 1 0204- ● ●
50 SWITCH; FRT WIPER
WIPER MOTOR KIT<ST7> EXC. USER DAEWOO MOTORS<D4S> (B) 		1-82340-167-0 01 1 9101-0203 ● ●
50 SWITCH; FRT WIPER
WIPER MOTOR KIT<ST7> (B) 		1-82340-167-0 01 1 0204- ● ●
97 SWITCH; FOG & PARKING LAMP
EXC. FOG LAMPS DELETE<SJE> 		1-82340-164-0 01 1 9101-0203 ● ●
97 SWITCH; FOG & PARKING LAMP 1-82340-164-0 01 1 0204- ● ●
244 SWITCH; BATTERY 1-82340-350-0 01 1 9101- ● ●
256 SWITCH; PILOT LAMP
BUS USER THAILAND BMTA<D5B> 		1-82350-018-5 01 1 9101-0203 ●
256 SWITCH; PILOT LAMP
INDICATOR SYSTEM WARNING LIGHTS<UH1> 		1-82350-016-1 01 1 9101-0203 ●
337 SWITCH; EXH
EXHAUST BRAKE(NF8) EXC. USER DAEWOO MOTORS<D4S> 		1-82360-161-3 01 1 9101-0203 ● ●
337 SWITCH; EXH
EXHAUST BRAKE(NF8) 		1-82360-161-3 01 1 0204- ● ●
353 SWITCH ASM; PARKING BRAKE
CONNECTOR 4P 		1-82440-023-0 01 1 9101- ● ●
355 SWITCH; PARKING LAMP
FOG LAMPS DELETE<SJE> 		1-82340-258-0 01 1 9101-0203 ● ●
367 SWITCH; HTR
AUXILIARY HEATER<C36> 		1-82380-023-0 01 1 9101-0203 ● ●
367 SWITCH; HTR
HEATER&DEFROSTER(C41) 		1-82380-023-0 02 1 9101- ● ●
377 SWITCH; SPD INDICATOR
BUS USER THAILAND BMTA<D5B> 		1-82350-018-5 01 1 9101- ●
377 SWITCH; SPD INDICATOR
INDICATOR SYSTEM WARNING LIGHTS<UH1> 		1-82350-018-5 01 1 9101-0203 ●
385 SCREW; ACCEL SW
EXHAUST BRAKE(NF8) 		9-93470-325-0 02 1 9101- ● ●
387 WASHER; LK,ACCEL SW
EXHAUST BRAKE(NF8) ID=3.1 		9-09150-503-0 02 1 9101- ● ●
388 WASHER; PL,ACCEL SW
EXHAUST BRAKE(NF8) ID=3.2 OD=12 		9-09160-703-0 02 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
