◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#22615) — 139 parça

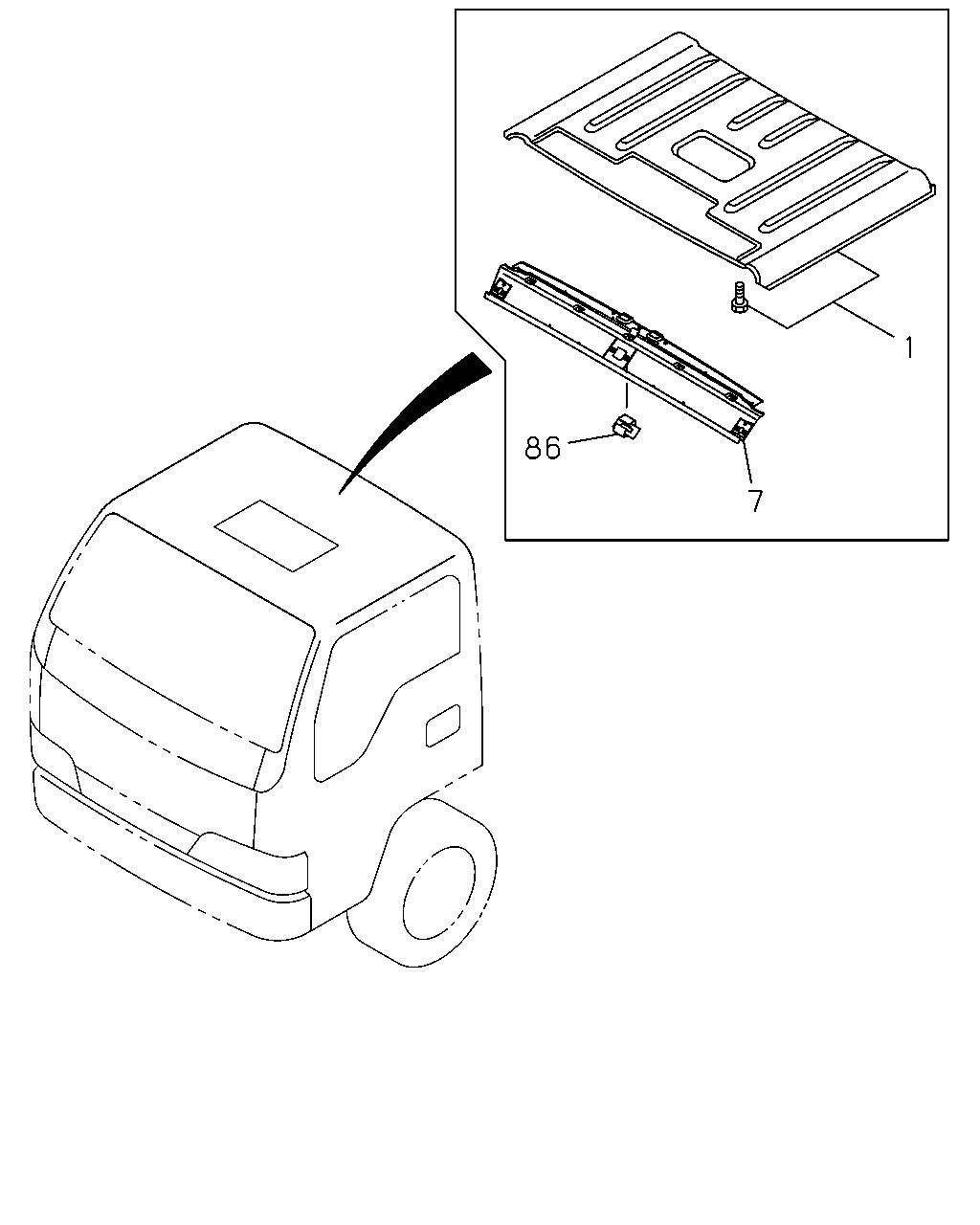

çizim 48446
1 86 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-098-0 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-488-0 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-258-7 01 1 0106- ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-489-5 01 1 0106- ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 0106- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9811-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-995-1 01 1 0106-0106 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-995-1 01 1 0106-0106 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-995-1 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0106- ● ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0106- ● ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9811-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-1 01 1 0106-0106 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-1 01 1 0106-0106 ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-1 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9811-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-1 01 1 0106-0106 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-1 01 1 0106-0106 ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-1 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0106- ● ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9811-9908 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-258-7 01 1 9811-9908 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9909-0011 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-258-7 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-998-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-998-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-998-1 01 1 0106- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-931-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-931-0 01 1 0106- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-935-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-935-0 01 1 0106- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9811-0011 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-1 01 1 0106- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9811-0011 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-1 01 1 0106- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-933-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-933-0 01 1 0106- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-143-1 01 1 9811- ● ● ● ● ● ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9811- ● ● ● ● ● ● ●

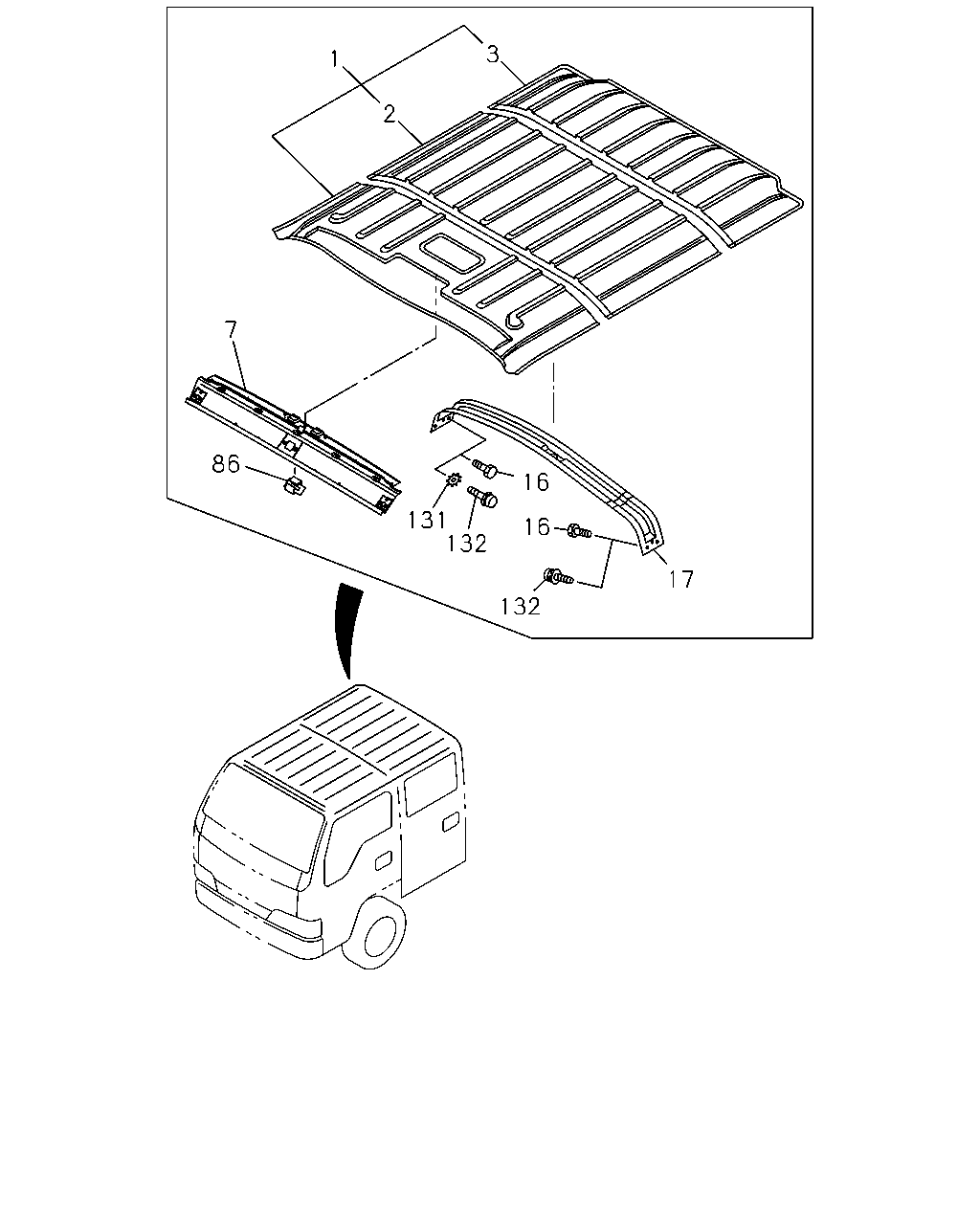

çizim 50155
3 1 2 7 86 16 131 132 16 17 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-098-0 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-488-0 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-258-7 01 1 0106- ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3) 		8-97851-489-5 01 1 0106- ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 0106- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-098-0 01 1 9811-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-098-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-995-1 01 1 0106-0106 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-995-1 01 1 0106-0106 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-995-1 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-869-0 01 1 0106- ● ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-872-0 01 1 0106- ● ● ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9811-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-402-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-1 01 1 0106-0106 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-1 01 1 0106-0106 ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-996-1 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9811-9902 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-488-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-1 01 1 0106-0106 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-1 01 1 0106-0106 ● ● ● ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97898-997-1 01 1 0106- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 9903-0012 ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0101-0105 ● ● ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-870-0 01 1 0106- ● ● ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9811-9908 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> 		8-97851-258-7 01 1 9811-9908 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-258-7 01 1 9909-0011 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-258-7 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-998-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97898-998-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> AUSTRALIA EQUIPMENT(RR3) 		8-97898-998-1 01 1 0106- ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-931-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-931-0 01 1 0106- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-935-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-935-0 01 1 0106- ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 9811-0011 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-403-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97898-999-1 01 1 0106- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 9811-0011 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-489-5 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-1 01 1 0106-0106 ●
1 16.585 PANEL; ROOF
AUSTRALIA EQUIPMENT(RR3) TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97899-001-1 01 1 0106- ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-933-0 01 1 0012-0105 ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,AUSTRALIA EQUIPMENT(RR3),IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-933-0 01 1 0106- ●
2 16.585 PANEL; ROOF,CENTER 8-97851-256-2 01 1 9811- ●
3 16.585 PANEL; ROOF,RR 8-97851-257-4 01 1 9811-0011 ●
3 16.585 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-257-4 01 1 0012-0105 ●
3 16.585 PANEL; ROOF,RR
AUSTRALIA EQUIPMENT(RR3) 		8-97851-257-4 01 1 0106-0106 ●
3 16.585 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-257-4 01 1 0106-0106 ●
3 16.585 PANEL; ROOF,RR
AUSTRALIA EQUIPMENT(RR3) 		8-97851-257-4 01 1 0106- ●
3 16.585 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97851-257-4 01 1 0106- ●
3 16.585 PANEL; ROOF,RR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-943-0 01 1 0012-0105 ●
3 16.585 PANEL; ROOF,RR
EXC. AUSTRALIA EQUIPMENT(RR3), IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-943-0 01 1 0106- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-143-1 01 1 9811- ● ● ● ● ● ● ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9811-0107 ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-626-3 01 1 9811-0105 ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97853-626-3 01 1 0106-0109 ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER
EXC. LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97853-626-3 01 1 0110- ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER
AUSTRALIA EQUIPMENT(RR3) 		8-97899-081-0 01 1 0106-0109 ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER
LAMP-ROOM,W/ALL DOORS SW<SDF> 		8-97899-081-0 01 1 0110- ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9811- ● ● ● ● ● ● ●
131 16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0108- ●
132 16.585 FASTENER; HEADER SHELF
16.742 		8-97892-737-0 04 1 0108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
