Sayfa 6-47 - Isuzu EPC

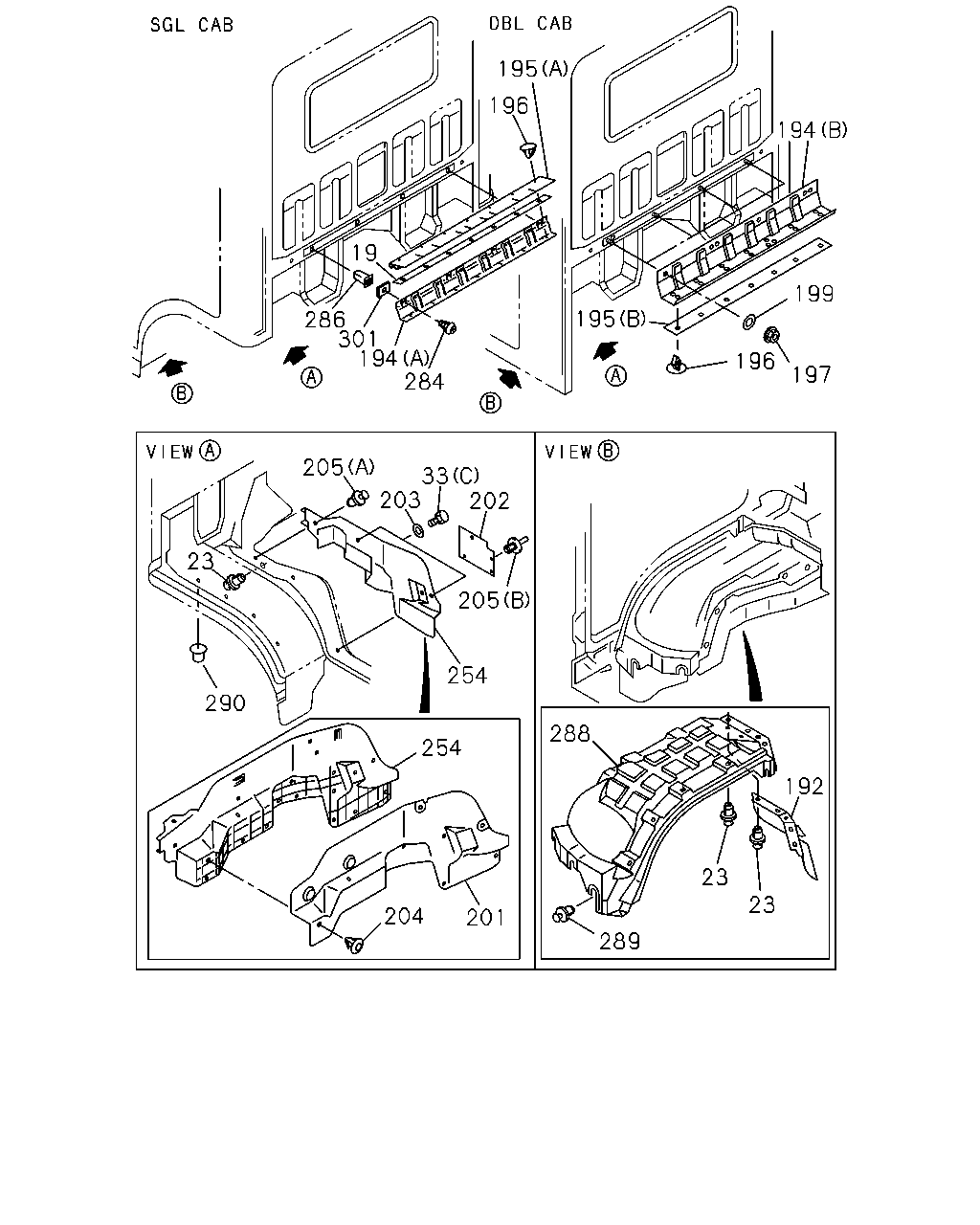

6-47 — MUD GUARD AND INSULATOR (#22610) — 241 parça

195 196 194 19 199 195 286 301 194 284 196 197 205 33 203 202 23 205 254 290 288 254 192 23 23 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9811-0012	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK EXC. THAILAND EQUIPMENT(PM9)	8-97856-016-0	01	1	9811-0012			●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0101-0105	●	●				●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK EXC. THAILAND EQUIPMENT(PM9)	8-97856-016-0	01	1	0101-0105			●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0106-0111	●	●	●	●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0112-0207	●		●	●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-97856-016-0	01	1	0112-0207		●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0208-	●		●	●	●	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK NOISE PACK FOR REGULATION VAR.2<7TF>	8-97856-016-0	01	1	0208-		●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-94279-989-0	10	1	9811-9907	●	●	●	●	●		●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-94279-989-0	06	1	9908-0207	●	●	●	●	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0208-	●	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	9811-0105	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0106-	●	●				●	●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0106-			●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9811-	●	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9811-	●	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9811-	●	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9811-0012	●	●	●	●	●		●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0101-0105	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0101-0105						●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0106-			●	●	●
192	08.153 SEAL; MUD COVER	8-97857-297-3	02	1	9811-	●	●	●	●	●	●	●
194	03.602 BRACKET; HEAT PROTECTOR (A)	8-97853-797-1	01	1	9811-0012	●	●
194	03.602 BRACKET; HEAT PROTECTOR EXC. THAILAND EQUIPMENT(PM9) (A)	8-97853-797-1	01	1	9811-0012			●	●	●
194	03.602 BRACKET; HEAT PROTECTOR (A)	8-97853-797-1	01	1	0101-0105	●	●				●
194	03.602 BRACKET; HEAT PROTECTOR EXC. THAILAND EQUIPMENT(PM9) (A)	8-97853-797-1	01	1	0101-0105			●	●	●
194	03.602 BRACKET; HEAT PROTECTOR (A)	8-97853-797-1	01	1	0106-0111	●	●	●	●	●	●
194	03.602 BRACKET; HEAT PROTECTOR (A)	8-97853-797-1	01	1	0112-0207	●		●	●	●	●
194	03.602 BRACKET; HEAT PROTECTOR EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A)	8-97853-797-1	01	1	0112-0207		●
194	03.602 BRACKET; HEAT PROTECTOR (A)	8-97853-797-1	01	1	0208-	●		●	●	●	●
194	03.602 BRACKET; HEAT PROTECTOR NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97853-797-1	01	1	0208-		●
194	03.602 BRACKET; HEAT PROTECTOR (B)	8-94272-529-3	01	1	9811-							●
195	03.602 PROTECTOR; HEAT (A)	8-97856-386-1	01	1	9811-0012	●	●
195	03.602 PROTECTOR; HEAT EXC. THAILAND EQUIPMENT(PM9) (A)	8-97856-386-1	01	1	9811-0012			●	●	●
195	03.602 PROTECTOR; HEAT (A)	8-97856-386-1	01	1	0101-0105	●	●				●
195	03.602 PROTECTOR; HEAT EXC. THAILAND EQUIPMENT(PM9) (A)	8-97856-386-1	01	1	0101-0105			●	●	●
195	03.602 PROTECTOR; HEAT (A)	8-97856-386-1	01	1	0106-0112	●		●	●	●	●
195	03.602 PROTECTOR; HEAT EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A)	8-97856-386-1	01	1	0201-0201		●
195	03.602 PROTECTOR; HEAT 4HE1 ENG(RLY) (A)	8-97856-386-1	01	1	0202-0202	●		●	●	●
195	03.602 PROTECTOR; HEAT (A)	8-97856-386-1	01	1	0202-	●		●	●	●	●
195	03.602 PROTECTOR; HEAT (A)	8-97995-713-1	01	1	0106-0112		●
195	03.602 PROTECTOR; HEAT EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> (A)	8-97995-713-1	01	1	0201-0207		●
195	03.602 PROTECTOR; HEAT NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97995-713-1	01	1	0208-		●
195	03.602 PROTECTOR; HEAT (B)	8-94272-528-0	01	1	9811-							●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	9811-0012	●	●					●
196	03.602 CLIP; HEAT PROTECTOR EXC. THAILAND EQUIPMENT(PM9)	8-94244-922-0	07	1	9811-0012			●	●	●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	0101-0105	●	●				●	●
196	03.602 CLIP; HEAT PROTECTOR EXC. THAILAND EQUIPMENT(PM9)	8-94244-922-0	07	1	0101-0105			●	●	●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	0106-0111	●	●	●	●	●	●	●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	0112-0207	●		●	●	●	●	●
196	03.602 CLIP; HEAT PROTECTOR EXC. NOISE PACK FOR REGULATION VAR.2 <7TF>	8-94244-922-0	07	1	0112-0207		●
196	03.602 CLIP; HEAT PROTECTOR	8-94244-922-0	07	1	0208-	●		●	●	●	●	●
196	03.602 CLIP; HEAT PROTECTOR NOISE PACK FOR REGULATION VAR.2<7TF>	8-94244-922-0	07	1	0208-		●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK AUSTRALIA EQUIPMENT(RR3) 16.800 M6 FLANGE	1-09984-127-0	04	1	9811-							●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 M6 FLANGE	8-94279-514-0	04	1	9811-							●
199	03.602 WASHER; PL,HEAT PROTECTOR EXC. AUSTRALIA EQUIPMENT(RR3)	8-94292-135-0	04	1	9811-							●
201	08.155 INSULATOR; VALANCE	8-97853-631-2	01	1	9811-	●	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97892-184-0	01	1	9811-	●	●	●	●	●		●
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97853-630-2	01	1	9811-0012	●	●	●	●	●		●
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97853-630-2	01	1	9811-0012	●		●	●	●		●
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97853-630-2	01	1	0101-0105	●	●	●	●	●		●
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97853-630-2	01	1	0101-0105	●		●	●	●	●	●
201	08.155 INSULATOR; VALANCE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97853-630-2	01	1	0106-	●		●	●	●	●	●
201	08.155 INSULATOR; VALANCE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97853-630-2	01	1	0106-	●		●	●	●		●
202	08.155 RUBBER; MUD,VALANCE PANEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97892-185-0	01	1	9811-	●	●	●	●	●		●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9811-	●	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	14	1	9811-	●	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9811-	●	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	5-09989-002-0	04	1	9811-	●	●	●	●	●		●
254	08.153 COVER; MUD,VALANCE	8-97853-359-3	01	1	9811-	●	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97892-183-0	01	1	9811-	●	●	●	●	●		●
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97853-358-3	01	1	9811-0012	●	●	●	●	●		●
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97853-358-3	01	1	9811-0012	●		●	●	●		●
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97853-358-3	01	1	0101-0105	●	●	●	●	●		●
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97853-358-3	01	1	0101-0105	●		●	●	●	●	●
254	08.153 COVER; MUD,VALANCE 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97853-358-3	01	1	0106-	●		●	●	●	●	●
254	08.153 COVER; MUD,VALANCE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97853-358-3	01	1	0106-	●		●	●	●		●
284	08.155 SCREW; HEAT PROTECTOR 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9811-0105	●	●				●
284	08.155 SCREW; HEAT PROTECTOR EXC. THAILAND EQUIPMENT(PM9) 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	9811-0105			●	●	●
284	08.155 SCREW; HEAT PROTECTOR 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0106-0111	●	●	●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0112-0207	●		●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR EXC. NOISE PACK FOR REGULATION VAR.2 <7TF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0112-0207		●
284	08.155 SCREW; HEAT PROTECTOR 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0208-	●		●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR NOISE PACK FOR REGULATION VAR.2<7TF> 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0208-		●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9811-0101	●	●	●	●	●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	9811-0212	●	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	9811-0212	●	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	9811-0212	●	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-	●	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9811-	●	●	●	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9811-0101	●	●	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-	●	●	●	●	●	●

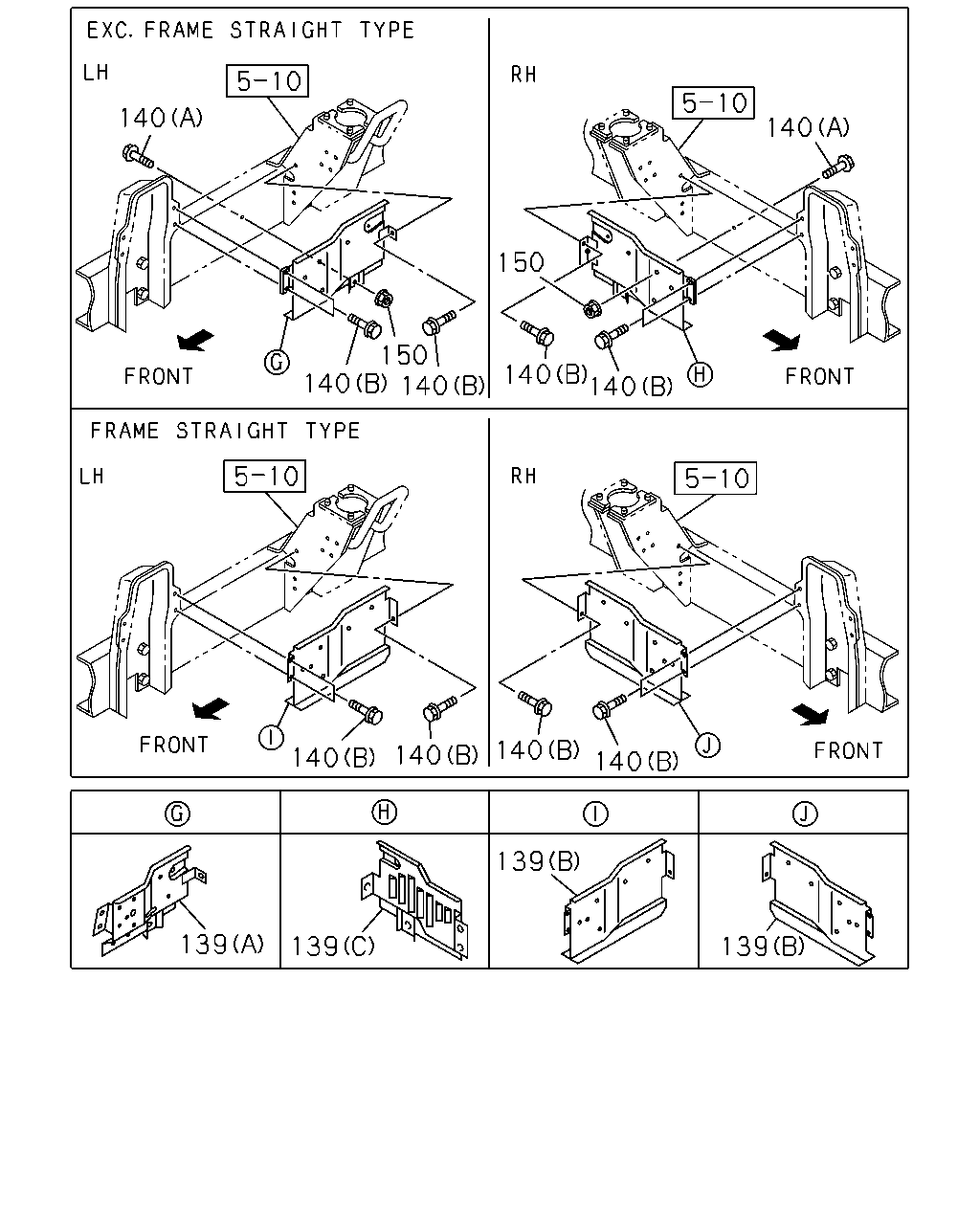

140 140 150 150 140 140 140 140 140 140 140 140 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	9811-0105	●		●	●	●		●
139	08.153 PANEL; SIDE (B)	8-97171-996-0	01	1	9811-0105		●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0106-	●		●	●			●
139	08.153 PANEL; SIDE (B)	8-97171-996-0	01	1	0106-		●			●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	9811-0105	●		●	●	●		●
139	08.153 PANEL; SIDE (B)	8-97188-736-0	01	1	9811-0105		●
139	08.153 PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0106-	●		●	●			●
139	08.153 PANEL; SIDE (B)	8-97188-736-0	01	1	0106-		●			●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	9811-0012	●		●	●	●		●
139	08.153 PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0101-0105	●		●	●	●		●
139	08.153 PANEL; SIDE (A)	8-97092-020-1	01	1	0101-0105						●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0106-	●		●	●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0106-							●
139	08.153 PANEL; SIDE (A)	8-97092-020-1	01	1	0106-						●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	9811-0012	●		●	●	●		●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0101-0105	●		●	●	●		●
139	08.153 PANEL; SIDE (C)	8-97021-164-0	01	1	0101-0105						●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0106-	●		●	●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0106-							●
139	08.153 PANEL; SIDE (C)	8-97021-164-0	01	1	0106-						●
140	08.155 BOLT; SIDE PANEL 04.595 (B) M8X20 FLANGE	0-28480-820-0	06	1	9811-	●	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●		●	●	●		●
140	08.155 BOLT; SIDE PANEL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0105						●
140	08.155 BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-	●		●	●			●
140	08.155 BOLT; SIDE PANEL 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0106-						●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●		●	●	●		●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105						●
150	08.155 NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●		●	●			●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-						●

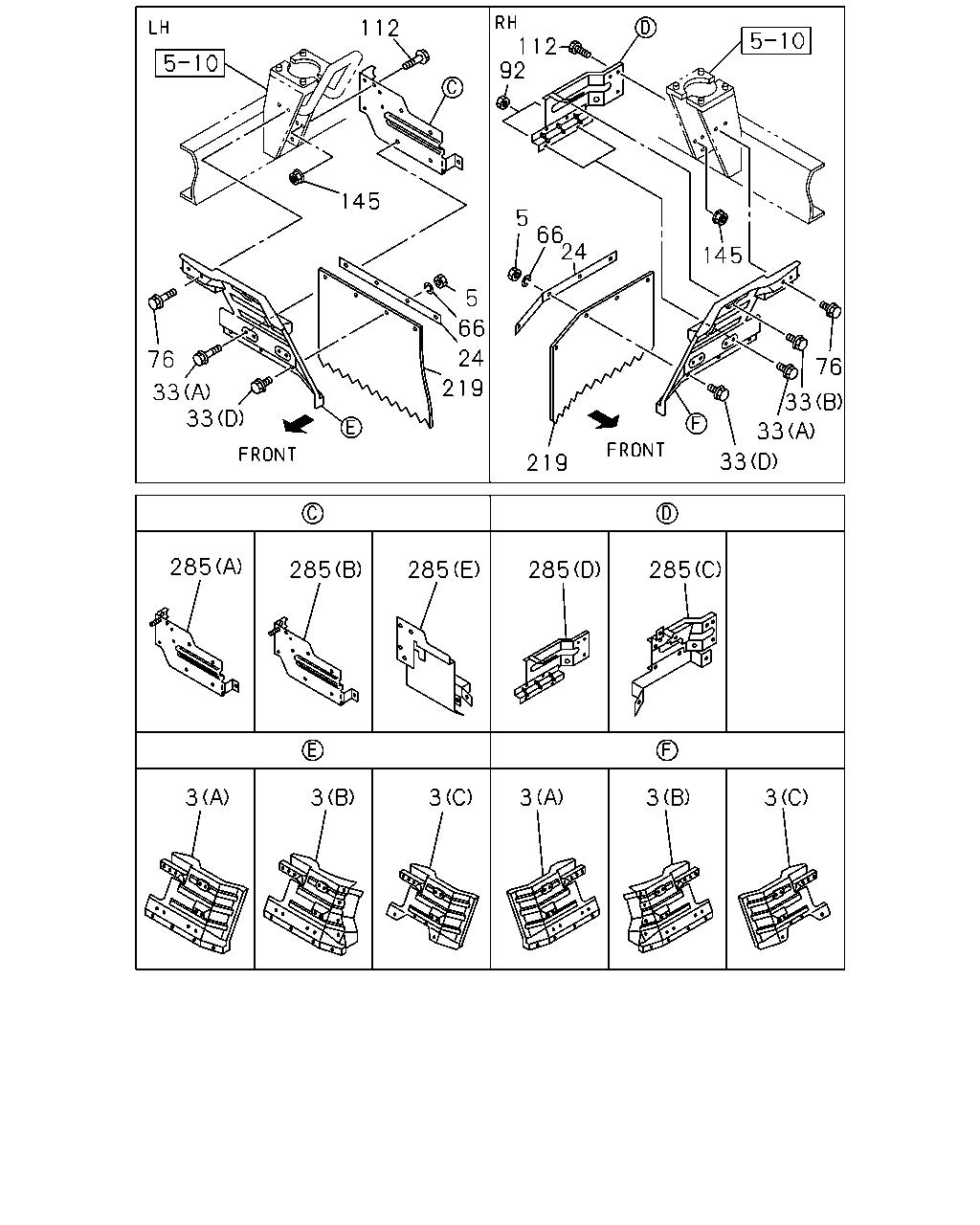

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 285 285 285 285 285 3 3 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-222-1	01	1	9811-0105	●	●	●	●	●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-222-1	01	1	0106-			●	●	●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-221-1	01	1	9811-0105	●	●	●	●	●
3	08.153 GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-221-1	01	1	0106-			●	●	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-729-1	01	1	9811-0012	●	●	●	●	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-729-1	01	1	0101-0105	●	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	0101-0105						●
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	0106-	●	●				●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-729-1	01	1	0106-			●	●	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	9811-0012	●	●	●	●	●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0101-0105	●	●	●	●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0101-0105						●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	0106-	●	●				●
3	08.153 GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97048-728-3	01	1	0106-			●	●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	9811-							●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	9811-							●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	06	1	9811-0105	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0106-	●	●				●	●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	0106-			●	●	●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	9811-9812	●	●	●	●	●		●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	9901-9903	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	9904-0012	●	●	●	●	●		●
5	08.155 NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	08	1	0101-0105	●	●	●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0101-0105						●	●
5	08.155 NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 08.915 M6	9-09111-406-0	06	1	0106-			●	●	●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97147-225-0	02	1	9811-0105	●	●	●	●	●
24	08.155 PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97147-225-0	02	1	0106-			●	●	●
24	08.155 PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP>	8-97095-186-0	02	1	9811-0012	●	●	●	●	●		●
24	08.155 PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP>	8-97095-186-0	02	1	0101-0105	●	●	●	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0101-0105						●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0106-	●	●				●	●
24	08.155 PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP>	8-97095-186-0	02	1	0106-			●	●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	9811-0105	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0106-	●	●				●	●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0106-			●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9811-	●	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9811-	●	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9811-	●	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9811-0012	●	●	●	●	●		●
33	08.155 BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0101-0105	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0101-0105						●	●
33	08.155 BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.738 (D) M6X16 FLANGE	0-28080-616-0	06	1	0106-			●	●	●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	06	1	9811-0105	●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0106-	●	●				●	●
66	08.155 WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	0106-			●	●	●
66	08.155 WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	9811-0012	●	●	●	●	●		●
66	08.155 WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	08	1	0101-0105	●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0101-0105						●	●
66	08.155 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 00.206 ID=6.1	9-09150-506-0	06	1	0106-			●	●	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	04	1	9811-	●	●	●	●	●	●	●
92	08.155 NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	05	1	9811-0105	●	●	●	●	●
92	08.155 NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	05	1	0106-			●	●	●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0012	●	●	●	●	●		●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0101-0105	●	●	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0101-0105						●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●				●	●
92	08.155 NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-			●	●	●
112	08.155 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9811-0105	●	●	●	●	●
112	08.155 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0106-			●	●	●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9811-0012	●	●	●	●	●		●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0101-0105	●	●	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0101-0105						●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0106-	●	●				●	●
112	08.155 BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0106-			●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	9811-	●	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97147-223-0	02	1	9811-9903	●	●	●	●	●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97218-084-0	02	1	9904-0105	●	●	●	●	●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97218-084-0	02	1	0106-0109			●	●	●
219	08.155 FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP>	8-97325-116-0	02	1	0110-			●	●	●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97040-218-1	02	1	9811-9812	●	●	●	●	●		●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97040-218-1	02	1	9901-9903	●	●	●	●	●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	9904-0012	●	●	●	●	●		●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0101-0105	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0101-0105						●	●
219	08.155 FLAP; MUD GUARD	8-97218-080-0	02	1	0106-	●	●				●	●
219	08.155 FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP>	8-97218-080-0	02	1	0106-			●	●	●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (E)	8-97180-529-0	01	1	9811-0105	●	●	●	●	●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (E)	8-97180-529-0	01	1	0106-			●	●	●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-235-0	01	1	9811-0105	●	●	●	●	●
285	08.155 BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	8-97147-235-0	01	1	0106-			●	●	●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	9811-0012	●	●	●	●	●		●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0101-0105	●	●	●	●	●
285	08.155 BRACKET; MUD COVER (D)	8-97035-778-4	01	1	0101-0105						●	●
285	08.155 BRACKET; MUD COVER (D)	8-97035-778-4	01	1	0106-	●	●				●
285	08.155 BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D)	8-97035-778-4	01	1	0106-			●	●	●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HE1 ENG(RLY) (D)	8-97035-778-4	01	1	0106-							●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97035-780-3	01	1	9811-0011	●	●	●	●	●		●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97035-780-3	01	1	9811-0011			●	●			●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97035-780-3	01	1	0012-0105	●	●	●	●	●		●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97035-780-3	01	1	0012-0105			●	●	●		●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97035-780-4	01	1	0106-	●	●	●	●	●		●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-780-4	01	1	0106-							●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-1	01	1	9811-0012	●	●	●	●	●		●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-1	01	1	9811-0012	●		●	●	●		●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-1	01	1	0101-0105	●	●	●	●	●		●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-1	01	1	0101-0105	●		●	●	●	●	●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-2	01	1	0106-	●		●	●	●	●	●
285	08.155 BRACKET; MUD COVER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE 8.25-16<7QP> (B)	8-97092-037-2	01	1	0106-	●		●	●	●		●

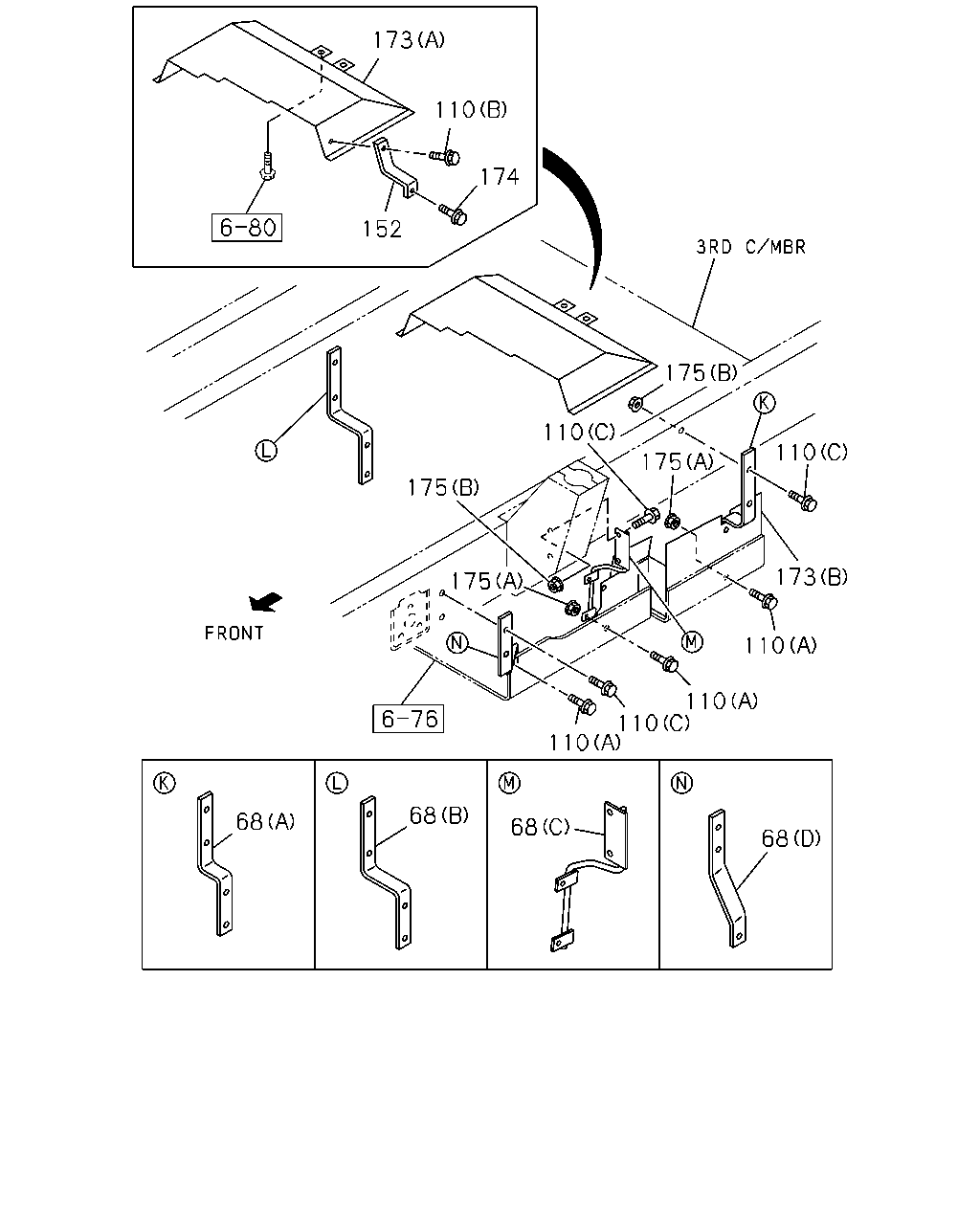

173 110 174 152 175 110 110 175 175 173 175 110 110 110 110 68 68 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
68	08.155 STAY; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A)	8-97180-878-0	01	1	0112-0207	●
68	08.155 STAY; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (A)	8-97180-879-0	01	1	0112-0207	●
68	08.155 STAY; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (B)	8-97180-880-0	01	1	0112-0207	●
68	08.155 STAY; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D)	8-97180-983-1	01	1	0112-0207	●
68	08.155 STAY; COVER NOISE PACK FOR REGULATION VAR.2<7TF> 16.549 (D)	8-97180-984-1	01	1	0112-0207	●
68	08.155 STAY; COVER NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97216-695-2	01	1	0112-0207	●
110	08.155 BOLT; BRKT NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0112-0207	●
110	08.155 BOLT; BRKT NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 (A) M8X25 FLANGE	0-28680-825-0	09	1	0112-0207	●
110	08.155 BOLT; BRKT NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 (C) M10X30 FLANGE	0-28681-030-0	10	1	0112-0207	●
152	04.275 BRACKET; PANEL,TRANS NOISE PACK FOR REGULATION VAR.2<7TF> 16.545	8-97180-799-0	01	1	0112-0207	●
152	04.275 BRACKET; PANEL,TRANS NOISE PACK FOR REGULATION VAR.2<7TF> 16.545	8-97180-800-0	01	1	0112-0207	●
173	08.155 COVER; TRANS SIDE NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97180-795-2	01	1	0112-0207	●
173	08.155 COVER; TRANS SIDE NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97205-593-0	01	1	0112-0207	●
173	08.155 COVER; TRANS SIDE NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97205-594-0	01	1	0112-0207	●
174	08.155 BOLT; STAY FIX NOISE PACK FOR REGULATION VAR.2<7TF> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0112-0207	●
174	08.155 BOLT; STAY FIX NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0112-0207	●
175	08.155 NUT; STAY FIX NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 (A) M8 FLANGE	0-91150-108-0	03	1	0112-0207	●
175	08.155 NUT; STAY FIX NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 (B) M10 FLANGE	0-91150-110-0	06	1	0112-0207	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
