◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#2261) — 61 parça

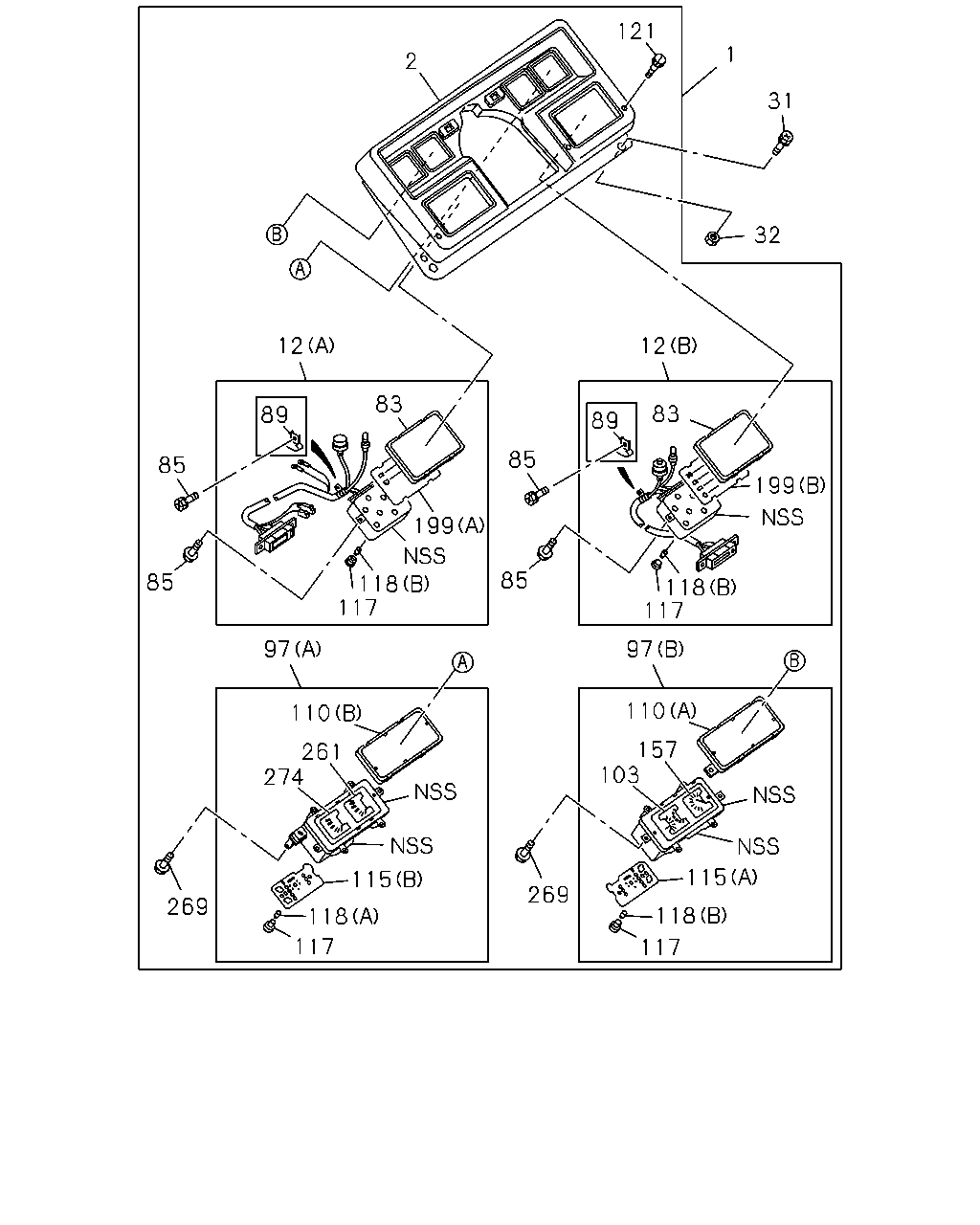

çizim 28934
121 1 2 31 32 12 12 83 83 89 89 85 85 199 199 118 117 85 85 118 117 97 97 110 110 157 103 261 274 115 115 269 269 118 118 117 117
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> TACHOGRAPH MILE S/H(UC5) 		1-83111-665-0 01 1 9101-0203 ● ●
1 METER COMPL; CLUSTER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILE S/H(UC5) 		1-83111-664-0 01 1 9101-0203 ● ●
1 METER COMPL; CLUSTER 1-83111-664-0 01 1 0204- ● ●
2 PANEL; CLUSTER 1-83117-058-0 01 1 9101- ● ●
12 WARNING ASM; METER COMPL
(A) 		1-82250-312-0 01 1 9101- ● ●
12 WARNING ASM; METER COMPL
(B) 		1-82250-313-0 01 1 9101- ● ●
31 SCREW; METER,INST PANEL 9-03910-625-0 05 1 9101- ● ●
32 NUT; METER FIX,CLUSTER METER 9-09110-406-0 05 1 9101- ● ●
83 LENS; SMOKE,CLUSTER METER 1-82255-016-0 02 1 9101- ● ●
85 SCREW; WARNING LAMP COVER,CLUSTER METE
M3X16 		1-09140-004-0 04 1 9101- ● ●
89 CLIP; HARNESS 1-82259-001-0 02 1 9101- ● ●
97 METER; COMB,CLUSTER METER
MILE SPEEDOMETER<UC1> TACHOGRAPH MILE S/H(UC5) (B) 		1-83180-026-0 01 1 9101-0203 ● ●
97 METER; COMB,CLUSTER METER
MILE SPEEDOMETER<UC1> TACHOGRAPH MILE S/H(UC5) (A) 		1-83180-027-0 01 1 9101-0203 ● ●
97 METER; COMB,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILE S/H(UC5) (A) 		1-83180-018-0 01 1 9101-0203 ● ●
97 METER; COMB,CLUSTER METER
(A) 		1-83180-018-0 01 1 0204- ● ●
97 METER; COMB,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILE S/H(UC5) (B) 		1-83180-021-0 01 1 9101-0203 ● ●
97 METER; COMB,CLUSTER METER
(B) 		1-83180-021-0 01 1 0204- ● ●
103 METER ASM; FUEL & AMPERE 1-83180-017-0 01 1 9101- ● ●
110 GLASS; CLUSTER METER
(A) 		1-83189-001-0 01 1 9101- ● ●
110 GLASS; CLUSTER METER
(B) 		1-83189-006-0 01 1 9101- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-003-0 01 1 9101- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(B) 		1-83189-009-0 01 1 9101- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
MILE SPEEDOMETER<UC1> TACHOGRAPH MILE S/H(UC5) 12V 3.4W 		5-82188-001-0 12 1 9101-0203 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILE S/H(UC5) 12V 3.4W 		5-82188-001-0 16 1 9101-0203 ● ●
117 SOCKET; BULB,GAUGE & CLOCK
12V 3.4W 		5-82188-001-0 16 1 0204- ● ●
118 BULB; CLUSTER METER
(A) 24V 3W 		1-82194-022-0 04 1 9101- ● ●
118 BULB; CLUSTER METER
(B) 24V 3W 		9-82691-603-0 14 1 9101- ● ●
121 SCREW; PANEL FIX,CLUSTER METER 1-83119-035-0 04 1 9101- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
MILE SPEEDOMETER<UC1> TACHOGRAPH MILE S/H(UC5) 		1-83150-105-0 01 1 9101-0203 ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILE S/H(UC5) 		1-83150-100-0 01 1 9101-0203 ● ●
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-100-0 01 1 0204- ● ●
199 LENS; WARNING LAMP
(A) 		1-82255-102-0 01 1 9101- ● ●
199 LENS; WARNING LAMP
(B) 		1-82255-103-0 01 1 9101- ● ●
261 THERMOMETER
MILE SPEEDOMETER<UC1> TACHOGRAPH MILE S/H(UC5) 		1-83160-051-0 01 1 9101-0203 ● ●
261 THERMOMETER
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILE S/H(UC5) 		1-83160-050-0 01 1 9101-0203 ● ●
261 THERMOMETER 1-83160-050-0 01 1 0204- ● ●
269 SCREW; METER CLUSTER
M3X16 		1-09140-004-0 04 1 9101- ● ●
274 METER; OIL PRESSURE
MILE SPEEDOMETER<UC1> TACHOGRAPH MILE S/H(UC5) 		1-83150-106-0 01 1 9101-0203 ● ●
274 METER; OIL PRESSURE
EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH MILE S/H(UC5) 		1-83150-099-0 01 1 9101-0203 ● ●
274 METER; OIL PRESSURE 1-83150-099-0 01 1 0204- ● ●
çizim 95220
87 8 239 50 273 46 51 7 273 135 136
BalonParca AdiParca NoAdetTipApplied Date A B
7 SENSOR; TACHOMETER
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) 		1-83127-018-0 01 1 9101-0203 ●
8 TACHOGRAPH; CLUSTER METER
INDICATOR SYSTEM WARNING LIGHTS<UH1> 		1-83120-350-0 01 1 9101-0203 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH MILE S/H(UC5) 		1-83120-337-0 01 1 9101-0203 ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H(SM8) EXC. INDICATOR SYSTEM WARNING LIGHTS<UH1> 		1-83120-336-0 01 1 9101-0203 ● ●
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) 		1-83120-363-0 01 1 9101-0203 ●
46 BRACKET; TACHOGRAPH
TACHOMETER<UD7> EXC. TAIWAN EQUIPMENT(WW5) 		1-83129-022-0 01 1 9101-0203 ● ●
46 BRACKET; TACHOGRAPH
TACHOMETER<UD7> 		1-83129-022-0 01 1 0204- ● ●
50 BOLT; FIX
TACHOMETER<UD7> EXC. TAIWAN EQUIPMENT(WW5) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
50 BOLT; FIX
TACHOMETER<UD7> EXC. TAIWAN EQUIPMENT(WW5) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-0203 ● ●
50 BOLT; FIX
TACHOMETER<UD7> M8X20 W/LK WASHER 		0-50040-820-0 02 1 0204- ● ●
51 NUT; FIX
TACHOMETER<UD7> EXC. TAIWAN EQUIPMENT(WW5) M8 		9-09110-408-0 02 1 9101-0203 ● ●
51 NUT; FIX
TACHOMETER<UD7> M8 		9-09110-408-0 02 1 0204- ● ●
87 SPEEDOMETER
MILE SPEEDOMETER<UC1> 80MPH 		1-83120-158-1 01 1 9101-0203 ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H(SM8),MILE SPEEDOMETER<UC1> ,TACHOGRAPH MILE S/H(UC5),ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) 120KM/H 		1-83120-157-0 01 1 9101-0203 ● ●
87 SPEEDOMETER
120KM/H 		1-83120-157-0 01 1 0204- ● ●
135 SCREW; TACHOMETER
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) 		9-03090-616-0 02 1 9101-0203 ●
136 NUT; TACHOMETER
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) M6 		9-09110-406-0 02 1 9101-0203 ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILE S/H(UC5), ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) 24V 3W 		1-82194-051-0 02 1 9101-0203 ● ●
273 METER ASM; TACHO
TACHOMETER<UD7> EXC. TAIWAN EQUIPMENT(WW5) 		1-83120-139-0 01 1 9101-0203 ● ●
273 METER ASM; TACHO
TACHOMETER<UD7> 		1-83120-139-0 01 1 0204- ● ●
273 METER ASM; TACHO
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) 		1-83120-298-0 01 1 9101-0203 ●
