◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#22604) — 402 parça

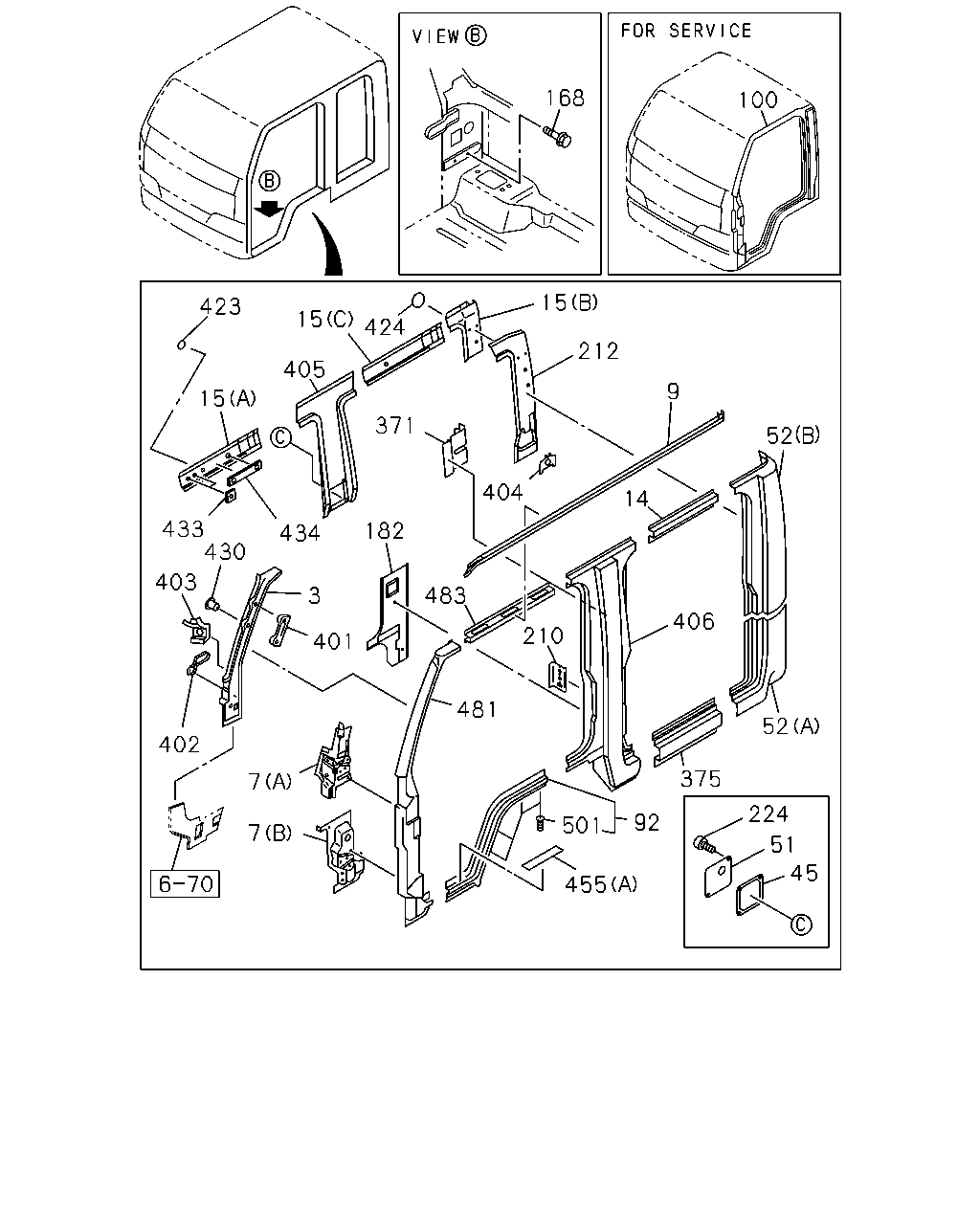

çizim 10693
100 168 15 423 15 424 212 405 9 15 371 52 404 14 433 430 182 434 403 483 3 406 210 401 481 52 402 375 7 224 92 501 7 51 45 455
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 9811- ● ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 9811- ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-3 01 1 9811- ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 9811- ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-3 01 1 9811-9908 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-3 01 1 9909- ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 9811- ● ● ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 9811- ● ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 9811- ● ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-9 01 1 9811- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-9 01 1 9811- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-223-1 01 1 9811- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97851-222-1 01 1 9811- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 9811- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 9811- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 9811- ● ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 9811- ● ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 9811- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 9811- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-4 01 1 9811- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-4 01 1 9811- ●
45 16.570 SEAL; B-C POST 8-97853-731-1 02 1 9811- ●
51 16.570 COVER; HOLE,B-C POST 8-94262-078-0 02 1 9811- ●
52 16.588 PANEL; D-POST UPR
AIR INTAKE REAR VERTICAL<KJ3> (B) UPPER 		8-97892-721-1 01 1 0107- ●
52 16.588 PANEL; D-POST UPR
AIR INTAKE REAR VERTICAL<KJ3> (A) LOWER 		8-97892-722-1 01 1 0107- ●
52 16.588 PANEL; D-POST UPR
(A) LOWER 		8-97851-174-7 01 1 9811- ●
52 16.588 PANEL; D-POST UPR
(B) UPPER 		8-97851-227-6 01 1 9811- ●
52 16.588 PANEL; D-POST UPR
HONG KONG EQUIPMENT(PQ1) (B) UPPER 		8-97892-721-1 01 1 9811-0105 ●
52 16.588 PANEL; D-POST UPR
HONG KONG EQUIPMENT(PQ1) (A) LOWER 		8-97892-722-1 01 1 9811-0105 ●
52 16.588 PANEL; D-POST UPR
EXC. HONG KONG EQUIPMENT(PQ1) (A) LOWER 		8-97851-173-7 01 1 9811-0105 ●
52 16.588 PANEL; D-POST UPR
(A) LOWER 		8-97851-173-7 01 1 0106-0106 ●
52 16.588 PANEL; D-POST UPR
AUSTRALIA EQUIPMENT(RR3) AIR INTAKE SYSTEM FRONT<6PC> (A) LOWER 		8-97851-173-7 01 1 0107- ●
52 16.588 PANEL; D-POST UPR
EXC. HONG KONG EQUIPMENT(PQ1) (B) UPPER 		8-97851-226-6 01 1 9811-0105 ●
52 16.588 PANEL; D-POST UPR
(B) UPPER 		8-97851-226-6 01 1 0106-0106 ●
52 16.588 PANEL; D-POST UPR
AUSTRALIA EQUIPMENT(RR3) AIR INTAKE SYSTEM FRONT<6PC> (B) UPPER 		8-97851-226-6 01 1 0107- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 9811- ● ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 9811- ● ● ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97890-409-1 01 1 9811- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 9811-0011 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-393-0 01 1 9811-0011 ● ●
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0012-0012 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-393-0 01 1 0012-0012 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0012-0012 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-393-0 01 1 0012-0012 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0101-0105 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-393-0 01 1 0101-0105 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0101-0105 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-393-0 01 1 0101-0105 ● ●
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-1 01 1 0106- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-393-1 01 1 0106- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-284-0 01 1 9811-0011 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-284-0 01 1 9811-0011 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-284-0 01 1 0012-0105 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-284-0 01 1 0012-0105 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97890-284-1 01 1 0106- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0106- ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 9811-9903 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-288-0 01 1 9811-9903 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 9904-0011 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-288-0 01 1 9904-0011 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-288-0 01 1 0012-0012 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 0012-0012 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 0012-0012 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-288-0 01 1 0101-0105 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 0101-0105 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 0101-0105 ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-288-0 01 1 0101-0105 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97890-288-1 01 1 0106- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-1 01 1 0106- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-288-1 01 1 0106- ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 9811- ●
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97890-409-0 01 1 9811-0106 ●
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(RR3) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-409-0 01 1 0107- ●
100 16.570 PANEL ASM; BODY SIDE
HONG KONG EQUIPMENT(PQ1) 		8-97890-411-0 01 1 9811-0105 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 9811-0105 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0106-0106 ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-411-1 01 1 0107- ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9811- ● ● ● ● ● ● ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-177-5 01 1 9811- ●
182 16.570 PANEL; CLOSING,CTR PILLAR LWR 8-97850-176-5 01 1 9811- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-446-1 02 1 9811- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97851-445-1 02 1 9811- ●
212 16.588 CLOSING; PILLAR
AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97890-456-2 01 1 9811-0105 ● ● ● ●
212 16.588 CLOSING; PILLAR
AUSTRALIA EQUIPMENT(RR3) 		8-97890-456-2 01 1 9811-0105 ●
212 16.588 CLOSING; PILLAR
AUSTRALIA EQUIPMENT(RR3) 		8-97890-456-2 01 1 0106- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-2 01 1 9811- ● ● ● ● ● ● ●
212 16.588 CLOSING; PILLAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 9811-0012 ● ● ● ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-452-2 01 1 9811-0012 ● ●
212 16.588 CLOSING; PILLAR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 9811-0012 ●
212 16.588 CLOSING; PILLAR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 0101-0105 ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-452-2 01 1 0101-0105 ● ● ●
212 16.588 CLOSING; PILLAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 0101-0105 ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-2 01 1 0101-0105 ● ●
212 16.588 CLOSING; PILLAR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 0106- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-2 01 1 0106- ● ●
224 16.570 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9811- ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9811- ● ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9811- ● ● ● ● ● ● ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-6 01 1 9811-0106 ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-6 01 1 0107- ●
375 16.507 PANEL; SIDE SILL RR,CAB 8-97851-159-6 01 1 0107- ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9811-0012 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9811-0012 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0101-0105 ● ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0101-0105 ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0106-0106 ● ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0106-0106 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0107- ● ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0107- ● ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9811- ● ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9811- ● ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9811- ● ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9811- ● ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9811-0012 ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9811-0012 ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0101-0105 ● ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0101-0105 ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0106-0106 ● ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0106-0106 ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0107- ● ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0107- ● ● ● ● ● ● ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-314-3 01 1 9811- ●
405 16.570 PANEL; CLOSING,CTR PILLAR 8-97890-420-3 01 1 9811- ●
406 16.570 PILLAR; CENTER 8-97851-240-7 01 1 9811- ●
406 16.570 PILLAR; CENTER 8-97851-239-7 01 1 9811- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9811-9906 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9907-0005 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0006-0008 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0009-0012 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0101- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9909-0005 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0006-0008 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0009-0012 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0101- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9909-0012 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0101- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9811-9906 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9907-0012 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0101- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9811-0008 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0009-0112 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0201- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9811- ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9811-9906 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9907-0005 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0006-0008 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0009-0012 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0101- ● ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9811-9906 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9907-0012 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0101- ● ● ● ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 9811-9903 ● ● ● ● ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9811-9903 ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 9904-0011 ● ● ● ● ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> M8 POP NUT 		8-94279-538-0 02 1 9904-0011 ● ● ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 0012-0012 ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0012-0012 ● ● ● ●
430 16.570 NUT; PANEL
EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0012-0012 ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 0101-0105 ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0101-0105 ● ● ● ●
430 16.570 NUT; PANEL
EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0101-0105 ●
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0101-0105 ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 POP NUT 		8-94279-538-0 02 1 0106- ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0106- ● ● ● ●
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0106- ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9811-9908 ● ● ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9909- ● ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 9811-0012 ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 9811-0012 ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0101-0105 ● ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0101-0105 ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0106-0106 ● ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0106-0106 ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0107- ● ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0107- ● ● ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9811- ● ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-97851-502-0 01 1 9811- ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 9811- ● ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 9811- ●
455 08.228 PROTECTOR; STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-736-4 01 1 9811- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 9811- ● ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 9811- ● ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 9811- ● ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 9811- ● ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9811-0012 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9811-0012 ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0101-0105 ● ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0101-0105 ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0106-0106 ● ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0106-0106 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0107- ● ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0107- ● ● ● ● ● ● ●

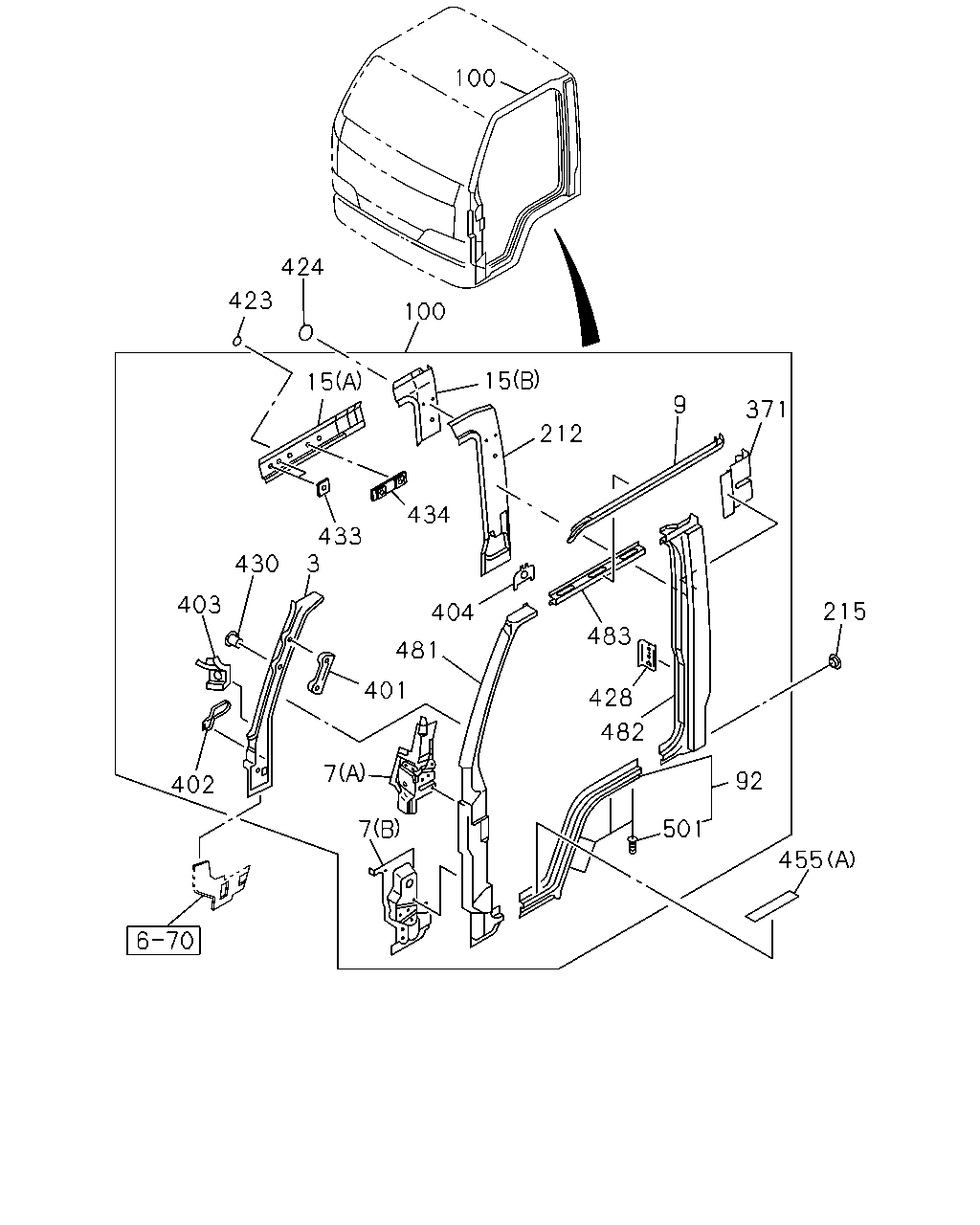

çizim 48162
100 424 423 100 15 15 9 371 212 434 433 3 430 403 215 404 483 481 401 428 482 7 92 402 501 7 455
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-024-8 01 1 9811- ● ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-023-8 01 1 9811- ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-3 01 1 9811- ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 9811- ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-3 01 1 9811-9908 ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-3 01 1 9909- ● ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 9811- ● ● ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 9811- ● ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 9811- ● ● ● ● ● ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-208-9 01 1 9811- ●
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-207-9 01 1 9811- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 9811- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 9811- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 9811- ● ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 9811- ● ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 9811- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97851-504-0 01 1 9811- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-229-4 01 1 9811- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-228-4 01 1 9811- ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 9811- ● ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 9811- ● ● ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97890-409-1 01 1 9811- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 9811-0011 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-393-0 01 1 9811-0011 ● ●
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0012-0012 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-393-0 01 1 0012-0012 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0012-0012 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-393-0 01 1 0012-0012 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0101-0105 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-393-0 01 1 0101-0105 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0101-0105 ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-393-0 01 1 0101-0105 ● ●
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-1 01 1 0106- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-393-1 01 1 0106- ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-284-0 01 1 9811-0011 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-284-0 01 1 9811-0011 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-284-0 01 1 0012-0105 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-284-0 01 1 0012-0105 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97890-284-1 01 1 0106- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 0106- ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 9811-9903 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-288-0 01 1 9811-9903 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 9904-0011 ● ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-288-0 01 1 9904-0011 ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-288-0 01 1 0012-0012 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 0012-0012 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 0012-0012 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-288-0 01 1 0101-0105 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 0101-0105 ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-0 01 1 0101-0105 ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-288-0 01 1 0101-0105 ●
100 16.570 PANEL ASM; BODY SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97890-288-1 01 1 0106- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 		8-97890-288-1 01 1 0106- ● ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-288-1 01 1 0106- ●
100 16.570 PANEL ASM; BODY SIDE 8-97890-284-1 01 1 9811- ●
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97890-409-0 01 1 9811-0106 ●
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(RR3) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-409-0 01 1 0107- ●
100 16.570 PANEL ASM; BODY SIDE
HONG KONG EQUIPMENT(PQ1) 		8-97890-411-0 01 1 9811-0105 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 9811-0105 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-393-0 01 1 0106-0106 ●
100 16.570 PANEL ASM; BODY SIDE
AIR INTAKE REAR VERTICAL<KJ3> 		8-97890-411-1 01 1 0107- ●
212 16.588 CLOSING; PILLAR
AIR INTAKE REAR VERTICAL<KJ3> AUSTRALIA EQUIPMENT(RR3) 		8-97890-456-2 01 1 9811-0105 ● ● ● ●
212 16.588 CLOSING; PILLAR
AUSTRALIA EQUIPMENT(RR3) 		8-97890-456-2 01 1 9811-0105 ●
212 16.588 CLOSING; PILLAR
AUSTRALIA EQUIPMENT(RR3) 		8-97890-456-2 01 1 0106- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-453-2 01 1 9811- ● ● ● ● ● ● ●
212 16.588 CLOSING; PILLAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 9811-0012 ● ● ● ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-452-2 01 1 9811-0012 ● ●
212 16.588 CLOSING; PILLAR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 9811-0012 ●
212 16.588 CLOSING; PILLAR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 0101-0105 ● ●
212 16.588 CLOSING; PILLAR
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 		8-97890-452-2 01 1 0101-0105 ● ● ●
212 16.588 CLOSING; PILLAR
AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 0101-0105 ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-2 01 1 0101-0105 ● ●
212 16.588 CLOSING; PILLAR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97890-452-2 01 1 0106- ● ● ● ● ●
212 16.588 CLOSING; PILLAR 8-97890-452-2 01 1 0106- ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 9812- ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 9811- ● ● ● ● ● ● ●
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 9811- ● ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9811-0012 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 9811-0012 ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0101-0105 ● ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0101-0105 ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0106-0106 ● ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0106-0106 ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0107- ● ● ● ● ● ● ●
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 01 1 0107- ● ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 9811- ● ● ● ● ● ● ●
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 9811- ● ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 9811- ● ● ● ● ● ● ●
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 9811- ● ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9811-0012 ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 9811-0012 ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0101-0105 ● ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0101-0105 ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0106-0106 ● ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0106-0106 ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0107- ● ● ● ● ● ● ●
404 16.570 BRACKET 8-97890-317-1 01 1 0107- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9811-9906 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 9907-0005 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0006-0008 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0009-0012 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0101- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9909-0005 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0006-0008 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0009-0012 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0101- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9909-0012 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0101- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9811-9906 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 9907-0012 ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 06 1 0101- ● ● ● ● ● ● ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9811-0008 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARIN E BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0009-0112 ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0201- ●
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9811- ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9811-9906 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9907-0005 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0006-0008 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0009-0012 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0101- ● ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9811-9906 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 9907-0012 ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> OD=20 T=0.05 WHITE 		8-97856-832-1 04 1 0101- ● ● ● ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 9811- ● ● ● ● ● ●
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 9811- ● ● ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 9811-9903 ● ● ● ● ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 9811-9903 ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 9904-0011 ● ● ● ● ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> M8 POP NUT 		8-94279-538-0 02 1 9904-0011 ● ● ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 0012-0012 ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0012-0012 ● ● ● ●
430 16.570 NUT; PANEL
EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0012-0012 ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M8 POP NUT 		8-94279-538-0 02 1 0101-0105 ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0101-0105 ● ● ● ●
430 16.570 NUT; PANEL
EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0101-0105 ●
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0101-0105 ●
430 16.570 NUT; PANEL
4HG1 ENG(RJH),4HF1 ENG(RLS) M8 POP NUT 		8-94279-538-0 02 1 0106- ● ● ● ●
430 16.570 NUT; PANEL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M8 POP NUT 		8-94279-538-0 02 1 0106- ● ● ● ●
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0106- ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9811-9908 ● ● ● ● ● ●
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 9909- ● ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 9811-0012 ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 9811-0012 ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0101-0105 ● ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0101-0105 ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0106-0106 ● ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0106-0106 ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0107- ● ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0107- ● ● ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 9811- ● ● ● ● ● ●
434 16.592 PATCH; ASSIST GRIP 8-97851-502-0 01 1 9811- ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 9811- ● ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 9811- ●
455 08.228 PROTECTOR; STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-736-4 01 1 9811- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97851-520-5 01 1 9811- ● ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-97859-060-2 01 1 9811- ● ● ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97851-522-4 01 1 9811- ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 9811- ● ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
AIR INTAKE REAR VERTICAL<KJ3> 		8-97859-052-2 01 1 9811- ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 9811- ● ● ● ● ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 9811- ● ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9811-0012 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 9811-0012 ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0101-0105 ● ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0101-0105 ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0106-0106 ● ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0106-0106 ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0107- ● ● ● ● ● ● ●
501 16.570 PIN; STUD
M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0107- ● ● ● ● ● ● ●

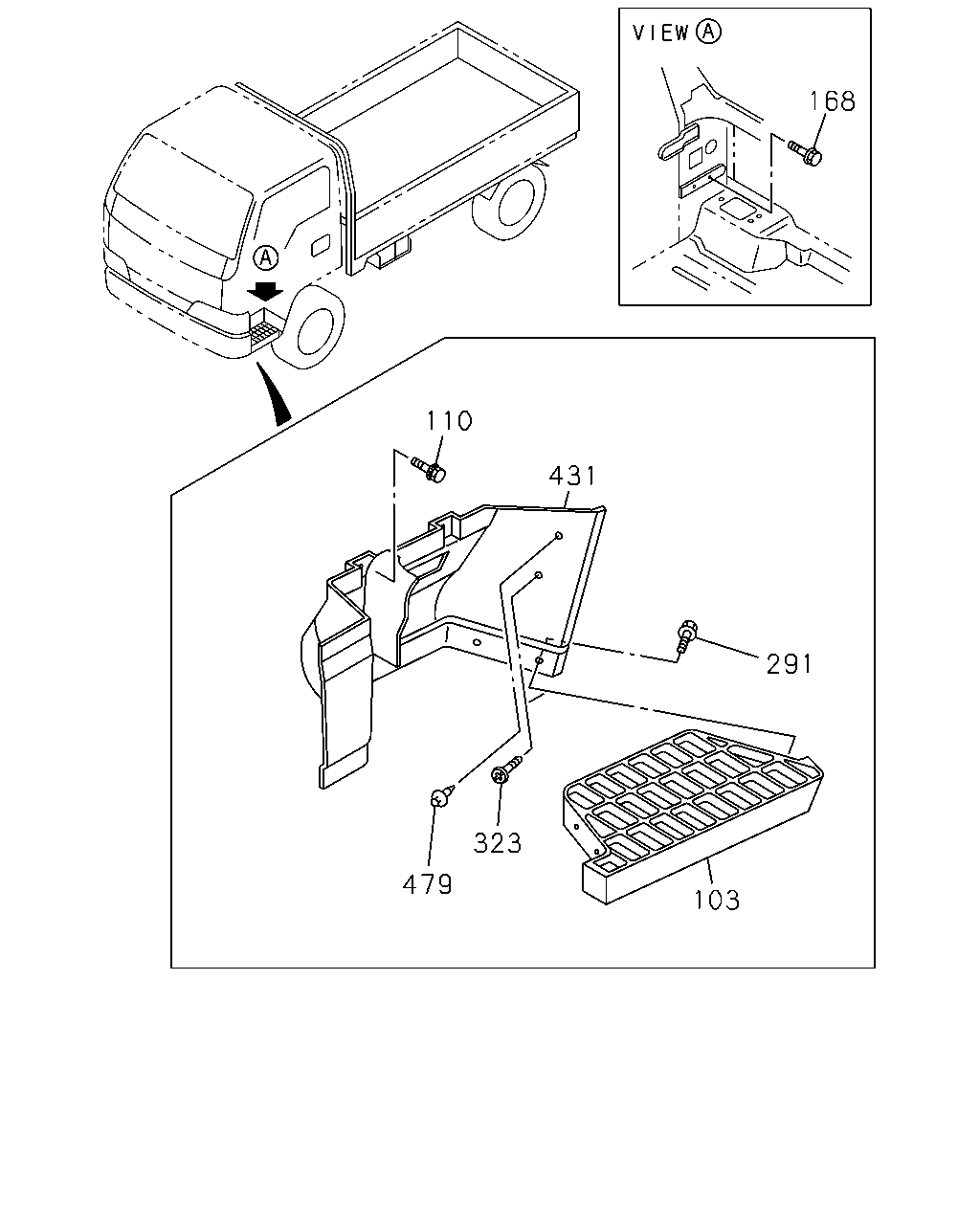

çizim 48882
168 110 431 291 323 479 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
103 08.228 PLATE; STEP 8-97867-969-0 01 1 9811- ● ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 9811- ● ● ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9811- ● ● ● ● ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 9811- ● ● ● ● ● ● ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9811- ● ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9811- ● ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9811-9910 ● ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-0 01 1 9911- ● ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9811-9910 ● ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-0 01 1 9911- ● ● ● ● ● ● ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9811- ● ● ● ● ● ● ●

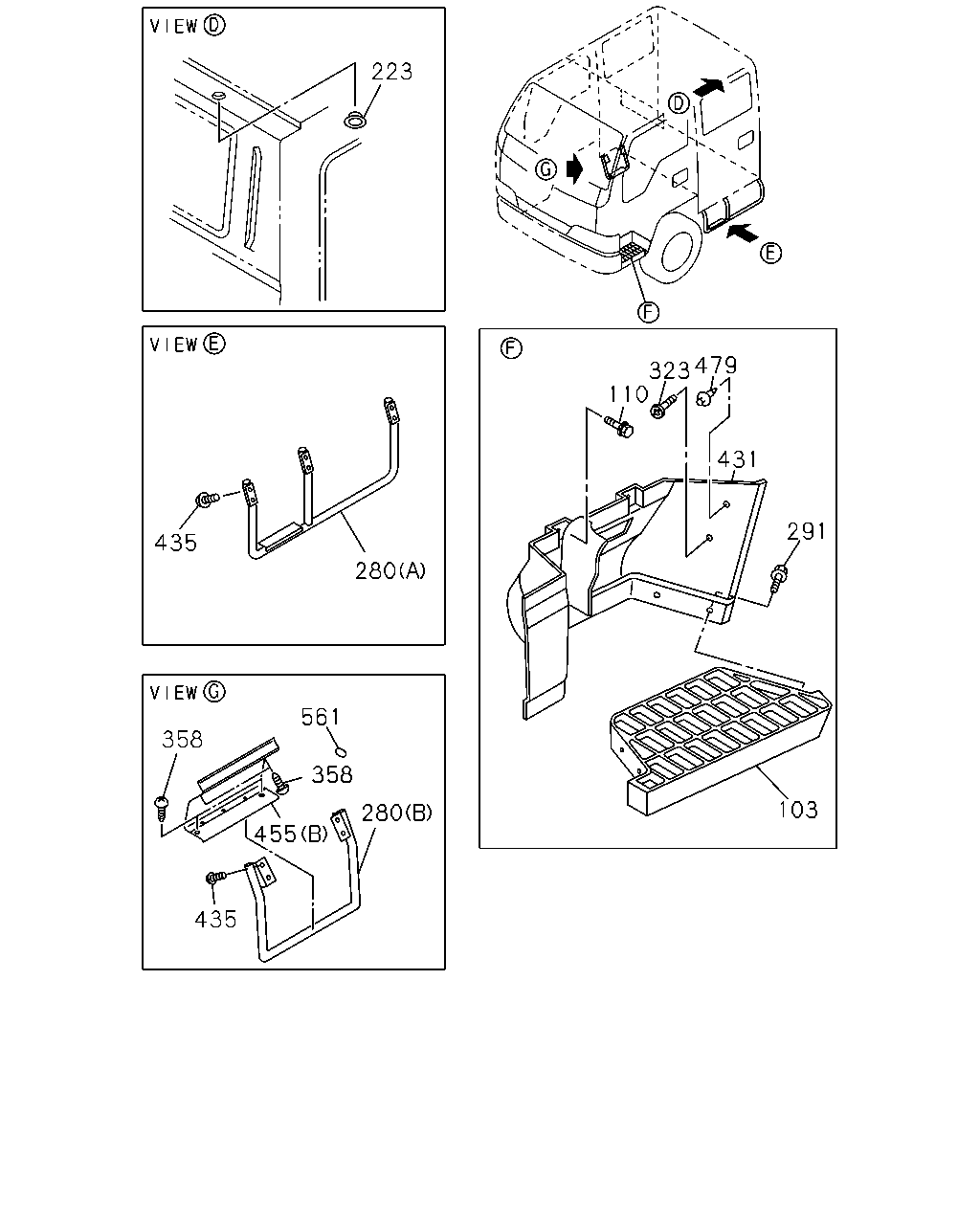

çizim 49816
223 479 323 110 431 291 435 280 561 358 358 103 280 455 435
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
103 08.228 PLATE; STEP 8-97867-969-0 01 1 9811- ● ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-97867-968-0 01 1 9811- ● ● ● ● ● ● ●
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9811- ● ● ● ● ● ● ●
223 16.570 GROMMET; LOCATION HOLE
EXC. AUTO DOOR LOCK<AU4> 		8-94279-724-0 02 1 9811- ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 9811-9908 ●
280 08.225 STEP ASM; RR
(A) 		8-97853-659-4 01 1 9909- ●
280 08.225 STEP ASM; RR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-735-2 01 1 9811- ●
280 08.225 STEP ASM; RR
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97853-658-4 01 1 9811-0105 ●
280 08.225 STEP ASM; RR
4HG1 ENG(RJH) (B) 		8-97853-658-4 01 1 0106- ●
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9811- ● ● ● ● ● ● ●
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 9811- ● ● ● ● ● ● ●
358 08.228 SCREW; PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9811-9901 ●
358 08.228 SCREW; PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 03.602 M6X20 		8-94279-406-0 04 1 9902-9902 ●
358 08.228 SCREW; PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 01.269 M8X16.5 		1-09104-027-1 04 1 9903- ●
431 08.228 SUPPORT ASM; STEP 8-97853-584-7 01 1 9811-9910 ● ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-966-0 01 1 9911- ● ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97853-583-7 01 1 9811-9910 ● ● ● ● ● ● ●
431 08.228 SUPPORT ASM; STEP 8-97892-965-0 01 1 9911- ● ● ● ● ● ● ●
435 08.225 BOLT; RR STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9811-9903 ●
435 08.225 BOLT; RR STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 06.500 M6X25 		8-94279-204-0 10 1 9904-0011 ●
435 08.225 BOLT; RR STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 10 1 0012- ●
435 08.225 BOLT; RR STEP
4HG1 ENG(RJH),4HF1 ENG(RLS) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 12 1 9811-9903 ●
435 08.225 BOLT; RR STEP
4HG1 ENG(RJH),4HF1 ENG(RLS) 06.500 M6X25 		8-94279-204-0 12 1 9904-0011 ●
435 08.225 BOLT; RR STEP
4HG1 ENG(RJH),4HF1 ENG(RLS) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0012-0105 ●
435 08.225 BOLT; RR STEP
4HG1 ENG(RJH) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0106- ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 9811- ● ● ● ● ● ● ●
455 08.228 PROTECTOR; STEP
(A) 		8-97852-863-0 02 1 9811- ●
455 08.228 PROTECTOR; STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-736-4 01 1 9811- ●
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 9811- ● ● ● ● ● ● ●
561 08.154 SEAL; HOLE,STEP
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
