◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#2260) — 66 parça

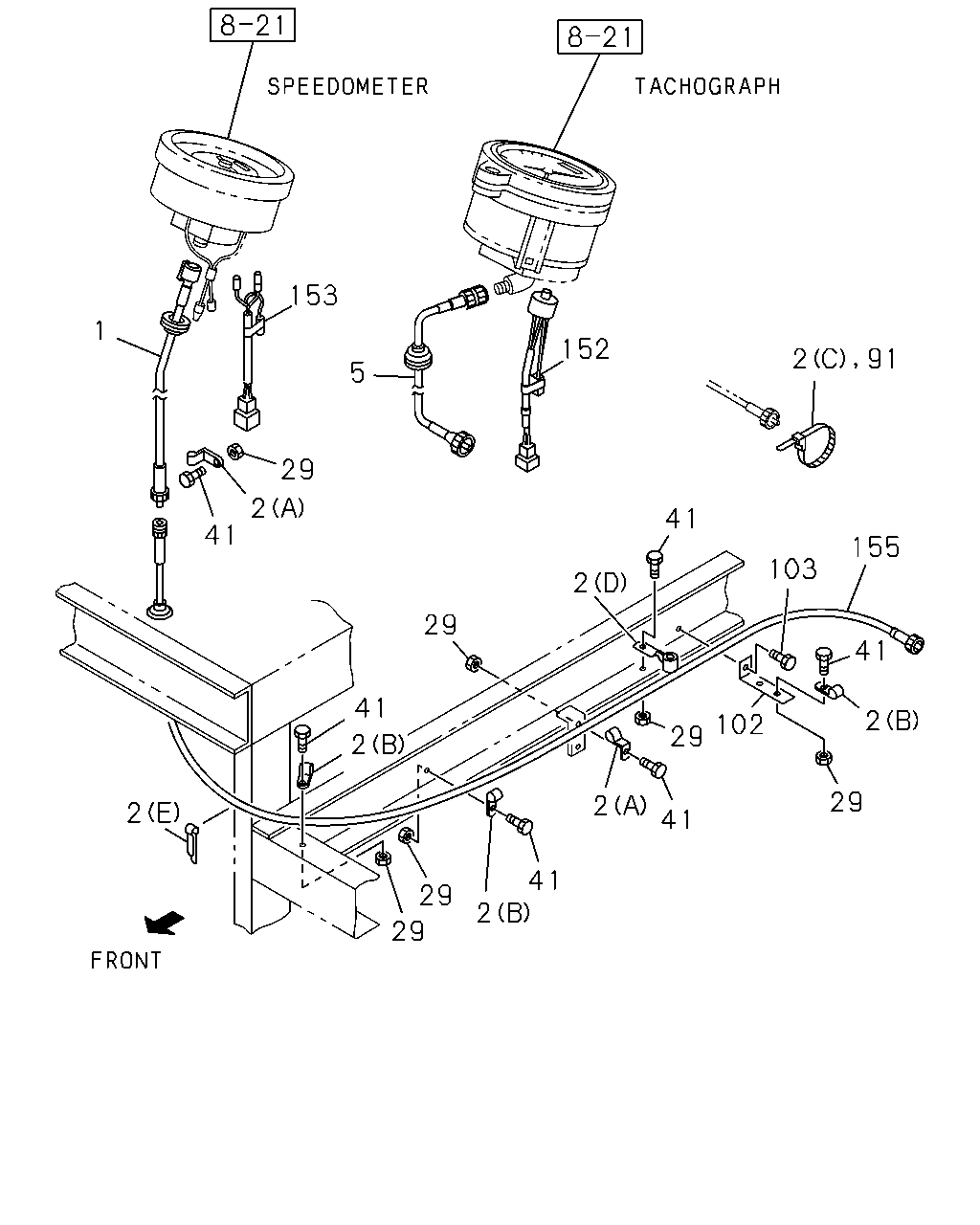

çizim 94287
153 1 152 91 5 29 2 41 41 155 103 2 29 41 41 2 102 29 2 29 2 2 41 41 2 29 29 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; FLEX,SPD TO CONN
L=350 		1-83123-258-1 01 1 9101- ● ●
2 CLIP; FLEX SHAFT
(A) ID=11 H=34 L=27 		1-09701-023-0 01 1 9101-9204 ●
2 CLIP; FLEX SHAFT
MLH5B M/T(X3N),MBG5A M/T(X4J),MBG5B M/T(X4K), MBG6PM/T(X4L),MBG6R M/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) (A) ID=11 H=34 L=27 		1-09701-023-0 01 1 9205-0203 ●
2 CLIP; FLEX SHAFT
MLH5B M/T(X3N),MBG5B M/T(X4K),MBG6R M/T(X4N), MBG5CM/T(X4R) (A) ID=11 H=34 L=27 		1-09701-023-0 01 1 0204- ●
2 CLIP; FLEX SHAFT
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG6P M/T(X4L), MBG6RM/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) (A) ID=11 H=45 L=25 		1-09700-866-0 03 1 9101-0203 ●
2 CLIP; FLEX SHAFT
MBG5B M/T(X4K),MBG6R M/T(X4N),MBG5C M/T(X4R) (A) ID=11 H=45 L=25 		1-09700-866-0 03 1 0204- ●
2 CLIP; FLEX SHAFT
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG6P M/T(X4L), MBG6RM/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) (A) ID=11 H=20 L=20 		5-09700-351-0 02 1 9101-0203 ●
2 CLIP; FLEX SHAFT
MBG5B M/T(X4K),MBG6R M/T(X4N),MBG5C M/T(X4R) (A) ID=11 H=20 L=20 		5-09700-351-0 02 1 0204- ●
2 CLIP; FLEX SHAFT
MLH5B M/T(X3N) (E) ID=11 L=41 		1-09700-403-0 01 1 9101-9101 ●
2 CLIP; FLEX SHAFT
EXC. TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILE S/H(UC5),ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) (E) ID=11 L=41 		1-09700-403-0 01 1 9102-9204 ● ●
2 CLIP; FLEX SHAFT
MLH5B M/T(X3N) (E) ID=11 L=41 		1-09700-403-0 01 1 9102-9204 ●
2 CLIP; FLEX SHAFT
MLH5B M/T(X3N) (E) ID=11 L=41 		1-09700-403-0 01 1 9205-0203 ●
2 CLIP; FLEX SHAFT
(E) ID=11 L=41 		1-09700-403-0 01 1 0204- ● ●
2 CLIP; FLEX SHAFT
MLH5B M/T(X3N) (E) ID=11 L=41 		1-09700-403-0 01 1 0204- ●
2 CLIP; FLEX SHAFT
MLH5B M/T(X3N),MLH5C M/T(X5M) (B) ID=11 L=20 		9-09525-035-0 04 1 9101-9101 ●
2 CLIP; FLEX SHAFT
MLH5B M/T(X3N) (B) ID=11 L=20 		9-09525-035-0 04 1 9102- ●
2 CLIP; FLEX SHAFT
TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILE S/H(UC5), ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) (A) ID=11 H=20 L=20 		5-09700-351-0 01 1 9101-0203 ● ●
2 CLIP; FLEX SHAFT
TACHOMETER<UD7> (A) ID=11 H=20 L=20 		5-09700-351-0 01 1 0204- ●
2 CLIP; FLEX SHAFT
(A) ID=11 H=20 L=20 		5-09700-351-0 01 1 0204- ●
2 CLIP; FLEX SHAFT
TACHOMETER<UD7> (A) ID=9 L=25 H=45 		1-09700-867-0 01 1 9101-0203 ● ●
2 CLIP; FLEX SHAFT
ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) (A) ID=9 L=25 H=45 		1-09700-867-0 01 1 9101-0203 ●
2 CLIP; FLEX SHAFT
TACHOMETER<UD7> (A) ID=9 L=25 H=45 		1-09700-867-0 01 1 0204- ● ●
2 CLIP; FLEX SHAFT
TACHOMETER<UD7> (C) L=140 		5-09707-031-1 02 1 9101-0203 ● ●
2 CLIP; FLEX SHAFT
ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) (C) L=140 		5-09707-031-1 02 1 9101-0203 ●
2 CLIP; FLEX SHAFT
TACHOMETER<UD7> (C) L=140 		5-09707-031-1 02 1 0204- ● ●
2 CLIP; FLEX SHAFT
(B) ID=11 L=40 		9-09525-075-0 01 1 9101- ●
2 CLIP; FLEX SHAFT
(D) ID=11 L=58 		9-09917-135-2 01 1 9101- ●
2 CLIP; FLEX SHAFT
ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) (A) ID=11 H=45 L=25 		1-09700-866-0 01 1 9101-0203 ●
2 CLIP; FLEX SHAFT
TACHOMETER<UD7> (B) ID=10 L=40 		9-09917-425-0 03 1 9101-0203 ●
2 CLIP; FLEX SHAFT
ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) (B) ID=10 L=40 		9-09917-425-0 03 1 9101-0203 ●
2 CLIP; FLEX SHAFT
TACHOMETER<UD7> (B) ID=10 L=40 		9-09917-425-0 03 1 0204- ●
5 SHAFT; FLEX,TACHOMETER TO ENG
TACHOMETER<UD7> L=2400 		9-83112-768-0 01 1 9101- ●
5 SHAFT; FLEX,TACHOMETER TO ENG
ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) L=2509 		1-83123-693-1 01 1 9101-0203 ●
5 SHAFT; FLEX,TACHOMETER TO ENG
TACHOMETER<UD7> EXC. TAIWAN EQUIPMENT(WW5) L=3150 		9-83112-497-1 01 1 9101-0203 ●
5 SHAFT; FLEX,TACHOMETER TO ENG
TACHOMETER<UD7> L=3150 		9-83112-497-1 01 1 0204- ●
29 NUT; CLIP,METER FLEX SHAFT
MLH5B M/T(X3N) M8 		9-09110-408-0 04 1 9101-9101 ●
29 NUT; CLIP,METER FLEX SHAFT
MLH5B M/T(X3N) M8 		9-09110-408-0 05 1 9102- ●
29 NUT; CLIP,METER FLEX SHAFT
MBG5B M/T(X4K),MBG6R M/T(X4N),MBG5C M/T(X4R) M8 		9-09110-408-0 06 1 0204- ●
29 NUT; CLIP,METER FLEX SHAFT
M8 		9-09110-408-0 03 1 0204- ●
41 BOLT; METER FLEX SHAFT
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG6P M/T(X4L), MBG6RM/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) M8X20 W/LK WASHER 		9-01900-820-0 06 1 9101-9204 ●
41 BOLT; METER FLEX SHAFT
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG6P M/T(X4L), MBG6RM/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) M8X20 W/LK WASHER 		0-50040-820-0 06 1 9205-0203 ●
41 BOLT; METER FLEX SHAFT
MBG5B M/T(X4K),MBG6R M/T(X4N),MBG5C M/T(X4R) M8X20 W/LK WASHER 		0-50040-820-0 06 1 0204- ●
41 BOLT; METER FLEX SHAFT
MLH5B M/T(X3N) M8X25 W/LK WASHER 		9-01900-825-0 04 1 9101-9101 ●
41 BOLT; METER FLEX SHAFT
MLH5B M/T(X3N) M8X25 W/LK WASHER 		9-01900-825-0 05 1 9102-9204 ●
41 BOLT; METER FLEX SHAFT
MLH5B M/T(X3N) M8X25 W/LK WASHER 		0-50040-825-0 05 1 9205- ●
41 BOLT; METER FLEX SHAFT
TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILE S/H(UC5), ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
41 BOLT; METER FLEX SHAFT
TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILE S/H(UC5), ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-0203 ● ●
41 BOLT; METER FLEX SHAFT
M8X20 W/LK WASHER 		9-01900-820-0 03 1 9101-9204 ●
41 BOLT; METER FLEX SHAFT
M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205- ●
91 CLIP; BAND
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG6P M/T(X4L), MBG6RM/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) L=250 		5-09707-030-1 02 1 9101-0203 ●
91 CLIP; BAND
L=250 		5-09707-030-1 02 1 9101-0203 ●
91 CLIP; BAND
MBG5B M/T(X4K),MBG6R M/T(X4N),MBG5C M/T(X4R) L=250 		5-09707-030-1 02 1 0204- ●
91 CLIP; BAND
L=250 		5-09707-030-1 02 1 0204- ●
91 CLIP; BAND
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG6P M/T(X4L), MBG6RM/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) L=140 		5-09707-031-1 01 1 9101-0203 ●
91 CLIP; BAND
MBG5B M/T(X4K),MBG6R M/T(X4N),MBG5C M/T(X4R) L=140 		5-09707-031-1 01 1 0204- ●
91 CLIP; BAND
MLH5B M/T(X3N) L=140 		5-09707-031-1 02 1 9102- ●
102 BRACKET; CLIP
MLH5B M/T(X3N) 		1-47475-730-0 01 1 9101- ●
103 BOLT; BRKT
MLH5B M/T(X3N) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ●
103 BOLT; BRKT
MLH5B M/T(X3N) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ●
152 HARNESS; TACHOGRAPH
TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILE S/H(UC5), ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) EXC. INDICATOR SYSTEM WARNING LIGHTS<UH1> 		1-83118-159-2 01 1 9101-0203 ● ●
153 HARNESS; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H(SM8),TACHOGRAPH MILE S/H(UC5),ELECTRICAL TACHOGRAPH 140K/H W/TACHOMETER(YK2) 		1-83118-144-1 01 1 9101-0203 ● ●
153 HARNESS; SPEEDOMETER 1-83118-144-1 01 1 0204- ● ●
155 SHAFT; FLEX,CONN TO TRANS
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG6P M/T(X4L), MBG6RM/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) L=3750 		1-83123-960-0 01 1 9101-0203 ●
155 SHAFT; FLEX,CONN TO TRANS
MBG5B M/T(X4K),MBG6R M/T(X4N),MBG5C M/T(X4R) L=3750 		1-83123-960-0 01 1 0204- ●
155 SHAFT; FLEX,CONN TO TRANS
MLH5B M/T(X3N) L=2950 		1-83123-870-0 01 1 9101- ●
155 SHAFT; FLEX,CONN TO TRANS
L=2850 		1-83123-961-0 01 1 9101- ●
