6-01 — FRONT BUMPER (#22599) — 91 parça

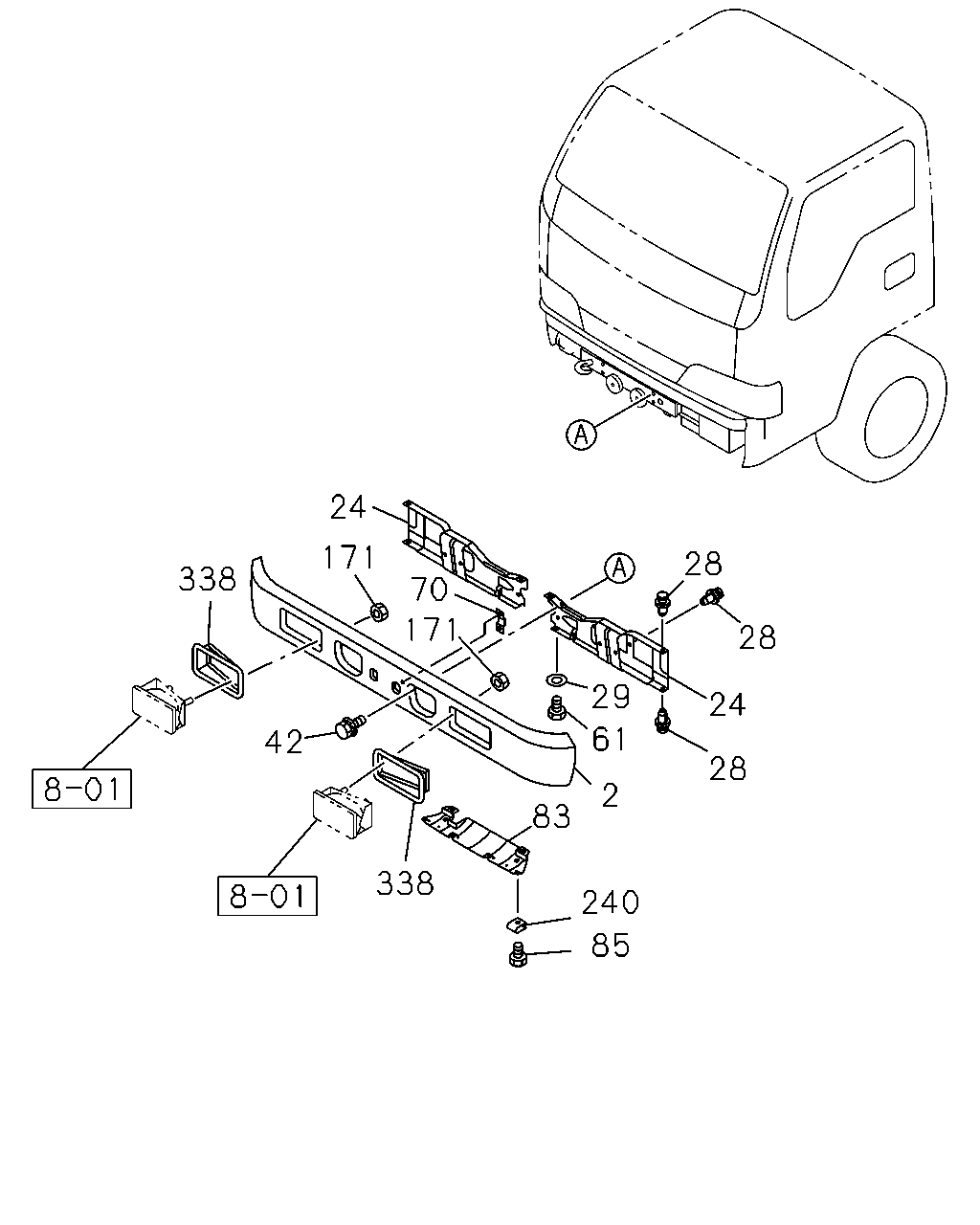

çizim 48880
24 171 28 70 171 338 28 29 24 61 42 28 2 83 338 240 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97196-162-0 01 1 9811-0105 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-162-0 01 1 0106-0206 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97999-025-0 01 1 0207- ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 9811- ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> 		8-97196-170-0 01 1 9811-0105 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> 		8-97196-170-0 01 1 9811-0105 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97191-912-0 01 1 0106-0206 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> PRIMER 		8-97191-912-0 01 1 0106-0206 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0207- ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> PRIMER 		8-97998-075-0 01 1 0207- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> WHITE 		8-97999-733-0 01 1 0106- ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97191-912-0 01 1 9811-0206 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0207- ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> BLUE 		8-97196-171-0 01 1 9811-0012 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> BLUE 		8-97196-171-0 01 1 0101-0105 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> BLUE 		8-97196-171-0 01 1 0101-0105 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97191-912-0 01 1 0106-0204 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> PRIMER 		8-97191-912-0 01 1 0106-0204 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97191-912-0 01 1 0205-0206 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0207- ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-797-5 01 1 9811- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER 8-97039-797-5 01 1 9811- ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-672-3 01 1 9811-0105 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97073-672-4 01 1 0106- ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-796-5 01 1 9811- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER 8-97039-796-5 01 1 9811- ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-671-3 01 1 9811-0105 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-671-3 01 1 0106-0206 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-671-4 01 1 9811- ● ● ● ●
24 07.869 BAR; FRT BUMPER
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> 		8-97194-750-2 01 1 0106- ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9811- ● ● ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 9811- ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9811- ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9811- ● ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 9811- ● ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-97076-719-2 01 1 9811- ● ● ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 04 1 9811- ● ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 06 1 9811-0105 ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 06 1 0106-0206 ● ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 06 1 0207- ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 02 1 9811- ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
04.012 M8 FLANGE 		1-09464-018-1 02 1 9811- ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
M6 		8-94412-740-1 04 1 9811-0004 ● ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
16.085 M6 SPIRE NUT 		8-97210-973-1 04 1 0005- ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-838-0 01 1 9811-0105 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97866-838-0 01 1 0106- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-837-0 01 1 9811-0105 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97866-837-0 01 1 0106- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> DARK GRAY 		8-97995-574-0 01 1 0106-0204 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> DARK GRAY 		8-97995-574-0 01 1 0205-0206 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> WHITE 		8-97999-734-0 01 1 0207- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> DARK GRAY 		8-97995-576-0 01 1 0106-0204 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> DARK GRAY 		8-97995-576-0 01 1 0205-0206 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> WHITE 		8-97999-735-0 01 1 0207- ● ● ● ● ●

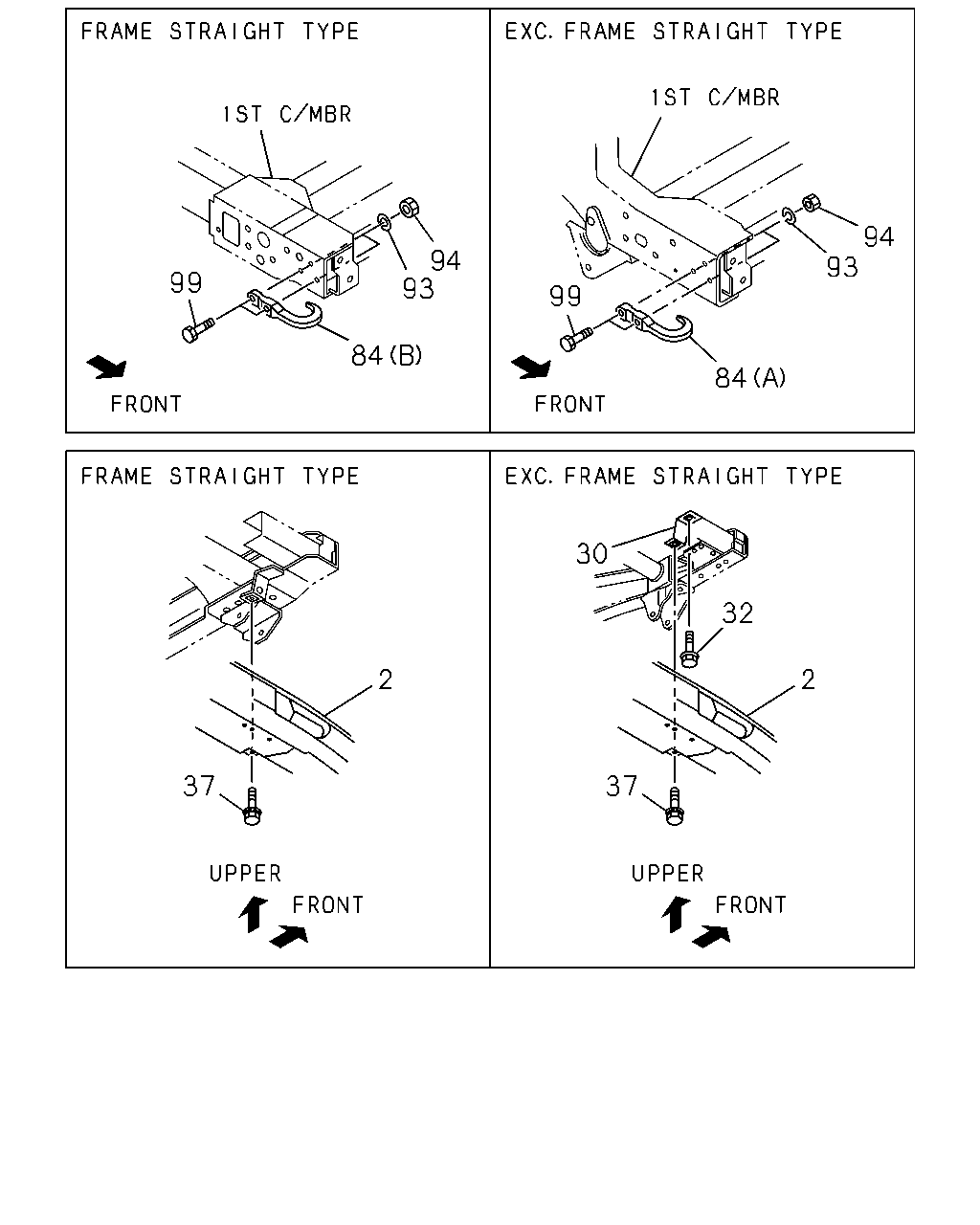

çizim 51513
94 93 94 93 99 99 84 84 30 32 2 2 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97196-162-0 01 1 9811-0105 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-162-0 01 1 0106-0206 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97999-025-0 01 1 0207- ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORADRIATIC BLUE(730),BODY COLOR CARDI NAL RED(736),BODY COLOR POLAR SILVERMET(845),BODY COLOR MARINE BLUE(890) EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 9811- ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> 		8-97196-170-0 01 1 9811-0105 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> 		8-97196-170-0 01 1 9811-0105 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97191-912-0 01 1 0106-0206 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> PRIMER 		8-97191-912-0 01 1 0106-0206 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0207- ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> PRIMER 		8-97998-075-0 01 1 0207- ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) FOG LAMP<T96> WHITE 		8-97999-733-0 01 1 0106- ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97191-912-0 01 1 9811-0206 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0207- ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> BLUE 		8-97196-171-0 01 1 9811-0012 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> BLUE 		8-97196-171-0 01 1 0101-0105 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> BLUE 		8-97196-171-0 01 1 0101-0105 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97191-912-0 01 1 0106-0204 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> PRIMER 		8-97191-912-0 01 1 0106-0204 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97191-912-0 01 1 0205-0206 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0207- ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97209-567-1 02 1 9811-9811 ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 9812-0105 ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
01.263 		8-97093-639-3 02 1 9812-0105 ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 0106- ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
01.263 		8-97093-639-3 02 1 0106- ●
32 07.874 BOLT; BRKT,BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811- ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9811- ● ● ● ● ● ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 9811-0105 ● ● ● ● ●
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 9811-0105 ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 0106- ● ● ● ●
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 0106- ● ●
84 07.068 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94249-270-2 01 1 9811- ● ● ● ●
84 07.068 HOOK
(A) 		8-94249-270-2 01 1 9811- ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9811- ● ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 9811- ● ● ● ● ● ● ●
