Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#22595) — 351 parça

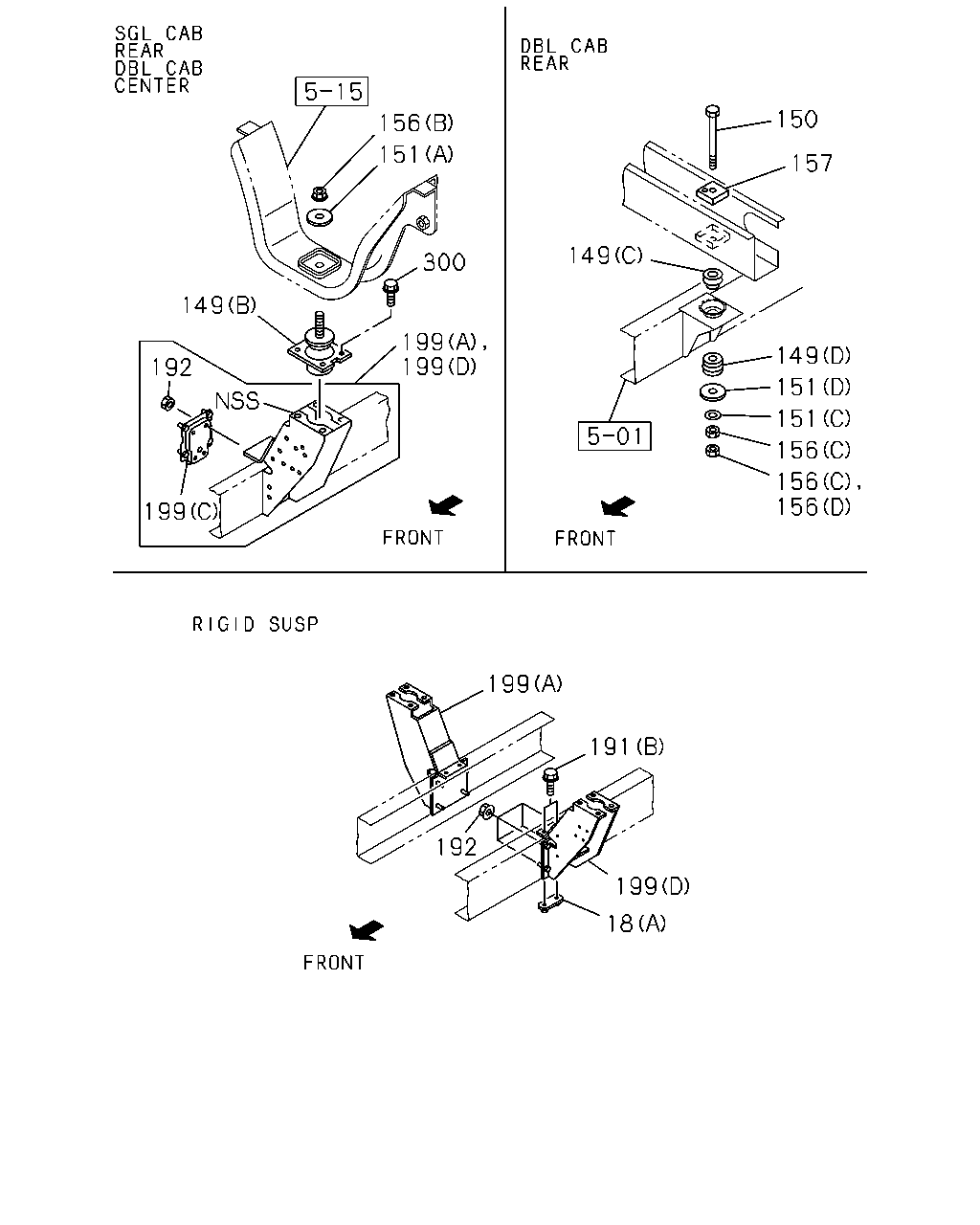

159 199 159 199 300 300 168 168 149 149 18 18 192 192 199 199 199 199 199 199 151 151 156 156 199 199 191 191 192 192 199 199 18 18 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	9811-0105	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	9811-0105					●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0106-	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0106-				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	9811-							●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	9811-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	9811-							●
18	09.003 PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (E)	8-97135-269-0	02	1	9811-9901	●	●	●	●			●
18	09.003 PLATE; MTG BRKT FIX (E)	8-97135-269-0	02	1	9811-9901					●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-1	02	1	9811-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (A)	8-97095-149-1	02	1	9811-						●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-440-1	02	1	9811-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B)	8-97086-440-1	02	1	9811-							●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	5-53459-041-0	02	1	9811-0105							●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	0106-							●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=30.6	8-94128-501-0	02	1	9811-0105							●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	0106-							●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=16.4 OD=62	8-97034-382-0	02	1	9811-	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9811-						●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	9811-	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	9811-							●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9811-0105							●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=12.6 OD=33	8-97256-725-0	02	1	0106-							●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	9811-0105							●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97256-726-0	02	1	0106-							●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 04.681 (A) M16	9-99111-416-0	02	1	9811-	●	●	●	●	●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9811-						●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9811-	●	●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9811-							●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	9811-0105							●
156	07.529 NUT; CAB MTG RR 05.816 (D) M12	9-99110-412-0	02	1	0106-							●
156	07.529 NUT; CAB MTG RR 05.586 (C) M12 FLANGE	0-91150-112-0	02	1	0106-							●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	9811-	●	●	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG	8-97113-340-0	04	1	9811-						●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	9811-	●	●	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG 07.633 M8 FLANGE	0-91150-108-0	04	1	9811-						●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> (A) M12X40 FLANGE	0-28681-240-0	08	1	9811-0105	●	●	●	●			●
191	09.003 BOLT; BRKT FIX (A) M12X40 FLANGE	0-28681-240-0	08	1	9811-0105					●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> (A) M12X40 FLANGE	0-28681-240-0	08	1	0106-	●	●	●				●
191	09.003 BOLT; BRKT FIX (A) M12X40 FLANGE	0-28681-240-0	08	1	0106-				●	●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> (B) M12X40 FLANGE	0-28681-240-0	04	1	9811-0012	●	●	●	●			●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> (B) M12X40 FLANGE	0-28681-240-0	04	1	0101-0105	●	●	●	●			●
191	09.003 BOLT; BRKT FIX (B) M12X40 FLANGE	0-28681-240-0	04	1	0101-0105						●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> (B) M12X40 FLANGE	0-28681-240-0	04	1	0106-	●	●	●				●
191	09.003 BOLT; BRKT FIX (B) M12X40 FLANGE	0-28681-240-0	04	1	0106-						●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	9811-9901	●	●	●	●	●		●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	9811-9901	●	●	●	●			●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	9902-0012	●	●	●	●			●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	9902-0012	●	●	●	●			●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	0101-0105	●	●	●	●			●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	0101-0105	●	●	●	●			●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	0101-0105						●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	0101-0105						●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	0106-	●	●	●				●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	0106-	●	●	●				●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	0106-						●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	0106-						●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	9811-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>,TIRE SIZE 8.25-16<7QP> (F)	8-97210-984-0	01	1	9811-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,TIRE SIZE 8.25-16<7QP> (F)	8-97210-984-0	01	1	9811-0105					●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> (F)	8-97210-984-0	01	1	9811-0105							●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>,TIRE SIZE 8.25-16<7QP> (F)	8-97210-984-0	01	1	0106-0211	●	●	●	●	●		●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>,TIRE SIZE 8.25-16<7QP> (F)	8-97326-509-0	01	1	0212-	●	●	●	●	●		●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97221-510-0	01	1	9901-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> (E)	8-97221-510-0	01	1	9901-0105					●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97221-510-0	01	1	0106-0211		●	●
199	09.003 BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97221-510-0	01	1	0106-0211				●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97326-513-0	01	1	0212-		●	●
199	09.003 BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97326-513-0	01	1	0212-				●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97172-533-2	01	1	9811-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97172-533-2	01	1	9811-0105					●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> (F)	8-97172-533-2	01	1	9811-0105							●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> (F)	8-97172-533-2	01	1	0106-0211	●						●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97172-533-2	01	1	0106-0211		●	●
199	09.003 BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97172-533-2	01	1	0106-0211				●
199	09.003 BRACKET; CAB RR MTG (F)	8-97172-533-2	01	1	0106-0211					●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> (F)	8-97326-510-0	01	1	0212-	●						●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97326-510-0	01	1	0212-		●	●
199	09.003 BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97326-510-0	01	1	0212-				●
199	09.003 BRACKET; CAB RR MTG (F)	8-97326-510-0	01	1	0212-					●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (E)	8-97184-187-0	01	1	9811-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TIRE SIZE 8.25-16<7QP> (E)	8-97184-187-0	01	1	9811-0105					●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (E)	8-97184-187-0	01	1	0106-0211	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (E)	8-97326-507-0	01	1	0212-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-768-5	01	1	9811-0012	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-768-5	01	1	0101-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97101-768-5	01	1	0101-0105						●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-768-5	01	1	0106-0211	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97101-768-5	01	1	0106-0211						●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97326-520-0	01	1	0212-	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97326-520-0	01	1	0212-						●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97101-769-5	01	1	9811-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97101-769-5	01	1	9811-0105							●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97101-769-5	01	1	0106-0211	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97101-769-5	01	1	0106-0211							●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97326-521-0	01	1	0212-	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97326-521-0	01	1	0212-							●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (F)	8-97221-509-0	01	1	9901-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG CHARGE AIR COOLER<6PL> TIRE SIZE 8.25-16<7QP> (F)	8-97221-509-0	01	1	9901-0105					●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (F)	8-97221-509-0	01	1	0106-0211		●	●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TIRE SIZE 8.25-16<7QP> (F)	8-97221-509-0	01	1	0106-0211				●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (F)	8-97326-514-0	01	1	0212-		●	●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TIRE SIZE 8.25-16<7QP> (F)	8-97326-514-0	01	1	0212-				●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (E)	8-97147-251-0	01	1	9811-9812	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. HYDRO BRAKE BOOSTER<7QQ> (E)	8-97147-251-0	01	1	9901-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. HYDRO BRAKE BOOSTER<7QQ> (E)	8-97147-251-0	01	1	0106-0211		●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. HYDRO BRAKE BOOSTER<7QQ> (E)	8-97326-511-0	01	1	0212-		●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (F)	8-97147-249-0	01	1	9811-9812	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> (F)	8-97147-249-0	01	1	9901-0105	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> (F)	8-97147-249-0	01	1	0106-0211		●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> (F)	8-97326-512-0	01	1	0212-		●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (D)	8-97035-310-4	02	1	9811-0012	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (D)	8-97035-310-4	02	1	0101-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97035-310-4	02	1	0101-						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	9811-0012	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	9811-0012	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0101-0105	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0101-0105	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG (C)	8-97092-102-5	01	1	0101-0105						●
199	09.003 BRACKET; CAB RR MTG (C)	8-97092-102-5	01	1	0101-0105						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0106-	●	●	●				●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0106-	●	●	●				●
199	09.003 BRACKET; CAB RR MTG (C)	8-97092-102-5	01	1	0106-						●
199	09.003 BRACKET; CAB RR MTG (C)	8-97092-102-5	01	1	0106-						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97101-770-5	01	1	9811-0012	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97101-770-5	01	1	0101-0105	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG (A)	8-97101-770-5	01	1	0101-0105						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97101-770-5	01	1	0106-0211	●	●	●				●
199	09.003 BRACKET; CAB RR MTG (A)	8-97101-770-5	01	1	0106-0211						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97326-522-0	01	1	0212-	●	●	●				●
199	09.003 BRACKET; CAB RR MTG (A)	8-97326-522-0	01	1	0212-						●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9811-	●	●	●	●	●	●	●

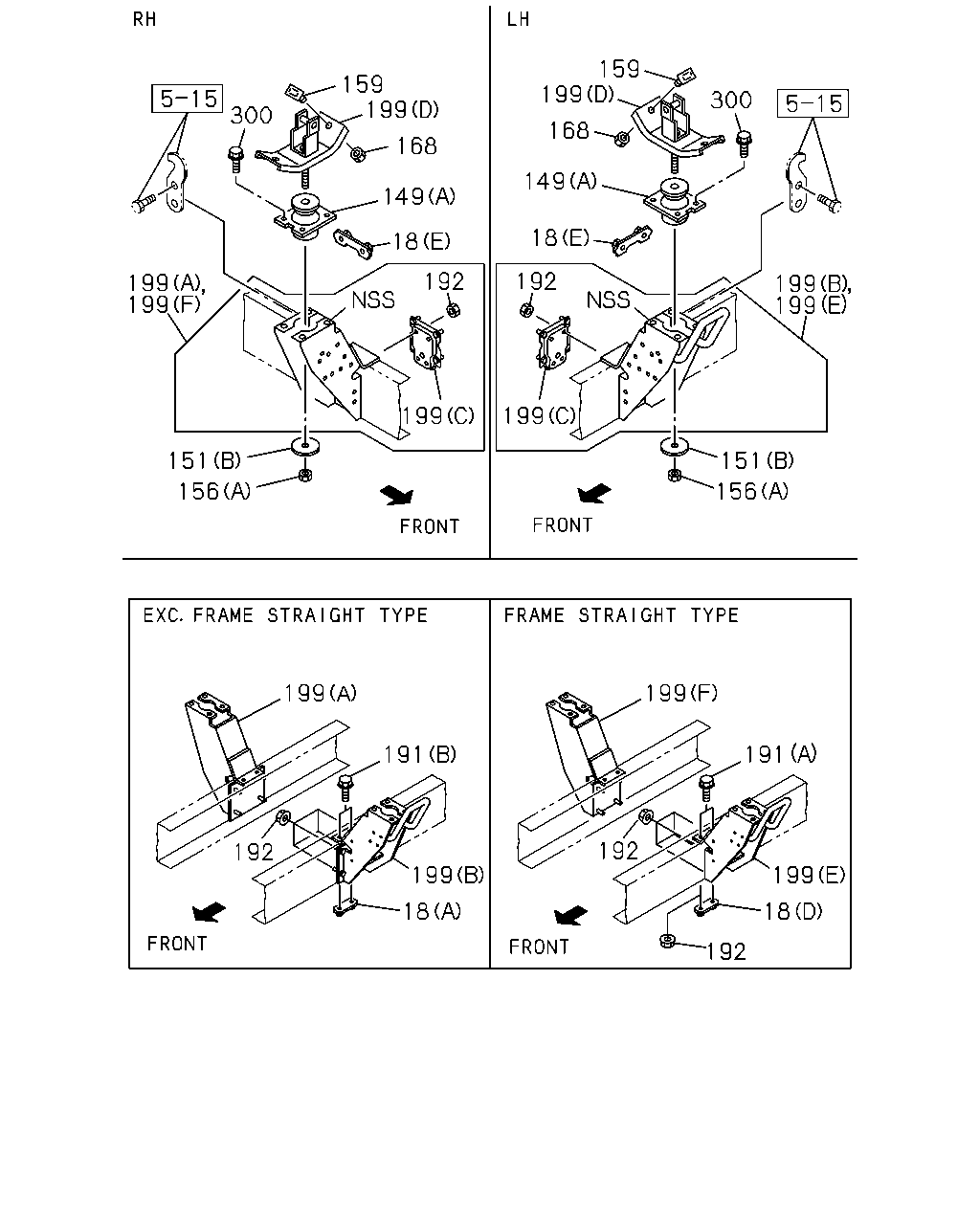

150 156 151 157 149 300 149 199 199 149 192 151 151 156 156 156 199 199 191 192 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	9811-0105	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	9811-0105					●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0106-	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0106-				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	9811-							●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	9811-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	9811-							●
18	09.003 PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (E)	8-97135-269-0	02	1	9811-9901	●	●	●	●			●
18	09.003 PLATE; MTG BRKT FIX (E)	8-97135-269-0	02	1	9811-9901					●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-1	02	1	9811-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (A)	8-97095-149-1	02	1	9811-						●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-440-1	02	1	9811-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (B)	8-97086-440-1	02	1	9811-							●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=26.5	5-53459-041-0	02	1	9811-0105							●
149	09.023 RUBBER; MTG,CAB,UPR RR (C) H=35	8-97256-684-0	02	1	0106-							●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=30.6	8-94128-501-0	02	1	9811-0105							●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	8-97256-686-0	02	1	0106-							●
150	09.011 BOLT; CAB MTG RR M10X105	8-94128-717-1	02	1	9811-0105							●
150	09.011 BOLT; CAB MTG RR M12X122	8-97256-724-0	02	1	0106-							●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (B) ID=16.4 OD=62	8-97034-382-0	02	1	9811-	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9811-						●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	9811-	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.5 OD=58	8-97034-383-1	02	1	9811-							●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9811-0105							●
151	09.011 WASHER; CAB MTG,RR UPR (C) ID=12.6 OD=33	8-97256-725-0	02	1	0106-							●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	9811-0105							●
151	09.011 WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97256-726-0	02	1	0106-							●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 04.681 (A) M16	9-99111-416-0	02	1	9811-	●	●	●	●	●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9811-						●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9811-	●	●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9811-							●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	9811-0105							●
156	07.529 NUT; CAB MTG RR 05.816 (D) M12	9-99110-412-0	02	1	0106-							●
156	07.529 NUT; CAB MTG RR 05.586 (C) M12 FLANGE	0-91150-112-0	02	1	0106-							●
157	09.023 RUBBER; MTG,CAB,TOP RR	9-53459-603-0	02	1	9811-0105							●
157	09.023 RUBBER; MTG,CAB,TOP RR	8-97256-685-0	02	1	0106-							●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> (A) M12X40 FLANGE	0-28681-240-0	08	1	9811-0105	●	●	●	●			●
191	09.003 BOLT; BRKT FIX (A) M12X40 FLANGE	0-28681-240-0	08	1	9811-0105					●
191	09.003 BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> (A) M12X40 FLANGE	0-28681-240-0	08	1	0106-	●	●	●				●
191	09.003 BOLT; BRKT FIX (A) M12X40 FLANGE	0-28681-240-0	08	1	0106-				●	●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> (B) M12X40 FLANGE	0-28681-240-0	04	1	9811-0012	●	●	●	●			●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> (B) M12X40 FLANGE	0-28681-240-0	04	1	0101-0105	●	●	●	●			●
191	09.003 BOLT; BRKT FIX (B) M12X40 FLANGE	0-28681-240-0	04	1	0101-0105						●
191	09.003 BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> (B) M12X40 FLANGE	0-28681-240-0	04	1	0106-	●	●	●				●
191	09.003 BOLT; BRKT FIX (B) M12X40 FLANGE	0-28681-240-0	04	1	0106-						●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	9811-9901	●	●	●	●	●		●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	9811-9901	●	●	●	●			●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	9902-0012	●	●	●	●			●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	9902-0012	●	●	●	●			●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	0101-0105	●	●	●	●			●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	0101-0105	●	●	●	●			●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	0101-0105						●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	0101-0105						●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	0106-	●	●	●				●
192	09.003 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	04	1	0106-	●	●	●				●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	0106-						●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	04	1	0106-						●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	9811-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>,TIRE SIZE 8.25-16<7QP> (F)	8-97210-984-0	01	1	9811-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,TIRE SIZE 8.25-16<7QP> (F)	8-97210-984-0	01	1	9811-0105					●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> (F)	8-97210-984-0	01	1	9811-0105							●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>,TIRE SIZE 8.25-16<7QP> (F)	8-97210-984-0	01	1	0106-0211	●	●	●	●	●		●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ>,TIRE SIZE 8.25-16<7QP> (F)	8-97326-509-0	01	1	0212-	●	●	●	●	●		●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97221-510-0	01	1	9901-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> (E)	8-97221-510-0	01	1	9901-0105					●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97221-510-0	01	1	0106-0211		●	●
199	09.003 BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97221-510-0	01	1	0106-0211				●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97326-513-0	01	1	0212-		●	●
199	09.003 BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (E)	8-97326-513-0	01	1	0212-				●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97172-533-2	01	1	9811-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97172-533-2	01	1	9811-0105					●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> (F)	8-97172-533-2	01	1	9811-0105							●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> (F)	8-97172-533-2	01	1	0106-0211	●						●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97172-533-2	01	1	0106-0211		●	●
199	09.003 BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97172-533-2	01	1	0106-0211				●
199	09.003 BRACKET; CAB RR MTG (F)	8-97172-533-2	01	1	0106-0211					●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> (F)	8-97326-510-0	01	1	0212-	●						●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97326-510-0	01	1	0212-		●	●
199	09.003 BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (F)	8-97326-510-0	01	1	0212-				●
199	09.003 BRACKET; CAB RR MTG (F)	8-97326-510-0	01	1	0212-					●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (E)	8-97184-187-0	01	1	9811-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TIRE SIZE 8.25-16<7QP> (E)	8-97184-187-0	01	1	9811-0105					●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (E)	8-97184-187-0	01	1	0106-0211	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (E)	8-97326-507-0	01	1	0212-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-768-5	01	1	9811-0012	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-768-5	01	1	0101-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97101-768-5	01	1	0101-0105						●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97101-768-5	01	1	0106-0211	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97101-768-5	01	1	0106-0211						●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-97326-520-0	01	1	0212-	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97326-520-0	01	1	0212-						●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97101-769-5	01	1	9811-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97101-769-5	01	1	9811-0105							●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97101-769-5	01	1	0106-0211	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97101-769-5	01	1	0106-0211							●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (D)	8-97326-521-0	01	1	0212-	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97326-521-0	01	1	0212-							●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (F)	8-97221-509-0	01	1	9901-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG CHARGE AIR COOLER<6PL> TIRE SIZE 8.25-16<7QP> (F)	8-97221-509-0	01	1	9901-0105					●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (F)	8-97221-509-0	01	1	0106-0211		●	●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TIRE SIZE 8.25-16<7QP> (F)	8-97221-509-0	01	1	0106-0211				●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (F)	8-97326-514-0	01	1	0212-		●	●
199	09.003 BRACKET; CAB RR MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> TIRE SIZE 8.25-16<7QP> (F)	8-97326-514-0	01	1	0212-				●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (E)	8-97147-251-0	01	1	9811-9812	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. HYDRO BRAKE BOOSTER<7QQ> (E)	8-97147-251-0	01	1	9901-0105	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. HYDRO BRAKE BOOSTER<7QQ> (E)	8-97147-251-0	01	1	0106-0211		●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. HYDRO BRAKE BOOSTER<7QQ> (E)	8-97326-511-0	01	1	0212-		●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (F)	8-97147-249-0	01	1	9811-9812	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> (F)	8-97147-249-0	01	1	9901-0105	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> (F)	8-97147-249-0	01	1	0106-0211		●	●	●
199	09.003 BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> (F)	8-97326-512-0	01	1	0212-		●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (D)	8-97035-310-4	02	1	9811-0012	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (D)	8-97035-310-4	02	1	0101-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG (D)	8-97035-310-4	02	1	0101-						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	9811-0012	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	9811-0012	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0101-0105	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0101-0105	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG (C)	8-97092-102-5	01	1	0101-0105						●
199	09.003 BRACKET; CAB RR MTG (C)	8-97092-102-5	01	1	0101-0105						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0106-	●	●	●				●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97092-102-5	01	1	0106-	●	●	●				●
199	09.003 BRACKET; CAB RR MTG (C)	8-97092-102-5	01	1	0106-						●
199	09.003 BRACKET; CAB RR MTG (C)	8-97092-102-5	01	1	0106-						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97101-770-5	01	1	9811-0012	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97101-770-5	01	1	0101-0105	●	●	●	●			●
199	09.003 BRACKET; CAB RR MTG (A)	8-97101-770-5	01	1	0101-0105						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97101-770-5	01	1	0106-0211	●	●	●				●
199	09.003 BRACKET; CAB RR MTG (A)	8-97101-770-5	01	1	0106-0211						●
199	09.003 BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97326-522-0	01	1	0212-	●	●	●				●
199	09.003 BRACKET; CAB RR MTG (A)	8-97326-522-0	01	1	0212-						●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9811-	●	●	●	●	●	●	●

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	9811-	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97101-359-0	01	1	9811-						●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	9811-	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97101-358-1	01	1	9811-						●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	9811-	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	9811-							●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	9811-	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	9811-							●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	9811-	●	●	●	●	●
2	09.009 BUSHING; TORSION BAR	8-97061-514-0	02	1	9811-							●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	9811-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	9811-0105	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	9811-0105					●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0106-	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0106-				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	9811-							●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	9811-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	9811-							●
18	09.003 PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (E)	8-97135-269-0	02	1	9811-9901	●	●	●	●			●
18	09.003 PLATE; MTG BRKT FIX (E)	8-97135-269-0	02	1	9811-9901					●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-0	02	1	9811-	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97095-148-0	02	1	9811-						●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	02	1	9811-	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-2	02	1	9811-							●

7 1 7 20 1 20 104 7 105 23 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	9811-	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97101-359-0	01	1	9811-						●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	9811-	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97101-358-1	01	1	9811-						●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	9811-	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	9811-							●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	9811-	●	●	●	●	●
1	09.003 BRACKET; CAB MTG	8-97033-348-5	01	1	9811-							●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	9811-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	9811-0105	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	9811-0105					●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0106-	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (D)	8-97130-348-1	01	1	0106-				●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (C)	8-97076-469-2	01	1	9811-						●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	02	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-140-2	02	1	9811-							●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	9811-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	02	1	9811-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	9811-							●
18	09.003 PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (E)	8-97135-269-0	02	1	9811-9901	●	●	●	●			●
18	09.003 PLATE; MTG BRKT FIX (E)	8-97135-269-0	02	1	9811-9901					●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-0	02	1	9811-	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97095-148-0	02	1	9811-						●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	02	1	9811-	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-2	02	1	9811-							●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	02	1	9811-0012	●	●	●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	02	1	0101-0105	●	●	●	●
23	09.003 NUT; MTG BRKT 05.586 M12 FLANGE	0-91150-112-0	02	1	0101-0105						●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 05.586 M12 FLANGE	0-91150-112-0	02	1	0106-	●	●	●
23	09.003 NUT; MTG BRKT 05.586 M12 FLANGE	0-91150-112-0	02	1	0106-						●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	9811-	●	●	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG	8-97033-624-3	01	1	9811-						●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	9811-	●	●	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME M16X35 FLANGE	0-28881-635-0	01	1	9811-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
