◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61B - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#22594) — 52 parça

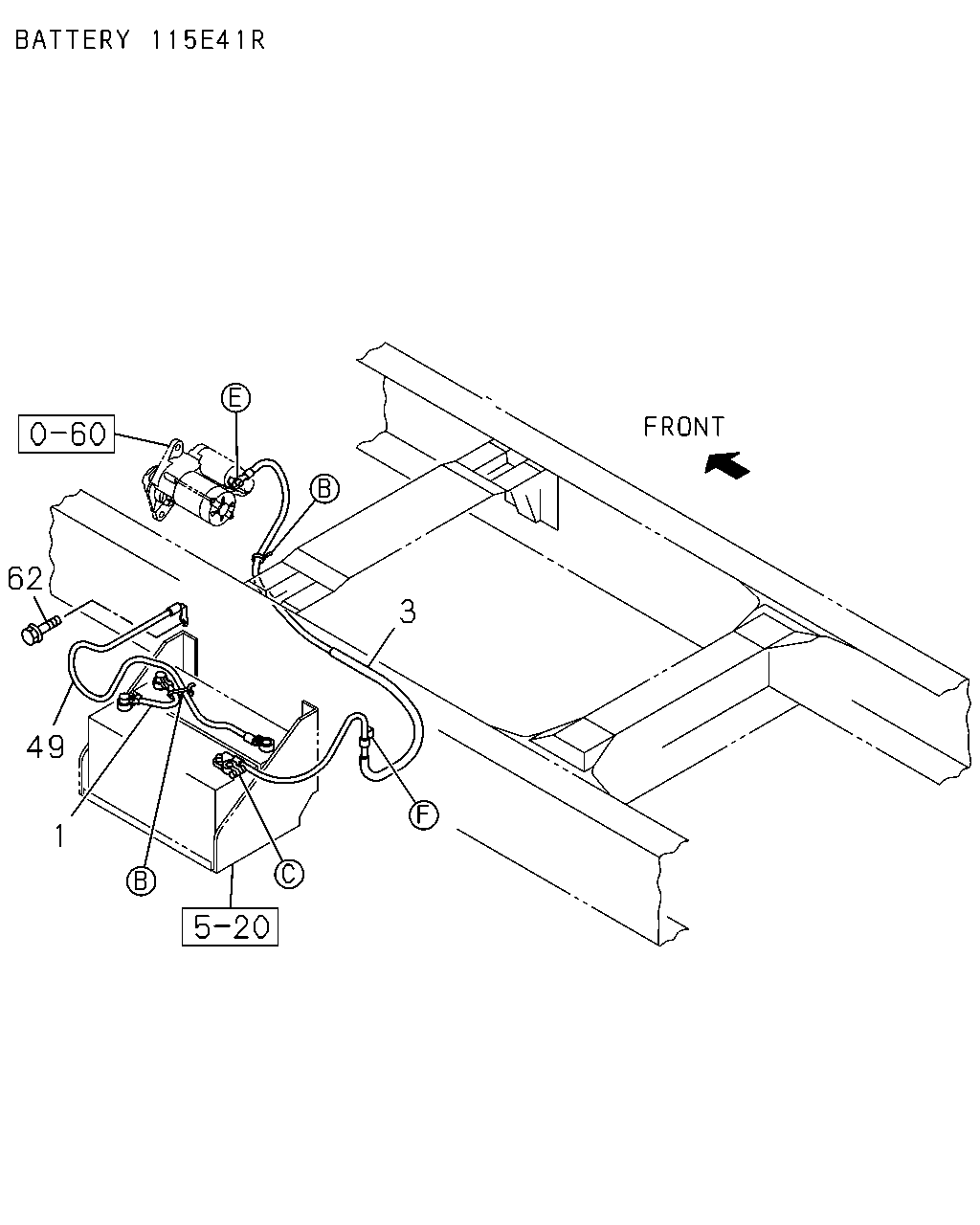

çizim 11132
62 3 49 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-2 01 1 0507-0606 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-2 01 1 0607- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0607- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0502- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0502- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0606 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0607-1004 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●

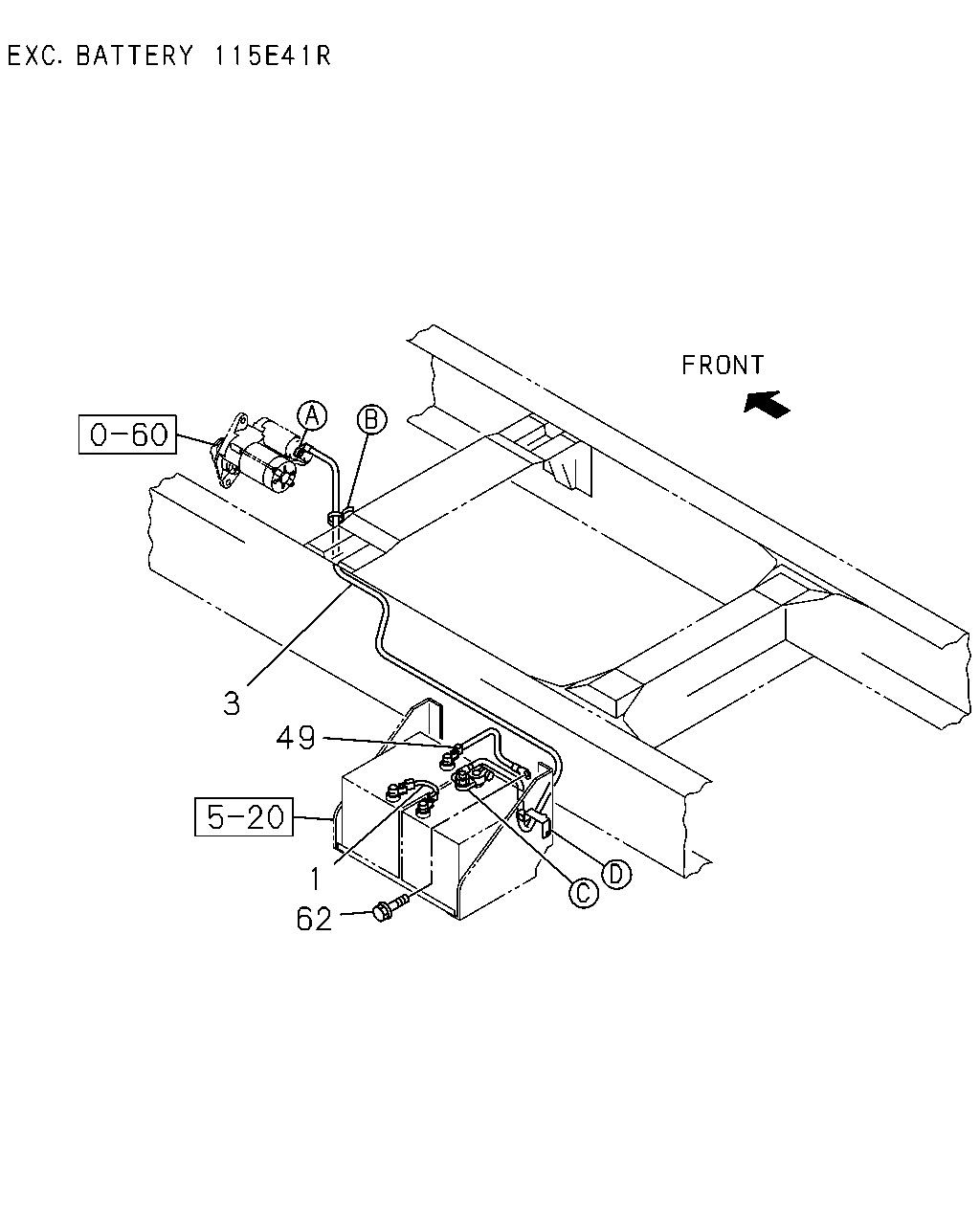

çizim 12061
3 49 1 62
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-2 01 1 0507-0606 ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-2 01 1 0607- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0607- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0607- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD>,FRAME STRAIGHT TYPE<7KJ> L=200 		8-97231-243-1 01 1 0502- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> L=300 		8-97230-536-1 01 1 0502- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0606 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0607-1004 ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
çizim 55610
31 30 112 3 3 61 30 75 31 4 48 99 7 76
BalonParca AdiParca NoAdetTipApplied Date A B
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS(V4B),BATTERY 115E41R<6XD> 		8-97377-772-1 01 1 0607- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) BATTERY 115E41R<6XD> 		8-98019-816-0 01 1 0607- ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0507-0512 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0606 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0607- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0507-0603 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0606 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0607- ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0507-0507 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0507-0606 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0607- ● ●
61 02.333 BRACKET; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (C) 		8-97369-198-1 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (C) 		8-97369-198-1 01 1 0607- ● ●
75 02.333 BOLT; BRKT
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0507-0512 ●
75 02.333 BOLT; BRKT
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0601-0606 ●
75 02.333 BOLT; BRKT
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 0507-0602 ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE 		0-91180-106-0 03 1 0603-0606 ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE 		0-91180-106-0 03 1 0607- ● ●
99 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 (A) L=140 		5-09707-031-1 01 1 0507-0606 ●
99 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 (A) L=140 		5-09707-031-1 01 1 0607- ● ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (C) <+> 		8-97356-925-1 01 1 0507-0606 ●
112 02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE> (C) <+> 		8-97356-925-1 01 1 0607- ● ●
