1 |
02.341 CABLE; BATTERY
VOLTAGE 24V<7AE>
L=280
|
8-97230-719-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
1 |
02.341 CABLE; BATTERY
VOLTAGE 24V<7AE>
L=280
|
8-97230-719-2 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
● |
● |
● |
| |
1 |
02.341 CABLE; BATTERY
VOLTAGE 24V<7AE>
L=280
|
8-97230-719-2 |
01 |
1 |
0507-0606 |
● |
● |
|
● |
● |
● |
● |
| |
1 |
02.341 CABLE; BATTERY
VOLTAGE 24V<7AE>
L=280
|
8-97230-719-2 |
01 |
1 |
0607- |
● |
● |
|
● |
● |
● |
● |
| |
1 |
02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE>
L=180
|
8-97230-530-2 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
1 |
02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE>
L=180
|
8-97230-530-2 |
01 |
1 |
0502- |
● |
|
|
● |
● |
● |
|
| |
2 |
02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE>
L=180
|
8-97230-538-1 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
2 |
02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE>
L=180
|
8-97230-538-1 |
01 |
1 |
0502- |
● |
|
|
● |
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
|
8-97359-632-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
|
8-97359-632-0 |
01 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
|
8-98008-831-0 |
01 |
1 |
0502-0612 |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
|
8-98008-831-0 |
01 |
1 |
0701- |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
|
8-97359-631-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
|
8-97359-631-0 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6P(RSJ),M/T MYY5T(RSM)
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97350-710-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97377-768-0 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY6P(RSJ),M/T MYY5T(RSM)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97350-709-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
|
8-97350-709-1 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
|
8-97350-713-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
|
8-97377-769-0 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97357-101-0 |
01 |
1 |
0211-0302 |
● |
● |
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
FLOOR REMOTE SHIFT<M11>
CHARGE AIR COOLER<6PL>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97357-101-1 |
01 |
1 |
0303-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97377-770-0 |
01 |
1 |
0502-0612 |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97377-770-0 |
01 |
1 |
0701- |
● |
● |
|
● |
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97352-486-1 |
01 |
1 |
0303-0501 |
● |
● |
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97377-772-1 |
01 |
1 |
0502-0506 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97377-772-1 |
01 |
1 |
0507-0606 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97377-772-1 |
01 |
1 |
0607- |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
|
8-97350-715-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
|
8-97350-715-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
|
8-98004-014-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),BATTERY
115E41R<6XD>
|
8-97359-252-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
|
8-97387-721-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
|
8-97387-721-0 |
01 |
1 |
0502-0504 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
CHARGE AIR COOLER<6PL>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
|
8-97359-629-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
|
8-97359-629-0 |
01 |
1 |
0502- |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
FLOOR REMOTE SHIFT<M11>
BATTERY 115E41R<6XD>
|
8-97352-504-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
BATTERY 115E41R<6XD>
|
8-97352-504-1 |
01 |
1 |
0502-0505 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
BATTERY 115E41R<6XD>
|
8-98019-816-0 |
01 |
1 |
0506-0506 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
BATTERY 115E41R<6XD>
|
8-98019-816-0 |
01 |
1 |
0507-0606 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
BATTERY 115E41R<6XD>
|
8-98019-816-0 |
01 |
1 |
0607- |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
ENGINE POWER N-SPEC(7QV)
EXC. VOLTAGE 24V<7AE>
|
8-97359-633-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
|
8-97359-633-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
|
8-98008-832-0 |
01 |
1 |
0502- |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
EXC. VOLTAGE 24V<7AE>,ENGINE POWER
N-SPEC(7QV)
|
8-97203-770-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
A/T 4 SPEED-AISIN(RNJ)
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
|
8-97203-770-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
CHARGE AIR COOLER<6PL>
EXC. BATTERY 115E41R<6XD>
|
8-97357-080-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*)
M/T MYY5T(RSM)
EXC. BATTERY 115E41R<6XD>
|
8-97328-795-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97377-775-0 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
4 |
02.559 BOLT; BATTERY CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0502-0512 |
● |
● |
|
● |
|
|
● |
| |
4 |
02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0502-0512 |
|
|
|
|
● |
● |
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
● |
|
● |
|
|
● |
| |
4 |
02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
|
|
|
|
● |
● |
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
02 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0502 |
● |
|
|
● |
● |
● |
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0504 |
● |
|
|
● |
● |
● |
|
| |
4 |
02.559 BOLT; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0504 |
|
|
|
|
|
● |
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0505-0512 |
● |
|
|
● |
● |
● |
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0601- |
● |
|
|
● |
● |
● |
|
| |
4 |
02.559 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.439
M6X16 FLANGE
|
0-28680-616-0 |
03 |
1 |
0502-0512 |
● |
● |
|
● |
|
|
● |
| |
4 |
02.559 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.343
M6X16 FLANGE
|
0-28650-616-0 |
03 |
1 |
0601- |
● |
● |
|
● |
|
|
● |
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
02.334
M6X25 FLANGE
|
0-28680-625-0 |
02 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0304-0501 |
● |
|
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
5 |

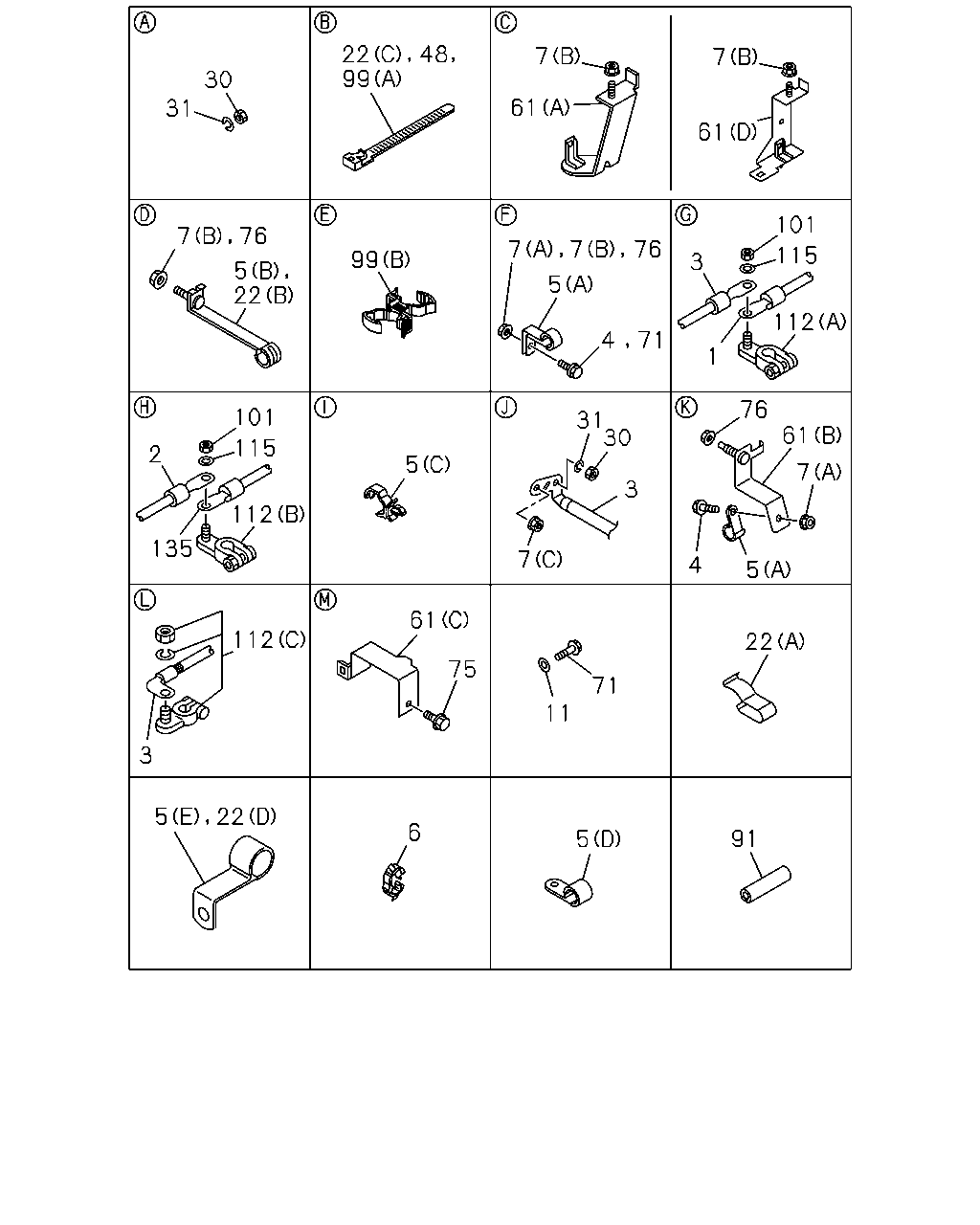

02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
(C)
ID=16
|
8-97040-812-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
CHARGE AIR COOLER<6PL>
EXC. VOLTAGE 24V<7AE>
(C)
ID=16
|
8-97040-812-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
(C)
ID=16
|
8-97040-812-0 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
EXC. VOLTAGE 24V<7AE>
(C)
ID=16
|
8-97040-812-0 |
01 |
1 |
0502- |
|
|
|
|
● |
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
03.483
(A)
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
0211-0211 |
● |
● |
|
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD>
03.483
(A)
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
0211-0211 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
EXC. FRAME STRAIGHT TYPE<7KJ>
03.483
(A)
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
0211-0501 |
● |
● |
|
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD>
03.483
(A)
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.483
(A)
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
0502-0505 |
● |
● |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD>
03.483
(A)
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
0502-0505 |
|
|
|
|
● |
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
03.483
(A)
ID=13 H=18 L=20
|
1-09700-813-0 |
01 |
1 |
0506- |
● |
● |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
M/T MYY6P(RSJ),M/T MYY5T(RSM)
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
(A)
ID=13 L=32
|
9-09525-265-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
(A)
ID=13 L=32
|
9-09525-265-0 |
01 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
04.047
(A)
WO/SCREW
|
1-09700-988-0 |
01 |
1 |
0502- |
● |
● |
|
● |
● |
● |
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
01.166
(A)
ID=13 L=40
|
9-09525-276-0 |
02 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
01.166
(A)
ID=13 L=40
|
9-09525-276-0 |
02 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
04.047
(A)
|
8-97028-508-2 |
03 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ),M/T
MYY6P(RSJ),M/T MYY5T(RSM)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. ISRAEL EQUIPMENT(7LX)
(B)
ID=13 L=90
|
8-97015-782-1 |
02 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ),M/T
MYY5T(RSM)
BATTERY 115E41R<6XD>
(B)
ID=13 L=90
|
8-97015-782-1 |
02 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(B)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
0304-0501 |
● |
|
|
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*)
FLOOR REMOTE SHIFT<M11>
EXC. BATTERY 115E41R<6XD>
(B)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
(B)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
0502-0502 |
● |
|
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
(B)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
(B)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
0502- |
● |
|
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
(E)
ID=20X2 H=25 L=45
|
1-09701-252-0 |
03 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD>
03.280
(D)
ID=13 L=16
|
9-09525-222-0 |
01 |
1 |
0506-0606 |
● |
● |
|
● |
● |
● |
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD>
(D)
ID=13 L=16
|
0-95235-222-0 |
01 |
1 |
0607- |
● |
● |
|
● |
● |
● |
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
01.531
(A)
ID=16 L=28
|
9-09525-556-0 |
03 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
01.531
(A)
ID=16 L=28
|
9-09525-556-0 |
03 |
1 |
0502-0502 |
● |
|
|
● |
● |
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
08.846
(A)
ID=24X2 L=25
|
1-09700-710-0 |
02 |
1 |
0502- |
● |
● |
|
● |
● |
● |
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
0211-0211 |
|
● |
|
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
0211-0211 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
FLOOR REMOTE SHIFT<M11>
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
EXH SYSTEM CHROME SINGLE VERTICAL TA
IL PIPE<NC4>
EXC. BATTERY 115E41R<6XD>
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
04.785
(A)
|
9-09525-245-0 |
01 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
04.785
(A)
|
9-09525-245-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
04.785
(A)
|
9-09525-245-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
04.785
(A)
|
9-09525-245-0 |
02 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
EXC. BATTERY 115E41R<6XD>
04.785
(A)
|
9-09525-245-0 |
02 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ),M/T
MYY5T(RSM)
EXC. BATTERY 115E41R<6XD>
(B)
ID=13 L=90
|
8-97015-782-1 |
03 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
02.343
(A)
ID=16 H=24 L=20
|
9-09527-015-0 |
01 |
1 |
0304-0501 |
● |
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
02.343
(A)
ID=16 H=24 L=20
|
9-09527-015-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
02.343
(A)
ID=16 H=24 L=20
|
9-09527-015-0 |
01 |
1 |
0502-0606 |
● |
|
|
● |
● |
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*)
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
03.162
(A)
ID=16 H=24 L=20
|
0-95207-315-0 |
01 |
1 |
0607- |
● |
|
|
● |
● |
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
04.785
(E)
|
9-09525-245-0 |
01 |
1 |
0502-0504 |
|
|
|
|
|
● |
|
| |
6 |
02.343 GROMMET; BATTERY CABLE
M/T MYY6P(RSJ),M/T MYY5T(RSM)
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
ID=17
|
8-94128-319-2 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
6 |
02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>
ID=17
|
8-94128-319-2 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
6 |
02.343 GROMMET; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
ID=17
|
8-94128-319-2 |
01 |
1 |
0502- |
● |
● |
|
● |
● |
● |
● |
| |
6 |
02.343 GROMMET; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
ID=17
|
8-94128-319-2 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0211-0303 |
● |
● |
|
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ),M/T
MYY5T(RSM)
BATTERY 115E41R<6XD>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ),M/T
MYY5T(RSM)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0304-0501 |
● |
● |
|
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0304-0501 |
● |
|
|
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
BATTERY 115E41R<6XD>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*)
FLOOR REMOTE SHIFT<M11>
EXC. BATTERY 115E41R<6XD>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0502 |
● |
|
|
● |
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0602 |
● |
● |
|
● |
|
|
● |
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0602 |
● |
● |
|
● |
|
|
● |
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0602 |
● |
|
|
● |
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0602 |
|
|
|
|
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ)
FRAME STRAIGHT TYPE<7KJ>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0602 |
|
|
|
|
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603-0606 |
● |
● |
|
● |
|
|
● |
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603-0606 |
● |
● |
|
● |
|
|
● |
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603-0606 |
● |
|
|
● |
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603-0606 |
|
|
|
|
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ)
FRAME STRAIGHT TYPE<7KJ>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603-0606 |
|
|
|
|
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0607- |
● |
● |
|
● |
|
|
● |
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
EXC. MINI BUS CHASSIS(V4B),FRAME
STRAIGHT TYPE<7KJ>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0607- |
● |
● |
|
● |
|
|
● |
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0607- |
● |
|
|
● |
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0607- |
|
|
|
|
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ)
FRAME STRAIGHT TYPE<7KJ>
01.062
(B)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0607- |
|
|
|
|
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
00.002
(C)
M8
|
9-09110-508-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
EXC. BATTERY 115E41R<6XD>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0502-0502 |
● |
|
|
● |
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0502-0504 |
● |
|
|
● |
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0502-0504 |
|
|
|
|
|
● |
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0505-0602 |
● |
|
|
● |
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
01.062
(A)
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0603- |
● |
|
|
● |
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0303 |
● |
● |
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0502-0602 |
● |
|
|
● |
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
01.062
(A)
M6 FLANGE
|
0-91180-106-0 |
03 |
1 |
0603- |
● |
|
|
● |
● |
● |
|
| |
7 |
02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0211-0303 |
● |
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0304-0501 |
● |
● |
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0304-0501 |
● |
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
BATTERY 115E41R<6XD>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
7 |
02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*)
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
11 |
02.343 WASHER; BATTERY CABLE EARTH
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
ENGINE POWER N-SPEC(7QV)
EXC. VOLTAGE 24V<7AE>
06.760
ID=8.4 OD=22
|
9-09160-708-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
02.559
(A)
T=6.0
|
5-09709-012-0 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
02.559
(A)
T=6.0
|
5-09709-012-0 |
02 |
1 |
0502-0502 |
● |
|
|
● |
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
02.559
(A)
T=6.0
|
5-09709-012-0 |
02 |
1 |
0502- |
● |
● |
|
● |
● |
● |
● |
| |
22 |
02.343 CLIP; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
02.559
(B)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
02.559
(B)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
0502- |
● |
|
|
● |
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>
(D)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
EXC. VOLTAGE 24V<7AE>
(D)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>
(D)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
0502- |
● |
|
|
● |
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
(D)
ID=14 H=50 L=20
|
1-09700-843-0 |
01 |
1 |
0502- |
|
|
|
|
● |
● |
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
03.162
(C)
L=140
|
5-09707-031-1 |
05 |
1 |
0211-0501 |
● |
● |
|
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
03.162
(C)
L=140
|
5-09707-031-1 |
05 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
03.162
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
03.162
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0502- |
|
|
|
|
● |
● |
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
03.162
(C)
L=140
|
5-09707-031-1 |
03 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
03.162
(C)
L=140
|
5-09707-031-1 |
03 |
1 |
0502-0502 |
● |
● |
|
● |
● |
● |
● |
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
ENGINE POWER N-SPEC(7QV)
EXC. VOLTAGE 24V<7AE>
03.162
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*)
BATTERY 115E41R<6XD>
03.162
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
ENGINE POWER N-SPEC(7QV)
EXC. VOLTAGE 24V<7AE>
03.162
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0304-0306 |
|
|
● |
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
ENGINE POWER N-SPEC(7QV)
EXC. VOLTAGE 24V<7AE>
03.162
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0307-0501 |
|
|
● |
|
|
|
|
| |
22 |
02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*)
BATTERY 115E41R<6XD>
03.162
(C)
L=140
|
5-09707-031-1 |
01 |
1 |
0307-0501 |
|
|
● |
|
|
|
|
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
02.559
M8
|
9-09110-408-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
02.559
M8
|
9-09110-408-0 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
● |
● |
● |
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
02.559
M8
|
9-09110-408-0 |
01 |
1 |
0507-0512 |
● |
● |
|
● |
● |
● |
● |
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
M8
|
0-91110-508-0 |
01 |
1 |
0601-0606 |
● |
● |
|
● |
● |
● |
● |
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
M8
|
0-91110-508-0 |
01 |
1 |
0607- |
● |
● |
|
● |
● |
● |
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
● |
● |
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0507-0603 |
● |
● |
|
● |
● |
● |
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439
ID=8.2
|
0-91510-508-0 |
01 |
1 |
0604-0606 |
● |
● |
|
● |
● |
● |
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439
ID=8.2
|
0-91510-508-0 |
01 |
1 |
0607- |
● |
● |
|
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
A/T 4 SPEED-AISIN(RNJ),M/T
MYY6P(RSJ),M/T MYY5T(RSM)
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0303 |
● |
● |
|
|
|
|
|
| |
48 |
02.343 CLIP; CABLE
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0303 |
|
|
● |
|
|
|
|
| |
48 |
02.343 CLIP; CABLE
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0304-0501 |
● |
● |
● |
|
|
|
|
| |
48 |
02.343 CLIP; CABLE
M/T MZZ6U(RSF)
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
48 |
02.343 CLIP; CABLE
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0507 |
● |
● |
|
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
● |
● |
|
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
VOLTAGE 24V<7AE>
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
● |
● |
|
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
● |
● |
|
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
VOLTAGE 24V<7AE>
03.162
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
● |
● |
|
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
48 |
02.343 CLIP; CABLE
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0502- |
● |
● |
|
● |
● |
● |
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>
(A)
|
8-97202-472-1 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
(A)
|
8-97202-472-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
ENGINE POWER N-SPEC(7QV)
EXC. VOLTAGE 24V<7AE>
(A)
|
8-97202-472-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ)
VOLTAGE 24V<7AE>
(A)
|
8-97202-472-1 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ)
FRAME STRAIGHT TYPE<7KJ>
02.483
(D)
|
8-97352-527-0 |
01 |
1 |
0502- |
|
|
|
|
● |
● |
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>,ENGINE POWER
N-SPEC(7QV)
(A)
|
8-97202-141-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
A/T 4 SPEED-AISIN(RNJ)
EXC. VOLTAGE 24V<7AE>
(A)
|
8-97202-141-1 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
EXC. BATTERY 115E41R<6XD>
(B)
|
8-97355-087-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97369-198-1 |
01 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
NPR DBL CAB(NP**W*)
(C)
|
8-97369-198-1 |
01 |
1 |
0502-0502 |
|
● |
|
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97369-198-1 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0502-0506 |
|
● |
|
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0502-0506 |
|
|
|
|
● |
● |
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97369-198-1 |
01 |
1 |
0507-0606 |
● |
● |
|
● |
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0507-0606 |
● |
● |
|
● |
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0507-0606 |
|
● |
|
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0507-0606 |
|
|
|
|
● |
● |
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
(C)
|
8-97369-198-1 |
01 |
1 |
0607- |
● |
● |
|
● |
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0607- |
● |
● |
|
● |
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
(C)
|
8-97369-198-1 |
01 |
1 |
0607- |
|
|
|
|
● |
● |
|
| |
71 |
02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
71 |
02.343 BOLT; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
71 |
02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
71 |
02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0502 |
● |
|
|
● |
● |
● |
|
| |
71 |
02.343 BOLT; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0502 |
● |
|
|
● |
|
|
|
| |
71 |
02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
71 |
02.343 BOLT; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0512 |
● |
|
|
● |
|
|
|
| |
71 |
02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0512 |
|
|
|
|
● |
● |
|
| |
71 |
02.343 BOLT; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0601- |
● |
|
|
● |
|
|
|
| |
71 |
02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0601- |
|
|
|
|
● |
● |
|
| |
75 |
02.333 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR DBL CAB(NP**W*)
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0502 |
|
● |
|
|
|
|
|
| |
75 |
02.333 BOLT; BRKT
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
75 |
02.333 BOLT; BRKT
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0506 |
|
● |
|
|
|
|
|
| |
75 |
02.333 BOLT; BRKT
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0502-0506 |
|
|
|
|
● |
● |
|
| |
75 |
02.333 BOLT; BRKT
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0507-0512 |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0507-0512 |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0507-0512 |
|
● |
|
|
|
|
|
| |
75 |
02.333 BOLT; BRKT
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
0507-0512 |
|
|
|
|
● |
● |
|
| |
75 |
02.333 BOLT; BRKT
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0601-0606 |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0601-0606 |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0601-0606 |
|
● |
|
|
|
|
|
| |
75 |
02.333 BOLT; BRKT
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0601-0606 |
|
|
|
|
● |
● |
|
| |
75 |
02.333 BOLT; BRKT
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0607- |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR/NQR SGL CAB(NP**S*)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
EXC. BATTERY 115E41R<6XD>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0607- |
● |
● |
|
● |
|
|
● |
| |
75 |
02.333 BOLT; BRKT
NPR DBL CAB(NP**W*)
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
75 |
02.333 BOLT; BRKT
VOLTAGE 24V<7AE>
EXC. BATTERY 115E41R<6XD>
00.685
M6X25 FLANGE
|
0-28650-625-0 |
01 |
1 |
0607- |
|
|
|
|
● |
● |
|
| |
76 |
02.343 NUT; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
76 |
02.343 NUT; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0502-0602 |
● |
|
|
● |
|
|
|
| |
76 |
02.343 NUT; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
|
● |
|
|
|
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0502-0506 |
● |
● |
|
● |
|
|
● |
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
04.594
M6 FLANGE
|
0-91150-106-0 |
03 |
1 |
0507-0602 |
● |
● |
|
● |
|
|
● |
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
01.062
M6 FLANGE
|
0-91180-106-0 |
03 |
1 |
0603-0606 |
● |
● |
|
● |
|
|
● |
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
01.062
M6 FLANGE
|
0-91180-106-0 |
03 |
1 |
0607- |
● |
● |
|
● |
|
|
● |
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
76 |
02.343 NUT; BATTERY CABLE
M/T MYY6P(RSJ),M/T MYY5T(RSM)
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0502-0502 |
● |
● |
|
● |
|
|
● |
| |
76 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0502-0502 |
● |
|
|
● |
● |
● |
|
| |
76 |
02.343 NUT; BATTERY CABLE
M/T MYY6P(RSJ),M/T MYY5T(RSM)
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0502-0602 |
● |
● |
|
● |
|
|
● |
| |
76 |
02.343 NUT; BATTERY CABLE
M/T MYY6P(RSJ),M/T MYY5T(RSM)
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.062
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0603- |
● |
● |
|
● |
|
|
● |
| |
76 |
02.343 NUT; BATTERY CABLE
NPR DBL CAB(NP**W*)
A/T 4 SPEED-AISIN(RNJ)
EXC. BATTERY 115E41R<6XD>
04.785
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
0304-0501 |
|
|
● |
|
|
|
|
| |
91 |
02.183 PROTECTOR; HARNESS
MINI BUS CHASSIS(V4B)
VOLTAGE 24V<7AE>
EXC. FRAME STRAIGHT TYPE<7KJ>
02.559
L=200
|
8-97011-735-0 |
01 |
1 |
0502- |
● |
● |
|
● |
|
|
● |
| |
99 |
02.343 CLIP; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(B)
ID=12-16 & 12-16
|
1-09709-191-0 |
01 |
1 |
0304-0501 |
● |
|
|
|
|
|
|
| |
99 |
02.343 CLIP; BATTERY CABLE
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
(B)
ID=12-16 & 12-16
|
1-09709-191-0 |
01 |
1 |
0502-0502 |
● |
|
|
● |
|
|
|
| |
99 |
02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
FRAME STRAIGHT TYPE<7KJ>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
(B)
ID=12-16 & 12-16
|
1-09709-191-0 |
01 |
1 |
0502- |
● |
|
|
● |
|
|
|
| |
99 |
02.343 CLIP; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
03.162
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
99 |
02.343 CLIP; BATTERY CABLE
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
03.162
(A)
L=140
|
5-09707-031-1 |
02 |
1 |
0502- |
● |
|
|
● |
|
|
|
| |
99 |
02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
BATTERY 115E41R<6XD>
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
99 |
02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB(NP**S*)
BATTERY 115E41R<6XD>
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
99 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
● |
● |
● |
| |
99 |
02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD>
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0502-0506 |
|
|
|
|
● |
● |
|
| |
99 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
● |
● |
|
● |
● |
● |
● |
| |
99 |
02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD>
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0507-0606 |
|
|
|
|
● |
● |
|
| |
99 |
02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
● |
● |
|
● |
● |
● |
● |
| |
99 |
02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD>
03.162
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0607- |
|
|
|
|
● |
● |
|
| |
101 |
02.343 NUT; BATTERY CABLE CLIP
EXC. VOLTAGE 24V<7AE>
09.011
M10
|
9-09110-410-0 |
02 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
101 |
02.343 NUT; BATTERY CABLE CLIP
EXC. VOLTAGE 24V<7AE>
09.011
M10
|
9-09110-410-0 |
02 |
1 |
0502-0512 |
● |
|
|
● |
● |
● |
|
| |
101 |
02.343 NUT; BATTERY CABLE CLIP
EXC. VOLTAGE 24V<7AE>
00.833
M10
|
0-91110-510-0 |
02 |
1 |
0601- |
● |
|
|
● |
● |
● |
|
| |
112 |
02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE>
(C)
<+>
|
8-97356-925-1 |
01 |
1 |
0211-0501 |
● |
● |
● |
|
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE>
(C)
<+>
|
8-97356-925-1 |
01 |
1 |
0502-0506 |
● |
● |
|
● |
● |
● |
● |
| |
112 |
02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE>
(C)
<+>
|
8-97356-925-1 |
01 |
1 |
0507-0606 |
● |
● |
|
● |
● |
● |
● |
| |
112 |
02.343 TERMINAL; BATTERY
VOLTAGE 24V<7AE>
(C)
<+>
|
8-97356-925-1 |
01 |
1 |
0607- |
● |
● |
|
● |
● |
● |
● |
| |
112 |
02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE>
(A)
<+>
|
1-82695-003-0 |
01 |
1 |
0211-0403 |
● |
|
● |
|
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE>
(A)
<+>
|
1-82695-175-0 |
01 |
1 |
0404-0501 |
● |
|
● |
|
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE>
(A)
<+>
|
1-82695-175-0 |
01 |
1 |
0502- |
● |
|
|
● |
● |
● |
|
| |
112 |
02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE>
(B)
<->
|
1-82695-004-0 |
01 |
1 |
0211-0403 |
● |
|
● |
|
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE>
(B)
<->
|
1-82695-176-0 |
01 |
1 |
0404-0501 |
● |
|
● |
|
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE>
(B)
<->
|
1-82695-176-0 |
01 |
1 |
0502- |
● |
|
|
● |
● |
● |
|
| |
115 |
02.343 WASHER; LK,CABLE,BATTERY
EXC. VOLTAGE 24V<7AE>
00.002
ID=10.2
|
9-09150-510-0 |
02 |
1 |
0211-0501 |
● |
|
● |
|
|
|
|
| |
115 |
02.343 WASHER; LK,CABLE,BATTERY
EXC. VOLTAGE 24V<7AE>
00.002
ID=10.2
|
9-09150-510-0 |
02 |
1 |
0502-0603 |
● |
|
|
● |
● |
● |
|
| |
115 |
02.343 WASHER; LK,CABLE,BATTERY
EXC. VOLTAGE 24V<7AE>
06.606
ID=10.2
|
0-91510-510-0 |
02 |
1 |
0604- |
● |
|
|
● |
● |
● |
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
L=2430
|
8-97218-578-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
L=2430
|
8-97218-578-0 |
01 |
1 |
0502-0502 |
● |
|
|
● |
|
|
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
L=2400
|
8-98008-835-0 |
01 |
1 |
0502-0612 |
● |
● |
|
● |
|
|
● |
| |
135 |
02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS(V4B)
FRAME STRAIGHT TYPE<7KJ>
EXC. VOLTAGE 24V<7AE>
L=2400
|
8-98008-835-0 |
01 |
1 |
0701- |
● |
● |
|
● |
|
|
● |
| |
135 |
02.343 CABLE; ENG TO BATTERY
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
L=1650
|
8-97218-577-0 |
01 |
1 |
0211-0501 |
● |
|
|
|
|
|
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
L=1650
|
8-97218-577-0 |
01 |
1 |
0502- |
● |
|
|
● |
|
|
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
CHARGE AIR COOLER<6PL>
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
L=780
|
8-97181-964-1 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
EXC. MINI BUS CHASSIS(V4B),VOLTAGE
24V<7AE>
L=780
|
8-97181-964-1 |
01 |
1 |
0502- |
|
|
|
|
● |
● |
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
ENGINE POWER N-SPEC(7QV)
EXC. VOLTAGE 24V<7AE>
L=2320
|
8-97321-197-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T
MYY5T(RSM)
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
L=2320
|
8-97321-197-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
L=2380
|
8-98008-857-0 |
01 |
1 |
0502- |
|
|
|
|
● |
● |
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS(V4B)
CHARGE AIR COOLER<6PL>
EXC. VOLTAGE 24V<7AE>,ENGINE POWER
N-SPEC(7QV)
L=2350
|
8-97203-769-0 |
01 |
1 |
0211-0501 |
|
|
● |
|
|
|
|
| |
135 |
02.343 CABLE; ENG TO BATTERY
A/T 4 SPEED-AISIN(RNJ)
MINI BUS CHASSIS(V4B)
EXC. VOLTAGE 24V<7AE>
L=2350
|
8-97203-769-0 |
01 |
1 |
0502-0502 |
|
|
|
|
● |
● |
|
