◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60B - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60B — ENGINE ELECTRICAL CONTROL PARTS (#22592) — 113 parça
çizim 55028
613 606 748 154 782 796 611 820
BalonParca AdiParca NoAdetTipApplied Date A B
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0710-0710 ● ●
91 01.150 SWITCH; THERMO HTR
NPR/NQR SGL CAB(NP**S*) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SPEED LIMITER 90KM<NMJ> EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0710- ●
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0507-0606 ●
154 02.510 NUT; BRKT FIX
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0607-0611 ● ●
154 02.510 NUT; BRKT FIX
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0612- ● ●
606 03.680 BRACKET; CONT UNIT 8-97369-871-1 01 1 0507-0606 ●
606 03.680 BRACKET; CONT UNIT
AIR INTAKE REAR VERTICAL<KJ3> 		8-97369-871-1 01 1 0607- ● ●
611 01.150 BRACKET; SENSOR
NPR/NQR LONG(NP***K) 		8-97368-621-0 01 1 0507-0606 ●
611 01.150 BRACKET; SENSOR
NPR/NQR LONG(NP***K) 		8-97368-621-0 01 1 0607- ● ●
611 01.150 BRACKET; SENSOR
NQR EXTEND LONG(NP***N) AIR INTAKE REAR VERTICAL<KJ3> 		8-97368-621-0 01 1 0607- ● ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. KD PREPARATORY PACK<6HF> 		8-98000-591-5 01 1 0710-1103 ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SPEED LIMITER 90KM<NMJ> KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98000-591-5 01 1 0710-1103 ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. KD PREPARATORY PACK<6HF> 		8-98000-591-6 01 1 1104- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SPEED LIMITER 90KM<NMJ> EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. CERAMIC HEATER<6YX>,HYDRO BRAKE BOOSTER<7QQ> 		8-98000-591-6 01 1 1104- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. KD PREPARATORY PACK<6HF> 		8-98000-590-5 01 1 0710-1103 ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SPEED LIMITER 90KM<NMJ> KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> HYDRO BRAKE BOOSTER<7QQ> 		8-98000-590-5 01 1 0710-1103 ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM<NMJ> EXC. KD PREPARATORY PACK<6HF> 		8-98000-590-6 01 1 1104- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SPEED LIMITER 90KM<NMJ> EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. CERAMIC HEATER<6YX> 		8-98000-590-6 01 1 1104- ●
613 03.670 CONTROL UNIT; ENG 8-98000-594-5 01 1 0507-0709 ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>,KD PREPARATORY PACK<6HF> 		8-98000-594-5 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> CERAMIC HEATER<6YX> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-594-5 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEED LIMITER 90KM<NMJ>,CERAMIC HEATER<6YX> 		8-98000-594-5 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>,KD PREPARATORY PACK<6HF> 		8-98000-594-6 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-594-6 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG 8-98000-595-5 01 1 0607-0709 ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>,KD PREPARATORY PACK<6HF> 		8-98000-595-5 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> EXC. CERAMIC HEATER<6YX>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98000-595-5 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. SPEED LIMITER 90KM<NMJ>,HYDRO BRAKE BOOSTER<7QQ> 		8-98000-595-5 01 1 0710-0710 ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM<NMJ>,KD PREPARATORY PACK<6HF> 		8-98000-595-6 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> EXC. HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98000-595-6 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. SPEED LIMITER 90KM<NMJ> 		8-98000-595-6 01 1 0710- ●
748 02.500 BOLT; CONT UNIT
09.190 M6X30 FLANGE 		0-28680-630-0 06 1 0507-0508 ●
748 02.500 BOLT; CONT UNIT
10.450 M6X10 		9-03800-610-0 03 1 0507-0604 ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0605-0606 ●
748 02.500 BOLT; CONT UNIT
M6X10 		0-35050-610-0 03 1 0607- ● ●
782 02.510 BOLT; SENSOR
NPR/NQR LONG(NP***K) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0507-0512 ●
782 02.510 BOLT; SENSOR
NPR/NQR LONG(NP***K) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601-0606 ●
782 02.510 BOLT; SENSOR
NPR/NQR LONG(NP***K) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0607- ● ●
782 02.510 BOLT; SENSOR
NQR EXTEND LONG(NP***N) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0607- ● ●
796 01.150 SENSOR; MAP 8-09373-269-1 01 1 0507-0606 ●
796 01.150 SENSOR; MAP 8-09373-269-1 01 1 0607-0810 ● ●
796 01.150 SENSOR; MAP 8-28139-775-0 01 1 0811- ● ●
820 01.150 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0507-0606 ●
820 01.150 SENSOR; INTAKE AIR TEMP 8-12146-830-0 01 1 0607- ● ●
çizim 55346
10 645 46 578 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0502- ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0502- ● ●
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0507-0606 ●
10 02.100 RELAY; STARTER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0607- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0502- ● ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 0502- ● ●
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0710-0710 ● ●
91 01.150 SWITCH; THERMO HTR
NPR/NQR SGL CAB(NP**S*) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SPEED LIMITER 90KM<NMJ> EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0710- ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0502- ● ●
645 02.510 RELAY; ENG CONT
24V 30A MITSUBA 		8-97238-540-0 01 1 0507-0606 ●
645 02.510 RELAY; ENG CONT
24V 30A MITSUBA 		8-97238-540-0 01 1 0607-1402 ● ●
645 02.510 RELAY; ENG CONT
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●

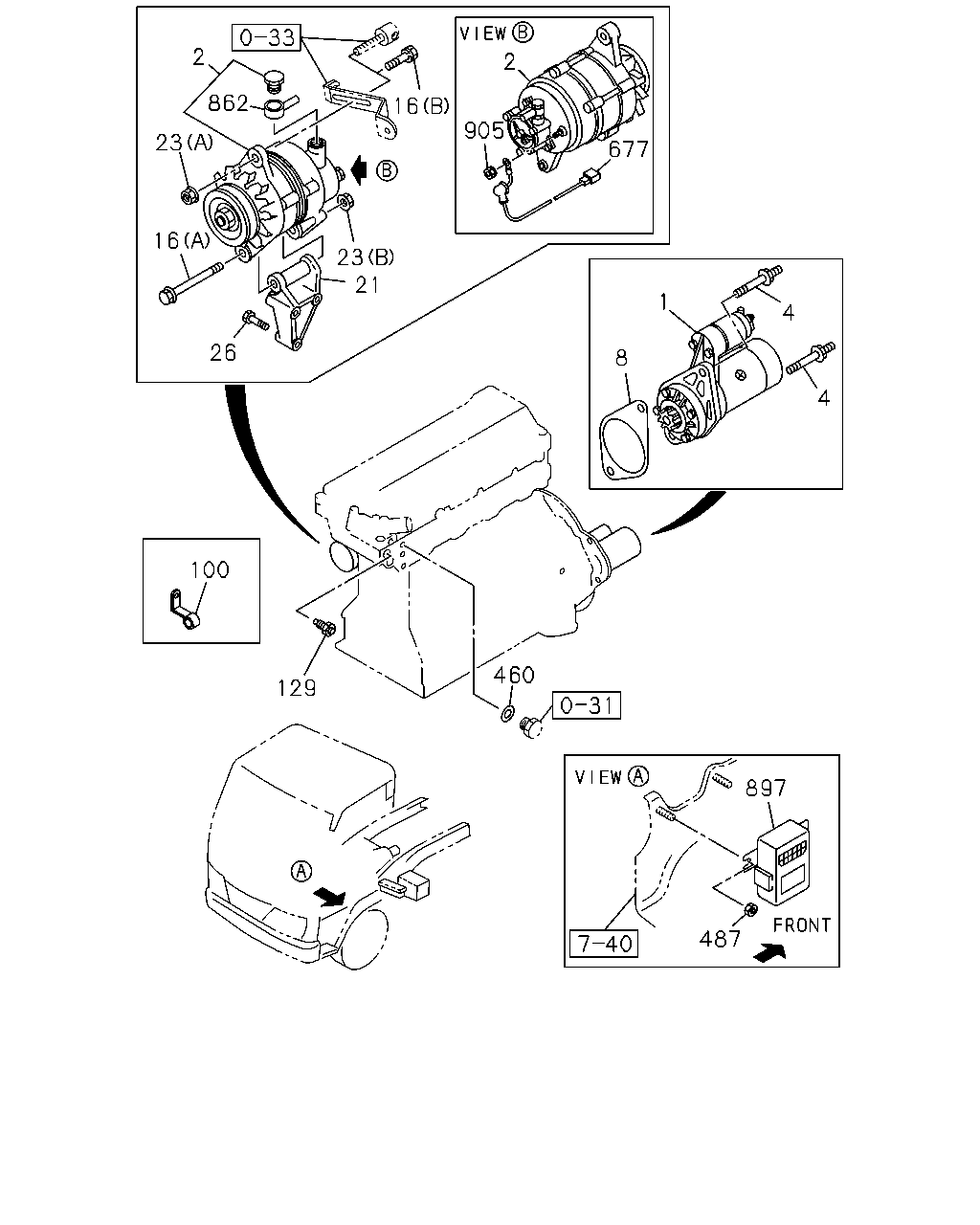

çizim 55381
2 2 862 16 905 23 677 16 23 21 1 4 26 8 4 100 460 129 897 487
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0507-0606 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0607-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI 		8-98222-019-0 01 1 1208-1311 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L) 24V 4.5KW HITACHI 		8-98245-259-1 01 1 1312- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) EXC. VENEZUELA EQUIPMENT(S2L) 24V 60A HITACHI 		8-97351-573-0 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) EXC. VENEZUELA EQUIPMENT(S2L) 24V 60A HITACHI 		8-97351-573-0 01 1 0607- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74), GENERATOR 24V80A(7YN) 24V 50A HITACHI 		8-97351-572-1 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74), GENERATOR 24V80A(7YN) 24V 50A HITACHI 		8-97351-572-1 01 1 0607- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 0507-0606 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 0607-1411 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 1412- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0507-0606 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0607- ● ●
8 02.042 SPACER; STARTER 8-97350-947-0 01 1 0607- ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0507-0606 ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 0607- ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0507-0606 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 0607- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0507-0606 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 0607- ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0507-0602 ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0603-0606 ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 0607- ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 0507-0512 ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0601-0606 ●
26 02.277 BOLT; GEN BRKT
02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0607- ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 0507-0512 ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0601-0606 ●
26 02.277 BOLT; GEN BRKT
M10X70 FLANGE 		0-28151-070-0 02 1 0607- ● ●
91 01.150 SWITCH; THERMO HTR
CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0710-0710 ● ●
91 01.150 SWITCH; THERMO HTR
NPR/NQR SGL CAB(NP**S*) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SPEED LIMITER 90KM<NMJ> EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> EXC. CERAMIC HEATER<6YX> 03.883 		8-97038-625-0 01 1 0710- ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 01 1 0507-0606 ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		9-09525-035-0 01 1 0607-0607 ● ●
100 02.559 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 01 1 0607- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 0607- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0507-0606 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TRANSTRON 		8-97170-327-0 01 1 0607-1007 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1008- ● ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0507-0606 ●
460 02.363 GASKET; PLUG
04.868 ID=16.2 		1-09630-086-0 01 1 0607- ● ●
487 02.343 NUT
04.594 M6 FLANGE 		0-91150-106-0 02 1 0507-0602 ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0603-0606 ●
487 02.343 NUT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0607- ● ●
677 02.277 HARNESS; GEN
EXC. VENEZUELA EQUIPMENT(S2L) 		8-97367-772-0 01 1 0507-0606 ●
677 02.277 HARNESS; GEN
EXC. VENEZUELA EQUIPMENT(S2L) 		8-97367-772-0 01 1 0607- ● ●
862 02.313 CONNECTOR; GEN 8-97351-627-0 01 1 0507-0606 ●
862 02.313 CONNECTOR; GEN 8-97351-627-0 01 1 0607- ● ●
897 02.510 DRM 8-98013-144-8 01 1 0507-0606 ●
897 02.510 DRM 8-98013-144-8 01 1 0607-1401 ● ●
897 02.510 DRM 8-98260-912-1 01 1 1402- ● ●
905 02.559 NUT; HARNESS
EXC. VENEZUELA EQUIPMENT(S2L) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0507-0606 ●
905 02.559 NUT; HARNESS
EXC. VENEZUELA EQUIPMENT(S2L) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
