0-57B — EMISSION PIPING (#22590) — 81 parça

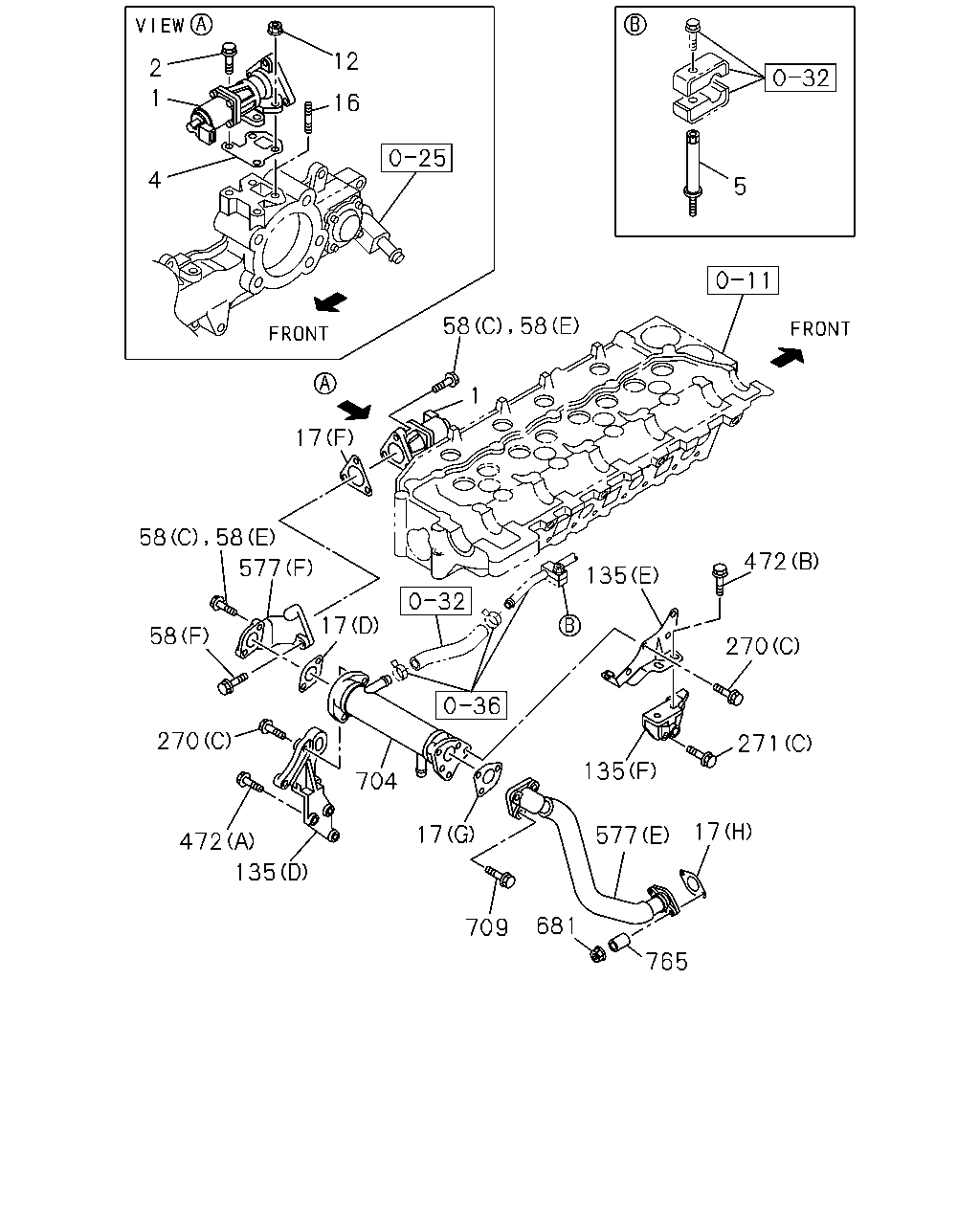

12 2 1 16 4 5 1 17 472 577 135 17 58 270 270 271 135 704 17 17 577 472 135 681 709 765 58 58 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-97379-625-1	01	1	0507-0606	●
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0607-	●	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0507-0606	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0607-	●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0507-0606	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0607-	●	●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●
16	03.275 STUD; EGR VLV 01.428 M8X20 L=32	9-04110-820-0	02	1	0507-0604	●
16	03.275 STUD; EGR VLV 02.510 M8X20 L=32	0-41010-820-0	02	1	0605-0606	●
16	03.275 STUD; EGR VLV 02.510 M8X20 L=32	0-41010-820-0	02	1	0607-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97213-386-0	01	1	0507-0606	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97213-386-0	01	1	0607-0709	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97213-386-0	01	1	0710-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-0606	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0607-1005	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0507-0606	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0607-	●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (H)	8-97375-980-1	01	1	0507-0606	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (H)	8-97375-980-1	01	1	0607-	●	●
58	03.417 BOLT; PIPE 02.559 (E) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512	●
58	03.417 BOLT; PIPE 06.216 (E) M8X25 FLANGE	0-28650-825-0	03	1	0601-0606	●
58	03.417 BOLT; PIPE 06.216 (E) M8X25 FLANGE	0-28650-825-0	03	1	0607-0709	●	●
58	03.417 BOLT; PIPE 06.216 (E) M8X25 FLANGE	0-28650-825-0	03	1	0710-	●	●
58	03.417 BOLT; PIPE 01.540 (F) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512	●
58	03.417 BOLT; PIPE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0601-0606	●
58	03.417 BOLT; PIPE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0607-	●	●
58	03.417 BOLT; PIPE 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508	●
135	03.680 BRACKET; EGR (D)	8-97310-498-2	01	1	0507-0606	●
135	03.680 BRACKET; EGR (D)	8-97310-498-2	01	1	0607-	●	●
135	03.680 BRACKET; EGR (F)	8-97375-952-0	01	1	0507-0606	●
135	03.680 BRACKET; EGR (F)	8-97375-952-0	01	1	0607-	●	●
135	03.680 BRACKET; EGR (E)	8-97376-723-0	01	1	0507-0606	●
135	03.680 BRACKET; EGR (E)	8-97376-723-0	01	1	0607-	●	●
270	03.680 BOLT 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512	●
270	03.680 BOLT 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-0606	●
270	03.680 BOLT 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0607-	●	●
271	03.675 BOLT; BRKT 00.685 (C) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512	●
271	03.675 BOLT; BRKT 00.685 (C) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606	●
271	03.675 BOLT; BRKT 00.685 (C) M12X45 FLANGE	0-28151-245-0	01	1	0607-	●	●
271	03.675 BOLT; BRKT 00.002 (C) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512	●
271	03.675 BOLT; BRKT 02.277 (C) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606	●
271	03.675 BOLT; BRKT 02.277 (C) M8X25 FLANGE	0-28660-825-0	01	1	0607-	●	●
472	03.671 BOLT; BRKT 00.685 (A) M12X30 FLANGE	0-28181-230-0	03	1	0507-0512	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0601-0606	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0607-	●	●
472	03.671 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●
577	03.675 PIPE; AIR,EGR (F)	8-97329-211-2	01	1	0507-0606	●
577	03.675 PIPE; AIR,EGR (F)	8-97329-211-2	01	1	0607-	●	●
577	03.675 PIPE; AIR,EGR (E)	8-98032-795-0	01	1	0507-0606	●
577	03.675 PIPE; AIR,EGR (E)	8-98032-795-1	01	1	0607-	●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-	●	●
704	03.337 COOLER ASM; EGR	8-97310-496-1	01	1	0507-0606	●
704	03.337 COOLER ASM; EGR	8-97310-496-1	01	1	0607-	●	●
709	03.670 BOLT; EGR COOLER 03.417 M8X23 FLANGE	8-97378-077-0	03	1	0507-0606	●
709	03.670 BOLT; EGR COOLER 03.417 M8X23 FLANGE	8-97378-077-0	03	1	0607-	●	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	0507-0606	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	0607-	●	●

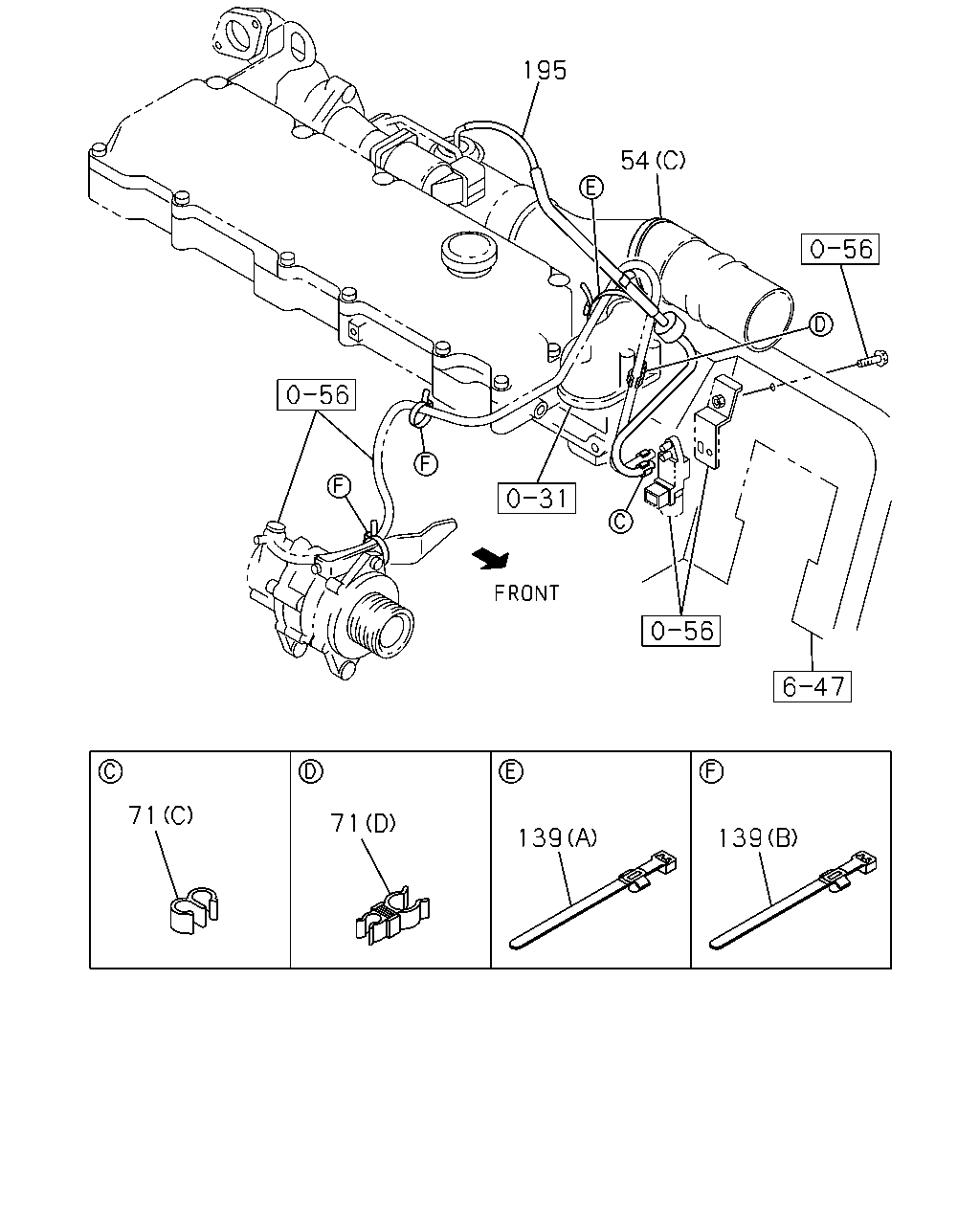

195 54 71 71 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	03.680 CLIP; 3 HOSE (C) L=350	8-97373-487-0	01	1	0507-0606	●
54	03.680 CLIP; 3 HOSE (C) L=350	8-97373-487-0	01	1	0607-	●	●
71	03.680 CLIP; RUBBER HOSE 03.886 (C) ID=7.2	8-94163-380-0	01	1	0507-0606	●
71	03.680 CLIP; RUBBER HOSE 03.886 (C) ID=7.2	8-94163-380-0	01	1	0607-	●	●
71	03.680 CLIP; RUBBER HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	0507-0606	●
71	03.680 CLIP; RUBBER HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	0607-	●	●
139	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0507-0606	●
139	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0607-	●	●
139	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0507-0606	●
139	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0507-0606	●
139	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0607-	●	●
139	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0607-	●	●
195	03.675 HOSE; VAC 03.670	8-97373-527-0	01	1	0507-0606	●
195	03.675 HOSE; VAC 03.670	8-97373-527-0	01	1	0607-	●	●
