◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#2259) — 144 parça

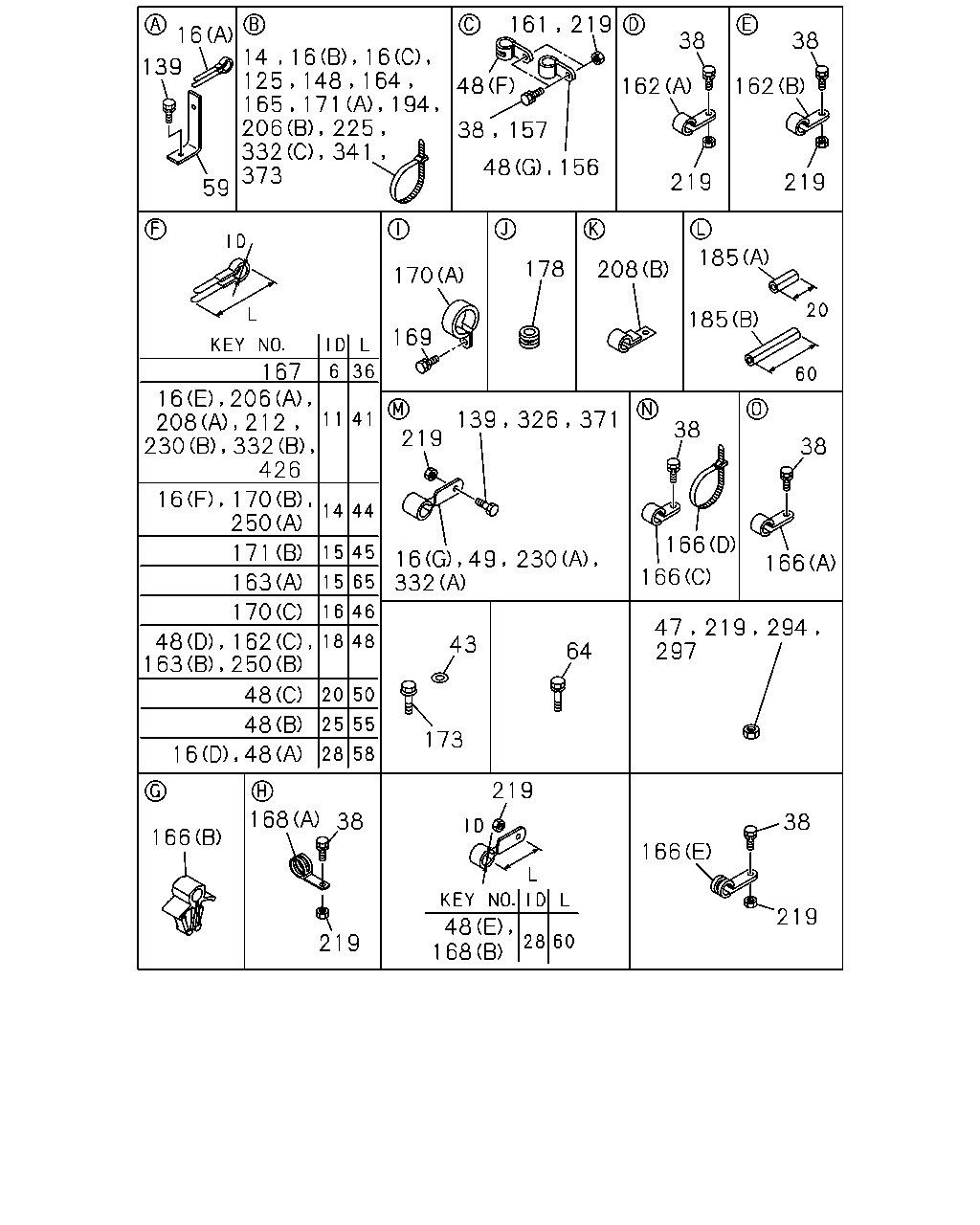

çizim 28940
161 219 16 38 38 16 194 373 139 48 162 162 38 157 48 156 219 219 59 185 178 208 170 185 169 167 426 38 219 38 16 170 250 166 171 16 332 230 166 166 163 170 297 48 162 43 64 48 48 173 219 168 38 38 166 166 219 48 168 219 14 16 125 148 164 165 171 206 225 332 341 16 206 208 212 332 230 163 250 16 48 139 326 371 49 47 219 294
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
GENERATOR NIKKO 24V-40A 1KW(SC5),GENERATOR NIKKO 24V-60A 1.5KW(SC8) L=250 		5-09707-030-1 01 1 9906-9907 ● ●
14 CLIP; BAND,HARNESS
GENERATOR NIKKO 24V-40A 1KW(SC5),GENERATOR NIKKO 24V-60A 1.5KW(SC8) EXC. NIKKO<Y70> L=250 		5-09707-030-1 01 1 9908-0203 ● ●
16 CLIP; HARNESS
(D) ID=28 L=58 		1-09700-400-0 02 1 9101- ●
16 CLIP; HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 9101- ●
16 CLIP; HARNESS
(G) ID=13 L=50 		1-09700-027-1 02 1 9101- ● ●
16 CLIP; HARNESS
(E) ID=11 L=41 		1-09700-403-0 04 1 9101- ● ●
16 CLIP; HARNESS
(B) L=250 		5-09707-030-1 04 1 9101- ● ●
16 CLIP; HARNESS
(C) L=140 		5-09707-031-1 01 1 9101- ● ●
16 CLIP; HARNESS
(A) ID=25 L=55 		9-09917-573-0 02 1 9101- ● ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) (G) ID=13 L=50 		1-09700-027-0 01 1 9101-9102 ● ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (G) ID=13 L=50 		1-09700-027-1 01 1 9103- ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) (G) ID=13 L=50 		1-09700-027-1 01 1 9103- ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) (E) ID=11 L=41 		1-09700-403-0 03 1 9101-9102 ● ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (E) ID=11 L=41 		1-09700-403-0 03 1 9103- ●
16 CLIP; HARNESS
WHEEL BASE 4600MM(46W) (E) ID=11 L=41 		1-09700-403-0 03 1 9103- ●
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (E) ID=11 L=41 		1-09700-403-0 07 1 9101- ● ●
16 CLIP; HARNESS
(F) ID=14 L=44 		9-09917-427-0 03 1 9101- ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
38 BOLT; CLIP,HARNESS
MLH5B M/T(X3N),MLH5C M/T(X5M) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ●
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ●
38 BOLT; CLIP,HARNESS
MLH5B M/T(X3N) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 10 1 9101-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 04 1 0204- ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 10 1 9205-0203 ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 06 1 0204- ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		9-01901-025-0 02 1 9101-9204 ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9205- ●
43 WASHER; LK,HARNESS
GENERATOR DENSO 24V-40A 1KW(SC4) 		9-09150-506-0 01 1 9102- ● ●
47 NUT; GEN TERMINAL
M8 		9-09110-408-0 02 1 9101- ● ●
47 NUT; GEN TERMINAL
GENERATOR DENSO 24V-40A 1KW(SC4) M6 		9-09110-406-0 01 1 9102- ● ●
48 CLIP; FRAME HARNESS
(E) ID=28 L=60 		1-09700-585-1 02 1 9101- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (D) ID=18 L=48 		9-09917-429-0 12 1 9101-9101 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (D) ID=18 L=48 		9-09917-429-0 13 1 9102- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=20 L=50 		9-09917-430-0 23 1 9101- ●
48 CLIP; FRAME HARNESS
(A) ID=28 L=58 		1-09700-400-0 02 1 9101- ● ●
48 CLIP; FRAME HARNESS
(B) ID=25 L=55 		9-09917-573-0 05 1 9101- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=18 L=48 		9-09917-429-0 10 1 9101- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (C) ID=20 L=50 		9-09917-430-0 18 1 9101- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (D) ID=18 L=48 		9-09917-429-0 11 1 9101- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=20 L=50 		9-09917-430-0 19 1 9101- ● ●
48 CLIP; FRAME HARNESS
(G) ID=28 L=30 		1-09700-607-1 02 1 9101- ●
48 CLIP; FRAME HARNESS
(F) ID=29 L=35 		5-09700-293-1 01 1 9101- ●
49 CLIP; GEN HARNESS
ID=15 L=50 		1-09700-804-0 01 1 9101- ● ●
59 BRACKET; FRAME HARNESS 1-38329-061-0 02 1 9101- ● ●
64 SCREW; CLIP
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ●
64 SCREW; CLIP
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-0203 ●
125 CLIP; BAND,STOP LAMP SW HARNESS 5-09707-031-1 02 1 9101- ● ●
139 BOLT; BRKT
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9101-9204 ● ●
139 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205- ● ●
148 CLIP; BAND,HEADLAMP HARNESS 5-09707-030-1 04 1 9101- ● ●
156 CLIP; ELEC PANEL STAY 9-09525-835-0 01 1 9101- ● ●
157 BOLT; ELEC PANEL STAY
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ● ●
157 BOLT; ELEC PANEL STAY
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ● ●
161 NUT; ELEC PANEL STAY 9-09110-408-0 01 1 9101- ● ●
162 CLIP; SW HARNESS
(A) ID=9 L=50 		9-09524-885-0 01 1 9101- ● ●
162 CLIP; SW HARNESS
(B) ID=16 L=50 		9-09525-586-0 02 1 9101- ● ●
162 CLIP; SW HARNESS
(C) ID=18 L=48 		9-09917-429-0 02 1 9101- ● ●
163 CLIP; METER HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 9101- ● ●
163 CLIP; METER HARNESS
(B) ID=18 L=48 		9-09917-429-0 01 1 9101- ● ●
164 CLIP; BAND METER HARNESS 5-09707-030-1 01 1 9101- ● ●
165 CLIP; BAND COMB SW 5-09707-030-1 02 1 9101- ● ●
166 CLIP; HARNESS CLU SW
MLH5B M/T(X3N),MLH5C M/T(X5M) (A) ID=13 L=50 		9-09525-286-0 01 1 9101-9101 ●
166 CLIP; HARNESS CLU SW
(C) ID=19 L=25 		1-09700-614-0 01 1 9101-9101 ● ●
166 CLIP; HARNESS CLU SW
(C) ID=19 L=25 		1-09700-614-0 01 1 9102-9204 ● ●
166 CLIP; HARNESS CLU SW
MLH5B M/T(X3N),MLH5C M/T(X5M) (C) ID=19 L=25 		1-09700-614-0 01 1 9102-9204 ●
166 CLIP; HARNESS CLU SW
(C) ID=19 L=25 		1-09700-614-0 01 1 9205-9304 ● ●
166 CLIP; HARNESS CLU SW
MLH5B M/T(X3N) (C) ID=19 L=25 		1-09700-614-0 01 1 9205-9304 ●
166 CLIP; HARNESS CLU SW
(E) ID=19 L=25 		1-09700-515-1 01 1 9305- ● ●
166 CLIP; HARNESS CLU SW
MLH5B M/T(X3N) (E) ID=19 L=25 		1-09700-515-1 01 1 9305- ●
166 CLIP; HARNESS CLU SW
(A) ID=19 L=28 		9-09525-855-0 01 1 9101-9510 ● ●
166 CLIP; HARNESS CLU SW
(A) ID=19 L=28 		9-09525-856-0 01 1 9511- ● ●
166 CLIP; HARNESS CLU SW
EXHAUST BRAKE(NF8) (B) 		1-09987-106-0 01 1 9101- ● ●
166 CLIP; HARNESS CLU SW
MBG5A M/T(X4J),MBG5B M/T(X4K),MBG6P M/T(X4L), MBG6RM/T(X4N),MBG5C M/T(X4R),MBG5Q M/T(X4S) (D) L=140 		5-09707-031-1 01 1 9101-0203 ● ●
166 CLIP; HARNESS CLU SW
MBG5B M/T(X4K),MBG6R M/T(X4N),MBG5C M/T(X4R) (D) L=140 		5-09707-031-1 01 1 0204- ● ●
167 CLIP; HARNESS ACCEL & STOP 9-09917-423-0 02 1 9101- ● ●
168 CLIP; DASH HARNESS
(A) ID=28 L=45 		1-09700-825-1 04 1 9101-9311 ●
168 CLIP; DASH HARNESS
(A) ID=28 L=45 		1-09700-825-1 03 1 9312- ●
168 CLIP; DASH HARNESS
(B) ID=28 L=60 		1-09700-585-1 01 1 9312- ● ●
168 CLIP; DASH HARNESS
(A) ID=28 L=45 		1-09700-825-1 05 1 9101-9311 ●
168 CLIP; DASH HARNESS
(A) ID=28 L=45 		1-09700-825-1 04 1 9312- ●
169 BOLT; ELEC HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ●
169 BOLT; ELEC HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205- ● ●
170 CLIP; ELEC HARNESS
(A) ID=48 L=36 		5-09700-329-0 02 1 9101- ● ●
170 CLIP; ELEC HARNESS
(B) ID=14 L=44 		9-09917-427-0 02 1 9101- ● ●
170 CLIP; ELEC HARNESS
(C) ID=16 L=46 		9-09917-428-0 04 1 9101- ● ●
171 CLIP; STARTER HARNESS
(B) ID=15 L=45 		1-09700-402-0 02 1 9101- ● ●
171 CLIP; STARTER HARNESS
(A) L=140 		5-09707-031-1 01 1 9101- ● ●
173 BOLT; STARTER EARTH 0-28081-030-0 01 1 9101- ● ●
178 GROMMET; HARNESS
ID=11 OD=14 T=17 		9-09956-004-0 01 1 9101- ● ●
178 GROMMET; HARNESS
ID=15 OD=20 T=22 		9-09956-181-0 01 1 9101- ● ●
185 SLEEVE; RUBBER
MLH5B M/T(X3N) (A) ID=15 OD=19 L=20 		1-09337-007-0 02 1 9101- ●
185 SLEEVE; RUBBER
(A) ID=15 OD=19 L=20 		1-09337-007-0 01 1 9101- ● ●
185 SLEEVE; RUBBER
(B) L=60 		5-15419-011-0 01 1 9101- ● ●
194 CLIP; BAND 5-09707-030-1 01 1 9101- ● ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9101- ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=250 		5-09707-030-1 03 1 9101- ● ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE(NF8) (A) ID=11 L=41 		1-09700-403-0 01 1 9101- ● ●
208 CLIP; HARNESS,MAG VLV
EXHAUST BRAKE(NF8) (B) ID=11 L=30 		1-09700-511-0 01 1 9101- ● ●
212 CLIP; HORN HARNESS
AIR HORN(WB8) 		1-09700-403-0 02 1 9101- ● ●
219 NUT
M8 		9-09110-408-0 04 1 9101- ● ●
219 NUT
M8 		9-09110-408-0 06 1 9101- ● ●
219 NUT
M10 		9-09110-410-0 01 1 9101-9307 ● ●
219 NUT
M10 		9-09110-510-0 01 1 9308- ● ●
219 NUT
WHEEL BASE 4600MM(46W) M8 		9-09110-408-0 01 1 9101-9102 ● ●
219 NUT
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) M8 		9-09110-408-0 01 1 9101-9102 ●
219 NUT
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) M8 		9-09110-408-0 01 1 9103-0203 ●
219 NUT
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) WHEEL BASE 4600MM(46W) M8 		9-09110-408-0 01 1 9103-0203 ●
219 NUT
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) M8 		9-09110-408-0 01 1 0204- ●
219 NUT
WHEEL BASE 4600MM(46W) M8 		9-09110-408-0 01 1 0204- ●
219 NUT
M10 		9-09110-410-0 02 1 9101-9307 ●
219 NUT
M10 		9-09110-510-0 02 1 9308- ●
225 CLIP; AIR TANK HARNESS 5-09707-031-1 03 1 9101- ● ●
230 CLIP; C/MBR HARNESS
(A) ID=13 L=50 		1-09700-027-1 01 1 9101- ● ●
230 CLIP; C/MBR HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 9101- ● ●
250 CLIP; END CROSS
(A) ID=14 L=44 		9-09917-427-0 02 1 9101- ● ●
250 CLIP; END CROSS
(B) ID=18 L=48 		9-09917-429-0 03 1 9101- ● ●
294 NUT 9-09110-408-0 04 1 9101- ● ●
297 NUT; HARNESS ELEC PANEL 9-09110-408-0 02 1 9101- ● ●
326 BOLT; HARNESS 4TH C/MBR
WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9102 ● ●
326 BOLT; HARNESS 4TH C/MBR
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9204 ●
326 BOLT; HARNESS 4TH C/MBR
WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9103-9204 ●
326 BOLT; HARNESS 4TH C/MBR
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ●
326 BOLT; HARNESS 4TH C/MBR
WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ●
332 CLIP; HARNESS TACHO SENSOR
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) (A) ID=13 L=50 		1-09700-027-1 01 1 9101-0203 ●
332 CLIP; HARNESS TACHO SENSOR
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) (B) ID=11 L=41 		1-09700-403-0 02 1 9101-0203 ●
332 CLIP; HARNESS TACHO SENSOR
TACHOMETER<UD7> TAIWAN EQUIPMENT(WW5) (C) L=140 		5-09707-031-1 01 1 9101-0203 ●
341 CLIP; BAND,STARTER RELAY 5-09707-031-1 01 1 9101- ● ●
371 BOLT; GEN HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ● ●
371 BOLT; GEN HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ● ●
373 CLIP; BAND,GEN HARNESS
L=250 		5-09707-030-1 01 1 9101-9905 ● ●
373 CLIP; BAND,GEN HARNESS
L=250 		5-09707-030-1 01 1 9906-9907 ● ●
373 CLIP; BAND,GEN HARNESS
GENERATOR NIKKO 24V-40A 1KW(SC5),GENERATOR NIKKO 24V-60A 1.5KW(SC8) L=250 		5-09707-030-1 01 1 9906-9907 ● ●
373 CLIP; BAND,GEN HARNESS
L=250 		5-09707-030-1 01 1 9908-0203 ● ●
373 CLIP; BAND,GEN HARNESS
GENERATOR NIKKO 24V-40A 1KW(SC5),GENERATOR NIKKO 24V-60A 1.5KW(SC8) EXC. NIKKO<Y70> L=250 		5-09707-030-1 01 1 9908-0203 ● ●
373 CLIP; BAND,GEN HARNESS
L=250 		5-09707-030-1 01 1 0204- ● ●
373 CLIP; BAND,GEN HARNESS
L=140 		5-09707-031-1 01 1 9101- ● ●
426 CLIP; HARNESS,PARKING SW 1-09700-403-0 03 1 9101- ● ●

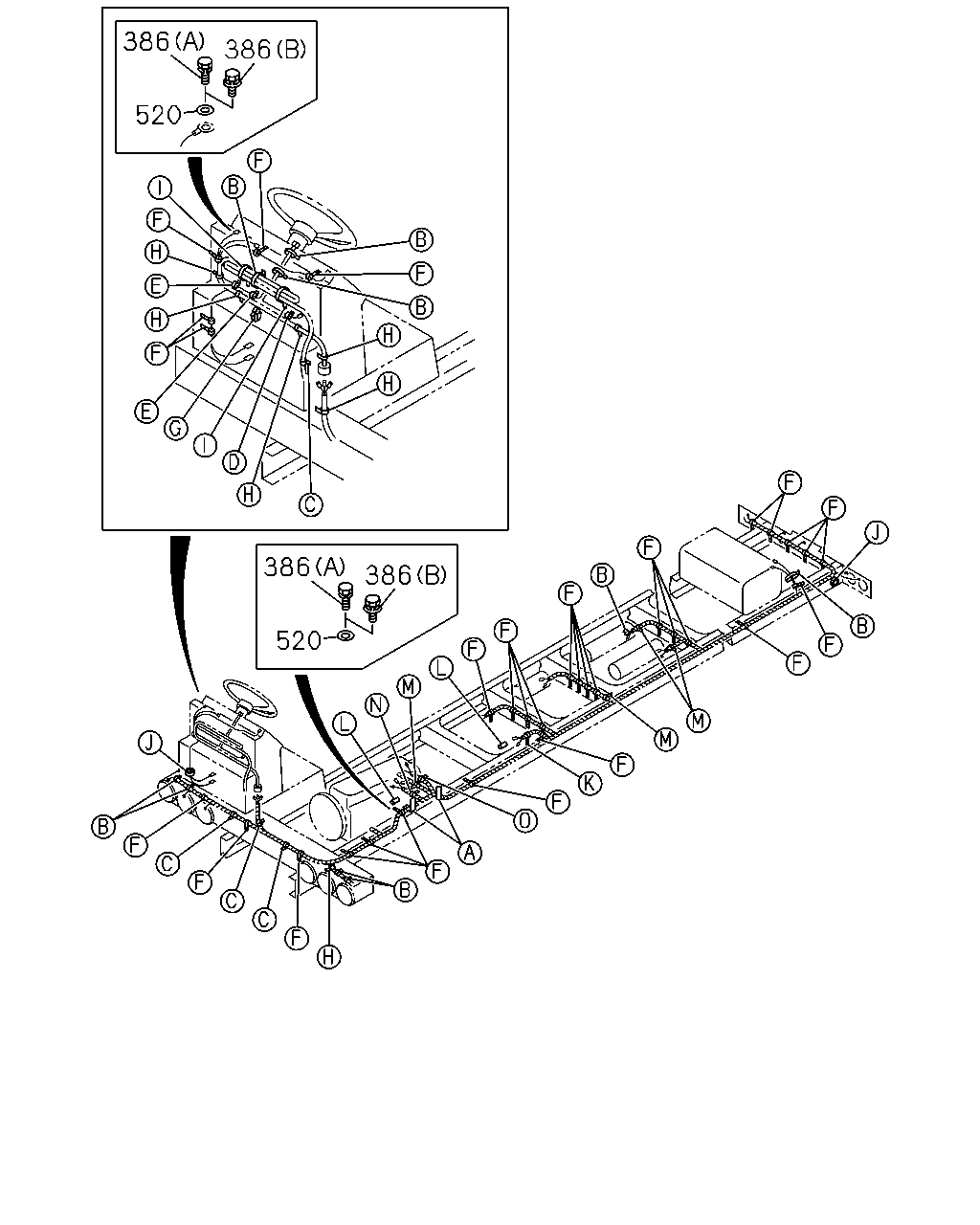

çizim 95367
386 386 520 386 386 520
BalonParca AdiParca NoAdetTipApplied Date A B
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-9212 ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9301- ● ●
386 BOLT; GRAND HARNESS
(A) M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ● ●
386 BOLT; GRAND HARNESS
(A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205-9212 ● ●
386 BOLT; GRAND HARNESS
(B) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9301- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9301- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
