◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-56B - EMISSION SYSTEM ▶
0-56B — EMISSION SYSTEM (#22588) — 11 parça

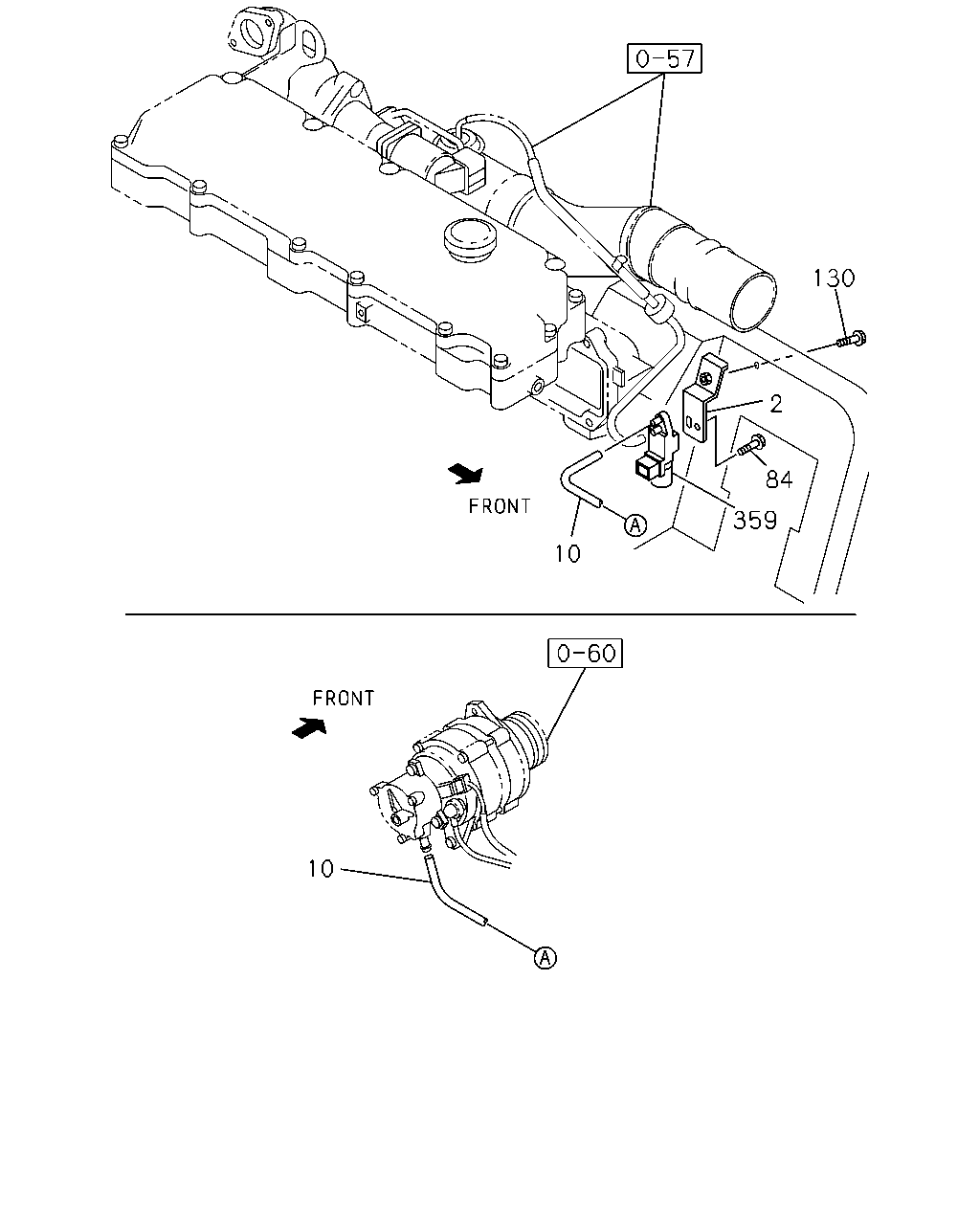

çizim 53661
130 2 84 359 10 10
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.671 BRACKET; VSV 8-97373-616-1 01 1 0507-0606 ●
2 03.671 BRACKET; VSV 8-97373-616-1 01 1 0607- ● ●
10 03.675 HOSE; RUBBER,PUMP TO VSV 8-97374-116-0 01 1 0507-0606 ●
10 03.675 HOSE; RUBBER,PUMP TO VSV 8-97374-116-0 01 1 0607- ● ●
84 03.671 BOLT; VSV
09.655 M5X8 W/LK WASHER 		9-03910-508-0 01 1 0507-0604 ●
84 03.671 BOLT; VSV
M5X8 W/LK WASHER 		0-36220-508-0 01 1 0605-0606 ●
84 03.671 BOLT; VSV
M5X8 W/LK WASHER 		0-36220-508-0 01 1 0607- ● ●
130 03.671 BOLT; VSV BRKT
03.470 M6X22 W/LK&PL WASHER 		8-97892-370-0 01 1 0507-0606 ●
130 03.671 BOLT; VSV BRKT
03.470 M6X22 W/LK&PL WASHER 		8-97892-370-0 01 1 0607- ● ●
359 03.670 VALVE; VAC SWITCHING,I/THROTTLE 8-97037-165-2 01 1 0507-0606 ●
359 03.670 VALVE; VAC SWITCHING,I/THROTTLE 8-97037-165-2 01 1 0607- ● ●
