Sayfa 0-56A - Isuzu EPC

0-56A — EMISSION SYSTEM (#22587) — 226 parça

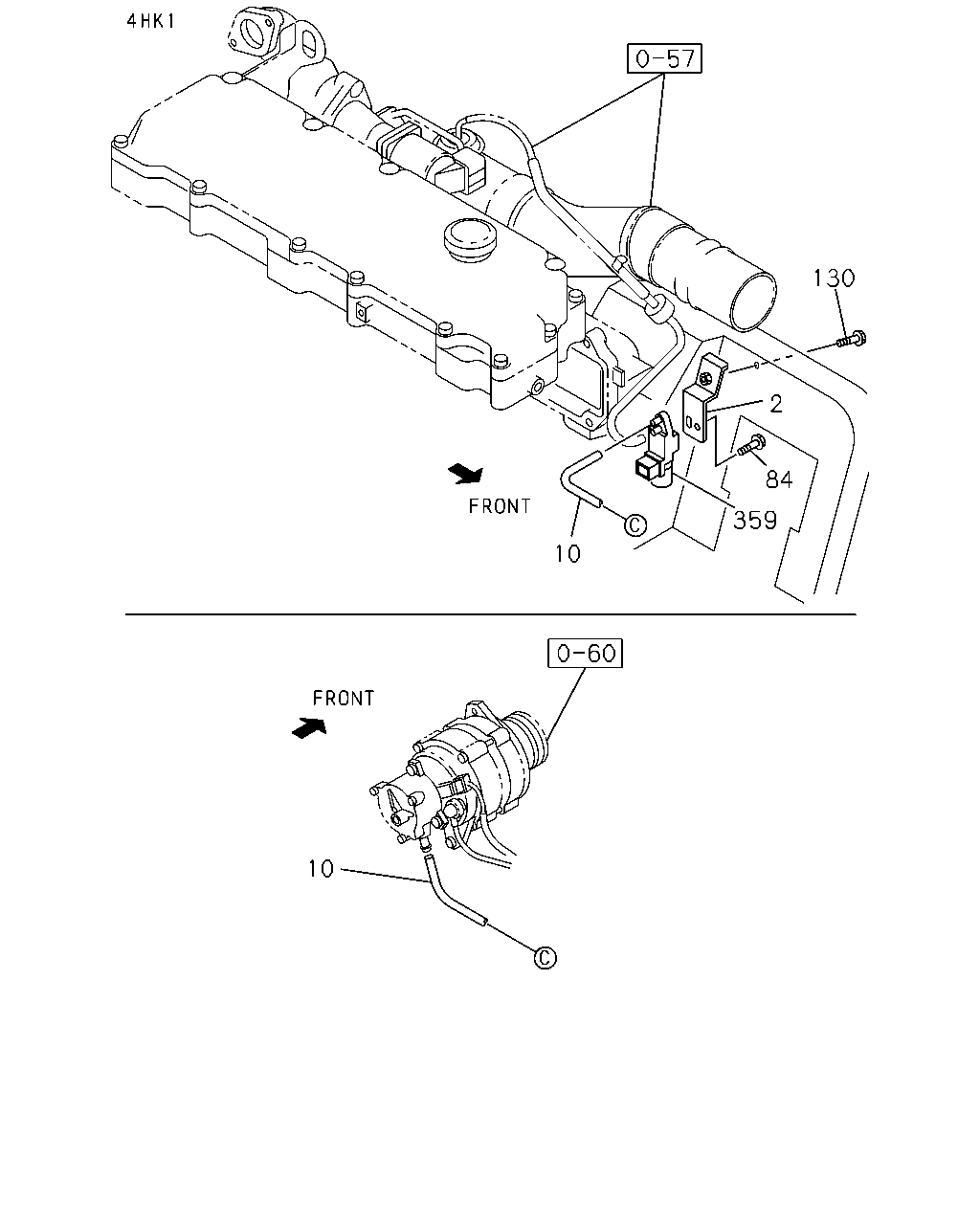

130 2 84 359 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)	8-97192-228-0	01	1	0211-0501	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97305-209-1	01	1	0211-0501	●
2	03.671 BRACKET; VSV	8-97305-209-1	01	1	0502-0509		●	●
2	03.671 BRACKET; VSV EXC. EURO2 SPECIFICATION(NT2)	8-97305-209-1	01	1	0510-		●	●
2	03.671 BRACKET; VSV EURO2 SPECIFICATION(NT2)	8-97192-228-0	01	1	0510-		●	●

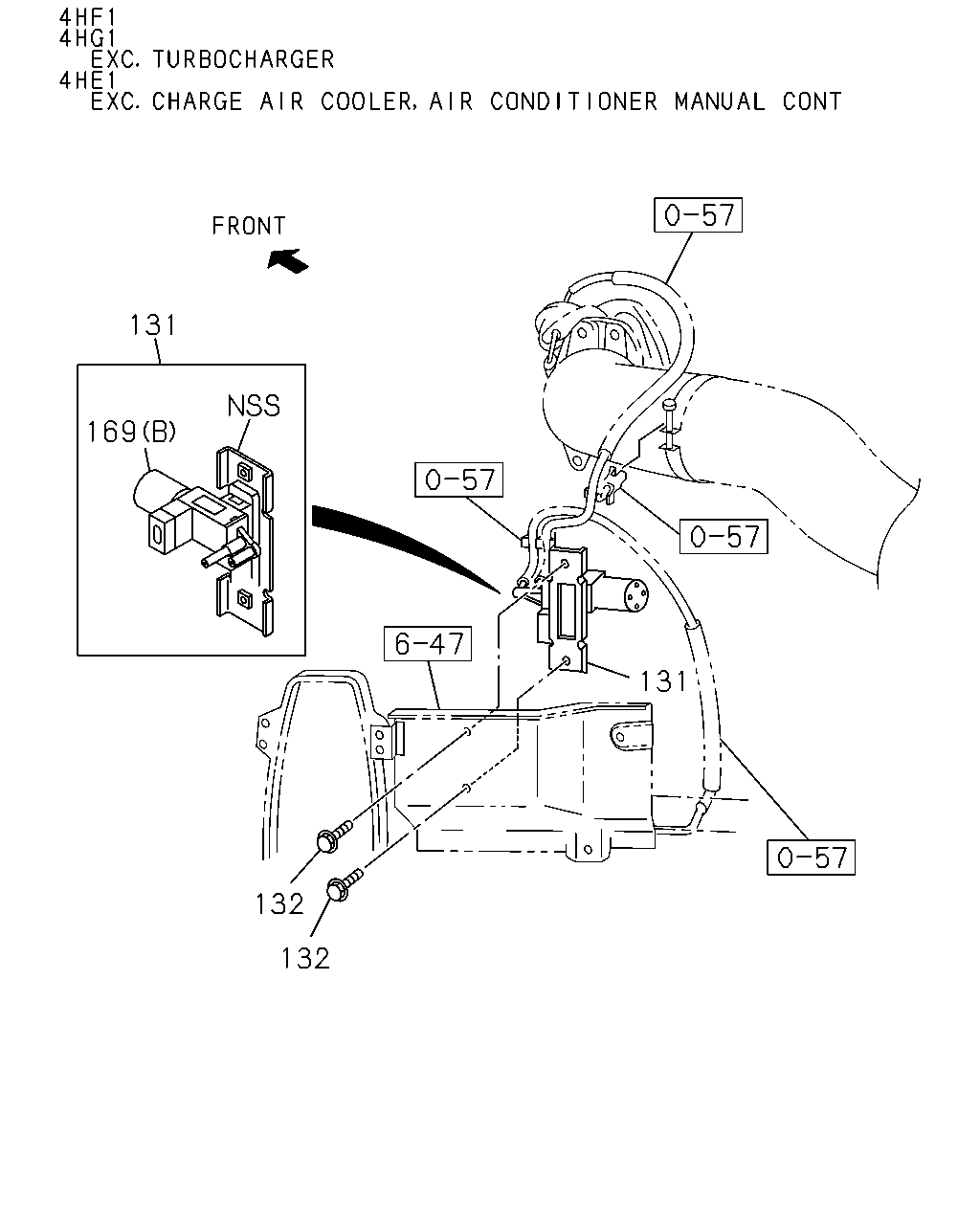

131 131 169 132 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97116-759-0	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0502-				●	●	●
131	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE>	8-97216-149-0	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE>	8-97216-149-0	01	1	0502-							●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51)	8-97030-324-1	01	1	0211-0501				●		●
131	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) VOLTAGE 24V<7AE>	8-97030-324-1	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0502-				●	●	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE>	8-97030-324-1	01	1	0502-							●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2)	8-97184-200-2	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE>	8-97184-200-2	01	1	0502-0509		●	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2)	8-97184-200-2	01	1	0510-		●	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0502-		●	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0305				●		●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0305				●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0306-0312				●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0401-0501	●			●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0502							●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0507		●	●				●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512				●	●	●
132	03.680 BOLT; VSV BRKT 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512							●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-				●	●	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-							●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0306-0501				●		●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507				●	●	●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (D)	8-97216-168-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE> (D)	8-97216-168-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97216-169-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE> (C)	8-97216-169-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) (A)	8-97012-878-0	01	1	0211-0501				●		●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) VOLTAGE 24V<7AE> (A)	8-97012-878-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	0502-				●	●	●
169	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> (A)	8-97012-878-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0211-0501				●		●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0502-				●	●	●
169	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> (B)	8-97021-705-1	01	1	0502-							●

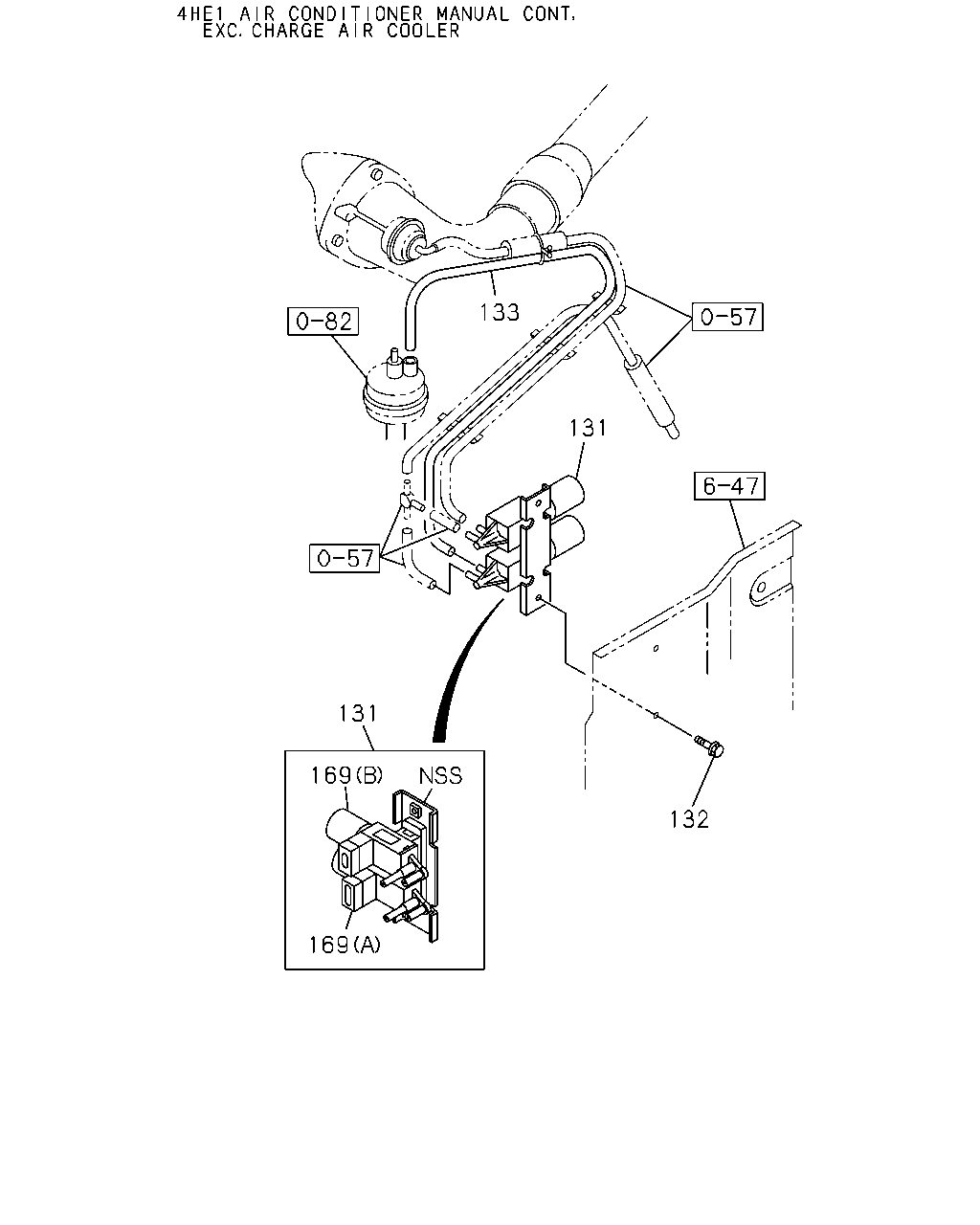

133 131 131 169 132 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97116-759-0	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0502-				●	●	●
131	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE>	8-97216-149-0	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE>	8-97216-149-0	01	1	0502-							●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51)	8-97030-324-1	01	1	0211-0501				●		●
131	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) VOLTAGE 24V<7AE>	8-97030-324-1	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0502-				●	●	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE>	8-97030-324-1	01	1	0502-							●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2)	8-97184-200-2	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE>	8-97184-200-2	01	1	0502-0509		●	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2)	8-97184-200-2	01	1	0510-		●	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0502-		●	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0305				●		●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0305				●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0306-0312				●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0401-0501	●			●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0502							●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0507		●	●				●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512				●	●	●
132	03.680 BOLT; VSV BRKT 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512							●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-				●	●	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-							●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0306-0501				●		●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507				●	●	●
133	03.675 HOSE; RUBBER,VSV TO INJ PUMP AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 L=490 SERVICED BY L=3000	0-04730-300-0	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (D)	8-97216-168-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE> (D)	8-97216-168-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97216-169-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE> (C)	8-97216-169-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) (A)	8-97012-878-0	01	1	0211-0501				●		●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) VOLTAGE 24V<7AE> (A)	8-97012-878-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	0502-				●	●	●
169	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> (A)	8-97012-878-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0211-0501				●		●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0502-				●	●	●
169	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> (B)	8-97021-705-1	01	1	0502-							●

3 32 2 14 14 349 15 131 1 15 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97023-544-2	01	1	0211-0501	●
1	03.670 VALVE; VAC SW,EGR VOLTAGE 24V<7AE>	8-97023-544-2	01	1	0502-		●	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 03.130	8-94384-336-0	01	1	0211-0501	●
1	03.670 VALVE; VAC SW,EGR EXC. VOLTAGE 24V<7AE> 03.130	8-94384-336-0	01	1	0502-		●	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)	8-97192-228-0	01	1	0211-0501	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97305-209-1	01	1	0211-0501	●
2	03.671 BRACKET; VSV	8-97305-209-1	01	1	0502-0509		●	●
2	03.671 BRACKET; VSV EXC. EURO2 SPECIFICATION(NT2)	8-97305-209-1	01	1	0510-		●	●
2	03.671 BRACKET; VSV EURO2 SPECIFICATION(NT2)	8-97192-228-0	01	1	0510-		●	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	0211-0501	●
3	03.670 BOLT; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	05	1	0502-0509		●	●
3	03.670 BOLT; VSV EXC. EURO2 SPECIFICATION(NT2) 09.655 M5X8 W/LK WASHER	9-03910-508-0	05	1	0510-0604		●	●
3	03.670 BOLT; VSV EXC. EURO2 SPECIFICATION(NT2) 03.671 M5X8 W/LK WASHER	0-36220-508-0	05	1	0605-		●	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	0211-0501	●
3	03.670 BOLT; VSV EURO2 SPECIFICATION(NT2) 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	0510-0604		●	●
3	03.670 BOLT; VSV EURO2 SPECIFICATION(NT2) 03.671 M5X8 W/LK WASHER	0-36220-508-0	03	1	0605-		●	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	0211-0501	●
14	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	0502-		●	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97023-544-2	01	1	0211-0501	●
14	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> (B)	8-97023-544-2	01	1	0502-0509		●	●
14	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97023-544-2	01	1	0510-		●	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0211-0501	●
14	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0502-		●	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 03.130 (B)	8-94384-336-0	01	1	0211-0501	●
14	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> 03.130 (B)	8-94384-336-0	01	1	0502-		●	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	0211-0501	●
15	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	0502-		●	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97184-183-0	01	1	0211-0501	●
15	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> (B)	8-97184-183-0	01	1	0502-0509		●	●
15	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97184-183-0	01	1	0510-0803		●	●
15	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-98116-259-0	01	1	0804-		●	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0211-0501	●
15	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0502-		●	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (B)	8-97137-812-0	01	1	0211-0501	●
15	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> (B)	8-97137-812-0	01	1	0502-0805		●	●
15	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> (B)	8-98116-258-0	01	1	0806-		●	●
32	03.680 CLIP; EGR HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 03.162	8-94253-984-0	01	1	0211-0501	●
32	03.680 CLIP; EGR HOSE 03.162	8-94253-984-0	01	1	0502-0509		●	●
32	03.680 CLIP; EGR HOSE EXC. EURO2 SPECIFICATION(NT2) 03.162	8-94253-984-0	01	1	0510-		●	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97116-759-0	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0502-				●	●	●
131	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE>	8-97216-149-0	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE>	8-97216-149-0	01	1	0502-							●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51)	8-97030-324-1	01	1	0211-0501				●		●
131	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) VOLTAGE 24V<7AE>	8-97030-324-1	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0502-				●	●	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE>	8-97030-324-1	01	1	0502-							●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2)	8-97184-200-2	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE>	8-97184-200-2	01	1	0502-0509		●	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2)	8-97184-200-2	01	1	0510-		●	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0502-		●	●
182	03.670 BOLT; VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0501	●
182	03.670 BOLT; VLV 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0502-0509		●	●
182	03.670 BOLT; VLV EXC. EURO2 SPECIFICATION(NT2) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0510-0512		●	●
182	03.670 BOLT; VLV EXC. EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-		●	●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
349	03.671 BOLT; CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●	●
349	03.671 BOLT; CASE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●

131 169 131 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),TURBOCHARGER(K51)	8-97116-759-0	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0502-				●	●	●
131	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE>	8-97216-149-0	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE>	8-97216-149-0	01	1	0502-							●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51)	8-97030-324-1	01	1	0211-0501				●		●
131	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) VOLTAGE 24V<7AE>	8-97030-324-1	01	1	0211-0501				●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL>	8-97030-324-1	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-97030-324-1	01	1	0502-				●	●	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE>	8-97030-324-1	01	1	0502-							●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2)	8-97184-200-2	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE>	8-97184-200-2	01	1	0502-0509		●	●
131	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2)	8-97184-200-2	01	1	0510-		●	●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0211-0501	●
131	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE>	8-97182-889-0	01	1	0502-		●	●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0305				●		●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0211-0305				●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0306-0312				●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0401-0501	●			●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0502							●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0502-0507		●	●				●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512				●	●	●
132	03.680 BOLT; VSV BRKT 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512							●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-				●	●	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-							●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0306-0501				●		●
132	03.680 BOLT; VSV BRKT EXHAUST BRAKE<NF8> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507				●	●	●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (D)	8-97216-168-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE> (D)	8-97216-168-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) EXC. VOLTAGE 24V<7AE> (C)	8-97216-169-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING EXC. VOLTAGE 24V<7AE> (C)	8-97216-169-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) (A)	8-97012-878-0	01	1	0211-0501				●		●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) VOLTAGE 24V<7AE> (A)	8-97012-878-0	01	1	0211-0501				●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A)	8-97012-878-0	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)	8-97012-878-0	01	1	0502-				●	●	●
169	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> (A)	8-97012-878-0	01	1	0502-							●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0211-0501				●		●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (B)	8-97021-705-1	01	1	0211-0501	●
169	03.670 VALVE; VAC SWITCHING EXHAUST BRAKE<NF8> (B)	8-97021-705-1	01	1	0502-				●	●	●
169	03.670 VALVE; VAC SWITCHING VOLTAGE 24V<7AE> (B)	8-97021-705-1	01	1	0502-							●

3 2 3 14 1 349 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE>	8-97023-544-2	01	1	0211-0501	●
1	03.670 VALVE; VAC SW,EGR VOLTAGE 24V<7AE>	8-97023-544-2	01	1	0502-		●	●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 03.130	8-94384-336-0	01	1	0211-0501	●
1	03.670 VALVE; VAC SW,EGR EXC. VOLTAGE 24V<7AE> 03.130	8-94384-336-0	01	1	0502-		●	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION(NT2)	8-97192-228-0	01	1	0211-0501	●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2)	8-97305-209-1	01	1	0211-0501	●
2	03.671 BRACKET; VSV	8-97305-209-1	01	1	0502-0509		●	●
2	03.671 BRACKET; VSV EXC. EURO2 SPECIFICATION(NT2)	8-97305-209-1	01	1	0510-		●	●
2	03.671 BRACKET; VSV EURO2 SPECIFICATION(NT2)	8-97192-228-0	01	1	0510-		●	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	0211-0501	●
3	03.670 BOLT; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	05	1	0502-0509		●	●
3	03.670 BOLT; VSV EXC. EURO2 SPECIFICATION(NT2) 09.655 M5X8 W/LK WASHER	9-03910-508-0	05	1	0510-0604		●	●
3	03.670 BOLT; VSV EXC. EURO2 SPECIFICATION(NT2) 03.671 M5X8 W/LK WASHER	0-36220-508-0	05	1	0605-		●	●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION(NT2) 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	0211-0501	●
3	03.670 BOLT; VSV EURO2 SPECIFICATION(NT2) 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	0510-0604		●	●
3	03.670 BOLT; VSV EURO2 SPECIFICATION(NT2) 03.671 M5X8 W/LK WASHER	0-36220-508-0	03	1	0605-		●	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	0211-0501	●
14	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	0502-		●	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97023-544-2	01	1	0211-0501	●
14	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> (B)	8-97023-544-2	01	1	0502-0509		●	●
14	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97023-544-2	01	1	0510-		●	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0211-0501	●
14	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0502-		●	●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 03.130 (B)	8-94384-336-0	01	1	0211-0501	●
14	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> 03.130 (B)	8-94384-336-0	01	1	0502-		●	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	0211-0501	●
15	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> (A)	8-97023-543-2	01	1	0502-		●	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97184-183-0	01	1	0211-0501	●
15	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> (B)	8-97184-183-0	01	1	0502-0509		●	●
15	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-97184-183-0	01	1	0510-0803		●	●
15	03.670 VALVE; VAC SW VOLTAGE 24V<7AE> EXC. EURO2 SPECIFICATION(NT2) (B)	8-98116-259-0	01	1	0804-		●	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0211-0501	●
15	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> (A)	8-94384-335-0	01	1	0502-		●	●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (B)	8-97137-812-0	01	1	0211-0501	●
15	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> (B)	8-97137-812-0	01	1	0502-0805		●	●
15	03.670 VALVE; VAC SW EXC. VOLTAGE 24V<7AE> (B)	8-98116-258-0	01	1	0806-		●	●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
349	03.671 BOLT; CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●	●
349	03.671 BOLT; CASE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
