Sayfa 0-52A - Isuzu EPC

0-52A — OIL AND VACUUM PIPING; ENGINE (#22585) — 306 parça

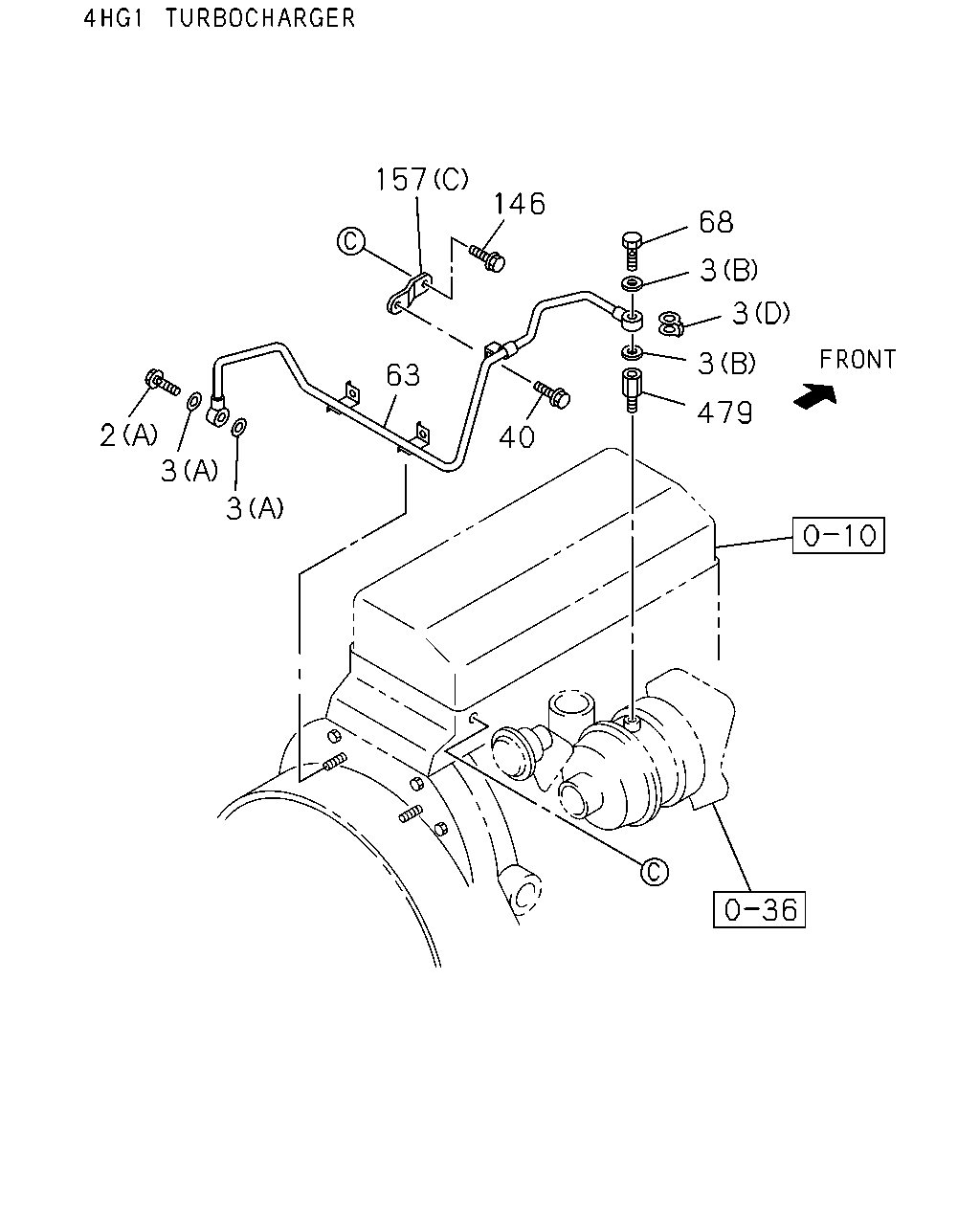

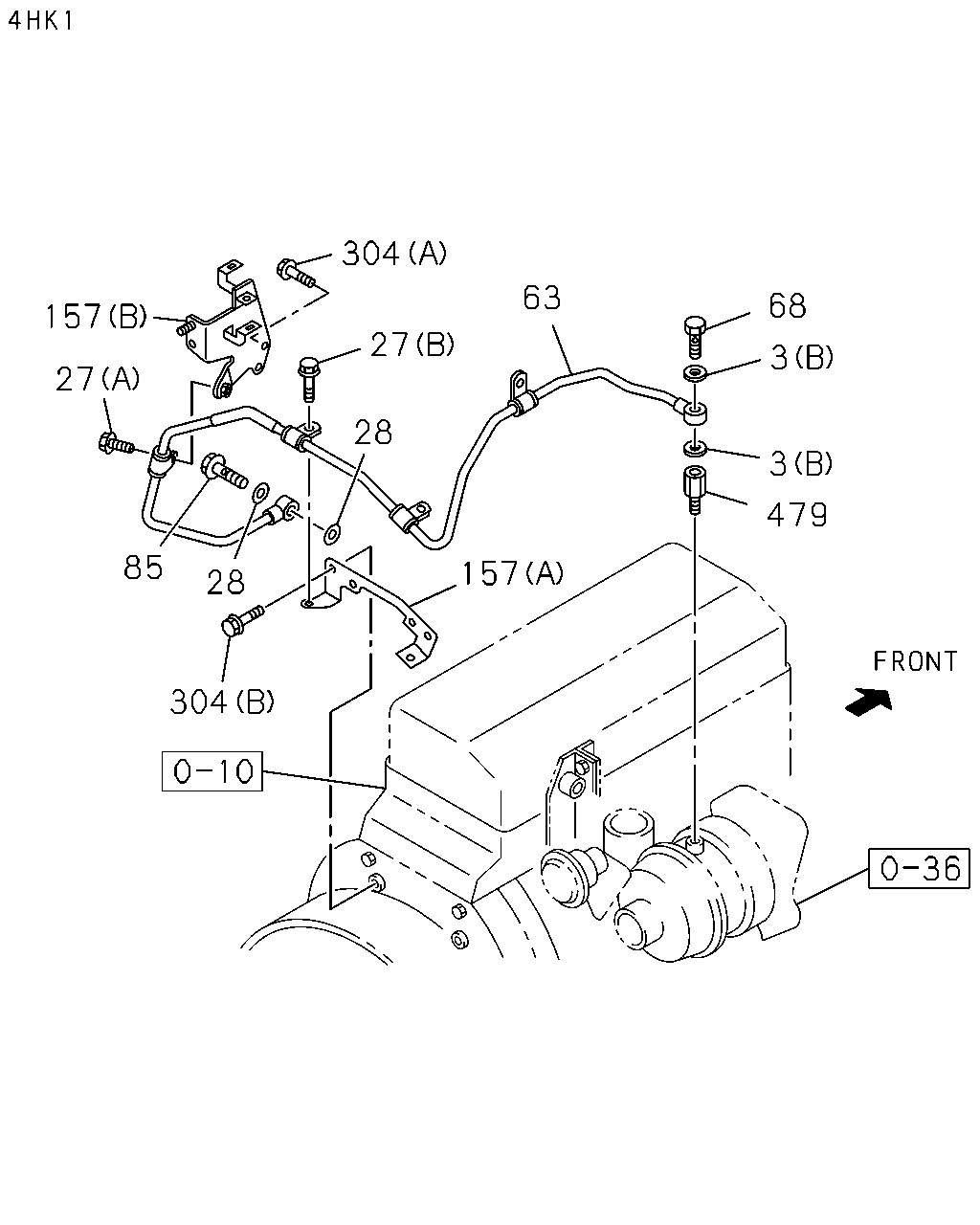

304 68 3 157 3 63 27 479 40 68 1 3 63 3 3 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.519 PIPE; OIL,INJ PUMP TO C/BL TURBOCHARGER(K51)	8-97200-615-2	01	1	0211-0501	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-4	01	1	0502-		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. TURBOCHARGER(K51)	8-97093-547-1	01	1	0211-0501	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. ENGINE POWER N-SPEC(7QV)	8-97093-547-1	01	1	0211-0501			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	0502-0505	●		●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	0506-	●		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97314-008-0	01	1	0211-0501					●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97314-008-0	01	1	0502-0607						●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-98053-156-0	01	1	0608-						●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-97074-790-2	01	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0502-0506		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0606		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0607-1101		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0502-	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0502-0506		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0507-		●				●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●		●		●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506						●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512						●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0606						●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0607-						●	●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 (A) M8X35 FLANGE	0-28080-835-0	01	1	0211-0501					●
40	01.531 BOLT; OIL PIPE TURBOCHARGER(K51) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0306	●
40	01.531 BOLT; OIL PIPE TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0307-0501	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
40	01.531 BOLT; OIL PIPE CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE	0-28181-016-0	02	1	0211-0501					●
40	01.531 BOLT; OIL PIPE 03.604 M10X16 FLANGE	0-28181-016-0	02	1	0502-0512						●	●
40	01.531 BOLT; OIL PIPE 00.029 M10X16 FLANGE	0-28151-016-0	02	1	0601-						●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97349-474-0	01	1	0211-0311	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97372-936-0	01	1	0312-0501	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0502-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97214-394-0	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0502-0506						●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NT3)	8-97214-394-0	01	1	0507-						●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97229-042-0	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97260-199-1	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97260-199-1	01	1	0507-1103							●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97260-199-1	01	1	1104-							●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER TURBOCHARGER(K51) M12X28 FLANGE	8-97166-518-0	01	1	0211-0501	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER CHARGE AIR COOLER<6PL> M12X28 FLANGE	8-97166-518-0	01	1	0211-0501					●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0502-0506		●				●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0507-0606		●				●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	0607-		●				●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL> M10X26	8-97081-817-0	01	1	0211-0501					●
157	01.519 BRACKET; OIL PIPE TURBOCHARGER(K51) (C)	8-97181-586-0	01	1	0211-0501	●
157	01.519 BRACKET; OIL PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (C)	8-97181-586-0	01	1	0211-0501					●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0502-0506		●				●	●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0507-		●
157	01.519 BRACKET; OIL PIPE EXC. EURO3 SPECIFICATION(NT3) (C)	8-97181-586-0	01	1	0507-						●	●
304	01.540 BOLT; BRKT,OIL PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501					●
304	01.540 BOLT; BRKT,OIL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506						●	●
304	01.540 BOLT; BRKT,OIL PIPE EXC. EURO3 SPECIFICATION(NT3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512						●	●
304	01.540 BOLT; BRKT,OIL PIPE EXC. EURO3 SPECIFICATION(NT3) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-						●	●
479	01.531 ADAPTER TURBOCHARGER(K51) 01.800	8-94436-891-0	01	1	0211-0501	●
479	01.531 ADAPTER CHARGE AIR COOLER<6PL> 01.800	8-94436-891-0	01	1	0211-0501					●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0502-0506		●				●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0507-0606		●				●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0607-		●				●	●

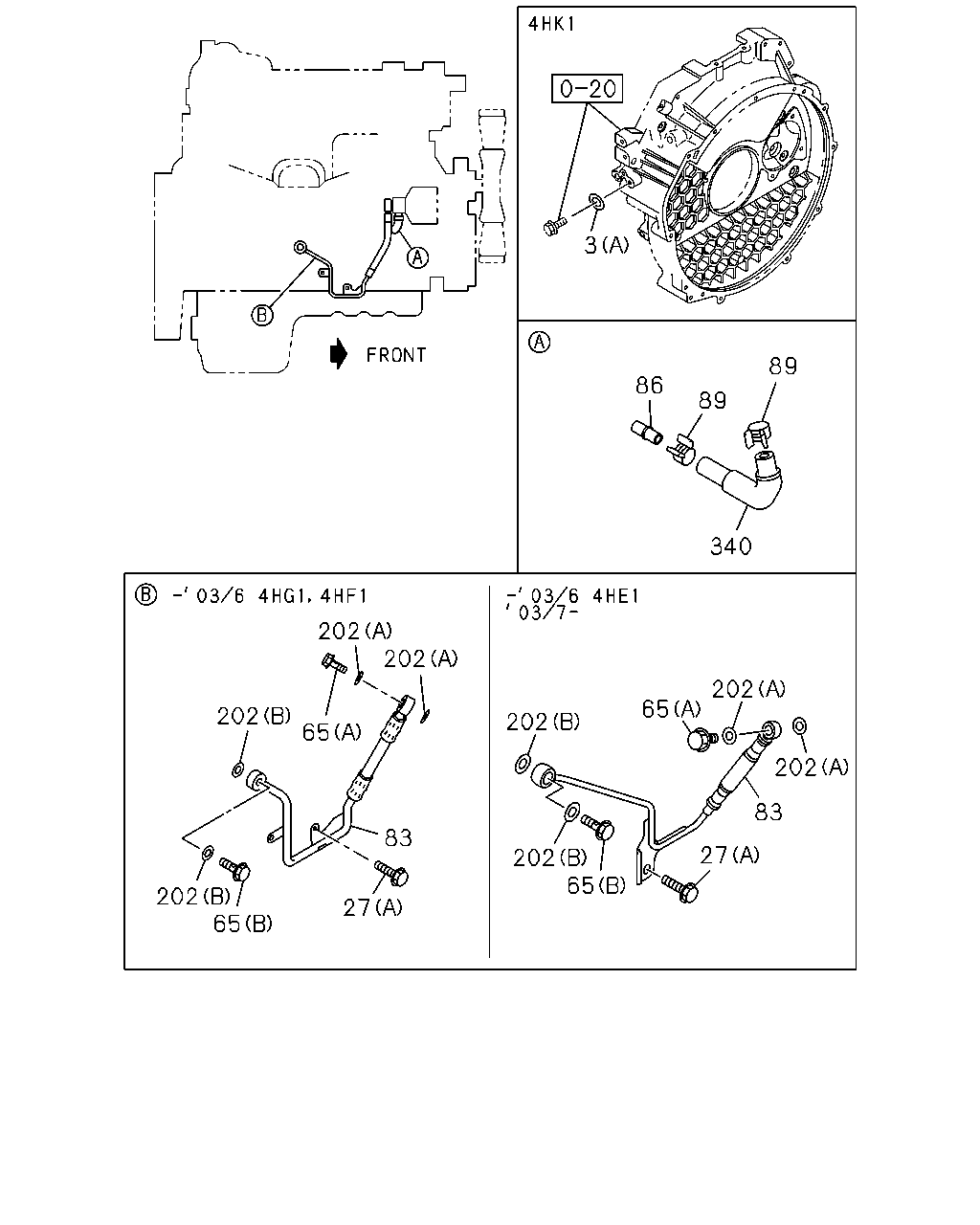

3 89 86 89 340 202 202 202 65 202 202 65 202 83 83 27 202 65 202 65 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0502-0506		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0606		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0607-1101		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0502-	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0502-0506		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0507-		●				●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●		●		●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506						●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512						●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0606						●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0607-						●	●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 (A) M8X35 FLANGE	0-28080-835-0	01	1	0211-0501					●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0211-0501	●		●		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0502-0506	●	●	●	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0507-0606	●	●	●	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0607-0805	●	●	●	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	0806-	●	●	●	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0211-0501	●		●		●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0502-0506	●	●	●	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0507-0606	●	●	●	●		●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0607-	●	●	●	●		●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-670-0	01	1	0211-0306	●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0211-0306					●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0307-0501	●		●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0502-0506	●	●	●	●		●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0507-0606	●	●	●	●		●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0607-	●	●	●	●		●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0211-0501	●		●		●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0502-0506	●	●	●	●		●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0507-0606	●	●	●	●		●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0607-	●	●	●	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0211-0501	●		●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0211-0501	●		●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0502-0505	●	●	●	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0502-0505	●	●	●	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0506-0506	●	●	●	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0507-0508	●	●	●	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0507-0508	●	●	●	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0509-0606	●	●	●	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0607-	●	●	●	●		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0607-	●	●	●	●		●	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-0501	●		●		●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0502-0506	●	●	●	●		●	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-0606	●	●	●	●		●	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0607-	●	●	●	●		●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0501	●		●		●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-0506	●	●	●	●		●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-0606	●	●	●	●		●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0607-1312	●	●	●	●		●	●
202	01.531 GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●	●	●		●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0211-0501	●		●		●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0502-0506	●	●	●	●		●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0507-0606	●	●	●	●		●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0607-	●	●	●	●		●	●

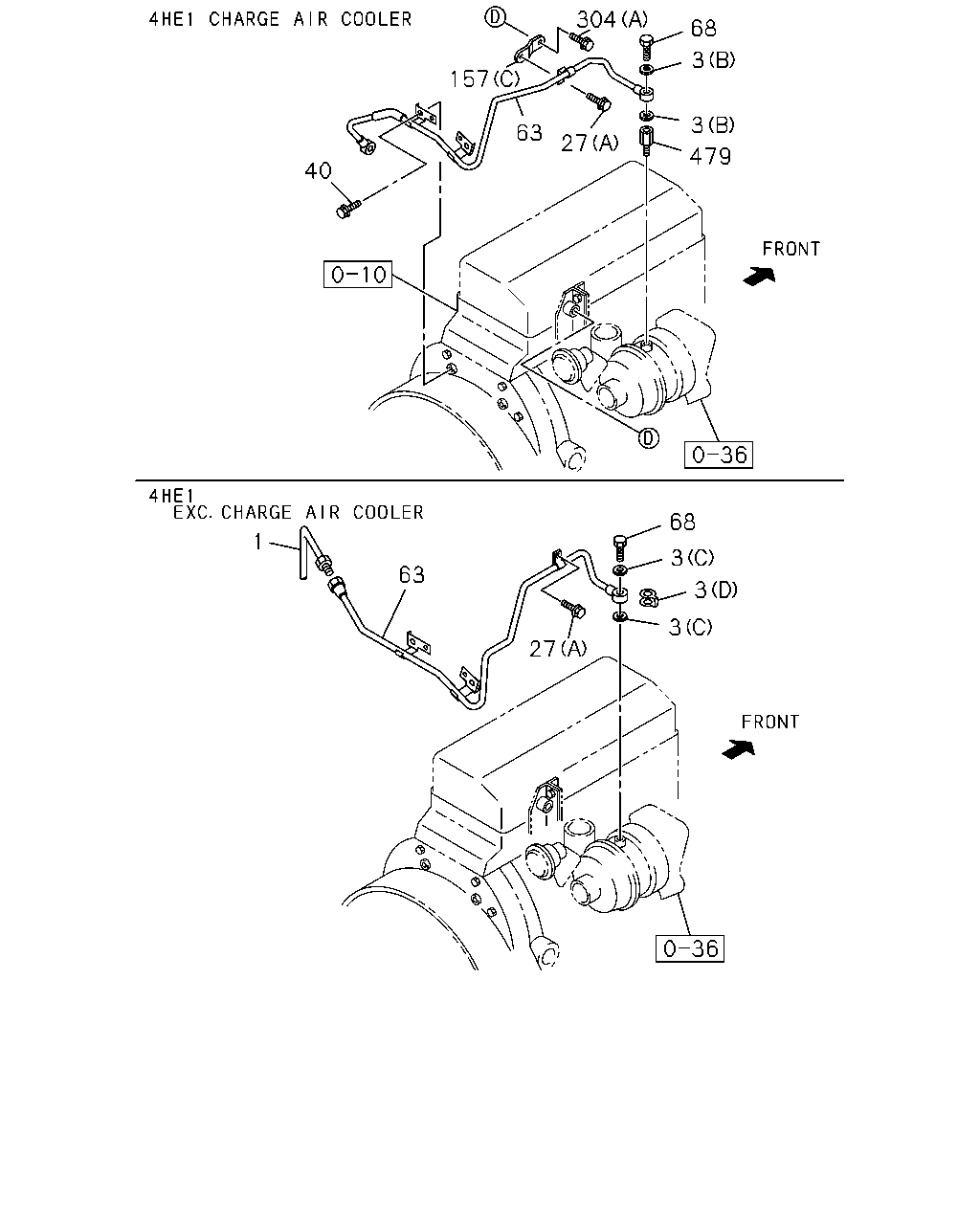

3 3 63 3 3 2 2 2 1 3 3 1 3 3 2 63 3 3 3 1 3 3 2 2 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.519 PIPE; OIL,INJ PUMP TO C/BL TURBOCHARGER(K51)	8-97200-615-2	01	1	0211-0501	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-4	01	1	0502-		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. TURBOCHARGER(K51)	8-97093-547-1	01	1	0211-0501	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. ENGINE POWER N-SPEC(7QV)	8-97093-547-1	01	1	0211-0501			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	0502-0505	●		●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	0506-	●		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97314-008-0	01	1	0211-0501					●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97314-008-0	01	1	0502-0607						●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-98053-156-0	01	1	0608-						●	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-97074-790-2	01	1	0211-0501					●
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER(K51) (A) M10X40 FLANGE	8-97182-847-0	01	1	0211-0501	●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE	8-97182-847-0	01	1	0211-0501					●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0502-		●				●	●
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER(K51) 03.280 (B) M10X24	9-09906-205-1	01	1	0211-0501	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0211-0501					●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0502-		●				●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. TURBOCHARGER(K51) (C) M10X21 FLANGE	1-09675-077-0	02	1	0211-0501	●
2	01.531 BOLT; EYE,OIL PIPE EXC. ENGINE POWER N-SPEC(7QV) (C) M10X21 FLANGE	1-09675-077-0	02	1	0211-0501			●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	02	1	0502-0805	●		●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (C) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●		●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> (A) M10X36	1-09675-183-0	01	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0502-0506		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0606		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0607-1101		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0502-	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0502-0506		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0507-		●				●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97349-474-0	01	1	0211-0311	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97372-936-0	01	1	0312-0501	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0502-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97214-394-0	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0502-0506						●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NT3)	8-97214-394-0	01	1	0507-						●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97229-042-0	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97260-199-1	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97260-199-1	01	1	0507-1103							●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97260-199-1	01	1	1104-							●

157 146 68 3 3 3 63 479 2 3 40 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F	G
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER(K51) (A) M10X40 FLANGE	8-97182-847-0	01	1	0211-0501	●
2	01.531 BOLT; EYE,OIL PIPE CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE	8-97182-847-0	01	1	0211-0501				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X40 FLANGE	8-97182-847-0	01	1	0502-		●			●	●
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER(K51) 03.280 (B) M10X24	9-09906-205-1	01	1	0211-0501	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0211-0501				●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0502-		●			●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. TURBOCHARGER(K51) (C) M10X21 FLANGE	1-09675-077-0	02	1	0211-0501	●
2	01.531 BOLT; EYE,OIL PIPE EXC. ENGINE POWER N-SPEC(7QV) (C) M10X21 FLANGE	1-09675-077-0	02	1	0211-0501			●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X21 FLANGE	1-09675-077-0	02	1	0502-0805	●		●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (C) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●		●
2	01.531 BOLT; EYE,OIL PIPE EXC. CHARGE AIR COOLER<6PL> (A) M10X36	1-09675-183-0	01	1	0211-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0502-0506		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0606		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0607-1101		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0502-	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0502-0506		●			●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0507-		●			●	●
40	01.531 BOLT; OIL PIPE TURBOCHARGER(K51) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0306	●
40	01.531 BOLT; OIL PIPE TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0307-0501	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
40	01.531 BOLT; OIL PIPE CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE	0-28181-016-0	02	1	0211-0501				●
40	01.531 BOLT; OIL PIPE 03.604 M10X16 FLANGE	0-28181-016-0	02	1	0502-0512					●	●
40	01.531 BOLT; OIL PIPE 00.029 M10X16 FLANGE	0-28151-016-0	02	1	0601-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97349-474-0	01	1	0211-0311	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97372-936-0	01	1	0312-0501	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0502-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97214-394-0	01	1	0211-0501				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0502-0506					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NT3)	8-97214-394-0	01	1	0507-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97229-042-0	01	1	0211-0501				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97260-199-1	01	1	0211-0501				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97260-199-1	01	1	0507-1103						●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97260-199-1	01	1	1104-						●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER TURBOCHARGER(K51) M12X28 FLANGE	8-97166-518-0	01	1	0211-0501	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER CHARGE AIR COOLER<6PL> M12X28 FLANGE	8-97166-518-0	01	1	0211-0501				●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0502-0506		●			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0507-0606		●			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	0607-		●			●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL> M10X26	8-97081-817-0	01	1	0211-0501				●
146	01.531 BOLT; BRKT TURBOCHARGER(K51) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0306	●
146	01.531 BOLT; BRKT TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0307-0501	●
146	01.531 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
146	01.531 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
157	01.519 BRACKET; OIL PIPE TURBOCHARGER(K51) (C)	8-97181-586-0	01	1	0211-0501	●
157	01.519 BRACKET; OIL PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (C)	8-97181-586-0	01	1	0211-0501				●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0502-0506		●			●	●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0507-		●
157	01.519 BRACKET; OIL PIPE EXC. EURO3 SPECIFICATION(NT3) (C)	8-97181-586-0	01	1	0507-					●	●
479	01.531 ADAPTER TURBOCHARGER(K51) 01.800	8-94436-891-0	01	1	0211-0501	●
479	01.531 ADAPTER CHARGE AIR COOLER<6PL> 01.800	8-94436-891-0	01	1	0211-0501				●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0502-0506		●			●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0507-0606		●			●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0607-		●			●	●

304 63 68 157 27 3 27 28 3 479 85 157 28 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2	9-09571-412-0	02	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0502-0506		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0606		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0607-1101		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.6	8-97331-137-1	01	1	1102-		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0502-	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (C) ID=10.2 OD=15.2	1-09630-083-0	02	1	0211-0501					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0502-0506		●				●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0507-		●				●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●		●		●
27	01.531 BOLT; OIL PIPE FIX CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506						●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512						●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0606						●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●	●	●		●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0607-						●	●
27	01.531 BOLT; OIL PIPE FIX EXC. CHARGE AIR COOLER<6PL> 03.415 (A) M8X35 FLANGE	0-28080-835-0	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97349-474-0	01	1	0211-0311	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER(K51)	8-97372-936-0	01	1	0312-0501	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0502-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3)	8-97214-394-0	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0502-0506						●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NT3)	8-97214-394-0	01	1	0507-						●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. CHARGE AIR COOLER<6PL>	8-97229-042-0	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97260-199-1	01	1	0211-0501					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97260-199-1	01	1	0507-1103							●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97260-199-1	01	1	1104-							●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER TURBOCHARGER(K51) M12X28 FLANGE	8-97166-518-0	01	1	0211-0501	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER CHARGE AIR COOLER<6PL> M12X28 FLANGE	8-97166-518-0	01	1	0211-0501					●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0502-0506		●				●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0507-0606		●				●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	0607-		●				●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL> M10X26	8-97081-817-0	01	1	0211-0501					●
157	01.519 BRACKET; OIL PIPE TURBOCHARGER(K51) (C)	8-97181-586-0	01	1	0211-0501	●
157	01.519 BRACKET; OIL PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) (C)	8-97181-586-0	01	1	0211-0501					●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0502-0506		●				●	●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0507-		●
157	01.519 BRACKET; OIL PIPE EXC. EURO3 SPECIFICATION(NT3) (C)	8-97181-586-0	01	1	0507-						●	●
304	01.540 BOLT; BRKT,OIL PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION(NT3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0501					●
304	01.540 BOLT; BRKT,OIL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506						●	●
304	01.540 BOLT; BRKT,OIL PIPE EXC. EURO3 SPECIFICATION(NT3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512						●	●
304	01.540 BOLT; BRKT,OIL PIPE EXC. EURO3 SPECIFICATION(NT3) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-						●	●
479	01.531 ADAPTER TURBOCHARGER(K51) 01.800	8-94436-891-0	01	1	0211-0501	●
479	01.531 ADAPTER CHARGE AIR COOLER<6PL> 01.800	8-94436-891-0	01	1	0211-0501					●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0502-0506		●				●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0507-0606		●				●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0607-		●				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
